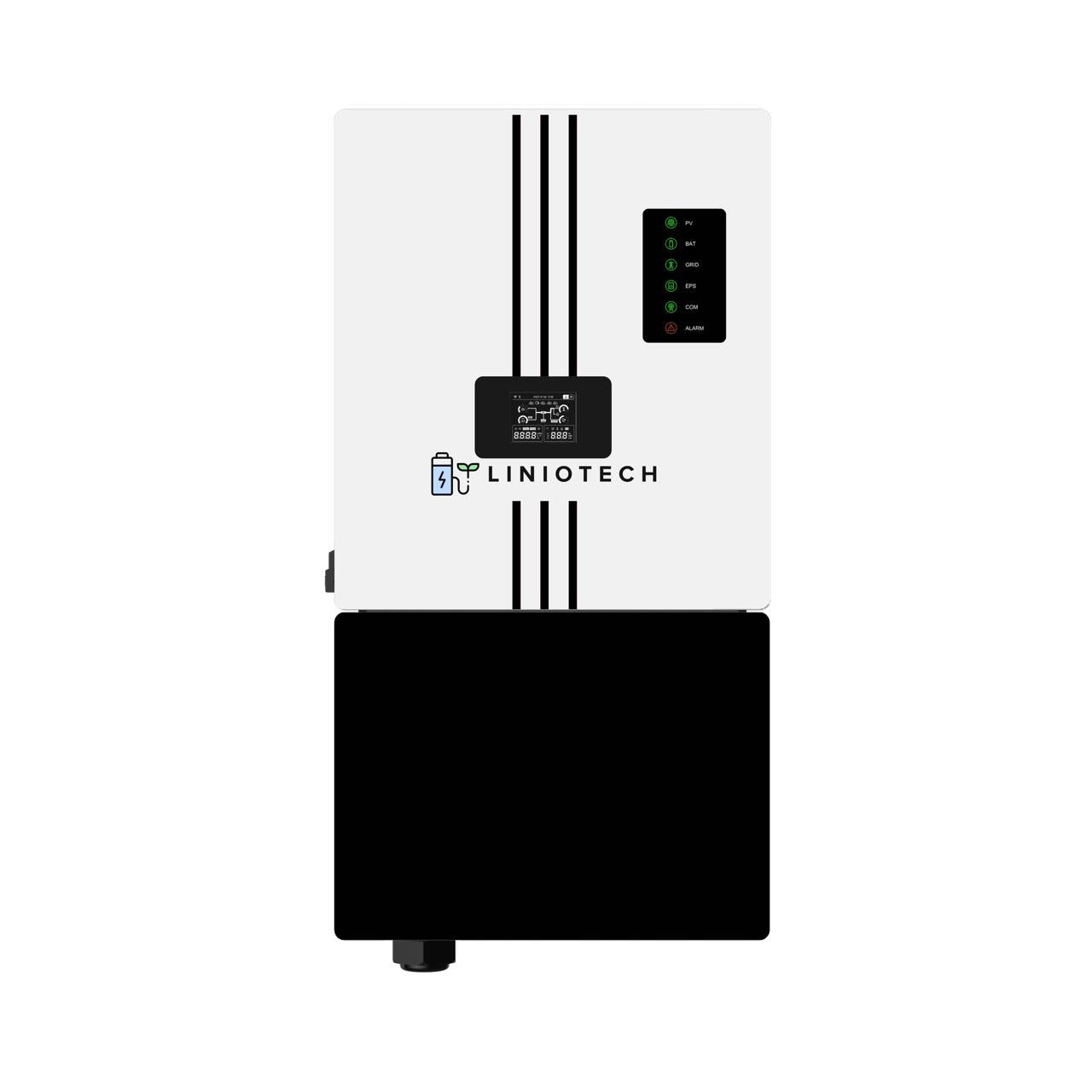

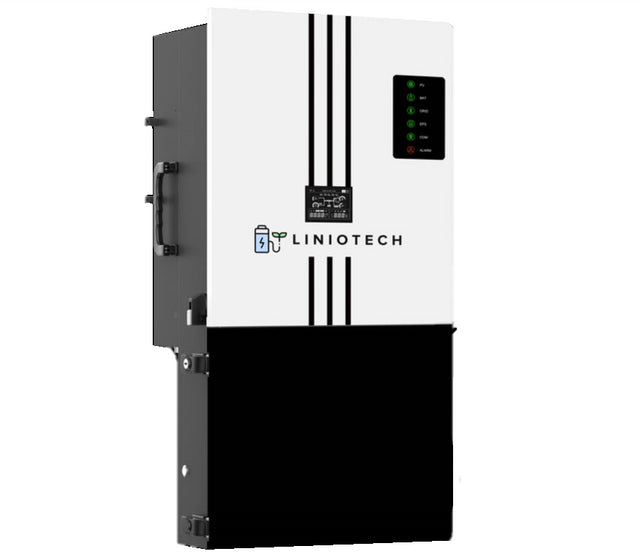

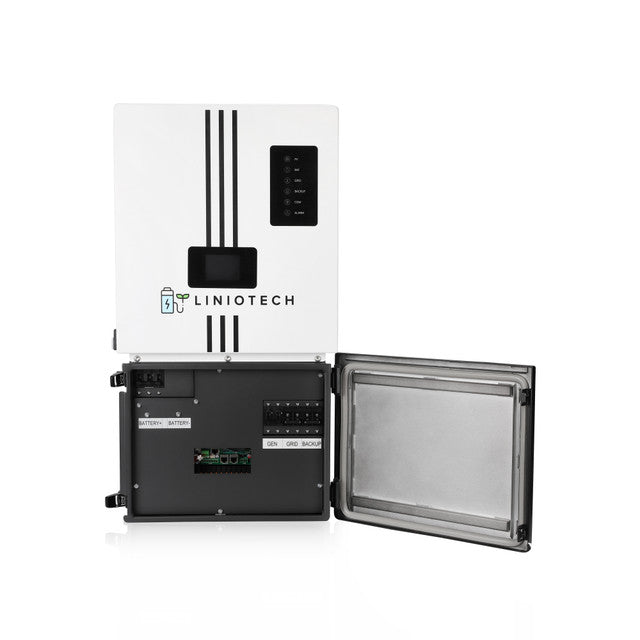

Liniotech 15KVA Hybrid Inverter All in One solar Inverter 15kW PV Input 11.4kW AC Output 200A Pass Through

Name: Liniotech 15KVA Hybrid Inverter All in One solar Inverter 15kW PV Input 11.4kW AC Output 200A Pass Through
Brand: Liniotech
SKU: LNT10K0228UL200A
Price: 3899.0 USD
Availability: InStock

BY: Liniotech

SKU: LNT10K0228UL200A

| Availability: In stock

$3,899.00

Product Highlights

Built for home backup and off-grid power
11,400 W output to run high-demand appliances and equipment
120/240 V power supports household appliances and heavy-duty equipment
Supports up to 15,000 W solar input for faster daytime recharging

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Liniotech Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Liniotech 15KVA Hybrid Inverter All-in-One Solar Inverter 15kW PV Input 11.4kW AC Output 200A Pass Through

The Liniotech 15KVA Hybrid Inverter All-in-One is a high-performance solar inverter designed for seamless integration of solar, grid, and battery storage. With 15kW PV input capacity, 11.4kW AC output, and a robust 200A pass-through current, it ensures reliable energy management for residential and commercial applications. Featuring smart cooling, wide input ranges, and multiple protection mechanisms, this inverter provides stable, efficient, and safe energy conversion.

Liniotech 15KVA Hybrid Inverter All-in-One Features

High Efficiency

Delivers 96.5% CEC efficiency for maximum energy conversion.

Large PV Input Capacity

Supports up to 15,000W PV input with wide MPPT operating voltage range (70V–540V).

Strong AC Output

Provides 11.4kW nominal AC output at 120/240V split phase or 120/208V 2/3 phase.

Battery Compatibility

Compatible with Lithium-ion and Lead-acid batteries with a 40–64V range.

High Charge/Discharge Capacity

Supports up to 200A charge/discharge current and 10kW battery power.

Integrated Protection Systems

Built-in DC switch, anti-islanding, overcurrent protection, surge arresters, and leakage detection for safety.

Smart Cooling & Compact Design

Compact size with smart cooling technology for reliable operation in varied climates.

Liniotech 15KVA Hybrid Inverter Applications

Residential solar + storage systems – optimize energy use and backup power
Commercial installations – reduce peak demand and manage energy costs
Hybrid setups – integrate PV, grid, and battery seamlessly
Off-grid energy independence – stable power supply for remote locations

What's Included

Everything you need is included with your product.

Liniotech 15KVA Hybrid Inverter All-in-One Solar Inverter 15kW PV Input 11.4kW AC Output 200A Pass Through

User Manual

Warranty

10-Year Manufacturer Warranty

Liniotech 15KVA Hybrid Inverter All-in-One Specifications

Efficiency

Specifications	Details
Max. Efficiency (PV to AC)	96.50%
Max. Efficiency (BAT to AC)	94.5%

Input (PV)

Specifications	Details
Max. PV Input Power	15,000W
Max. PV Voltage	600V
Start-up Voltage	90V
MPPT Operating Voltage Range	70V-540V
Max. Input Current per MPPT	30A/22A/22A
Max Short Current per MPPT	40A/30A/30A
No. of PV Strings per MPPT	2/2/2
No. of MPPT	3

Input/Output (BAT)

Specifications	Details
Battery Type	Lithium-ion/Lead-acid
Nominal battery voltage	48V
Battery voltage range	40V-64V
Max. charge/discharge current	210A/210A
Max. charge/discharge power	11,400W/11,400W

Output (Grid)

Specifications	Details
Nominal AC Output Power	10,000W
Max. AC Output Apparent Power	11,400VA
Nominal AC Output Current	11,400W
Max. AC Output Current	41.7A/47.5A
Max. Grid Passthrough Current	47.5A
Nominal Grid Voltage	120/240V (Split phase) , 120/208V (2/3 phase)
Nominal Grid Frequency	50Hz/60Hz
Grid Frequency Range	45Hz-55Hz/55Hz-65Hz (Adjustable)
Power Factor	> 0.99 @rated power (Adjustable 0.8 LG - 0.8 LD)
THDI	<3% (Rated Power)

Output (Back up)

Specifications	Details
Nominal Output Power	10,000W
Nominal Output Current	41.7A/47.5A
Peak Output Apparent Power (1s)	20,000VA
Nominal Output Voltage	120/240V (Split phase) / 208V (2/3 phase)
Nominal Output Frequency	50 Hz /60Hz
Transfer Time	＜10ms
THDV	<3% @100% R Load

Protection

Specifications	Details
Protection Category	Class I
DC Switch	Yes
Anti-islanding Protection	Yes
AC Overcurrent Protection	Yes
DC/AC Overvoltage Protection	DC Type II, AC Type III
AC Short Circuit Protection	Stainless steel
DC Reverse connection	Yes
Surge Arrester	DC Type II, AC Type II
Insulation Resistance Detection	Yes
Leakage Current Protection	Yes
AFCI	Yes
RSD	Yes (APsystems Sunspec)
Generator	Yes

General

Specifications	Details
Max. Operation Altitude	2000m
Ingress Protection Degree	IP65/NEMA 3R
Operating Temperature Range	-25~60℃(>45℃ derating)
Relative Humidity	0~100%
Cooling Method	Fan Cooling
Mounting	Wall bracket
*Dimensions (WHD)*	16.531.59.4 inch（420mm800mm240mm）
Weight	40Kg/88Ib
PV Connection Way	Terminals

HMI & COM

Specifications	Details
Display	Wireless & APP + LED , LCD (optional)
Communication Interface	RS485/CAN (for BMS), DRM/RS485 (for meter), RS485 , Optional: WiFi /LAN

Certification

Specifications	Details
Certification	UL1741SB, IEEE1547: 2018, HECO SRD 2.0
Grid	UL 1741/CSA C22.2/UL 1699B
Safety	FCC Part 15 Class B
EMC	10 Years

Frequently-Asked Questions

Can this inverter handle whole-home backup?

Yes, with 11.4kW output and 200A passthrough, it can power most homes and essential appliances.

Is it compatible with lithium and lead-acid batteries?

Yes, it supports both Li-ion and Lead-acid batteries with a 40–64V range.

Does it work off-grid?

Yes, it can be used in grid-tied, hybrid, and off-grid systems for maximum flexibility.
