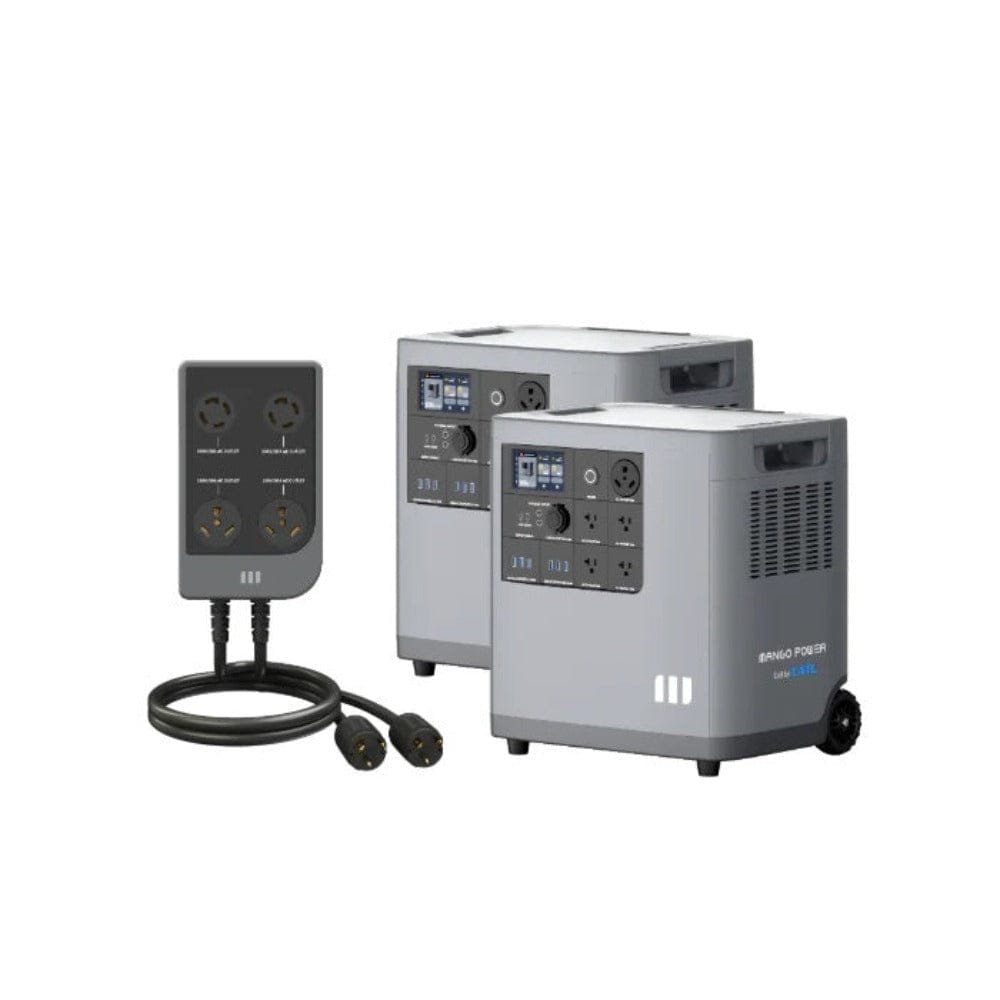

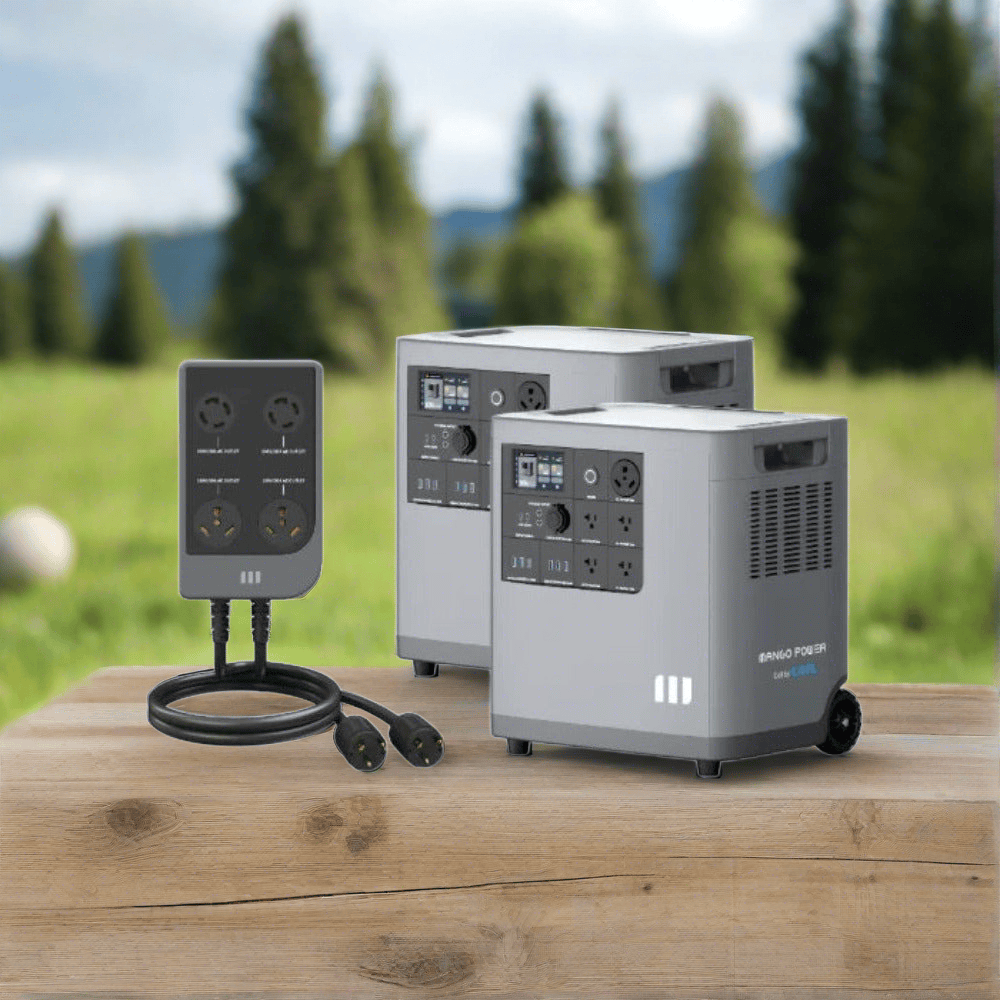

Mango Power 240V Power Kit | 2 x Mango Power E + 1 x mSocket Pro

Mango Power 240V Power Kit Overview

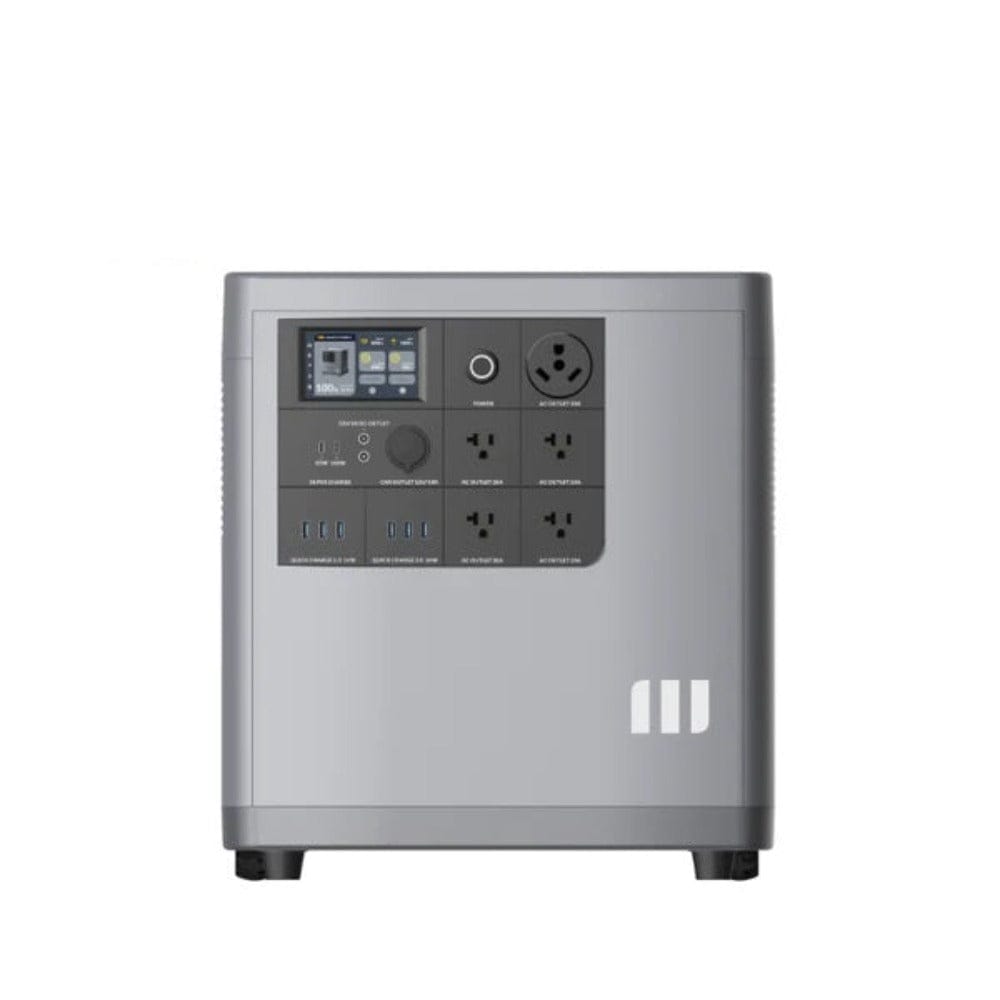

Mango Power E Power Station Features

240V Split-Phase for Heavy-Duty Appliances

Use The Same Cells That Power the World’s Best EVs

The Mango Power E uses the same ultra-durable LFP battery cells as the world's best EVs. These cells charge faster, last longer, and are more reliable than other traditional NCA/NCM battery cells.

Even with up to five years' continuous use, charging, discharging, and recharging constantly, the Power E's best-in-class battery cells will still perform as well as they did when brand new.

Better Environmental Adaption

Warranty

10-YEAR CATL Battery Cell Warranty, 6000 Cycles for battery cells, Over 20 Years Lifespan, 2.5 times longer than others.

Mango Power E Portable Power Station Specifications

• Capacity: 3533Wh
• AC Output: 4 x 20A, 3000W total
• USB-A Output: 6 x QC 3.0 24W
• USB-C Output: 1 x PD 65W + 1 x PD 100W
• Car Power Output: 12V / 10A
• DC5521 Output: 2x 12V / 5A
• Output Ports: 16
• AC RV Port: 30A
• AC Charging Input: Max 3000W
• Solar Charging Input: Max 2000W (60V-150V)
• EV Charging Spot: Adapter needed
• Generator: Support
• Quick Charge 100%: 1.5 hours
• Battery Chemistry: LFP
• Battery Warranty: 10 years
• Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)
• Connection: Wi-Fi. Bluetooth
• Working Temperature: -4°F~113°F
• Trust Score: 4.3
• Net Weight: 100.1 lbs / 45.4kg
• Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

What's In The Box

• 2 x Mango Power E Portable Power Station
• 1 x Mango Power mSocket Pro
• 1 x Solar Input Cable
• 1 x AC Charging Cable
• 1 x Warranty Card
• 1 x User Manual

User Manual

• Mango Power E Portable Power Station Manual
• Mango Power E Portable Power Station Quick Start Guide
• Mango Power mSocket Pro User Manual
• Mango Power E Product System Layouts

User Guide Videos

Frequently-Asked Questions

Is the Mango Power E a certificated safety item?

Mango Power guarantees that the Mango Power E device meets all meets US and International Safety and EMI Standards, and it comes with a five-year warranty.

Is the Mango Power E a waterproof unit?

The Ingress Protection Rating(IP Rating) of the Mango Power E device is IP21. This provides the device with protection against falling water droplets, condensation, and objects that are greater than 1 or 2 inches (12.5mm) in diameter.

How many Mango Power E batteries can be connected to my unit?

You may expand the device's power capacity to 7066Wh by adding one Mango Power E Battery. With the addition of two bundles (Mango Power E + the Mango Power battery), the capacity will reach up to 14kWh.

Give a quick charge on your Mango Power E unit:

The battery percentage could reach 80% in 1 hour with Mango Power E fast charging cable recharging and 100% in 1.5 hours. (30A fast charging cable is needed. Please be noticed that the setting of Max AC Input Current should be set to 30A.)

How do I connect the Mango Power E device to my phone?

The Mango Power App allows you to control your device remotely intelligently and gives you complete peace of mind wherever you are.

First, switch on the Mango Power E device.

Download Mango Power APP, then sign up & log in to your Mango Power account.

You'll enter the Mango Power homepage. Press "Add Device" icon.

The device can be added manually or via Bluetooth scanning.

After adding your Mango Power E device, you'll be prompted to configure the network.

Press OK to enter the network configuration page, then enter your Wi-Fi name & password.

Press "Start Configuration" for the connection to be made.

Once the connection is complete, your device will be successfully paired!

How do I charge the Mango Power E?

There are four input charging methods to choose from:

Grid Charging (3300W Max)

Solar Panel [2000W Max (60V-150V)]

EV Charger (Adapter needed, 3300W Max)

Generator (3000W Max)
