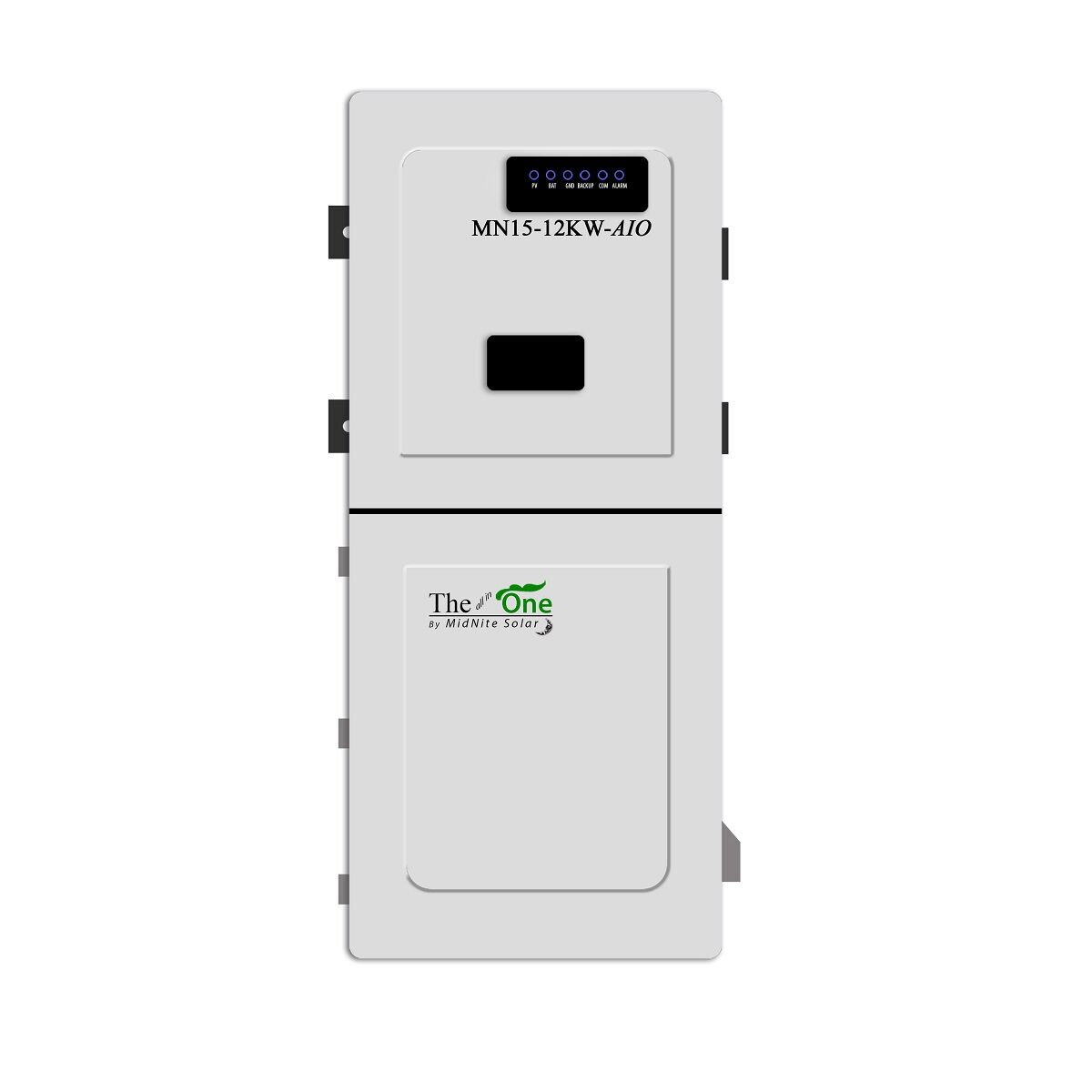

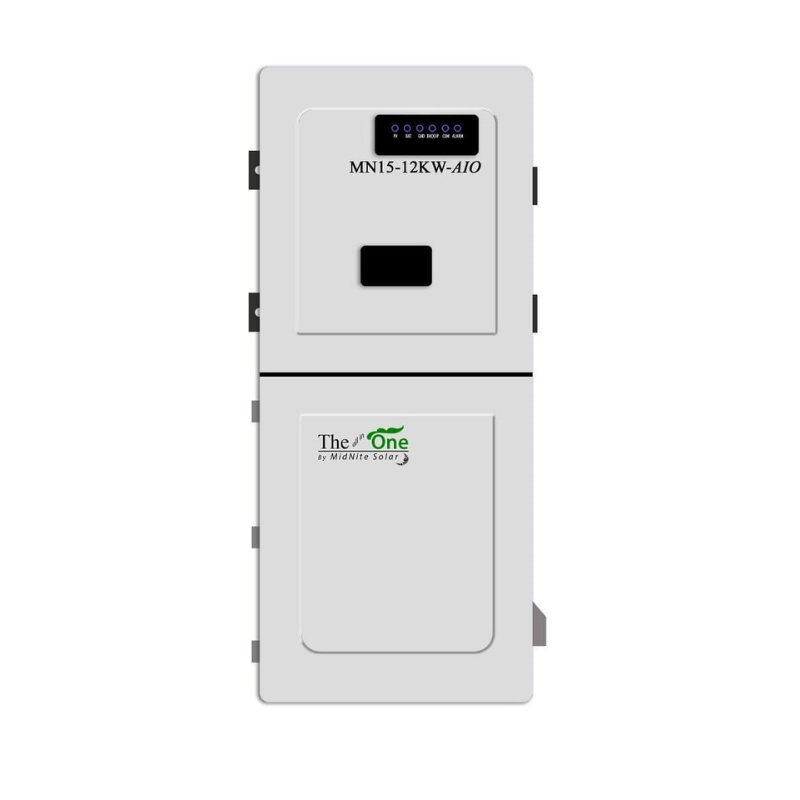

MidNite MN15-12KW-AIO All in One inverter

MidNite Solar MN15-12KW-AIO All-In-One Inverter | 11.4kW Output | 15kW PV Input | 600V MPPT

The MidNite Solar MN15-12KW-AIO All-In-One Inverter is a powerful and innovative energy solution designed to deliver seamless off-grid and grid-tied performance. Engineered by a trusted leader in solar technology, this inverter integrates three MPPT charge controllers and three configurable 120/240VAC outputs, allowing for optimized load management and flexible power distribution.

Unlike standard inverters, the AIO supports 600VDC PV input, exceeding the industry norm of 500VDC, enabling larger and more efficient solar arrays. Its built-in programmable distribution capabilities significantly reduce installation costs by eliminating the need for an external load-shedding panel. Whether for residential, commercial, or industrial applications, this system provides stable, high-capacity energy management with the latest technology.

Key Features and Benefits

• High-Capacity Power Output:
  • 11.4kW continuous AC output (10kW without PV).
  • Up to 20kVA surge capacity for heavy-load applications.
• Advanced Solar Capabilities:
  • 15,000W max PV input power for robust energy generation.
  • Three MPPT charge controllers optimize solar efficiency.
  • Up to 200% oversizing allowed, maximizing power potential.
  • Supports 600VDC PV input, surpassing typical 500V limits.
• Integrated Load Management:
  • Three independent 120/240VAC outputs eliminate the need for an external programmable distribution box.

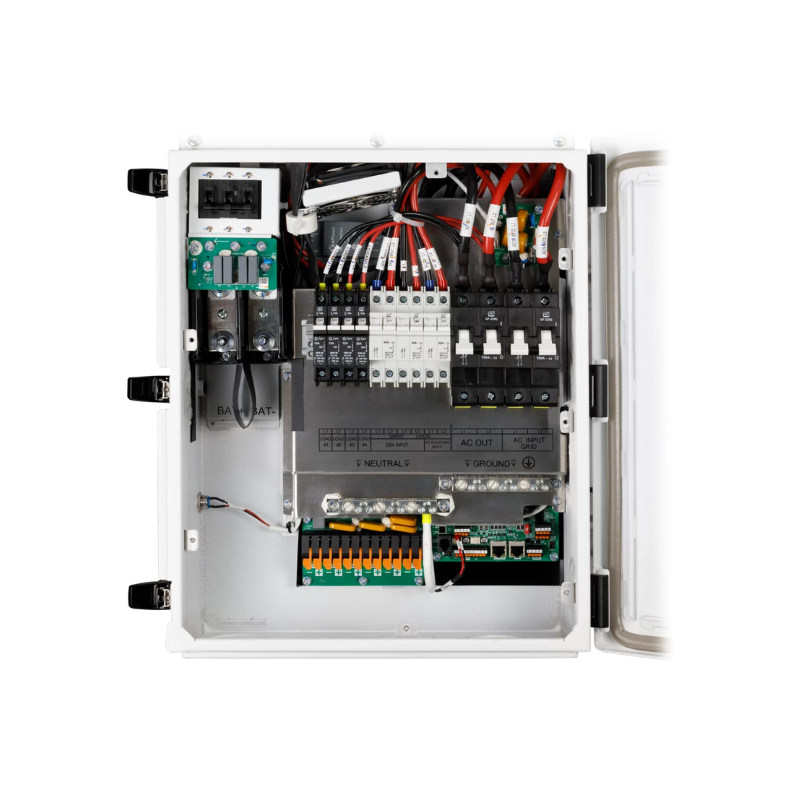

  • Programmable 30A, 50A & 60A 120/240VAC branch circuit breakers for flexible load shedding and generator integration.
• Smart Monitoring & Remote Access:
  • Wireless & app-based control for real-time system performance tracking.
  • Built-in display for easy local monitoring.
  • Supports remote configuration and firmware upgrades.
• Reliable Grid & Backup Power Management:
  • UL1741SB-certified for grid-tied, off-grid, and self-consumption modes.
  • 100A AC pass-through with NEC-compliant input and output breakers.
  • Seamless backup transition (<10ms) for uninterrupted power.
• Battery & Generator Compatibility:
  • Works with 48V lithium-ion, lead-acid, or other battery types.
  • 210A max charge/discharge current ensures fast and efficient battery charging.
  • Supports standby generators for whole-home backup power.
• Industry-Leading Safety Features:
  • Arc fault, ground fault, and rapid shutdown protection included.
  • Built-in DC Type II and AC Type III surge arresters.
  • Leakage current protection, insulation resistance detection, and AFCI compliance.
• Durable & Weather-Resistant Construction:
  • IP65/NEMA 3R-rated enclosure for outdoor installation.
  • Operates in extreme temperatures from -25°C to 60°C.

Technical Specifications

• Max Efficiency (PV to AC): 98.0%
• Max Efficiency (Battery to AC): 94.5%
• MPPT Voltage Range: 70V–550V
• Battery Voltage Range: 40V–64V
• Nominal Output Voltage: 120/240V (split-phase) / 208V (three-phase)
• Nominal Output Frequency: 50Hz/60Hz
• Transfer Time: <10ms
• Ingress Protection: IP65 (Outdoor Rated)
• Cooling Method: Fan Cooling
• Mounting: Wall Bracket
• Dimensions: 16.5” W x 38.3” H x 10.27” D
• Weight: 98 lbs

Why Choose the MidNite Solar MN15-12KW-AIO Inverter?

• High-Performance Solar & Battery Integration – Supports high-voltage PV arrays and flexible battery options.
• Seamless Backup Power – Provides instant power switching for grid outages and off-grid applications.
• Advanced Load Control & Smart Monitoring – Eliminates extra equipment, reducing costs and improving system efficiency.
• Industry-Certified & Compliant – UL1741SB, IEEE 1547, and HECO SRD 2.0 approved.
• Engineered for Long-Term Reliability – Built with premium components for efficient and uninterrupted power delivery.

The MidNite Solar MN15-12KW-AIO is the ultimate all-in-one inverter system, combining high-power output, intelligent load management, and advanced safety features. Whether for residential solar, commercial energy management, or off-grid applications, this inverter offers unmatched performance and scalability.

Order Now and Upgrade to a Smarter, More Reliable Energy Solution
