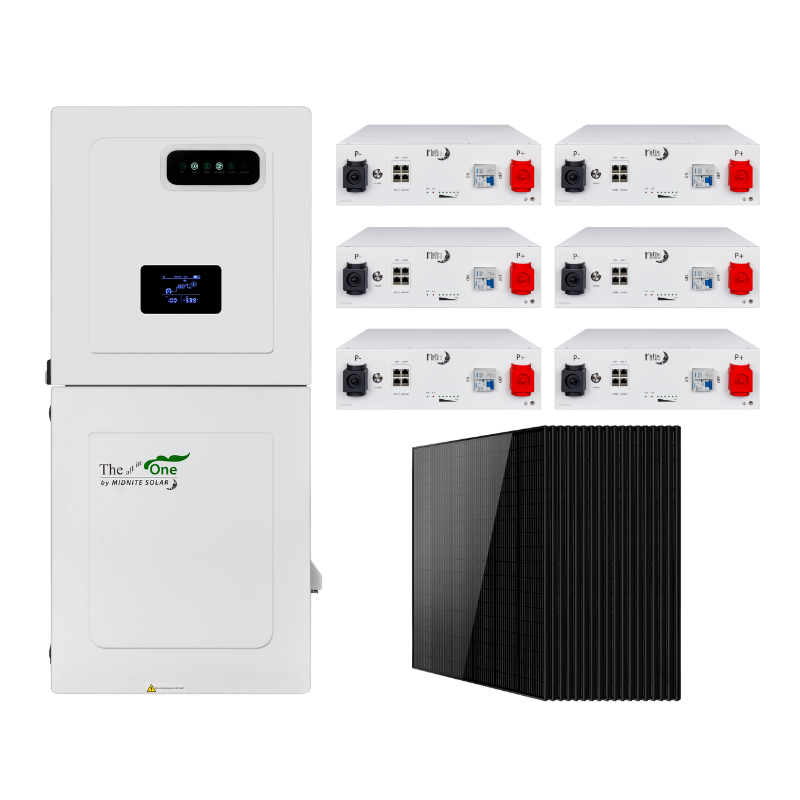

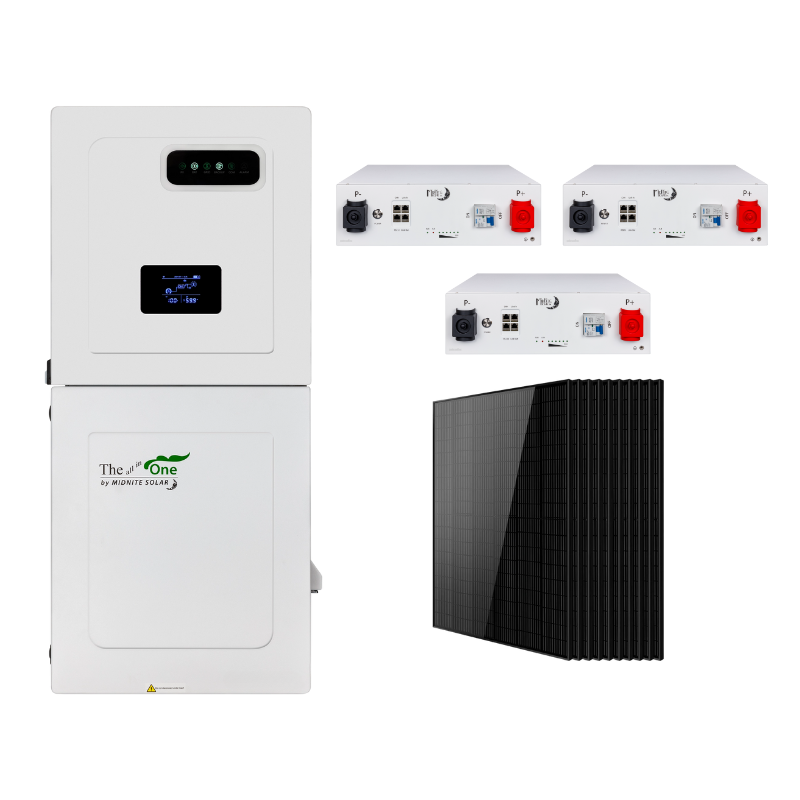

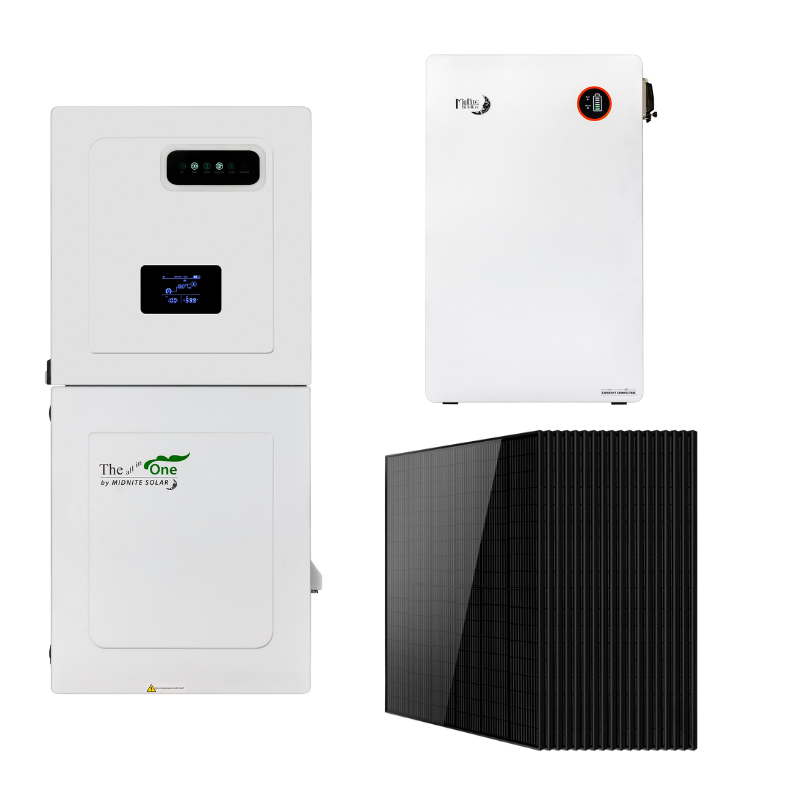

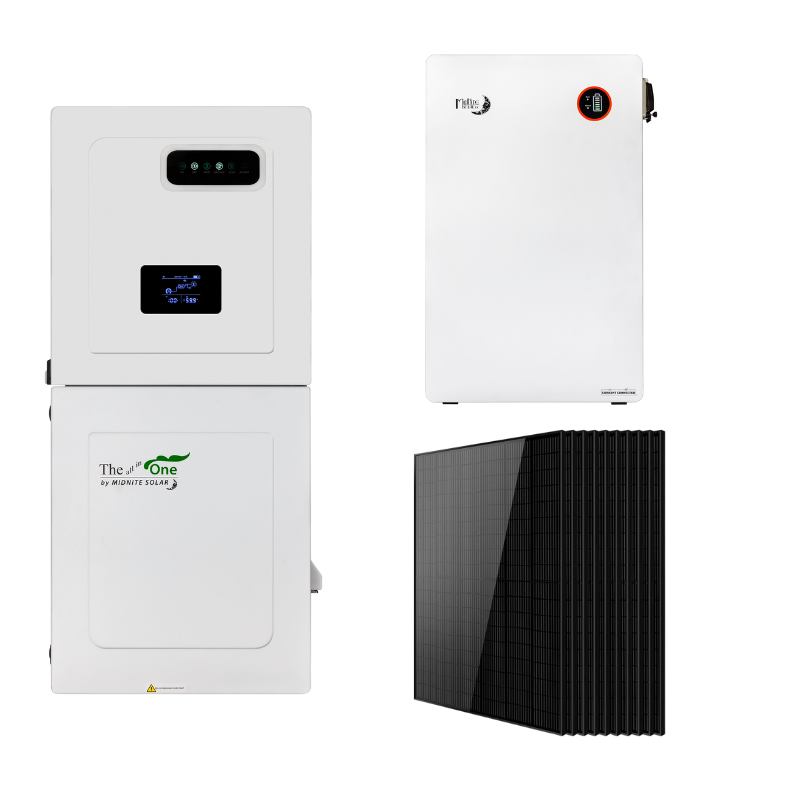

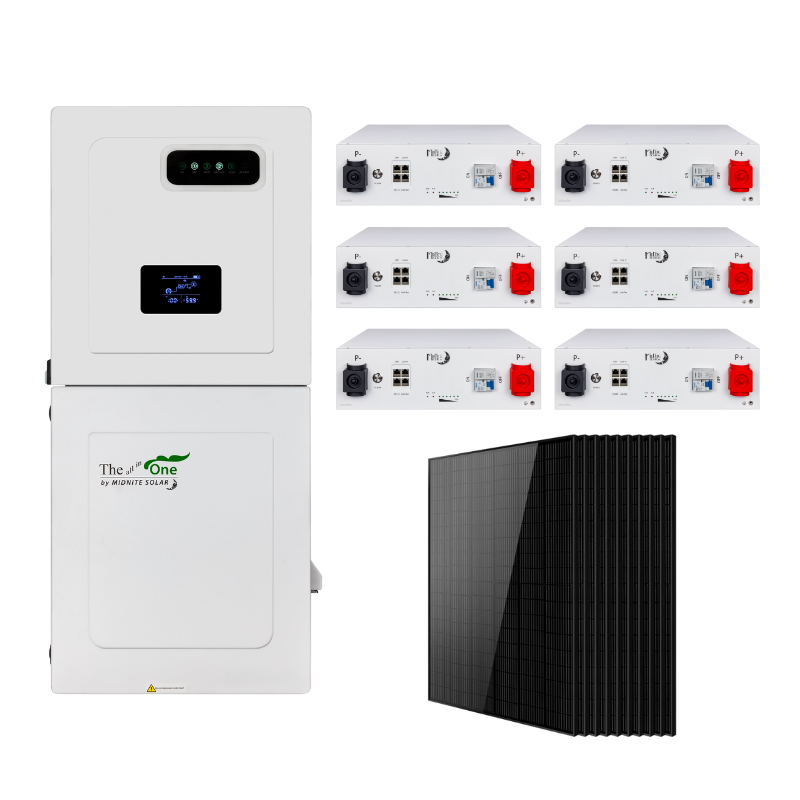

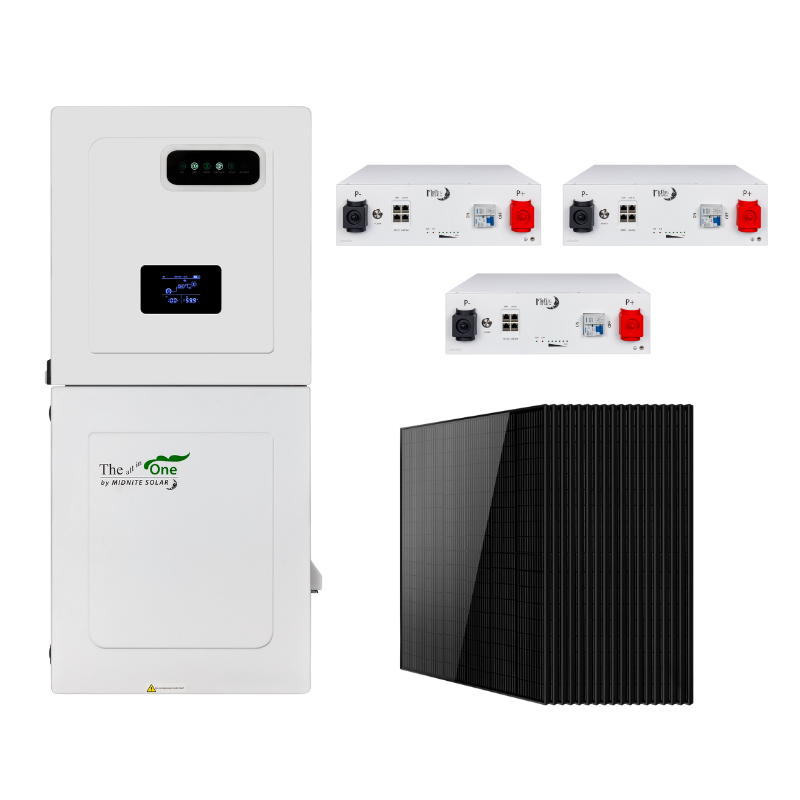

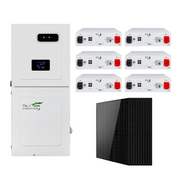

MNPower 11.4kW Hybrid Solar Kit
The MNPower 11.4kW Hybrid Solar Kit is a high-performance energy solution for residential and light commercial applications, designed to deliver reliable on-grid, hybrid, or off-grid power. Centered around the MNPower – The One – 11.4kW Hybrid All-In-One Inverter, this system combines advanced battery storage with flexible solar array options. Choose from a variety of MidNite Solar MNPowerflo LiFePO₄ battery configurations and premium Solar panels to build the perfect power system for your needs.
MNPower 11.4kW Hybrid Solar Kit Features
All-in-One Hybrid Inverter – 11.4kW continuous output with integrated MPPT charge controllers, grid-tie, hybrid, and off-grid functionality.
Flexible Battery Options – Choose from 16kWh, 15.36kWh, or 30.72kWh LiFePO₄ storage setups to match your energy needs.
Scalable System Design – Expand battery or PV capacity as your demand grows.
Durable, Long-Life Batteries – LiFePO₄ chemistry provides a long cycle life, excellent thermal stability, and consistent performance.
Complete Power Management – Supports generator integration, smart load control, and real-time system monitoring.
MNPower 11.4kW Hybrid Solar Kit Applications
-
Whole-Home Backup – Run essential and high-demand loads during outages.
-
Off-Grid Living – Ideal for cabins, rural properties, and remote installations.
-
Grid-Tied Savings – Maximize solar production with net metering and peak shaving.
-
Small Business Power Security – Maintain productivity during utility failures.
-
Expandable Renewable Energy Systems – Start with the basics and grow over time.
What’s Included?
Inverter/Charger:
Battery Options (Select One Setup):
Option 1:
Option 2:
Option 3:
Solar Panel Options (Select One Setup):
Option 1:
Option 2:
MNPower 11.4kW Hybrid Solar Kit Specifications
Inverter Specifications
| Specification |
Details |
| Charge / Discharge Current |
210A |
| Nominal Output Power |
11.4 kW |
| Maximum PV Input Power |
15,000W |
| MPPT Configuration |
3 Independent MPPTs |
| Max Input Current (Per MPPT) |
30A / 22A / 22A |
| Max PV Voltage |
600V |
| Nominal Battery Voltage |
48V |
| Weight |
98 lbs (44.5 kg) |
| Dimensions (H × W × D) |
38.3 × 16.5 × 10.27 in (974 × 419 × 261 mm) |
MNPower – The One – 11.4kW Hybrid All-In-One Inverter Specifications
| Specification |
Details |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Cycle Life |
6,000 cycles @ 77°F (25°C) |
| Operating Temperature |
-4°F to 113°F (-20°C to 45°C) |
| Certifications |
UL 1973, UL 9540A, UL 9540 |
| Dimensions (L × W × D) |
17.7 × 17.4 × 5.2 in (450 × 442 × 132 mm approx) |
| Weight |
96.5 lbs (43.8 kg) |
MidNite Solar MNPowerflo5 Specifications
| Specification |
Details |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
314Ah |
| Energy Storage |
16 kWh |
| Cycle Life |
8,000 cycles @ 77°F (25°C) |
| Operating Temperature |
-4°F to 113°F (-20°C to 45°C) |
| Certifications |
UL 1973, UL 9540A, UL 9540 |
| Ingress Protection (IP) |
IP65 |
| Dimensions (L × W × D) |
31.50 × 19.69 × 8.87 in (800 × 500 × 225 mm) |
| Weight |
284 lbs (128.8 kg) |
Frequently-Asked Questions
Can I upgrade my battery capacity later?
Yes. You can start with one of the smaller battery configurations and expand later, as long as you use the same model and chemistry for compatibility.
Does the system work during a grid outage?
Absolutely. The MNPower inverter automatically switches to battery power when the grid goes down, ensuring uninterrupted energy for your essential loads.
What is the lifespan of the batteries?
The included LiFePO₄ batteries are designed to last 10+ years with regular use, thanks to their high cycle life and stable chemistry.
Do I need a generator with this kit?
While not required, adding a generator provides extra peace of mind during extended cloudy periods or unusually high energy demand.
