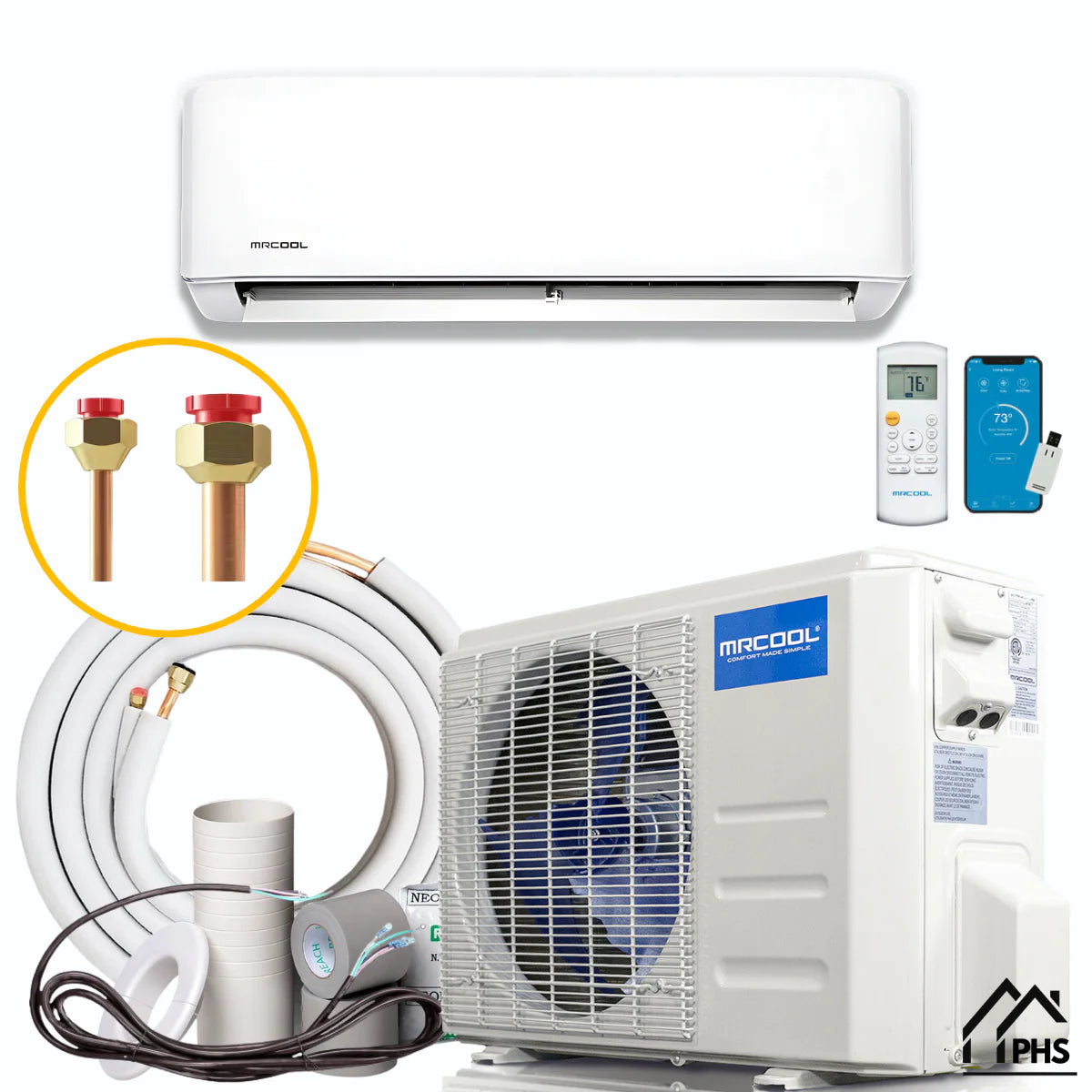

MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V | System Set
The MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split delivers efficient and quiet heating and cooling for larger rooms and open spaces. Designed for affordability and dependable performance, this system ensures comfort while maintaining energy efficiency. With a modern ductless design, it provides flexibility for installation without the need for extensive ductwork.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V Features
24,000 BTU Capacity – Ideal for cooling and heating areas up to 1,000 sq. ft.
Efficient Heating & Cooling – Provides year-round comfort with reliable temperature control.
Quiet Operation – Built to deliver powerful performance while keeping noise levels low.
Wall-Mounted Design – Space-saving and easy to integrate into most rooms.
Durable Construction – Engineered with quality materials for long-lasting operation.
MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V Applications
-
Large bedrooms – Keep your sleeping area comfortable in any season.
-
Living rooms – Perfect for open or connected family spaces.
-
Basements – Maintain warmth in winter and cool comfort in summer.
-
Home offices – Energy-efficient comfort for large workspaces.
What’s Included?
Warranty
MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V Specifications

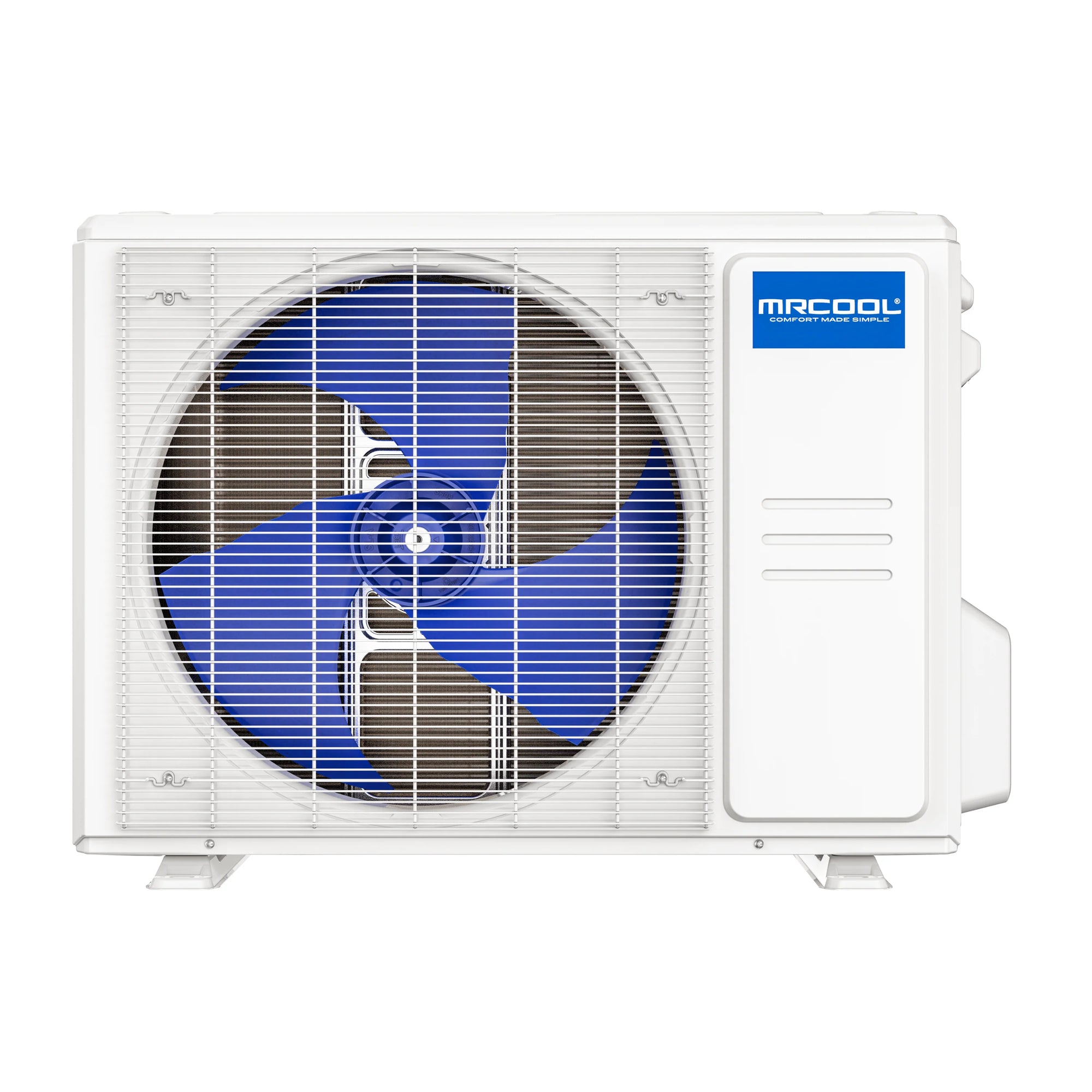

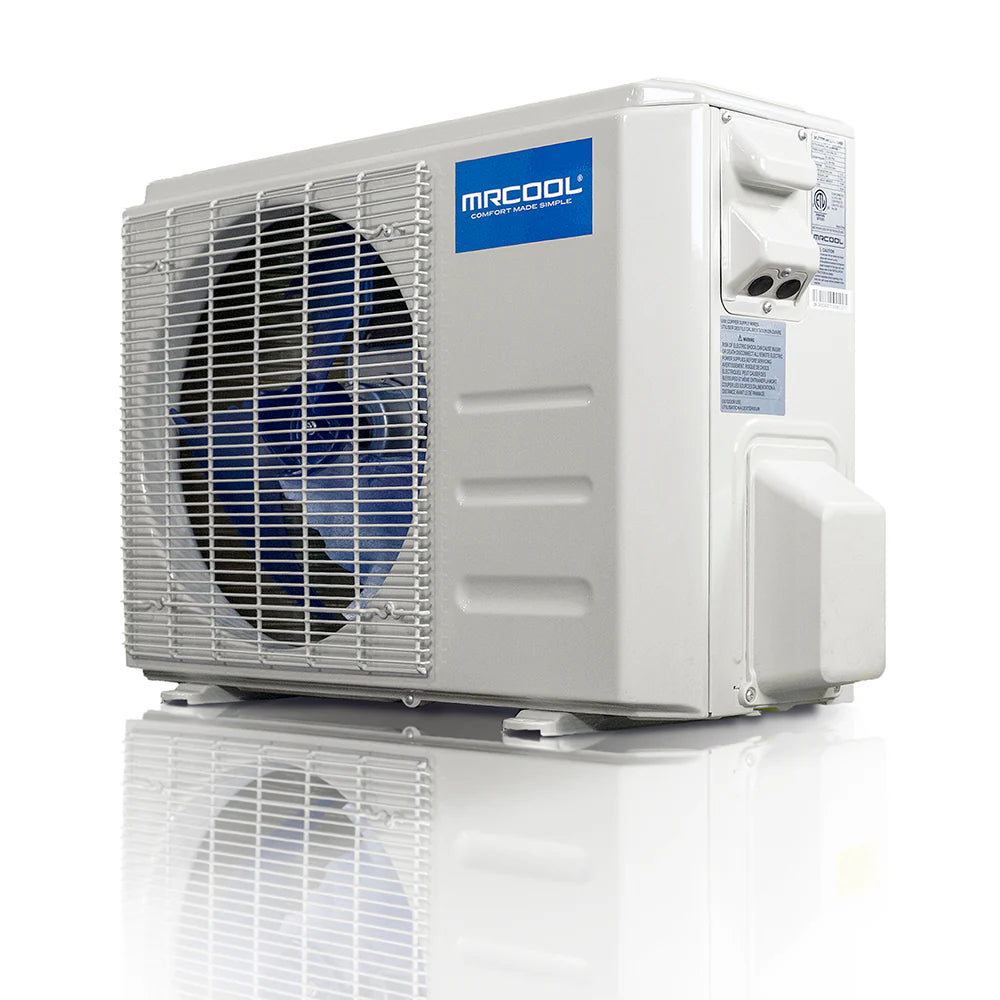

| Condenser 24K BTU |
| Product Dimensions |
35.04"W x 13.46"D x 26.50"H |
| Electrical Requirements |
Requires a minimum of 230V/60HZ/19-20A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
24,000 BTU |
| Zone Capacity |
1 |
| Cool Mode - Outdoor Operating Temperature Range |
5°F - 122°F |
| Heat Mode - Outdoor Operating Temperature Range |
5°F - 86°F |
| SEER2 |
18.7 |
| EER2 |
10.0 |
| Registered Warranty |
1-Year Parts, 2-Year Compressor (can be extended to a Limited Lifetime Warranty upon registration) |

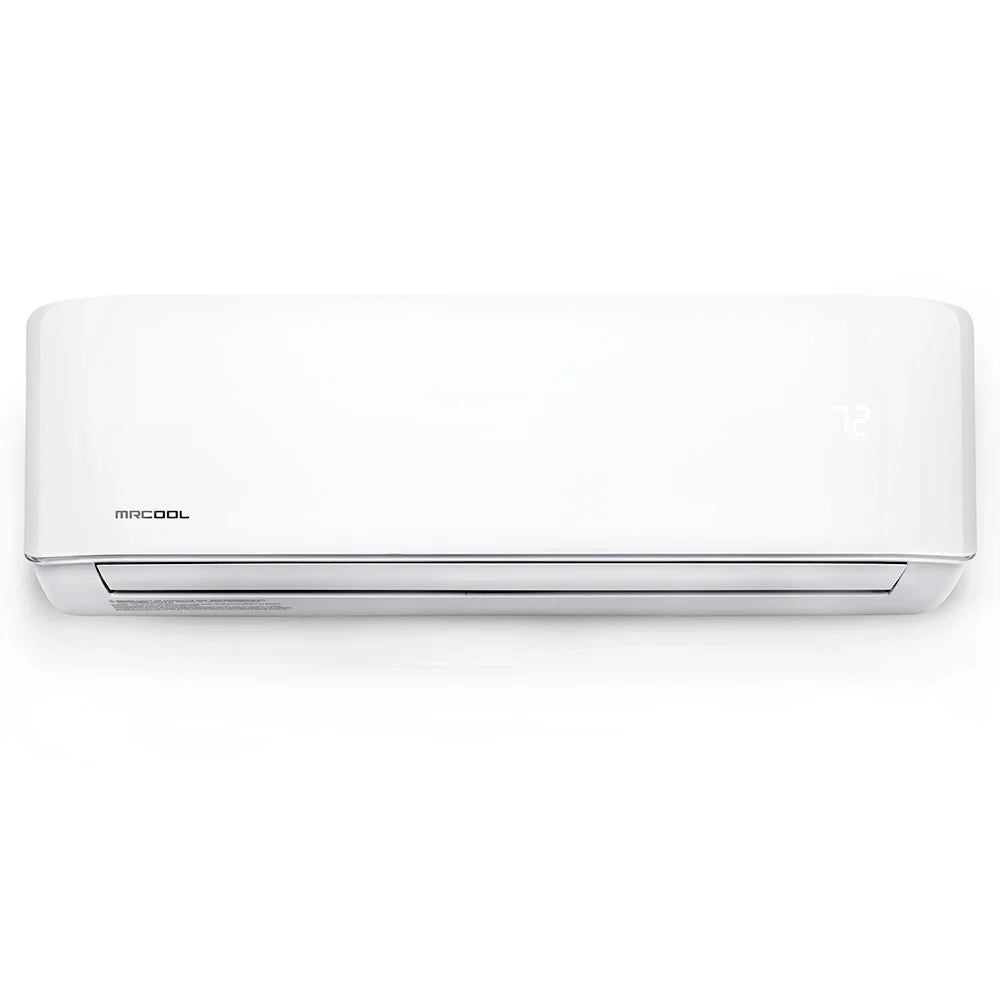

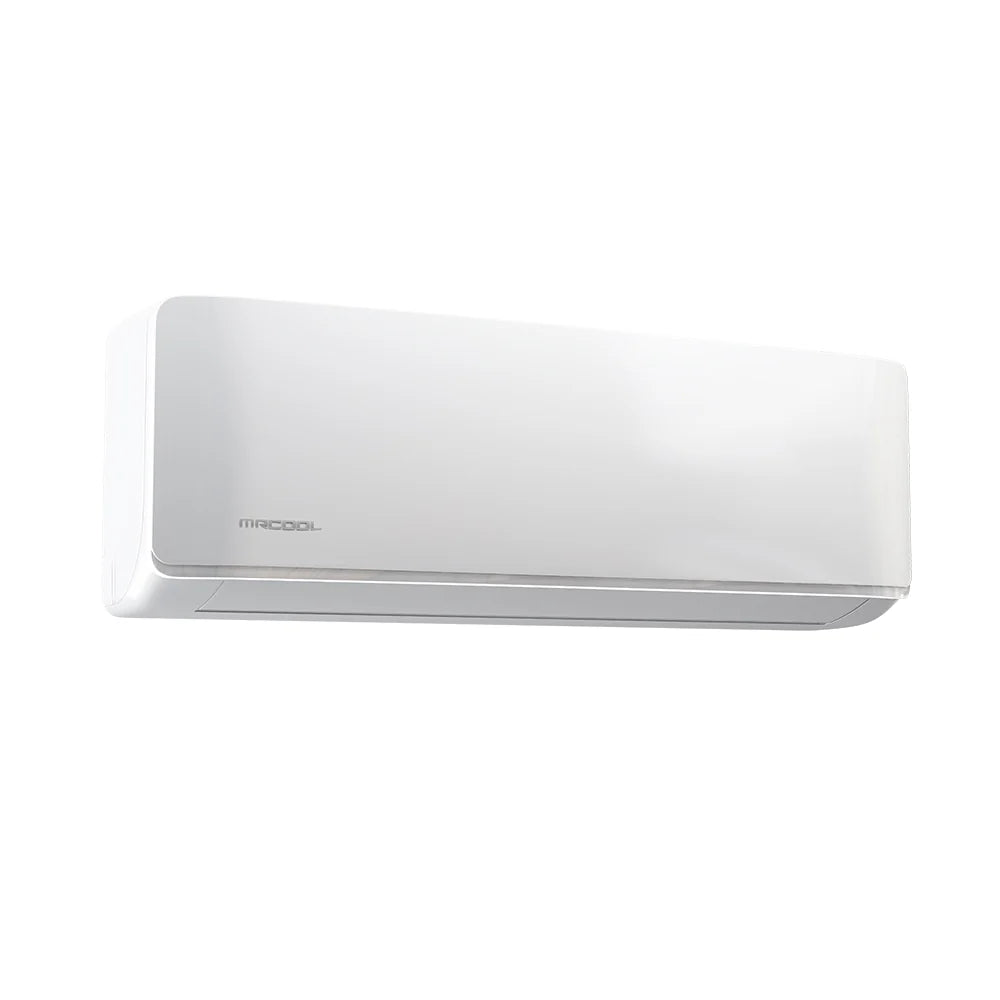

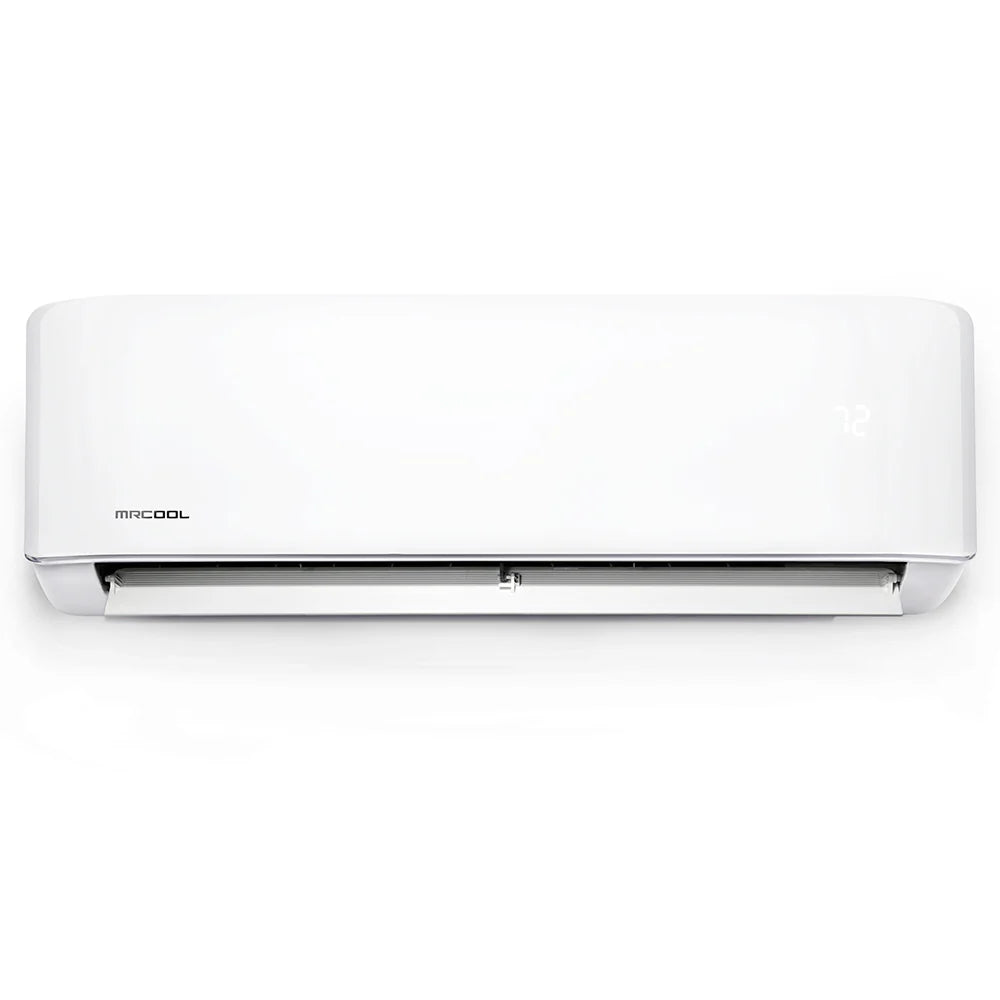

| Air Handler 24K BTU |
| Product Dimensions |
42.52"W x 8.90"D x 13.19"H |
| Electrical Requirements |
Requires a minimum of 230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Wall |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
24,000 BTU |
| Coverage Area |
Up to 1050 sq ft |
| Modes |
Auto Heat
Quiet Mode
Fan Only |
| Registered Warranty |
1-Year Parts, 2-Year Compressor (can be extended to a Limited Lifetime Warranty upon registration) |
| Line Set |
| Length |
16 Feet |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
Frequently-Asked Questions
Does this system require professional installation?
Yes. The Advantage Series is not DIY-friendly and must be installed by a licensed HVAC technician.
What size area can this unit cover?
This 24K BTU system is suitable for large spaces up to 1,000 sq. ft.
