MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable, EZPRO-09-HP-11516D-O Mini Split MRCOOL

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable | SYSTEM SET

Name: MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable | SYSTEM SET
Brand: MRCOOL
SKU: EZPRO-09-HP-11516D-O|SS
Price: 1569.0 USD
Availability: InStock

BY: MRCOOL

SKU: EZPRO-09-HP-11516D-O | SS

| Availability: BACKORDERED

$2,300.00

$1,569.00

You Save: $731.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized MRCOOL Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

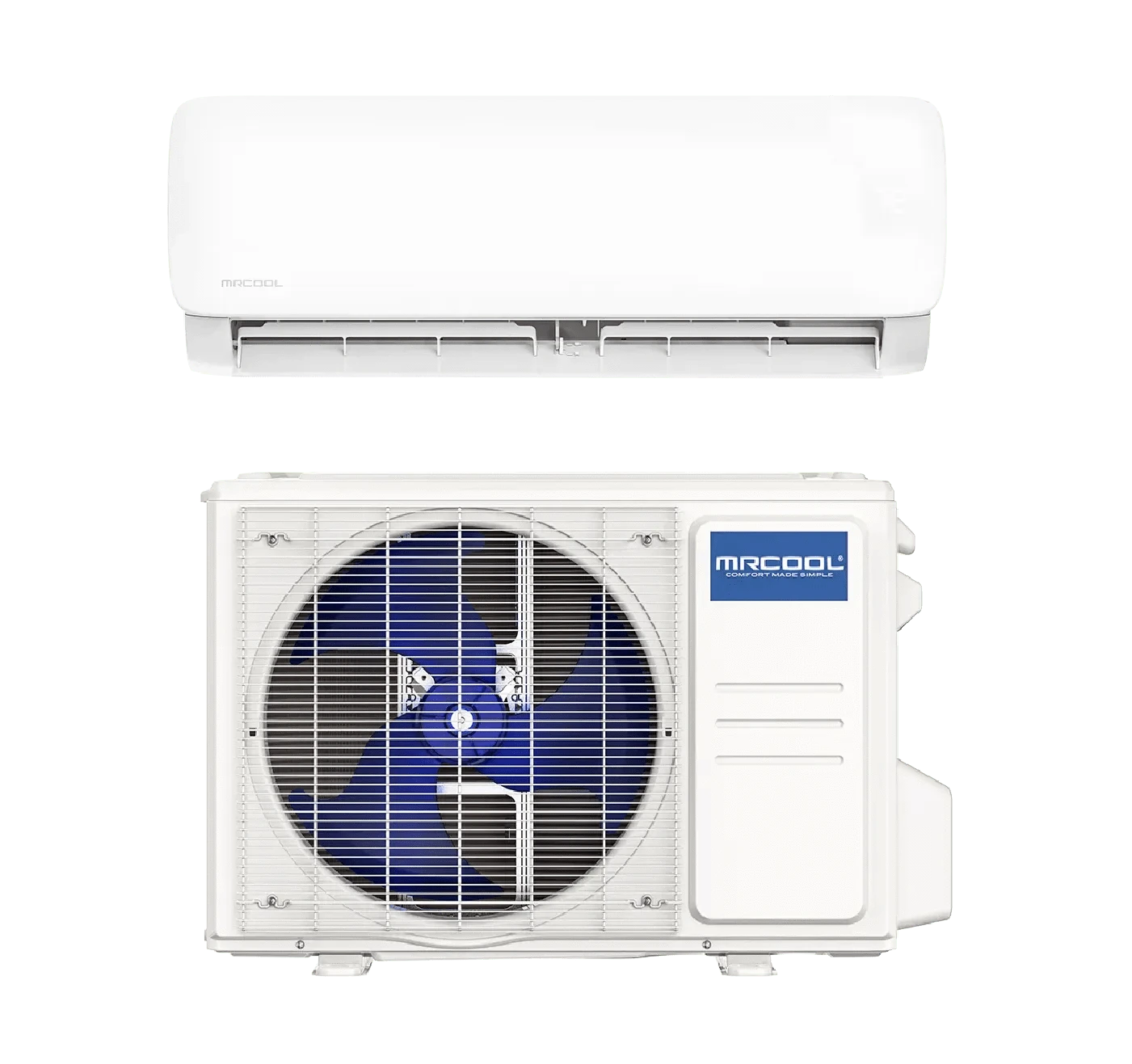

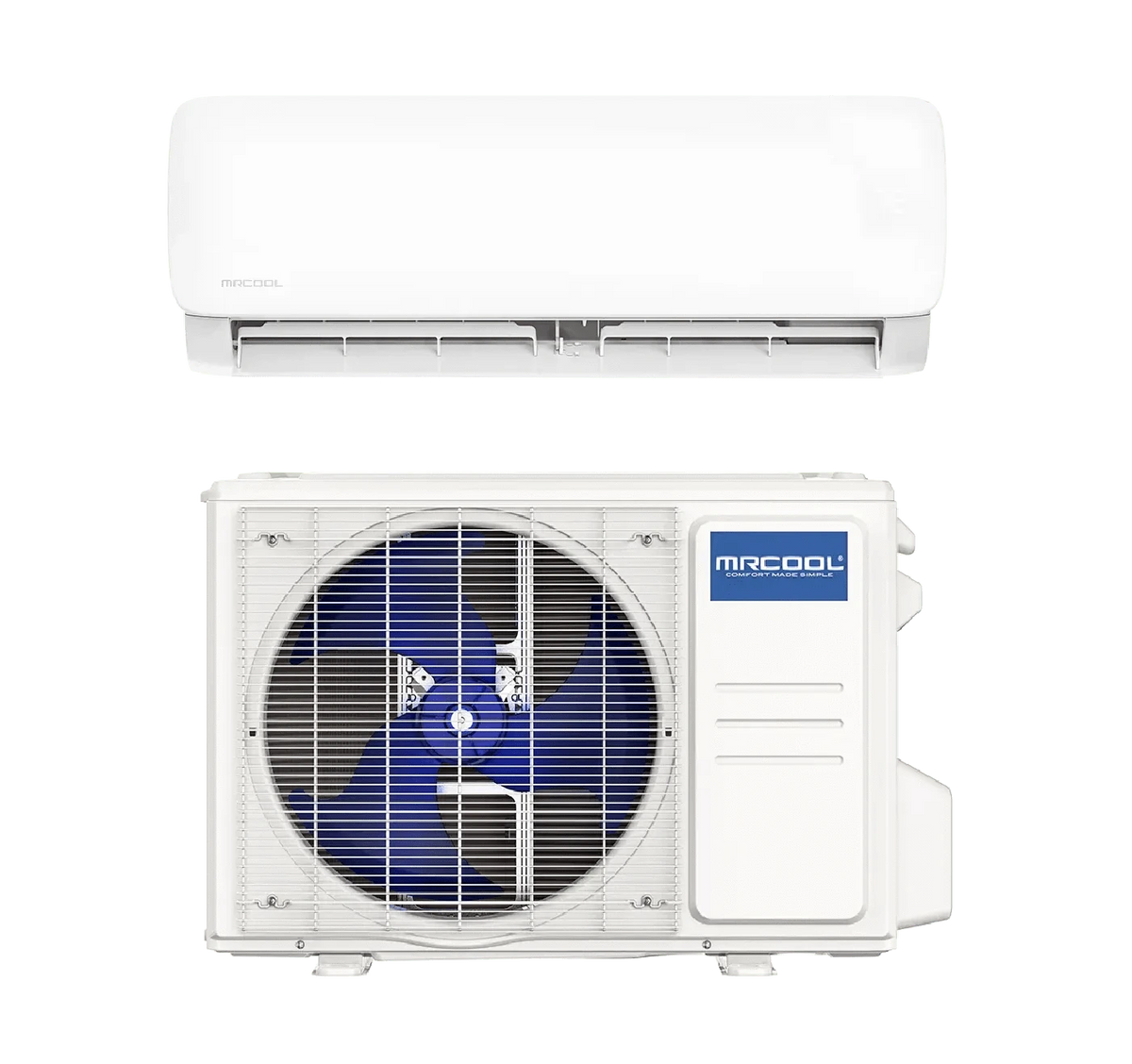

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable | SYSTEM SET

The MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split System is the ultimate affordable, efficient, and DIY-friendly heating and cooling solution for small spaces. Designed with pre-charged Quick Connect lines and the DIYPRO cable, this system eliminates the need for special tools or HVAC certification, allowing homeowners to install it themselves with confidence. With 20.2 SEER2 efficiency and advanced inverter technology, you’ll enjoy year-round comfort while keeping energy costs low.

Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System Features

Easy DIY Installation

Includes 16 ft. pre-charged DIY Quick Connect line set and DIYPRO cable—no vacuuming or special tools needed.

High Efficiency

Delivers 20.2 SEER2 cooling and 9.2 HSPF2-4 heating efficiency, saving you money on utility bills.

Advanced Modes

Multiple comfort modes including Auto, Cool, Heat, Fan-Only, Dry (Dehumidification), and Sleep Mode for maximum flexibility.

Smart Control

WiFi-enabled with smartphone app compatibility for iOS and Android, plus voice assistant integration.

Quiet Operation

Indoor noise levels as low as 18 dB(A) ensure whisper-quiet comfort.

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System Applications

Small bedrooms – efficient comfort in compact spaces
Home offices – stay cool or warm while working
Studio apartments – great for single-zone coverage
Sunrooms – regulate hard-to-control temperature areas
Tiny homes – perfect for compact living spaces

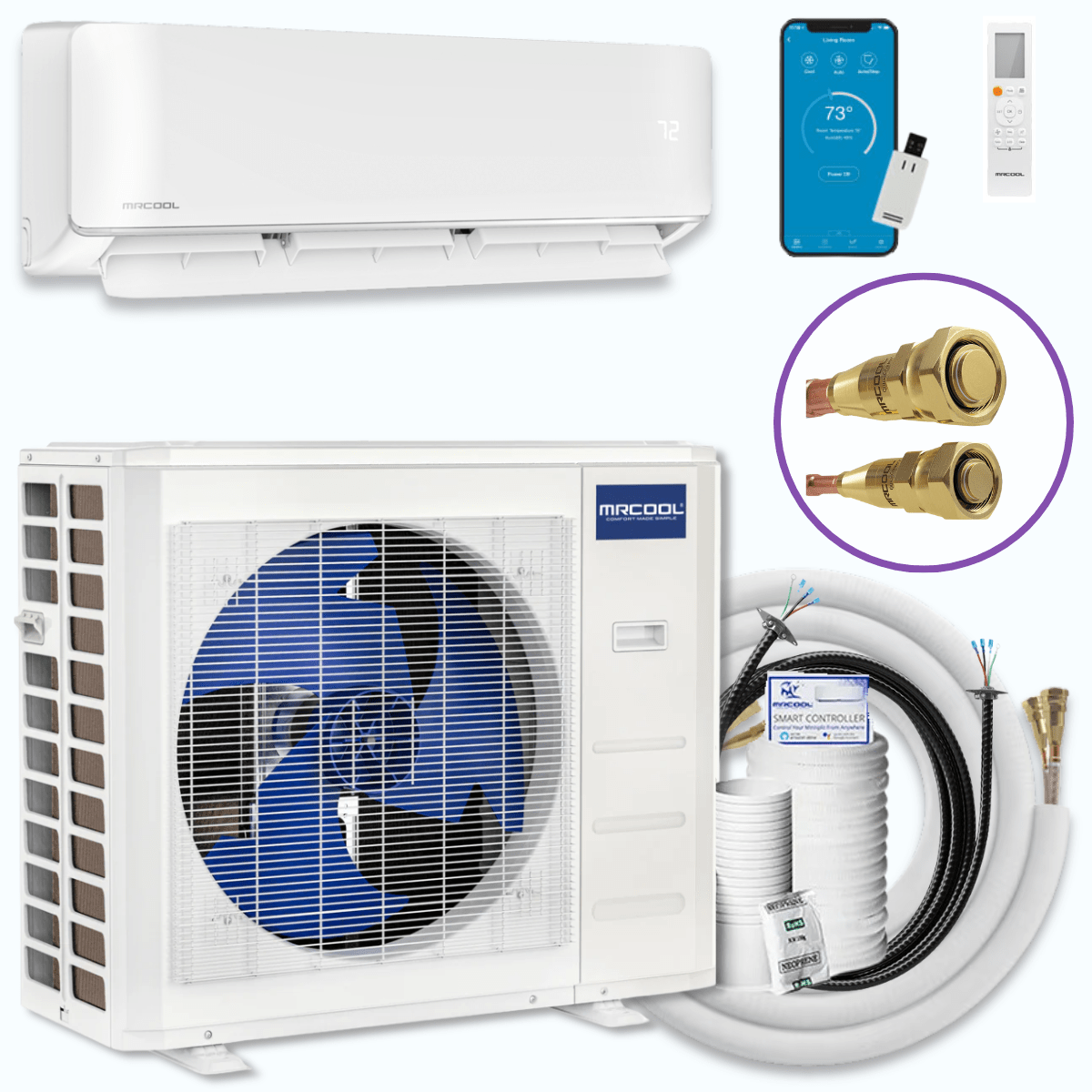

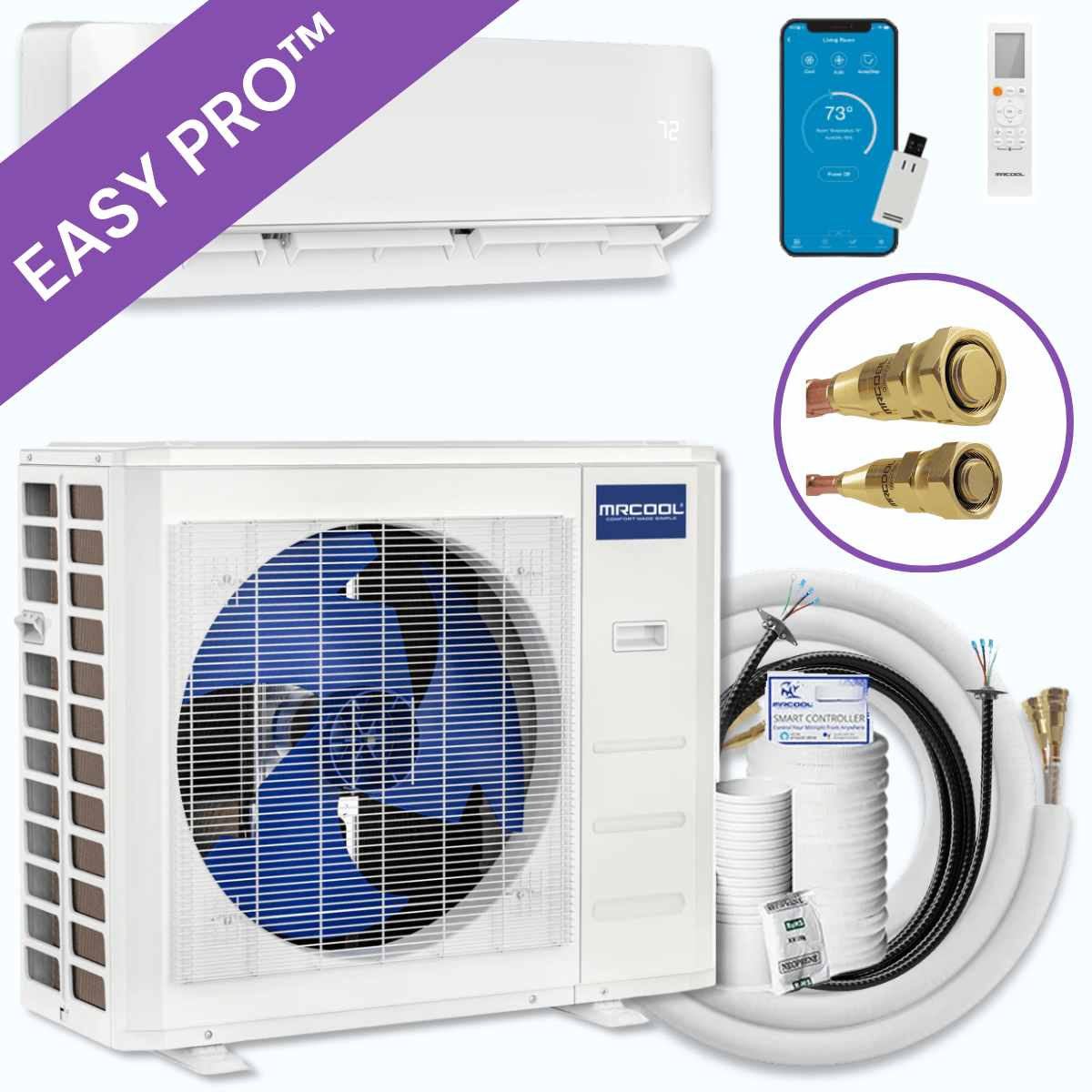

What's Included

Everything you need is included with your product.

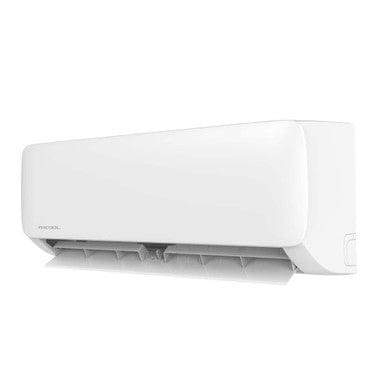

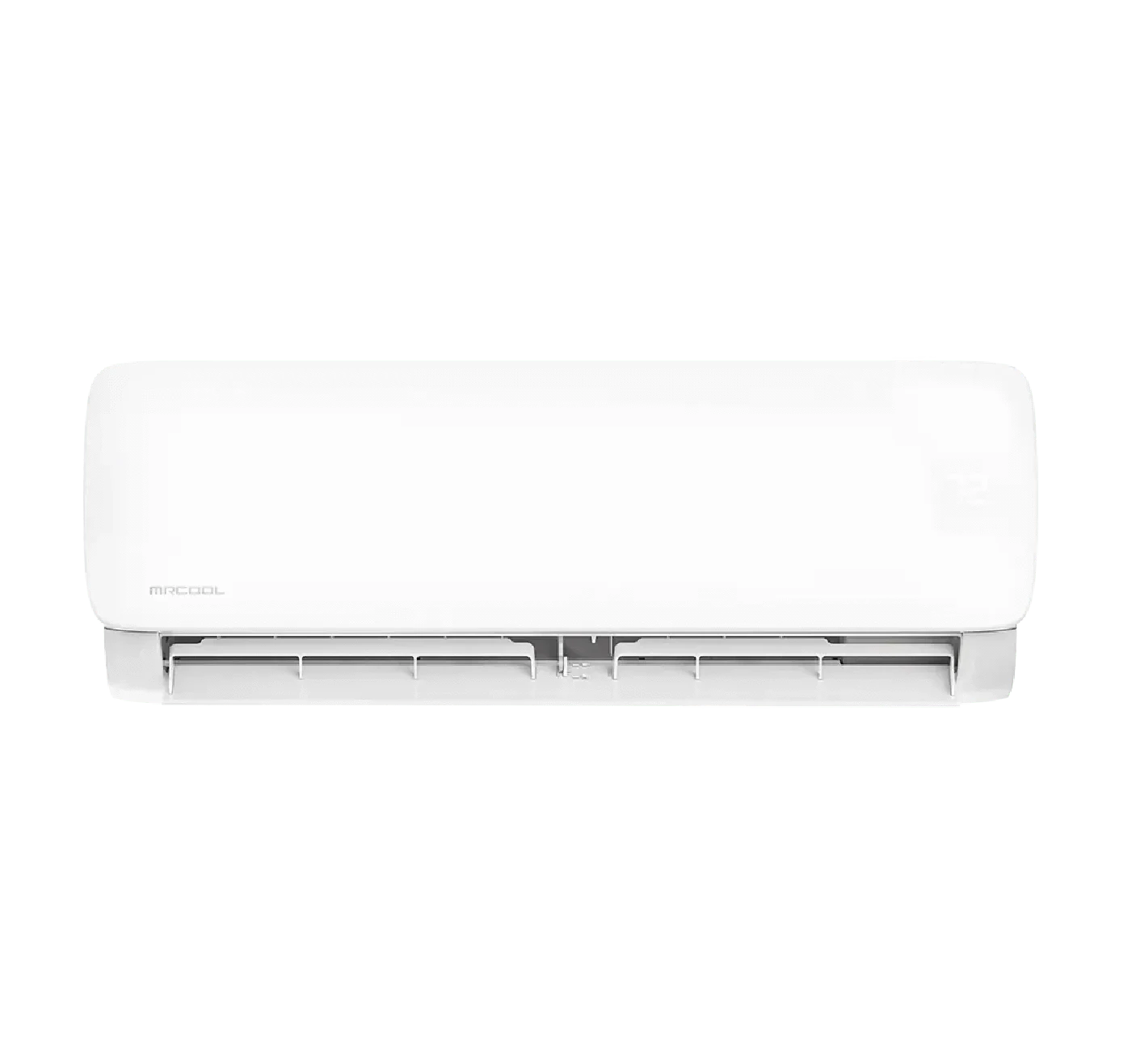

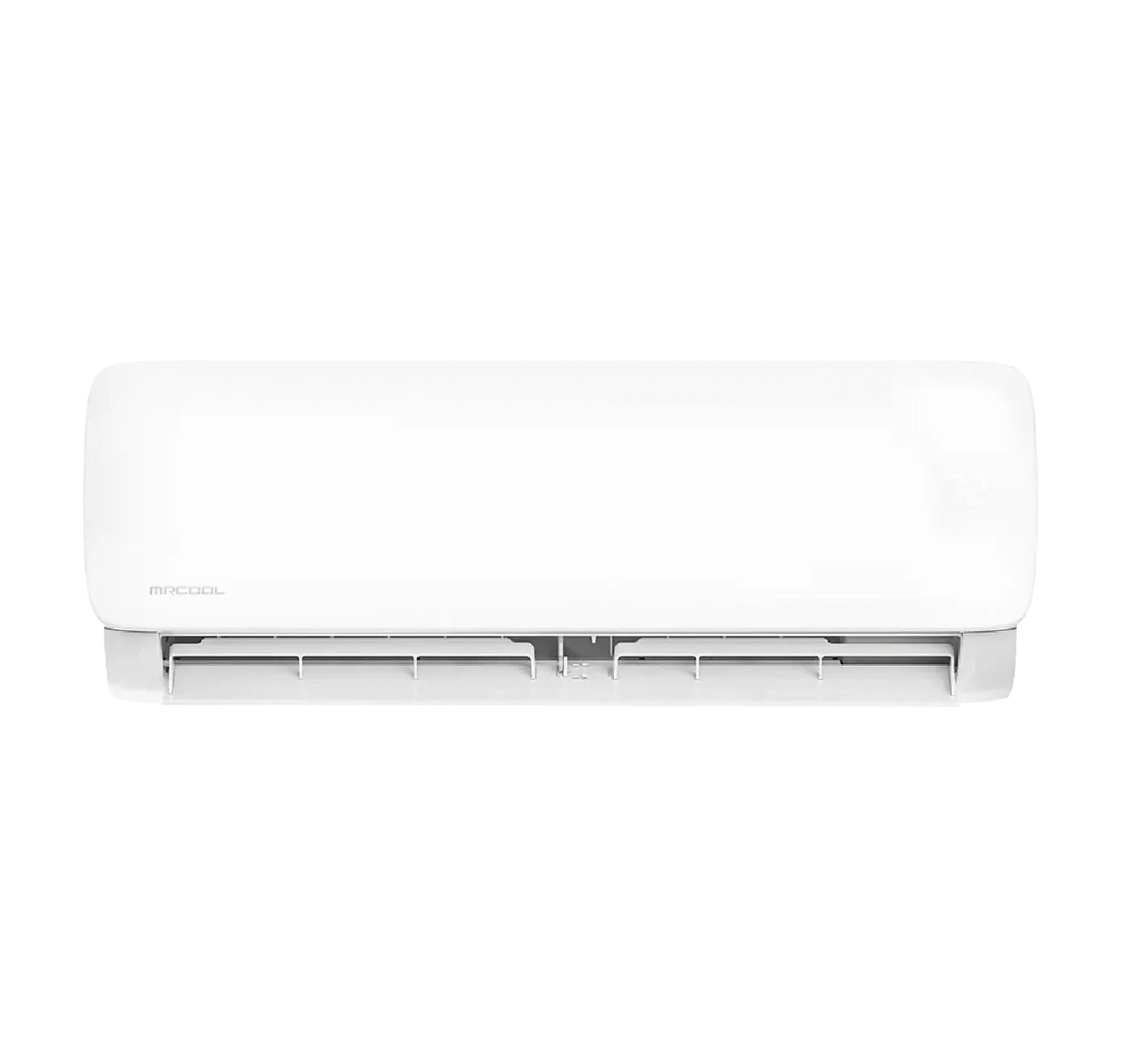

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Indoor Air Handler

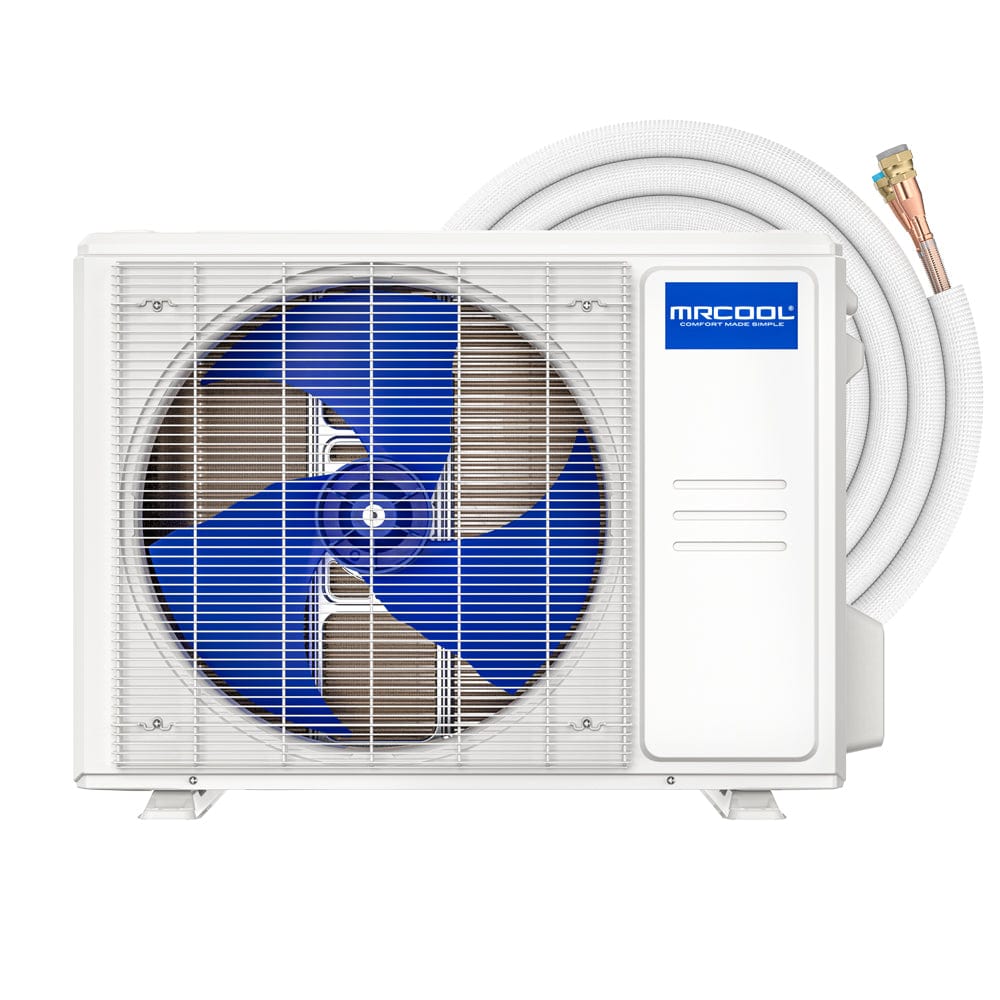

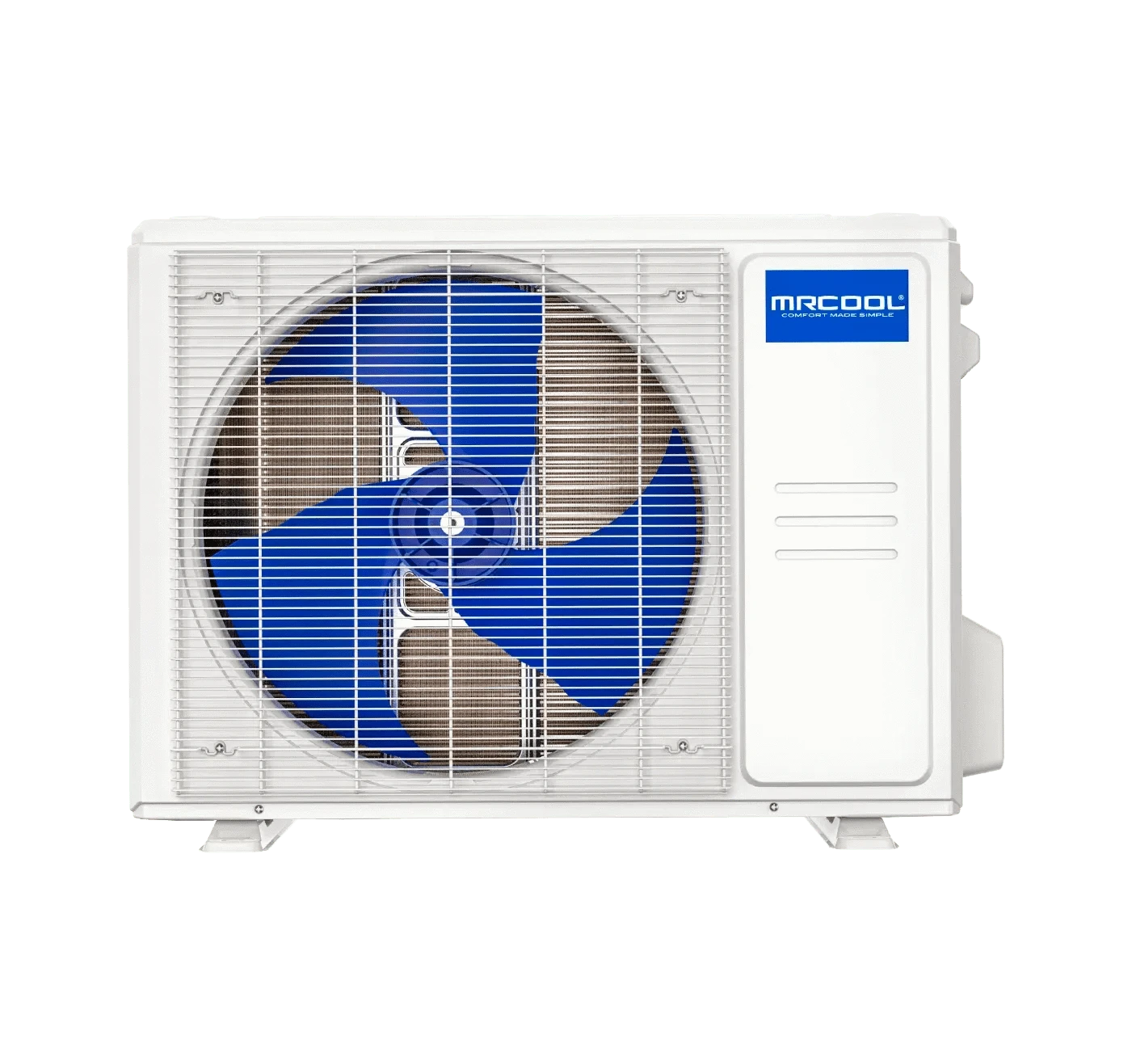

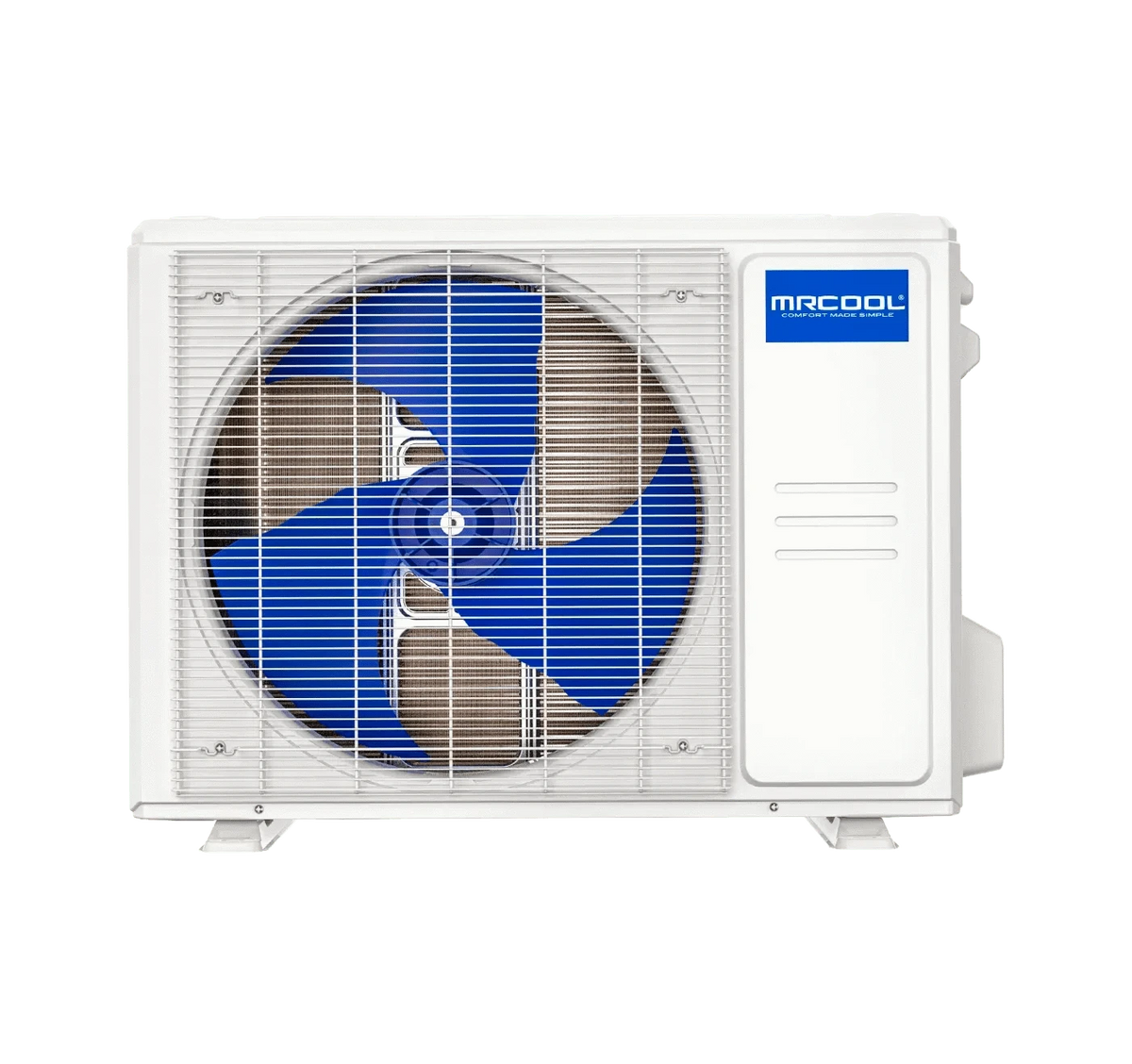

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Outdoor Condenser
16 ft. Pre-Charged Quick Connect Line Set

DIYPRO Cable
Remote Control
Installation Manual

Warranty

1 Year Compressor
2 Years Parts

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System Specifications

Dimensions & Weight

Specifications	Details
Condenser Dimensions	28.35 W" x 10.63 D" x 19.49 H"
Condenser Weight	54.67 lbs
Air Handler Dimensions	152.12 lbs / 69 kg
Air Handler Weight	23.81 lbs

Capacity & Performance

Specifications	Details
Zone Capacity	1
Cooling Capacity	9,000 BTU
Outdoor Operating Temperature (Cooling)	5°F - 122°F
EER2	11.3
SEER2	20.2
Heating Capacity	10,000 BTU
Outdoor Operating Temperature (Heating)	13°F - 75°F
HSPF2-4	9.2
HSPF2-5	7.1
Coverage Area	Up to 400 sq ft.
Outdoor Noise Level	54 dB(A)
Indoor Noise Level (Hi/Mi/Lo)	43.0/31.0/18.0 dB(A)

Electrical Requirements

Specifications	Details
Voltage	115V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	20A
Min Circuit Ampacity	17A

Refrigerant & Piping

Specifications	Details
Refrigerant Type	R-454B
Refrigerant Volume	17.28 oz
Liquid Line Size	1/4"
Suction Line Size	3/8"
Max Line Set Length	82 ft.

Features

Specifications	Details
Inverter	DC
Compressor Type	Rotary
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
Wifi Compatibility	Yes
App Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes
Modes	Auto Mode: Automatically selects heating or cooling based on the room's temperature. \| Cool Mode: Lowers the room temperature to your desired setting. \| Heat Mode: Raises the room temperature to your desired setting. \| Fan-Only Mode: Circulates air without heating or cooling. \| Dry Mode (Dehumidification): Reduces humidity levels in the room. \| Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.

Certifications & Warranty

Specifications	Details
Certifications	UL Listed, CSA Listed, ETL Listed, AHRI Certified
Warranty	2 Year Parts / 1 Year Compressor

Frequently-Asked Questions

Is this system truly DIY?

Yes! The EasyPro line is designed with MRCOOL’s patented Quick Connect pre-charged line sets, eliminating the need for special HVAC tools or certification.

What size room is this best for?

This 9,000 BTU system is ideal for rooms up to 400 sq. ft., such as small bedrooms, offices, or sunrooms.

Can I extend the line set?

Yes, you can extend up to 82 ft., but performance may vary depending on installation conditions.

Manual

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Manual
