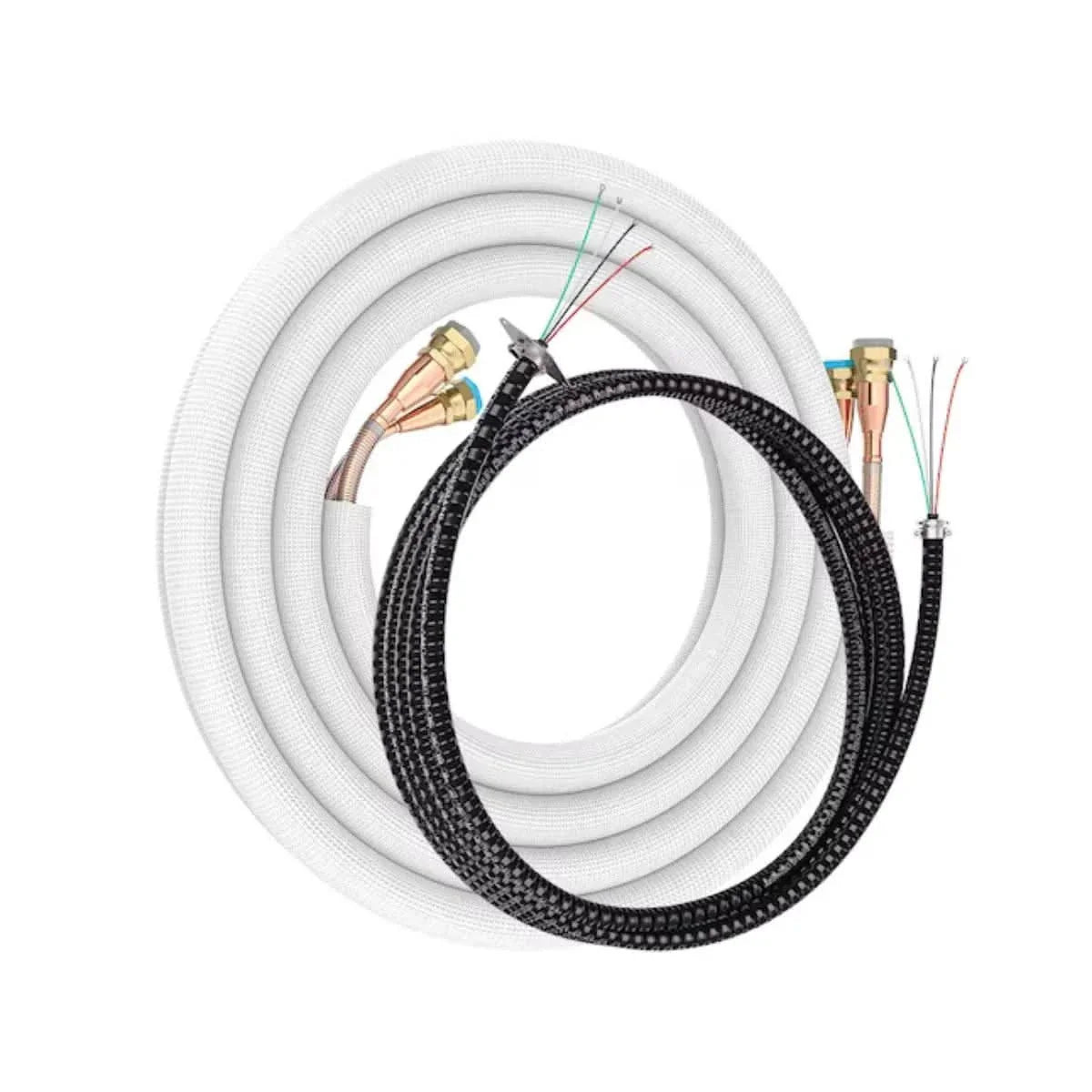

MRCOOL DIY 5th Gen 35 Ft. Pre-Charged Quick Connect Line Set
The MRCOOL DIY 5th Gen 35 Ft. Pre-Charged Quick Connect Line Set with DIY Pro Cable is a smart, efficient solution for extending your MRCOOL DIY 18K Mini Split system. Designed with convenience in mind, this line set is pre-charged with R-454B refrigerant and features Quick Connect fittings, eliminating the need for vacuuming or charging. The 35-foot length provides flexibility for installations in multi-level homes, detached structures, or wider layouts, and the included DIY Pro Cable ensures seamless communication and power between units.
MRCOOL DIY 5th Gen 35 Ft. Pre-Charged Quick Connect Line Set Features
Pre-Charged with R-454B – Line set is factory-filled and sealed with environmentally friendly R-454B refrigerant for simplified installation.
Quick Connect Fittings – Uses tool-free, leak-proof connections that eliminate the need for HVAC tools or professional vacuuming.
35 Ft. Line Set Length – Perfect for medium-distance installations, including second-floor units, garages, or expanded home layouts.
Sized for 18K BTU Systems – Specifically built to pair with MRCOOL DIY 5th Gen 18K air handlers, ensuring ideal refrigerant flow and system compatibility.
Includes DIY Pro Cable – Comes with a weather-resistant communication and power cable, pre-matched to MRCOOL system standards.
Durable Outer Jacket – Features UV-resistant and weatherproof insulation to protect against environmental wear and damage.
MRCOOL DIY 5th Gen 35 Ft. Pre-Charged Quick Connect Line Set Applications
-
Multi-level homes – Great for connecting units across floors or in elevated positions
-
Detached buildings – Ideal for garages, workshops, or studios separate from the main structure
-
Wider room layouts – Useful in larger rooms or setups requiring extended reach
-
Retrofit installs – Replaces existing line sets in older systems with a pre-charged, quick-fit solution
-
DIY-friendly setups – Made for MRCOOL customers seeking a tool-free installation experience
What’s Included?
-
35 Ft. Line Set (1/4" x 1/2")
-
DIY Pro Communication and Power Cable
-
Quick Connect fittings (pre-installed)
-
Setup and safety instructions
MRCOOL DIY 5th Gen 35 Ft. Pre-Charged Quick Connect Line Set Specifications
|
Series
|
5th Gen DIY Line Set - R-454B
|
|
Compatible Air Handlers
|
18K 5th Gen DIY
|
|
Line Set Length
|
35 ft
|
|
Lineset Fitting Type
|
Quick-Connection
|
|
Gross Dimensions
|
32.09" D x 4.92" H x 32.09" W
|
|
Color
|
White
|
|
Color Family
|
Bronze/Copper Metallic
|
|
Refrigerant Type
|
R-454B
|
|
Refrigerant Volume
|
3.46
|
|
Liquid Line Size
|
1/4
|
|
Suction Line Size
|
1/2
|
|
Registered Warranty
|
N/A
|
|
Has Batteries
|
No
|
|
Contains Electronics
|
No
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
|
Restricted States
|
GU;PR;VI
|
|
Net Weight (Lbs)
|
18.3
|
|
Gross Weight (Lbs)
|
22.7
|
Frequently-Asked Questions
Is this line set compatible with 12K or 9K air handlers?
No. This specific line set is optimized for MRCOOL 18K 5th Gen systems only due to the 1/2" suction line size required for proper performance.
Does it come with refrigerant already inside?
Yes. The line set is pre-charged with R-454B refrigerant, sealed from the factory for immediate use.
Can I cut this line set to a shorter length?
No. The line set is designed to be used at its full 35-foot length. Cutting or modifying it will void the sealed system and compromise performance.
Is this safe for first-time DIY users?
Yes. MRCOOL Quick Connect systems are designed for user-friendly installation, though reviewing the manual or working with an HVAC professional if unsure is always a good idea.
