MRCOOL DIY 5th Gen EasyPro 24K BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable | System Set
The MRCOOL DIY 5th Gen EasyPro 24K BTU Single Zone Mini Split Complete System is the ultimate solution for larger spaces requiring efficient heating and cooling. With powerful inverter technology and quiet operation, this system delivers year-round comfort while minimizing energy usage. Designed for homeowners, it includes a pre-charged 16 ft. Quick Connect line set and DIYPRO™ cable, allowing for straightforward, tool-free installation without the need for HVAC certification.
Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.
MRCOOL DIY 5th Gen EasyPro 24K BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable Features
Powerful Performance – 24,000 BTU capacity to efficiently heat and cool areas up to 1,000 sq. ft.
Energy Efficient – Advanced inverter technology provides strong performance while lowering energy bills.
DIY Quick Connect Installation – Includes a 16 ft. pre-charged line set and DIYPRO™ cable, simplifying setup for homeowners.
Quiet Operation – Runs with minimal noise both indoors and outdoors for uninterrupted comfort.
Smart Control Ready – Wi-Fi enabled for app control and compatibility with Alexa and Google Assistant.
Durable Construction – Built with high-quality components for lasting performance and reliability.
MRCOOL DIY 5th Gen EasyPro 24K BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable Applications
-
Large living rooms – Keeps open family spaces comfortable year-round.
-
Master suites – Ensures consistent heating and cooling for larger bedrooms.
-
Home offices – Provides reliable comfort for extended work hours.
-
Renovated basements or additions – Expands comfort into areas not served by central HVAC.

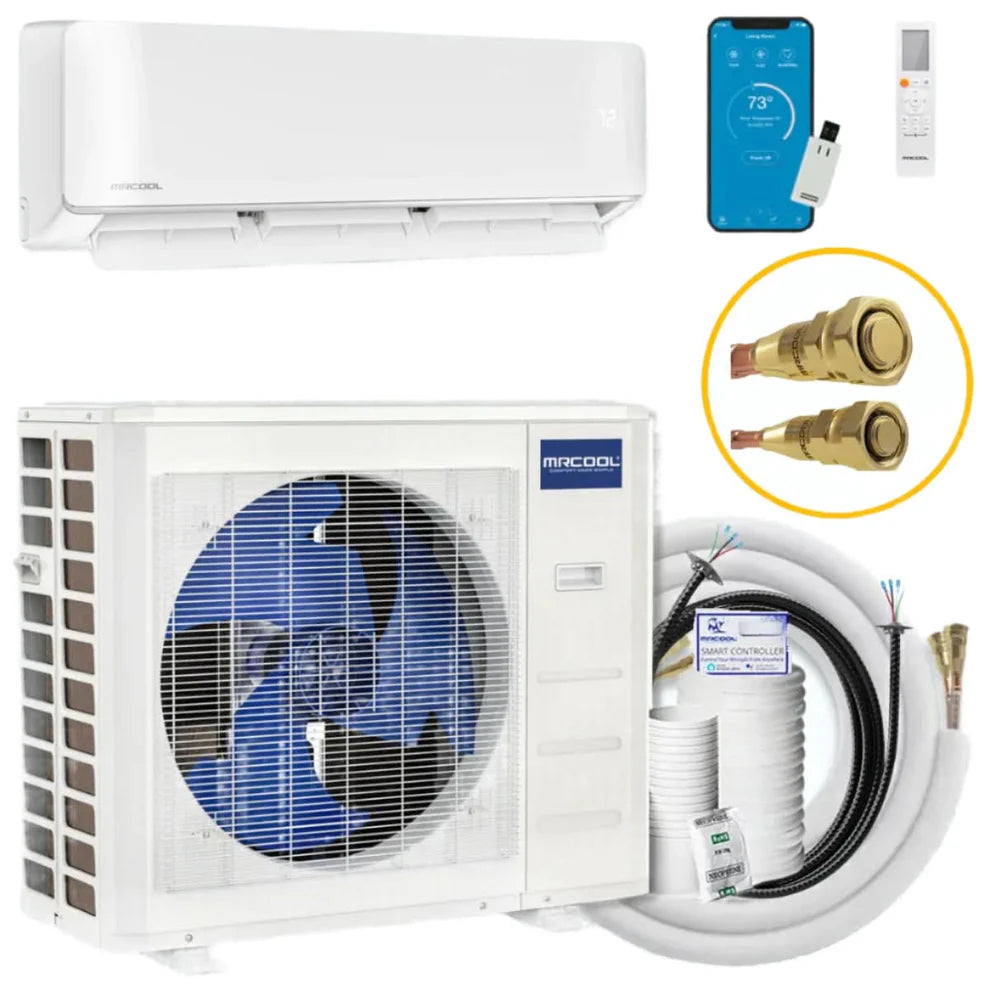

What’s Included?
-

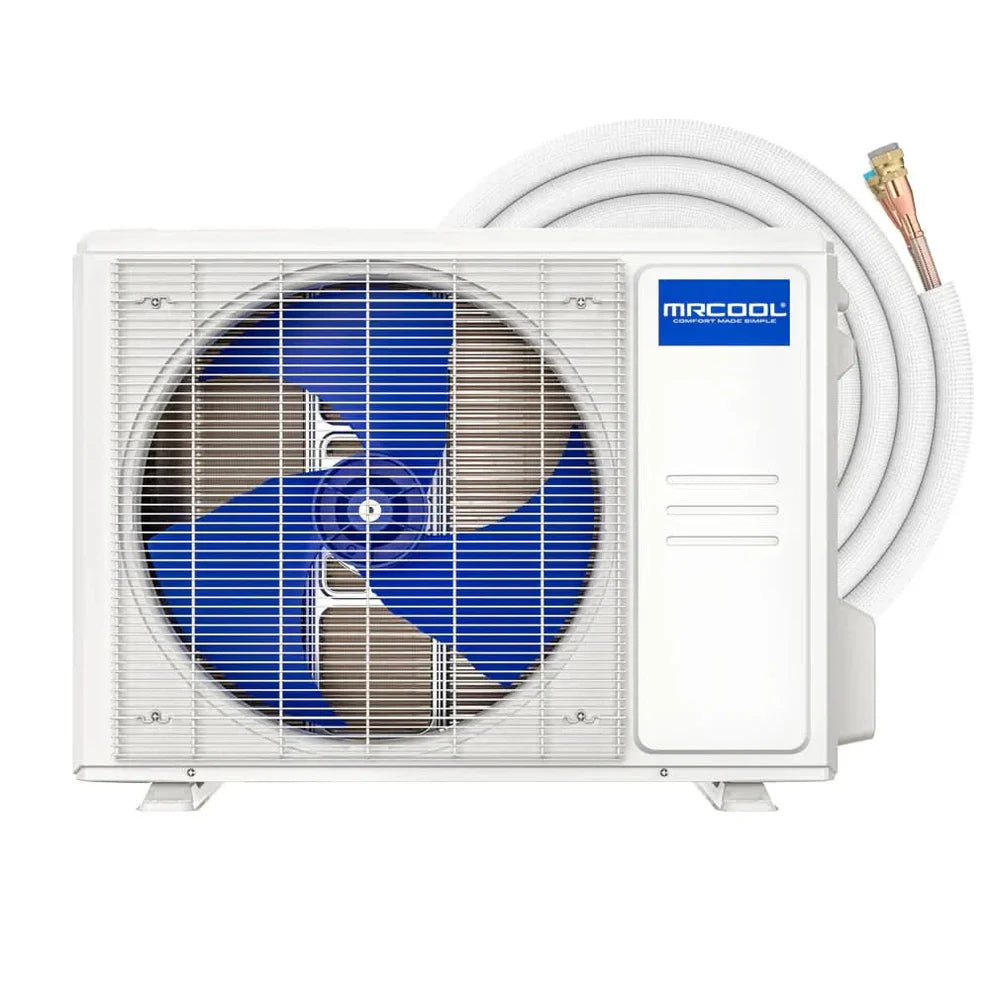

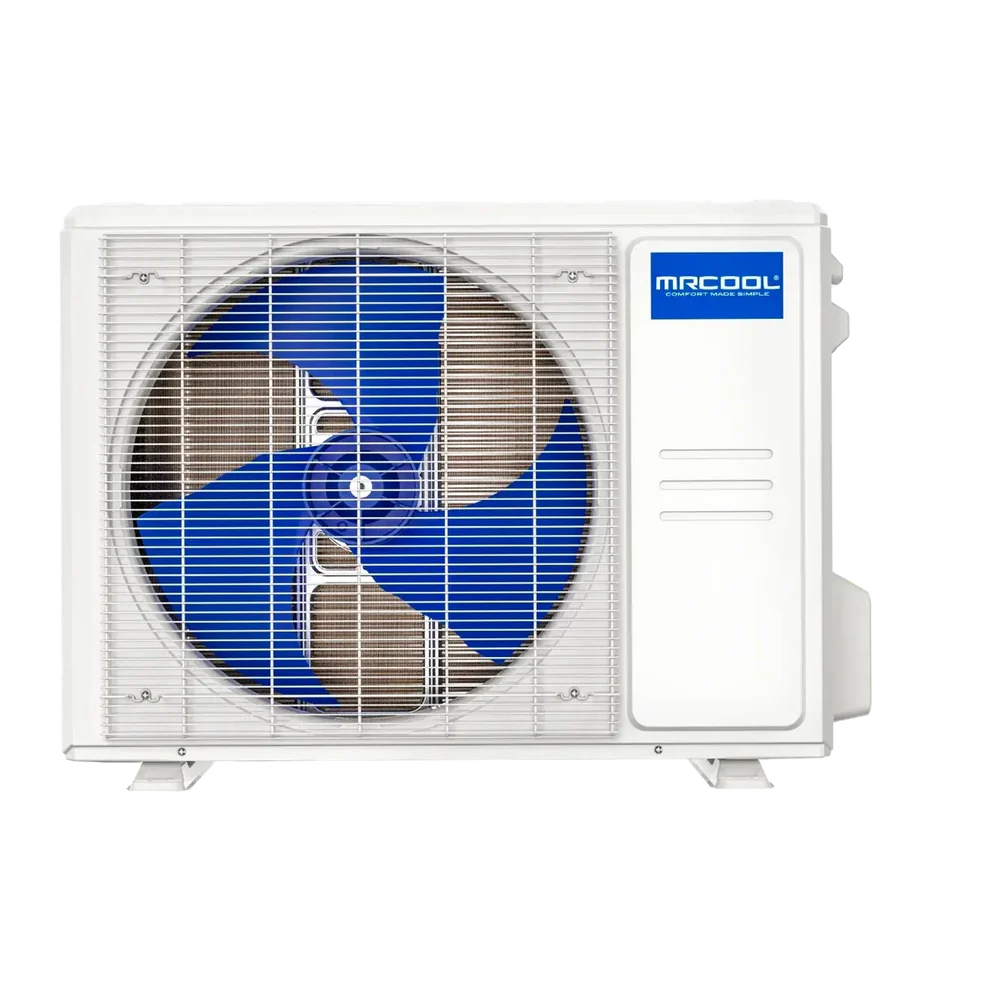

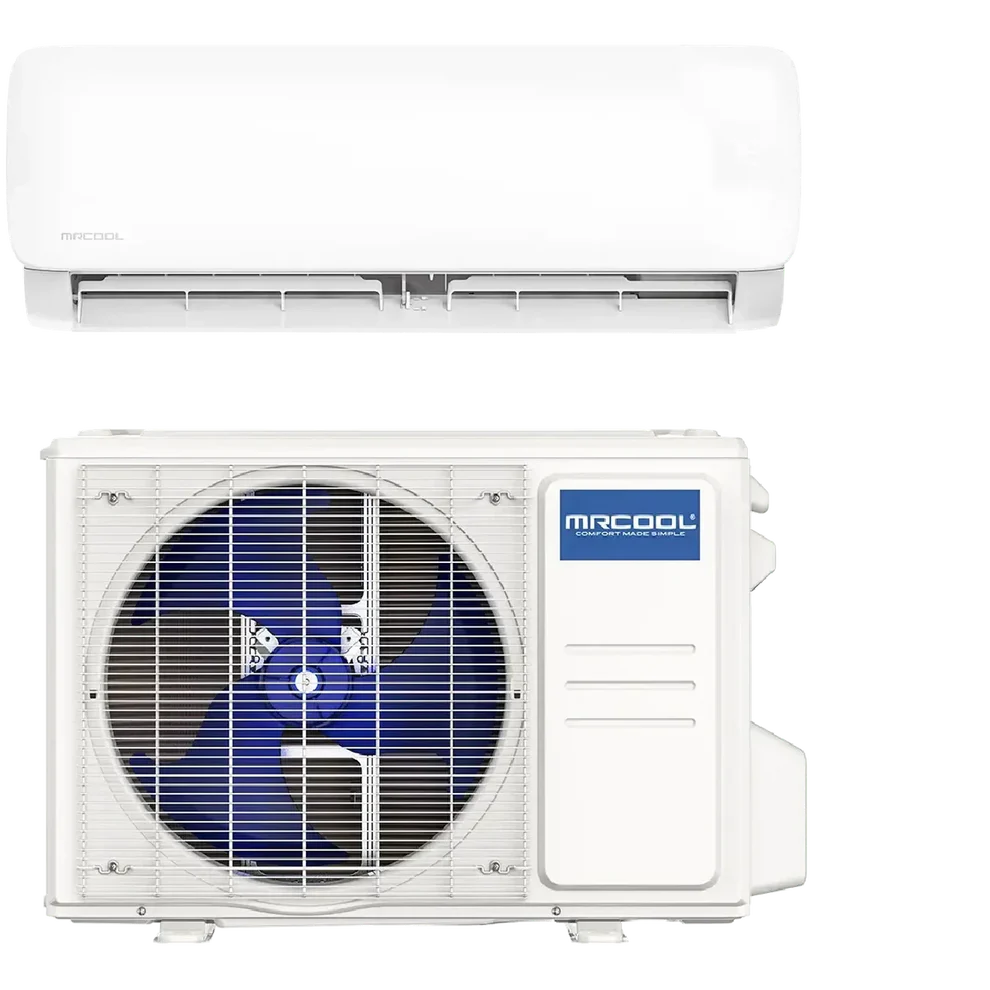

24K BTU Outdoor Condenser
-

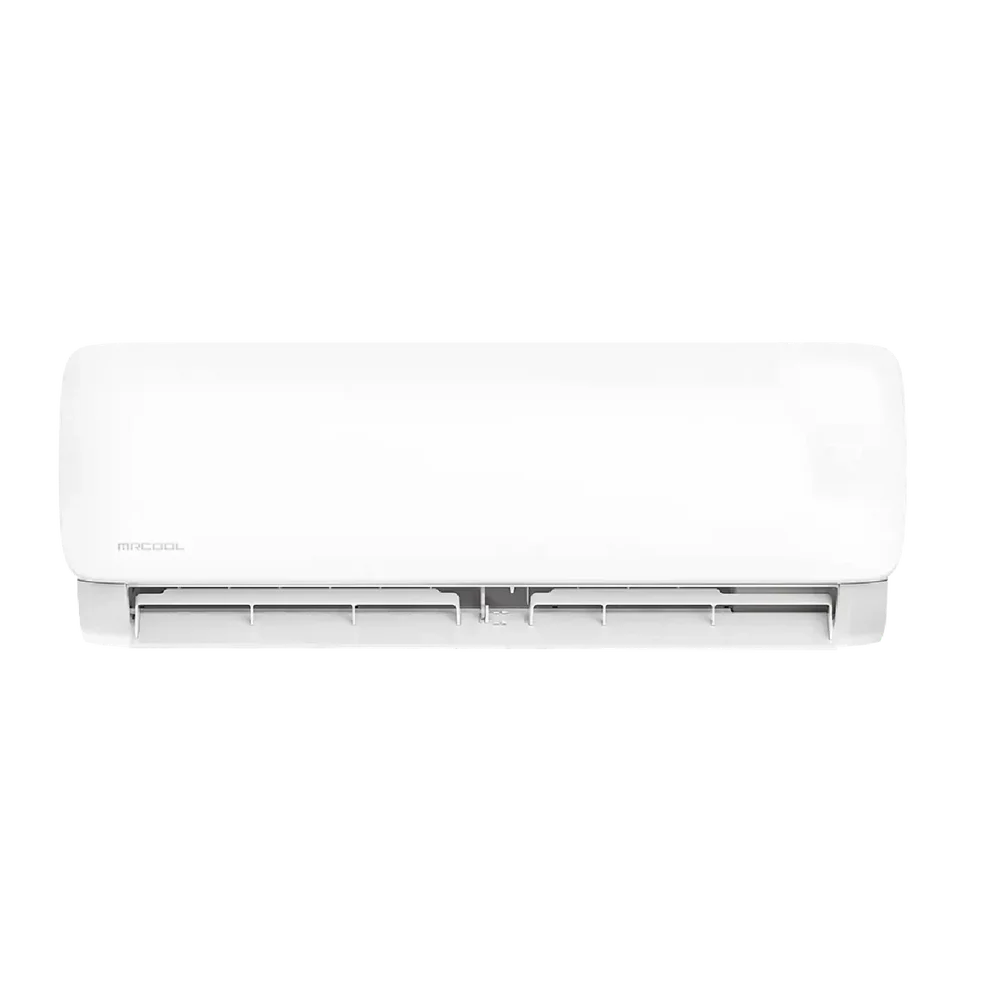

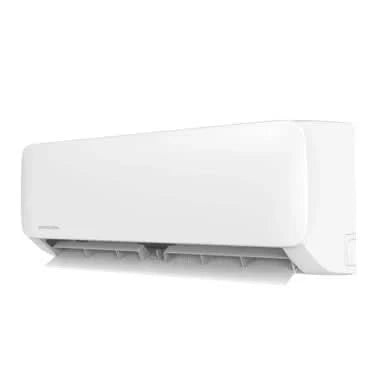

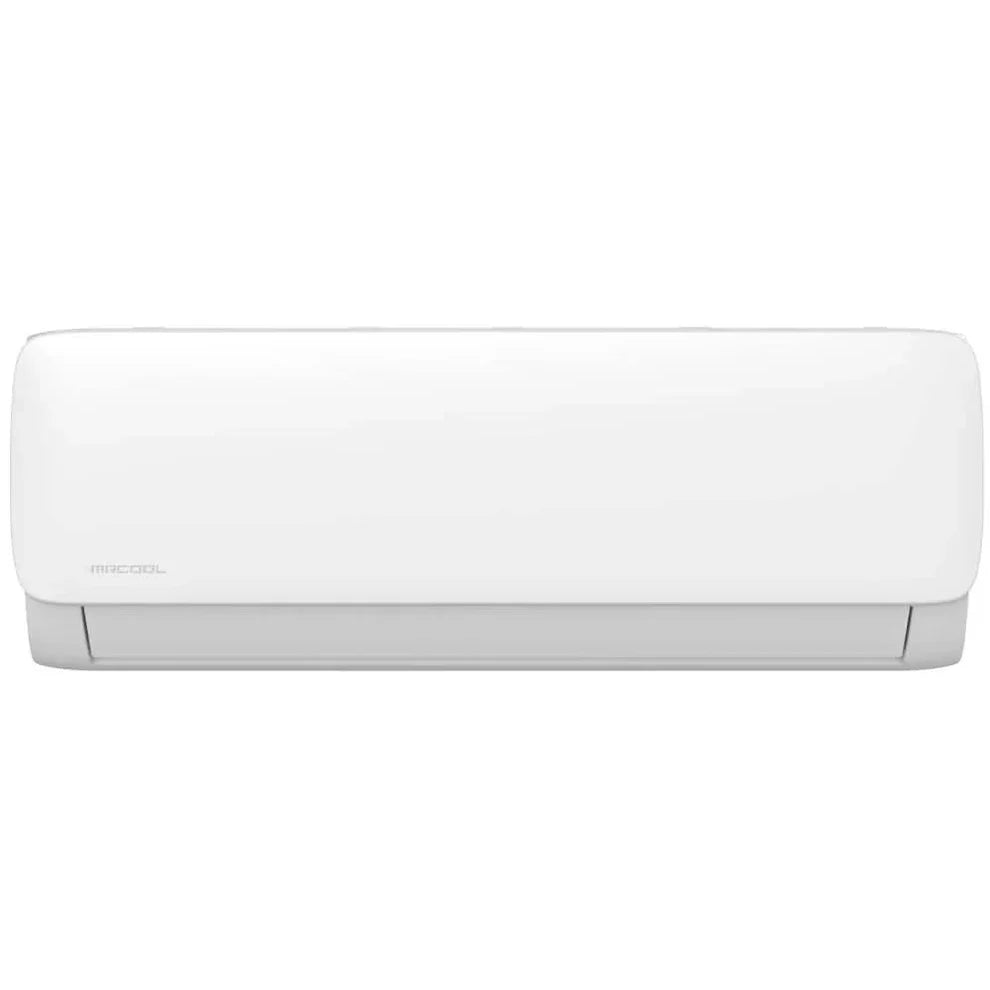

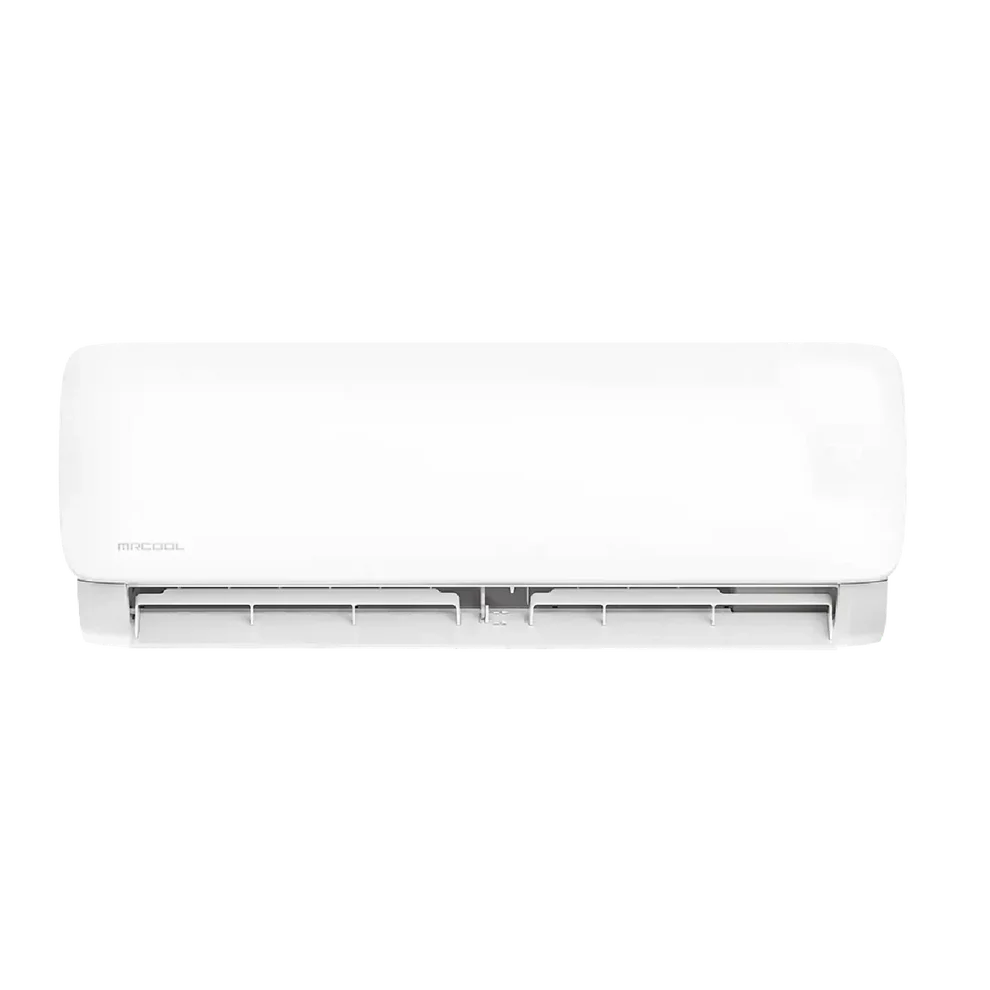

24K BTU Indoor Air Handler
-
16 ft. DIY Quick Connect Line Set
-
DIYPRO Cable
-
Remote Control
-
Installation Accessories
Warranty
-
2 Years Compressor
-
1 Year Parts
MRCOOL DIY 5th Gen EasyPro 24K BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable Specifications
| Dimensions & Weight |
| Condenser Dimensions |
35.04 W" x 13.46 D" x 26.5 H" |
| Condenser Weight |
95.9 lbs |
| Air Handler Dimensions |
42.6 W" x 9.21 D" x 13.27 H" |
| Air Handler Weight |
35.49 lbs |
| Capacity & Performance |
| Zone Capacity |
1 |
| Cooling Capacity |
24,000 BTU |
| EER2 |
9.7 |
| SEER2 |
18.9 |
| Heating Capacity |
25,000 BTU |
| HSPF2-4 |
8.7 |
| HSPF2-5 |
6.9 |
| Coverage Area |
1,050 sq ft. |
| Outdoor Noise Level |
61 dB(A) |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) |
51.5/45.5/40.5/26.5/21.5 dB(A) |
| Electrical Requirements |
| Voltage |
208-230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A |
| Min Circuit Ampacity |
19A |
| Refrigerant & Piping |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
50.44 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Max Line Set Length |
164 ft. |
| Features |
| Inverter |
DC |
| Compressor Type |
Rotary |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
1 Year Parts / 2 Year Compressor |
Frequently-Asked Questions
Can I install this system myself?
Yes, the EasyPro series is built for DIY installation. With the included pre-charged Quick Connect line set and DIYPRO™ cable, no HVAC tools or certification are required.
What size space can this system handle?
The 24K BTU system is ideal for spaces between 751 – 1,000 sq. ft., such as large living rooms, master bedrooms, or open layouts.
Does this system provide heating and cooling?
Yes, it delivers both heating and cooling power for year-round comfort.
Is it smart home compatible?
Yes, it is Wi-Fi enabled and can be controlled through the MRCOOL app, Alexa, or Google Assistant.
