MRCOOL DIY 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-24-HP-WM-230D25-O Mini Split MRCOOL

MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V | System Set

Name: MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V | System Set
Brand: MRCOOL
SKU: DIY-24-HP-WM-230D25-O|SS
Price: 3329.0 USD
Availability: InStock

BY: MRCOOL

SKU: DIY-24-HP-WM-230D25-O | SS

| Availability: In stock

$3,699.00

$3,329.00

You Save: $370.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized MRCOOL Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V | System Set

The MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split System is designed for powerful performance, energy efficiency, and the easiest installation possible. Featuring the pre-charged Quick Connect line set, this system allows homeowners to install their own ductless mini split without special tools, training, or certification. With advanced inverter technology, ENERGY STAR® efficiency, and smart controls, it delivers reliable heating and cooling comfort for spaces up to 1,000 sq. ft.

Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.

MRCOOL DIY 24K System Features

Do-It-Yourself Installation

Includes a 25 ft. pre-charged Quick Connect line set — no HVAC tools or professional installation required.

ENERGY STAR® Certified Efficiency

High SEER2 ratings keep energy costs low while maintaining consistent comfort.

Smart Home Integration

Control your system with the MRCOOL SmartHVAC app, Amazon Alexa, or Google Assistant.

Advanced Inverter Technology

Ensures smooth, efficient, and quiet operation by adjusting power output to meet comfort needs.

Whisper-Quiet Operation

Designed to operate at low noise levels, making it ideal for bedrooms, offices, and living spaces.

MRCOOL DIY 24K System Applications

Large bedrooms – quiet, efficient comfort for restful sleep
Living rooms – consistent heating and cooling for family gathering areas
Home offices – maintain productivity in a comfortable environment
Small apartments/condos – efficient solution for up to 1,000 sq. ft.

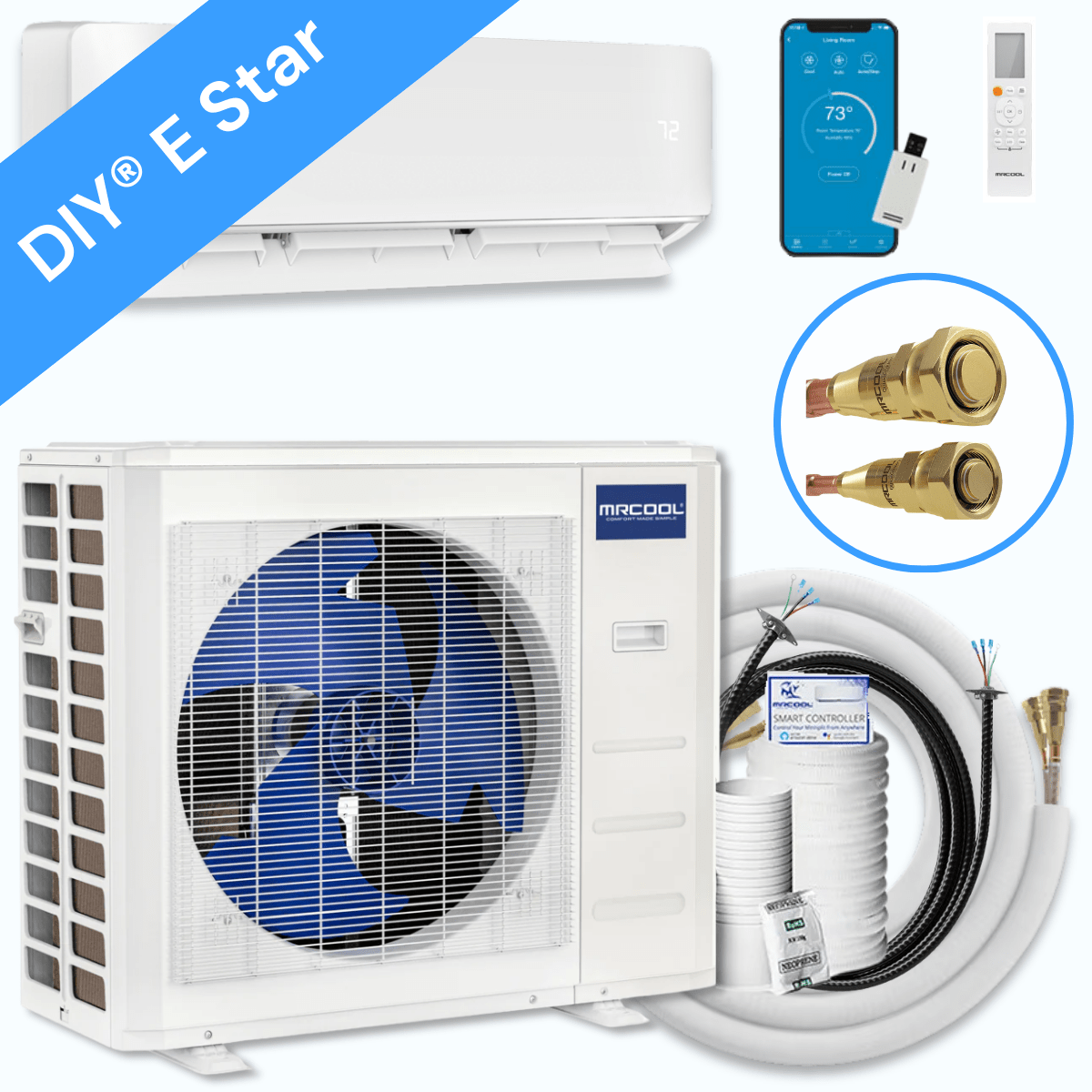

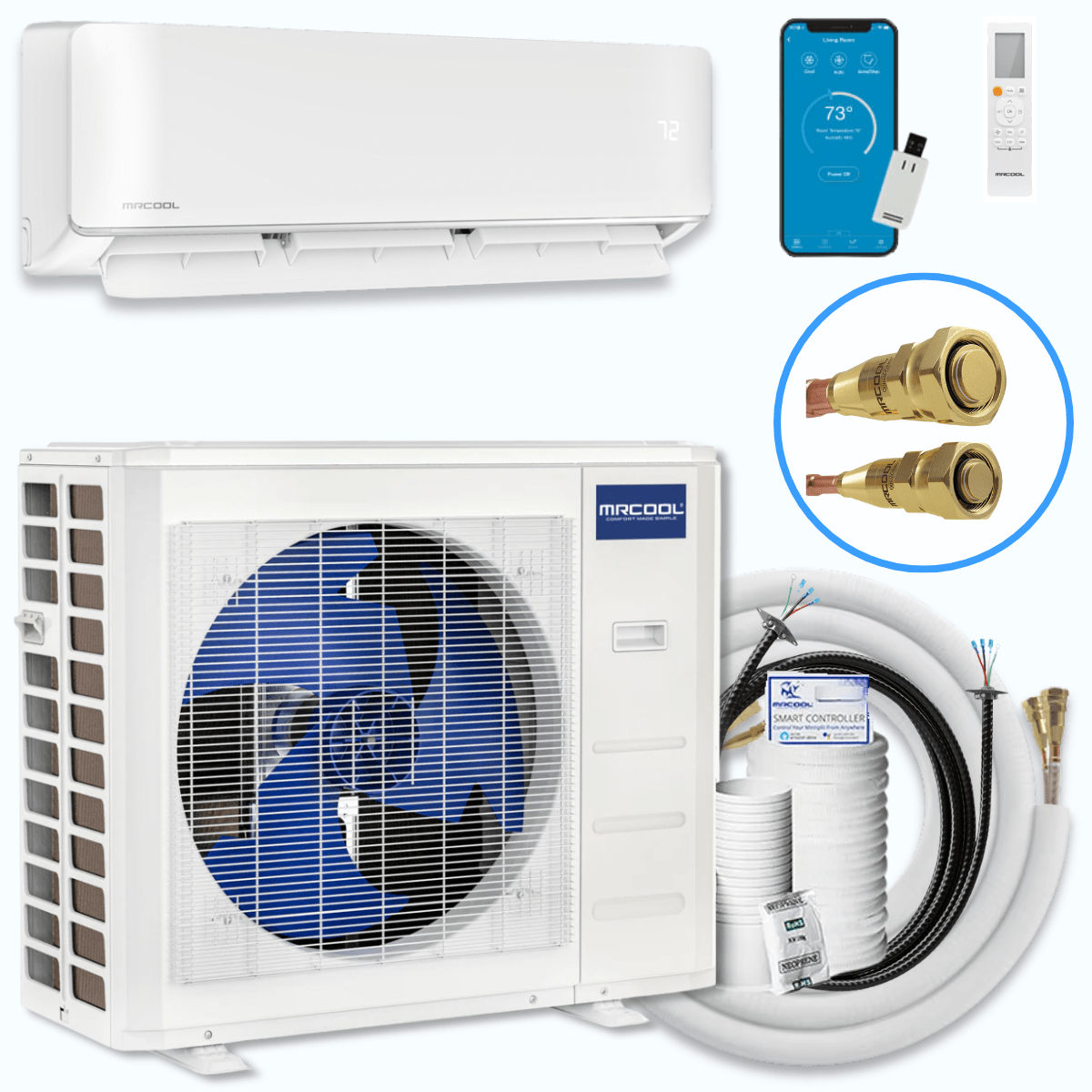

What's Included

Everything you need is included with your product.

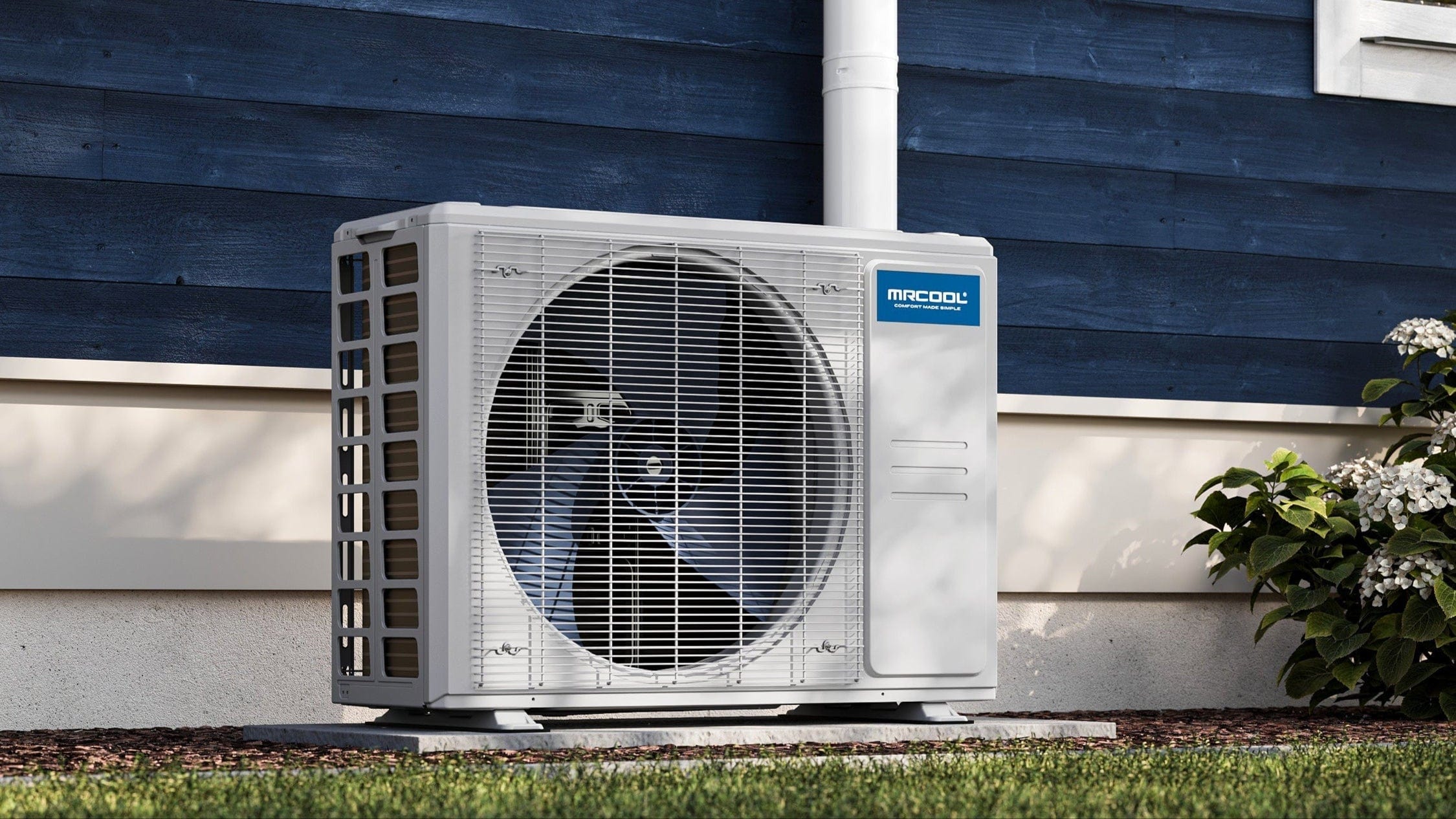

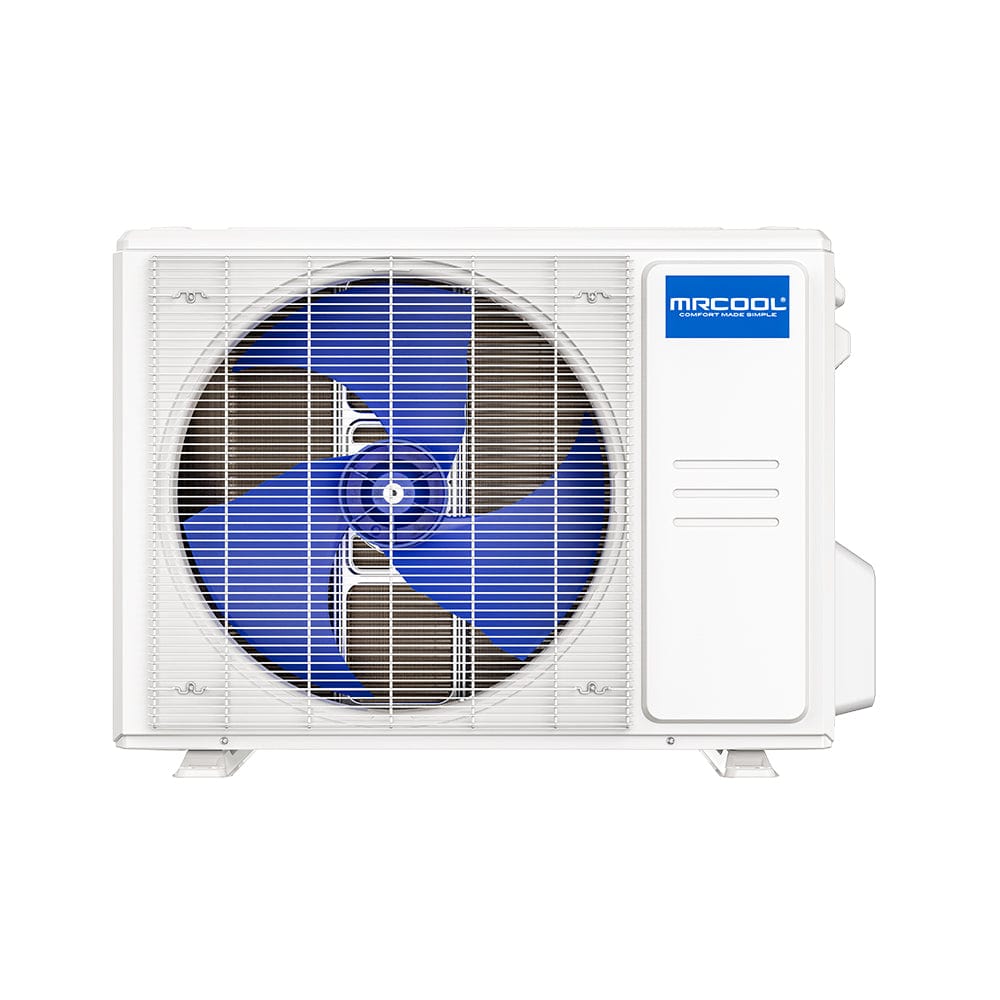

Condenser Unit

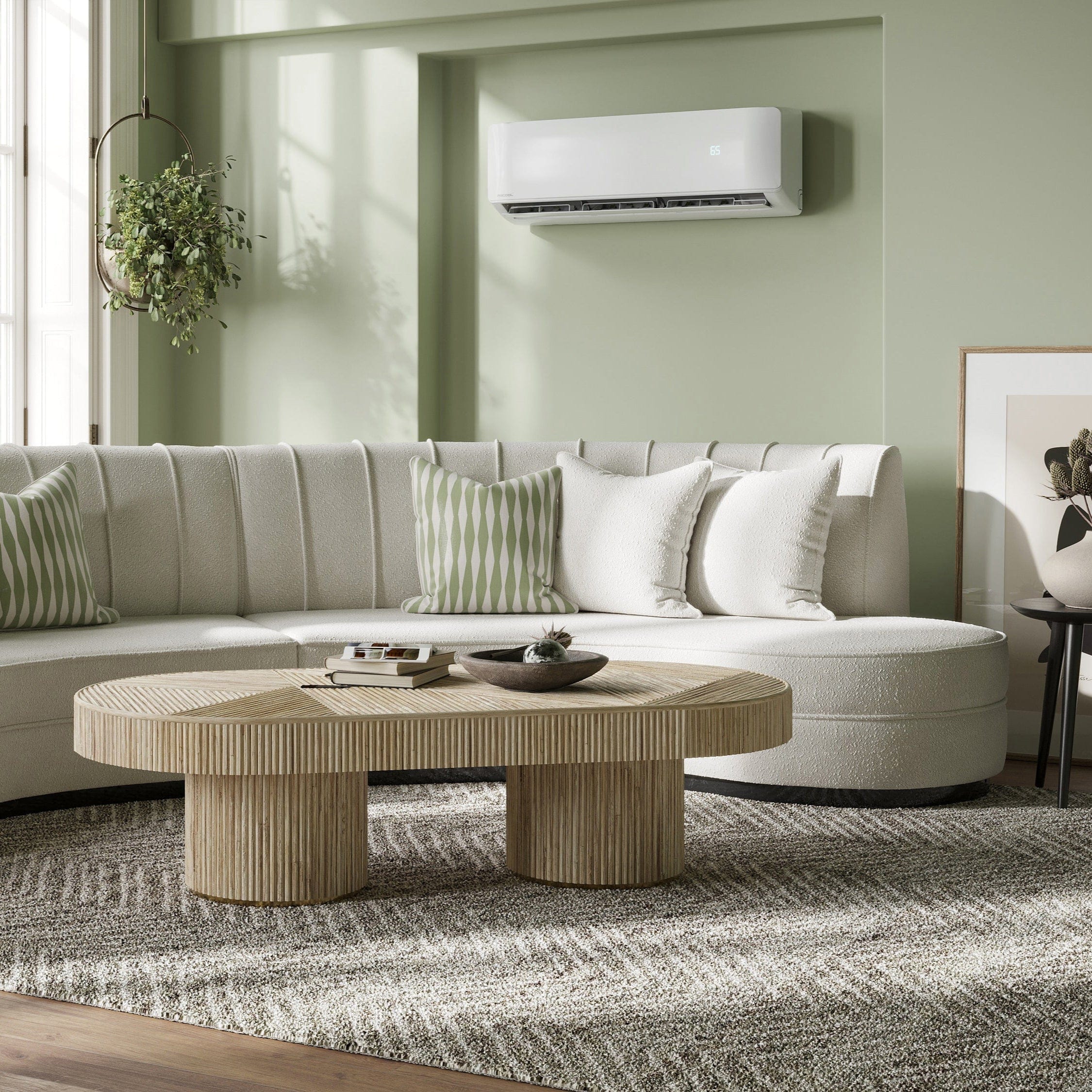

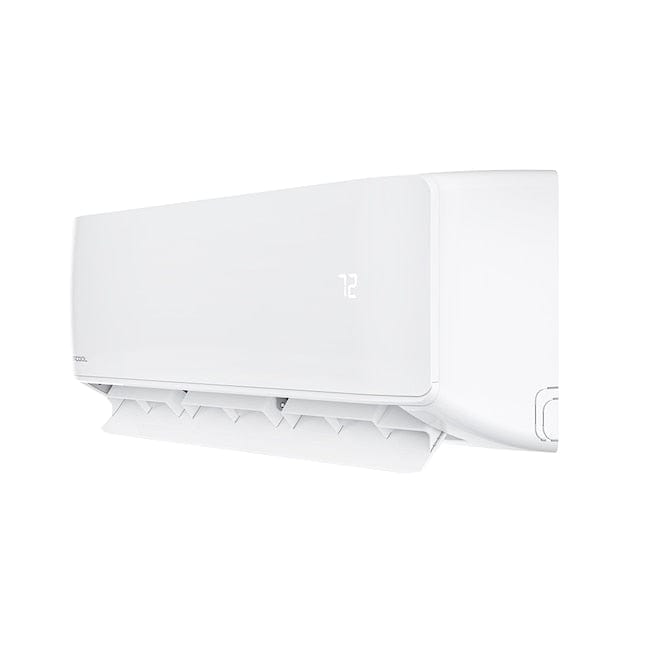

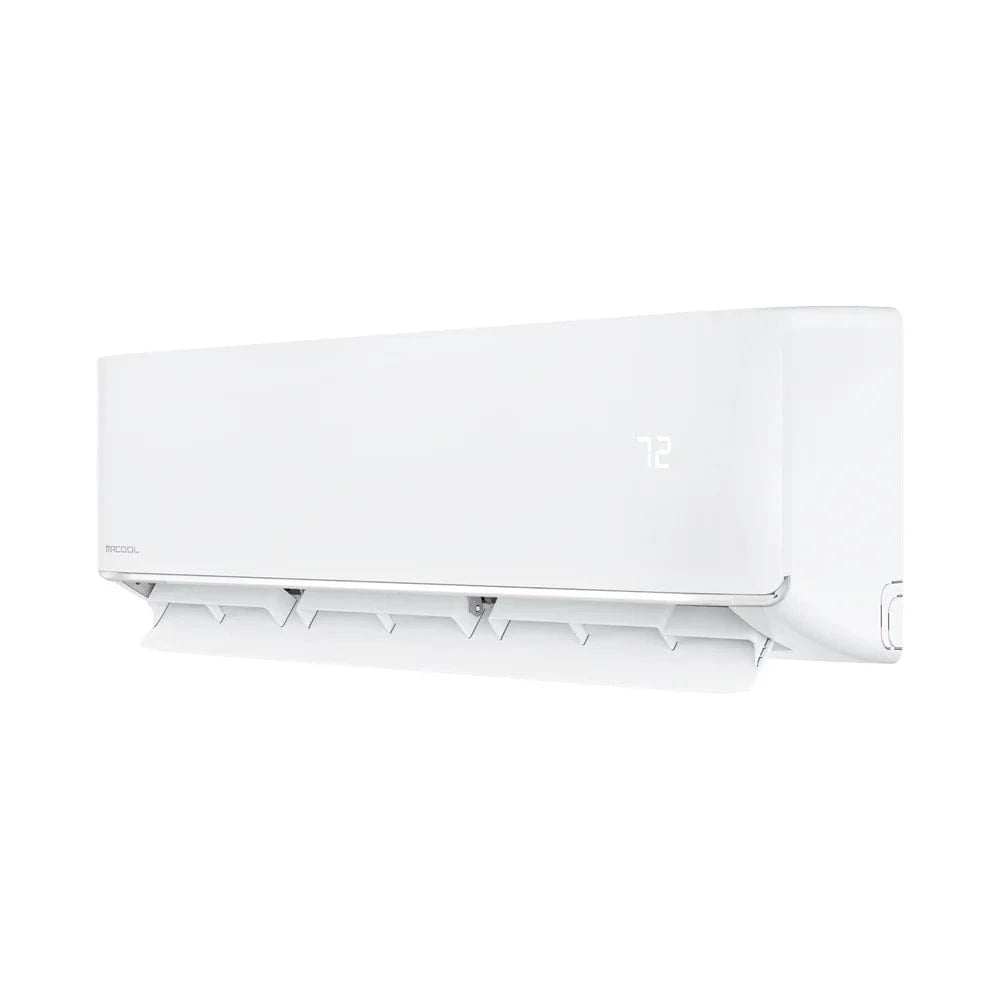

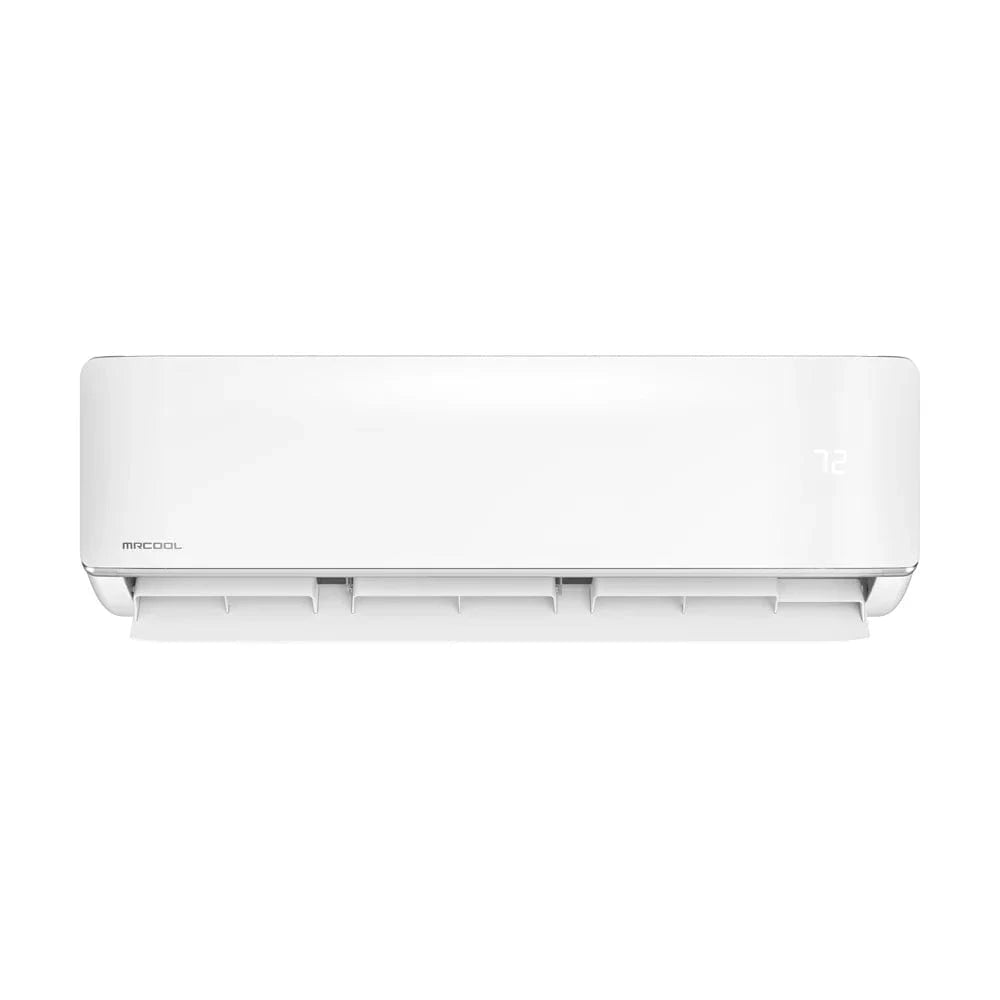

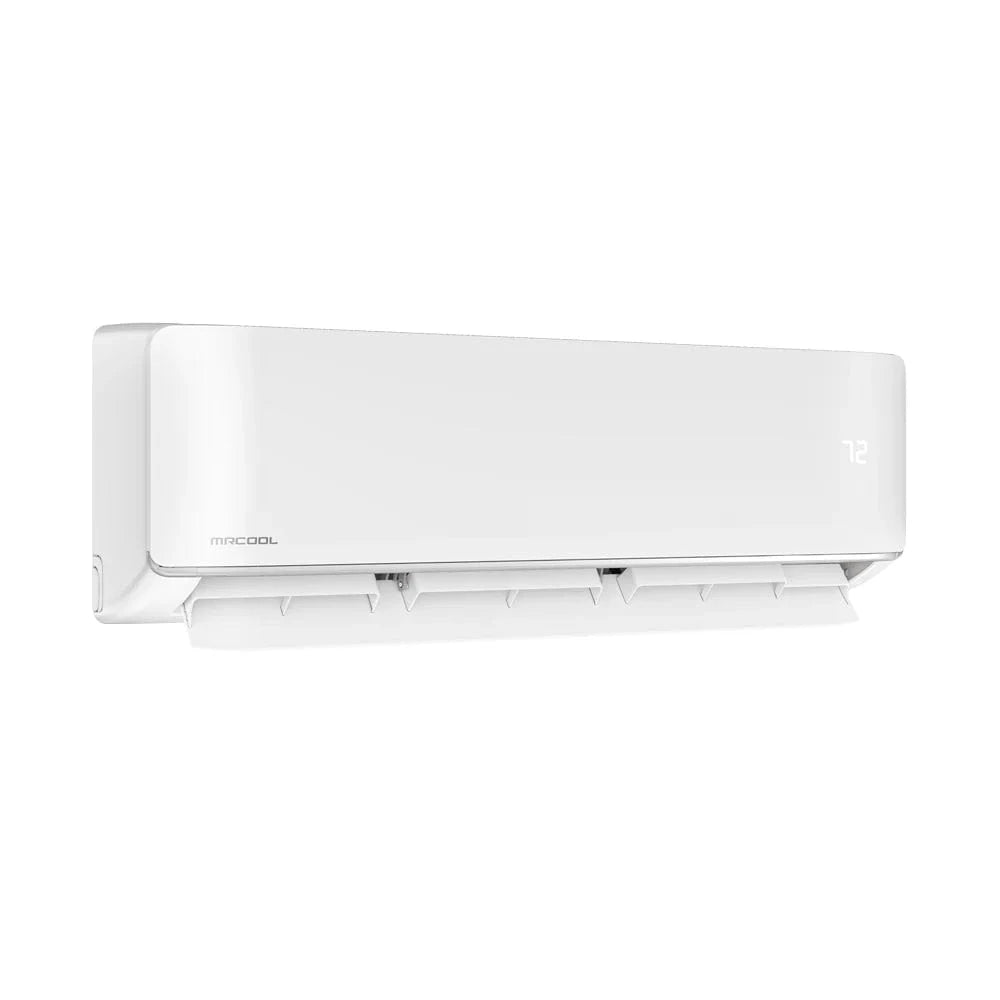

Air Handler

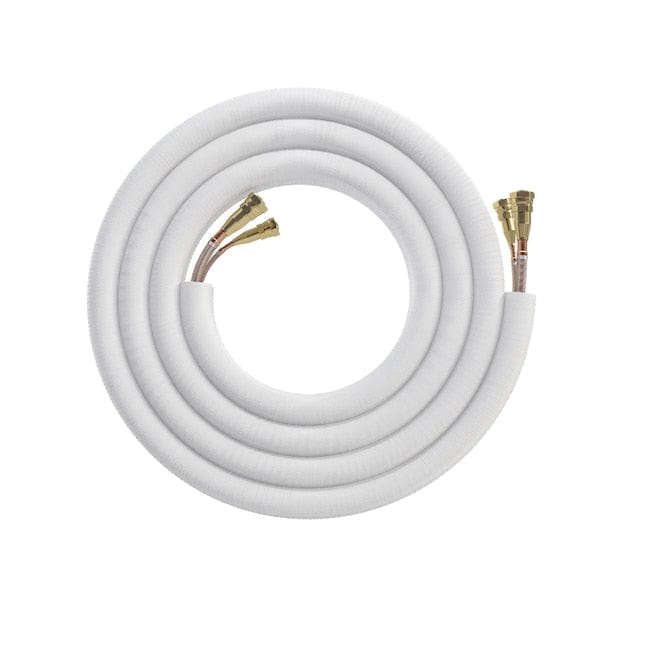

25 ft. Pre-Charged DIY Quick Connect Line Set

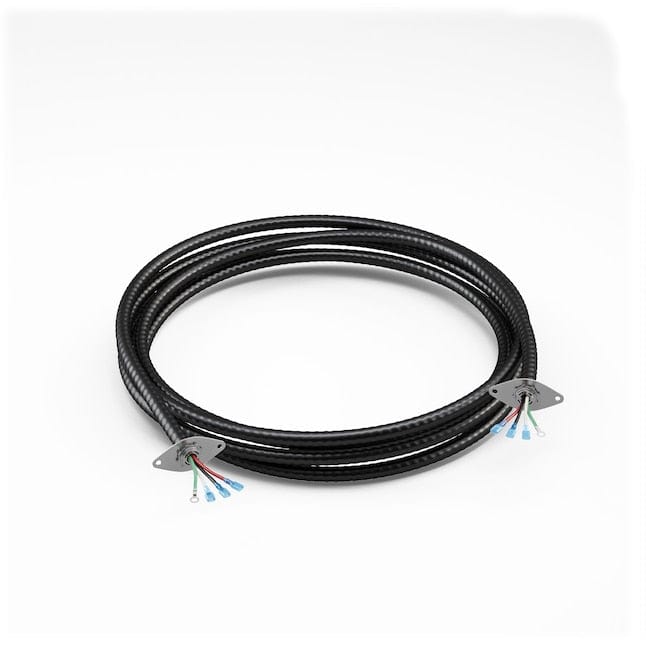

DIYPRO Communication Cable

Remote Control
Installation Accessories
User Manual

Warranty

7 Years Compressor
5 Years Parts

MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V Specifications

Dimensions & Weight

Specifications	Details
Condenser Dimensions	37.24 W" x 16.14 D" x 31.89 H"
Condenser Weight	112.8 lbs / 55.7 kg
Air Handler Dimensions	42.52 W" x 8.90 D" x 13.19 H"
Air Handler Weight	35.49 lbs / 16.1 kg

Capacity & Performance

Specifications	Details
Zone Capacity	1
Cooling Capacity	23,000 BTU
EER2	12.7
SEER2	22.7
Heating Capacity	23,000 BTU
HSPF2-4	9.6
HSPF2-5	7.1
Coverage Area	750 to 1,000 sq ft.
Outdoor Noise Level	58.5 dB(A)
Indoor Noise Level (Hi/Mi/Lo)	54.0/48.0/43.0/33.5/20.0 dB(A)

Electrical Requirements

Specifications	Details
Voltage	208-230V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	25A
Min Circuit Ampacity	24A

Refrigerant & Piping

Specifications	Details
Refrigerant Type	R-454B
Refrigerant Volume	67.37 oz
Liquid Line Size	3/8"
Suction Line Size	5/8"
Max Line Set Length	164 ft.

Features

Specifications	Details
Inverter	DC
Compressor Type	Rotary
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes

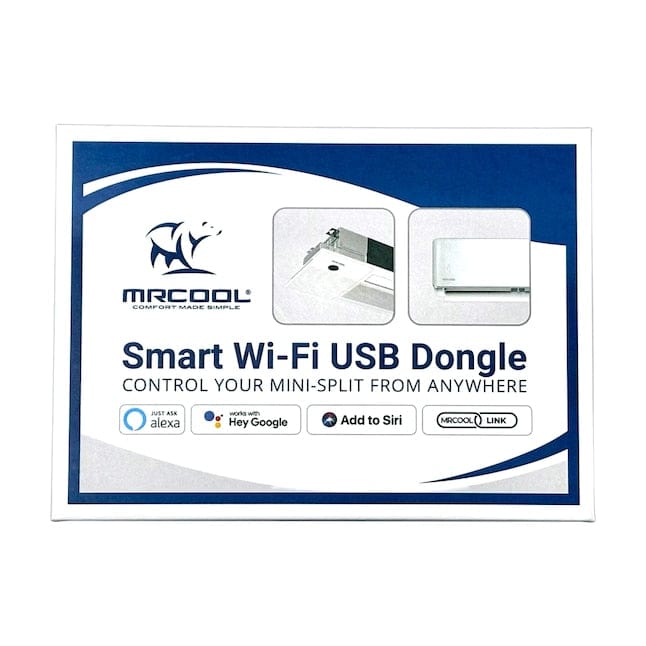

Wifi Compatibility	Yes
App Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes

Certifications & Warranty

Specifications	Details
Certifications	UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
Warranty	7 Years Compressor \| 5 Years Parts \| Extended Limited Lifetime Replacement If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty *The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.

Frequently-Asked Questions

Is this system really DIY-friendly?

Yes, the MRCOOL DIY series includes pre-charged Quick Connect line sets, allowing homeowners to install the system without special HVAC tools or certification.

What size area does this system cover?

This 24,000 BTU model is ideal for spaces between 750–1,000 sq. ft.

Does it work in very cold or hot climates?

Yes, the Hyper Heat design allows operation in conditions as low as -22°F and as high as 122°F.

Can I control it from my phone?

Absolutely. The system is WiFi-enabled and compatible with both iOS and Android through the MRCOOL app.

Manual

MRCOOL DIY 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System Manual
