MRCOOL DIY 5th Gen E Star 36K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V | System Set

Enjoy exceptional comfort and energy efficiency with the MRCOOL DIY 5th Gen E Star 36K BTU Mini Split System. Designed with convenience in mind, this complete system allows homeowners to install it themselves using the pre-charged 25 ft. DIY Quick Connect line set, eliminating the need for vacuuming or charging. It delivers powerful cooling and heating performance, ideal for large spaces needing year-round climate control.

Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.

MRCOOL DIY 5th Gen E Star 36K BTU Features

DIY Installation Made Simple

Includes a pre-charged 25 ft. Quick Connect line set — no special tools, certifications, or vacuuming required.

Energy Star Certified

Highly efficient and Energy Star rated, helping you save on utility costs year-round.

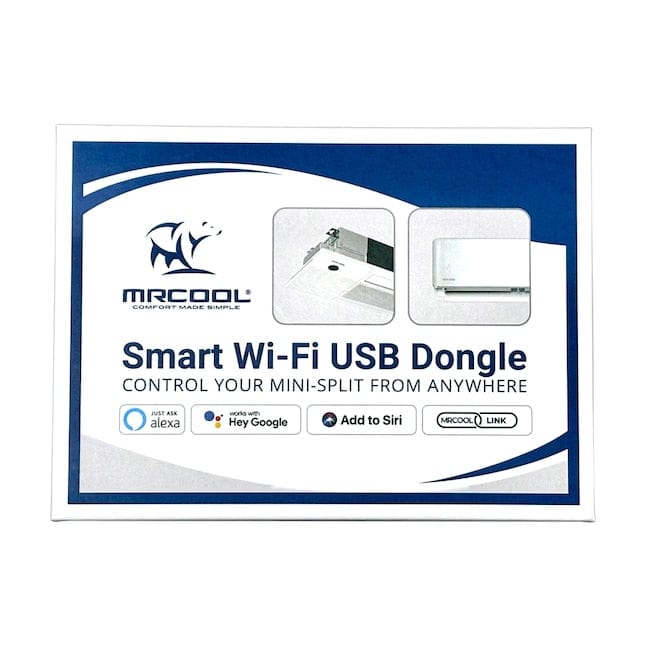

Smart Control Options

Control the unit via the MRCOOL SmartHVAC app, Amazon Alexa, or Google Assistant for hands-free climate adjustments.

Heating & Cooling All Year

Delivers consistent performance in both cold winters and hot summers with powerful 36,000 BTU capacity.

Leak Detection System

Built-in alerts let you know if refrigerant levels drop below optimal, preventing costly repairs.

Quiet Operation

Designed to minimize indoor and outdoor noise — great for bedrooms or offices

MRCOOL DIY 5th Gen E Star 36K BTU Applications

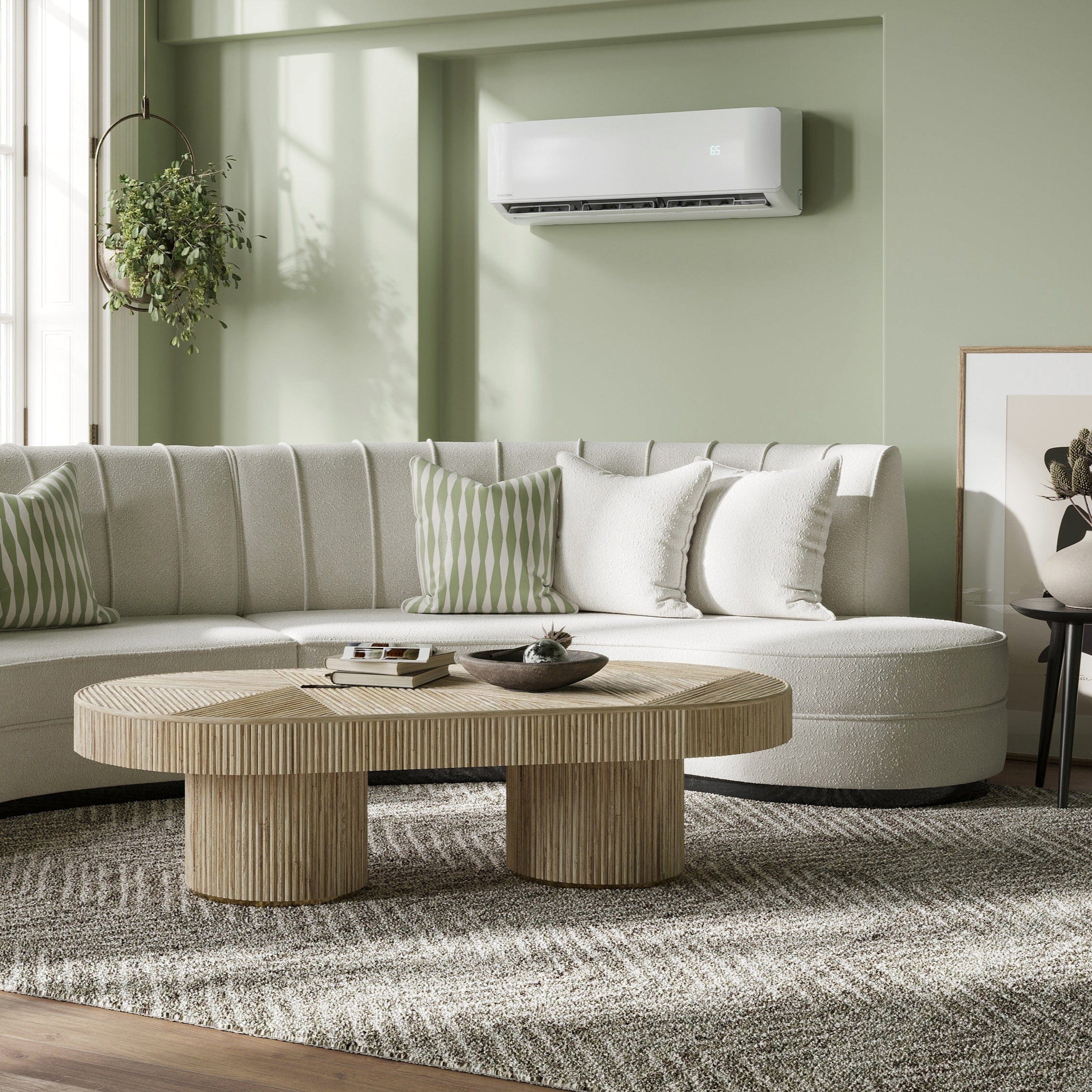

Large living rooms – provides cooling and heating for spacious areas without ducts.
Workshops or garages – ideal for areas without existing HVAC infrastructure.
Basements – maintains comfort even in cooler, more insulated spaces.
Add-ons or extensions – perfect for new builds where ductwork isn't feasible.

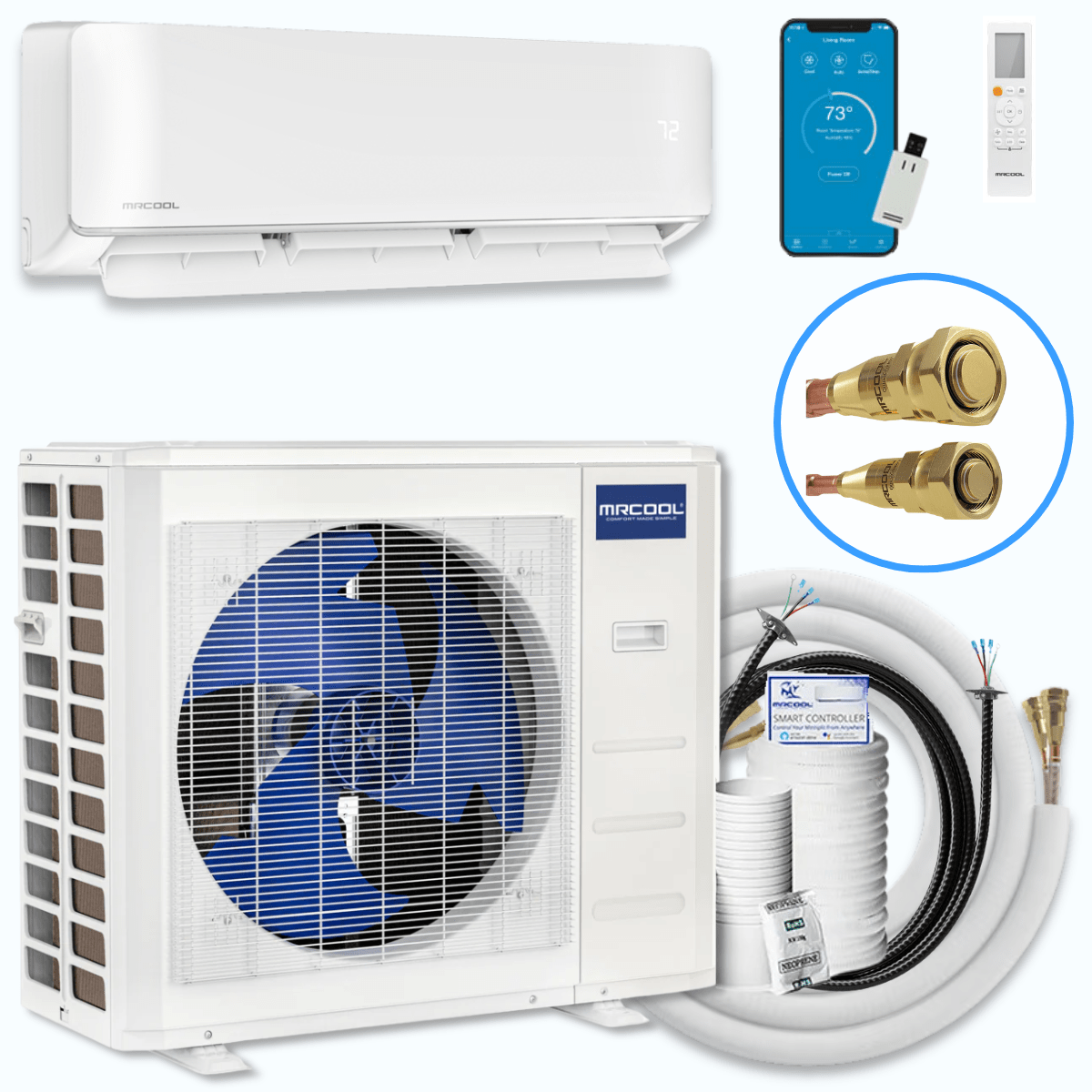

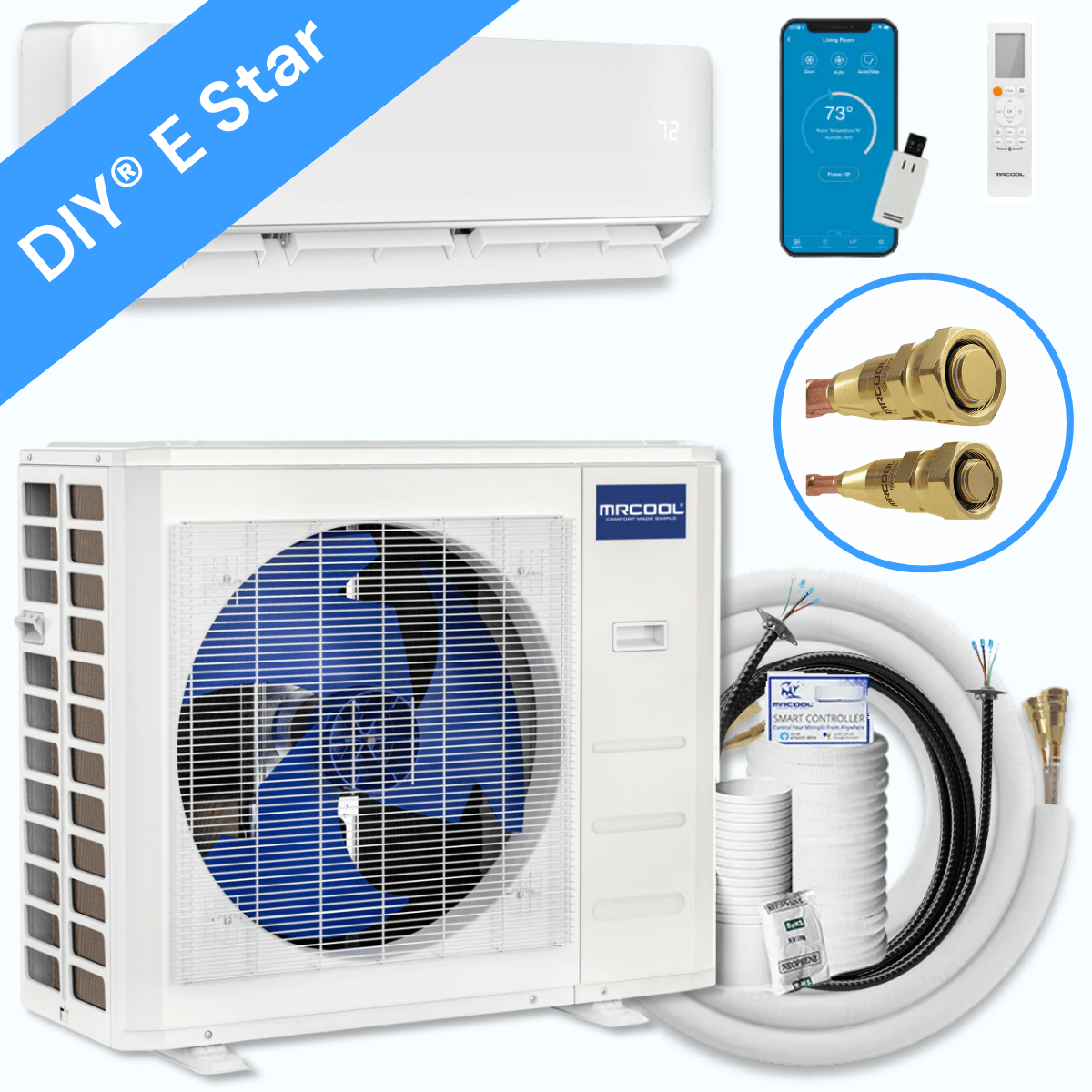

What's Included

Everything you need is included with your product.

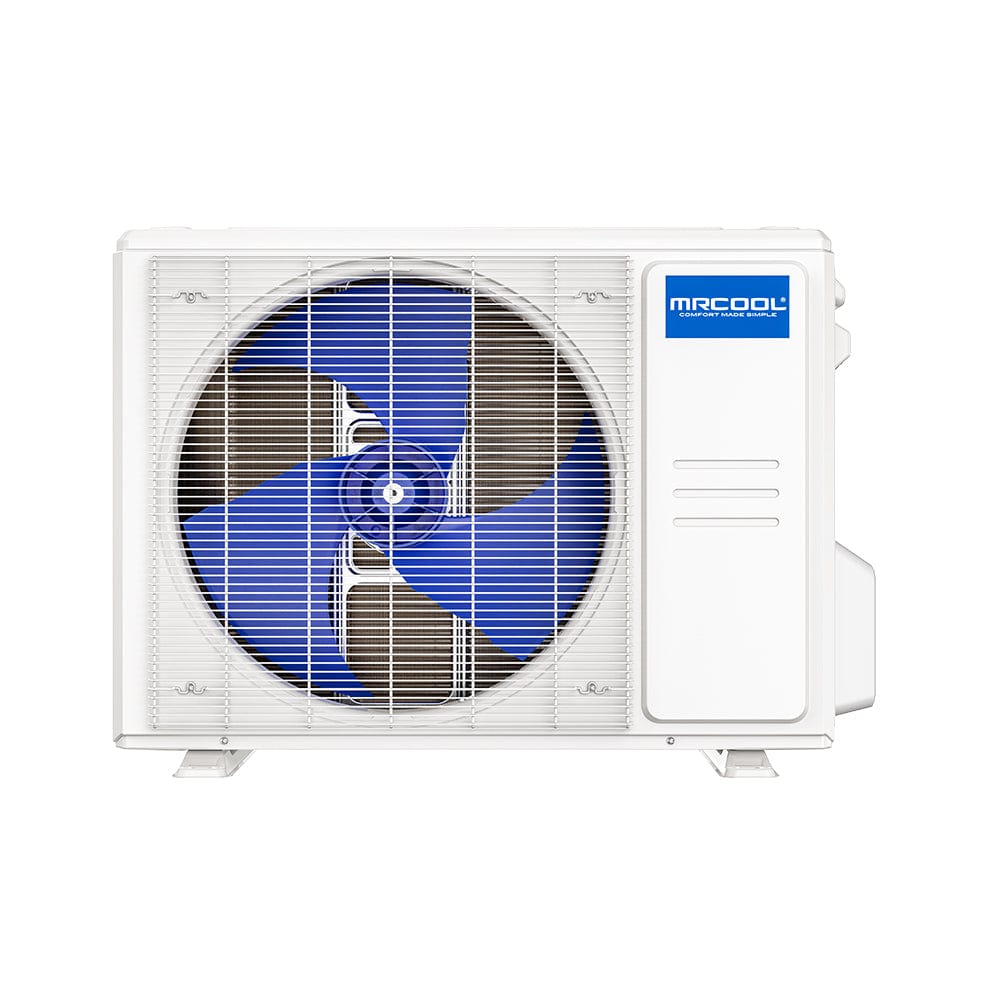

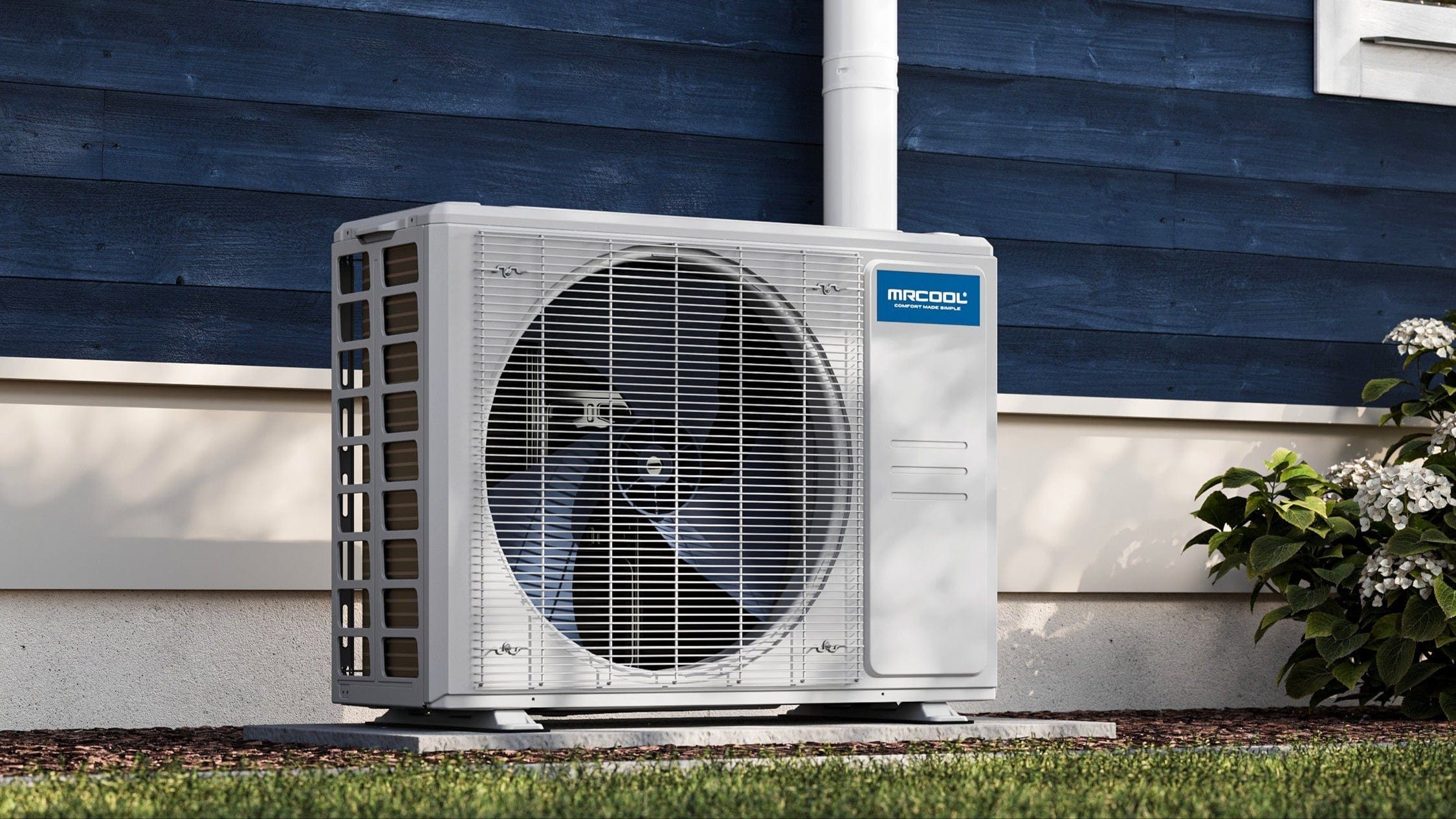

Condenser (36K BTU)

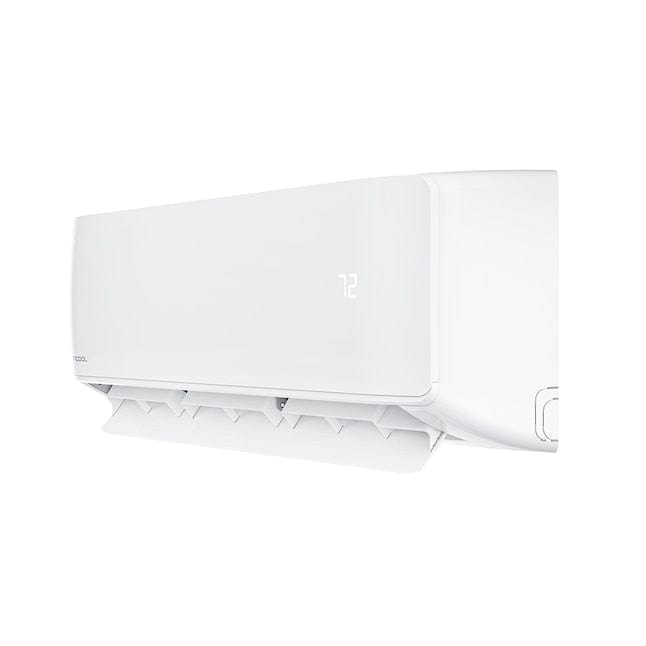

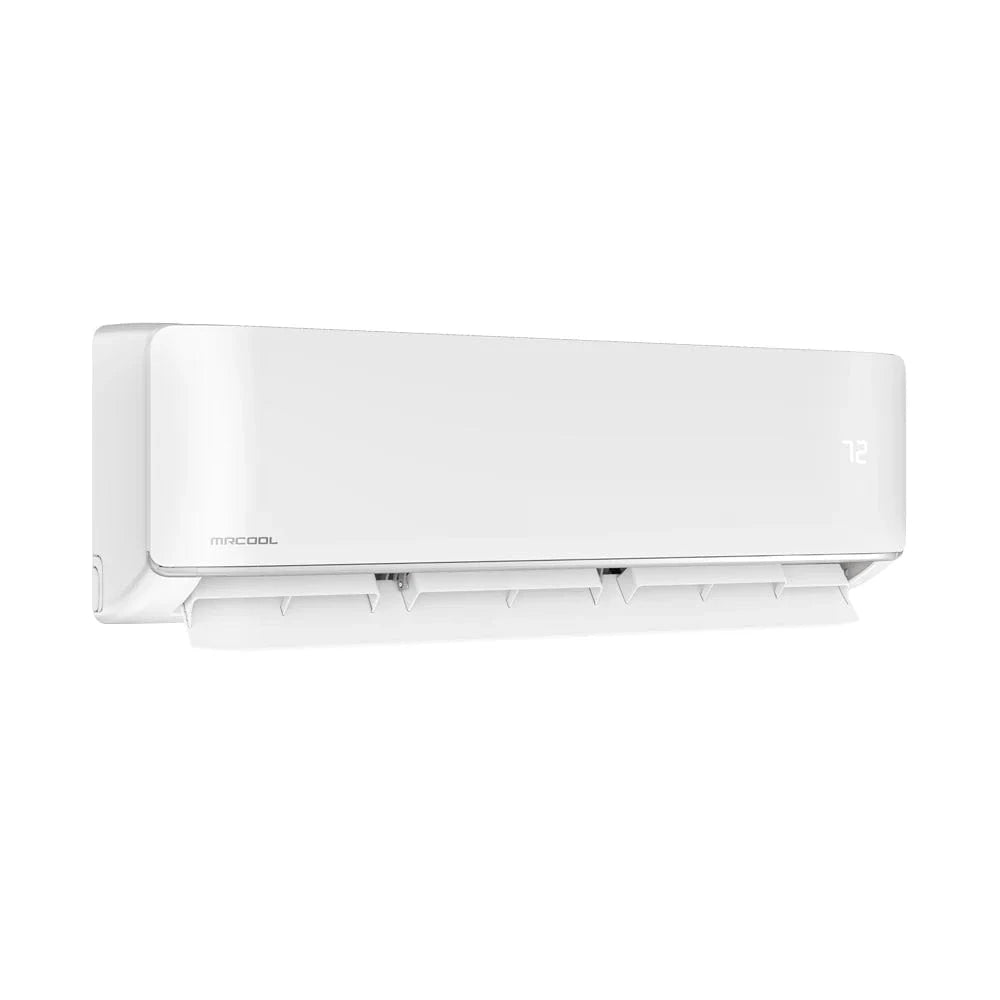

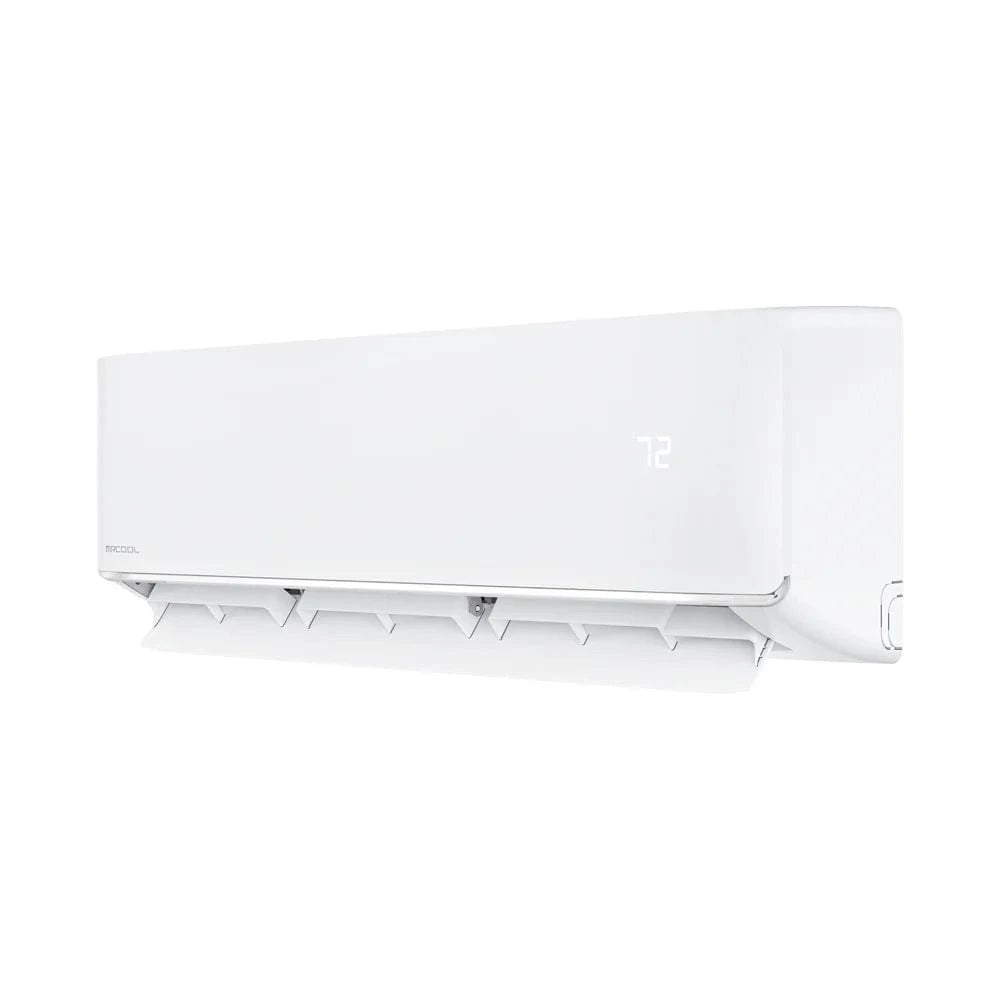

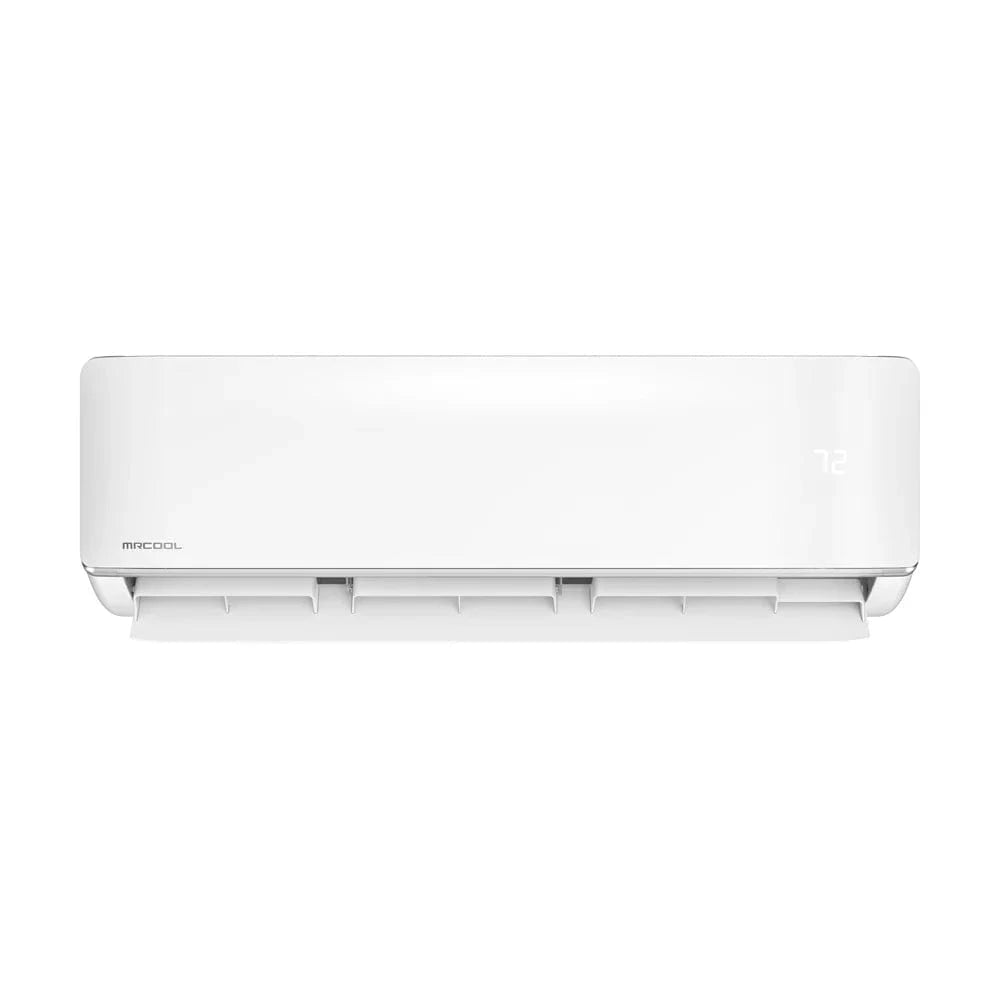

Indoor air handler

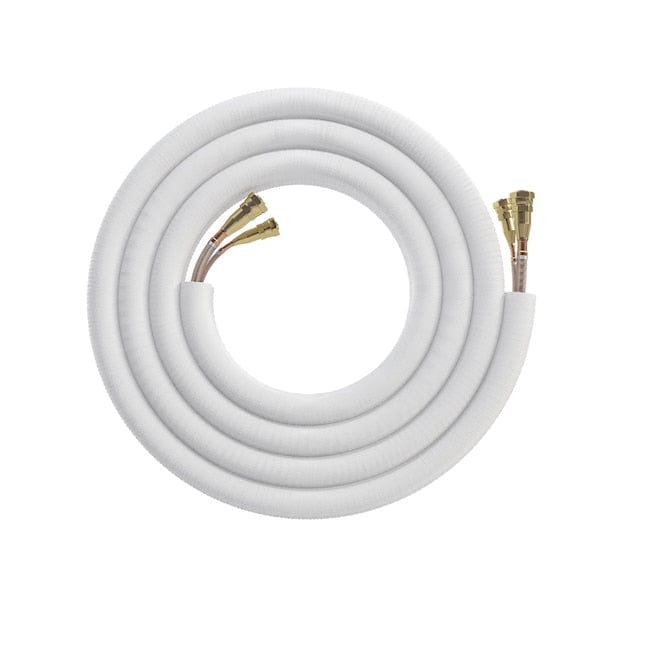

25 ft. DIY Quick Connect pre-charged line set

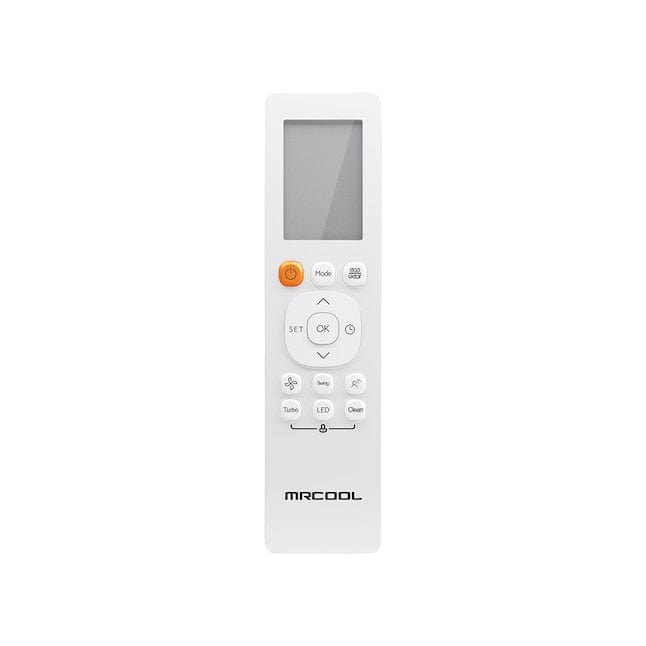

Remote control

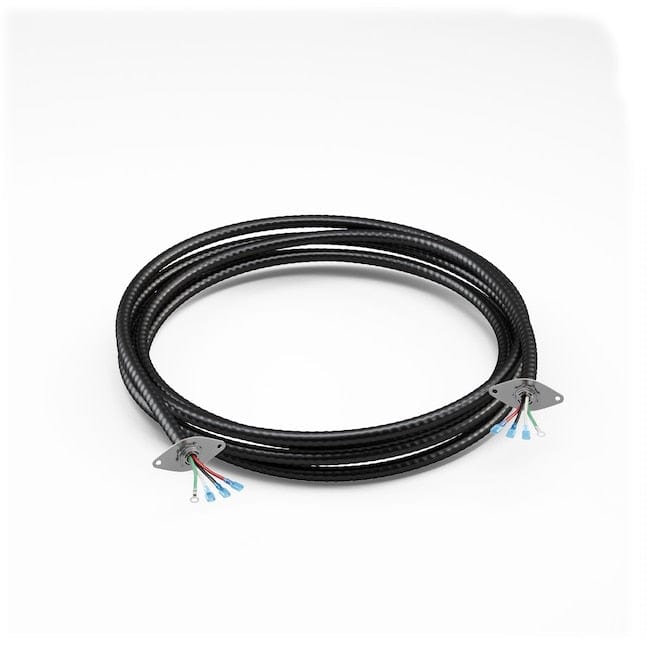

DIYPRO cable
Installation accessories (wall sleeve, drain hose, etc.)

Warranty

7 Years Compressor
5 Years Parts

MRCOOL DIY 5th Gen E Star 36K BTU Specifications

Dimensions & Weight

Specifications	Details
Condenser Dimensions	37.24 W" x 16.14 D" x 31.89 H"
Condenser Weight	152.12 lbs / 69 kg
Air Handler Dimensions	49.57 W" x 11.10 D" x 14.25 H"
Air Handler Weight	48.729 lbs / 22.1 kg

Capacity & Performance

Specifications	Details
Zone Capacity	1
Cooling Capacity	36,000 BTU
EER2	8.5
SEER2	18
Heating Capacity	36,000 BTU
HSPF2-4	8.5
HSPF2-5	6.5
Coverage Area	1,000 to 1,500 sq ft.
Indoor Noise Level (Hi/Mi/Lo)	55.5/49.5/43.5/38.0/27.5 dB(A)
Outdoor Noise Level	60.5 dB(A)

Electrical Requirements

Specifications	Details
Voltage	208-230V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	35A
Min Circuit Ampacity	33A

Refrigerant & Piping

Specifications	Details
Refrigerant Type	R-454B
Refrigerant Volume	109.70 oz
Liquid Line Size	3/8"
Suction Line Size	5/8"
Max Line Set Length	213.2 ft.

Features

Specifications	Details
Inverter	DC
Compressor Type	Rotary
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
Wifi Compatibility	Yes
App Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes

Certifications & Warranty

Specifications	Details
Certifications	UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
Warranty	7 Years Compressor \| 5 Years Parts \| Extended Limited Lifetime Replacement If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty *The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.

Frequently-Asked Questions

What size room does the 36K BTU unit cover?

This unit is suitable for areas between 1,001 and 1,500 square feet. Use our coverage chart to confirm the best size for your space.

Can I install this myself?

Yes! This unit is DIY-friendly and includes a pre-charged Quick Connect line set. No HVAC certification is needed.

Is this system Energy Star rated?

Yes, it is Energy Star certified for energy efficiency and cost savings.

Manual

MRCOOL DIY 5th Gen E Star 36K BTU Manual
