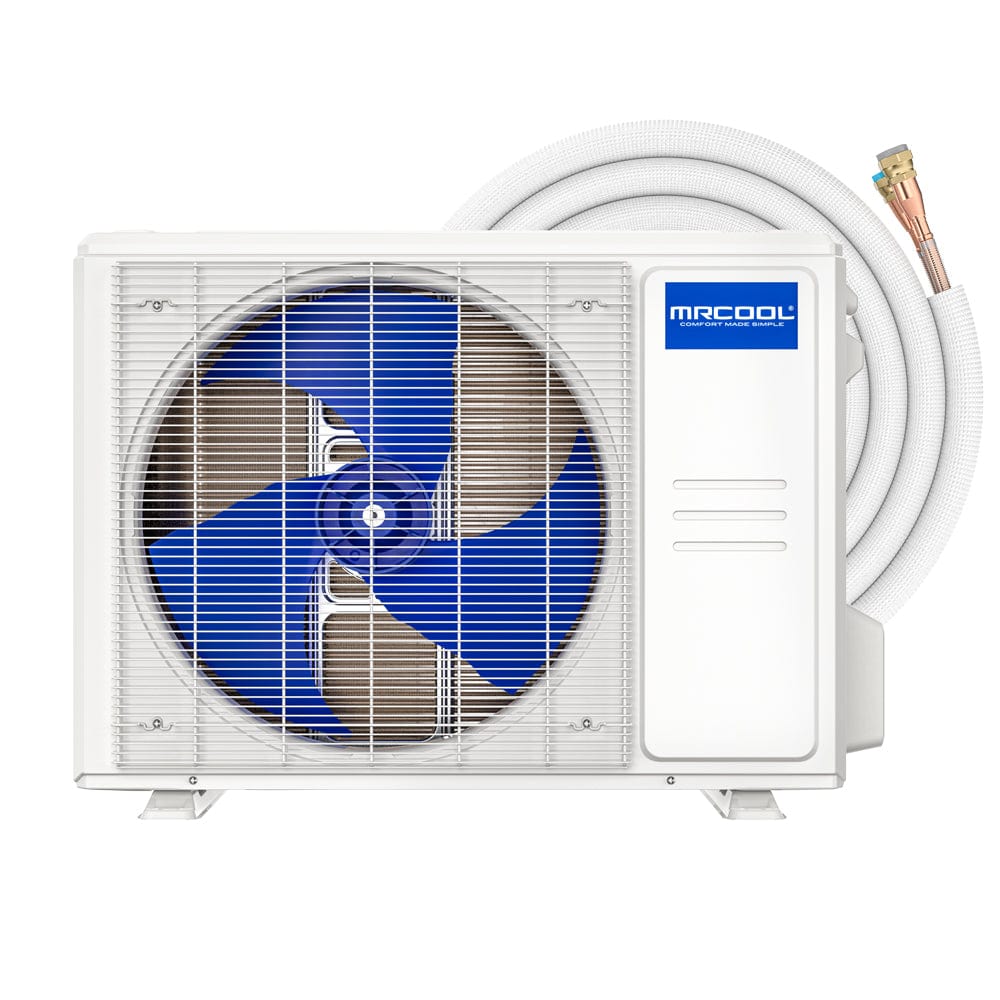

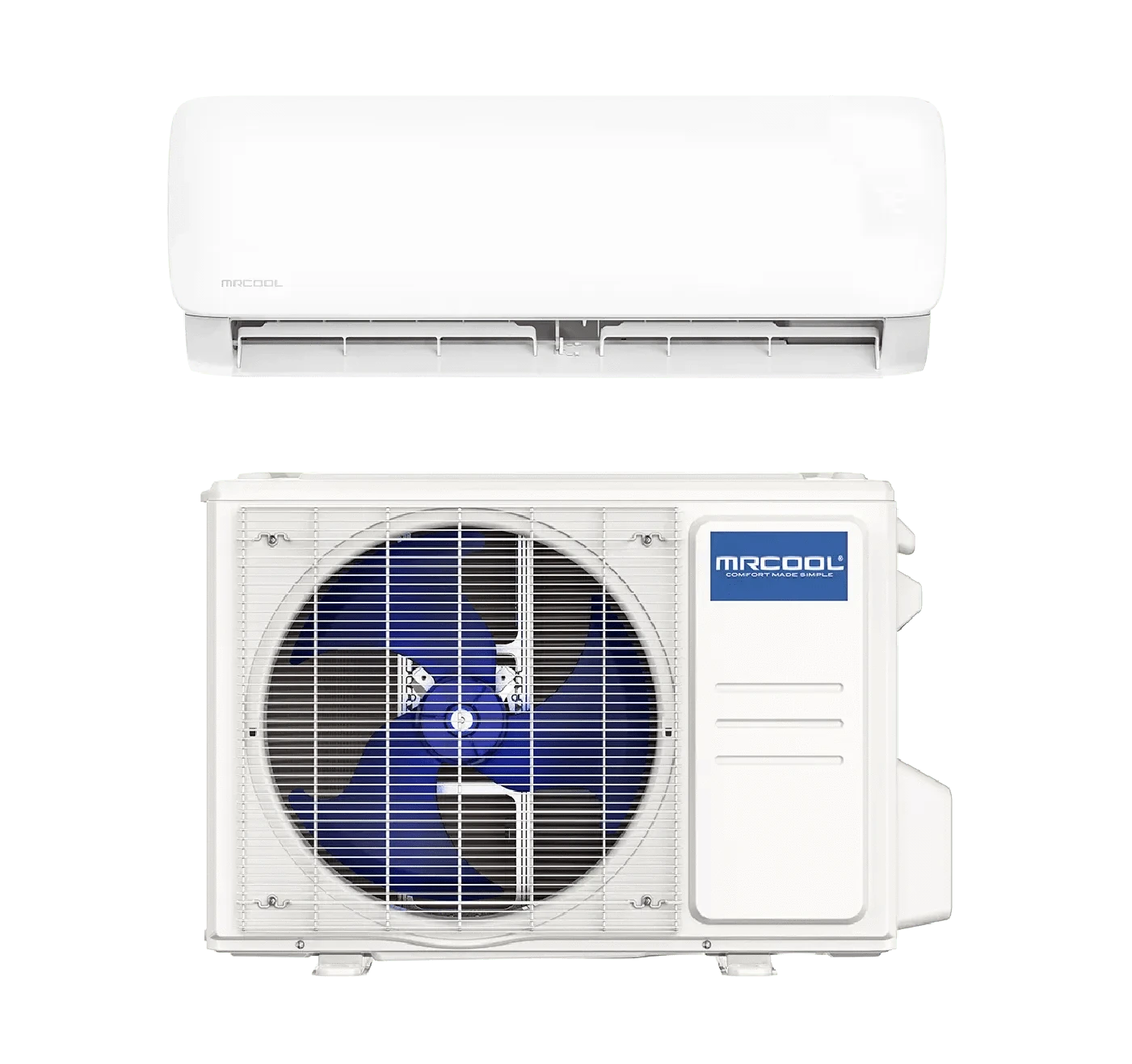

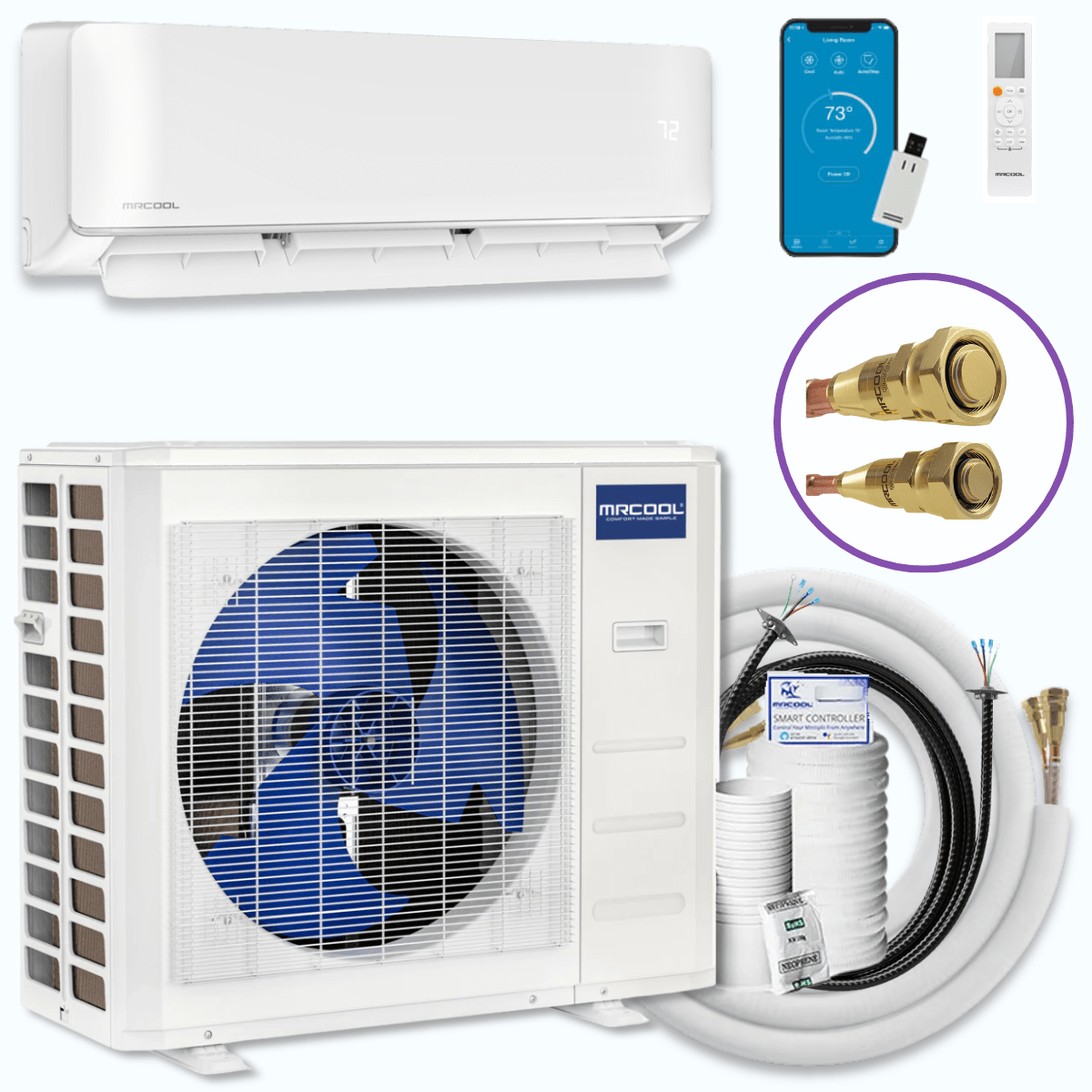

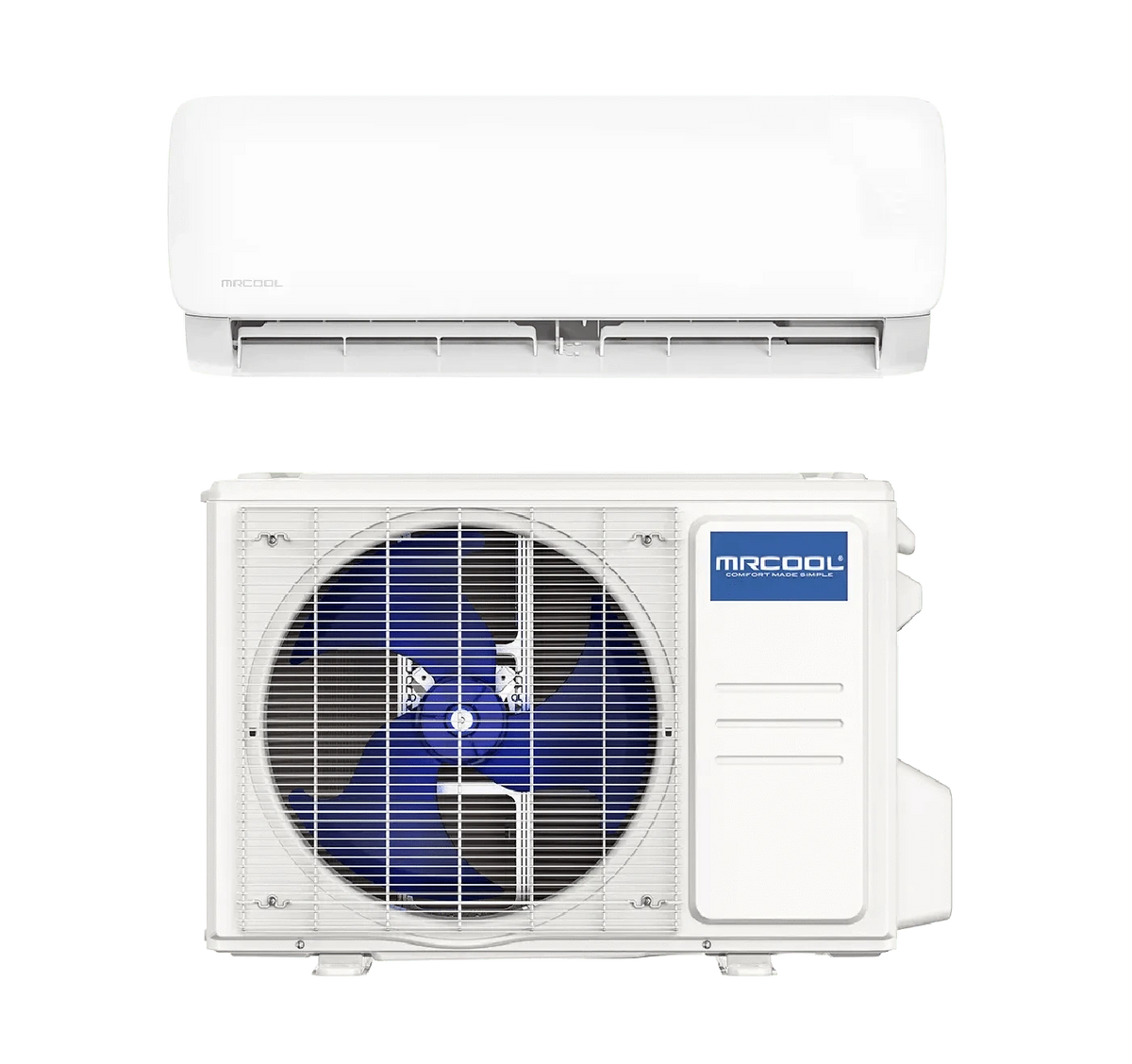

MRCOOL DIY 5th Gen EasyPro 18,000 BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable | System Set

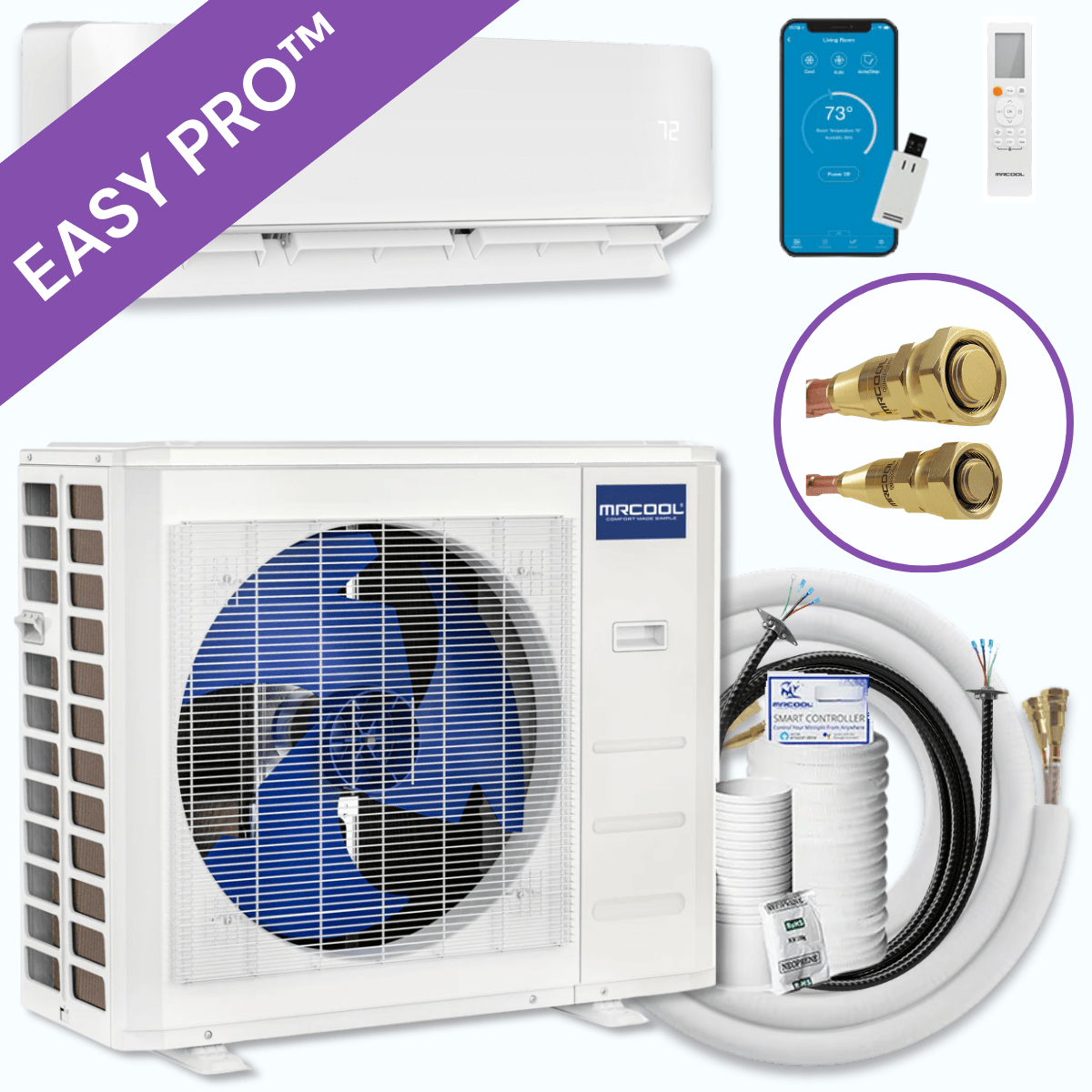

The MRCOOL DIY 5th Gen EasyPro 18K BTU Single Zone Mini Split is designed for efficient, reliable, and cost-effective home comfort. Ideal for medium-sized spaces, this complete system provides both heating and cooling power with advanced inverter technology. Installation is simple with the included 16 ft. pre-charged Quick Connect line set and DIYPRO™ cable, eliminating the need for specialized HVAC tools or professional installation.
Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.
MRCOOL DIY 5th Gen EasyPro 18,000 BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable Features
Energy Efficiency – SEER2 rating up to 18 ensures excellent efficiency while keeping utility bills low.
Powerful Performance – 18,000 BTU cooling and heating capacity to maintain comfort in spaces up to 750 sq. ft.
DIY Quick Connect Installation – Includes a 16 ft. pre-charged line set and DIYPRO™ cable for simple installation.
Quiet Operation – Operates quietly indoors and outdoors, ensuring comfort without disruption.
Smart Control Options – Wi-Fi compatibility lets you manage your comfort from anywhere via the MRCOOL app.
Inverter Technology – Maintains steady temperatures with less energy consumption compared to traditional systems.
MRCOOL DIY 5th Gen EasyPro 18,000 BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable Applications
-
Medium-sized bedrooms – Quiet and energy-efficient comfort.
-
Living rooms – Keeps family spaces consistently comfortable year-round.
-
Home offices – Stable climate control for productivity.
-
Basements or converted spaces – Adds reliable heating and cooling where central HVAC doesn’t reach.
What’s Included?
Warranty
-
2 Years Compressor
-
1 Year Parts
MRCOOL DIY 5th Gen EasyPro 18,000 BTU Single Zone Mini Split Complete System 230V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable Specifications
| Dimensions & Weight |

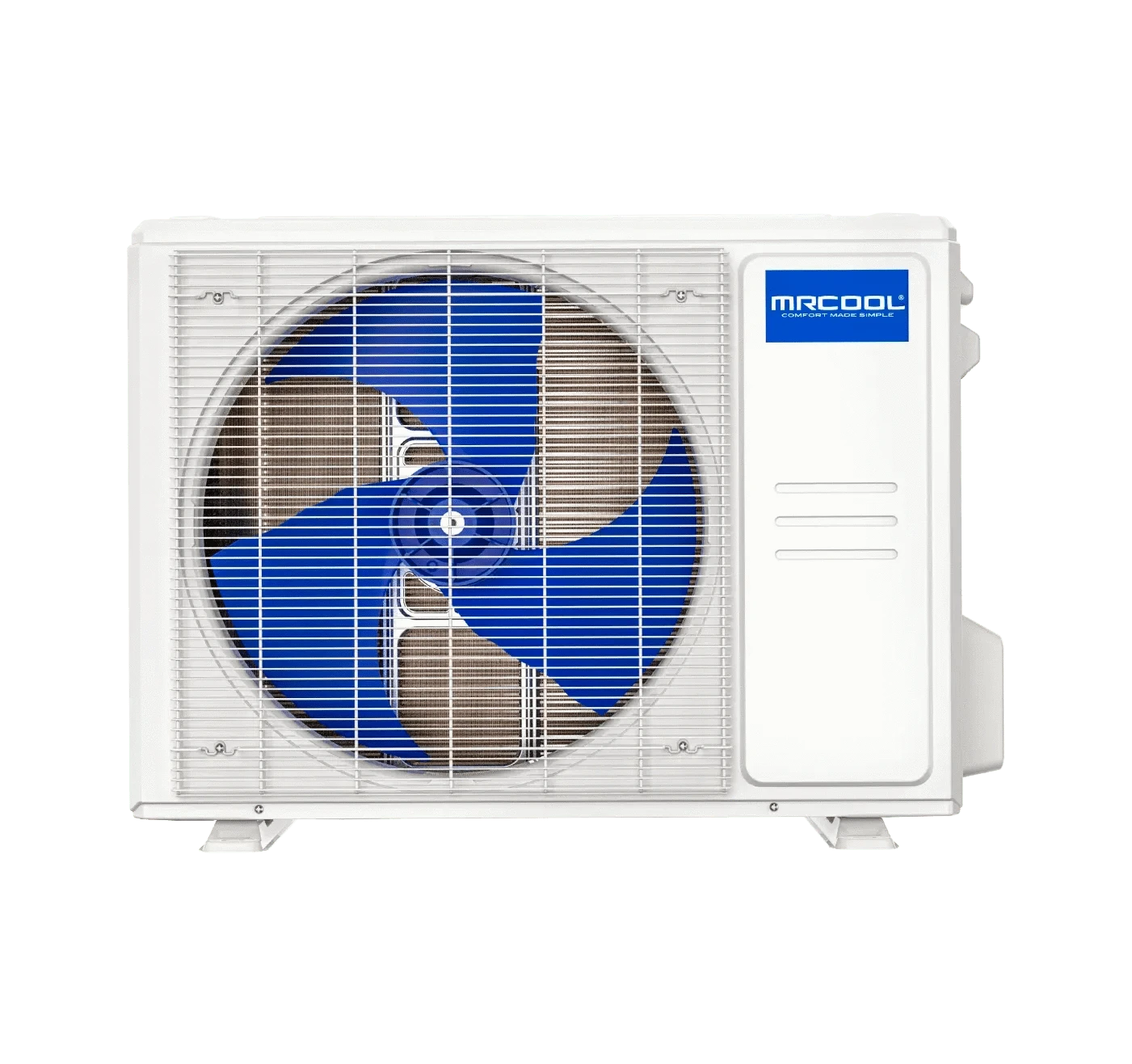

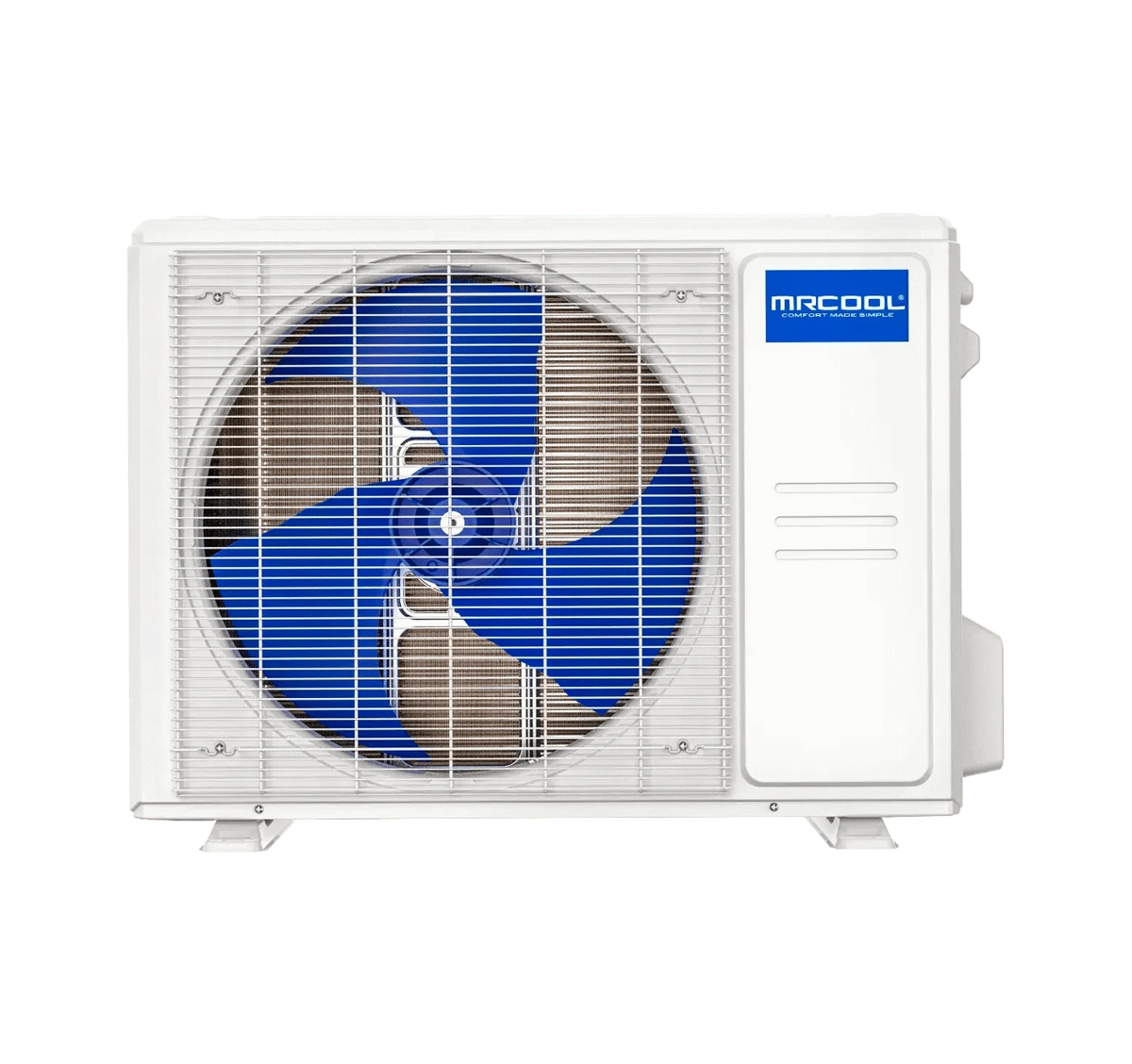

| Condenser Dimensions |
30.12 W" x 11.93 D" x 21.85 H" |

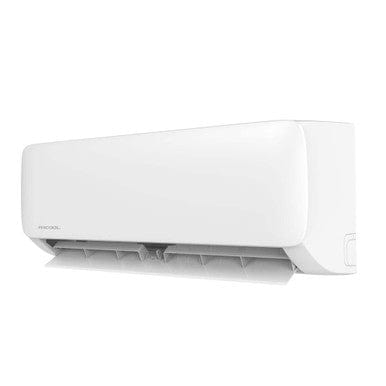

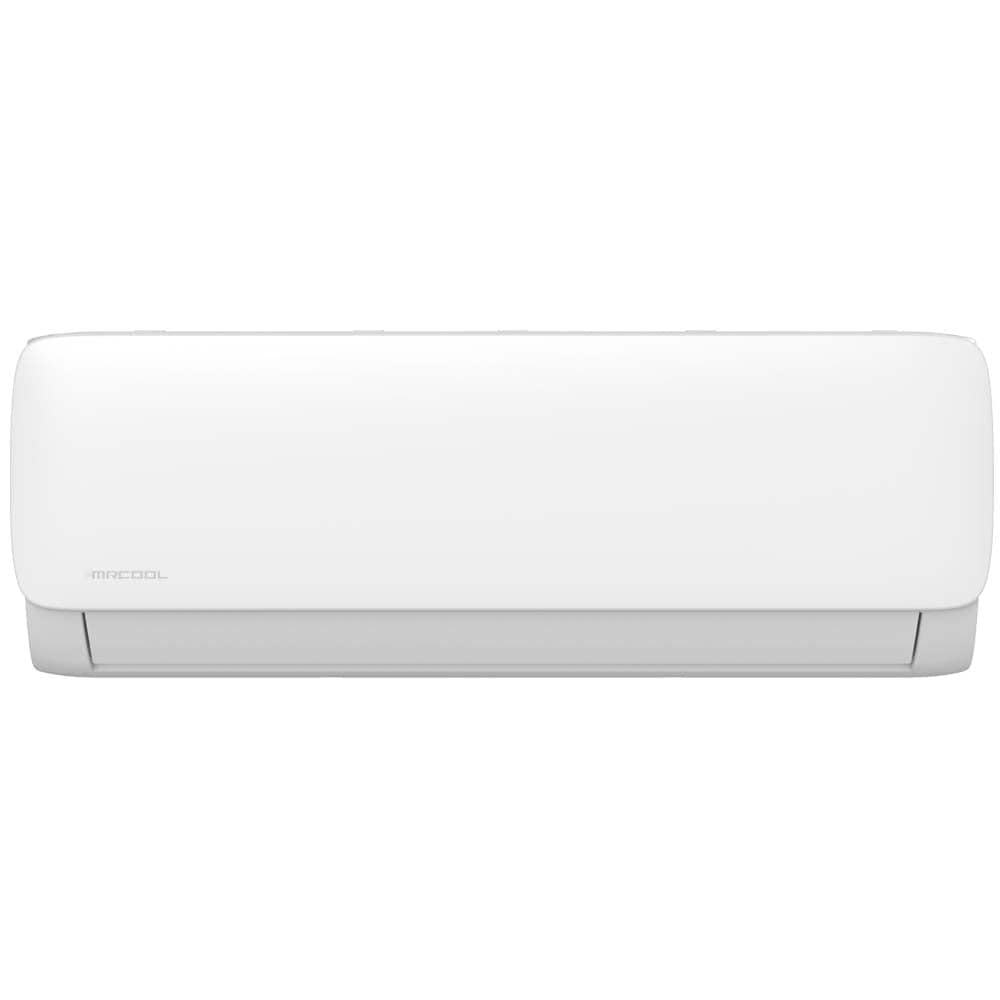

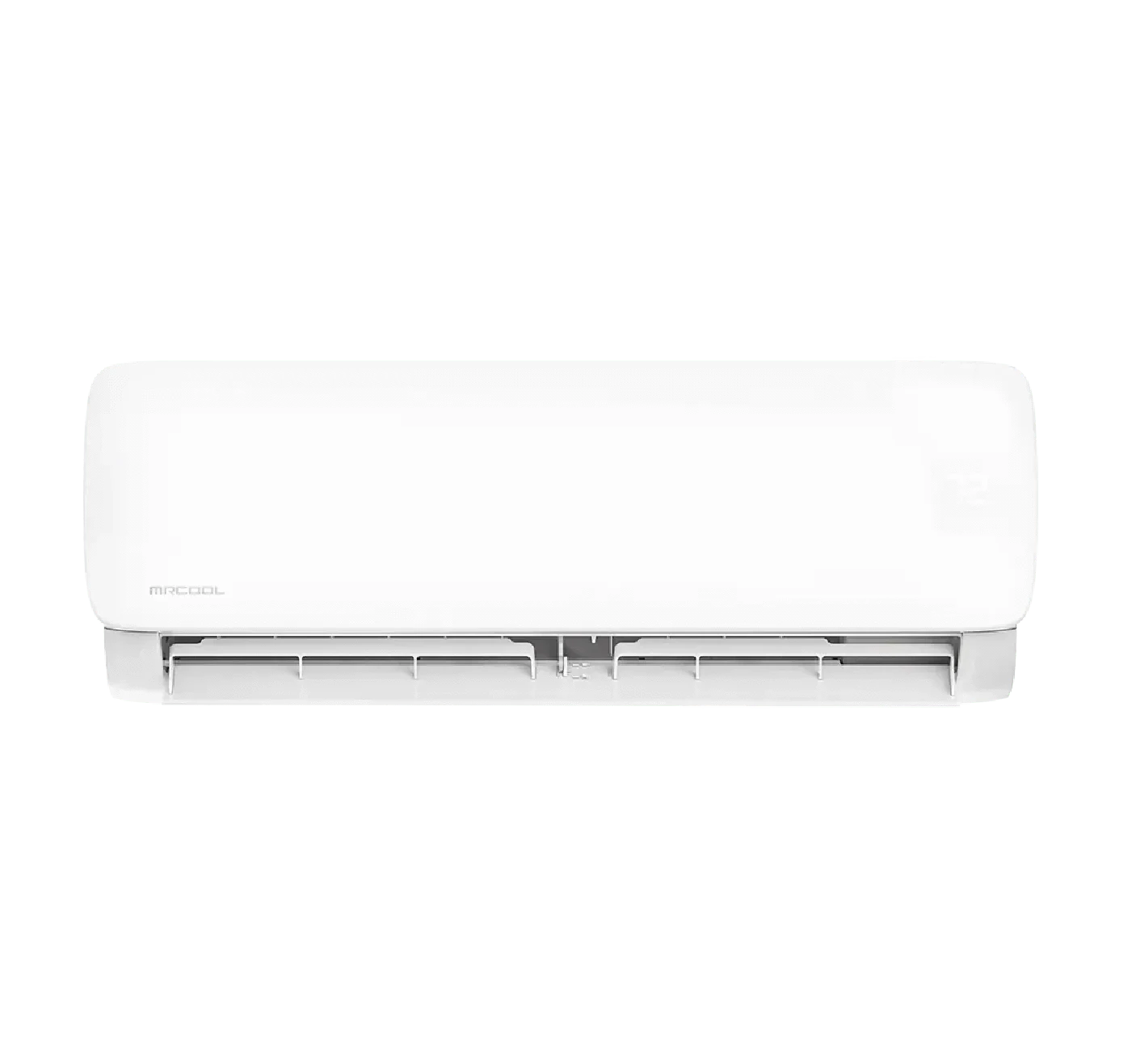

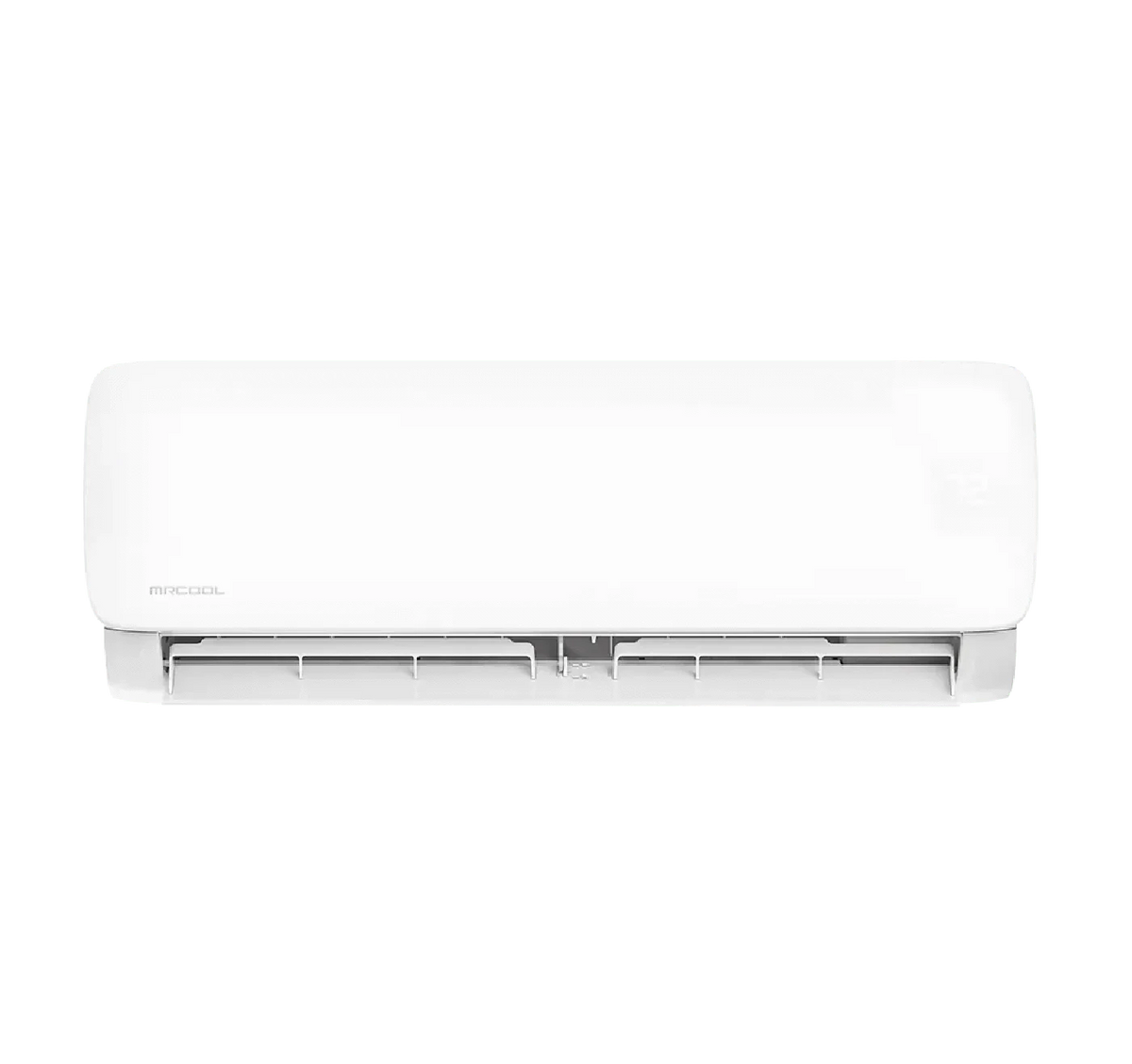

| Air Handler Dimensions |
38.23 W" x 8.98 D" x 12.64 H" |
| Condenser Weight |
62.61 lbs |
| Air Handler Weight |
30.64 lbs |
| Capacity & Performance |
| Zone Capacity |
1 |
| Cooling Capacity |
17,000 BTU |
| EER2 |
9.8 |
| SEER2 |
20 |
| Heating Capacity |
18,000 BTU |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
6.6 |
| Coverage Area |
800 sq ft. |
| Outdoor Noise Level |
55 dB(A) |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) |
46.5/43.0/36.5/30.0/18.5 dB(A) |
| Electrical Requirements |
| Voltage |
208-230V |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
20A |
| Min Circuit Ampacity |
15A |
| Refrigerant & Piping |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
34.92 oz |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Max Line Set Length |
98.4 ft. |
| Features |
| Inverter |
DC |
| Compressor Type |
Rotary |
| Fan Only Option |
Yes |
| Quiet Mode |
Yes |
| Auto Cool |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Certifications |
UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty |
1 Year Parts / 2 Year Compressor |
Frequently-Asked Questions
Is this unit really DIY installable?
Yes, it’s specifically designed for DIY use. The 16 ft. pre-charged Quick Connect line set and DIYPRO™ cable allow installation without specialized tools or HVAC certification.
What size room is this best for?
The 18K BTU EasyPro system is best suited for rooms or areas between 501 – 750 sq. ft.
Does it heat as well as cool?
Yes, it provides both heating and cooling, making it ideal for year-round comfort.
Does this model work with smart home devices?
Yes, it is Wi-Fi enabled and works with the MRCOOL app for iOS and Android.
