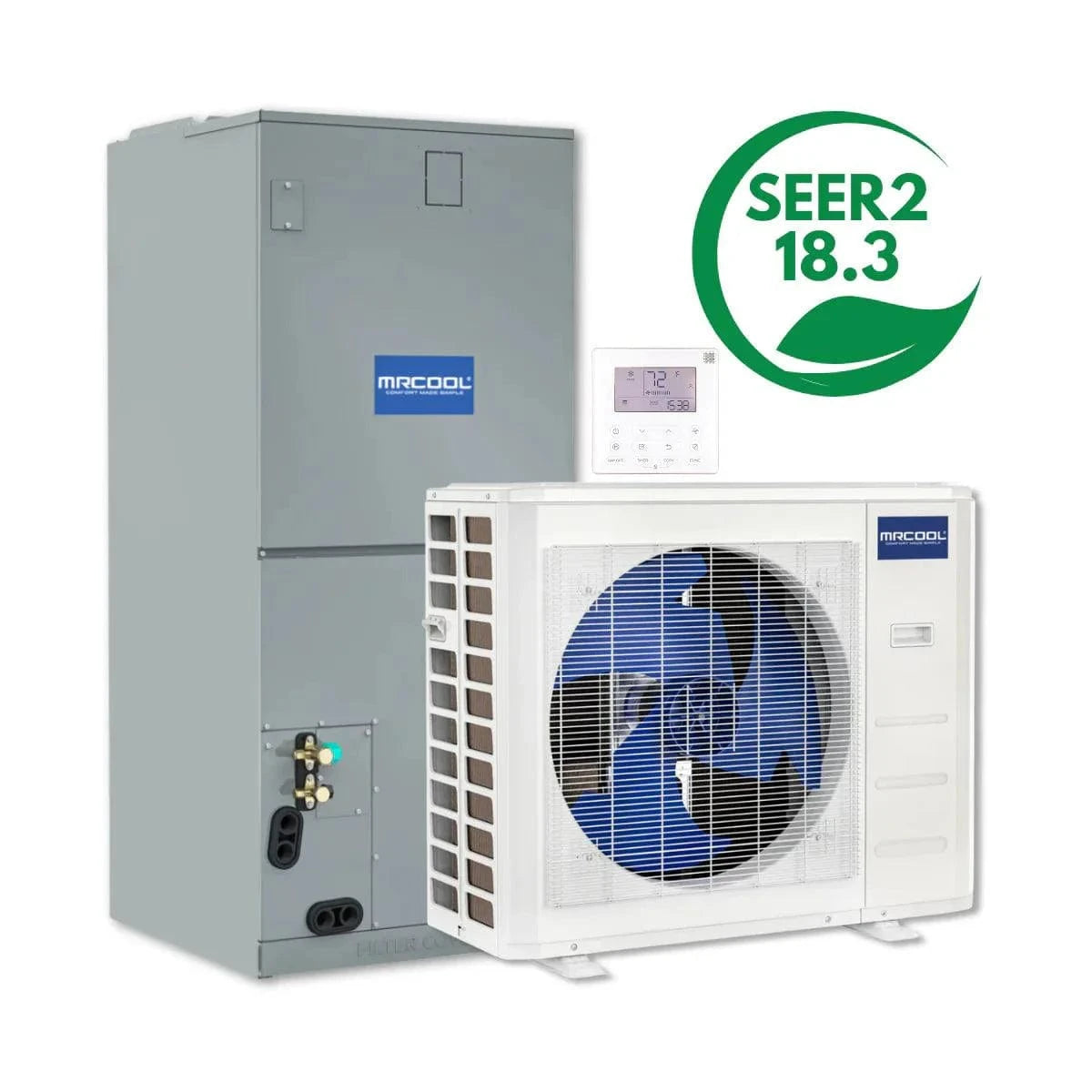

MRCOOL Hyper Heat 2nd Gen 24K 2 Ton Central Ducted System
The MRCOOL Hyper Heat 2nd Gen 24K BTU 2 Ton Central Ducted System is engineered for exceptional year-round comfort even in extreme climates. With advanced hyper heat technology, it provides efficient heating at temperatures as low as -22°F and powerful cooling up to 120°F. Designed for homes between 751–1,000 sq. ft., this system combines energy efficiency, quiet operation, and flexible installation to meet the demands of modern households.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL Hyper Heat 2nd Gen 24K System Features
Hyper Heat Technology
Delivers reliable heating down to -22°F, making it ideal for cold climates.
High Efficiency
Achieves 18.3 SEER2, 11.7 EER2, and 10.0 HSPF2-4 ratings for outstanding energy savings.
Quiet Operation
Noise levels as low as 29 dB(A) on the air handler ensure whisper-quiet performance.
Flexible Installation
Supports vertical (upflow/downflow) or horizontal configurations, providing versatile setup options.
Compatible with Heat Kits
Offers support for 5kW, 8kW, 10kW, and 15kW add-on heat kits for additional heating capacity.
Applications
-
Cold climate homes – heating reliable down to -22°F
-
Medium-sized homes – perfect for 751–1,000 sq. ft. spaces
-
Year-round comfort – efficient cooling and heating in one system
-
Flexible ductwork setups – compatible with vertical or horizontal duct installs
What’s Included?
Warranty
-
10 Years Compressor
-
10 Years Parts
MRCOOL Hyper Heat 2nd Gen 24K Specifications

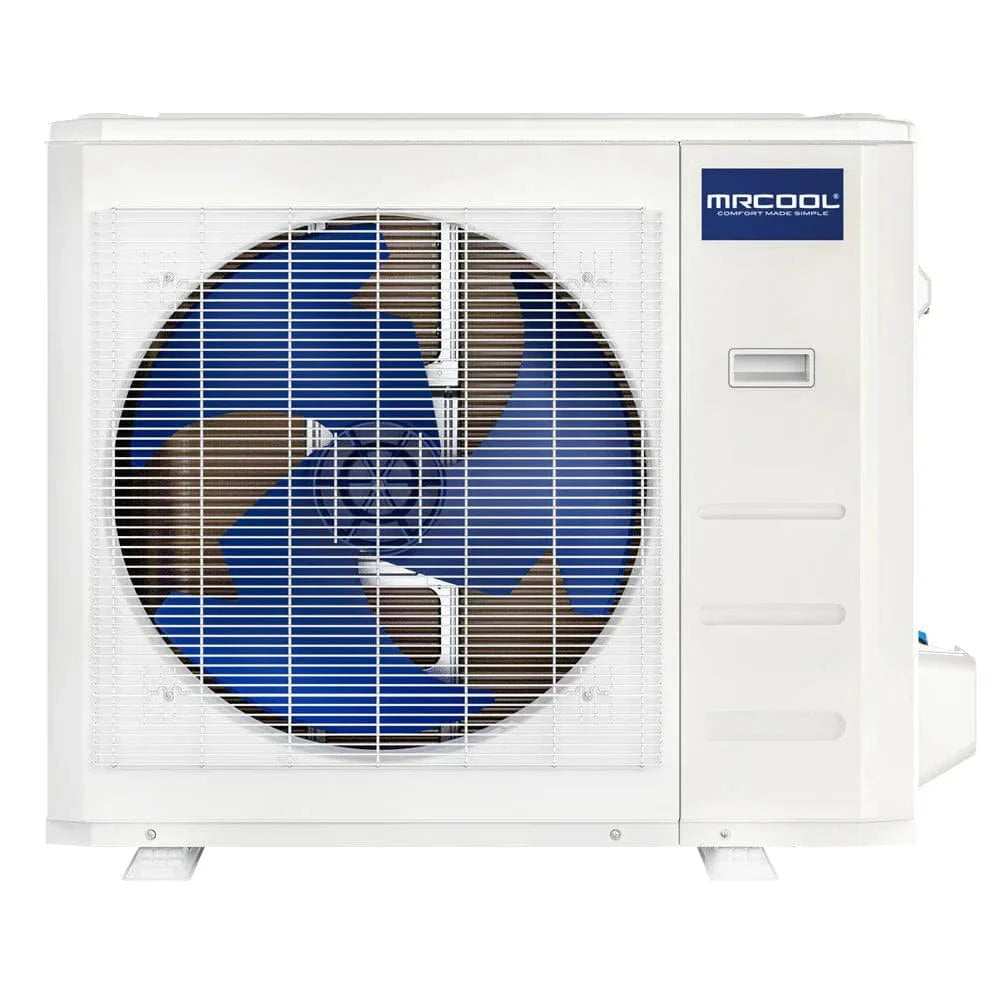

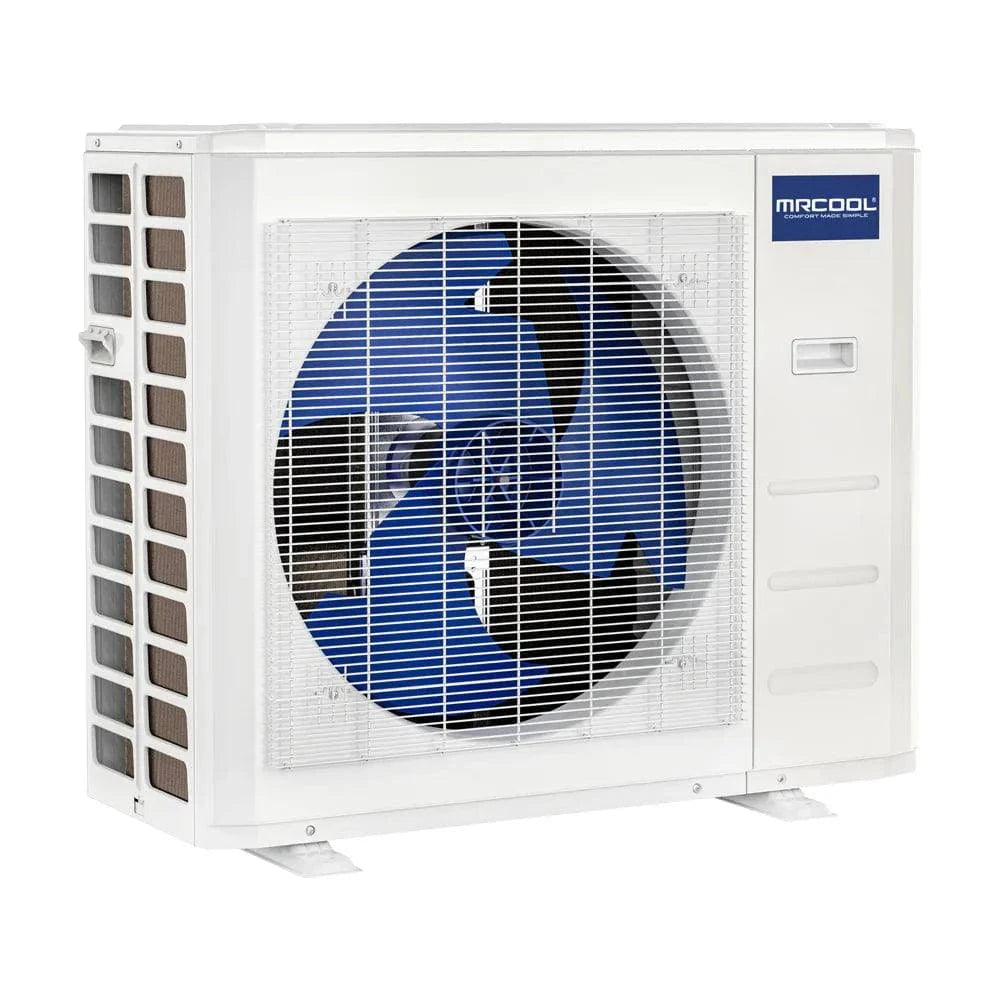

Condenser
| Dimensions |
35.04" W x 13.46" D x 26.50" H |
| Weight |
102.29 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/19-20A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
23,000 BTU |
| Heating Capacity |
24,000 BTU |
| Outdoor Operating Temperature Range |
-22 °F - 120°F |
| SEER2 |
18.3 |
| EER2 |
11.7 |
| HSPF2-4 |
10.0 |
| HSPF2-5 |
8.0 |
| Noise Level (Hi/Mi/Lo) |
60 db(A) |
| Refrigerant |
R454B / 74.08 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

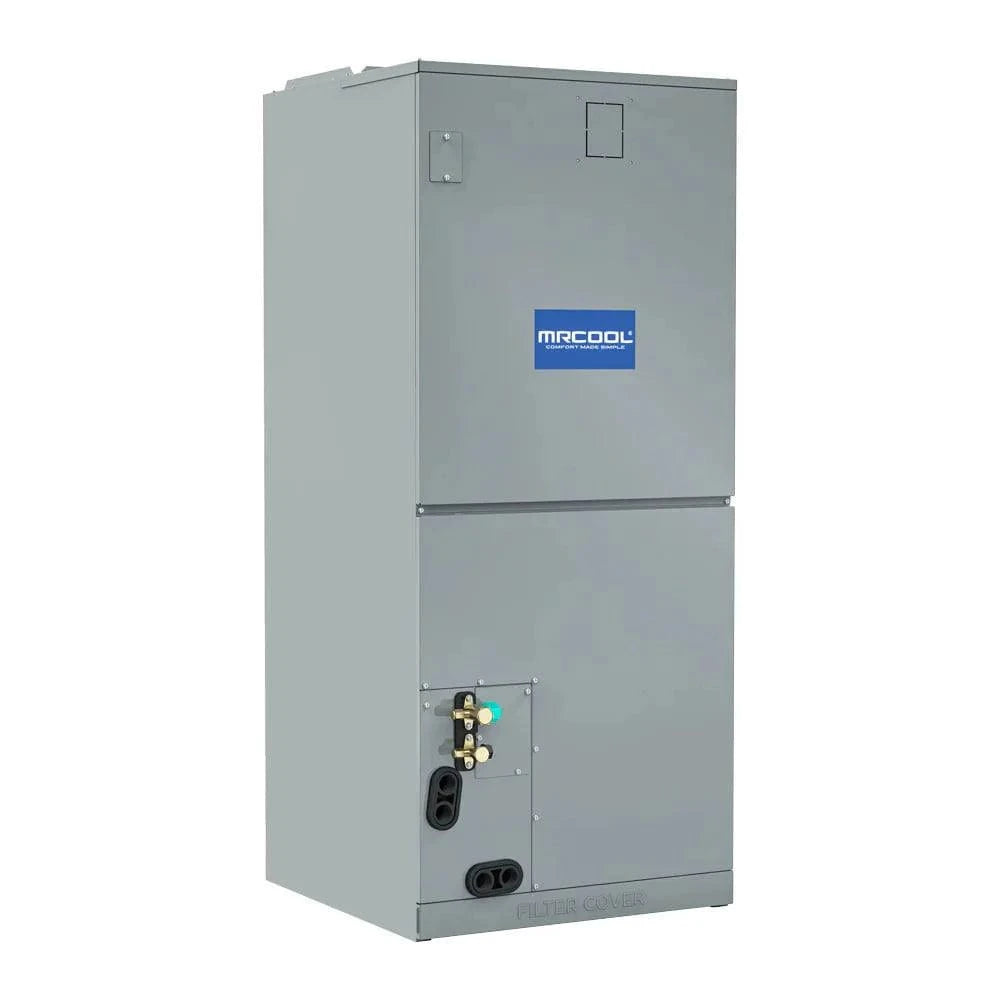

Air Handler
| Dimensions |
17.52" W x 21.02" D x 45.00" H |
| Weight |
105.60 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/5.5/4.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
23,000 BTU |
| Heating Capacity |
24,000 BTU |
| Coverage Area |
751-1,000 square feet |
| SEER2 |
18.3 |
| EER2 |
11.7 |
| HSPF2-4 |
10.0 |
| HSPF2-5 |
8.0 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
N/A / 44 / 42 / 28 / N/A dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
823 / 758 / 694 / 629 CFM |
| Refrigerant |
R454B / 74.08 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
5kW - MVPHK05
8kW - MVPHK08
10kW - MVPHK10
15kW - MVPHK10
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: Can this system provide heat in very cold winters?
A: Yes, it delivers hyper heat performance down to -22°F.
Q: What size home is this system best for?
A: It covers homes between 751 and 1,000 sq. ft..
Q: Can it be installed horizontally in an attic space?
A: Yes, it supports both vertical and horizontal installation.
Q: Does this system include a heat kit?
A: No, but it is compatible with 5kW–15kW heat kits (sold separately).
