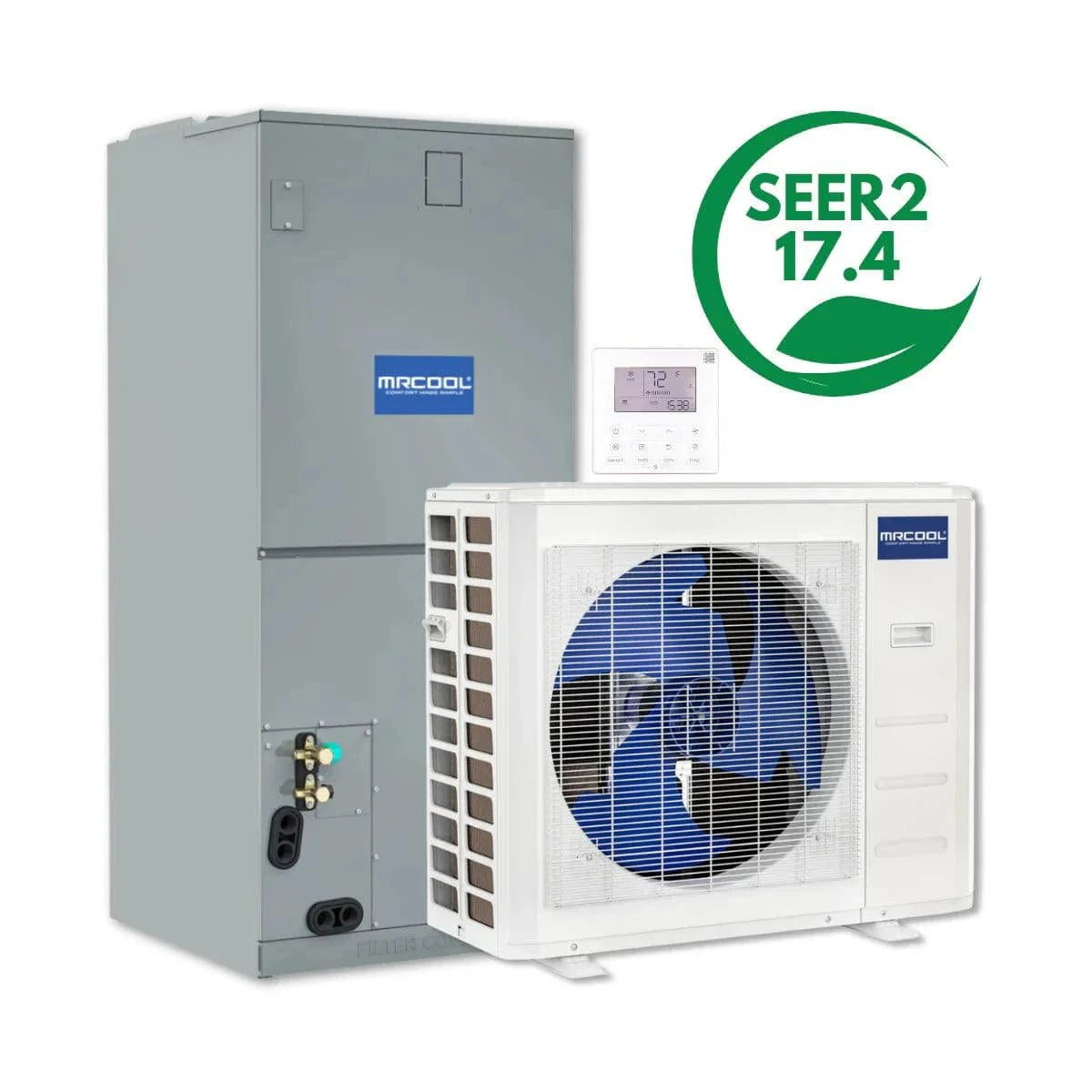

MRCOOL Hyper Heat 2nd Gen 36K 3 Ton Central Ducted System
The MRCOOL Hyper Heat 2nd Gen 36K BTU (3 Ton) Central Ducted Heat Pump System is designed to deliver high-efficiency heating and cooling performance for year-round comfort. Built with hyper heat technology, it ensures reliable heating even in frigid temperatures as low as -22°F, making it ideal for colder climates. Offering SEER2 17.4 efficiency, quiet operation, and eco-friendly R-454B refrigerant, this system provides comfort with energy savings.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL Hyper Heat 2nd Gen 3 Ton System Features
Hyper Heat Technology
Provides dependable heating performance at temperatures as low as -22°F.
High Efficiency Operation
Rated at 17.4 SEER2 and 11.7 EER2 for energy savings.
Eco-Friendly Refrigerant
Uses R-454B refrigerant, reducing environmental impact.
Quiet Comfort
Noise levels as low as 49 dB(A) on the air handler ensure minimal disruption.
Wide Coverage Capacity
Perfect for spaces ranging from 1,251 to 1,500 sq. ft. with 36,000 BTU cooling and 37,000 BTU heating.
MRCOOL Hyper Heat 2nd Gen 36K 3 Ton Central Ducted System Applications
-
Cold climates – maintains heating even in extreme sub-zero temperatures
-
Medium to large homes – designed for 1,250–1,500 sq. ft. spaces
-
Central ducted comfort – distributes conditioned air evenly throughout the home
-
Energy-conscious households – ideal for lowering energy costs while staying comfortable year-round
What’s Included?
Warranty
-
10 Years Compressor
-
10 Years Parts
MRCOOL Hyper Heat 2nd Gen 36K 3 Ton System Specifications

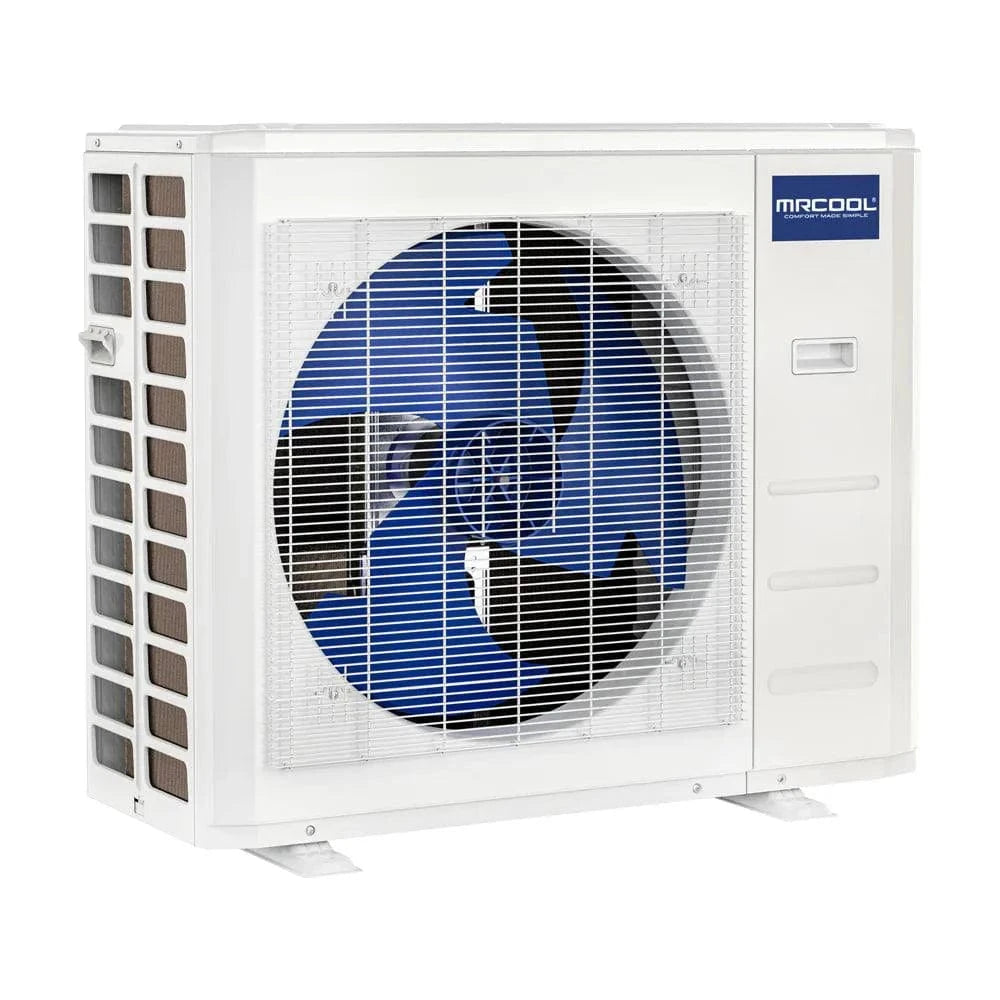

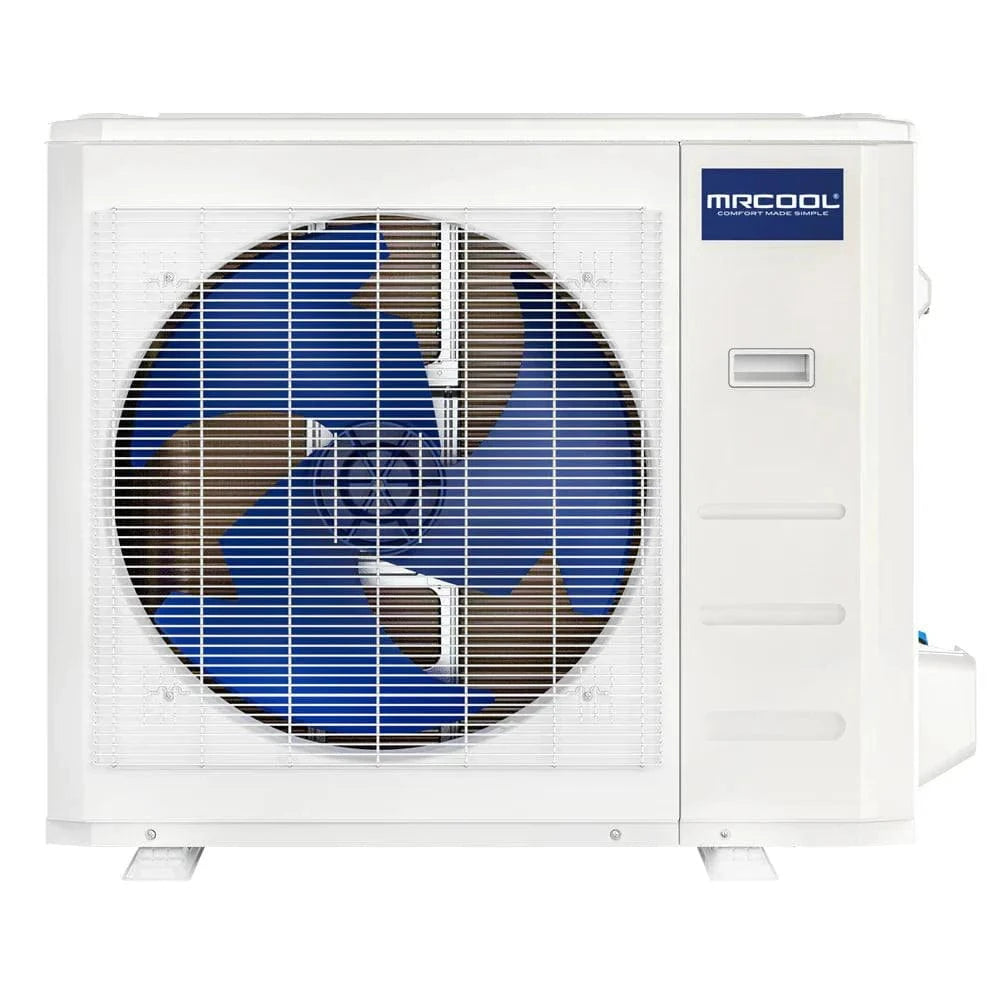

Condenser
| Dimensions |
38.58" W x 16.34" D x 38.39" H |
| Weight |
204.15 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/29-30A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
37,000 BTU |
| Outdoor Operating Temperature Range |
-22 °F - 120°F |
| SEER2 |
17.4 |
| EER2 |
11.7 |
| HSPF2-4 |
10.2 |
| HSPF2-5 |
8.6 |
| Noise Level (Hi/Mi/Lo) |
62.5 db(A) |
| Refrigerant |
R454B / 126.99 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

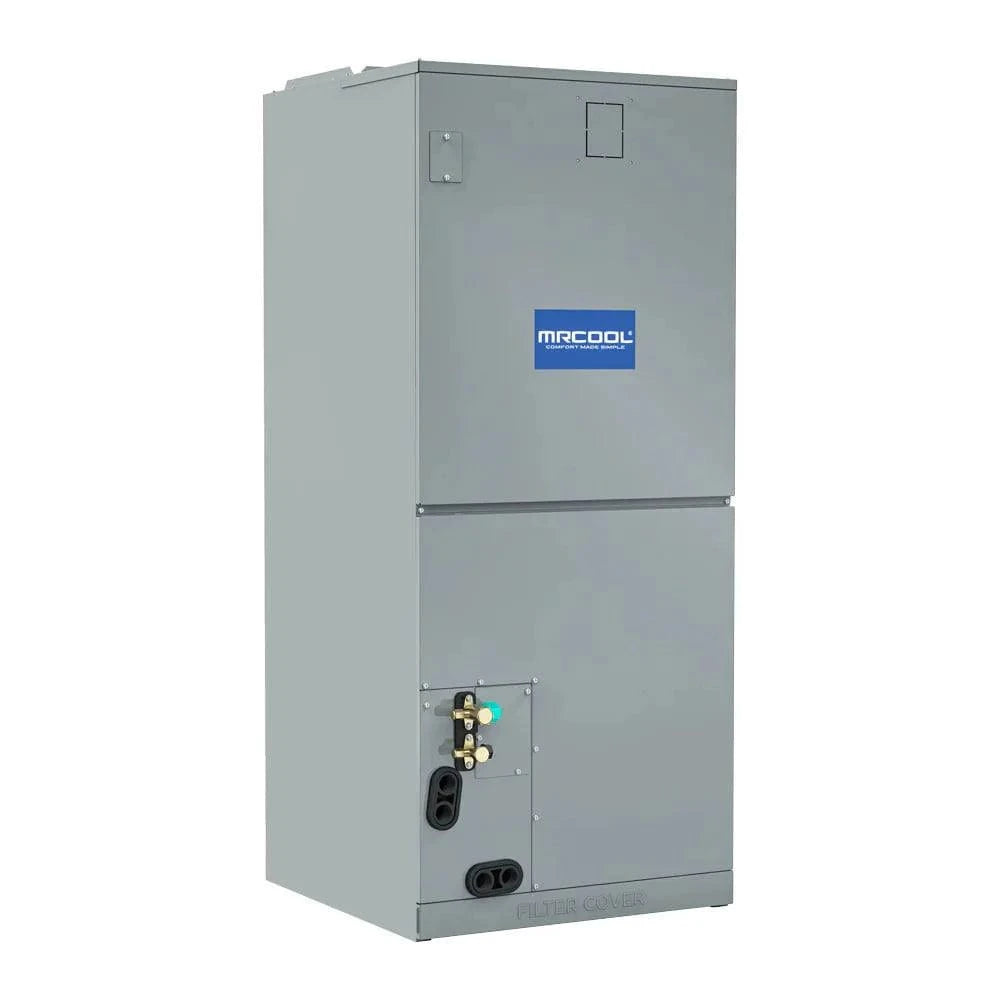

Air Handler
| Dimensions |
21.02" W x 21.02" D x 49.02" H |
| Weight |
129.41 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/8.0/6.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
37,000 BTU |
| Coverage Area |
1,251-1,500 square feet |
| SEER2 |
17.4 |
| EER2 |
11.7 |
| HSPF2-4 |
10.2 |
| HSPF2-5 |
8.6 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
49 / 48.0 / 45.5 / 25.5 / N/A dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1188 / 1082 / 970 / 865 / N/A CFM |
| Refrigerant |
R454B / 126.99 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
5kW - MVPHK05
8kW - MVPHK08
10kW - MVPHK10
15kW - MVPHK15
20kW - MVPHK20
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: Can this system work in extreme cold?
A: Yes, it can heat efficiently down to -22°F, making it perfect for northern climates.
Q: What size home is this designed for?
A: It’s best suited for homes between 1,250 and 1,500 sq. ft.
Q: Is the system DIY?
A: No, professional installation by a licensed HVAC technician is required.
Q: What refrigerant does it use?
A: This model uses R-454B refrigerant, which is more environmentally friendly.
