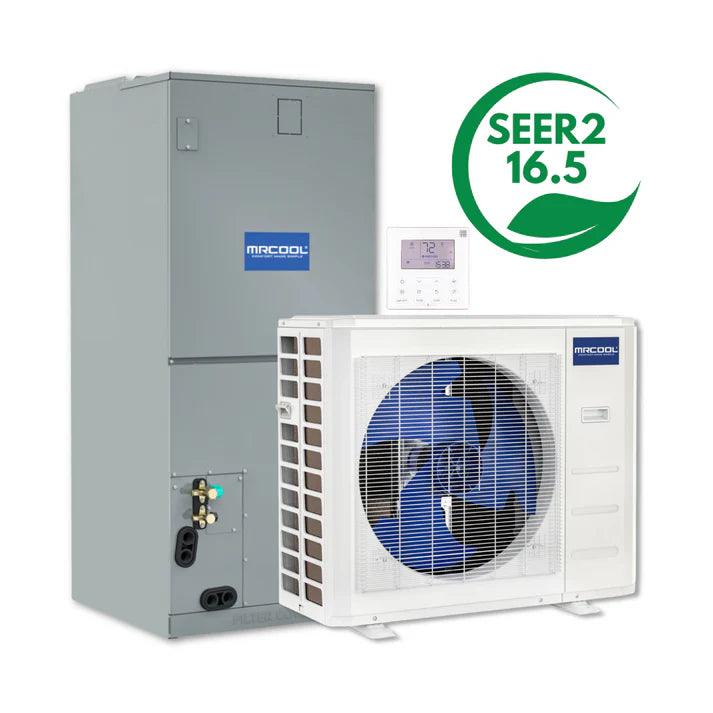

MRCOOL Hyper Heat 2nd Gen 48K 4 Ton Central Ducted System | System Set
The MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton Central Ducted System delivers powerful heating and cooling with advanced hyper-heat technology. Designed for whole-home comfort, this system provides reliable heating performance even in extreme cold temperatures as low as -22°F. With a 16.5 SEER2 rating, quiet operation, and eco-friendly R-454B refrigerant, it offers both energy efficiency and durability.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL Hyper Heat 48K System Features
Hyper Heating Technology
Provides efficient heating performance down to -22°F for year-round comfort.
Energy Efficient
Achieves 16.5 SEER2 and 10.5 EER2, helping lower utility bills while maximizing performance.
Eco-Friendly Refrigerant
Uses R-454B refrigerant, designed to reduce environmental impact.
Quiet Comfort
Operates at 65 dB(A) on the condenser and as low as 34 dB(A) on the air handler, ensuring minimal noise.
Durable & Reliable
Protected by a 10-year compressor and parts warranty for peace of mind.
MRCOOL Hyper Heat 2nd Gen 48K 4 Ton Central Ducted System Applications
-
Cold climates – hyper heating performance down to -22°F
-
Large homes – ideal for spaces between 1,500–2,000 sq. ft.
-
Whole-home comfort – designed for central ducted systems
-
Energy-conscious households – efficient operation to cut long-term costs
What’s Included?
Warranty
-
10 Years Compressor
-
10 Years Parts
MRCOOL Hyper Heat 48K System Specifications

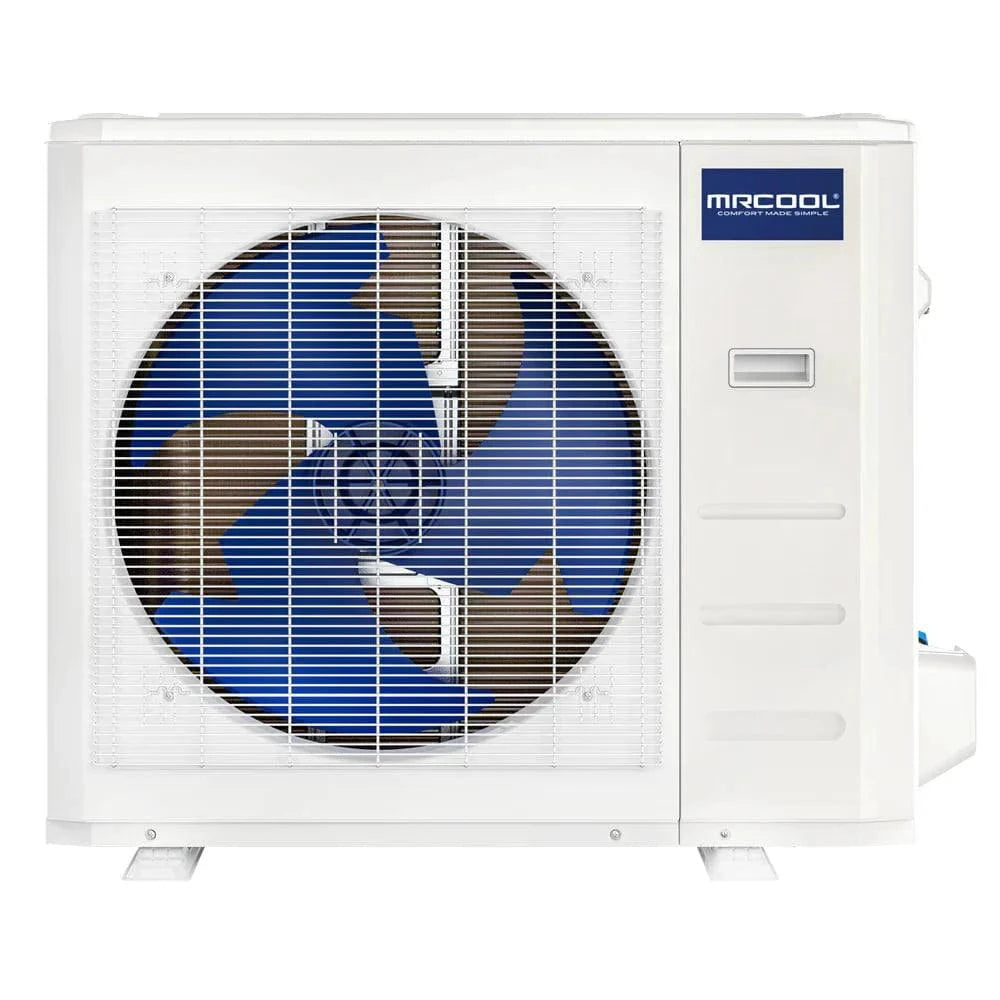

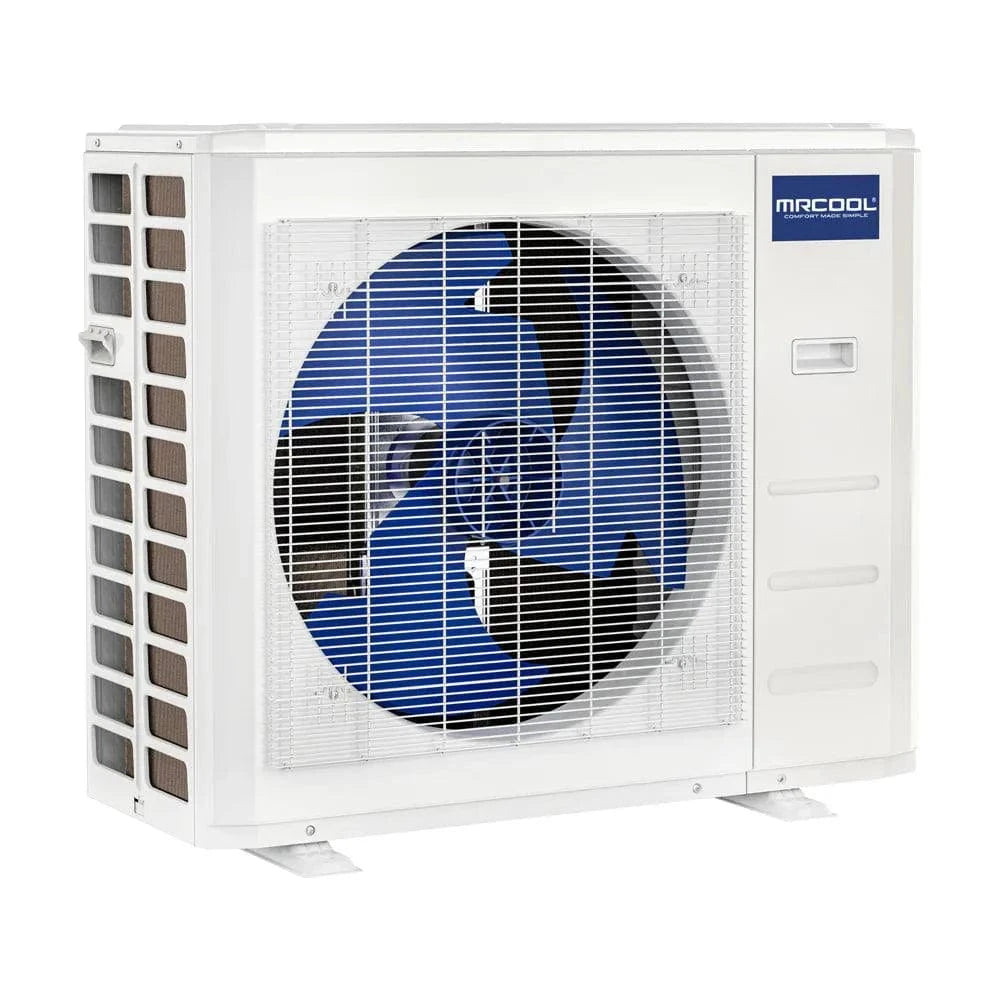

Condenser
| Dimensions |
38.58" W x 16.34" D x 38.39" H |
| Weight |
201.06 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/38-40A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
48,000 BTU |
| Heating Capacity |
50,000 BTU |
| Outdoor Operating Temperature Range |
-22 °F - 120°F |
| SEER2 |
16.5 |
| EER2 |
10.5 |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
8 |
| Noise Level (Hi/Mi/Lo) |
65 db(A) |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

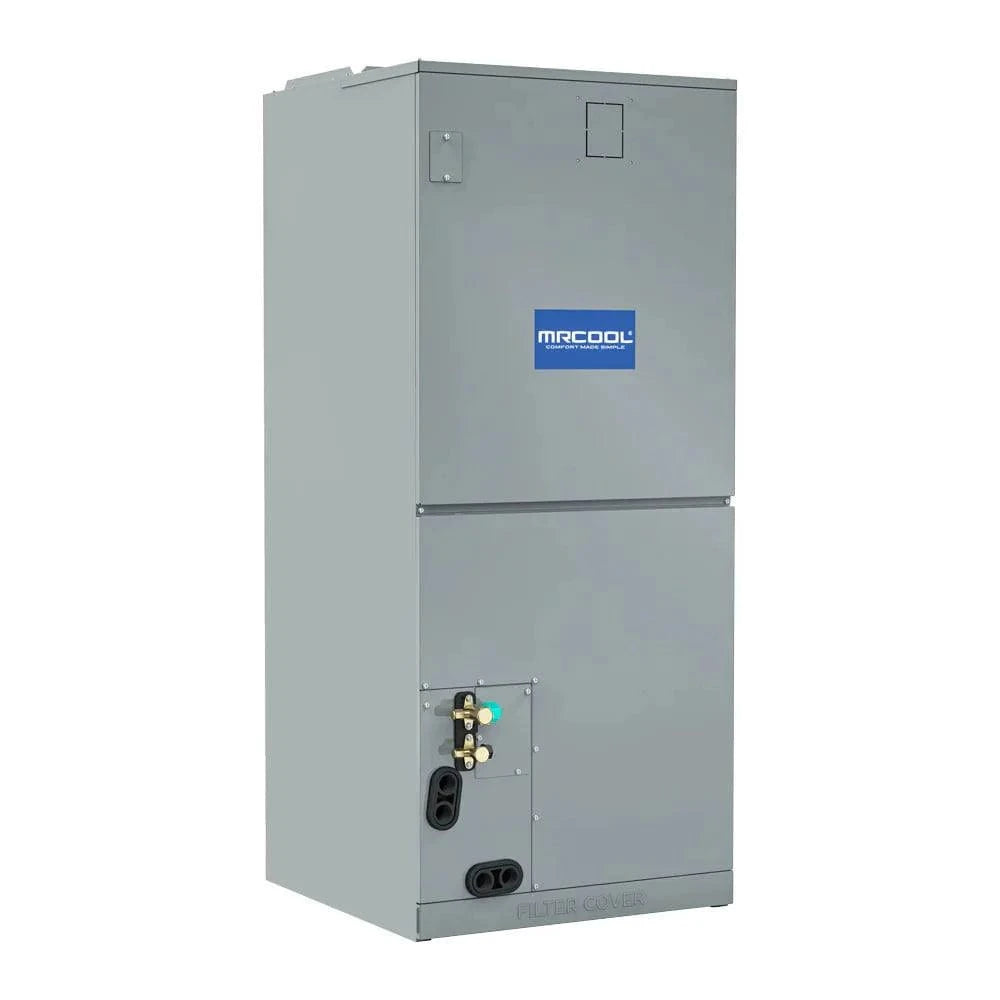

Air Handler
| Dimensions |
24.49" W x 21.02" D x 52.99" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
48,000 BTU |
| Heating Capacity |
50,000 BTU |
| Coverage Area |
1,501-2,000 square feet |
| SEER2 |
16.5 |
| EER2 |
10.5 |
| HSPF2-4 |
9.5 |
| HSPF2-5 |
8.0 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
N/A / 52 / 50 / 34 / N/A dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1601 / 1471 / 1283 / 1094 / N\A CFM |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
8kW - MVPHK08
10kW - MVPHK10
15kW - MVPHK15
20kW - MVPHK20
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: Can this unit work in extremely cold weather?
A: Yes, it provides heating down to -22°F thanks to its hyper heat technology.
Q: What refrigerant does it use?
A: It runs on R-454B refrigerant, which is environmentally friendlier than R-410A.
Q: Is this a DIY system?
A: No, it must be installed by a licensed HVAC professional.
