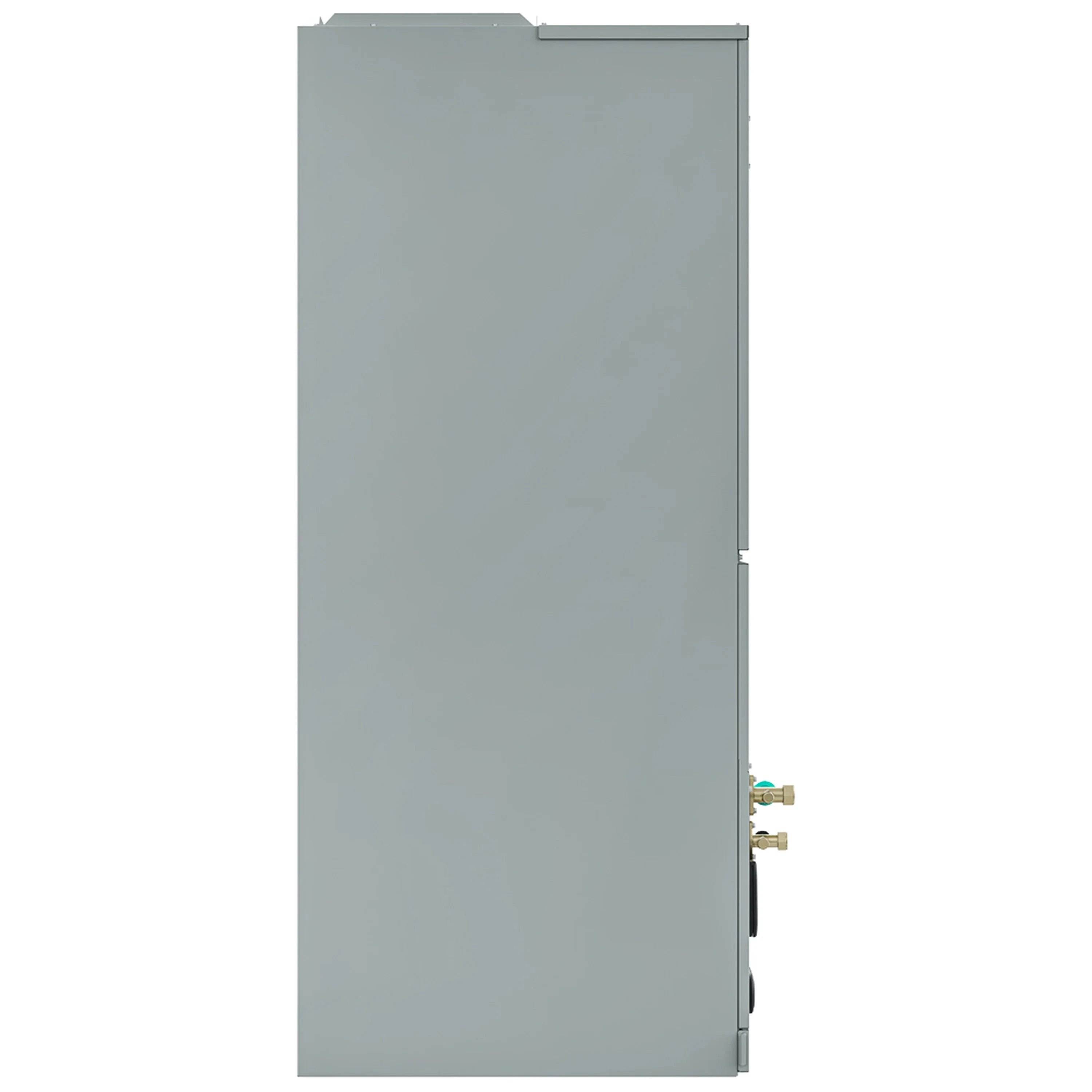

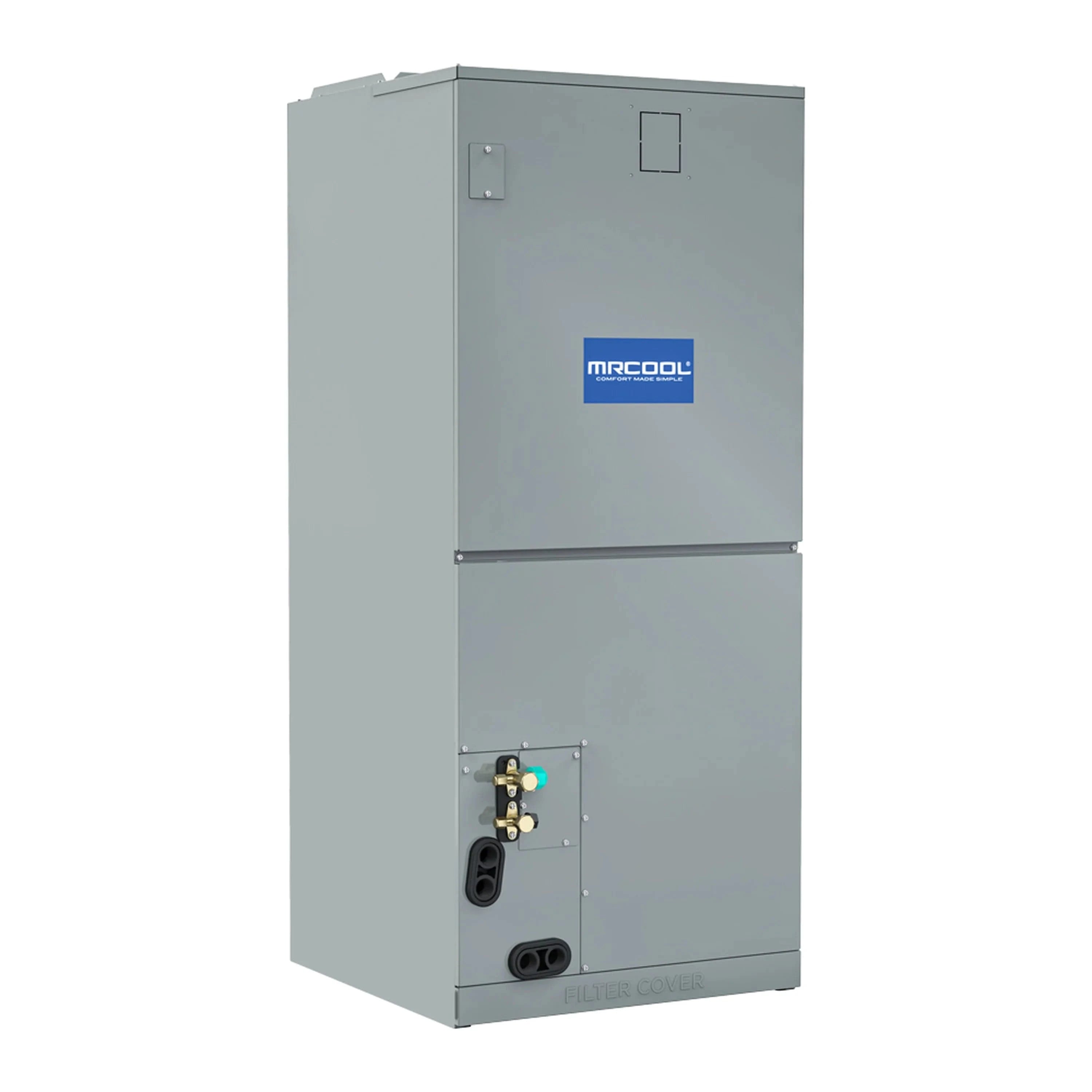

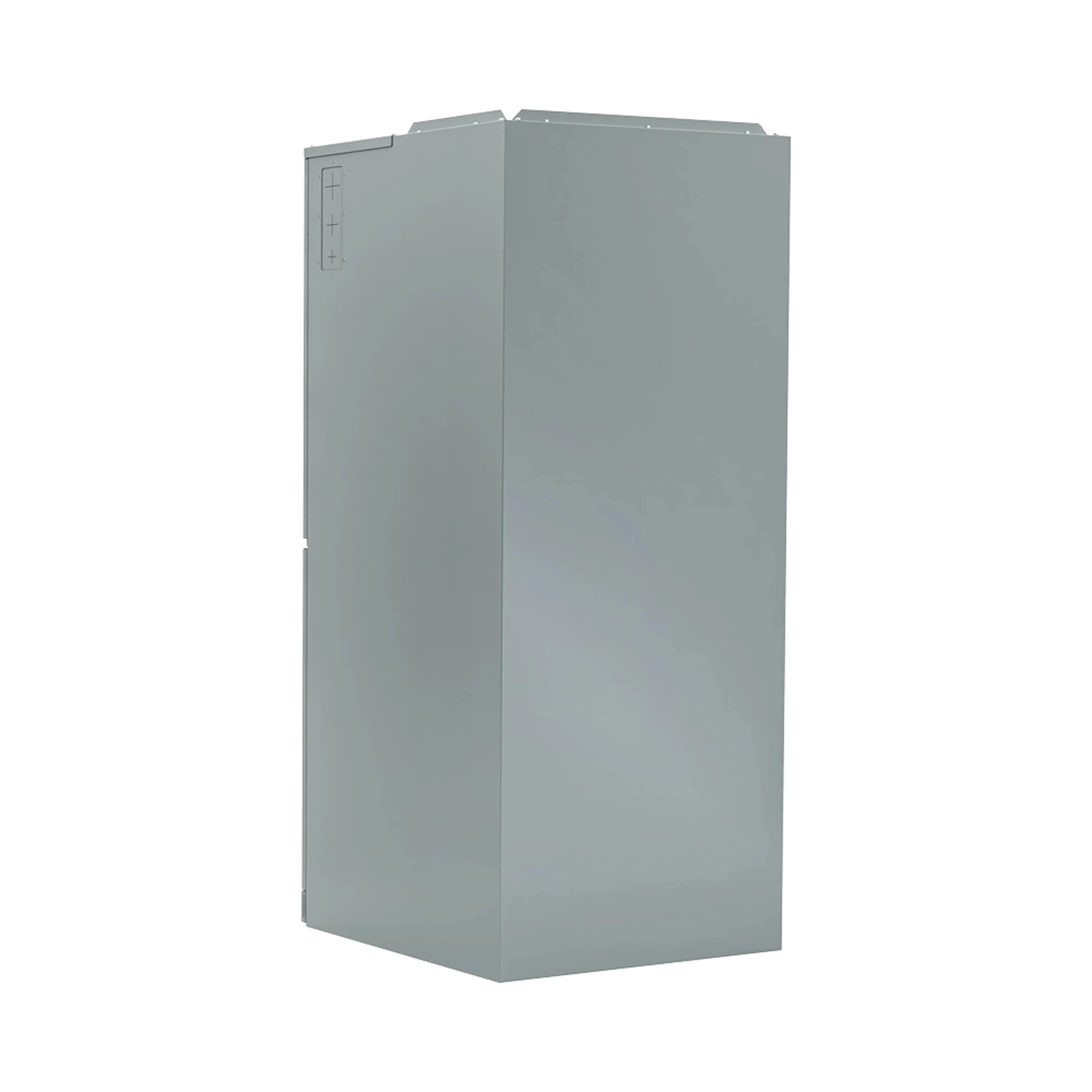

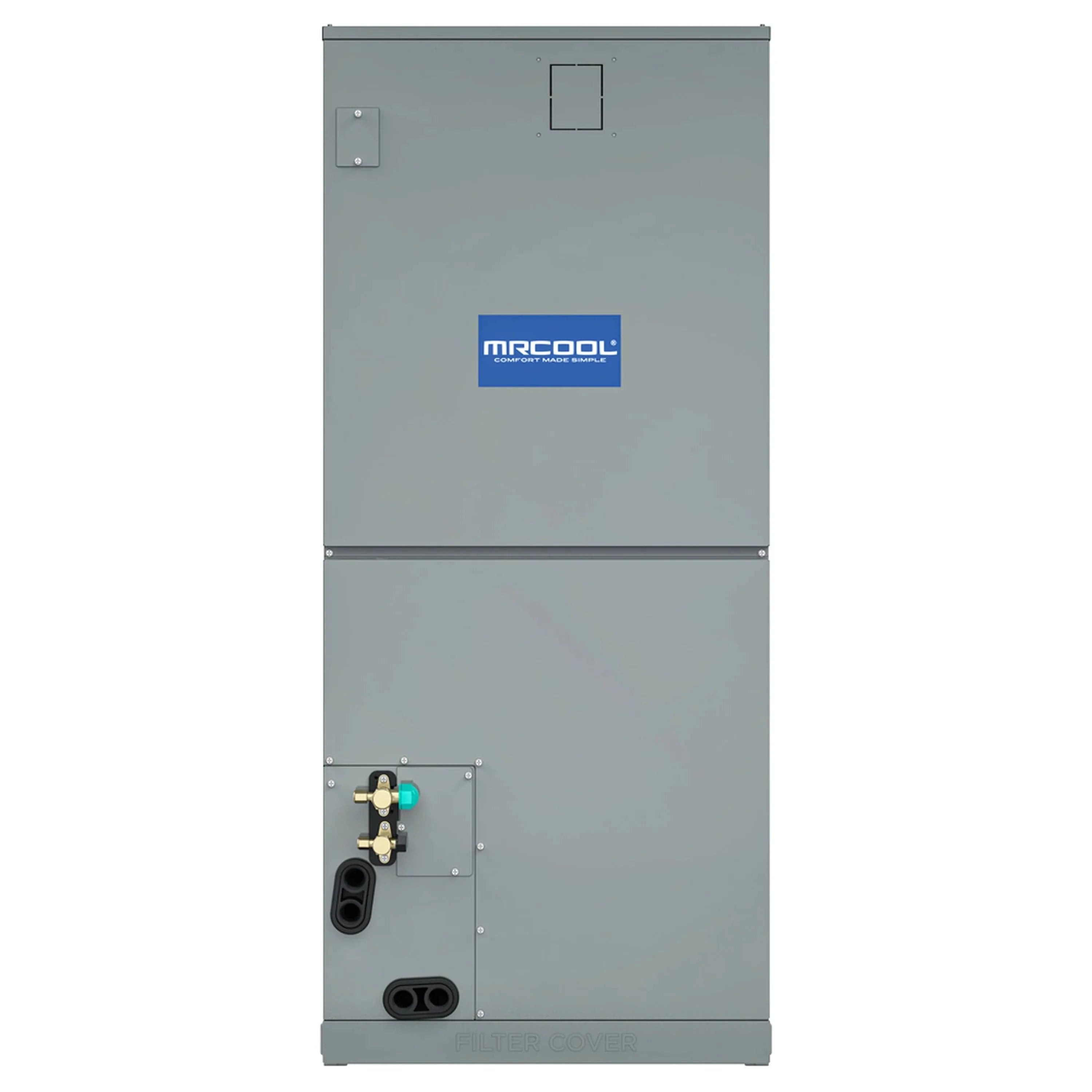

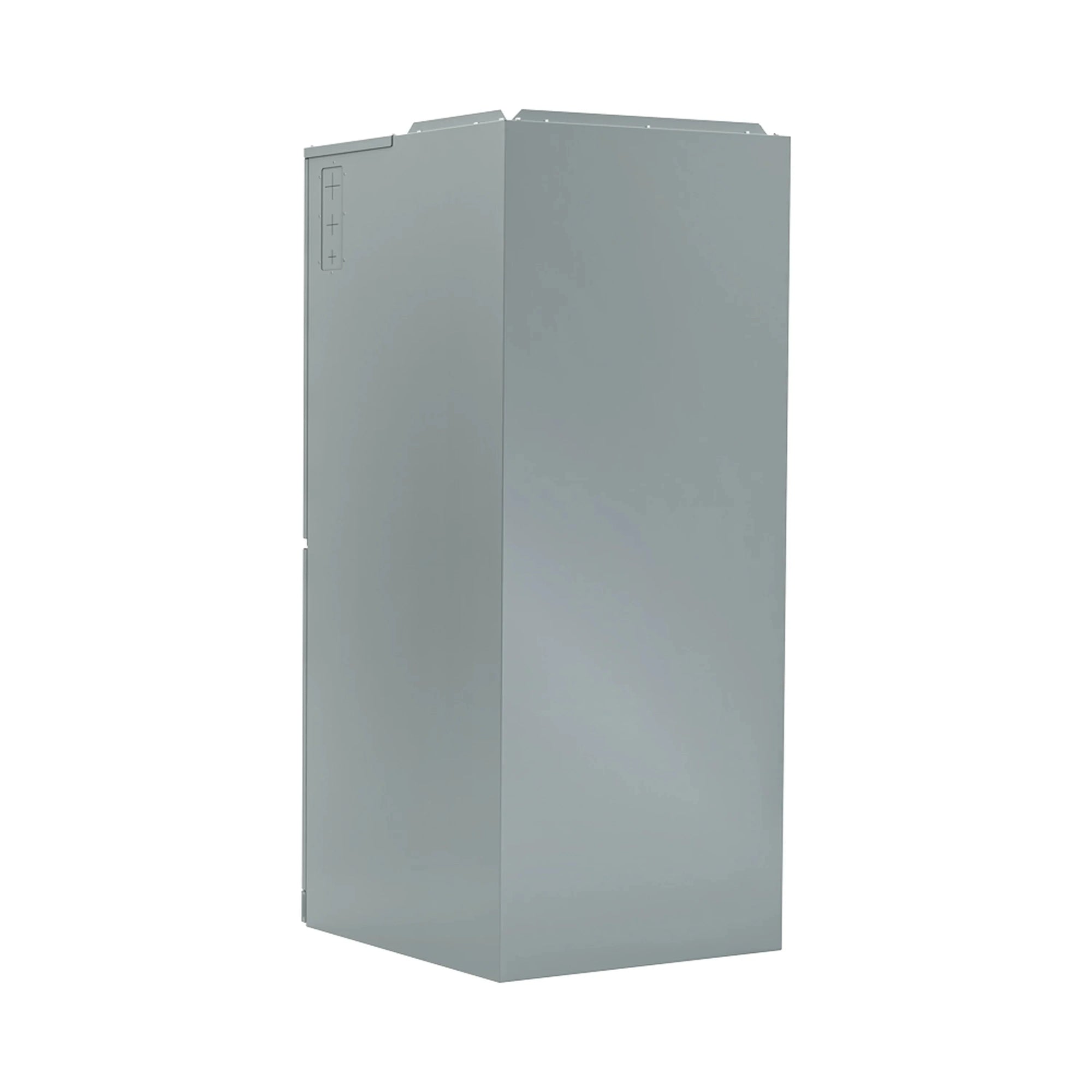

MRCOOL VersaPro 2nd Gen 24K BTU 2 Ton Central Ducted Multiposition Air Handler
The MRCOOL VersaPro 2nd Gen 24K BTU 2 Ton Central Ducted Multiposition Air Handler delivers reliable airflow and comfort with efficient heating and cooling performance. Designed for flexible installation in vertical (upflow/downflow) or horizontal (left/right) configurations, this unit is built to pair seamlessly with the VersaPro condenser for complete climate control. With high efficiency, quiet operation, and compatibility with electric heat kits, it’s a powerful solution for medium to large residential spaces.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL VersaPro 2nd Gen 24K BTU 2 Ton Central Ducted Multiposition Air Handler Features
Flexible Installation
Multiposition design allows for vertical (upflow/downflow) or horizontal (left/right) installation.
High Efficiency
Rated at 18.1 SEER2 and 11.0 EER2 for excellent energy savings.
Quiet Performance
Operates at just 44/42/28 dB(A) for whisper-quiet airflow.
Wide Coverage
Designed to handle 751–1,000 sq. ft. of conditioned space.
Compatible Heat Kits
Supports 5kW, 8kW, 10kW, and 15kW kits for supplemental heating.
Applications
-
Residential homes – efficient ducted comfort for medium to large homes.
-
New builds – versatile installation options for contractors.
-
Upgrades – replace aging systems with high-efficiency central ducted air handling.
-
Variable climates – delivers strong heating and cooling year-round.
What’s Included?
Warranty
MRCOOL VersaPro 2nd Gen 24K BTU 2 Ton Central Ducted Multiposition Air Handler Specifications
| Dimensions |
17.52" W x 21.02" D x 45.00" H |
| Weight |
105.60 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/5.5/4.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
26,000 BTU |
| Coverage Area |
751-1,000 square feet |
| SEER2 |
18.1 |
| EER2 |
11.0 |
| HSPF2-4 |
9.7 |
| HSPF2-5 |
7.7 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
- / 44 / 42 / 28 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
824.04 / 759.29 / 694.55 / 629.80 CFM |
| Refrigerant |
R454B / 74.08 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
5kW - CENTRALHK05
8kW - CENTRALHK08
10kW - CENTRALHK10
15kW - CENTRALHK15
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: Is this system DIY-friendly?
A: No, the VersaPro 2nd Gen requires professional installation by a licensed HVAC technician.
Q: What size area does this air handler cover?
A: It provides efficient comfort for 751–1,000 sq. ft.
Q: Can I add electric heat kits?
A: Yes, it supports 5kW, 8kW, 10kW, and 15kW compatible heat kits.
