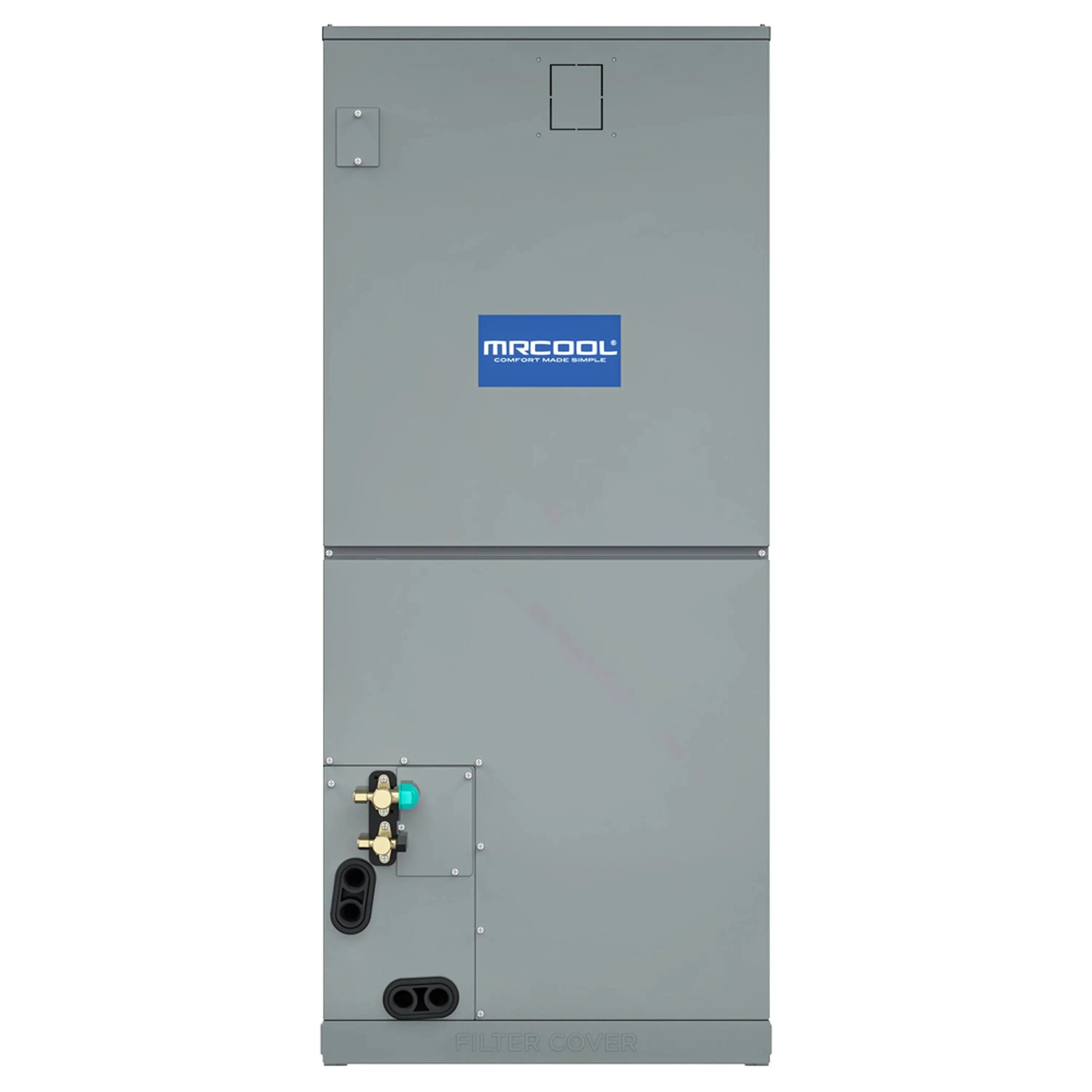

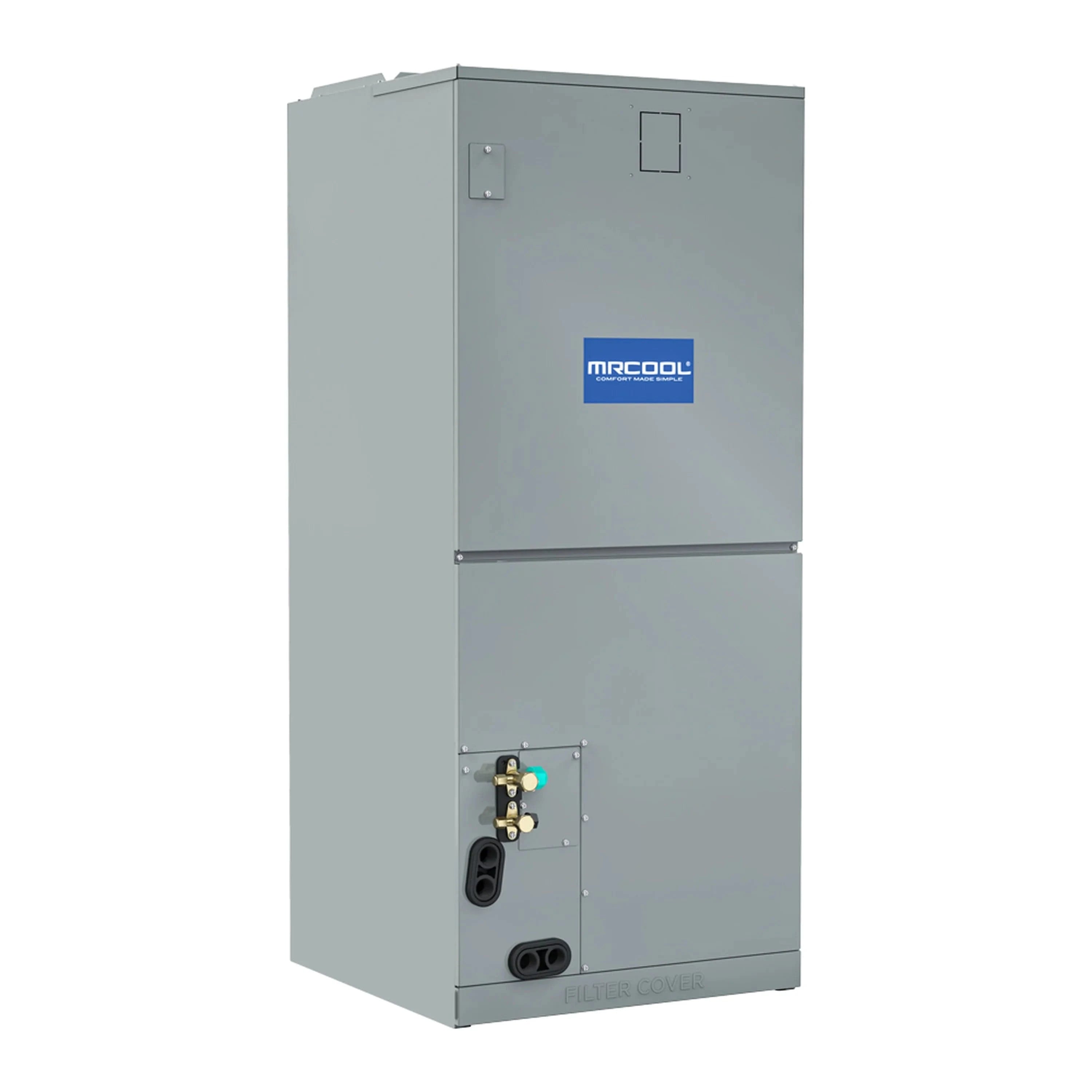

MRCOOL VersaPro 2nd Gen 30K BTU 2.5 Ton Central Ducted Multiposition Air Handler
The MRCOOL VersaPro 2nd Gen 30K BTU Central Ducted Air Handler is engineered to deliver reliable and efficient year-round comfort. Built with flexible installation in mind, this multiposition air handler can be mounted in vertical or horizontal configurations, making it a versatile choice for different ductwork layouts.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL VersaPro 2nd Gen 30K BTU 2.5 Ton Central Ducted Multiposition Air Handler Features
Flexible Installation
Designed for vertical (upflow/downflow) or horizontal positions, offering adaptability to most home setups.
Strong Heating & Cooling Power
Delivers 30,000 BTU cooling and 31,000 BTU heating capacity for year-round comfort.
Wide Coverage
Ideal for medium-to-large homes, covering spaces between 1,001–1,250 sq. ft.
Efficient Operation
Rated at 17.0 SEER2 and 10.7 EER2, reducing energy use while maintaining comfort.
Quiet Airflow
Noise levels as low as 29 dB(A) on quiet settings, ensuring minimal household disruption.
Compatible Heat Kits
Supports optional heat kits (5kW, 8kW, 10kW, 15kW) for enhanced performance in colder climates.
Applications
-
Whole-home comfort – efficient heating and cooling for spaces up to 1,250 sq. ft.
-
Flexible installation – works in basements, attics, or utility rooms with multiple mounting options.
-
Cold climates – supports add-on heat kits for stronger heating performance.
-
Energy efficiency – helps maintain comfort while lowering utility costs.
What’s Included?
Warranty
MRCOOL VersaPro 2nd Gen 30K BTU 2.5 Ton Central Ducted Multiposition Air Handler Specifications
| Dimensions |
21.02" W x 21.02" D x 49.02" H |
| Weight |
128.97 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/8.0/6.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
30,000 BTU |
| Heating Capacity |
31,000 BTU |
| Coverage Area |
1,001-1,250 square feet |
| SEER2 |
17.0 |
| EER2 |
10.7 |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
6.6 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
- / 46 / 42 / 29 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
988.85 / 894.67 / 806.38 / 712.21 CFM |
| Refrigerant |
R454B / 91.71 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
5kW - CENTRALHK05
8kW - CENTRALHK08
10kW - CENTRALHK10
15kW - CENTRALHK15
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: Can this air handler be installed horizontally?
A: Yes, this model supports vertical and horizontal mounting, making it flexible for different duct layouts.
Q: What size space does this air handler cover?
A: It is designed for homes up to 1,250 sq. ft., depending on climate and insulation.
Q: Does it require a heat kit?
A: The unit operates efficiently without one, but optional heat kits (5kW–15kW) can be added for enhanced heating in colder regions.
