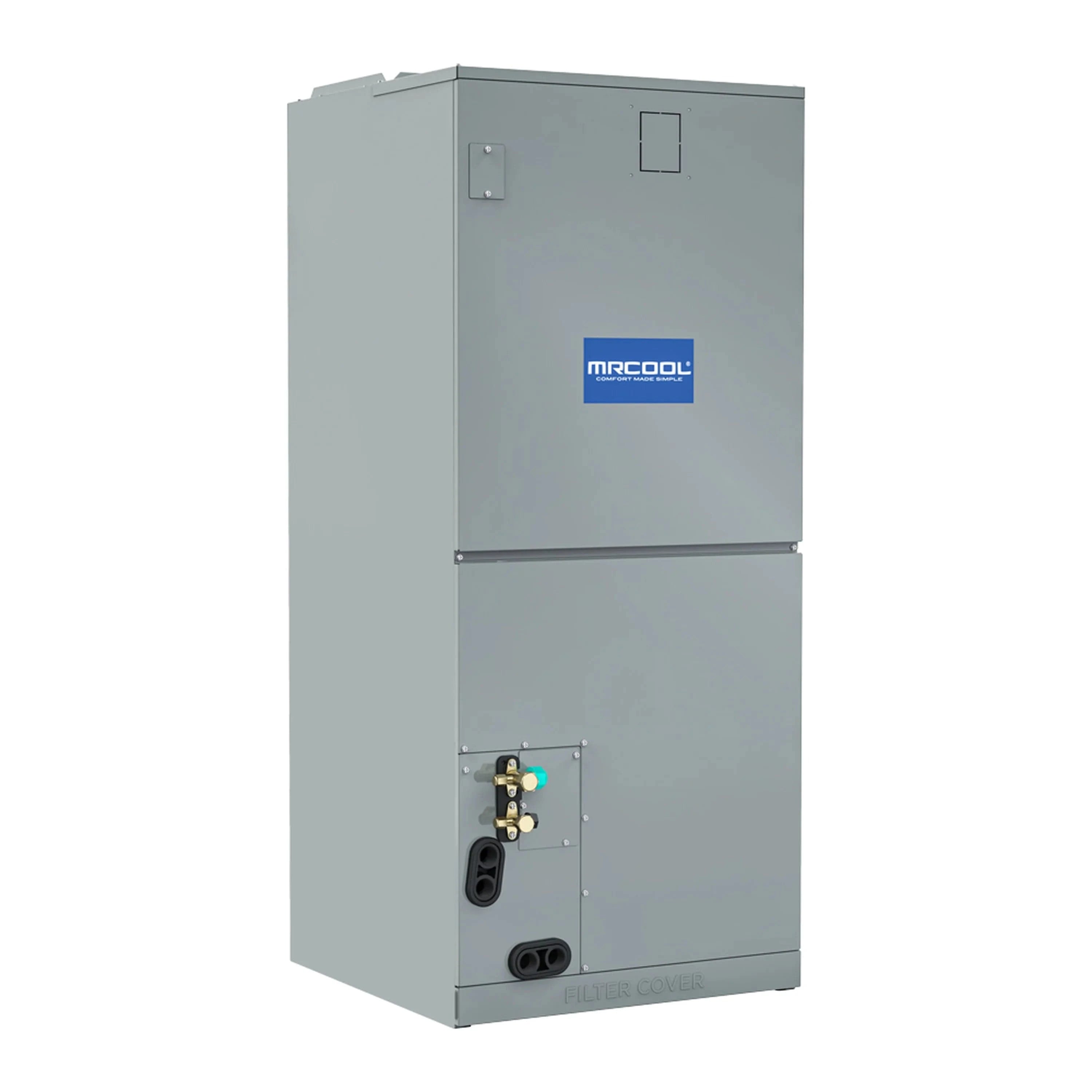

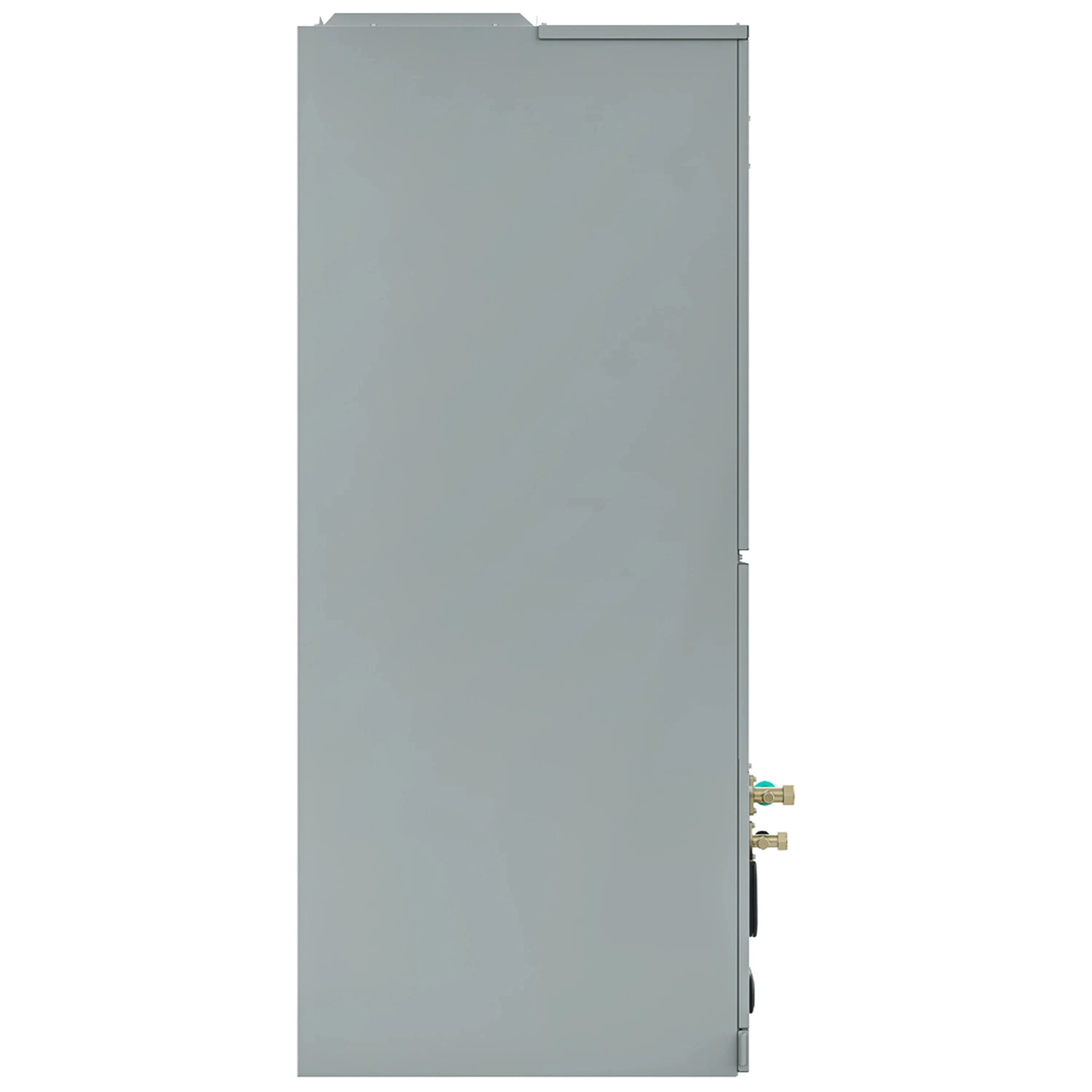

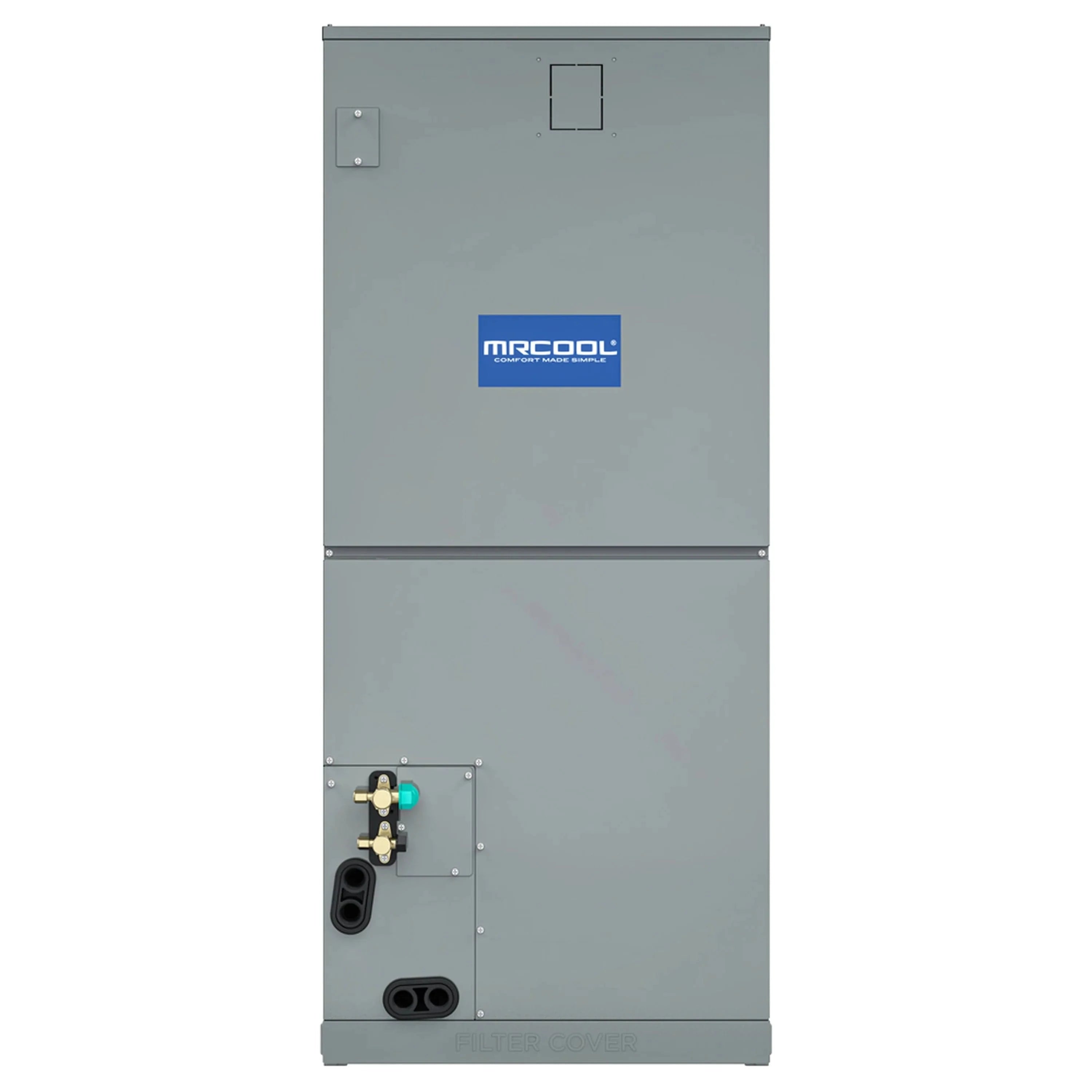

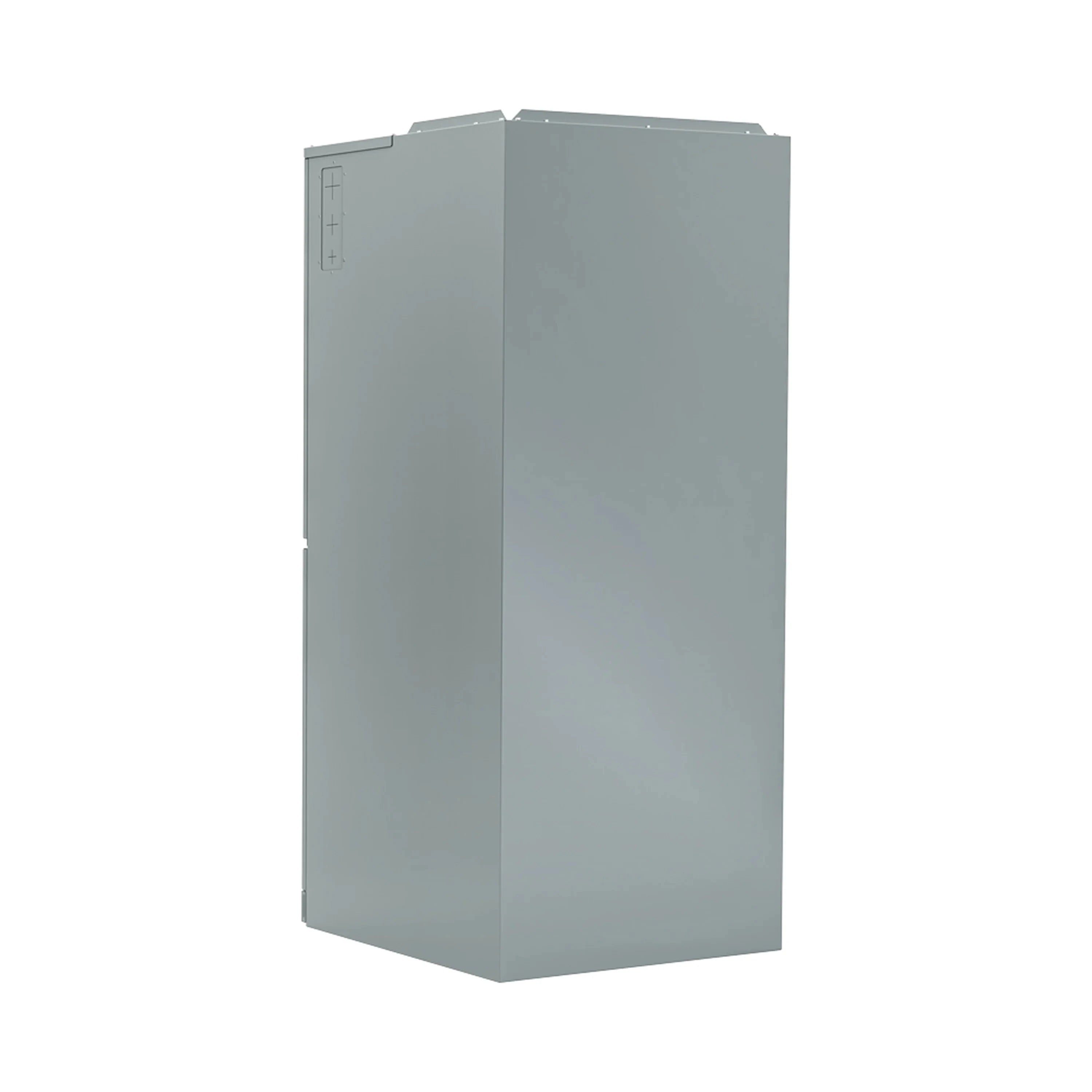

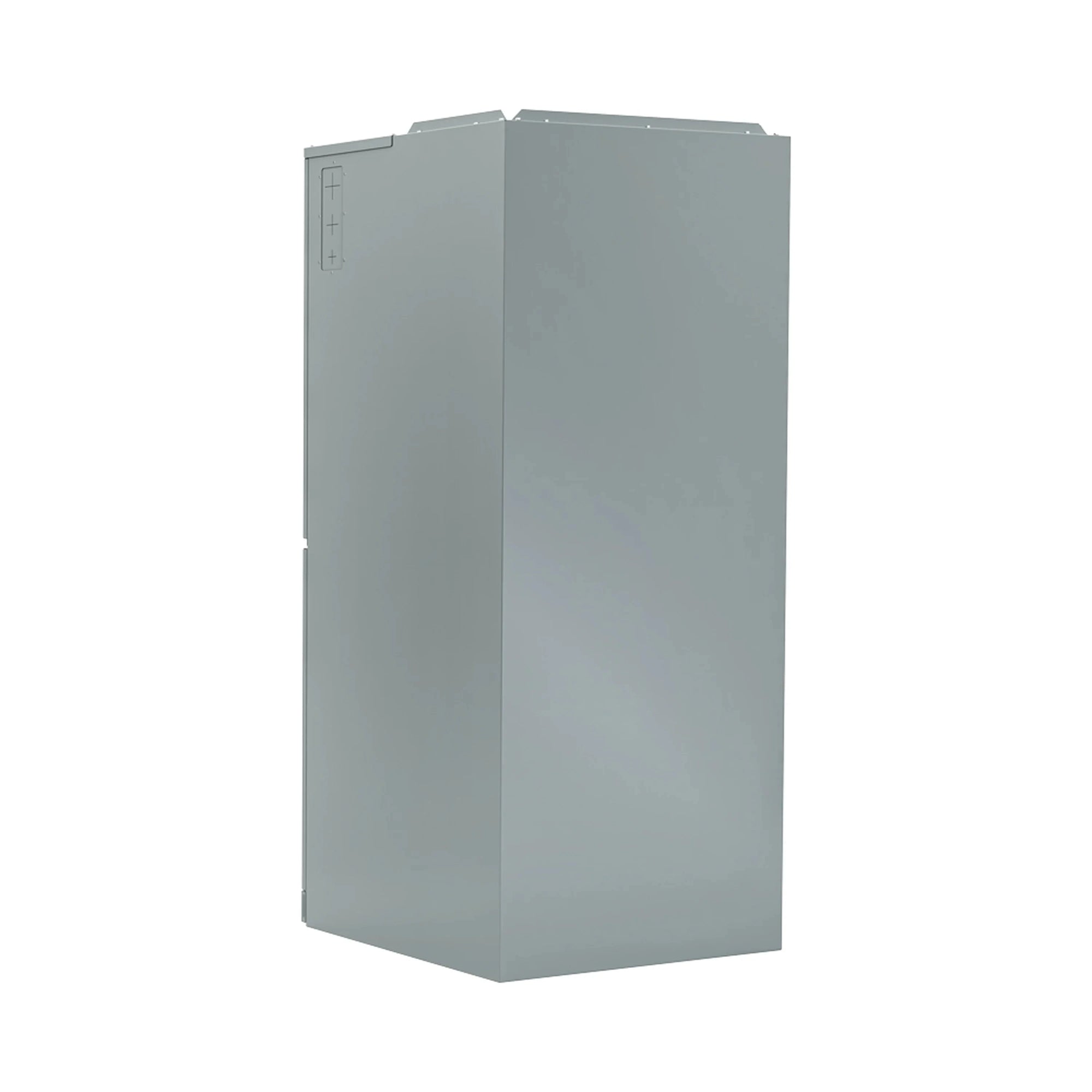

MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Multiposition Air Handler
The MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Multiposition Air Handler is engineered for large residential spaces, delivering powerful performance with flexible installation options. With support for vertical (upflow/downflow) or horizontal configurations, this unit adapts seamlessly to your home’s ductwork. Pair it with the VersaPro Condenser for a complete, high-efficiency heating and cooling solution.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Multiposition Air Handler Features
Flexible Installation
Supports vertical (upflow/downflow) or horizontal configurations for maximum adaptability.
High Capacity
Delivers 48,000 BTU heating and cooling for whole-home comfort.
Wide Coverage
Designed for 1,501–2,000 sq. ft., making it ideal for larger homes.
Energy Efficient
Rated at 16.0 SEER2, 10.0 EER2, and up to 8.5 HSPF2 for efficient year-round operation.
Compatible Heat Kits
Supports 5kW–20kW auxiliary heat kits for added backup heating.
Applications
-
Large homes – Covers 1,500–2,000 sq. ft. effectively.
-
Flexible installs – Works in vertical or horizontal orientations to match duct layouts.
-
Year-round comfort – Efficient heating and cooling performance.
-
Customizable heating – Optional heat kits for colder climates.
What’s Included?
Warranty
MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Multiposition Air Handler Specifications
| Dimensions |
24.49" W x 21.02" D x 52.99" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
48,000 BTU |
| Heating Capacity |
48,000 BTU |
| Coverage Area |
1,501-2,000 square feet |
| SEER2 |
16.0 |
| EER2 |
10.0 |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
7.2 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
- / 53 / 50 / 44 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1600.99 / 1471.50 / 1283.15 / 1094.80 CFM |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
8kW - CENTRALHK08
10kW - CENTRALHK10
15kW - CENTRALHK15
20kW - CENTRALHK20
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: What size home does this air handler support?
A: It is recommended for homes sized 1,500–2,000 sq. ft., depending on climate and insulation.
Q: Can I add supplemental heat?
A: Yes, it is compatible with optional 5kW–20kW heat kits for added heating capacity.
Q: Is this a DIY unit?
A: No. This system requires professional installation by a licensed HVAC technician.
