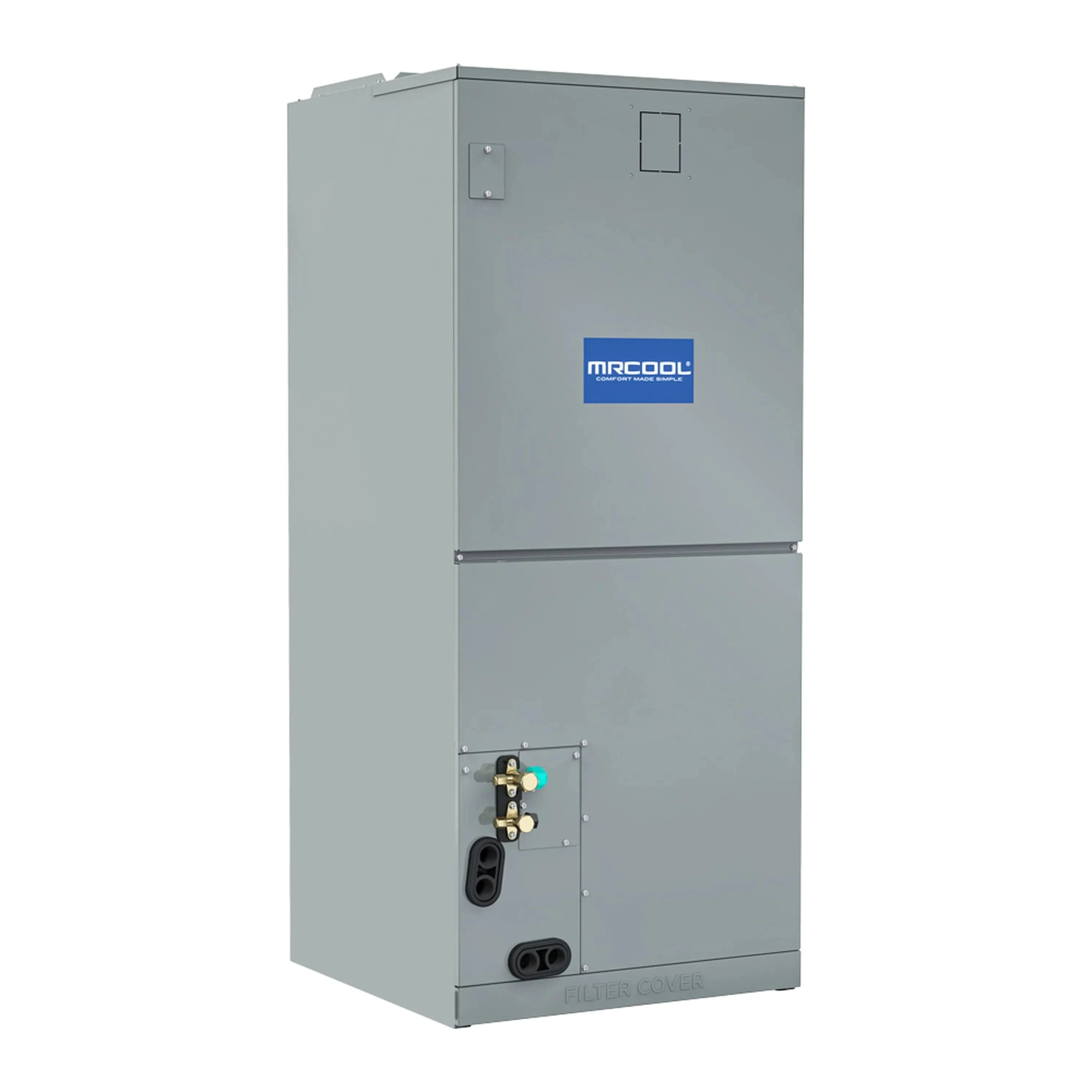

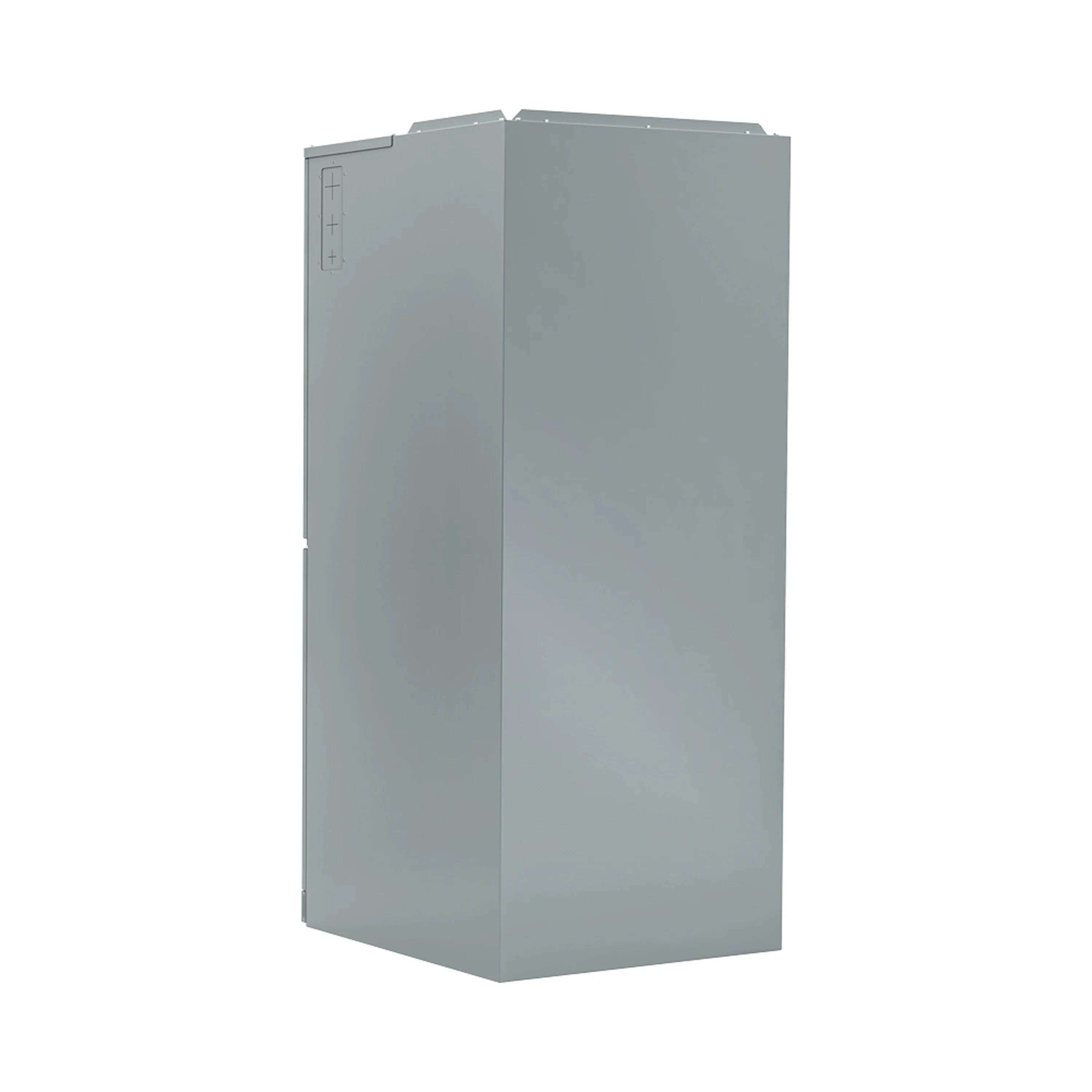

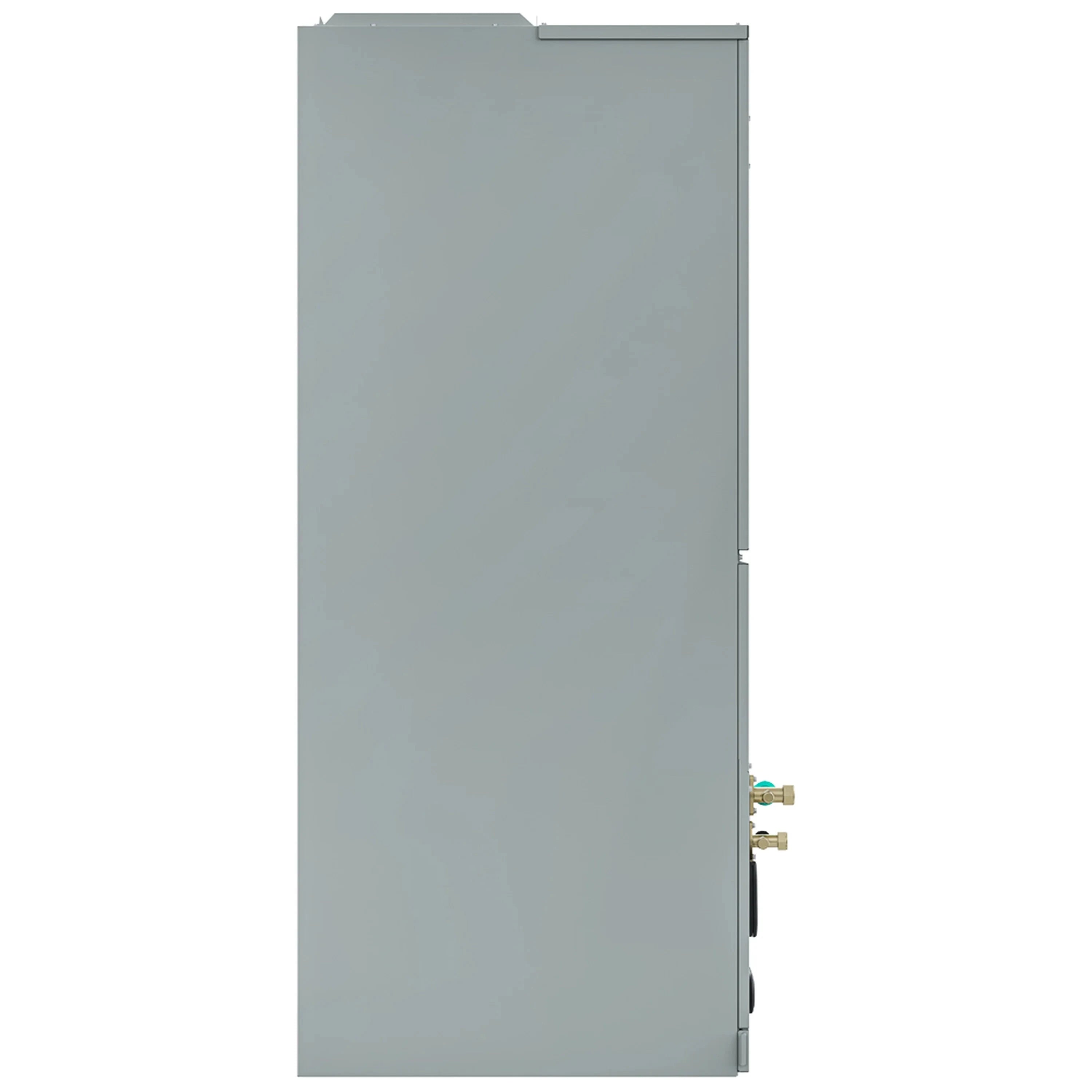

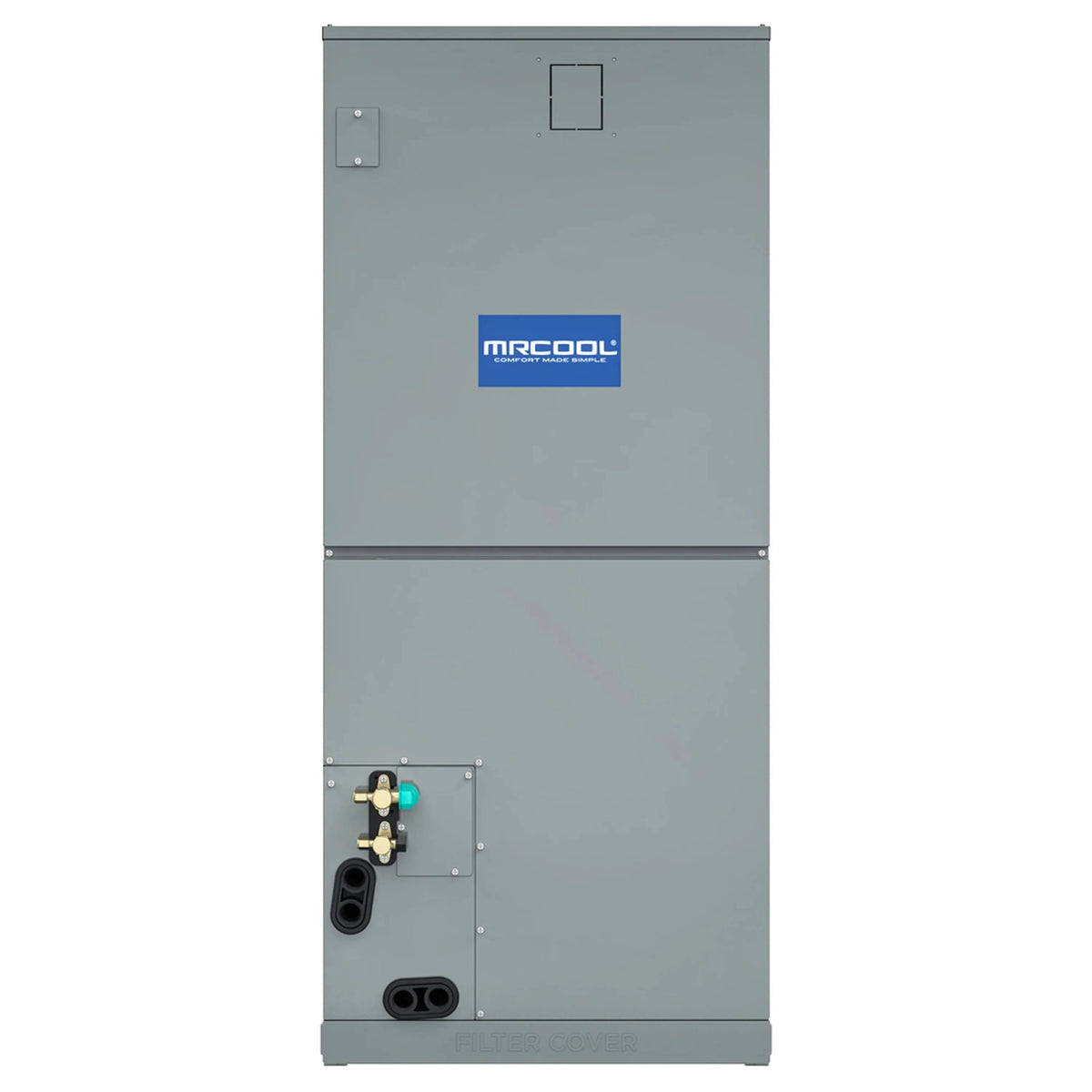

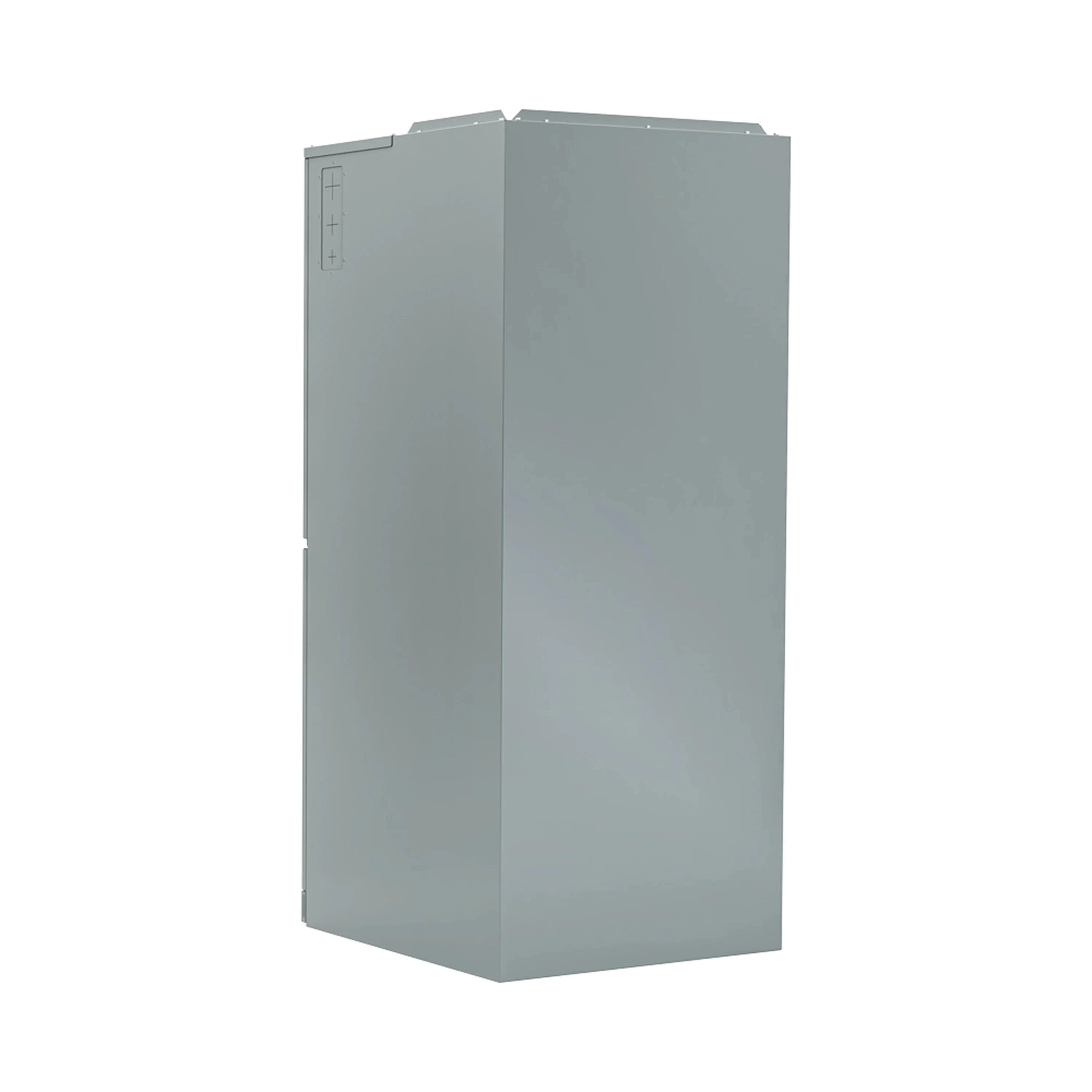

MRCOOL VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Multiposition Air Handler
The MRCOOL VersaPro 2nd Gen 60K BTU Multiposition Air Handler is engineered to work seamlessly with the VersaPro condenser, delivering powerful and efficient climate control for large residential or light commercial applications. With a 54,000 BTU heating and cooling capacity, this system can cover up to 2,500 sq. ft. and is designed for versatility in installation, supporting both vertical (upflow/downflow) and horizontal (left/right) positions.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL VersaPro 2nd Gen 60K BTU Multiposition Air Handler Features
High-Capacity Performance
Provides 54,000 BTU cooling and heating, ideal for large spaces.
Versatile Installation
Multiposition design supports vertical and horizontal setups, allowing flexible installation.
Advanced Efficiency
Achieves 15.2 SEER2, 8.6 EER2, and up to 8.4 HSPF2 for energy-efficient operation.
Quiet Operation
Noise levels as low as 34.5 dB(A) in low mode keep your space comfortable without unnecessary noise.
Compatible Heat Kits
Supports optional electric heat kits (10kW, 15kW, 20kW) for enhanced supplemental heating.
Applications
-
Large homes – Comfort for 2,000–2,500 sq. ft. homes
-
Commercial use – Perfect for office spaces or retail environments
-
Flexible duct setups – Works with both vertical and horizontal installations
-
Year-round comfort – Provides both heating and cooling efficiently
What’s Included?
Warranty
MRCOOL VersaPro 2nd Gen 60K BTU Multiposition Air Handler Specifications
| Dimensions |
24.49" W x 21.02" D x 52.99" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
54,000 BTU |
| Heating Capacity |
54,000 BTU |
| Coverage Area |
2,001-2,500 square feet |
| SEER2 |
15.2 |
| EER2 |
8.6 |
| HSPF2-4 |
8.4 |
| HSPF2-5 |
6.8 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
56.0 / 52.0 / 49.0 / 34.5 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1807.00 / 1583.33 / 1359.67 / 1136.00 CFM |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
10kW - CENTRALHK10
15kW - CENTRALHK15
20kW - CENTRALHK20
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: What size area does this air handler support?
A: It covers 2,000–2,500 sq. ft., making it ideal for larger homes or commercial areas.
Q: Can I install this air handler myself?
A: No, this is not a DIY system. A licensed HVAC technician must perform the installation.
Q: Is it compatible with supplemental heating kits?
A: Yes, it works with 10kW, 15kW, and 20kW heat kits for additional heating capacity.
