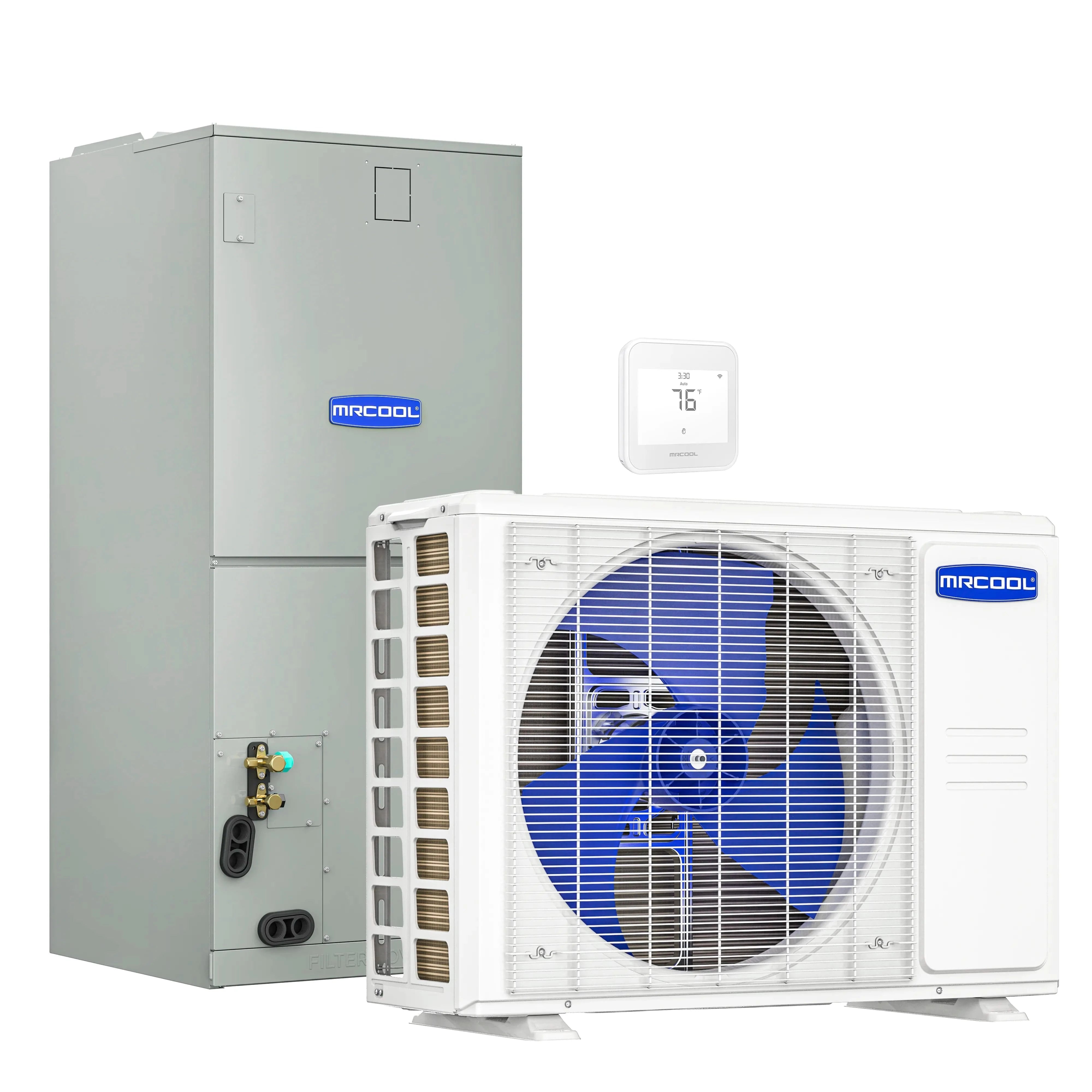

MRCOOL VersaPro 2nd Gen 36K BTU 3 Ton Central Ducted Heat Pump Split System
The MRCOOL VersaPro 2nd Gen 36K BTU Central Ducted Heat Pump Split System is designed to deliver powerful, reliable heating and cooling for larger homes. With high-efficiency ratings, flexible installation, and advanced compressor technology, this system ensures year-round comfort and performance.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL VersaPro 2nd Gen 36K BTU 3 Ton Central Ducted Heat Pump Split System Features
High Capacity Performance
Provides 36,000 BTU cooling and 37,000 BTU heating capacity, ideal for large residential spaces.
Energy Efficient
Rated at SEER2 16.5 and EER2 10.2, delivering reliable comfort while reducing energy usage.
All-Climate Operation
Engineered to operate efficiently in a wide outdoor temperature range from -13°F to 120°F.
Quiet Operation
Operates at just 60 dB(A), ensuring a quieter home environment compared to traditional systems.
R-454B Refrigerant
Utilizes an eco-friendly refrigerant for lower environmental impact while maintaining performance.
Compatible Heat Kits
Supports 5kW, 8kW, 10kW, and 15kW add-on electric heat kits for colder climates.
Applications
-
Large homes – delivers powerful heating and cooling for spaces between 1,200–1,500 sq. ft.
-
Year-round comfort – effective performance in both hot summers and freezing winters.
-
Whole-home solution – works with existing ductwork for centralized air distribution.
-
Energy-conscious households – combines efficient SEER2 and EER2 ratings to lower energy bills.
What’s Included?
Warranty
MRCOOL VersaPro 2nd Gen 36K BTU 3 Ton Central Ducted Heat Pump Split System Specifications

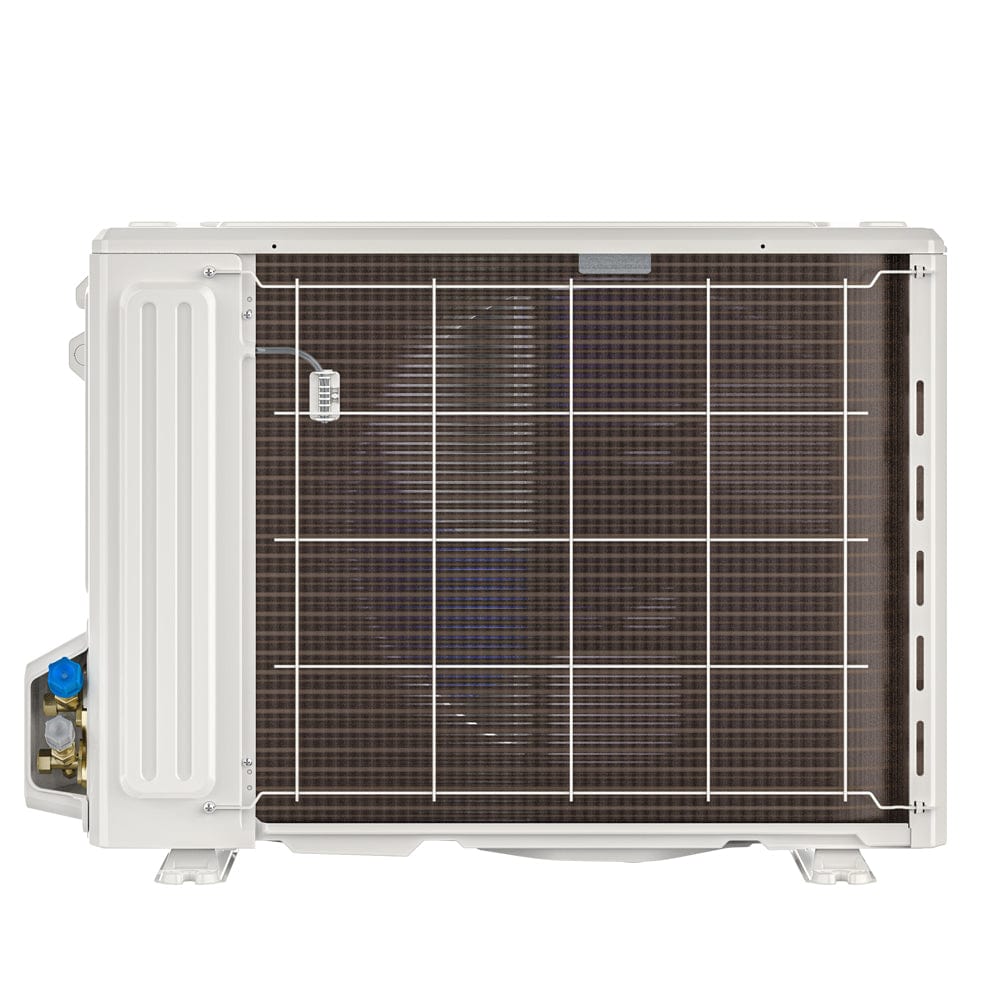

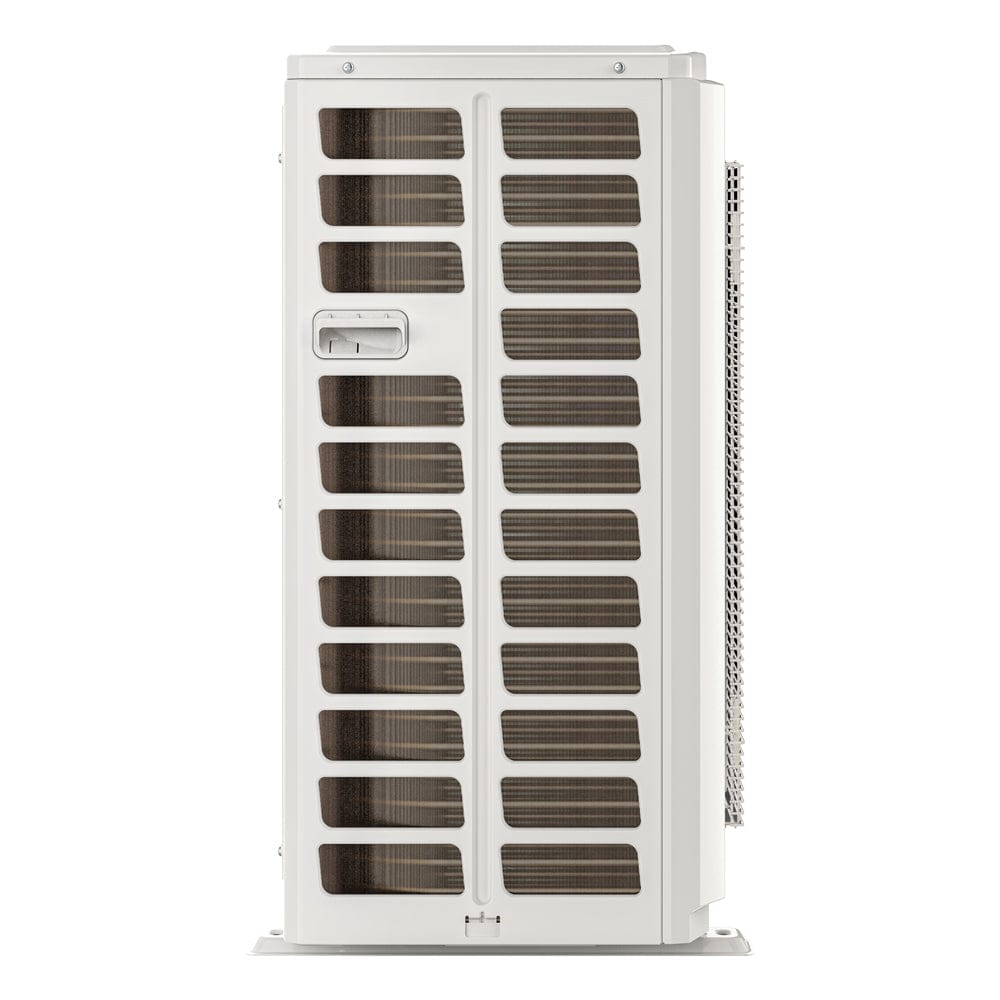

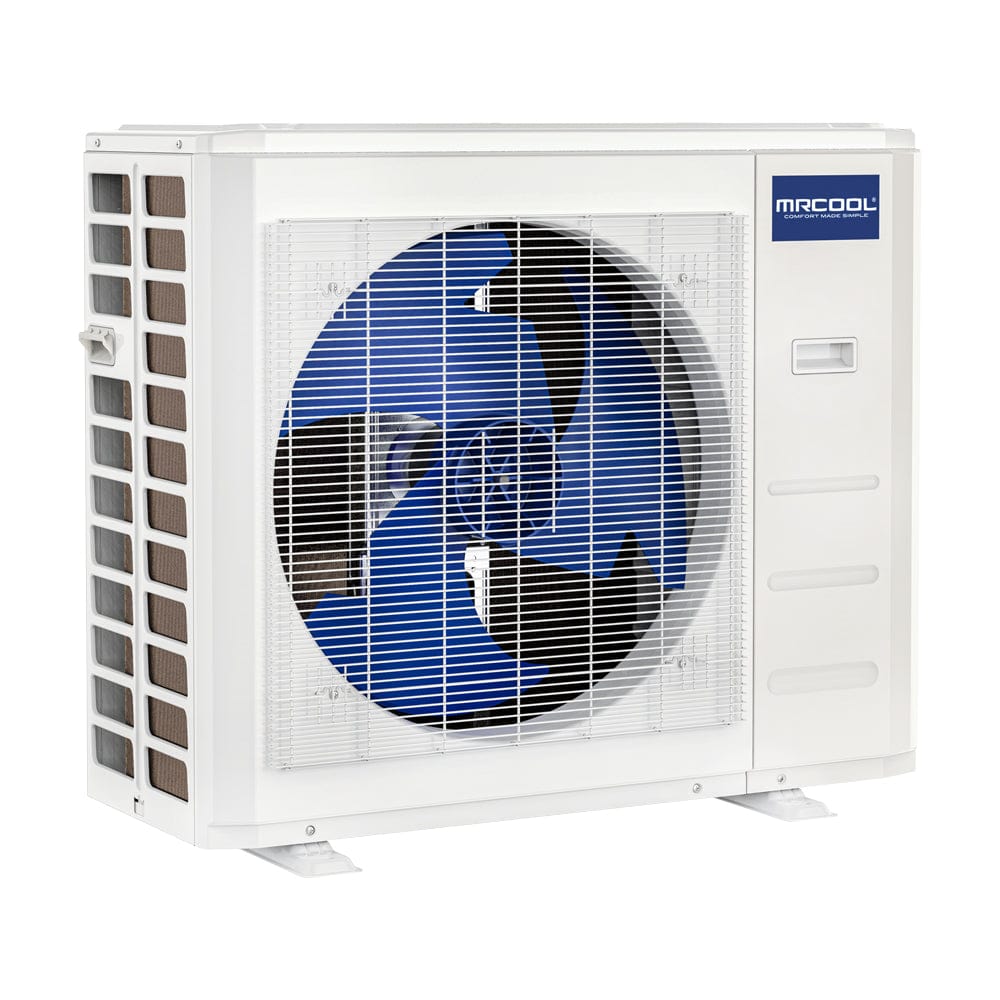

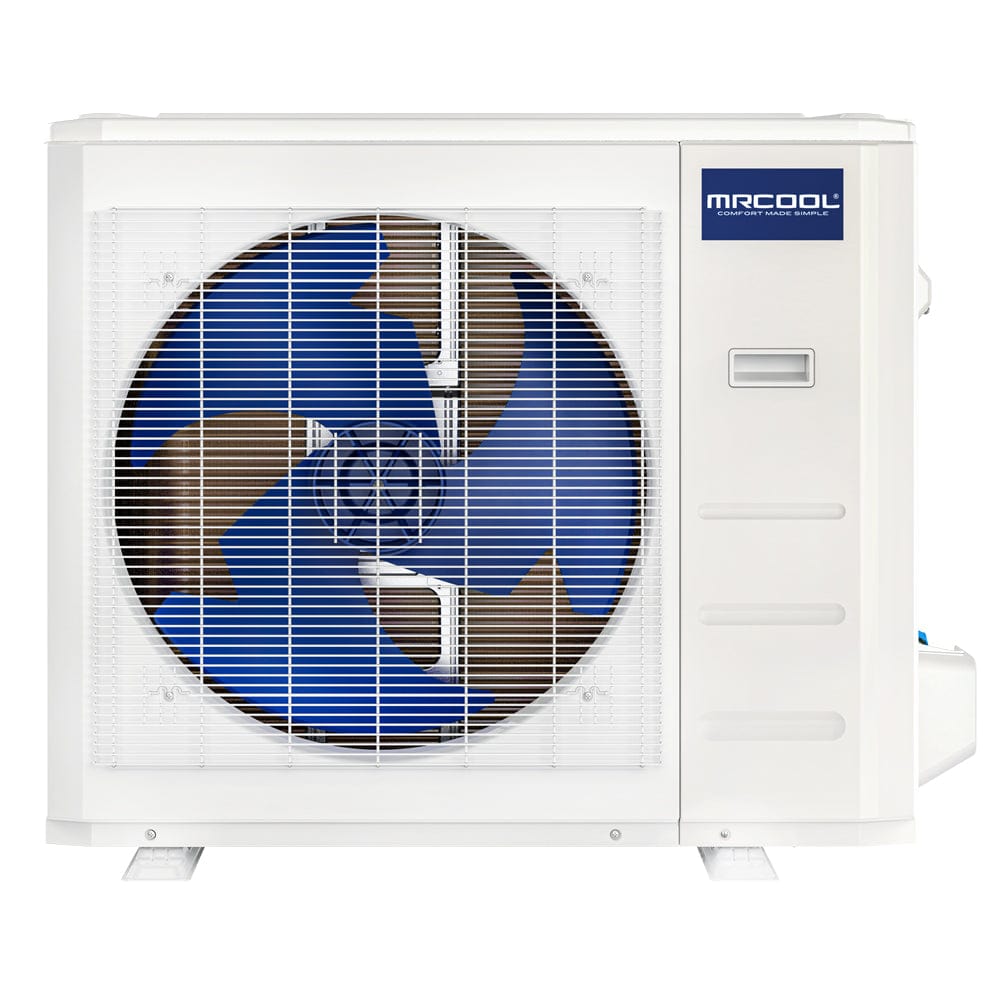

Condenser
| Dimensions |
37.24" W x 16.14" D x 31.89" H |
| Weight |
153.22 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/24-30A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| Outdoor Operating Temperature Range |
-13 °F - 120°F |
| SEER2 |
16.1 |
| EER2 |
10.0 |
| HSPF2-4 |
8.7 |
| HSPF2-5 |
7.0 |
| Noise Level (Hi/Mi/Lo) |
63 dB(A) |
| Refrigerant |
R454B / 116.4 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

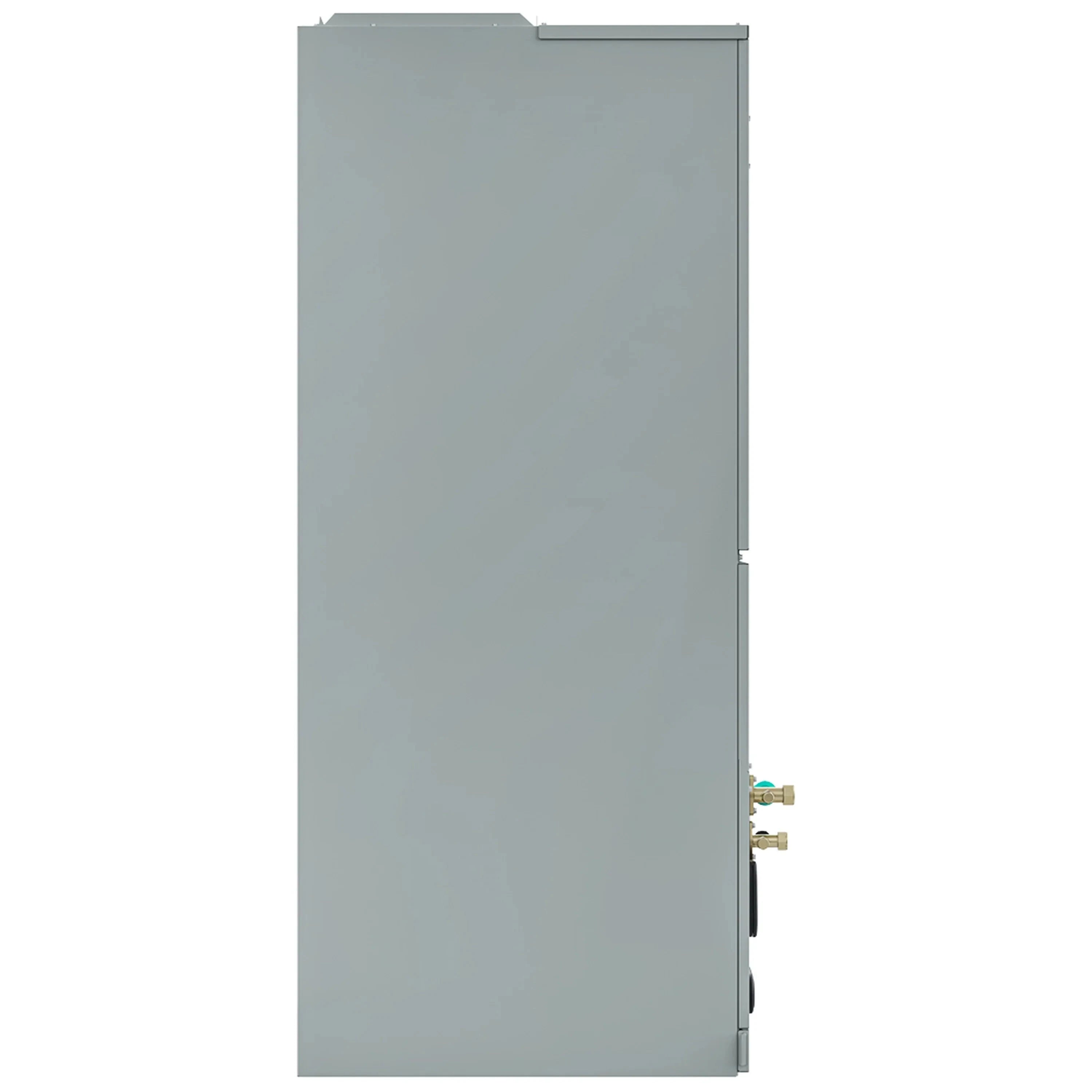

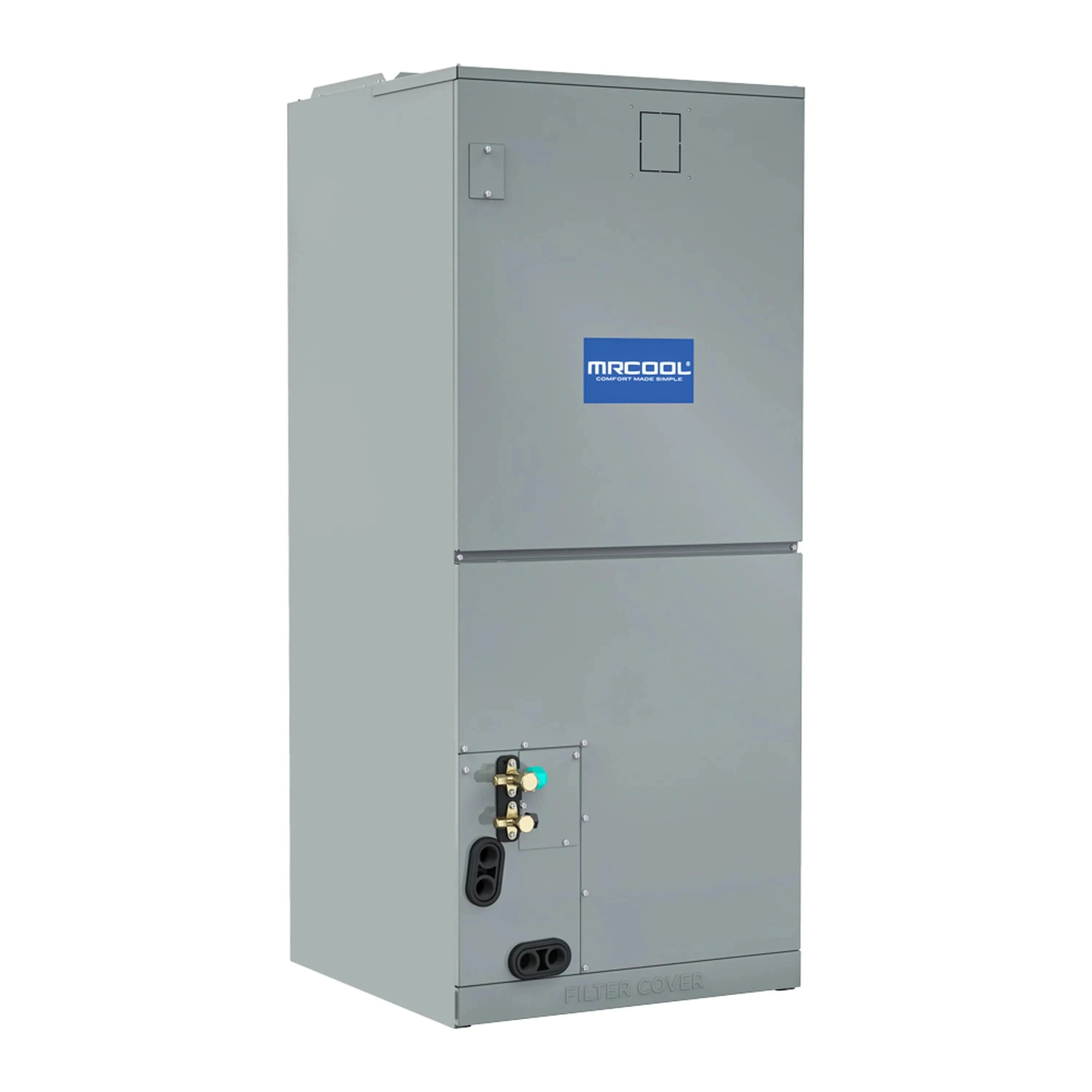

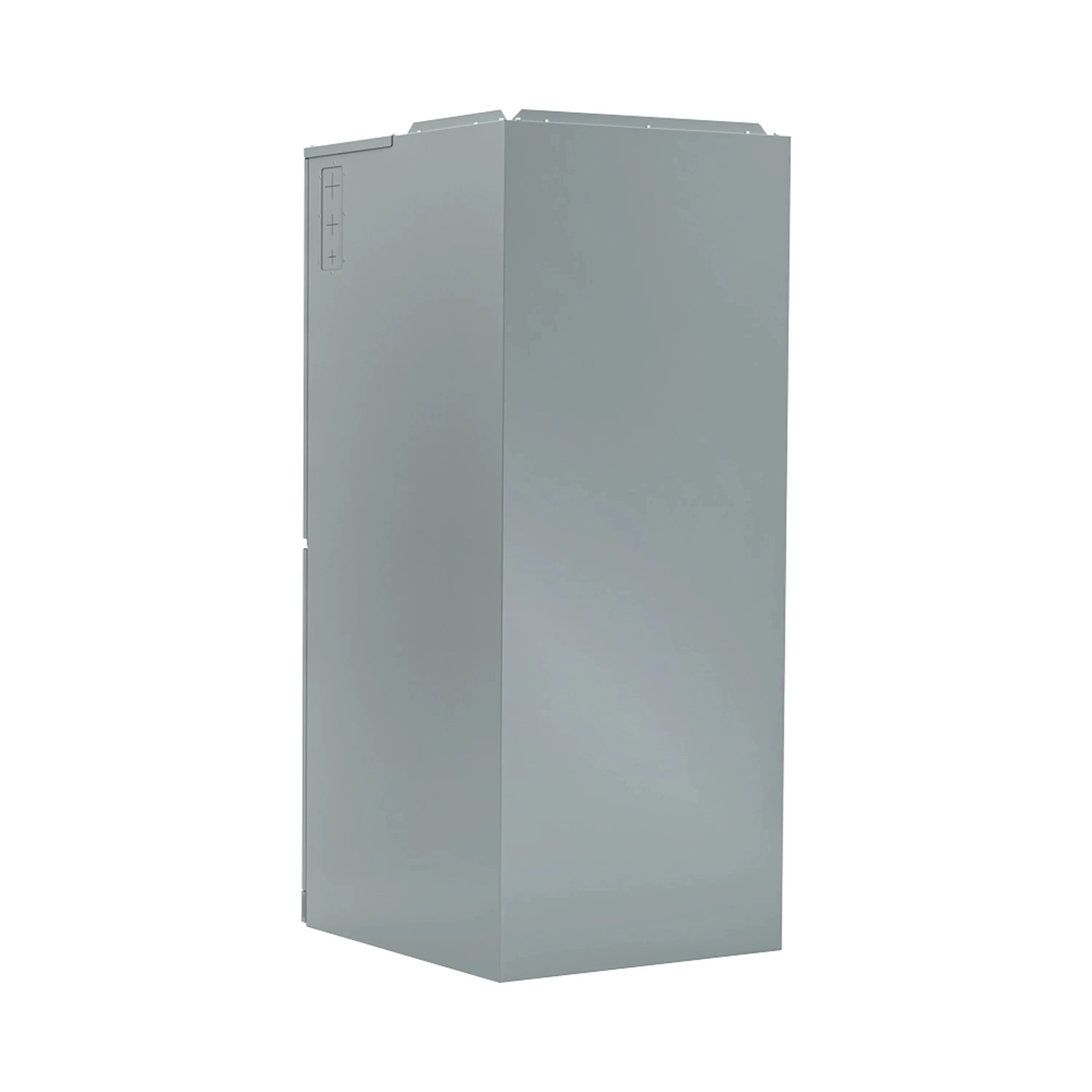

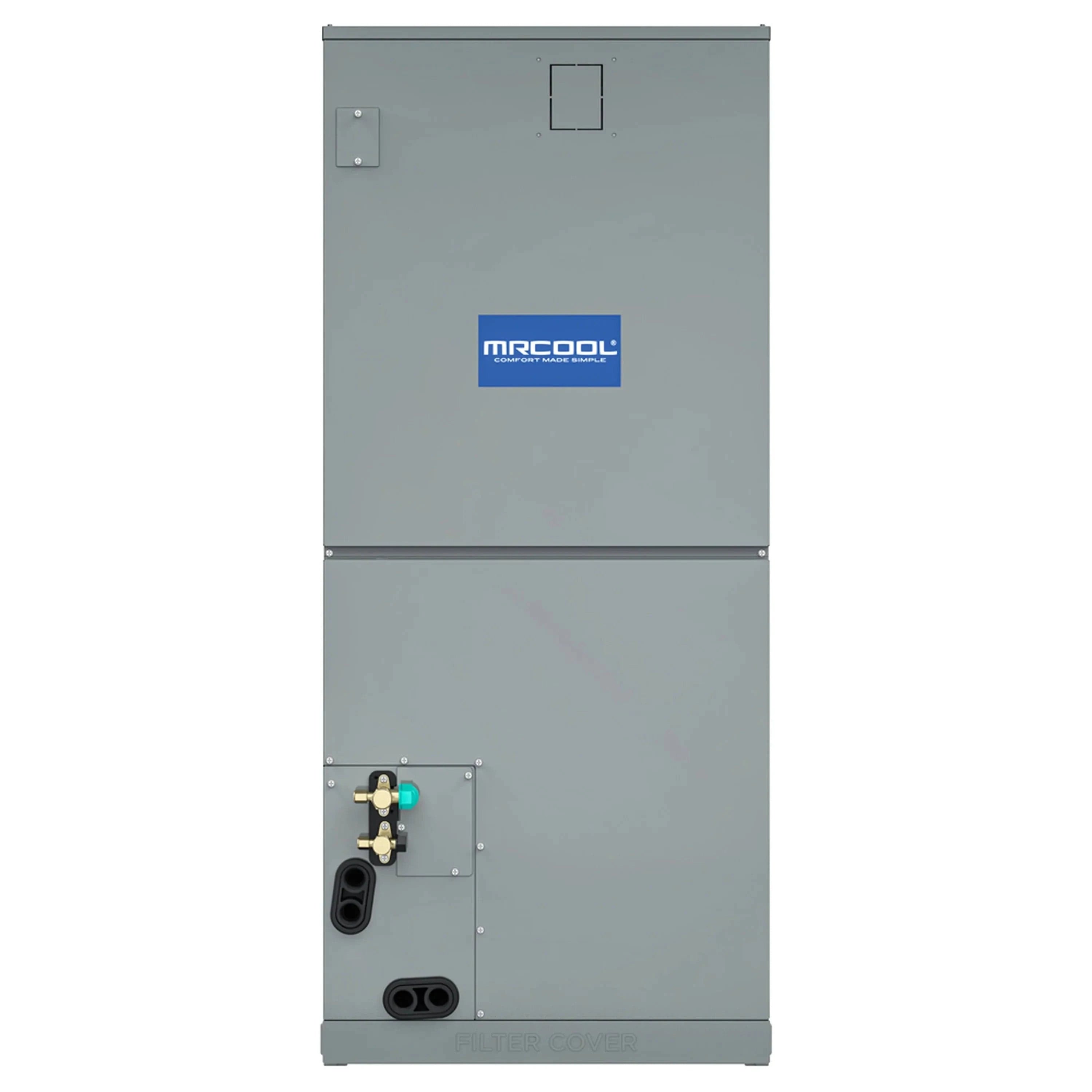

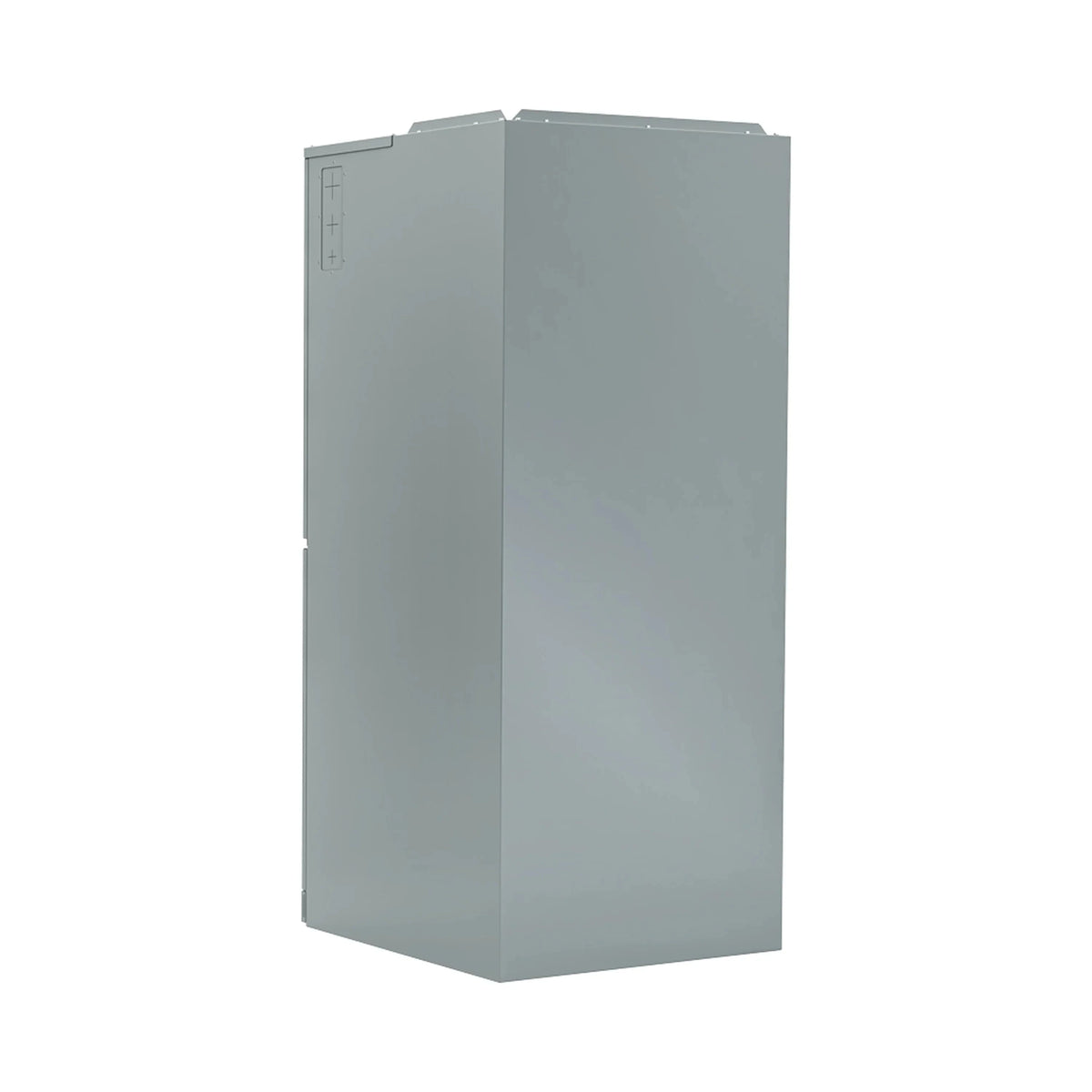

Air Handler
| Dimensions |
21.02" W x 21.02" D x 49.02" H |
| Weight |
129.41 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/8.0/6.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| Coverage Area |
1,251-1,500 square feet |
| SEER2 |
16.1 |
| EER2 |
10.0 |
| HSPF2-4 |
8.7 |
| HSPF2-5 |
7.0 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
- / 48 / 45 / 28 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1188.97 / 1083.02 / 971.19 / 865.24 CFM |
| Refrigerant |
R454B / 116.4 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
5kW - MVPHK05
8kW - MVPHK08
10kW - MVPHK10
15kW - MVPHK15
20kW - MVPHK20
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: What size home is this system best for?
A: This 3-ton system is designed to comfortably heat and cool homes ranging from 1,200 to 1,500 sq. ft., depending on insulation and climate.
Q: Can this system be installed in any position?
A: Yes, the multiposition air handler can be installed in vertical upflow, vertical downflow, or horizontal left/right configurations.
Q: Is this system DIY-friendly?
A: No. This is a professional installation system and must be installed by a licensed HVAC technician.
