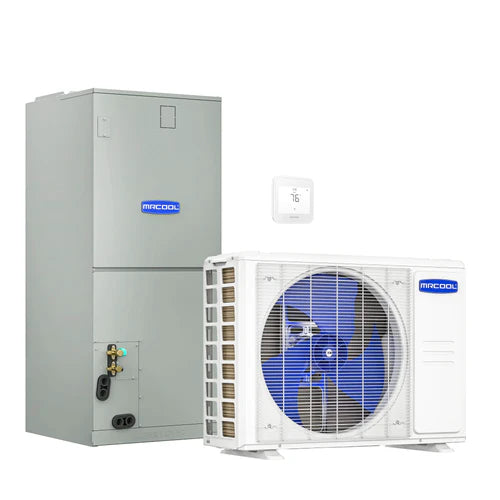

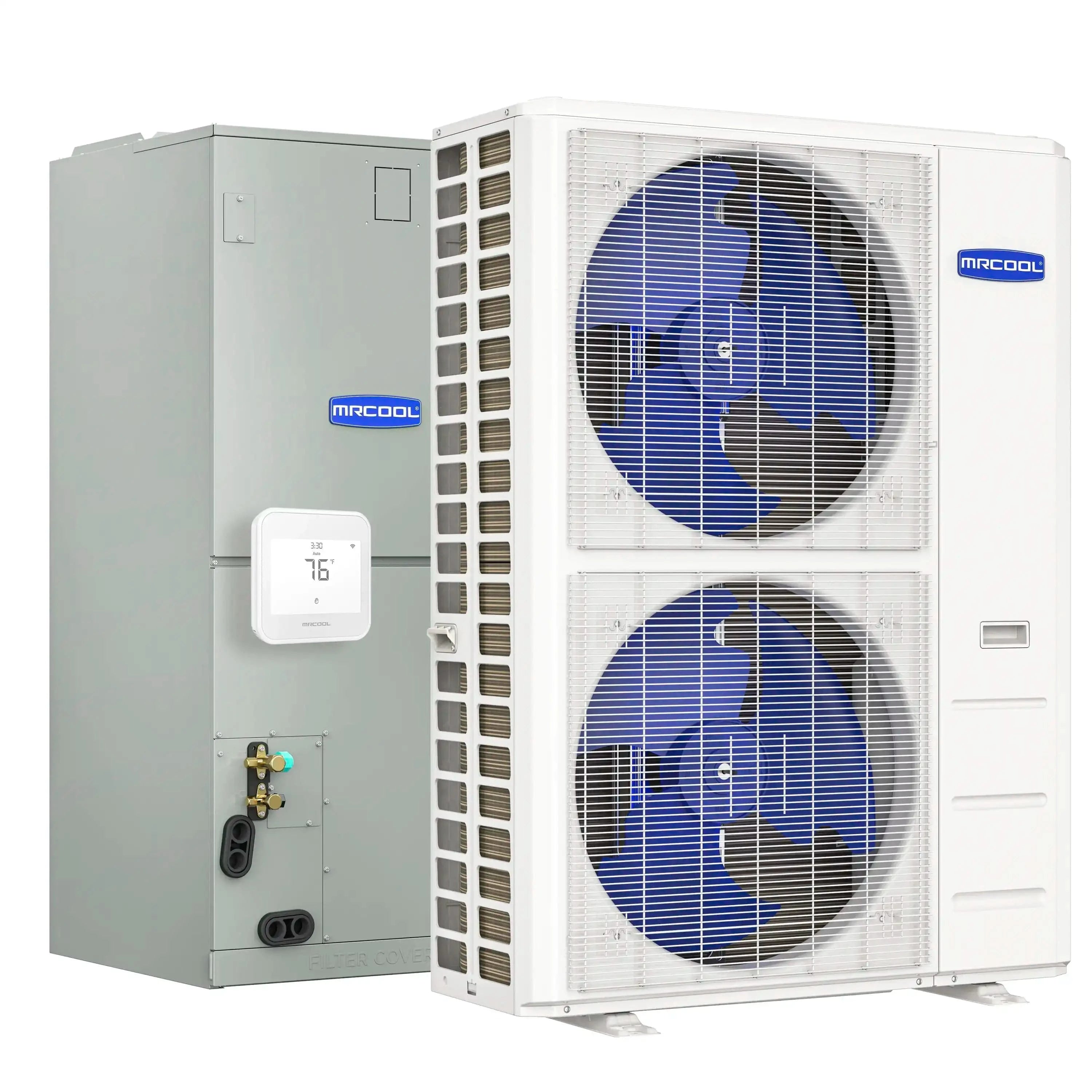

MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Heat Pump Split System
The MRCOOL VersaPro 2nd Gen 48K BTU Central Ducted Heat Pump Split System is a high-capacity whole-home comfort solution built for efficiency, reliability, and versatility. With strong heating and cooling output, wide operating temperature range, and multiposition installation options, this system is ideal for large residential applications.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Heat Pump Split System Features
Powerful Performance
Delivers 48,000 BTU cooling and heating capacity, ensuring comfort in large homes and extreme climates.
All-Climate Operation
Operates effectively in temperatures from -13°F to 120°F, providing reliable year-round performance.
Energy Efficient
Equipped with 16.0 SEER2 and 10.0 EER2 ratings, as well as high HSPF performance for heating efficiency.
Flexible Installation
The air handler supports vertical (upflow or downflow) and horizontal (left/right) orientations for installation versatility.
Quiet Comfort
Noise levels as low as 44 dB(A) in low-speed fan mode ensure whisper-quiet operation indoors.
Optional Heat Kits
Compatible with 8kW, 10kW, 15kW, and 20kW heat kits, expanding its heating capability when needed.
Applications
-
Large homes – best for spaces between 1,500–2,000 sq. ft.
-
Versatile placement – can be installed in utility rooms, attics, or basements.
-
Whole-home heating & cooling – designed to handle demanding climates.
-
Year-round comfort – strong efficiency ratings for both heating and cooling.
What’s Included?
Warranty
MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Heat Pump Split System Specifications

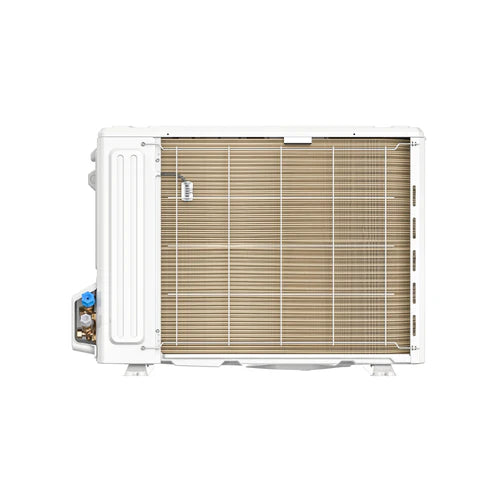

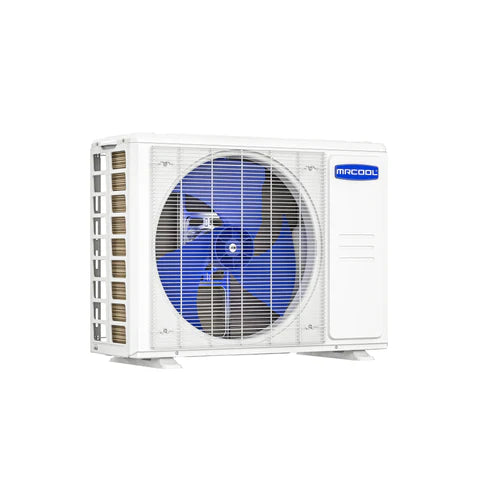

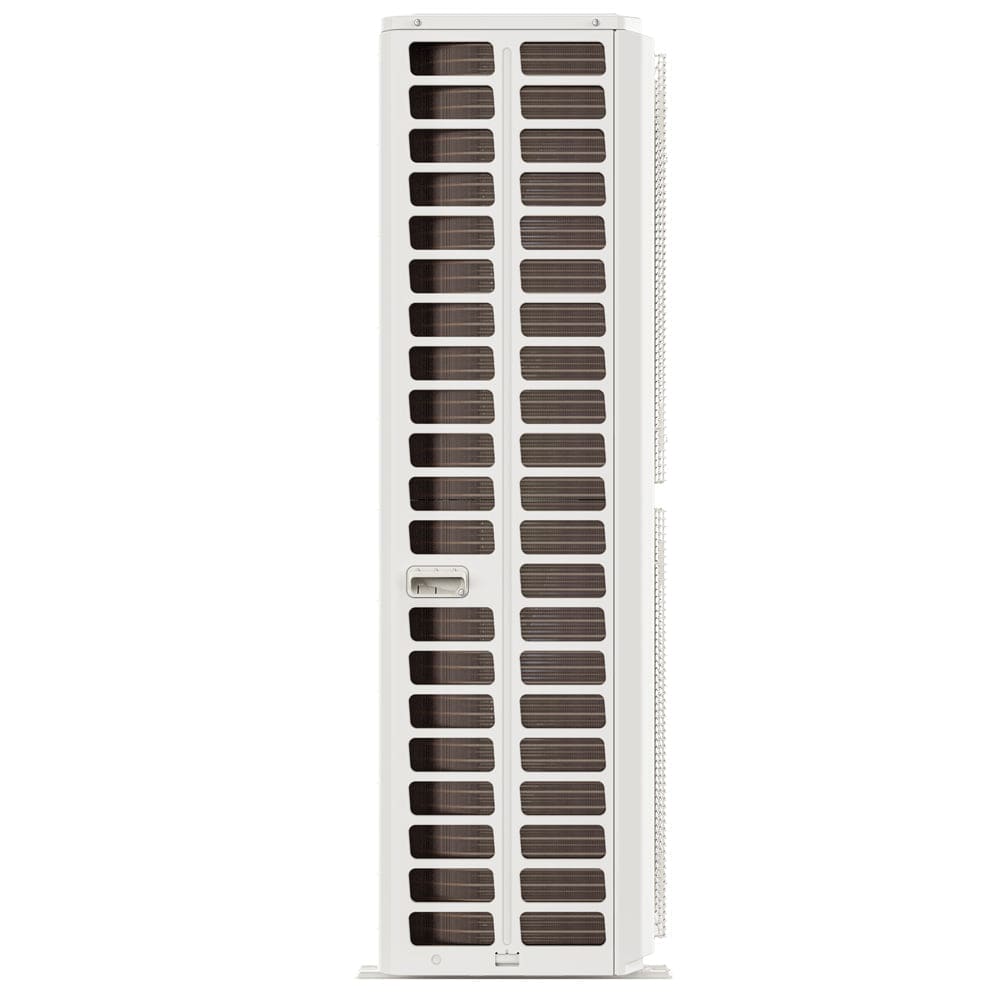

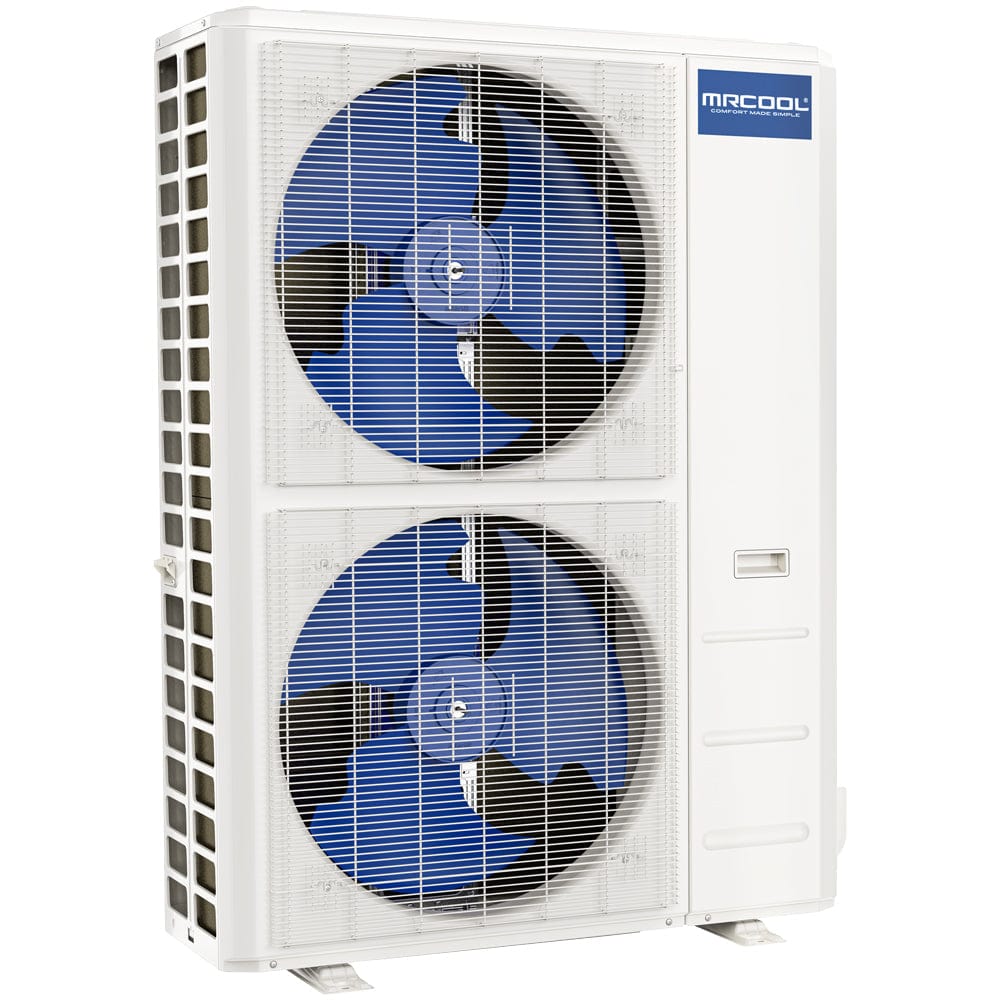

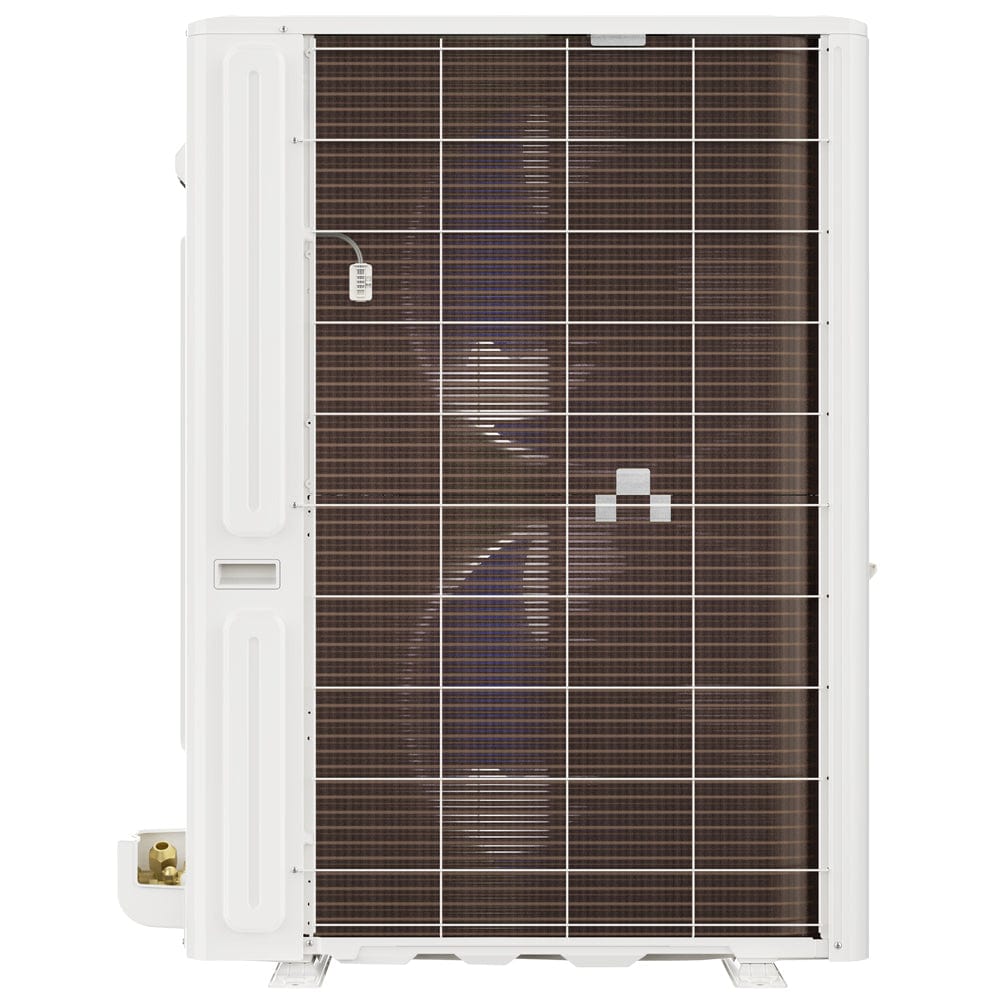

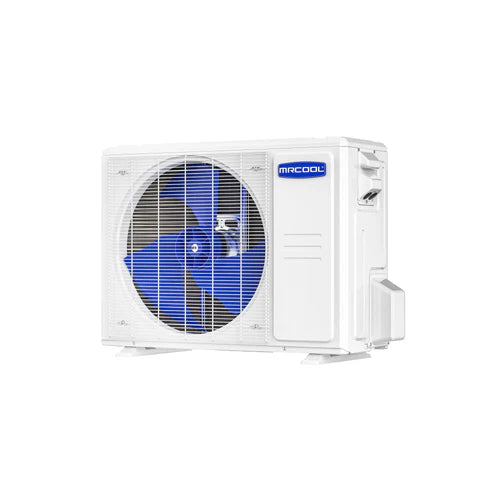

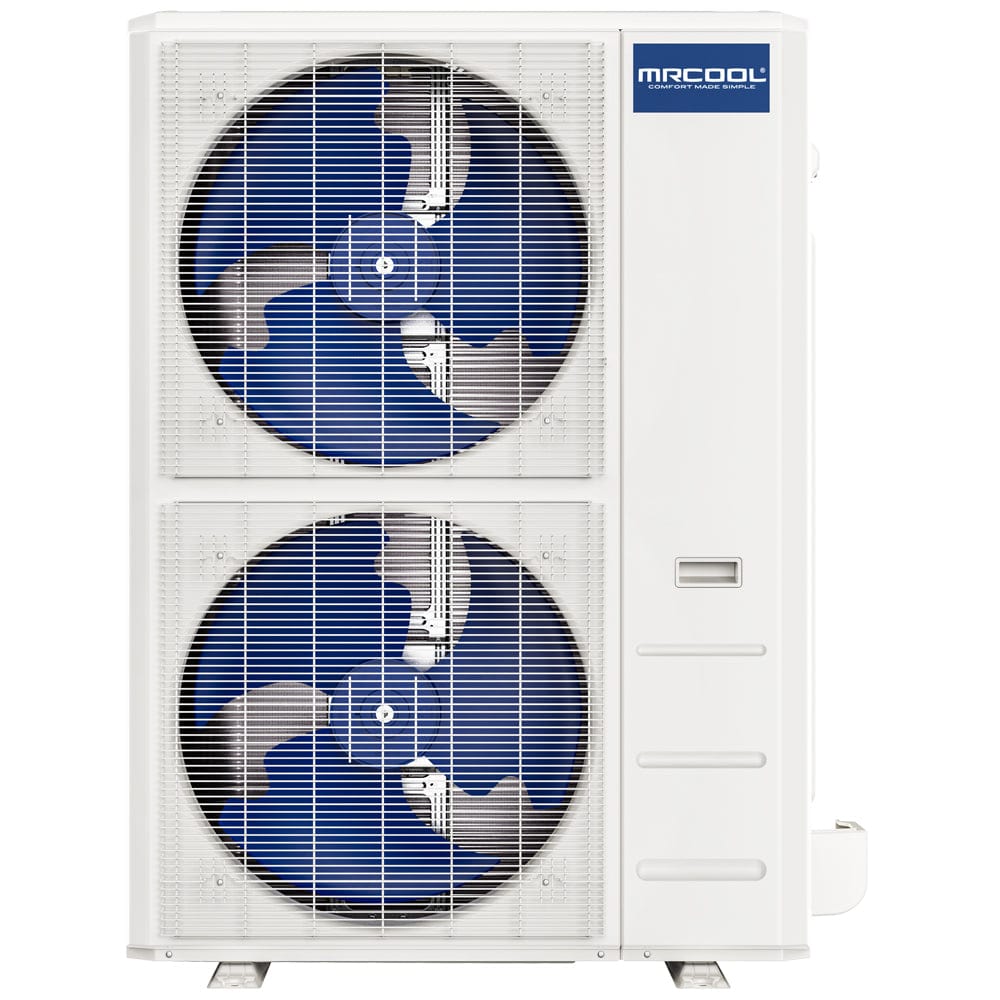

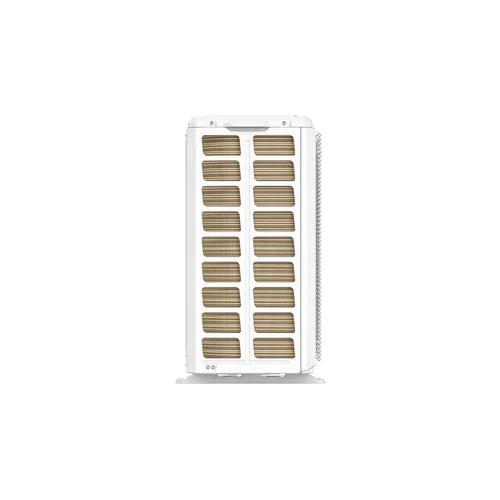

Condenser
| Dimensions |
38.58" W x 16.34" D x 38.39" H |
| Weight |
192.90 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/36-40A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
48,000 BTU |
| Heating Capacity |
48,000 BTU |
| Outdoor Operating Temperature Range |
-13 °F - 120°F |
| SEER2 |
16.0 |
| EER2 |
10.0 |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
7.2 |
| Noise Level (Hi/Mi/Lo) |
65 dB(A) |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

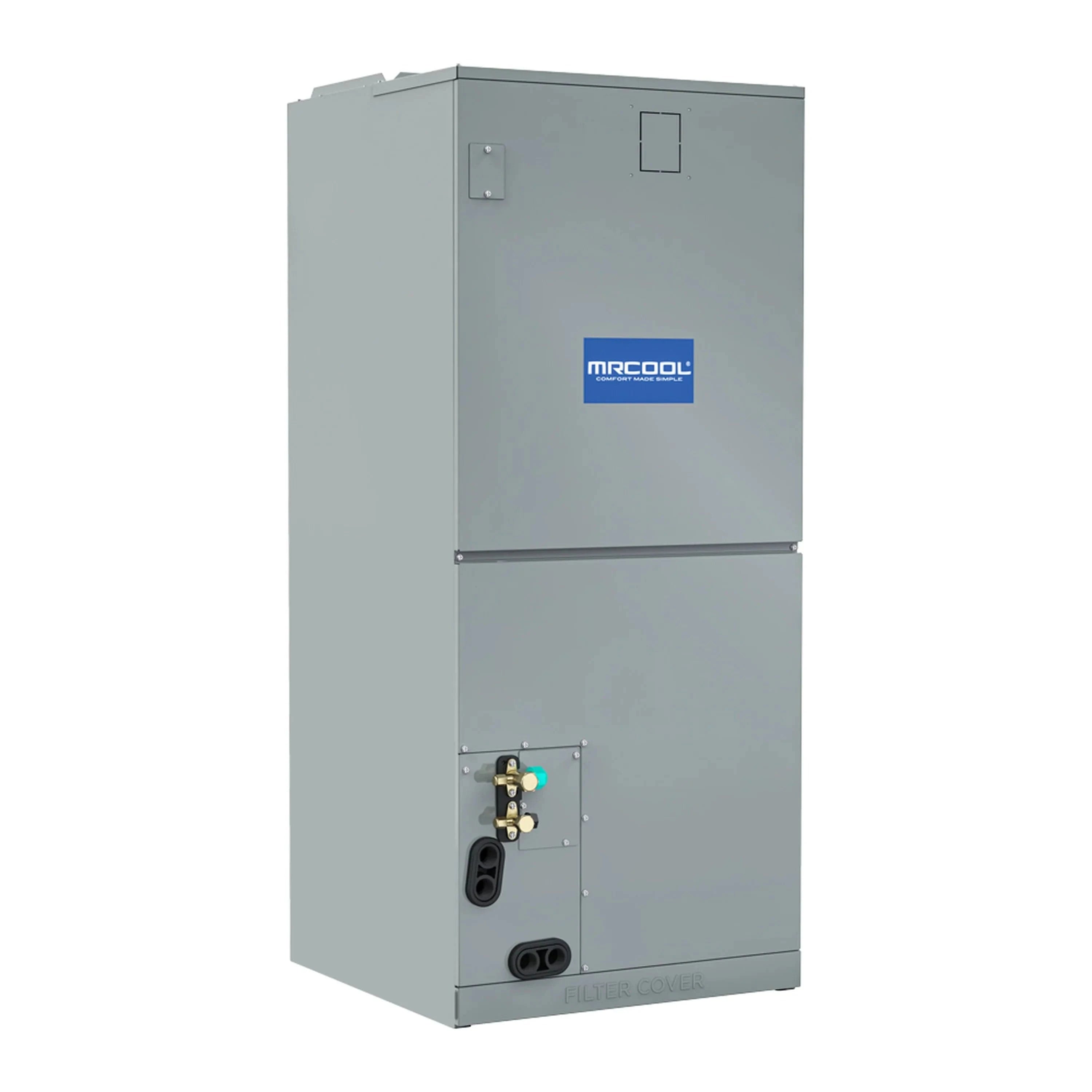

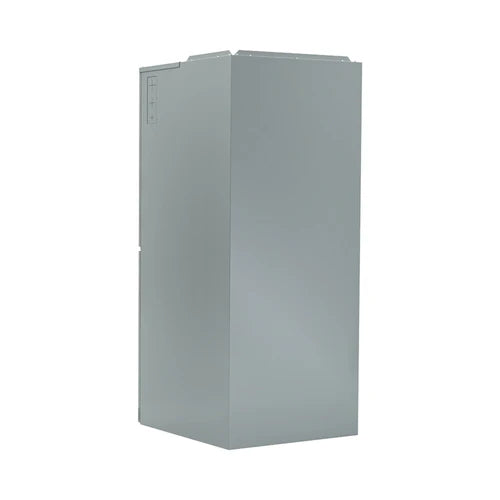

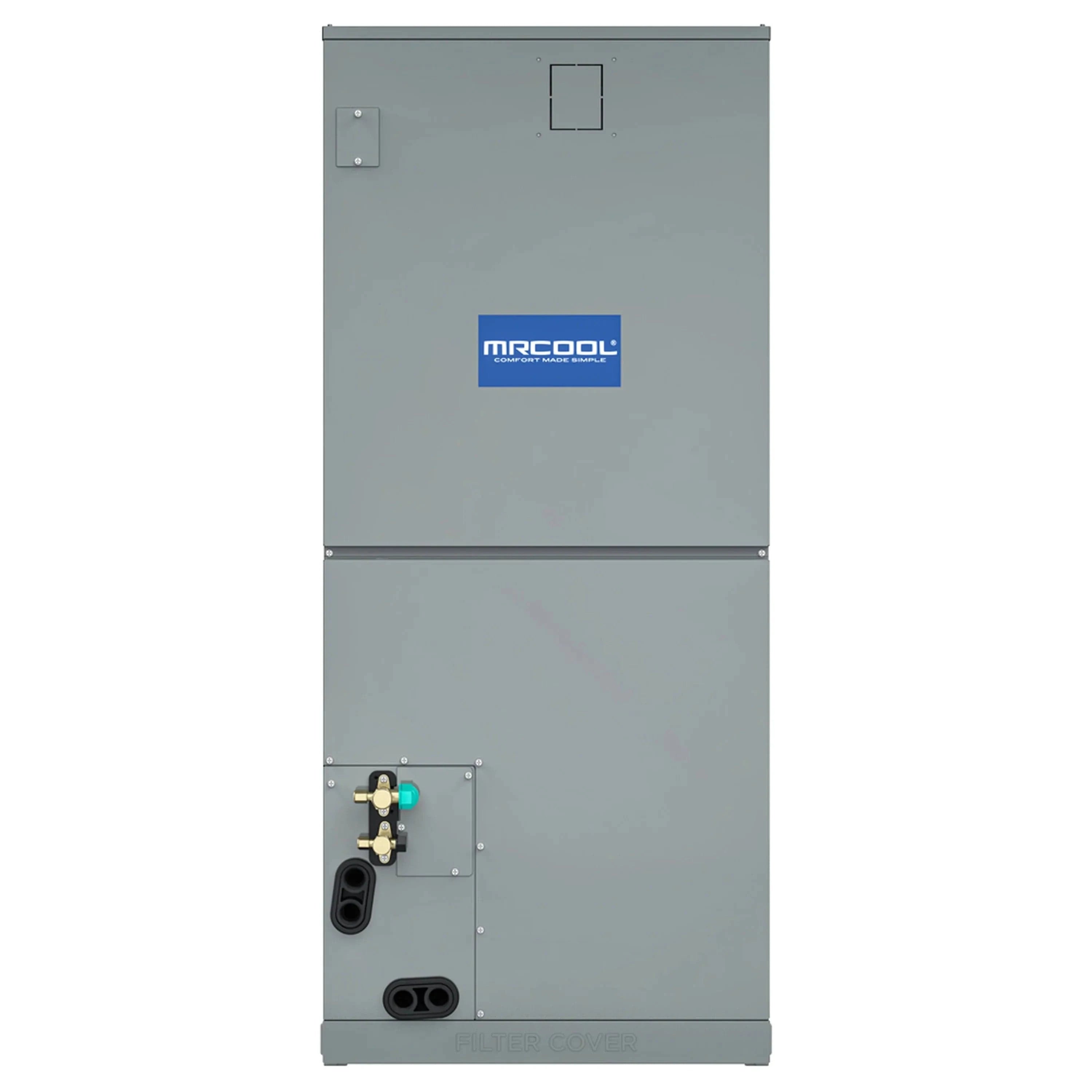

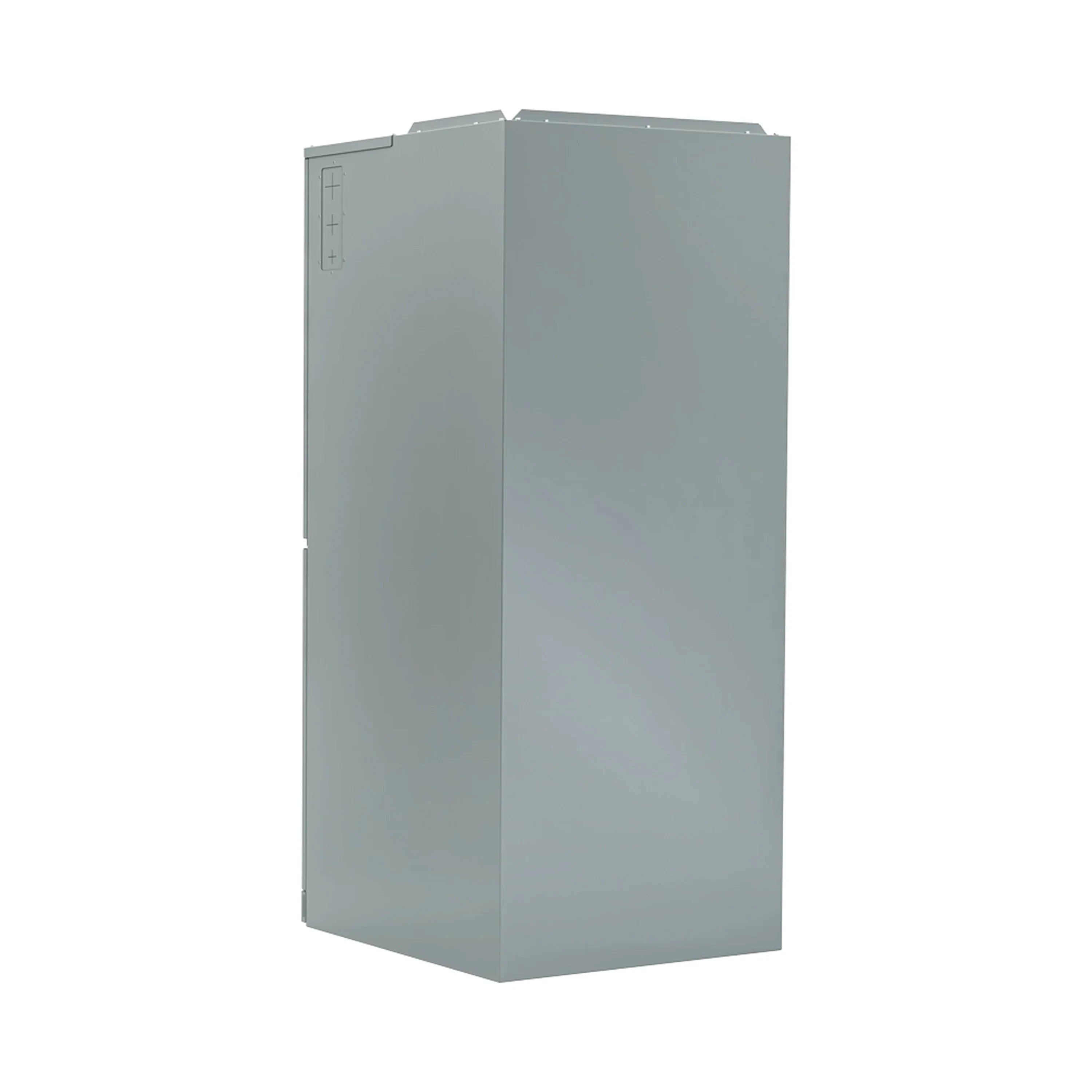

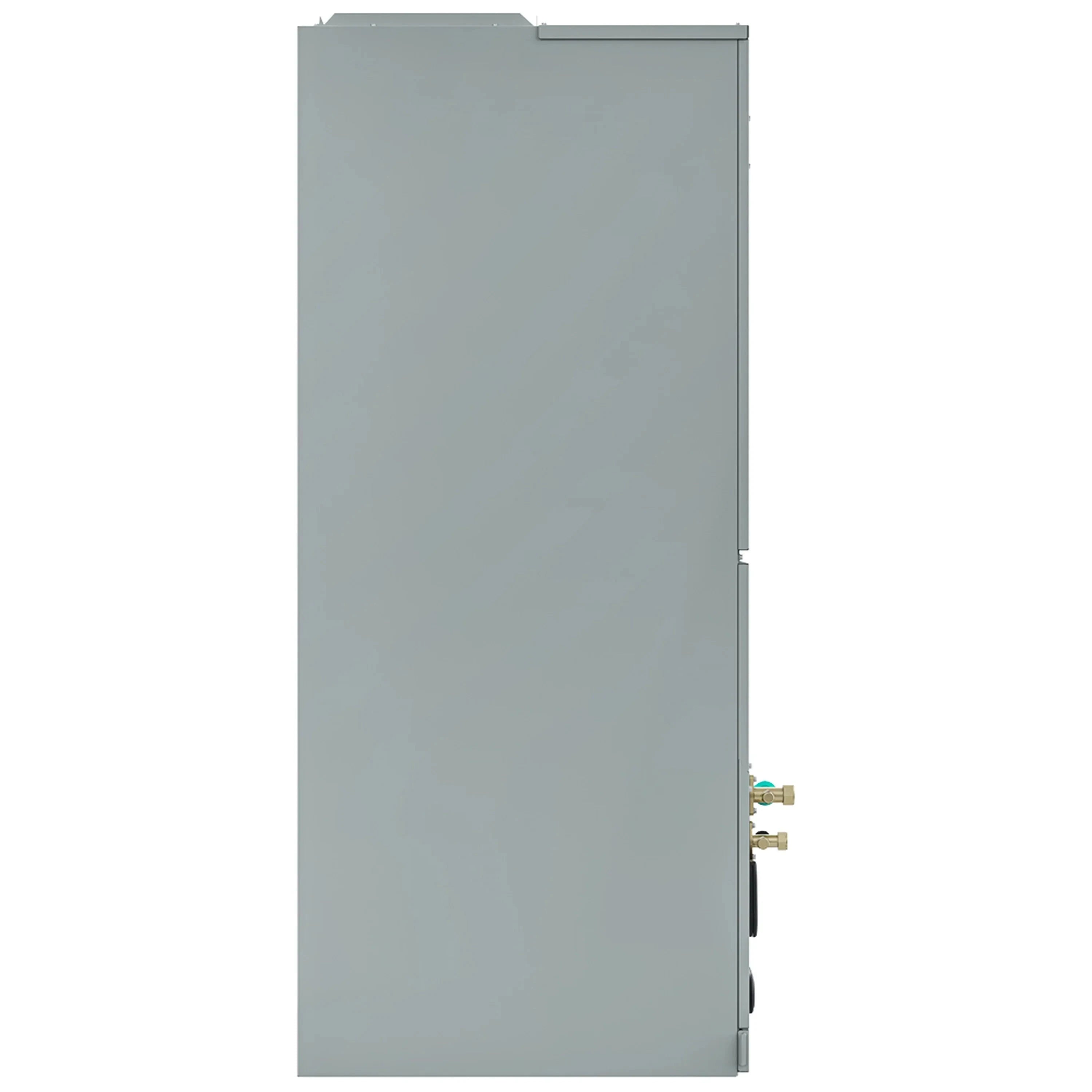

Air Handler
| Dimensions |
24.49" W x 21.02" D x 52.99" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow)
Horizontal (Right or Left) |
| Cooling Capacity |
48,000 BTU |
| Heating Capacity |
48,000 BTU |
| Coverage Area |
1,501-2,000 square feet |
| SEER2 |
16.0 |
| EER2 |
10.0 |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
7.2 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
- / 53 / 50 / 44 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1600.99 / 1471.50 / 1283.15 / 1094.80 CFM |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
8kW - MVPHK08
10kW - MVPHK10
15kW - MVPHK15
20kW - MVPHK20
|
| Warranty |
10 Years Parts |
Frequently-Asked Questions
Q: How large of a home can this system support?
A: This 4 Ton system is best suited for spaces between 1,500–2,000 sq. ft., depending on insulation and climate.
Q: Can the air handler be installed in multiple orientations?
A: Yes, it supports upflow, downflow, or horizontal installation for flexible setup.
Q: What kind of warranty comes with this unit?
A: MRCOOL provides a 10-year compressor and 10-year parts warranty.
