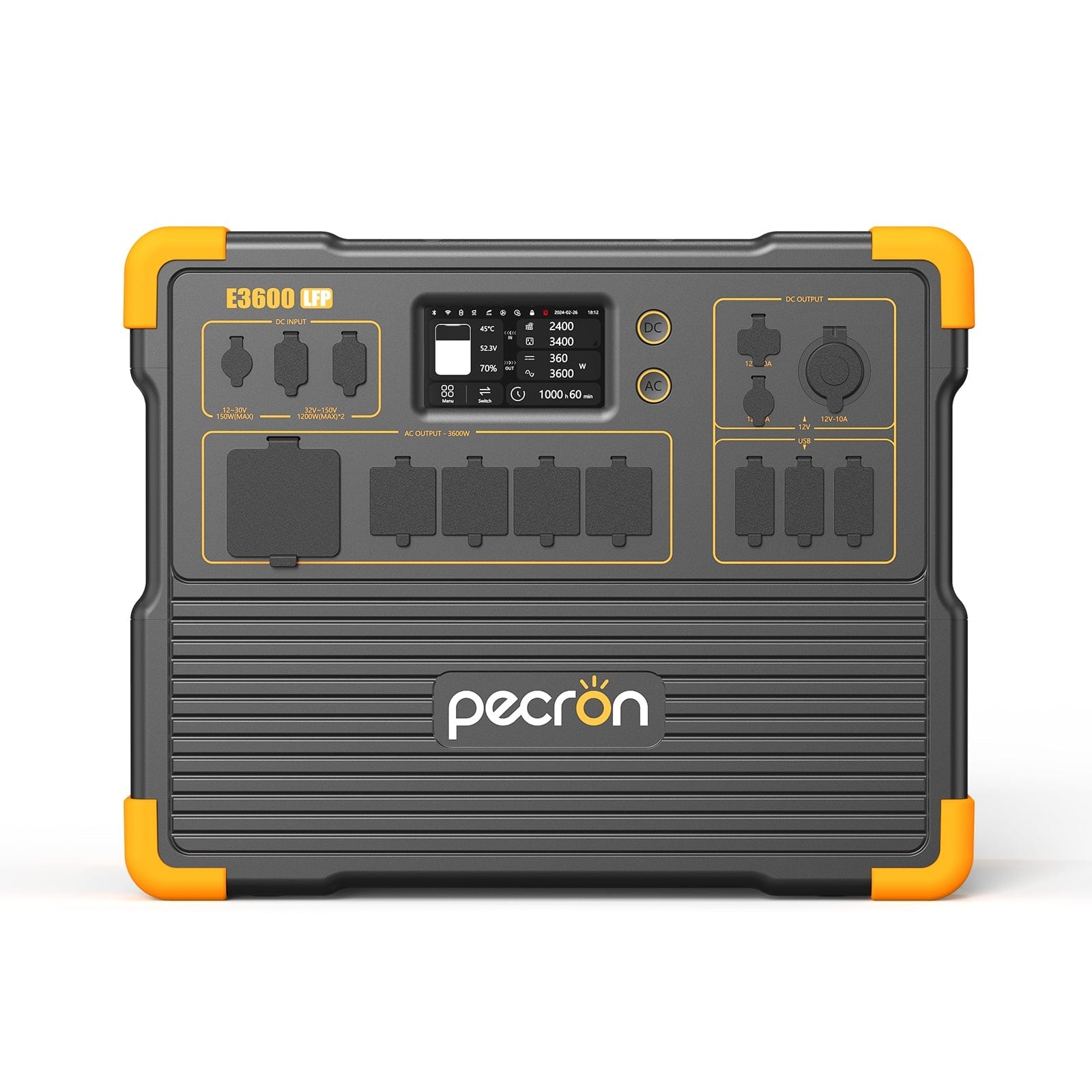

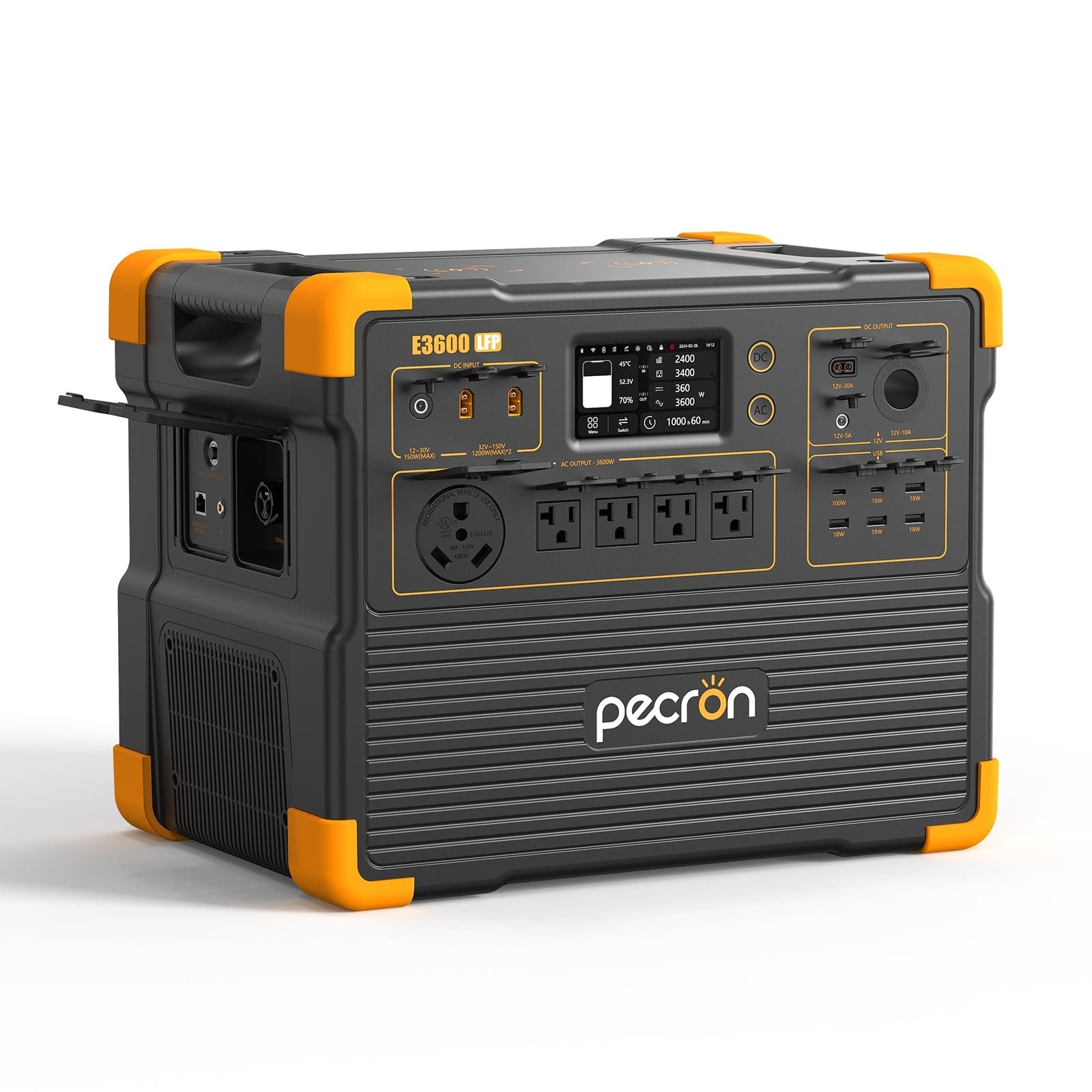

PECRON E3600LFP Portable Power Station – 3600W 3072Wh
High-Capacity, Ultra-Fast Charging, and Expandable Power Solution
The PECRON E3600LFP is a powerful, high-capacity portable power station designed for off-grid energy needs, emergency backup, and professional applications. Featuring a 3600W bidirectional pure sine wave inverter (7000W surge) and a 3072Wh LiFePO4 battery, this unit provides reliable, long-lasting power for heavy-duty appliances, RVs, and home backup systems.
With super-fast AC charging (1.3 hours full charge at 3200W) and expandable storage up to 15,360Wh, the E3600LFP is a top-tier energy solution for users who need scalability, efficiency, and smart connectivity.
Key Features
Powerful & Expandable Energy System
-
3600W pure sine wave AC inverter (7000W surge) ensures stable, high-performance power.
-

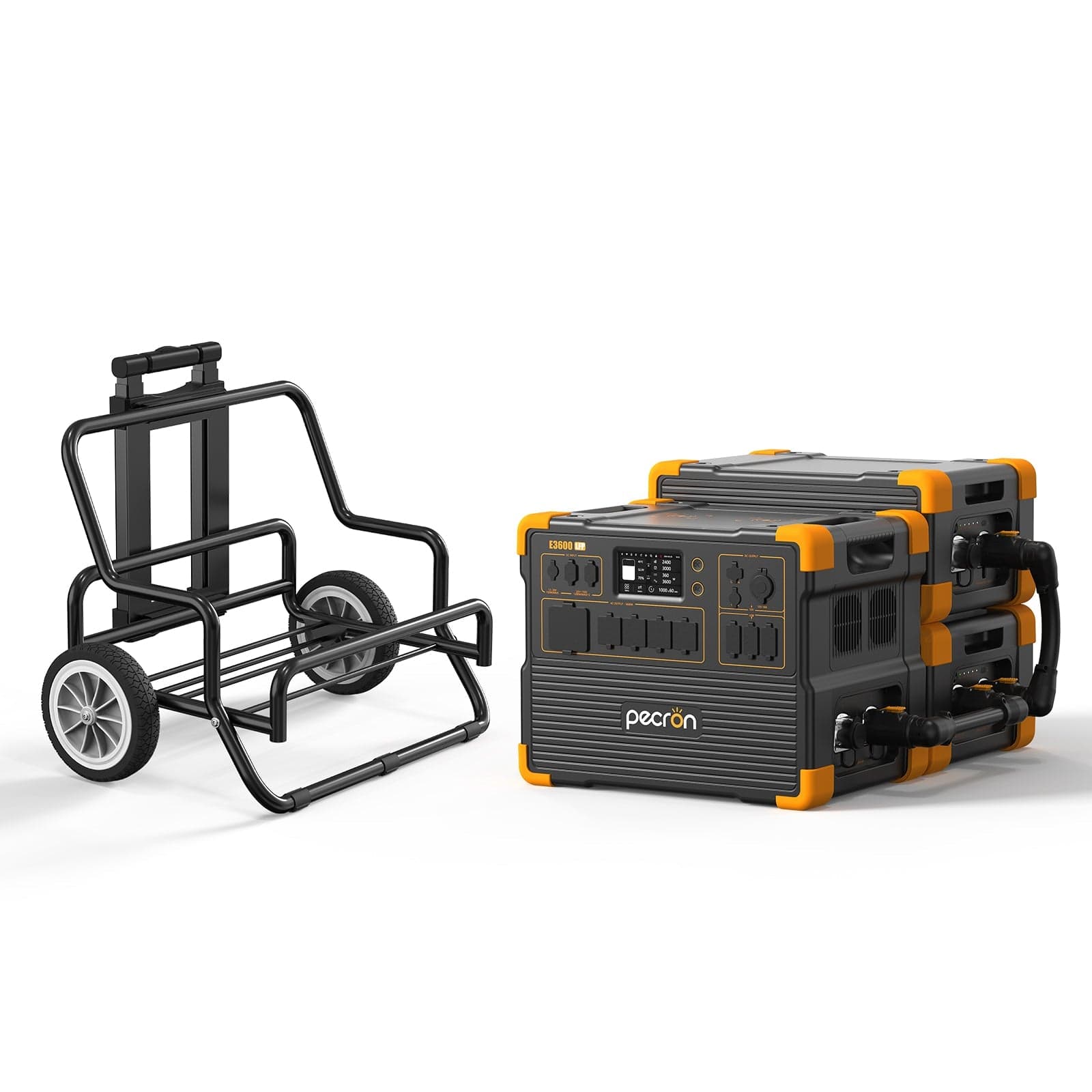

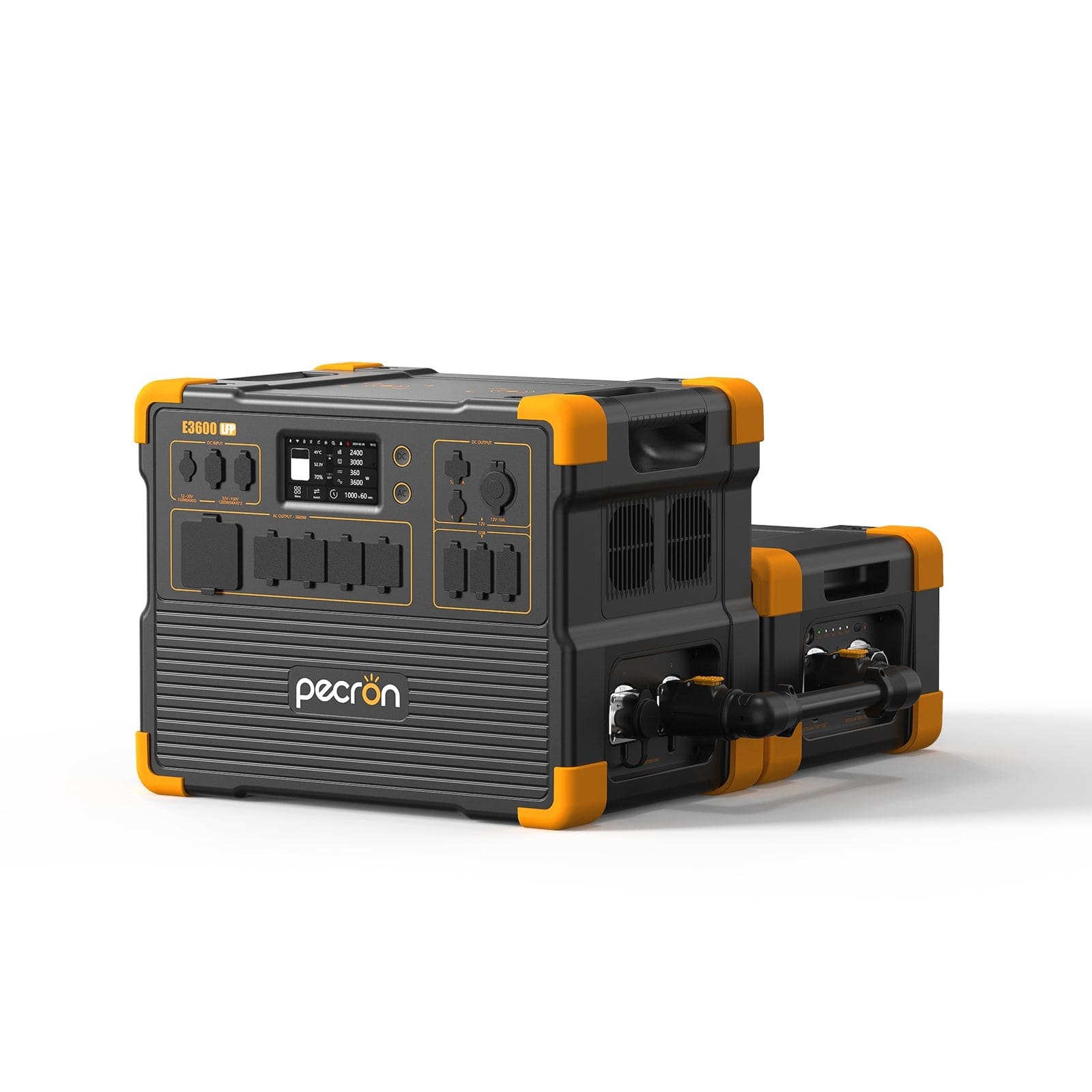

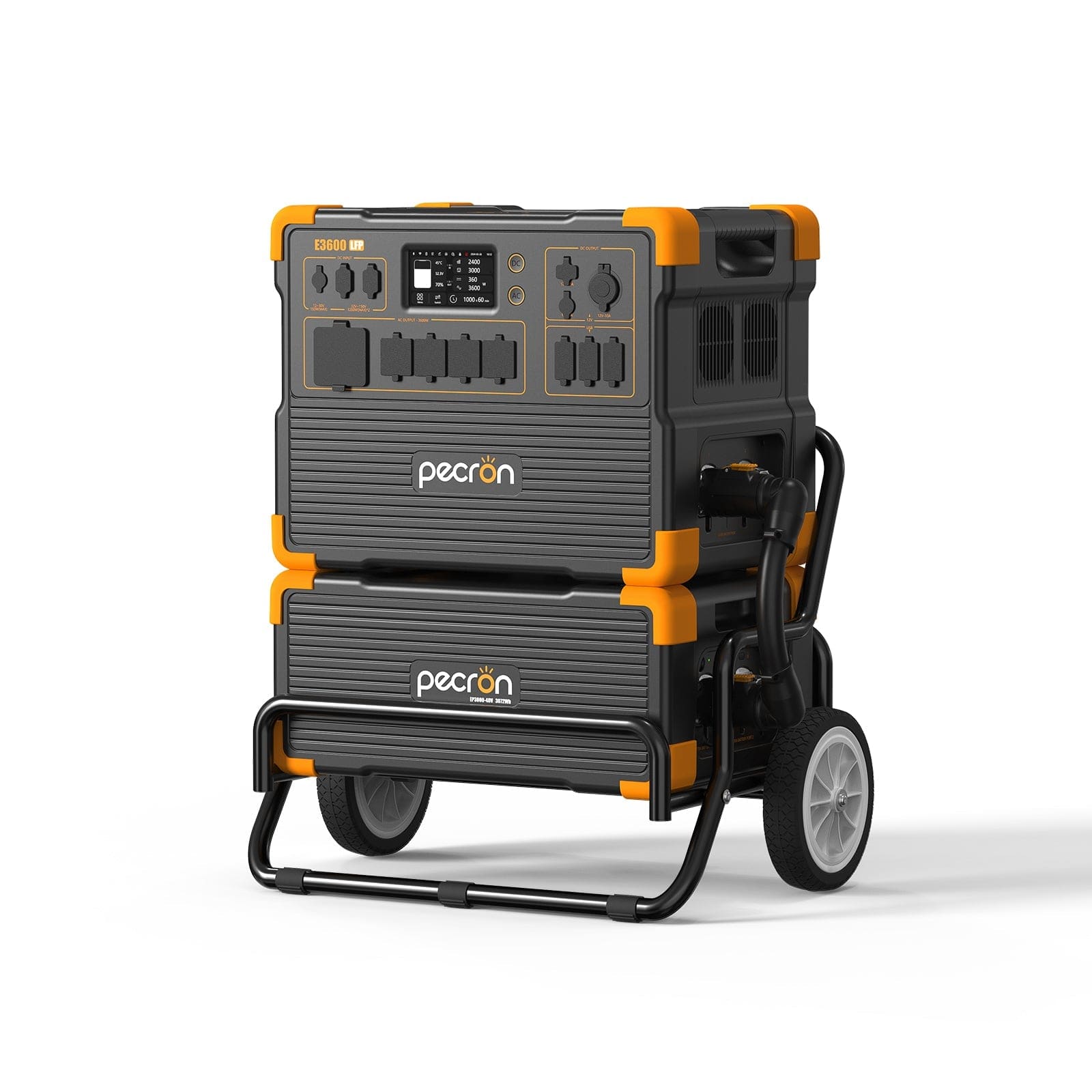

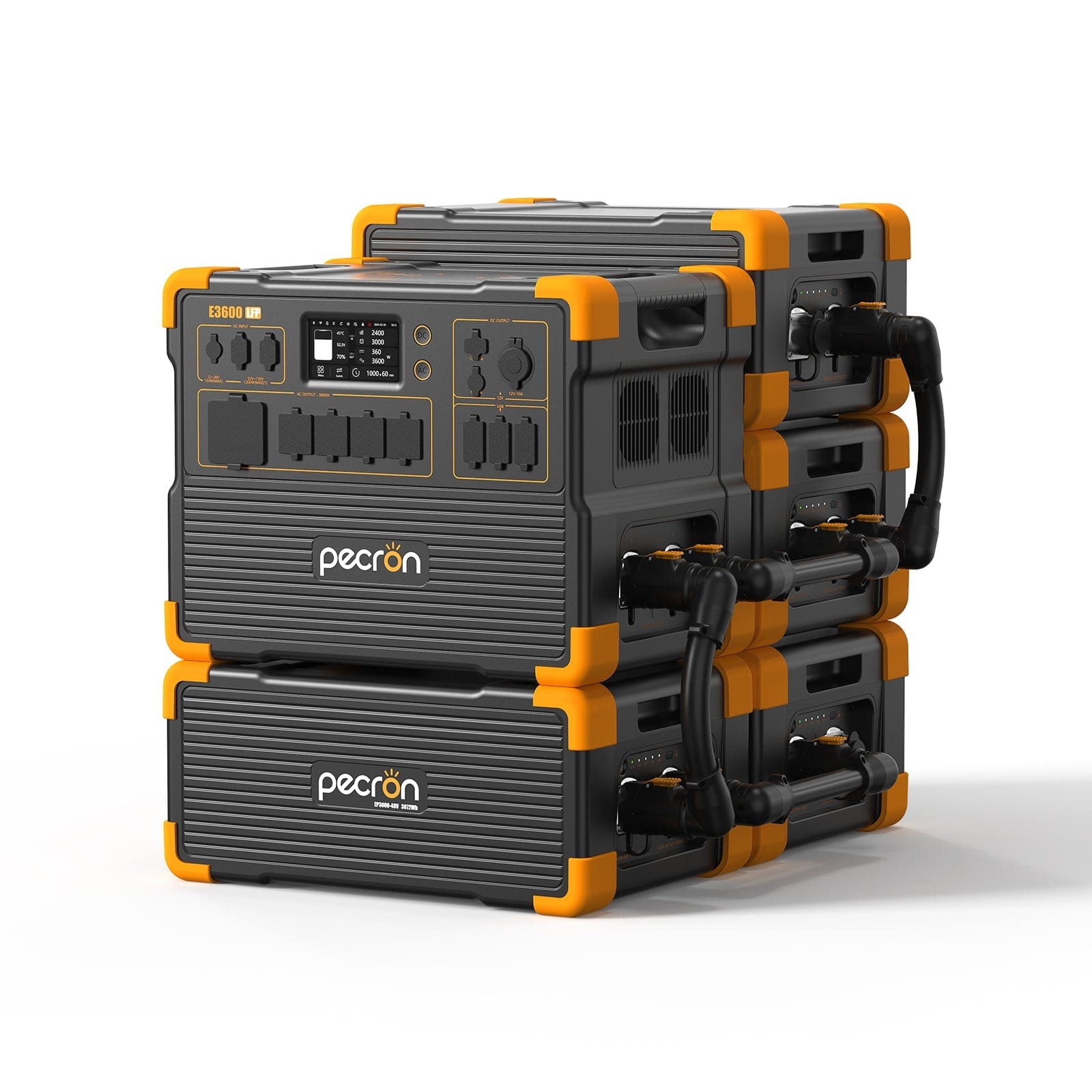

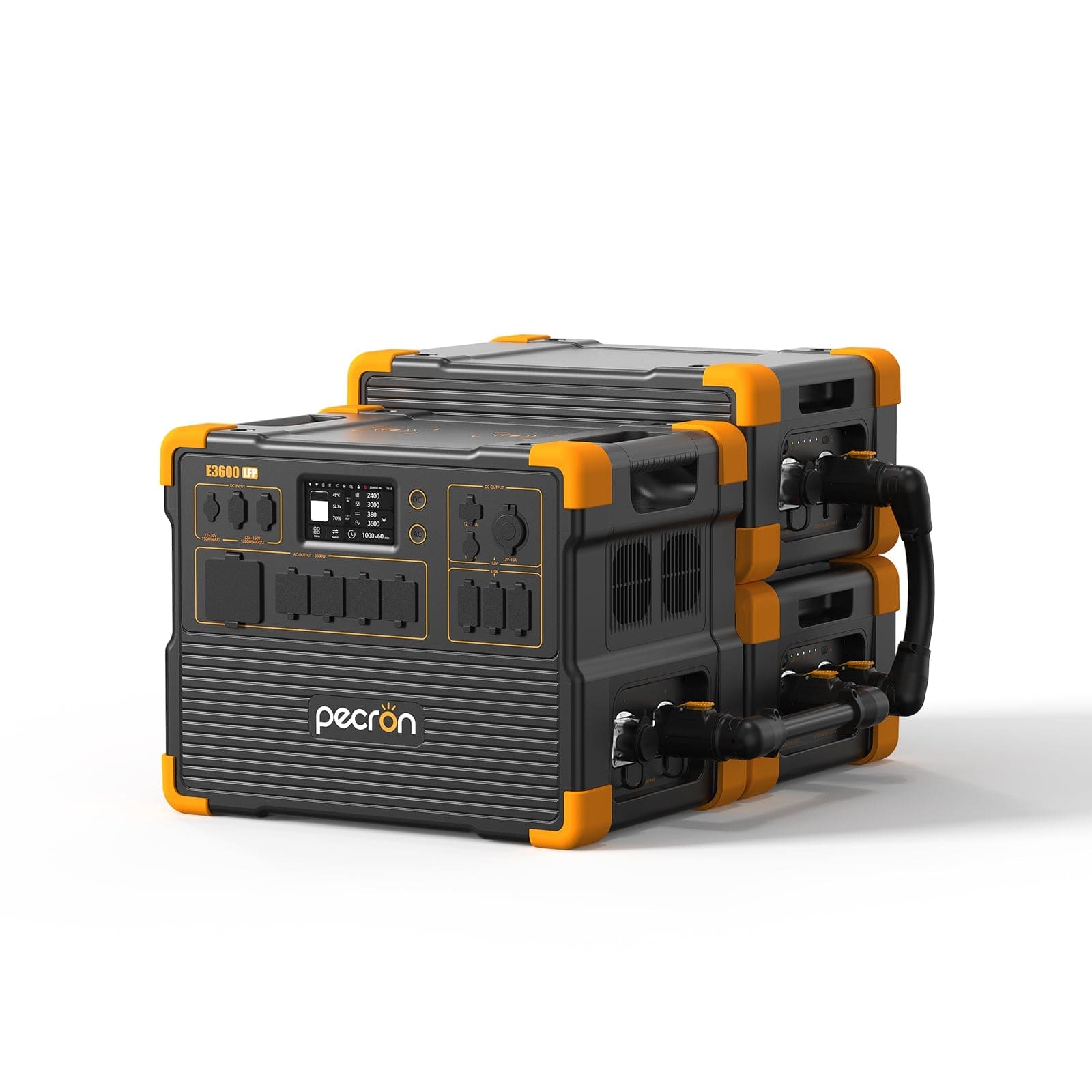

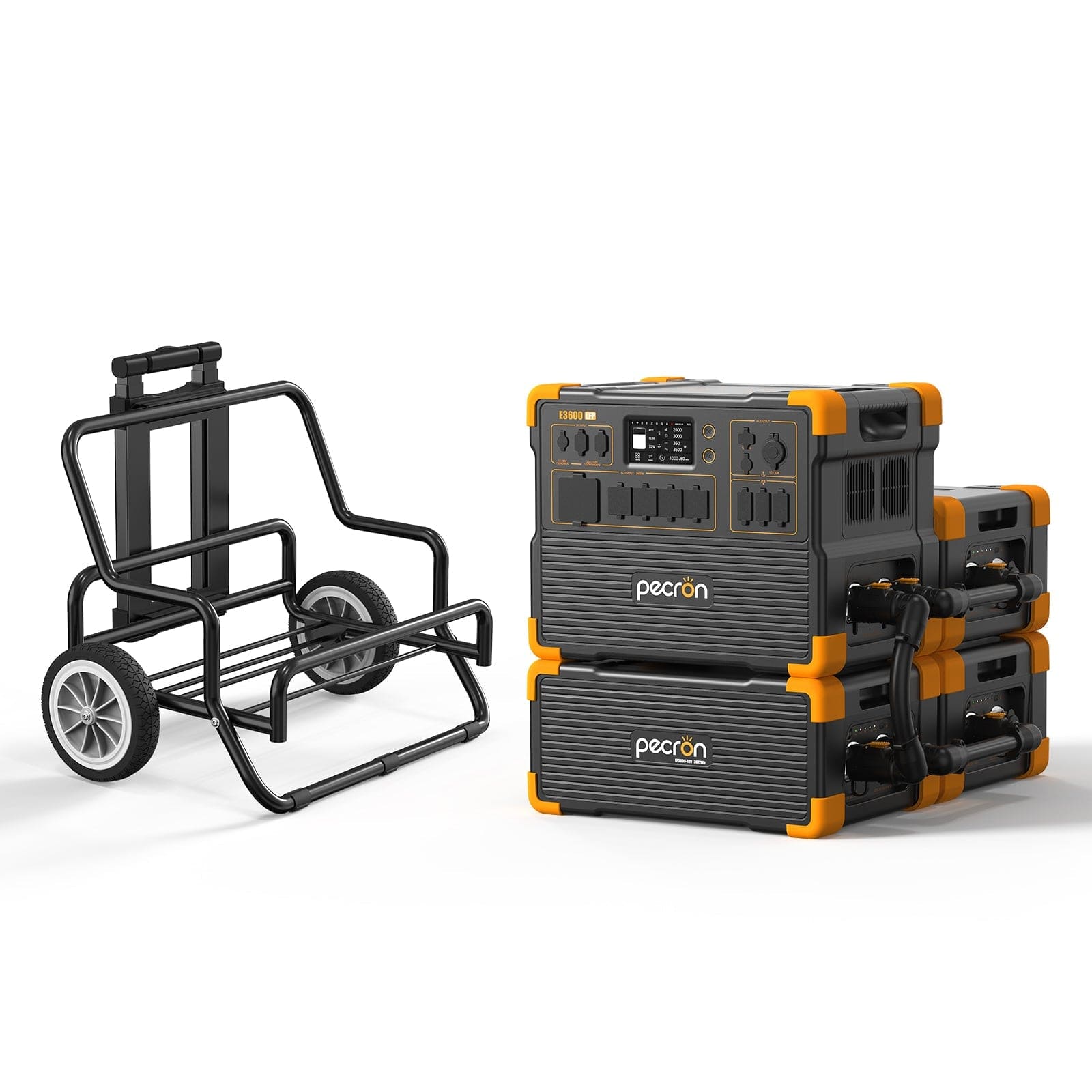

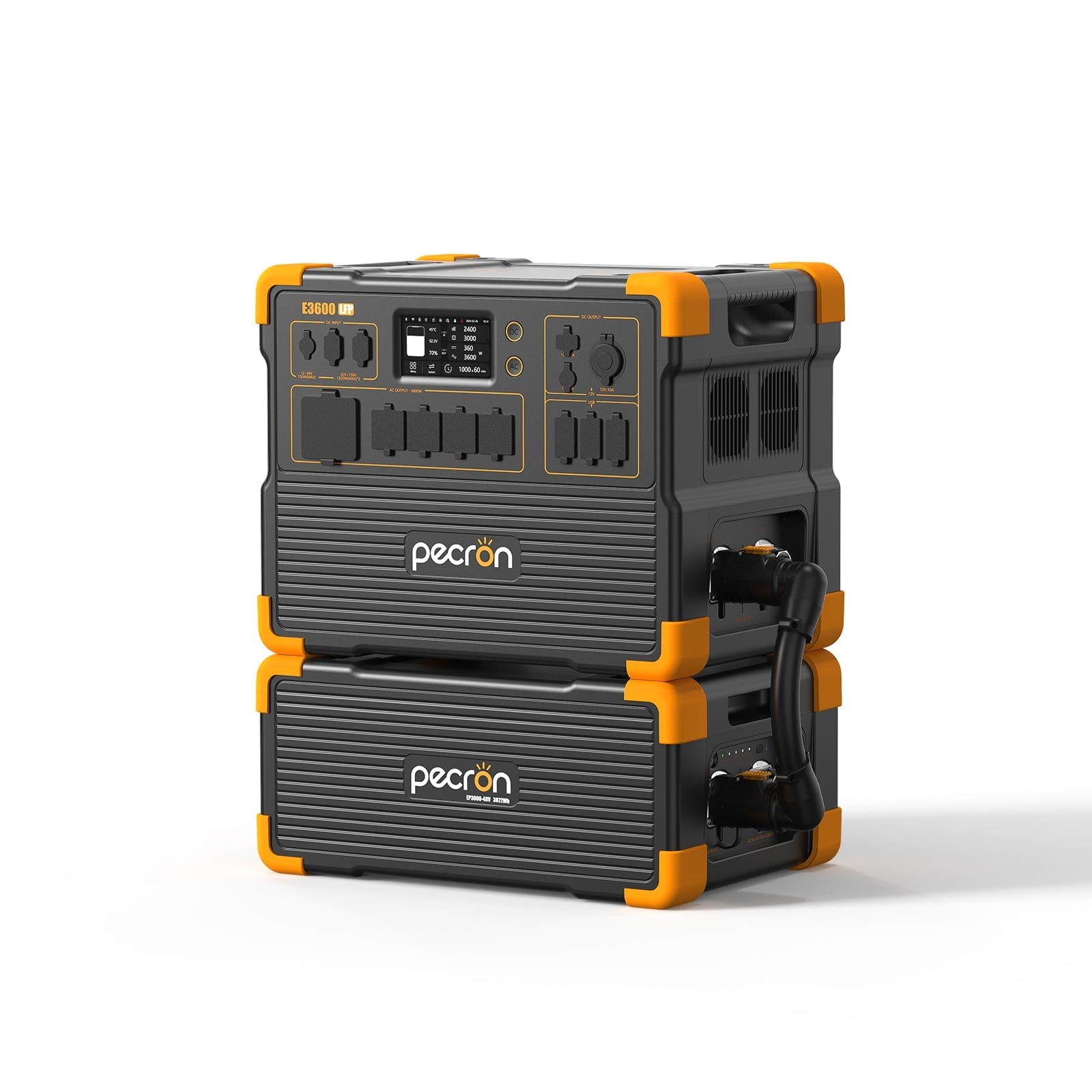

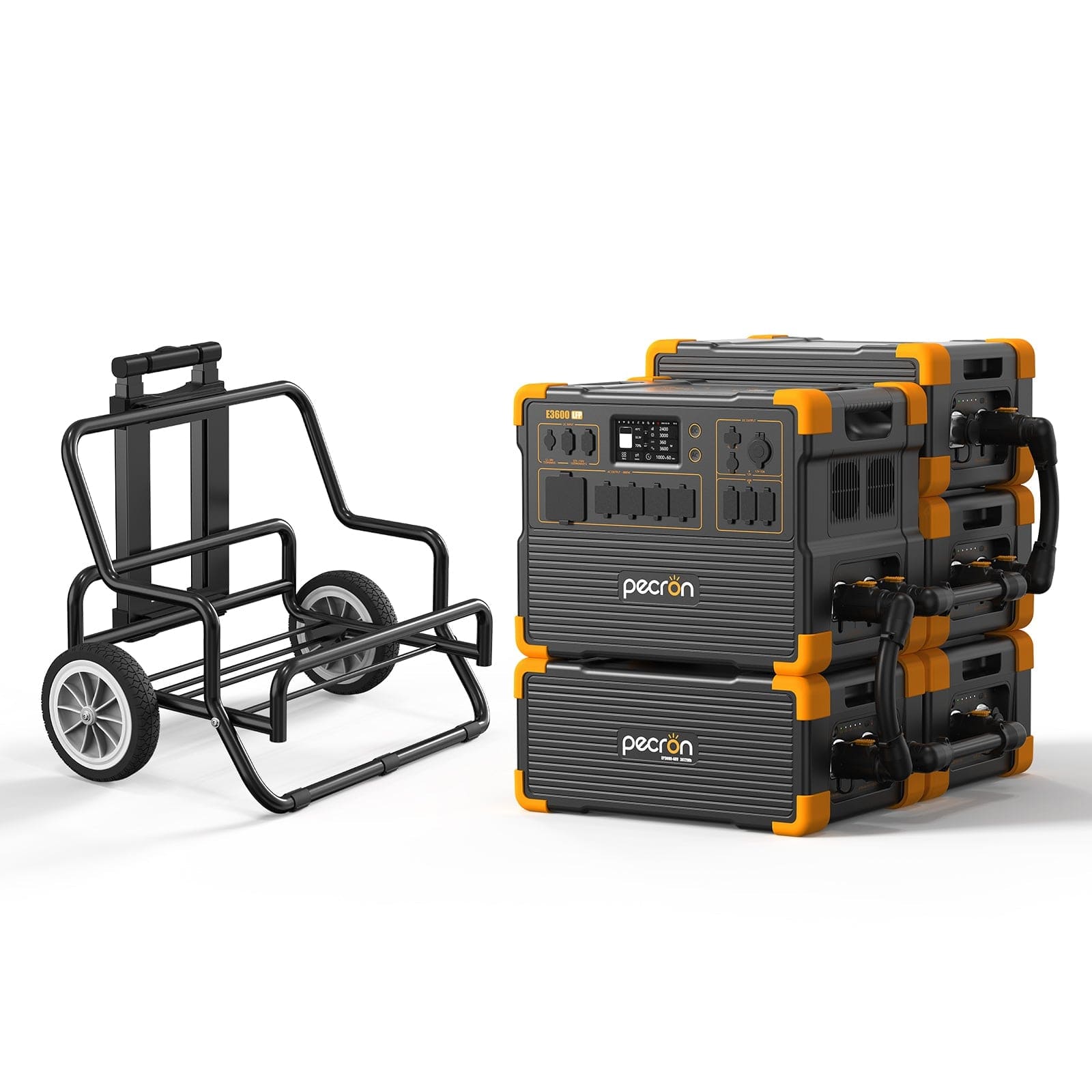

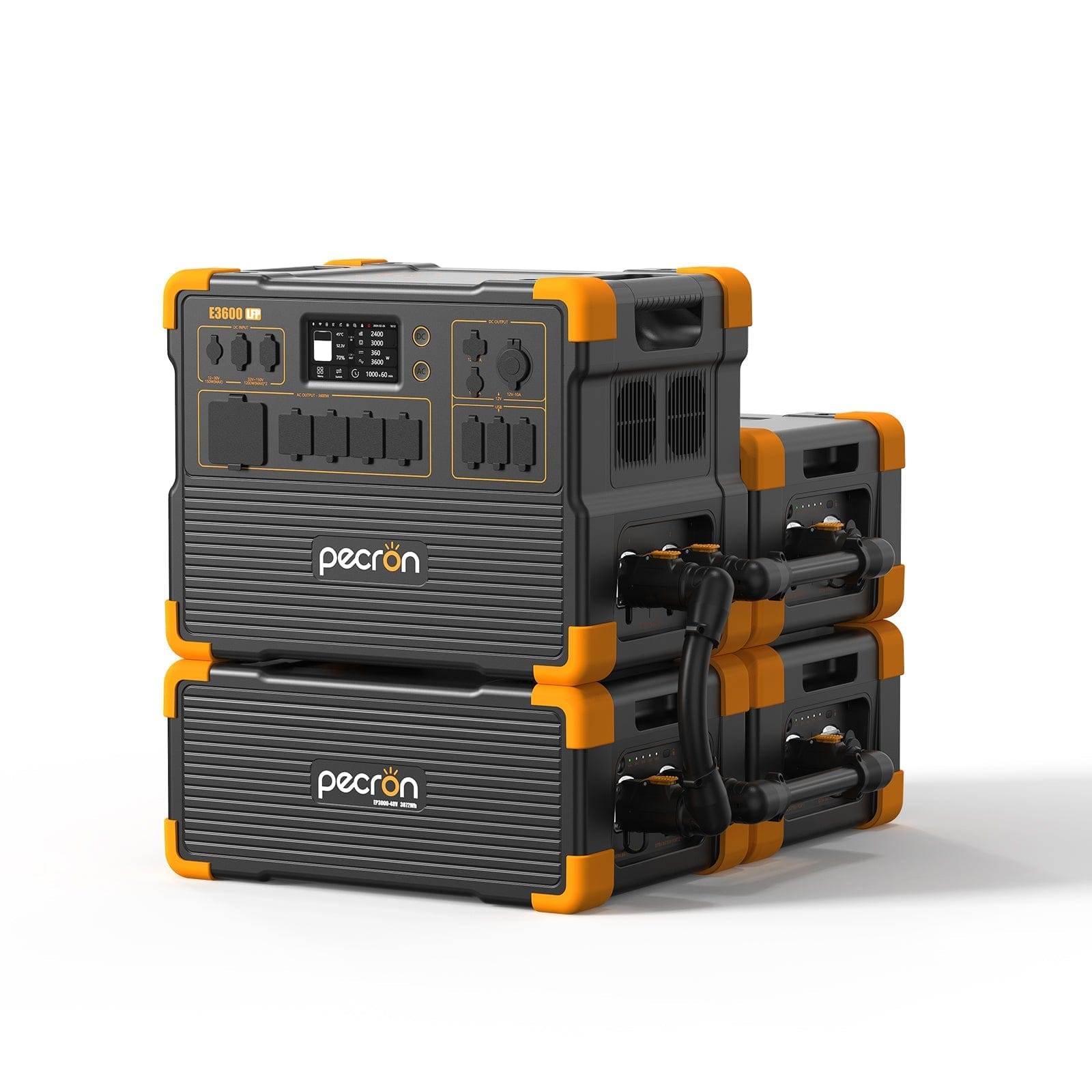

3072Wh battery capacity, expandable up to 15,360Wh with four EP3000-48V battery modules.
-

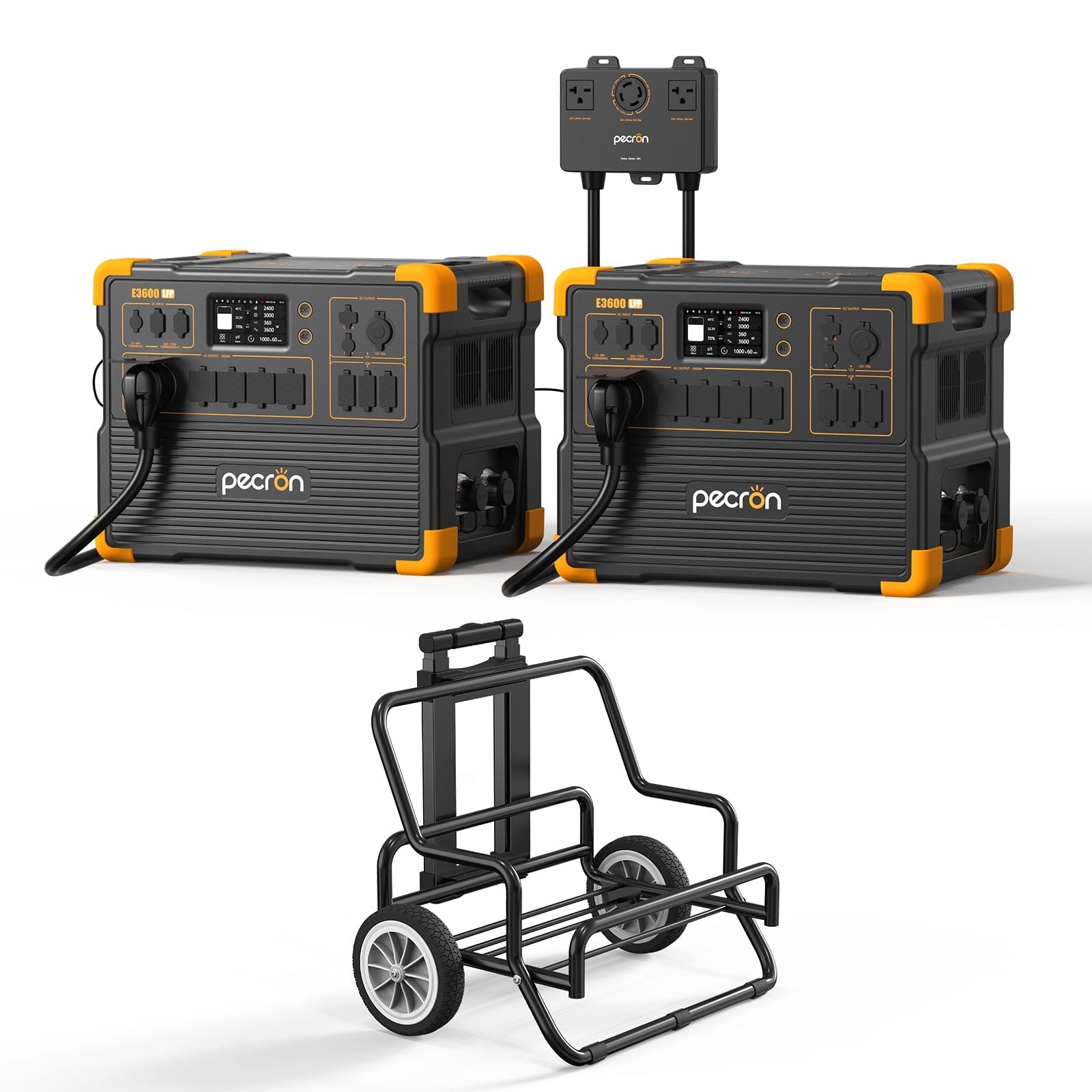

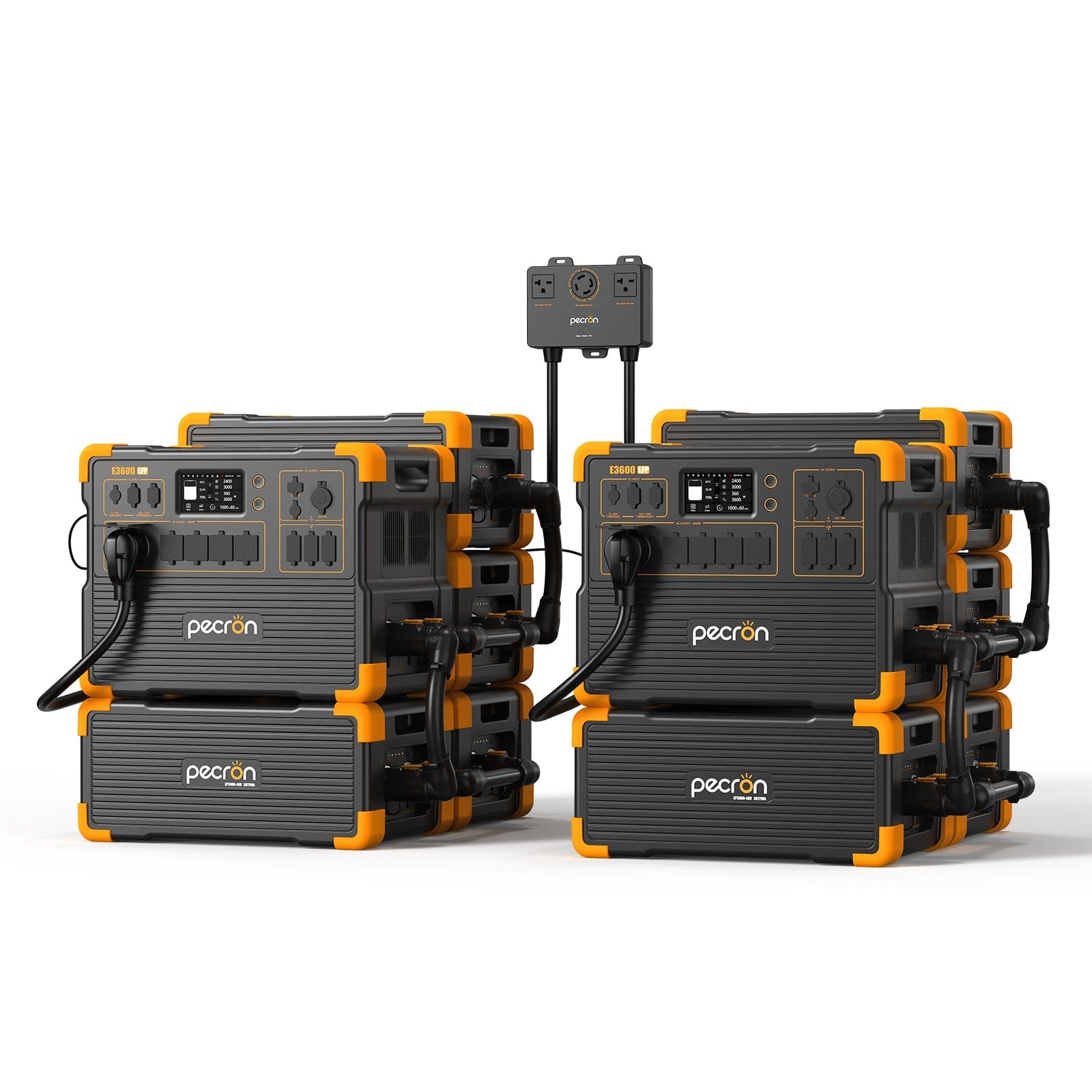

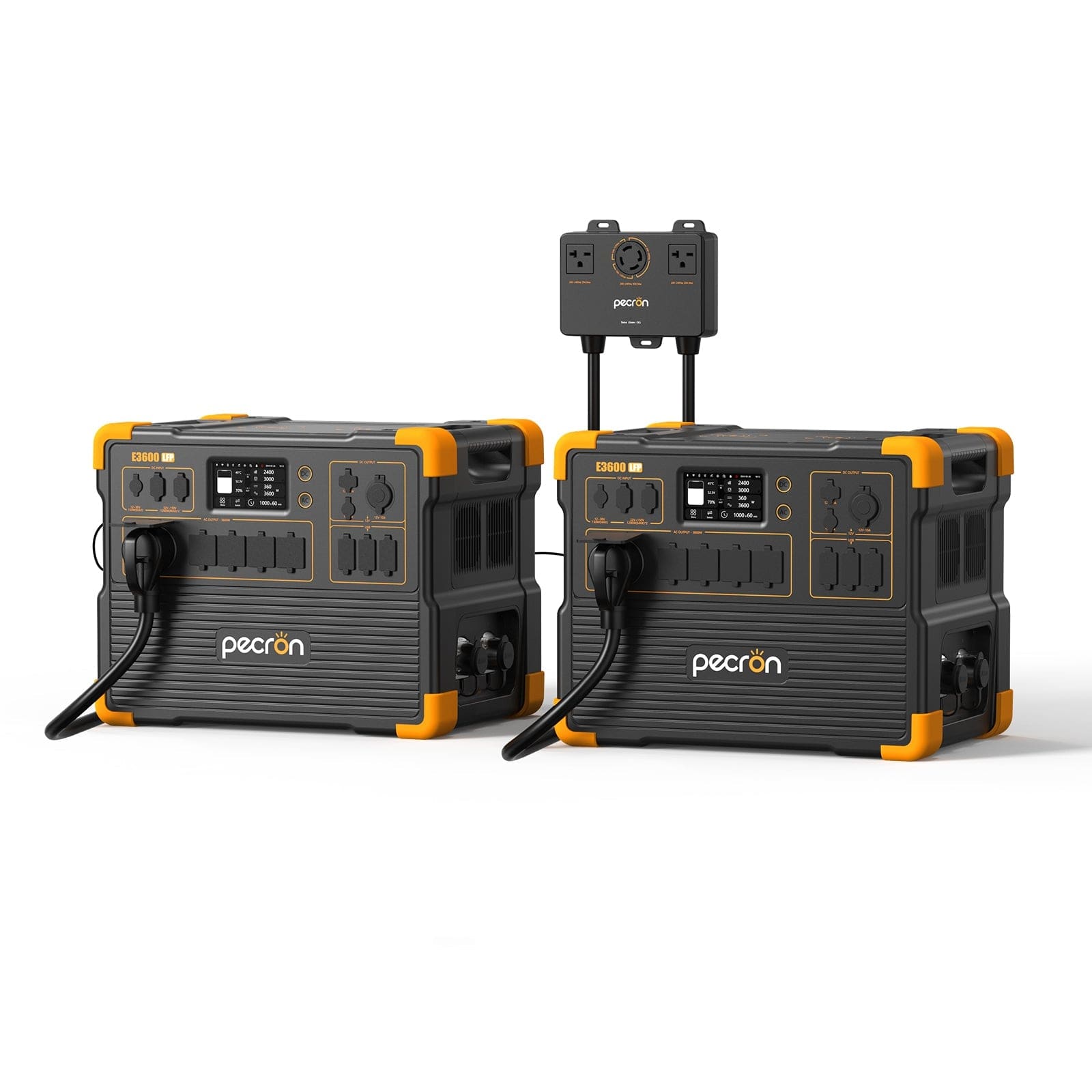

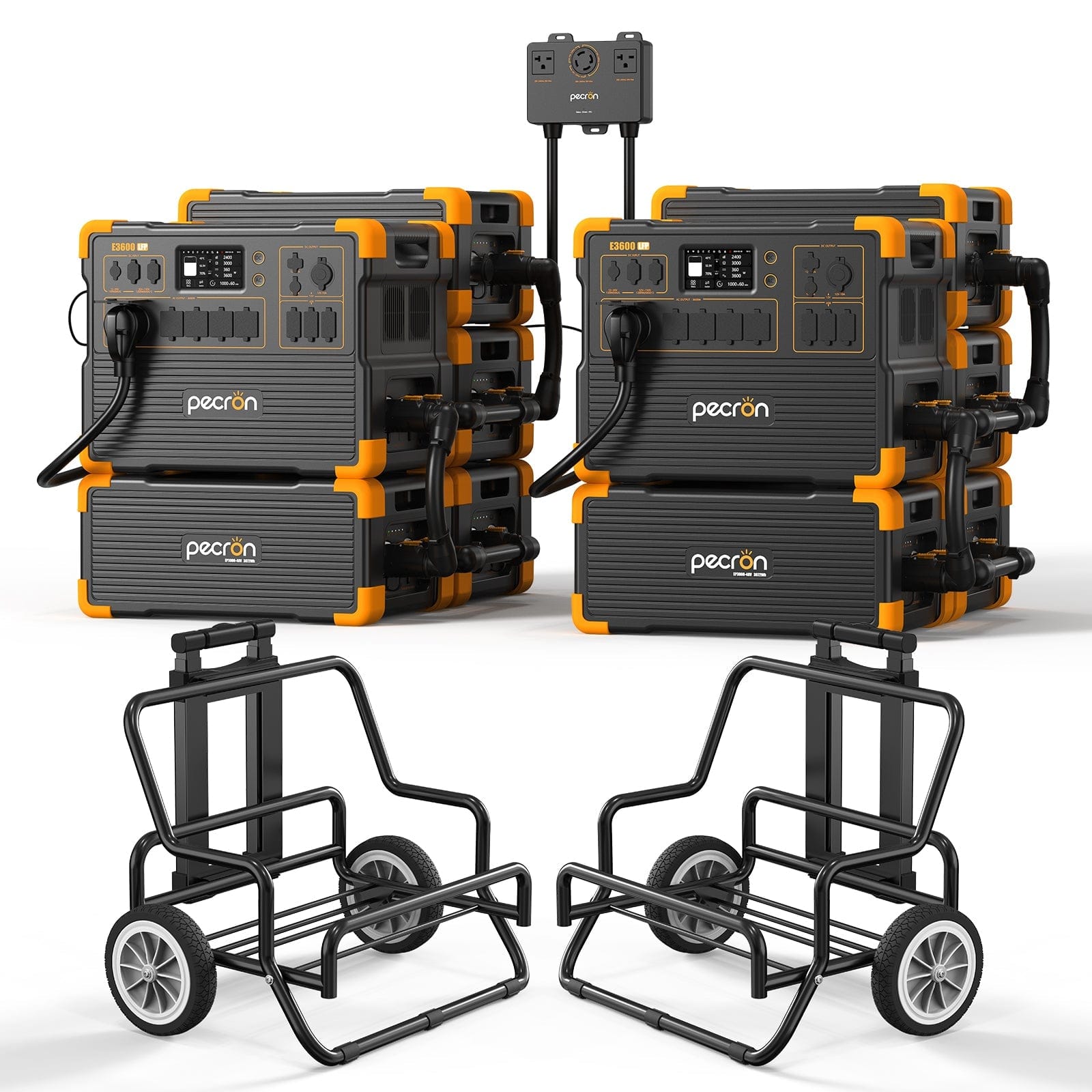

240V capability – Connect two E3600LFP units with a 240V series kit to deliver 7200W at 240V for large appliances.
Ultra-Fast & Flexible Charging
-
3200W AC charging (30A cable) – Full charge in 1.3 hours.
-
1800W AC charging (15A cable) – Full charge in 1.8 hours.
-

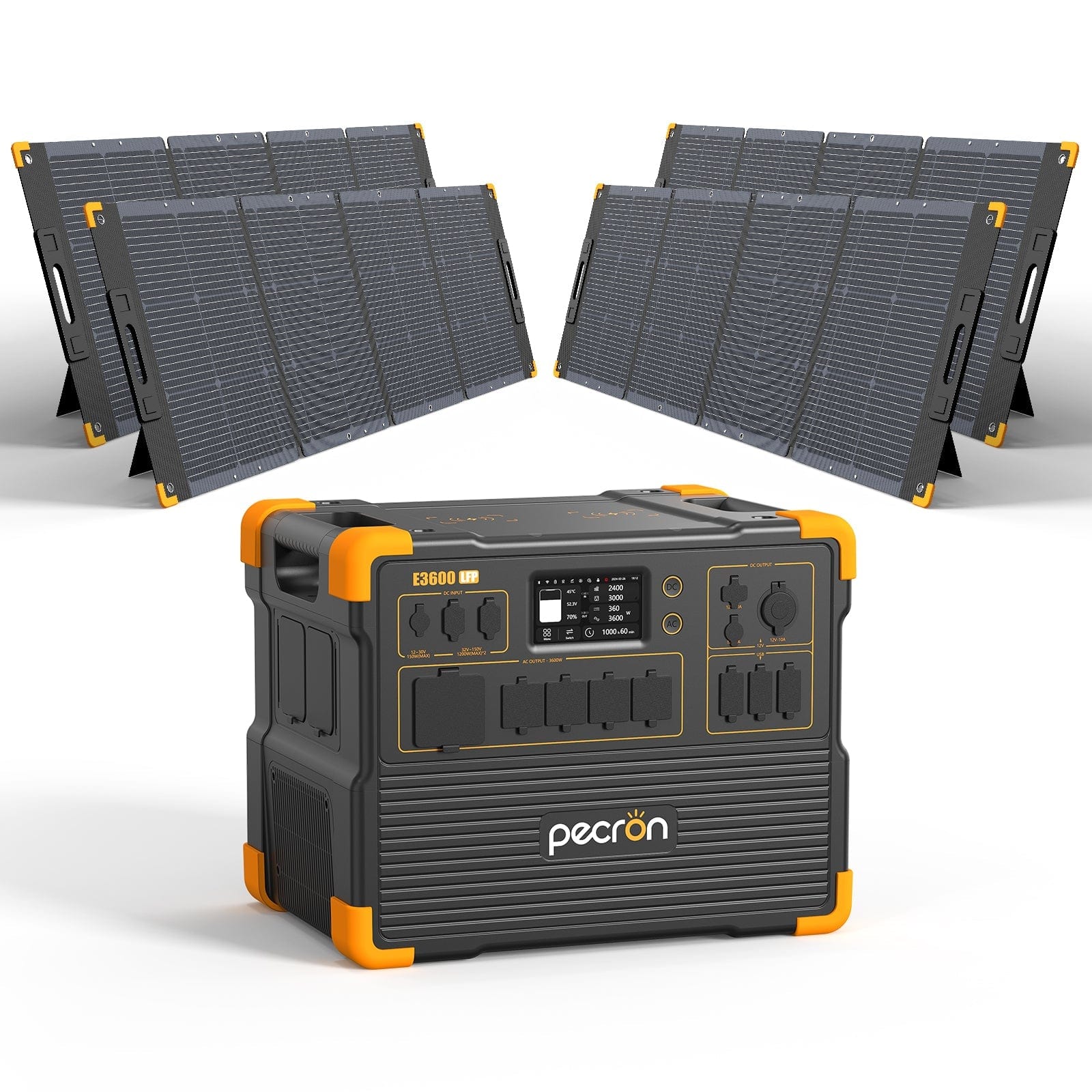

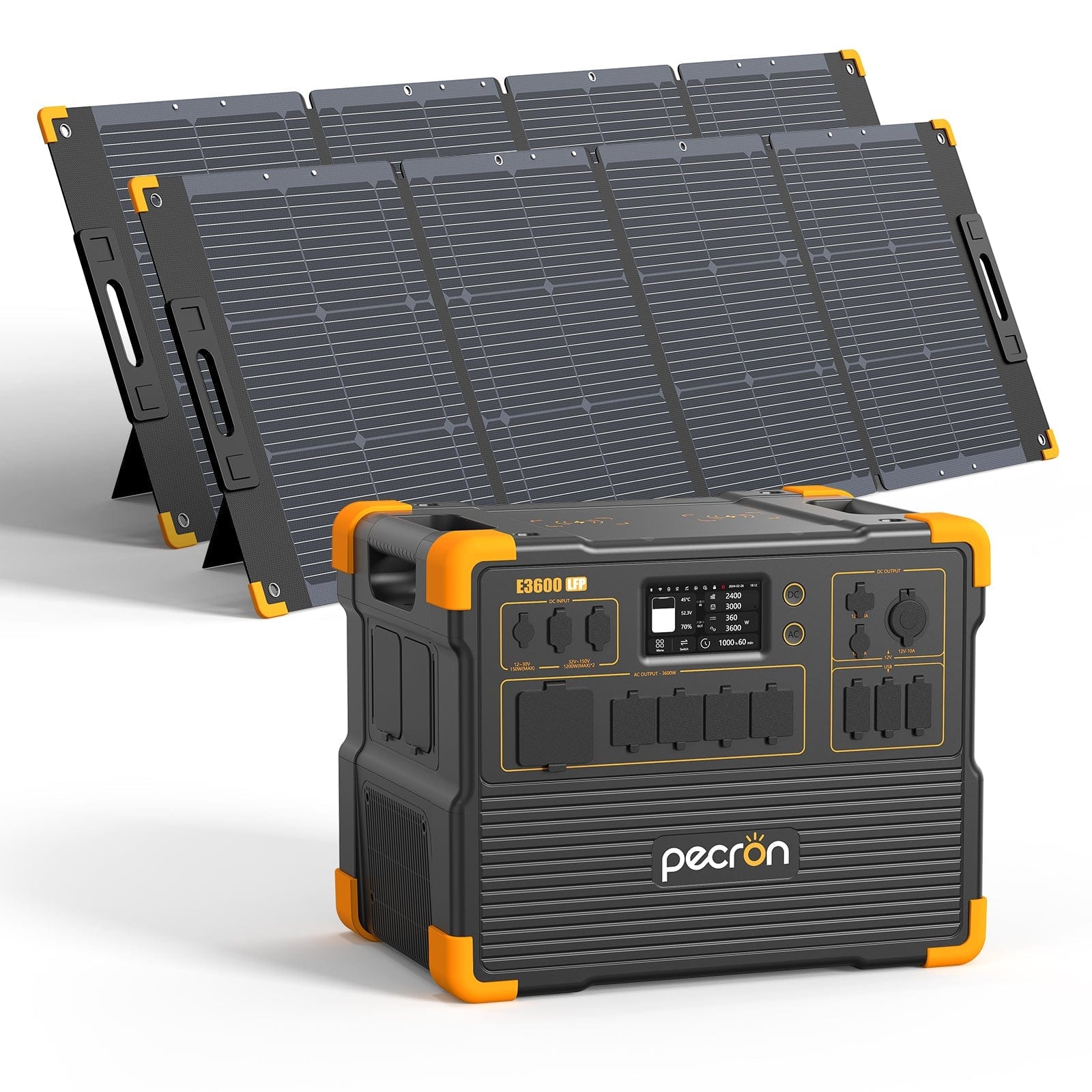

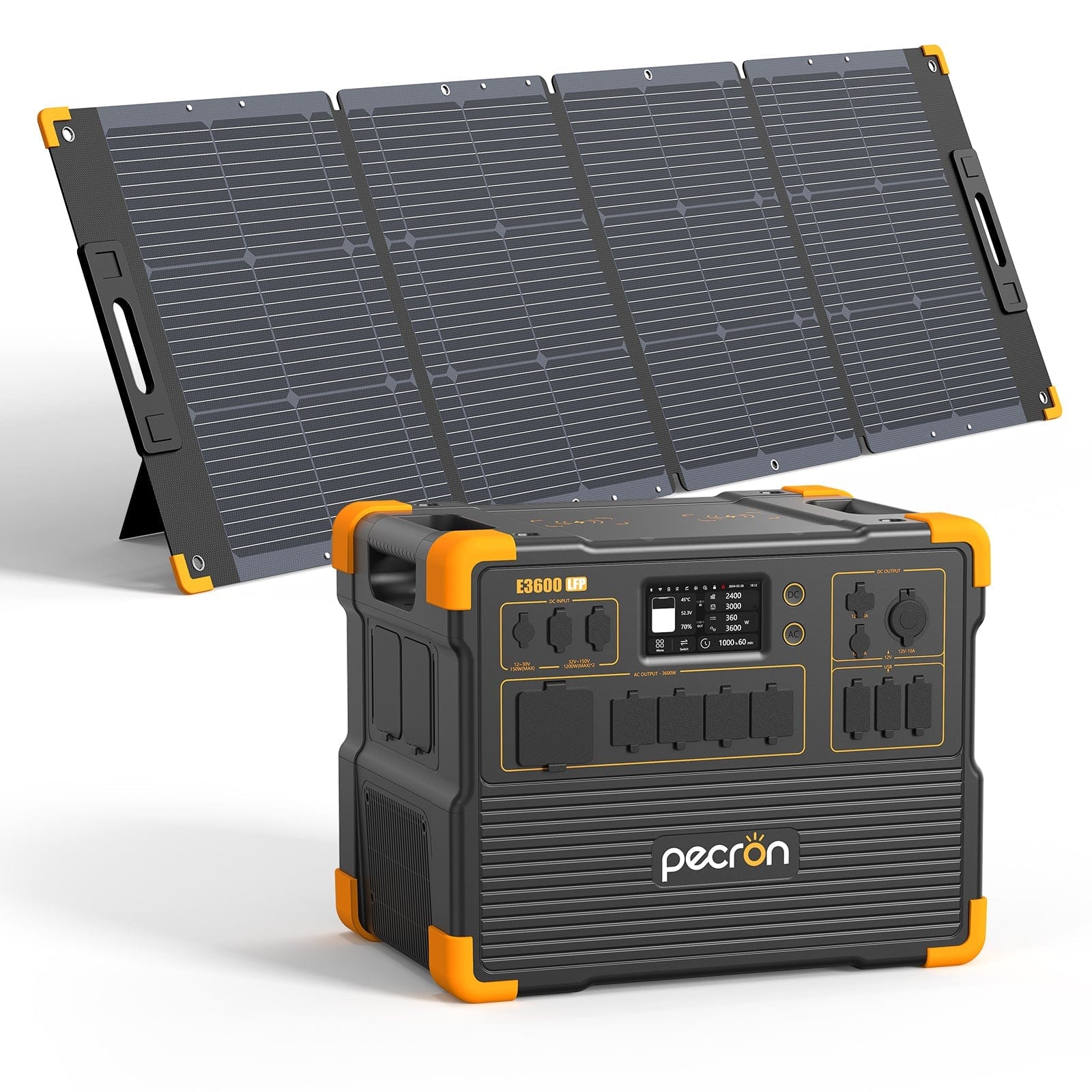

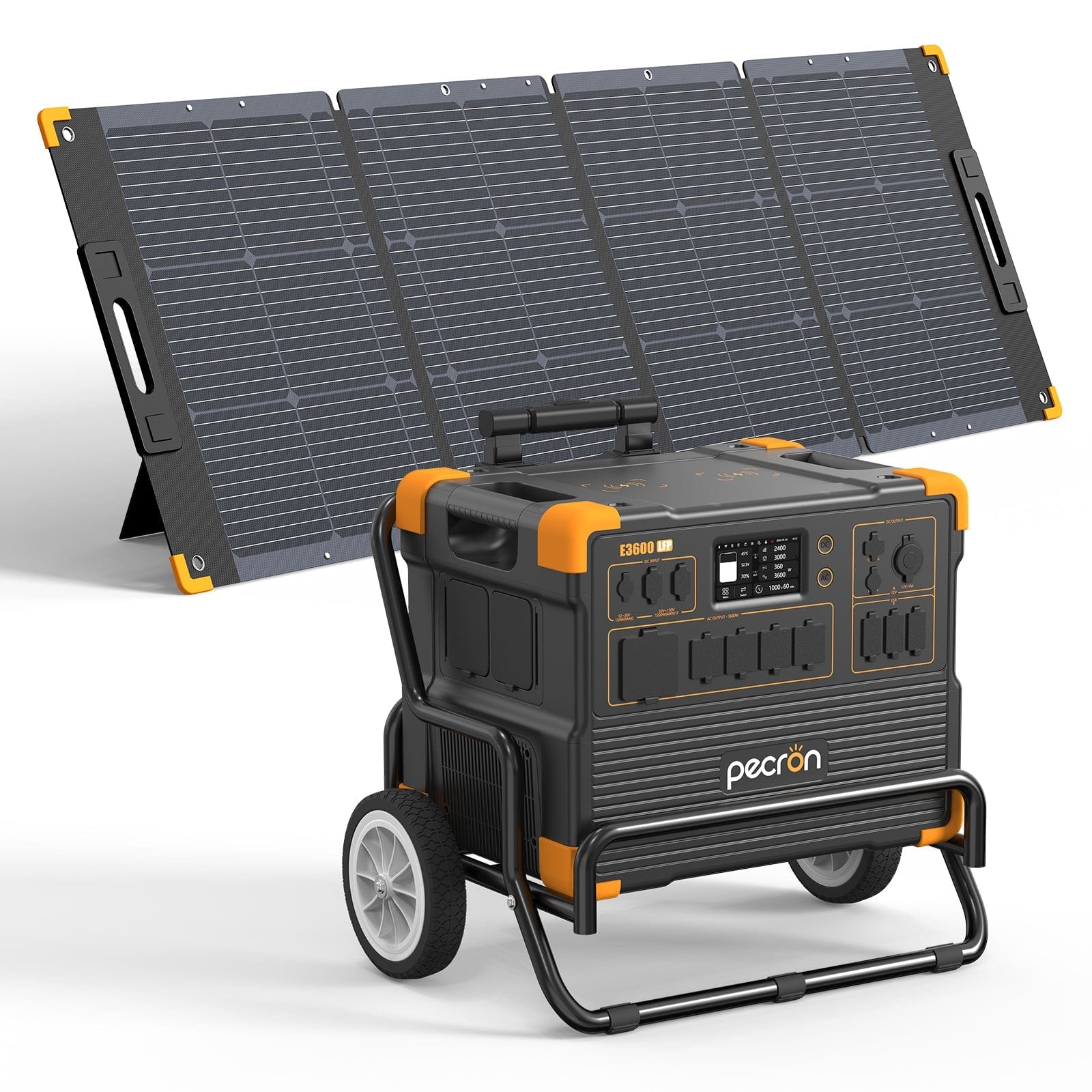

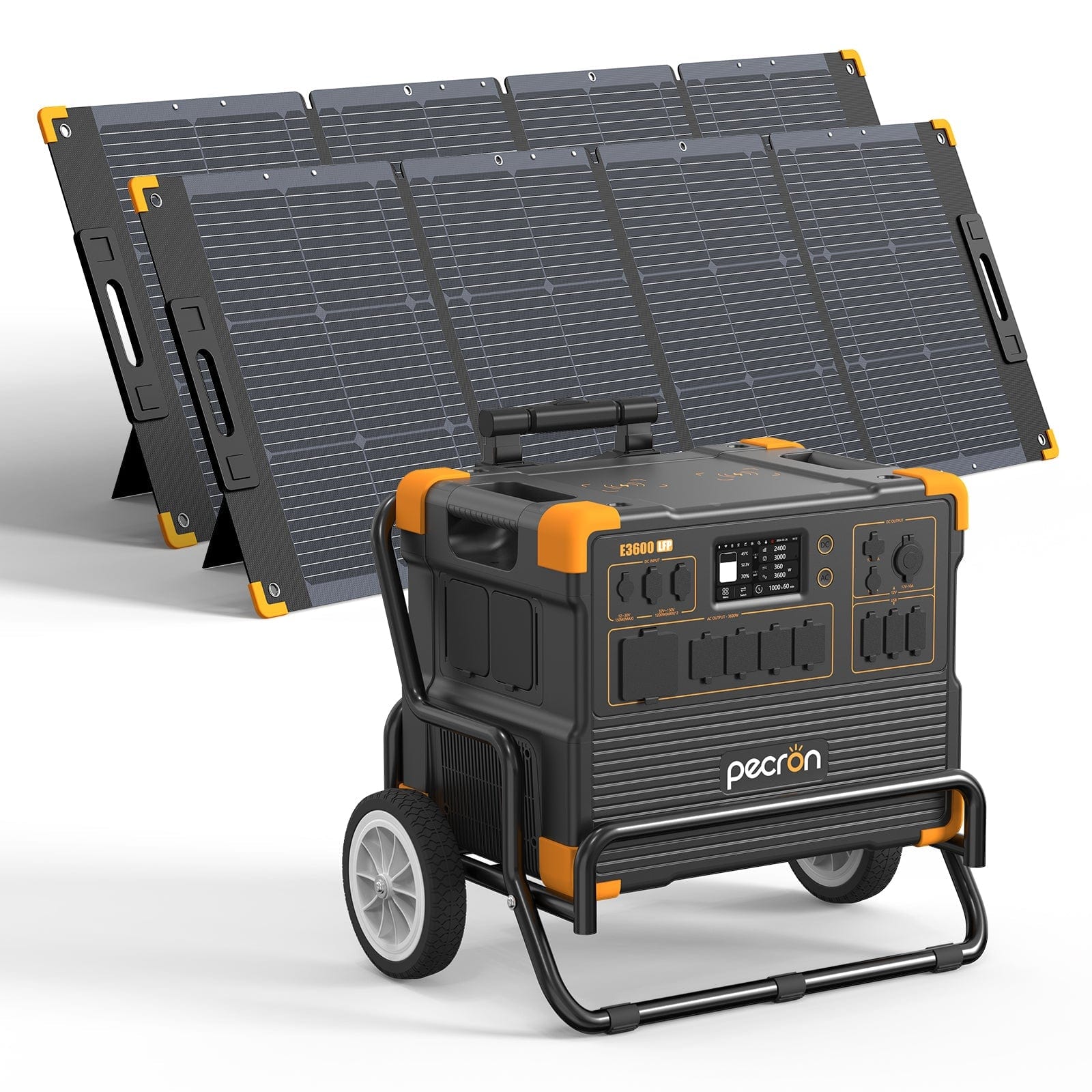

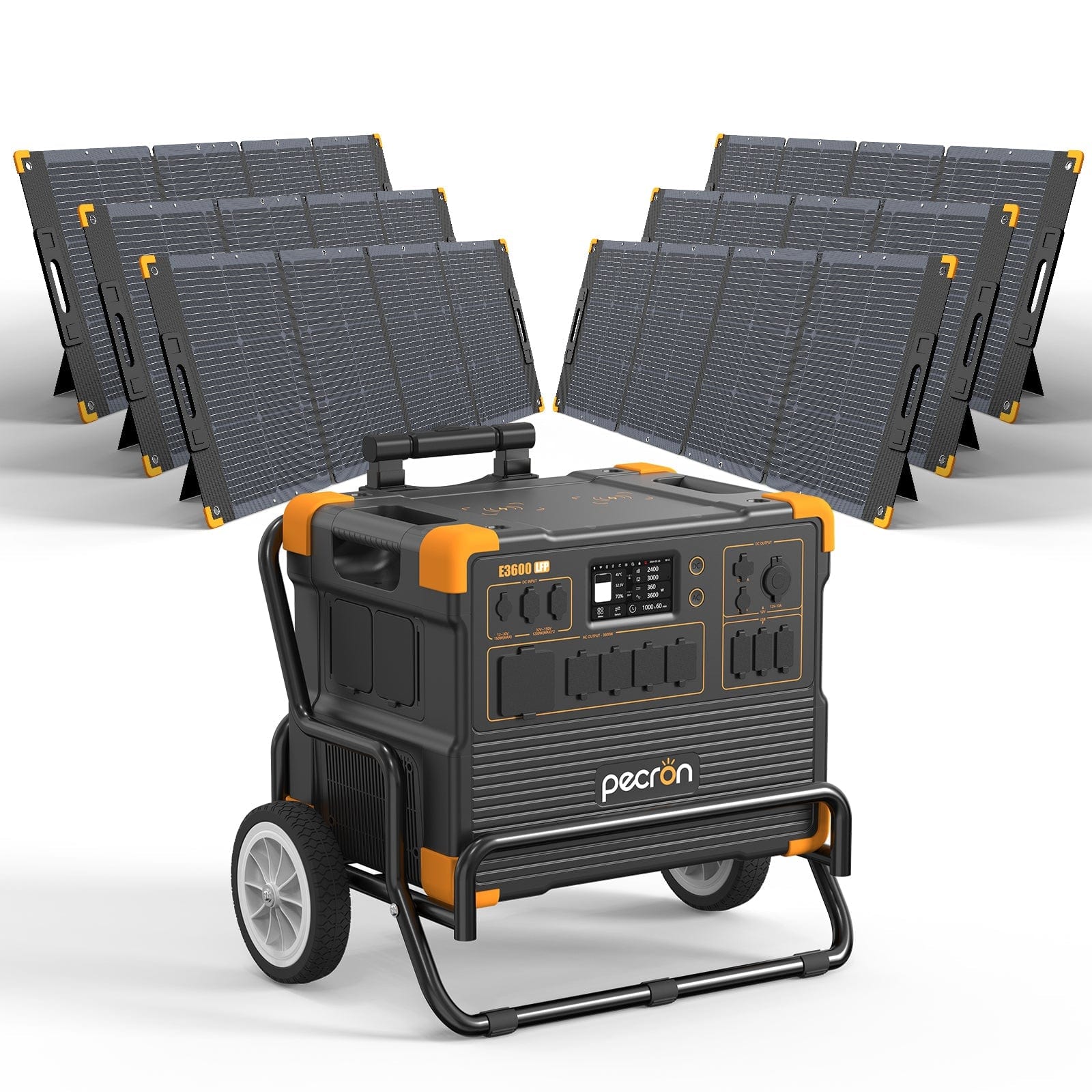

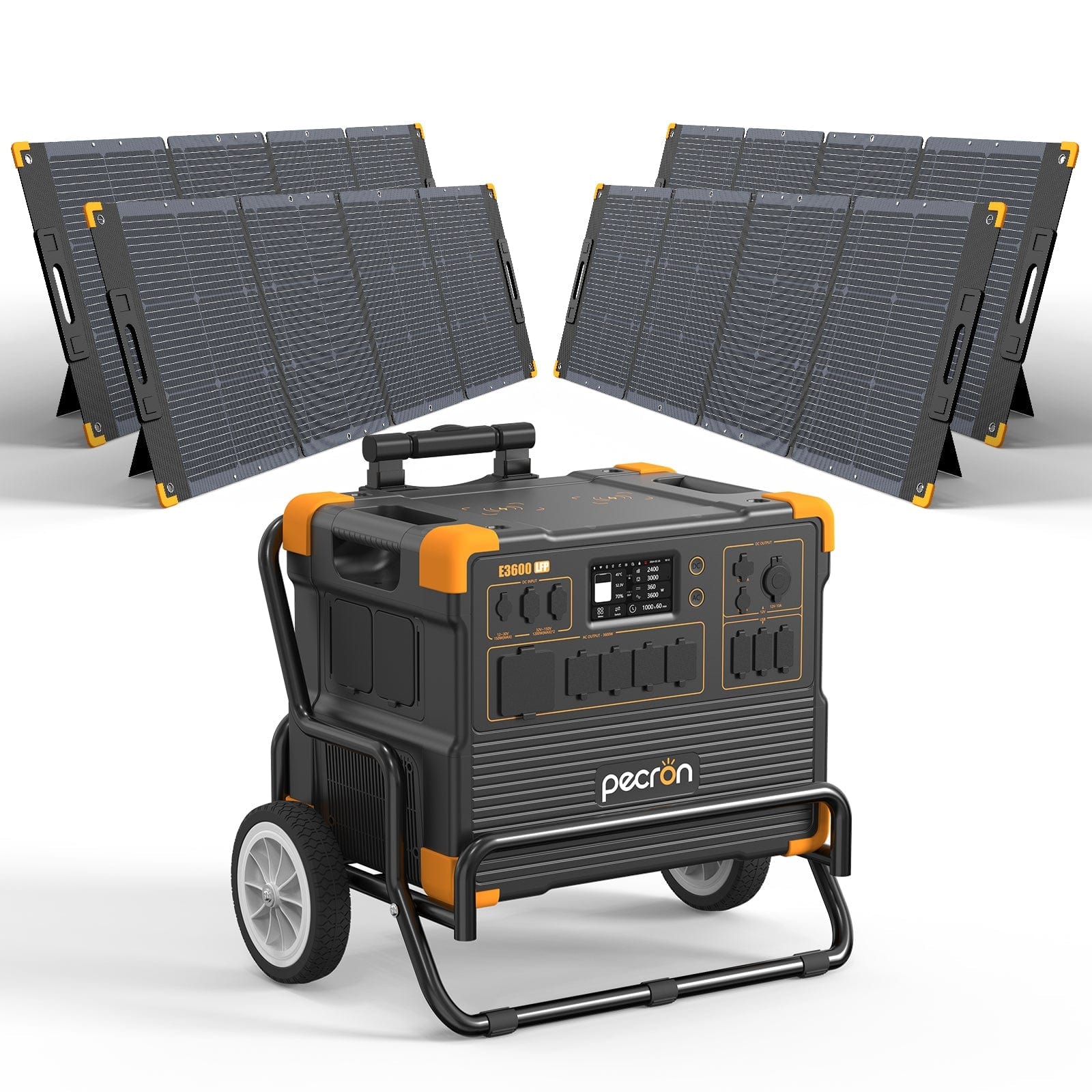

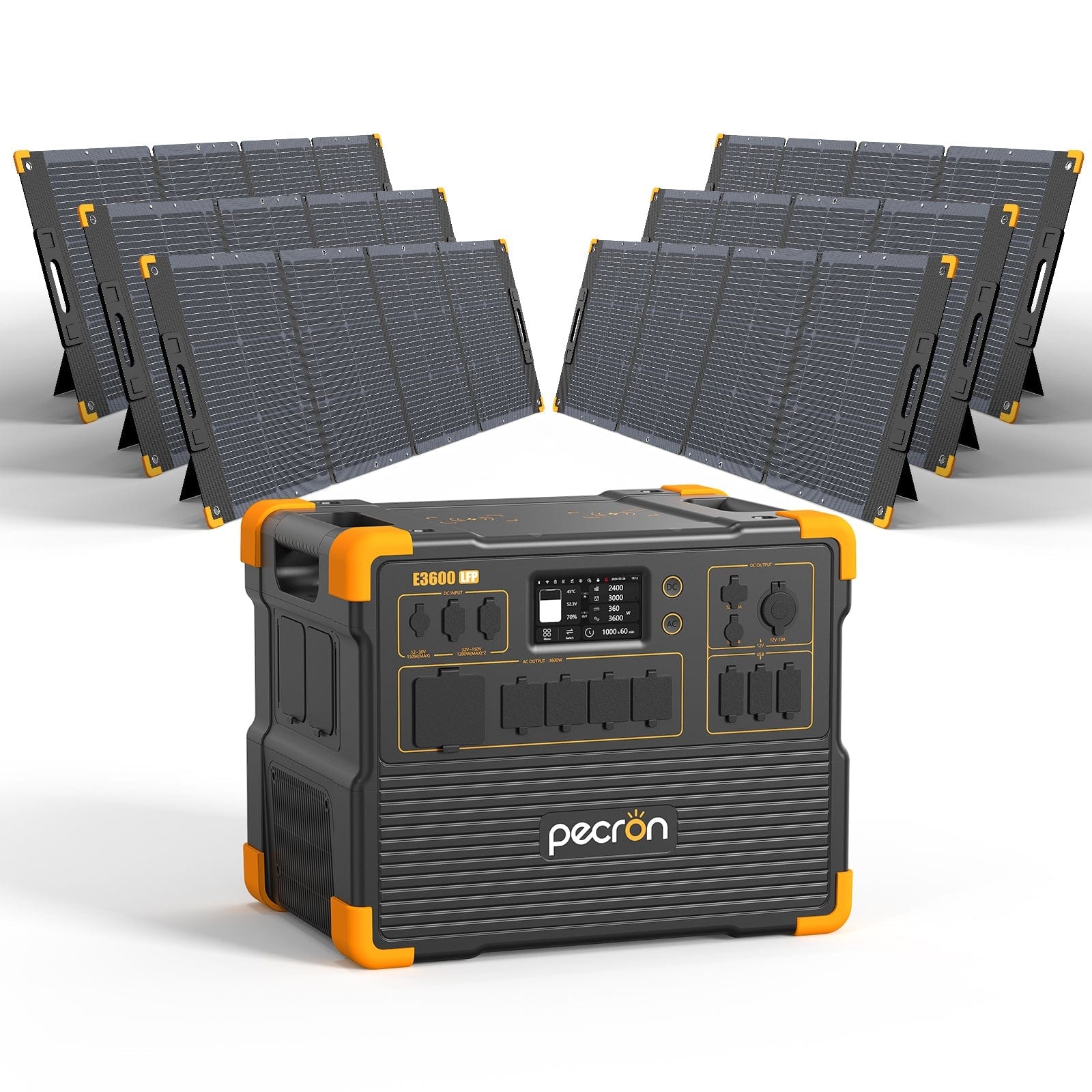

2400W max solar input via dual XT60 ports (2 x 1200W) for efficient solar charging.
-
Multiple charging options: AC, solar, car, or hybrid charging.
Advanced LiFePO4 Battery Technology
-
LiFePO4 battery with 3,500+ cycles to 80% capacity, ensuring long-term reliability.
-
UPS functionality for automatic backup during power outages.
-
Bidirectional charge flow for optimized energy management.
Smart Control & Connectivity
-
Wi-Fi & Bluetooth app control for real-time monitoring and adjustments.
-
XT60 30A (12V) output for high-powered DC applications.
Versatile Power Output
-
16 output ports to charge multiple devices at once.
-
5 AC outlets (30A output available) for powering household appliances.
-
15W wireless charging pad for convenient phone charging.
-
PD 100W USB-C for high-speed laptop and tablet charging.

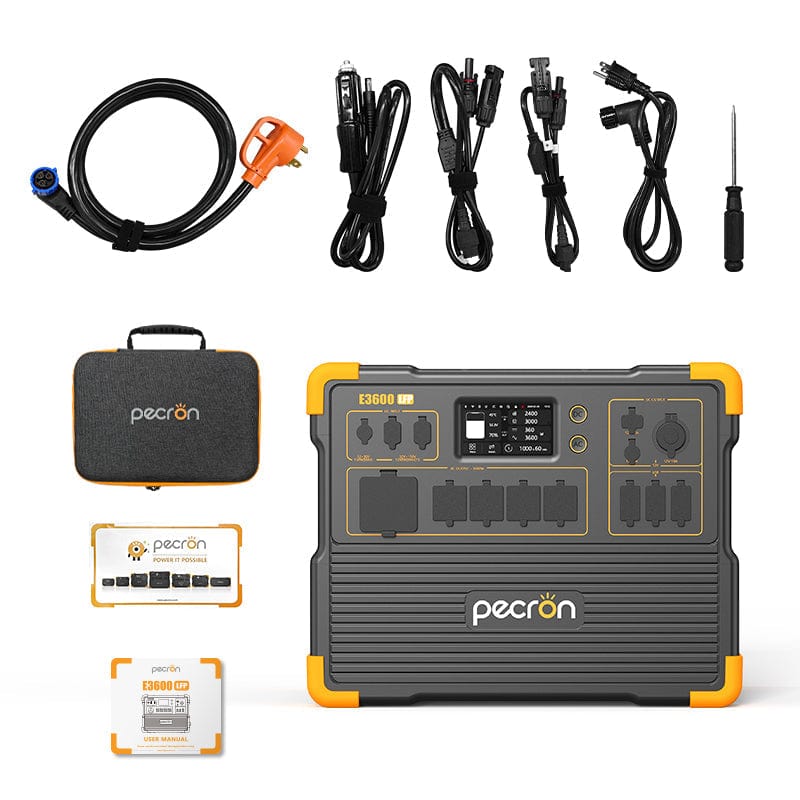

Package Includes
- PECRON E3600LFP Portable Power Station
- 15A AC Charging Cable
- Single Port XT60 to MC4 Solar Charging Cable
- Parallel Dual Port XT60 to MC4 Solar Charging Cable
- Slotted Screwdriver
- Accessory Pouch
- User Manual
Specifications
Model |
E3600LFP |
Rated Power |
3600W |
Peak Power |
7000W |
Capacity |
3072Wh |
Battery Type |
LiFePO4 |
Weight |
79 lbs (36 kg) |
AC Output |
100V~120V Pure Sine Wave |
Solar Input |
2×XT60: Voc 32V~150V / 1200W Max / 20A Max |
Car Input |
12V~30V / 150W Max / 7A Max |
AC Input |
100V~120V / 3200W (30A) or 1800W (15A) |
Charging Time |
1.3 Hours (30A AC) / 2 Hours (15A AC) |
DC Output |
30A (12V) |
USB Ports |
PD 100W USB-C, USB-A QC3.0 18W |
Wireless Charger |
15W Wireless Charging Pad |
Smart App |
Wi-Fi and Bluetooth control |
Charge Temperature |
0°C to 45°C (32°F to 113°F) |
Discharge Temperature |
-20°C to 45°C (-4°F to 113°F) |
Dimensions |
17.5 × 12.1 × 13.8 in |
FAQs
What devices can I run on the E3600LFP?
The E3600LFP can power any device with a consumption of 3600W or less. However, devices with inductive loads (e.g., fridges, compressors, motors) may require 3-7 times their rated power to start.
How do I calculate how long the E3600LFP will power my devices?
Use the formula:
Total Capacity (Wh) × 85% ÷ Device Power Consumption (W)
Example:
- A 100W LED floodlight would run for approximately 26 hours.
- With four EP3000-48V batteries, it could run over 130 hours continuously.
Does the E3600LFP have built-in MPPT charge controllers?
Yes, it features three independent MPPT charge controllers, significantly improving charging efficiency and effectiveness.
How can I maximize the 2400W solar input?
To fully utilize 2400W solar input, you can:
-
Connect two 1200W solar arrays to each XT60 input port.
-
Use Pecron solar panels or compatible third-party panels within 32V-150V range.
Can I use third-party solar panels with the E3600LFP?
Yes, as long as your solar panels fall within these voltage ranges:
- 32V~150V (1200W Max per XT60 port)

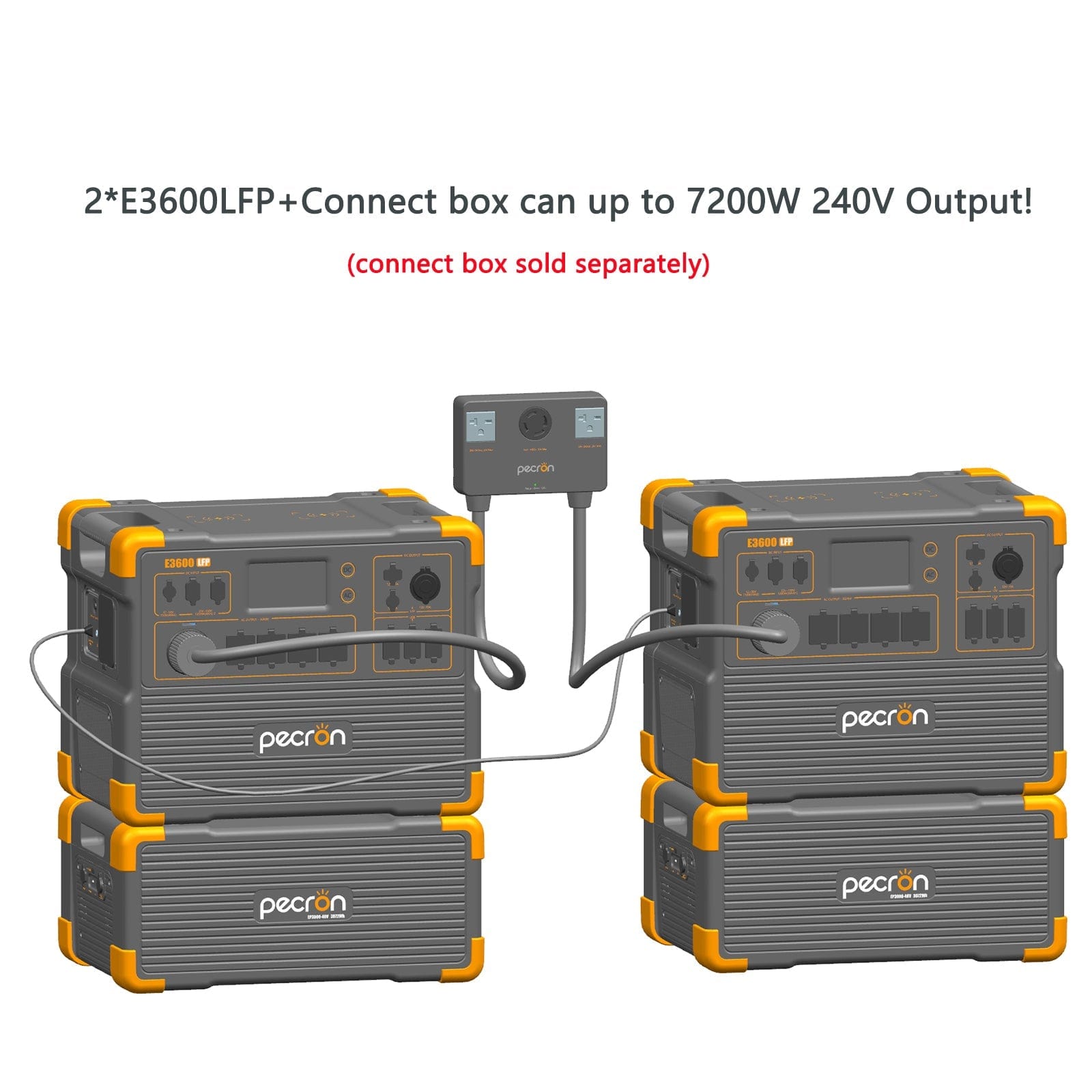

How do I enable 240V output?

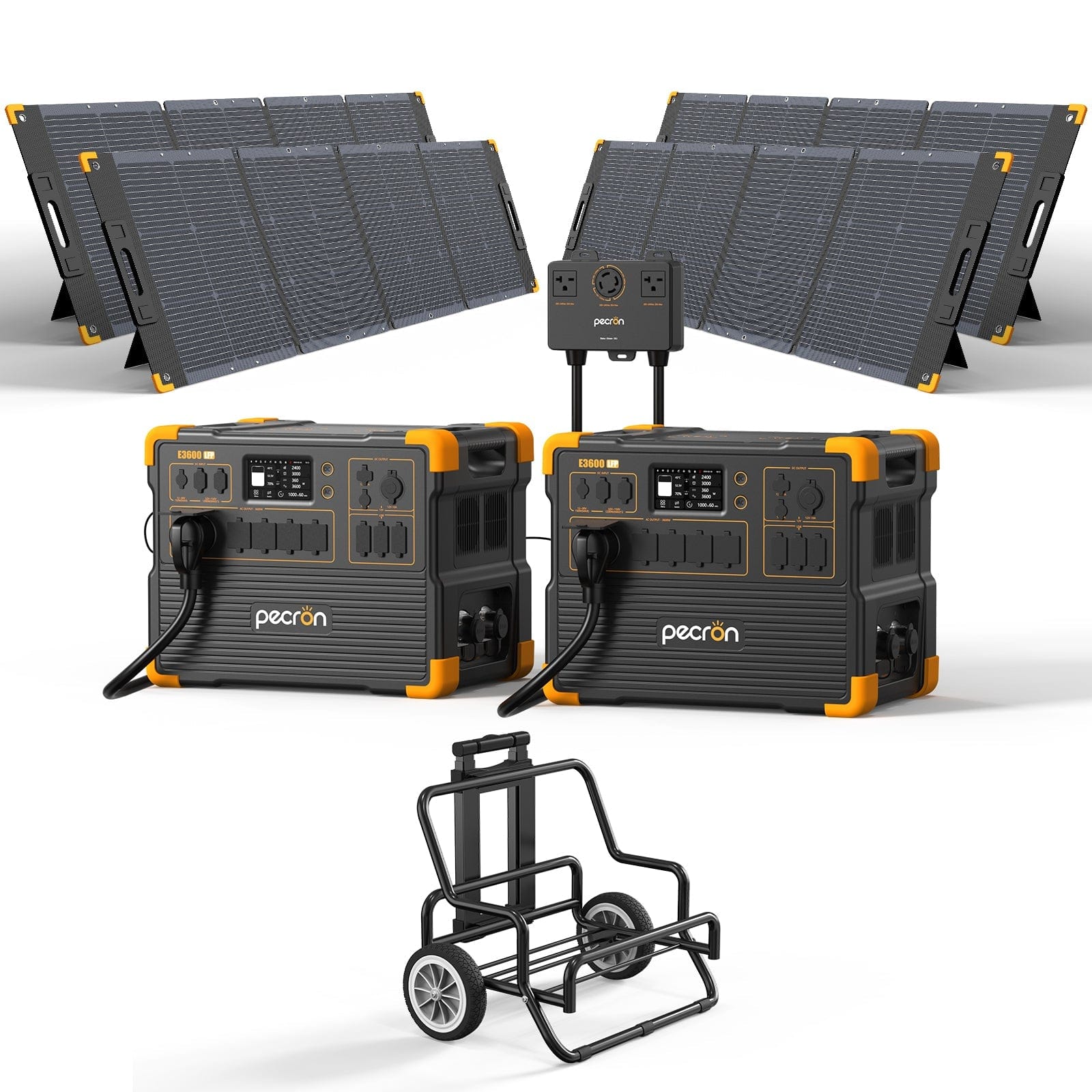

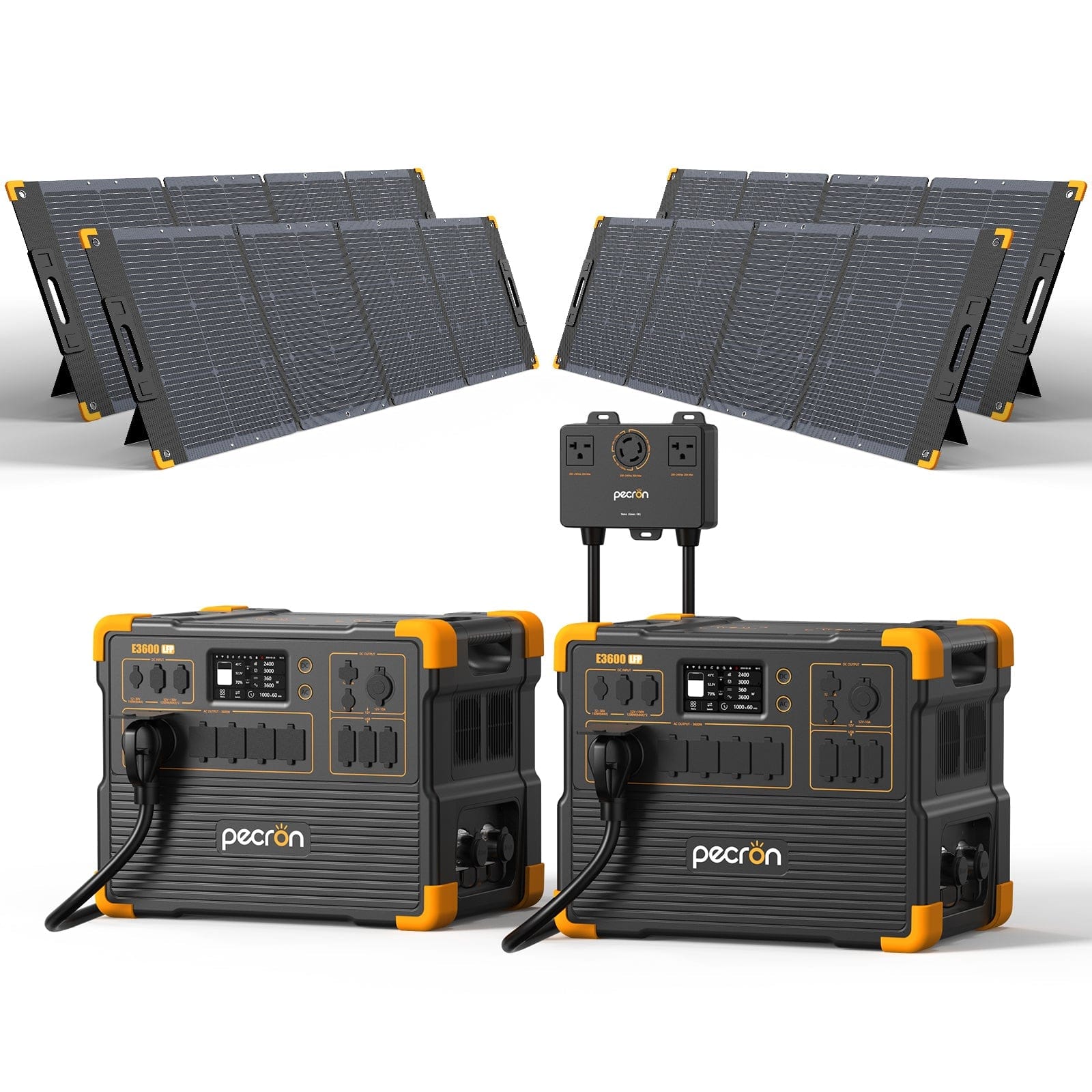

To enable 240V output at 7200W, connect two E3600LFP units using the 240V series connection kit (sold separately).
The PECRON E3600LFP is the ultimate high-capacity, fast-charging power station designed for home backup, professional use, off-grid setups, and high-power appliances. Its expandable capacity, rapid charging, and smart control features make it a top choice for serious energy users.
