What is the Pytes Combiner Box w/Bus Bar, SA-15k used for?
It is used to combine and organize battery input and output connections in compatible Pytes high-voltage battery systems, especially systems paired with a Sol-Ark 15k inverter.
Which battery models is this combiner box compatible with?
This combiner box is listed for use with Pytes V10a, V12, and V16 batteries.
Is this compatible with the Sol-Ark 15k inverter?
Yes. The supplied product information states that it is compatible with the Sol-Ark 15k inverter.
What is the difference between this version and the “w/Out Bus Bar” version?
This listing is the w/Bus Bar version. It includes a bus bar configuration for supported battery and system wiring. The “w/Out Bus Bar” version does not include the bus bar configuration.

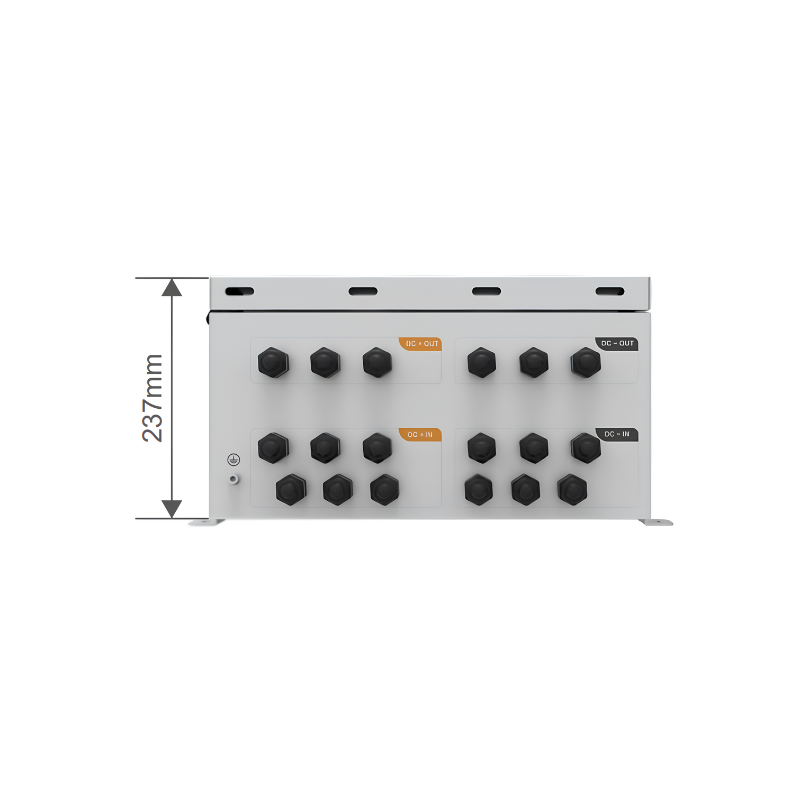

How many battery inputs does it support?
It supports 12 battery inputs, configured as 6 positive and 6 negative.
How many outputs does it have?
It has 6 outputs, configured as 3 positive and 3 negative.
What is the maximum battery voltage range?
The battery voltage range is listed as Max. DC 1000V.
What is the maximum operating current?
The maximum operating current is 300A.
What is the breaker rated current?
The breaker rated current is 325A.
What is the enclosure rating?
The enclosure is rated IP65.

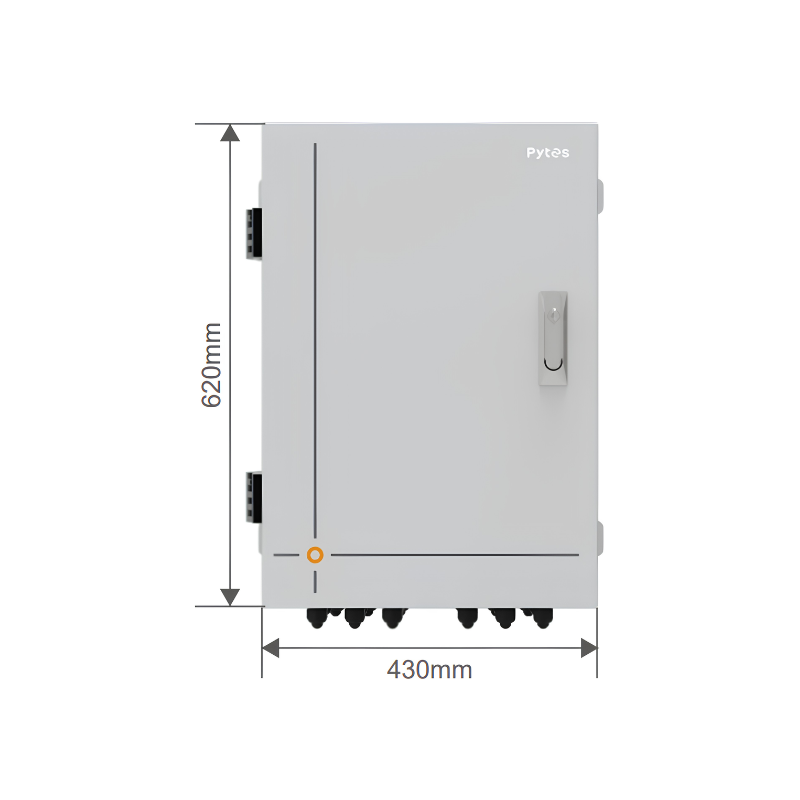

What are the dimensions and weight?
The unit measures 430 x 620 x 237 mm / 16.9 x 24.41 x 9.33 in and weighs 25.26 kg / 55.69 lbs.
