Pytes Combiner Box w/Out Bus Bar, SA-15k (V10a/V12/V16 Battery)

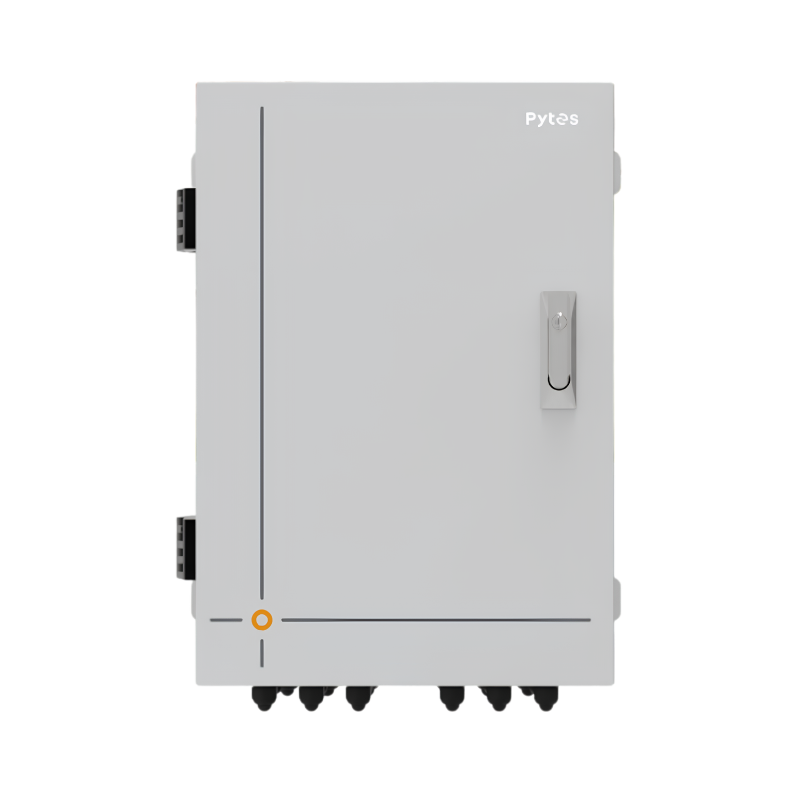

The Pytes Combiner Box w/Out Bus Bar, SA-15k is designed to support Pytes high-voltage battery system installations with compatible Sol-Ark 15k inverter setups. Also identified as the HV C01, this combiner box provides organized battery input and output connection points for Pytes V10a, V12, and V16 battery systems. With a Max. DC 1000V battery voltage range, 300A max operating current, and IP65-rated enclosure, it is built for reliable battery connection management in compatible residential and commercial energy storage applications.

Pytes Combiner Box w/Out Bus Bar, SA-15k Features

Compatible with Sol-Ark 15k Inverter - Designed for compatible Sol-Ark 15k inverter installations using Pytes V10a, V12, or V16 battery systems.

High-Voltage Battery Input Support - Supports a Max. DC 1000V battery voltage range, making it suitable for high-voltage Pytes battery energy storage configurations.

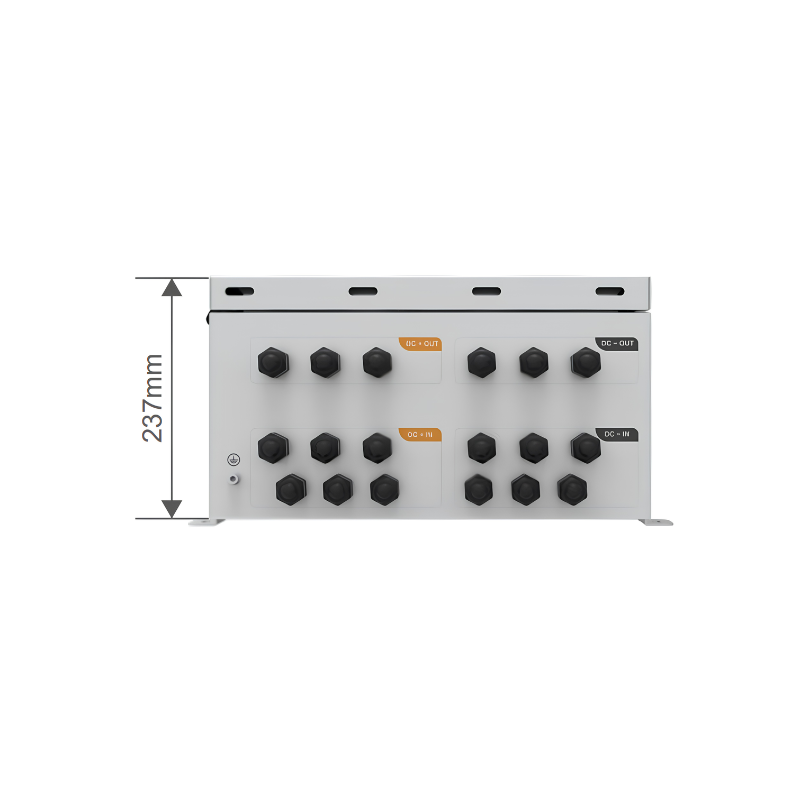

Multiple Battery Input Connections - Provides 12 battery inputs, arranged as 6 positive and 6 negative battery input connections.

Six Output Connections - Includes 6 output terminals, arranged as 3 positive and 3 negative output connections for system wiring.

300A Max Operating Current - Built to support up to 300A max operating current, with a 325A breaker rated current.

IP65-Rated Enclosure - The enclosure is rated IP65, helping protect the combiner box in supported installation environments.

Natural Cooling Design - Uses natural cooling, keeping the unit simple and efficient without requiring an active cooling system.

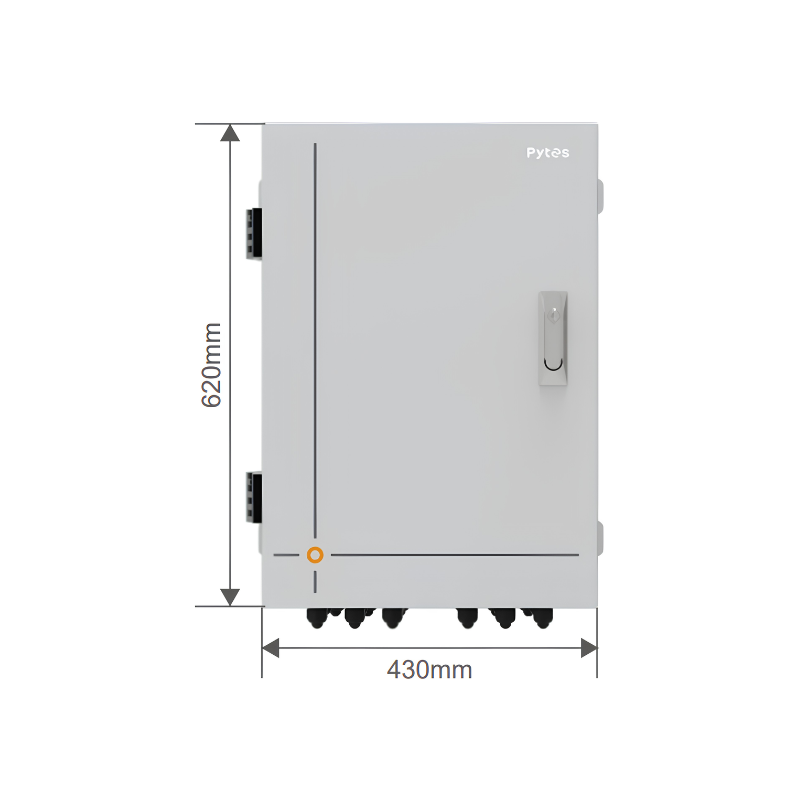

Compact Wall-Mount Design - The combiner box measures 430 x 620 x 237 mm / 16.9 x 24.41 x 9.33 in, giving installers a compact connection enclosure for supported battery systems.

Pytes Combiner Box w/Out Bus Bar, SA-15k Applications

Pytes high-voltage battery systems - designed for use with compatible Pytes V10a, V12, and V16 batteries.
Sol-Ark 15k inverter systems - supports compatible battery wiring setups with Sol-Ark 15k inverter installations.
Residential energy storage - helps organize high-voltage battery connections in home backup systems.
Commercial energy storage - suitable for compatible commercial battery storage installations.
Battery input/output management - provides centralized battery input and output terminals for system wiring.
Outdoor-capable installations - IP65-rated enclosure supports use in appropriate protected installation environments.

What's Included

Everything you need is included with your product.

1 x Pytes Combiner Box w/Out Bus Bar, SA-15k / HV C01

User Manual

Pytes Combiner Box w/Out Bus Bar, SA-15k (V10a/V12/V16 Battery) Specifications

Battery Input

Specification	Details
Battery Voltage Range	Max. DC 1000V
Number of Battery Input	12 (6 Positive + 6 Negative)
Input Terminal	M6
Number of Output	6 (3 Positive + 3 Negative)
Output Terminal	M6
Max. Operating Current	300A
Breaker Rated Current	325A
Recommended Torque for M6	3.5N·m
Recommended Torque for M10	20N·m

Environment Limit

Specification	Details
IP Rating of Enclosure	IP65
Operating Temperature Range	-20°C ~ +60°C
Cooling	Nature cooling
Storage Temperature	-20°C ~ +80°C
Relative Humidity	0% ~ 95% (condensing)
Altitude	<2000

Dimension and Weight

Specification	Details
Dimension (W x D x H)	430 x 620 x 237 mm / 16.9 x 24.41 x 9.33 inch(3.2U)
Weight	25.26 kg / 55.69 lbs

Frequently-Asked Questions

What is the Pytes Combiner Box w/Out Bus Bar, SA-15k used for?

It is used to organize and connect battery input and output wiring in compatible Pytes high-voltage battery systems, especially setups using a compatible Sol-Ark 15k inverter.

What battery systems is this combiner box compatible with?

The product information lists compatibility with Pytes V10a, V12, and V16 batteries.

Is this compatible with the Sol-Ark 15k inverter?

Yes. The provided product information notes compatibility with the Sol-Ark 15k inverter.

What is the maximum battery voltage range?

The battery voltage range is listed as Max. DC 1000V.

How many battery inputs does it have?

It has 12 battery inputs, arranged as 6 positive and 6 negative.

How many outputs does it have?

It has 6 outputs, arranged as 3 positive and 3 negative.

What is the max operating current?

The max operating current is 300A.

What is the enclosure rating?

The enclosure is rated IP65.

What are the dimensions and weight?

The unit measures 430 x 620 x 237 mm / 16.9 x 24.41 x 9.33 in and weighs 25.26 kg / 55.69 lb.
