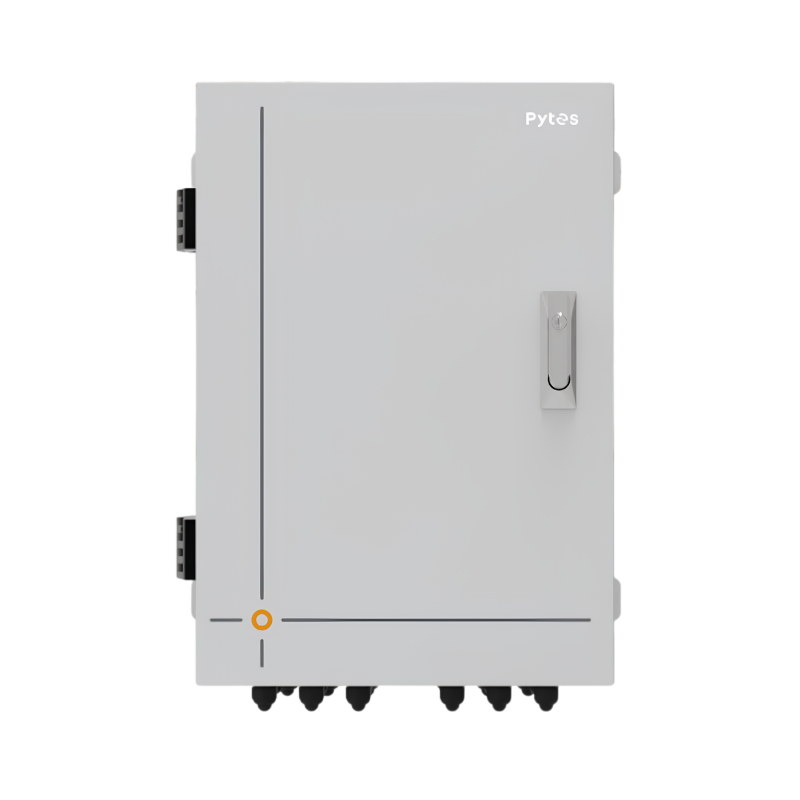

Pytes Combiner Box w/Out Bus Bar, SA-18k (V10a/V12/V16 Battery)

Name: Pytes Combiner Box w/Out Bus Bar, SA-18k (V10a/V12/V16 Battery)
Brand: Pytes
SKU: 110409100302
Price: 400.0 USD
Availability: InStock

BY: Pytes

SKU: 110409100302

| Availability: In stock

$400.00

Product Highlights

Centralized connections simplify organized high-current power distribution
Weather-resistant construction supports demanding outdoor installations
Helps keep battery-side wiring organized
helps organize battery input and output wiring for supported Pytes battery systems

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Pytes Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Pytes Combiner Box w/Out Bus Bar, SA-18k (V10a/V12/V16 Battery)

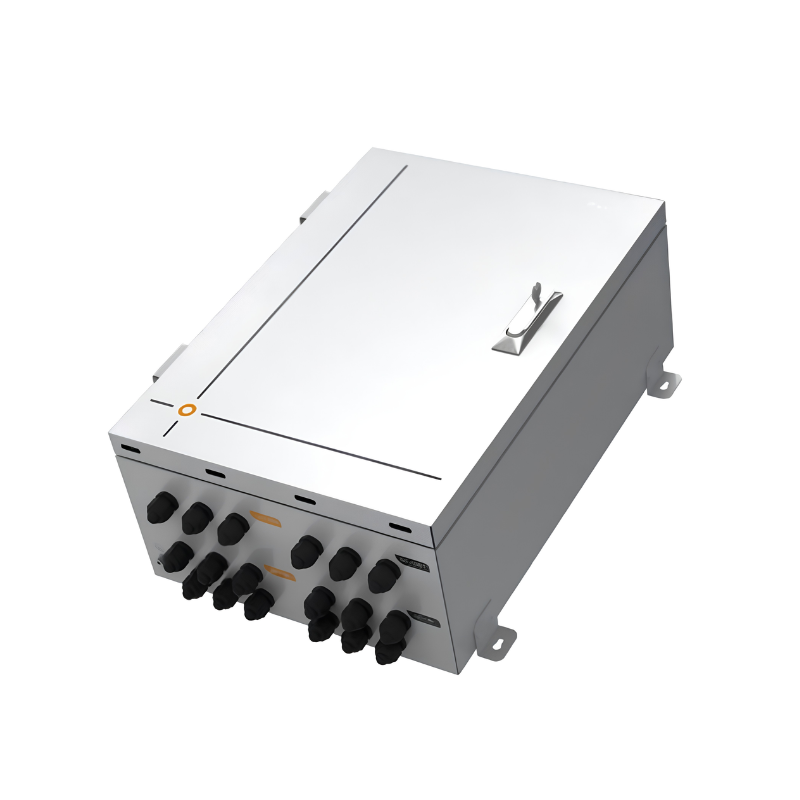

The Pytes Combiner Box w/Out Bus Bar, SA-18k is a high-voltage battery combiner box designed for compatible Sol-Ark 18k inverter installations using Pytes V10a, V12, or V16 batteries. Also identified as the HV C01, this combiner box helps organize battery input and output wiring in one dedicated enclosure. It supports a maximum DC battery voltage of 1000V, 300A max operating current, and includes an IP65-rated enclosure for supported energy storage installations.

Pytes Combiner Box w/Out Bus Bar, SA-18k Features

Compatible with Sol-Ark 18k Inverter - Designed for compatible battery system installations using the Sol-Ark 18k inverter with supported Pytes battery models.

Supports Pytes V10a, V12, and V16 Batteries - Built for use with Pytes V10a, V12, and V16 battery systems, helping installers organize high-voltage battery wiring in a dedicated combiner enclosure.

12 Battery Input Connections - Provides 12 battery inputs, arranged as 6 positive and 6 negative connections.

6 Output Connections - Includes 6 output connections, arranged as 3 positive and 3 negative, for system-side wiring.

High-Voltage Battery Support - Supports a battery voltage range of up to Max. DC 1000V, making it suitable for compatible high-voltage Pytes battery setups.

300A Max Operating Current - The HV C01 is rated for 300A max operating current with a 325A breaker rated current.

IP65-Rated Enclosure - The enclosure has an IP65 rating, helping protect the combiner box in supported installation environments.

Natural Cooling - The unit uses natural cooling, keeping the design simple and efficient without active cooling components.

Pytes Combiner Box w/Out Bus Bar, SA-18k Applications

Sol-Ark 18k inverter battery systems - designed for compatible installations using the Sol-Ark 18k inverter with Pytes V10a, V12, or V16 batteries.
Pytes high-voltage battery connections - helps organize battery input and output wiring for supported Pytes battery systems.
Multi-battery energy storage setups - supports systems that require multiple battery input connections in one centralized enclosure.
Battery combiner installations - provides a dedicated connection point between Pytes batteries and the inverter system.
Residential backup power systems - suitable for home energy storage systems using compatible Pytes batteries and Sol-Ark equipment.
Clean system wiring layouts - helps keep battery-side wiring organized, protected, and easier to manage during installation and service.

What's Included

Everything you need is included with your product.

Pytes Combiner Box w/Out Bus Bar, SA-18k (V10a/V12/V16 Battery)

User Manual

Pytes Combiner Box w/Out Bus Bar, SA-18k Specifications

Battery Input

Specification	Details
Battery Voltage Range	Max. DC 1000V
Number of Battery Input	12 (6 Positive + 6 Negative)
Input Terminal	M6
Number of Output	6 (3 Positive + 3 Negative)
Output Terminal	M6
Max. Operating Current	300A
Breaker Rated Current	325A
Recommended Torque for M6	3.5N·m
Recommended Torque for M10	20N·m

Environment Limit

Specification	Details
IP Rating of Enclosure	IP65
Operating Temperature Range	-20°C ~ +60°C
Cooling	Nature cooling
Storage Temperature	-20°C ~ +80°C
Relative Humidity	0% ~ 95% (condensing)
Altitude	<2000

Dimension and Weight

Specification	Details

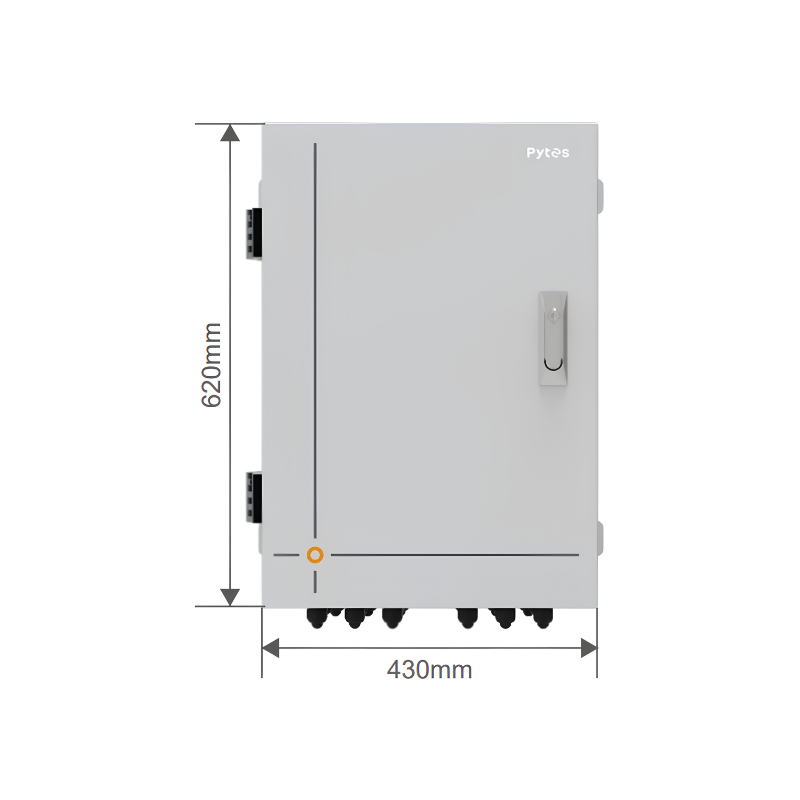

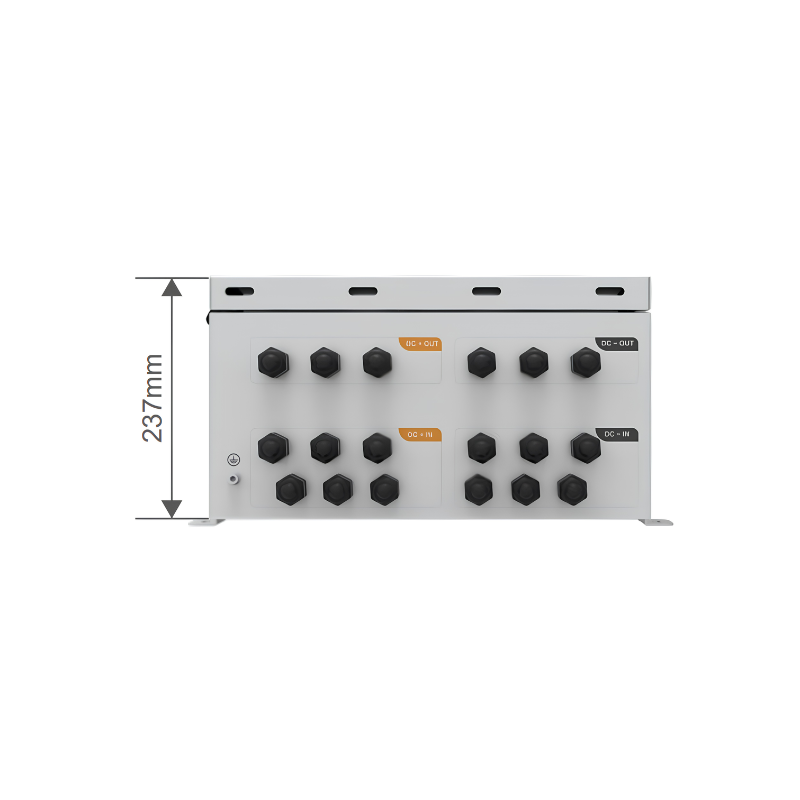

Dimension (W x D x H)	430 x 620 x 237 mm / 16.9 x 24.41 x 9.33 inch(3.2U)
Weight	25.26 kg / 55.69 lbs

Frequently-Asked Questions

What is the Pytes Combiner Box w/Out Bus Bar, SA-18k used for?

It is used to combine and organize battery input and output connections in compatible Pytes high-voltage battery systems, especially systems paired with a Sol-Ark 18k inverter.

Which battery models is this combiner box compatible with?

This combiner box is listed as compatible with Pytes V10a, V12, and V16 batteries.

Is this compatible with the Sol-Ark 18k inverter?

Yes. The supplied product information states that it is compatible with the Sol-Ark 18k inverter.

How many battery inputs does it support?

It supports 12 battery inputs, configured as 6 positive and 6 negative.

How many outputs does it have?

It has 6 outputs, configured as 3 positive and 3 negative.

What is the maximum battery voltage range?

The battery voltage range is listed as Max. DC 1000V.

What is the maximum operating current?

The maximum operating current is 300A.

What is the breaker rated current?

The breaker rated current is 325A.

What is the enclosure rating?

The enclosure is rated IP65.

What are the dimensions and weight?

The unit measures 430 x 620 x 237 mm / 16.9 x 24.41 x 9.33 in and weighs 25.26 kg / 55.69 lbs.
