Renogy 1.2kW Essential Kit Solar Kit Renogy

Renogy 1.2kW Essential Kit

Name: Renogy 1.2kW Essential Kit
Brand: Renogy
SKU: RKIT1200CB-C43D4-A24-US
Price: 4399.99 USD
Availability: OutOfStock

BY: Renogy

SKU: RKIT1200CB-C43D4-A24-US

| Availability: Out Of Stock

$5,879.00

$4,399.99

Sold out

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

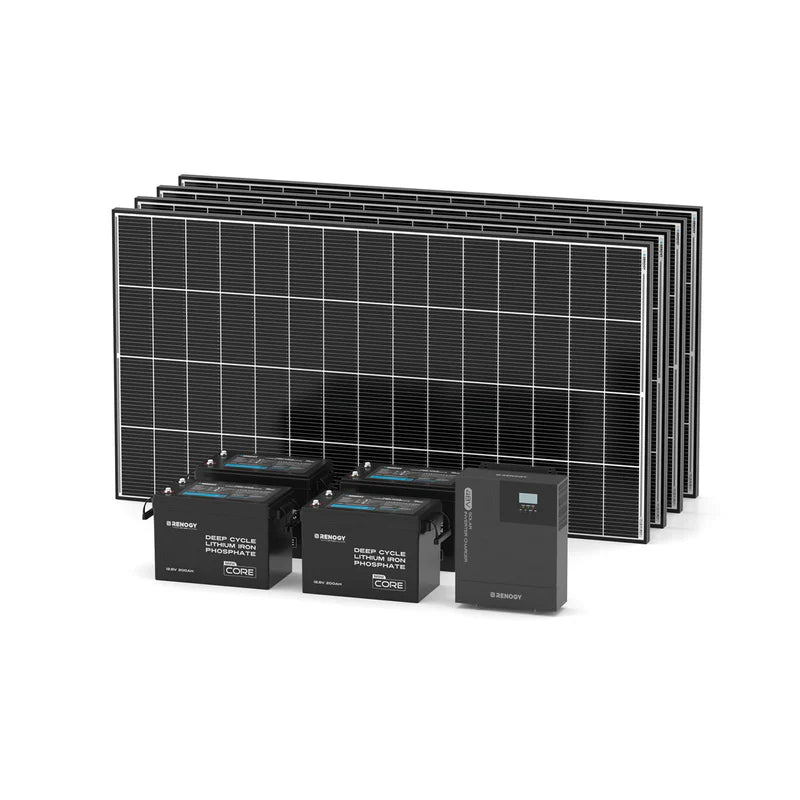

Renogy 1.2kW Essential Kit

The Renogy 1.2kW Essential Kit is a compact off-grid solar solution designed to power small homes, cabins, sheds, workshops, and tiny houses. Featuring 320W N-Type solar panels, a 48V 3500W all-in-one inverter charger, and a 10.24kWh or 20.48kWh lithium battery bank (depending on kit configuration), this system provides reliable solar generation, energy storage, and intelligent power management. With integrated DC circuit protection and a streamlined installation process, the Essential Kit offers an efficient and dependable way to achieve energy independence.

Renogy 1.2kW Essential Kit Features

High-Efficiency N-Type Solar Panels - Built with 320W N-Type solar panels, the system delivers excellent energy production, improved low-light performance, and long-term durability for everyday off-grid use.
Large Lithium Battery Storage - Choose between 10.24kWh or 20.48kWh lithium battery storage, providing dependable backup power for day and night operation.
48V 3500W All-in-One Inverter Charger - The integrated 48V 3500W inverter charger combines solar charging, battery management, and AC power conversion into one compact unit.
Integrated DC Circuit Protection - Built-in DC circuit breakers help safeguard the system from overloads and electrical faults while simplifying installation.
Flexible Installation Design - Solar panels mount securely on rooftops while batteries can be installed in convenient indoor locations, making the kit suitable for a wide variety of property types.

Renogy 1.2kW Essential Kit Applications

Small off-grid homes – Reliable solar power for compact residences independent of the utility grid.
Tiny homes – Provides efficient energy generation and storage for minimalist living spaces.
Cabins – Ideal for remote cabins requiring dependable renewable electricity.
Garden sheds – Powers lighting, tools, and small appliances in detached structures.
Workshops – Supplies energy for workspaces and hobby shops.
Rural properties – Delivers dependable off-grid electricity in remote locations.
Vacation homes – Maintains power for seasonal residences without grid access.
Emergency backup systems – Provides stored energy during power outages.
Agricultural buildings – Supports lighting and essential farm equipment.
DIY solar energy installations – Excellent for homeowners building their own off-grid systems.

What's Included

Everything you need is included with your product.

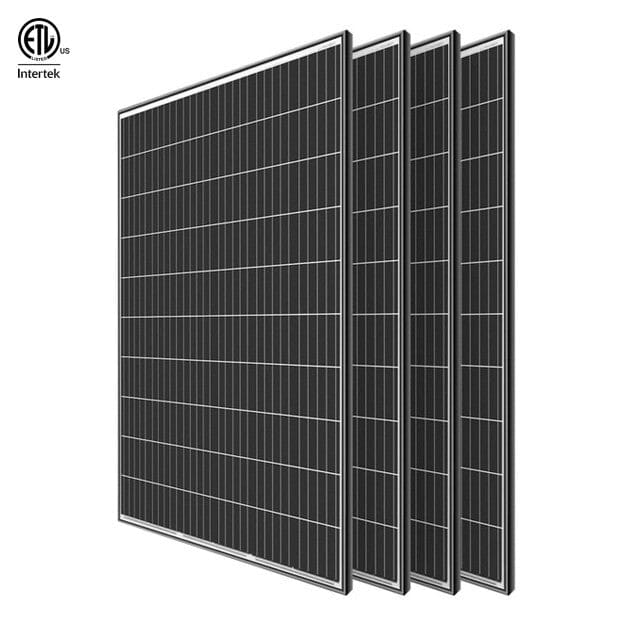

4 x 320W N-Type Monocrystalline Solar Panel

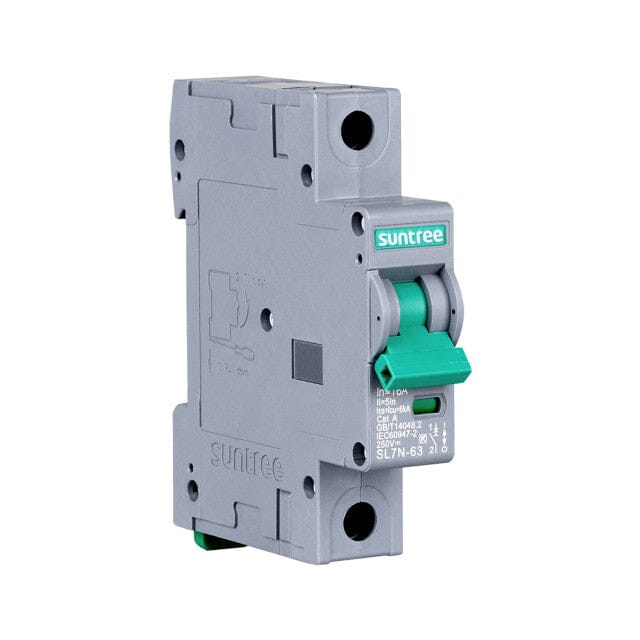

2 x 16A 1P DC Miniature Circuit Breaker
1 x 16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)

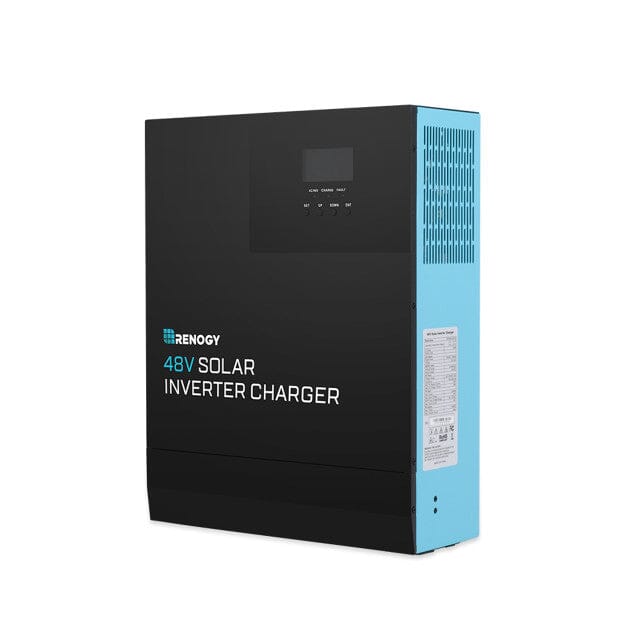

1 x 48V 3500W Pure Sine Wave Solar Inverter Charger
2 x 8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)
2 x 40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)

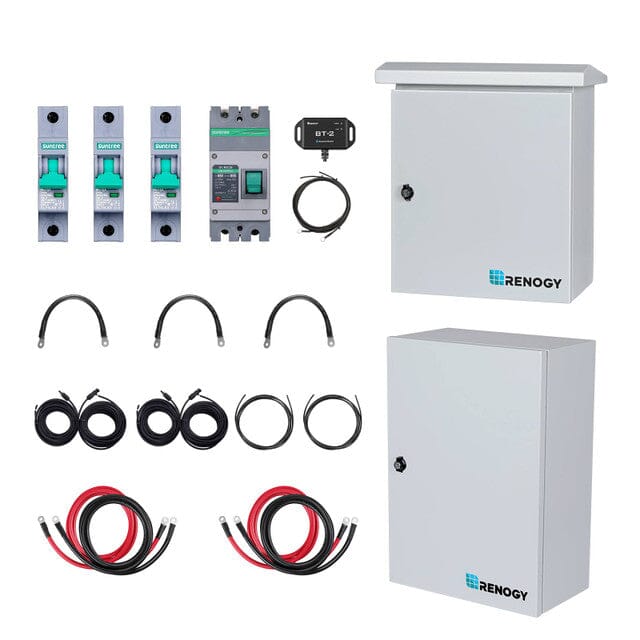

1 x DC Circuit Breaker Box

2 x 8Ft 8AWG Solar Stranded Copper PV Wire
4 x 12V 200Ah Core Mini Lithium Battery

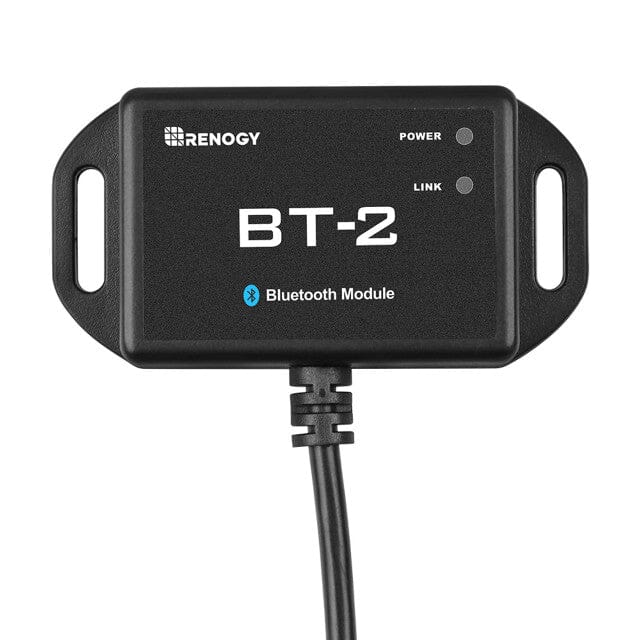

1 x BT-2 Bluetooth Module
1 x 5 Strings Solar Combiner Box
1 x 32A 1P DC Miniature Circuit Breaker
1 x 160A 2P DC Molded Case Circuit Breaker
3 x 12Inch 1AWG Copper Battery Interconnect Cable for 3/8Inch Lugs
User Manual

Warranty

10-year output warranty & material and workmanship warranty

Renogy 1.2kW Essential Kit Specifications

320W N-Type Solar Panel

Specification	Details
Max Power at STC	320W
Open Circuit Voltage	43.82V
Short Circuit Current	8.92A
Optimum Operating Voltage	37.85V
Optimum Operating Current	8.46A
Maximum System Voltage	1000VDC
Maximum Series Fuse Rating	20A
Module Efficiency	22.2%
Operating Temperature	-40°F~185°F / -40℃~85℃
Dimensions	164088035mm/64.634.71.4in
Weight	14.9kg/32.9lbs
Warranty	10-year output warranty & material and workmanship warranty
Rated Capacity	200Ah (0.5C, 25℃)
Voltage	12V
Energy	2560Wh
Cycle Life (0.5C/1C, 25℃)	5000 Cycles (80% DOD, 80% EOL)
Operation Temperature Range	Charge: 32°F to 131°F (0°C to 55°C); Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range	-4°F to 140°F (-20°C to 60°C)
Terminal Bolt Size	M8×1.25×12 mm & M8×1.25×16 mm
Protection Rating	IP65
Dimension (L x W x H)	15.12×7.64×9.96 in/384×194×253 mm
Weight	42.44 lbs / 19.25 kg

48V 3500W Pure Sine Wave Solar Inverter Charger

Specification	Details
Max Rated Power	3500W
Input Voltage	120VAC
Input Voltage Range	85VAC ~ 140VAC
Input/Output Frequency	50/60Hz Adjustable
Output Voltage	120VAC (100VAC~120VAC, 5VAC Increments)
Peak Efficiency	>95%
Max AC Charging Current	40A
Max PV Input/Output Power	4400W
Max PV Charging Current	80A
Max PV Input Voltage	150V
Dimensions	17.51 x 12.99 x 4.88in / 444.8 x 330 x 124 mm

Frequently Asked Questions

Who is this kit designed for?

It is designed for small homes, cabins, sheds, workshops, tiny homes, and other compact off-grid applications.

What battery options are available?

Depending on the selected configuration, the kit includes either a 10.24kWh or 20.48kWh lithium battery bank.

Does the kit include an inverter?

Yes. It includes a 48V 3500W all-in-one inverter charger that manages solar charging, battery storage, and AC output.

Are safety features included?

Yes. The system includes integrated DC circuit breakers to provide additional electrical protection.

Is the kit suitable for DIY installation?

Yes. The system is designed with simplified installation in mind, making it suitable for experienced DIY installers as well as professional installers.
