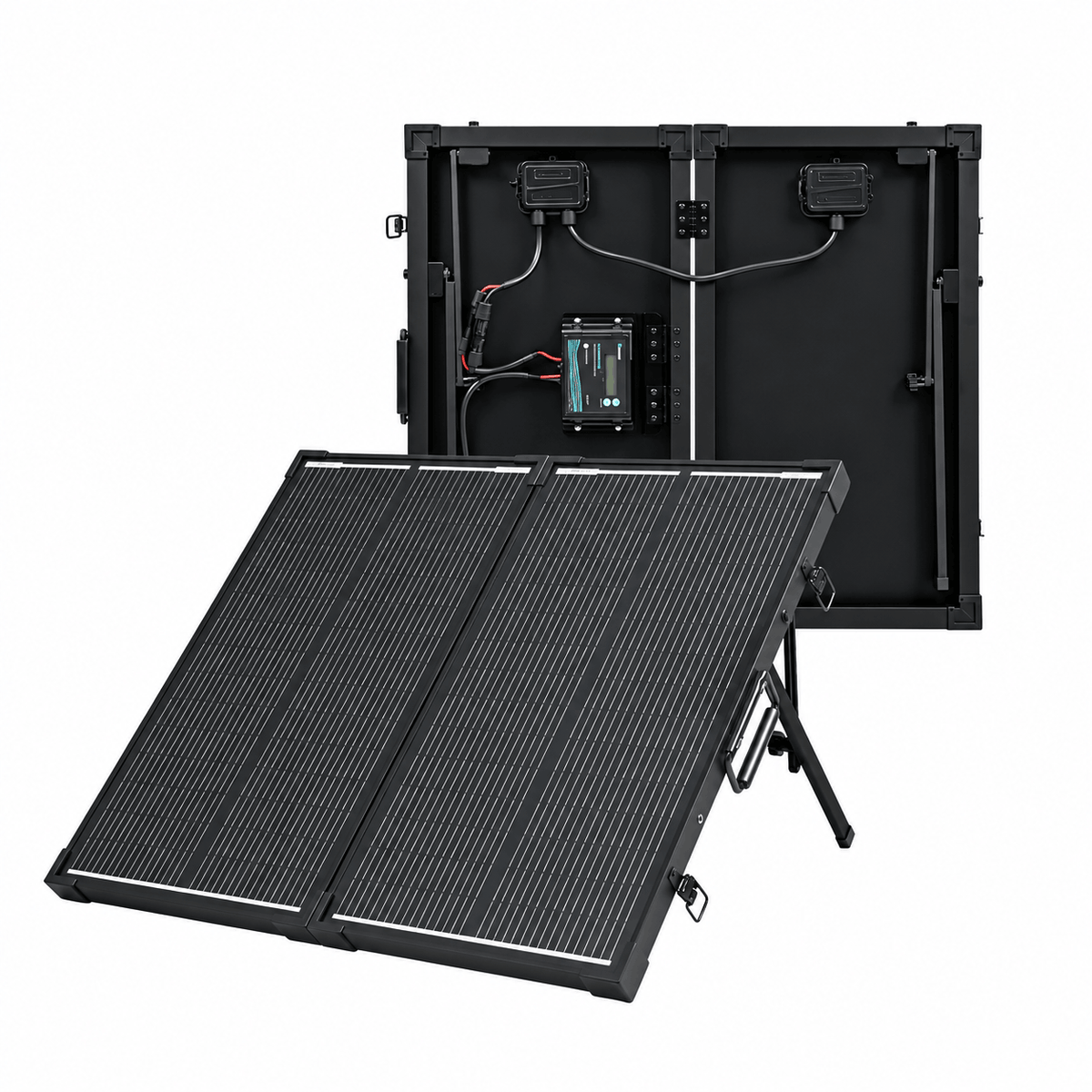

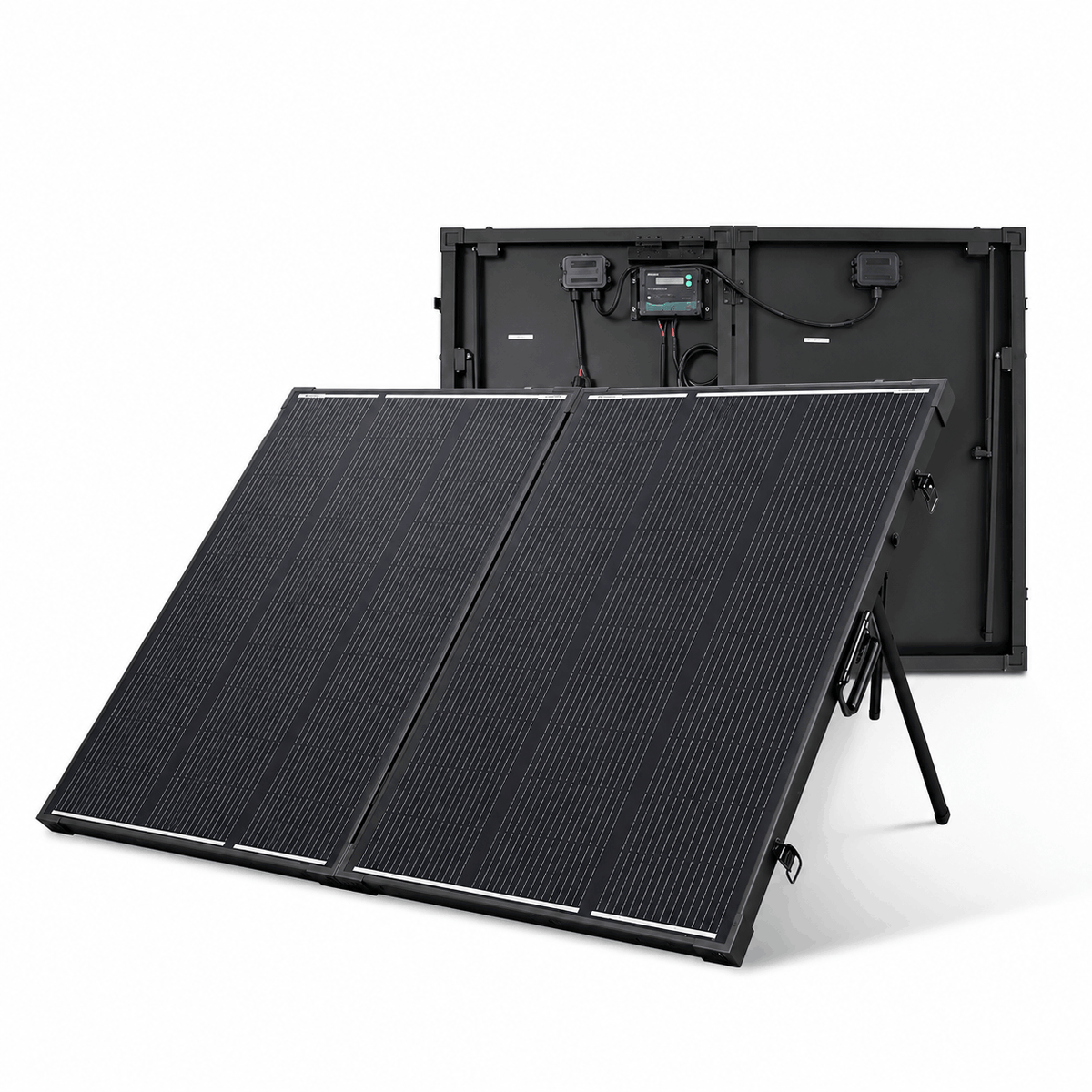

Is the 100W/200W solar suitcase easy to set up?

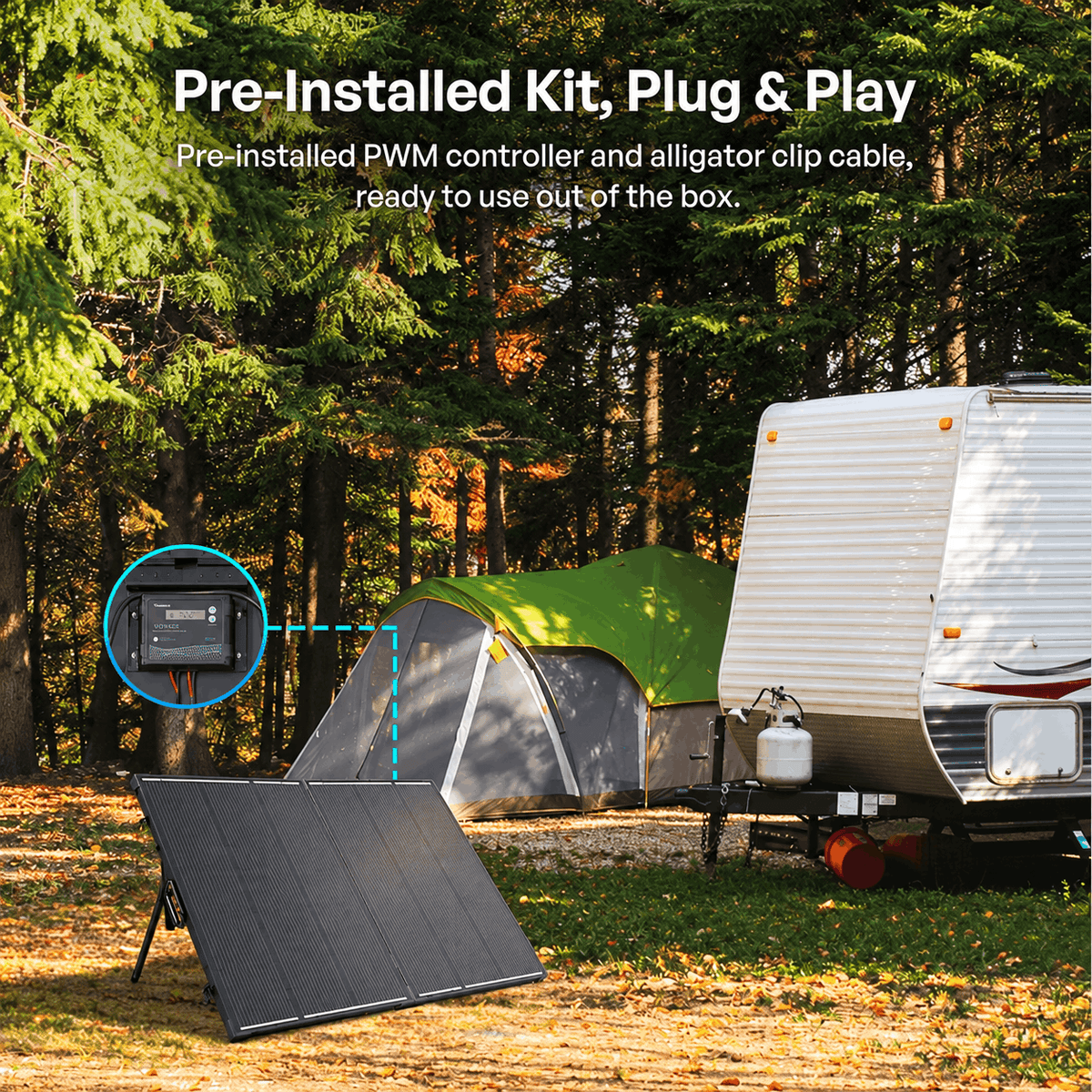

Yes. Both the 100W and 200W versions are designed for plug-and-play use. Each kit includes a pre-installed Voyager 20A PWM charge controller and a solar connector-to-alligator-clips cable with a 15A fuse for straightforward connection to a compatible battery.
Does both the 100W and 200W kit include a charge controller?

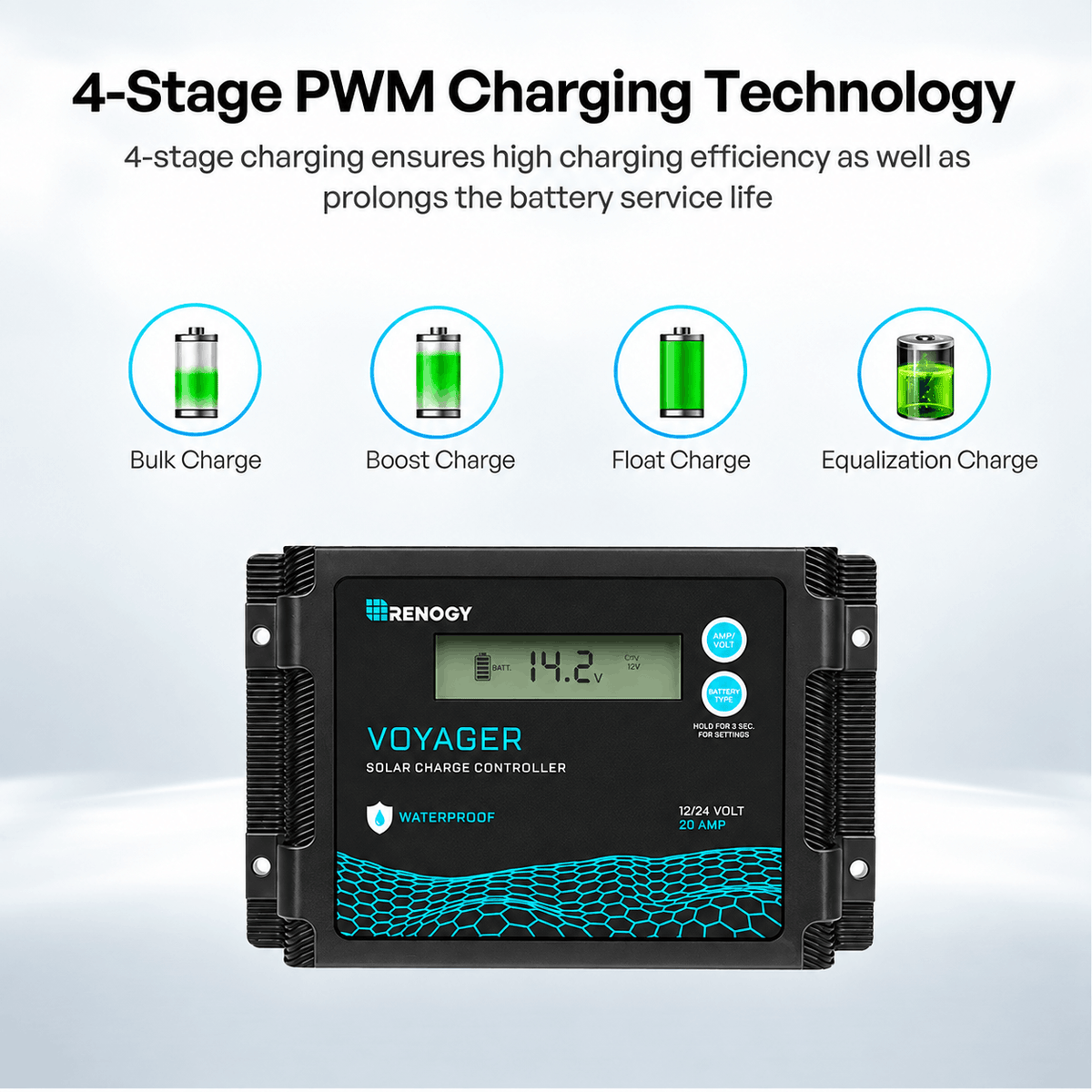

Yes. Both configurations include a Voyager 20A PWM Solar Charge Controller pre-installed on the solar suitcase, so you do not need to purchase a separate controller for the basic kit setup.
What is the maximum output of the 100W and 200W versions?
The 100W version is rated for 100W maximum power at STC, while the 200W version is rated for 200W maximum power at STC. The 100W model has an optimum operating current of 5.602A, while the 200W model is rated at 11.05A. Both list an optimum operating voltage of 18.65V.

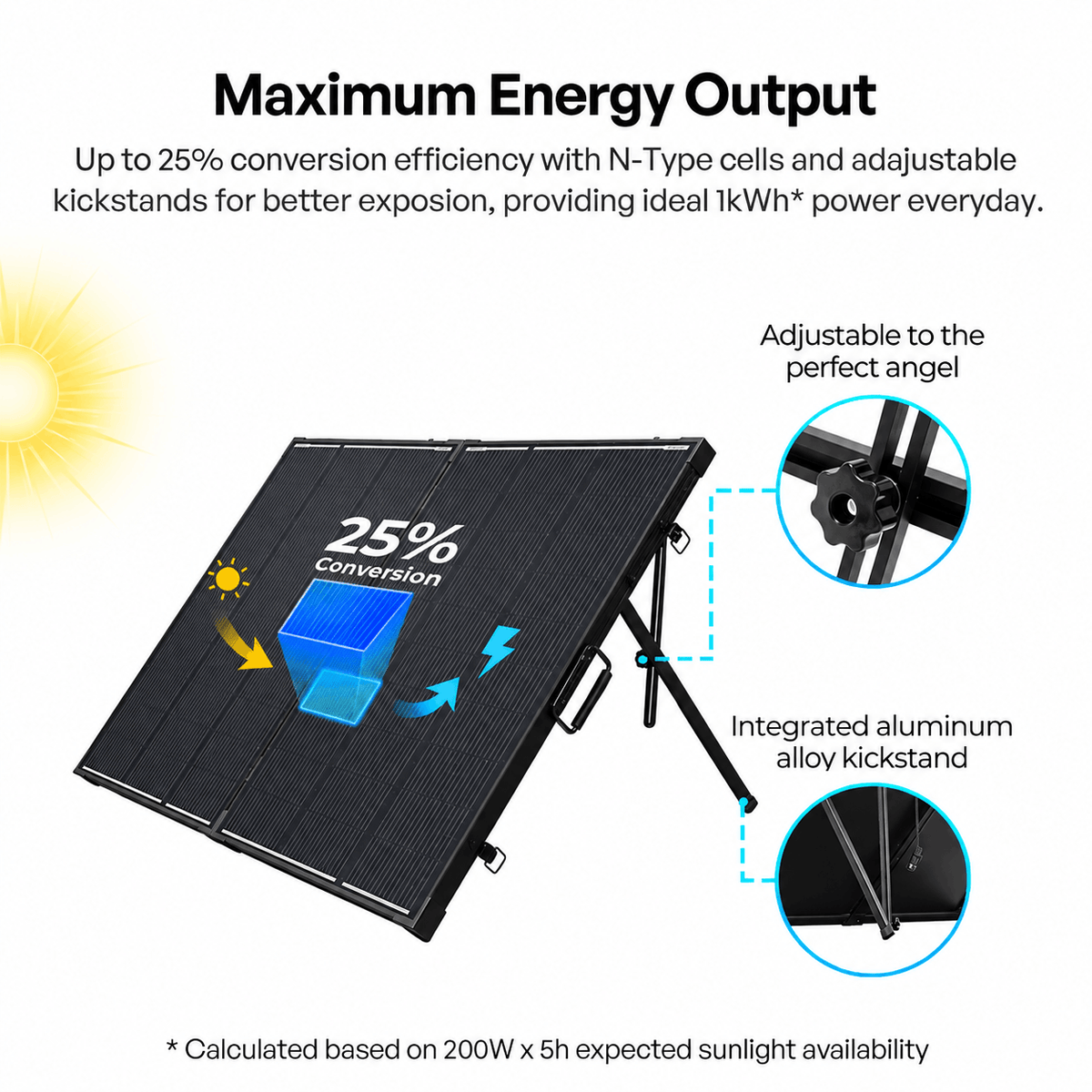

How much energy can the 100W and 200W versions produce per day?
Under ideal conditions with around 5 peak sun hours, the 100W version could theoretically produce about 0.5kWh per day, while the 200W version could theoretically produce about 1kWh per day. Actual production will normally be lower because of weather, shading, panel angle, temperature, controller losses, and battery-charging losses.
What are the electrical specifications of the 100W version?
The 100W suitcase is rated at 100W, with 18.65V optimum operating voltage, 5.602A optimum operating current, 21.47V open-circuit voltage, and 6.029A short-circuit current.
What are the electrical specifications of the 200W version?
The 200W suitcase is rated at 200W, with 18.65V optimum operating voltage, 11.05A optimum operating current, 21.47V open-circuit voltage, and 11.89A short-circuit current.
Can I move either panel during the day?
Yes. Both are portable suitcase-style solar panels, so they can be repositioned throughout the day to improve sun exposure instead of being permanently fixed to a roof.
Are the 100W and 200W versions suitable for beginners?
Yes. Renogy positions both versions as simple portable solar solutions, and the included controller and alligator-clip cable reduce the amount of separate wiring required.
Do both versions include the same basic accessories?
Yes. Both kits include one solar suitcase, one Voyager 20A PWM charge controller pre-installed to the panels, and one solar connector-to-alligator-clips cable with a 15A fuse.
What is the operating temperature range for both models?
Both the 100W and 200W versions are rated for approximately -40°F to 185°F (-40°C to 85°C).
What warranty do the 100W and 200W versions have?
Renogy's current U.S. listings show a 5-year material and workmanship warranty for both the 100W and 200W suitcase kits.
Which version should I choose: 100W or 200W?

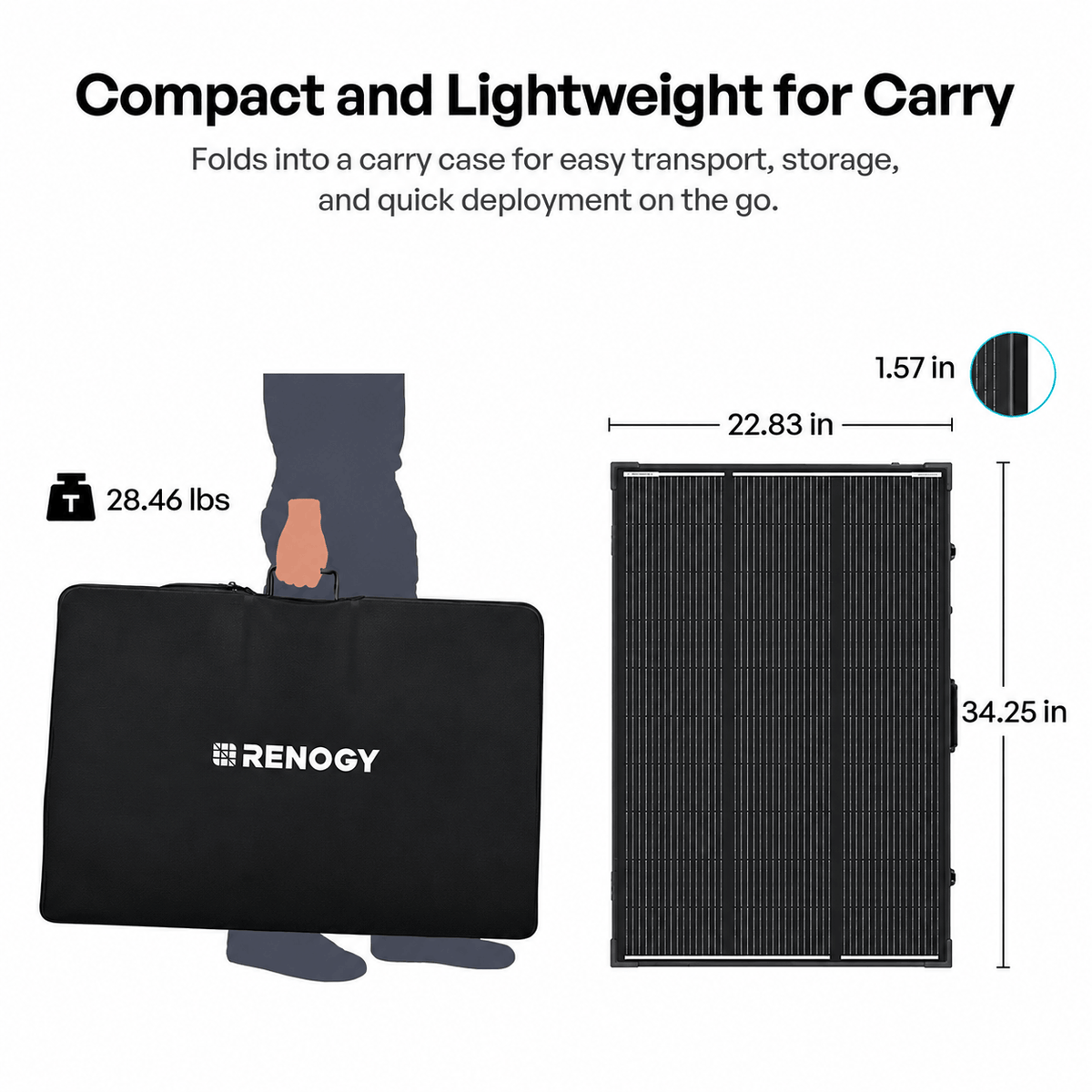

Choose the 100W version if lower weight, smaller folded size, and easier portability are more important. Choose the 200W version if you want roughly twice the rated solar output and are comfortable carrying a larger, heavier suitcase. Both include the same style of Voyager 20A controller and plug-and-play battery connection.
