Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design) Solar Panels Renogy 1 Piece

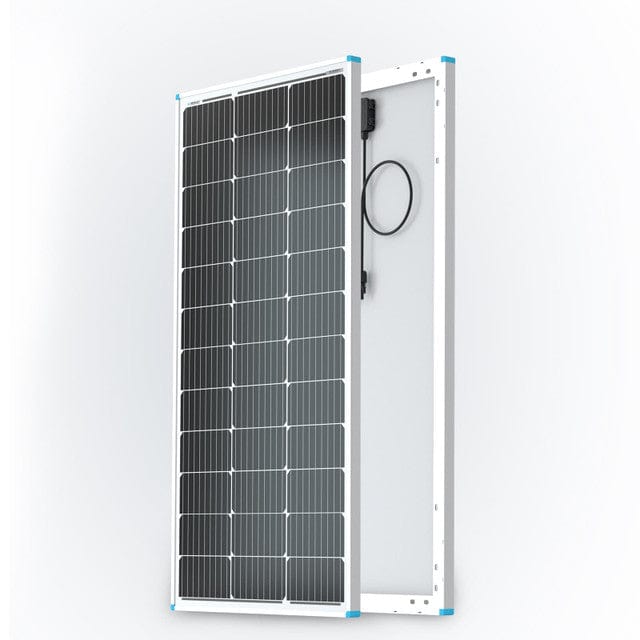

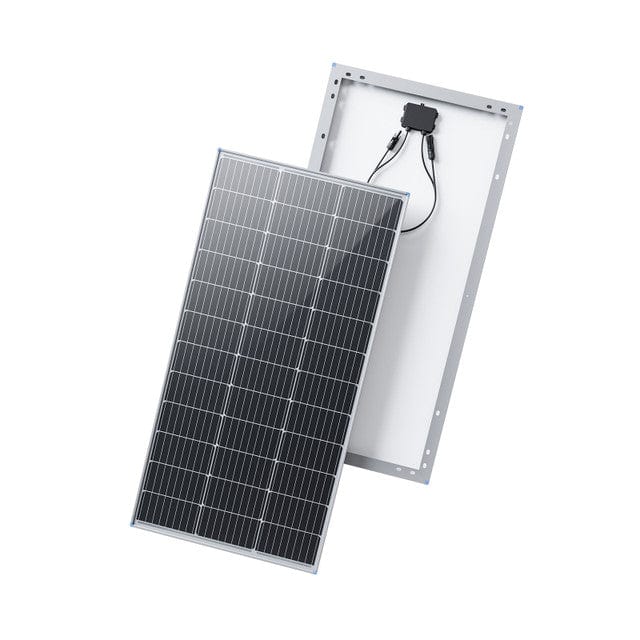

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)

BY: Renogy | SKU: RNG-100D-SS-G3-US Availability: In Stock
$120.99
$89.99
You Save: $31.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Renogy Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel (Compact Design)

High in power yet compact in size, the Renogy 100W 12V Monocrystalline Solar Panel is a dependable solution for a wide range of off-grid and mobile applications. Built with high-efficiency Grade A+ monocrystalline (PERC) solar cells, this panel delivers excellent energy conversion in a durable, lightweight aluminum frame. Designed for long-term outdoor use, it features shatter-resistant tempered glass, pre-drilled mounting holes, and solar connector leads—making installation simple and system expansion effortless. Whether for RVs, cabins, marine setups, or home backup systems, this panel offers proven Renogy reliability and performance.

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel Features

High-Efficiency Monocrystalline Cells - Premium PERC monocrystalline cells deliver 17.8% module efficiency, producing more power per square foot than conventional polycrystalline panels.

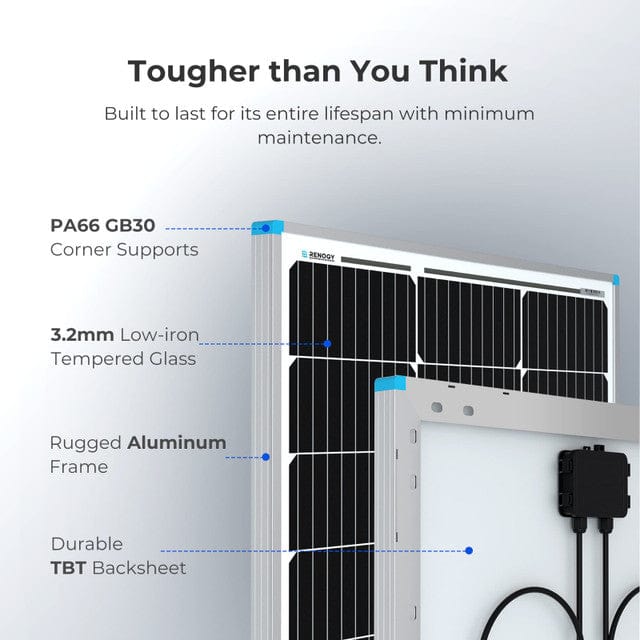

Durable Outdoor Construction - Built with a tempered glass front and anodized aluminum frame, designed to withstand harsh weather and outdoor conditions.

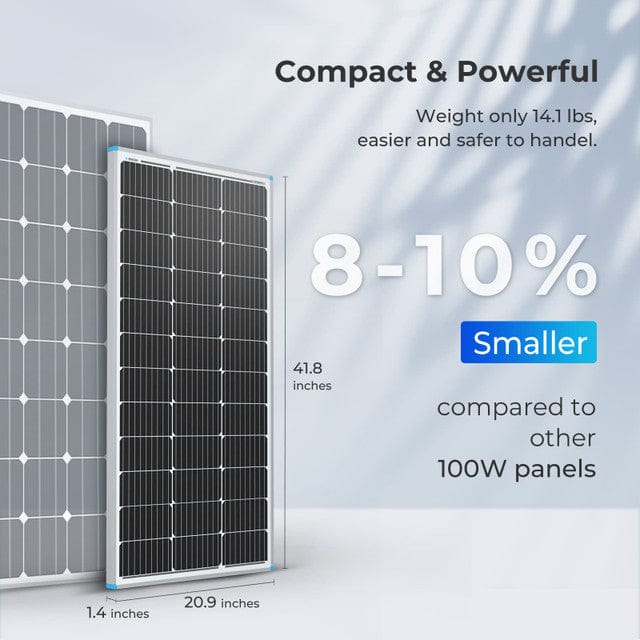

Compact & Lightweight Design - Slim profile and manageable weight make it ideal for space-limited installations on RVs, boats, and small rooftops.

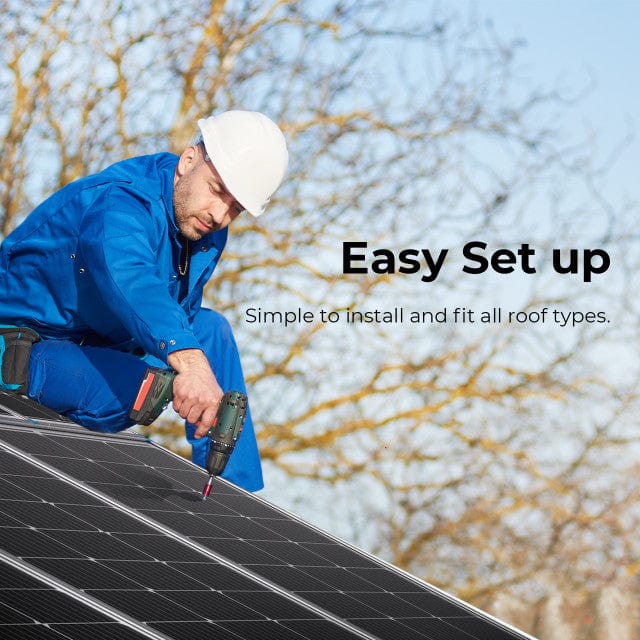

Easy Installation & Expansion - Includes pre-drilled mounting holes, a sealed junction box, and solar connector leads for quick setup and simple system expansion.

Certified & Tested for Reliability - Each panel undergoes 100% EL testing, ensuring no microcracks and consistent long-term performance.

Placeholder Image

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel Applications

  • RVs and camper vans – Powers lights, fans, and small electronics while off-grid.
  • Marine and boat systems – Maintains battery charge for onboard electronics.
  • Off-grid cabins and tiny homes – Reliable solar power for basic daily needs.
  • Residential backup power – Supports emergency or supplemental solar setups.
  • Remote monitoring systems – Ideal for cameras, sensors, and telecom equipment.
  • Expandable solar arrays – Easy to scale by adding additional panels.
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • Renogy 100 Watt 12 Volt Monocrystalline Solar Panel
  • User Manual

Warranty

  • 10 year material and workmanshipwarranty

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel Specifications

Electrical Data

Specification Details
Maximum Power at STC* 100 W
Optimum Operating Voltage (Vmp) 20.4 V
Optimum Operating Current (Imp) 4.91 A
Open Circuit Voltage (Voc) 24.3 V
Short Circuit Voltage (Isc) 5.21 A
Module Efficiency 17.8 %
Maximum System Voltage 600 VDC UL
Maximum Series Fuse Rating 15 A

Mechanical Data

Specification Details
Solar Cell Type Monocrystalline (6.5 x 3.3 in)
Number of Cells 36 (3 x 12)
Dimensions 1062 x 530 x 35 mm(41.8x20.9x1.4in)
Weight 6.4 kg(14.1lbs)
Front Glass Tempered Glass 0.13 in (3.2 mm)
Frame Anodized Aluminium Alloy
Connectors Solar Connectors
Fire Performance Type 1

Thermal Characteristics

Specification Details
OperatingTemp. Range -40ºC - 85ºC(-40°F - 185°F)
Nominal Operating Cell Temerature (NOCT) 47±2ºC
Temperature Coefficient of Pmax -0.37%/°C
Temperature Coefficient of Voc -0.28%/°C
Temperature Coefficient of Isc 0.05%/°C

MC4 Connectors

Specification Details
Rated Current 30A
Maximum Voltage 1000V DC
Maximum AWG Size Range 10 AWG
Temperature Range -40ºC - 90ºC(-40°F - 194°F)

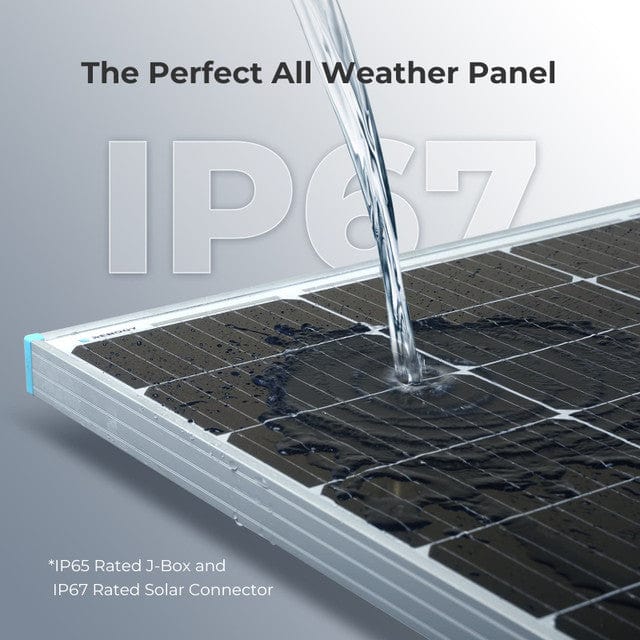

IP Rating IP 67

Junction Box

Specification Details
IP Rating IP 65
Diode Type HY 10SQ050
Number of Diodes 2 Diode(s)
Output Cables 14 AWG 600mm (23.6 in)

Frequently Asked Questions

Is this panel compatible with 12V battery systems?

Yes. This panel is designed for 12V systems and works with most solar charge controllers when properly configured.

Can this panel be used outdoors year-round?

Yes. It is built for permanent outdoor installation and rated for extreme temperatures and weather exposure.

Can I connect multiple panels together?

Absolutely. The panel supports series or parallel connections for system expansion, depending on your voltage and amperage requirements.

Does this panel include mounting hardware?

No mounting hardware is included, allowing you to choose the best mounting solution for your specific application.
