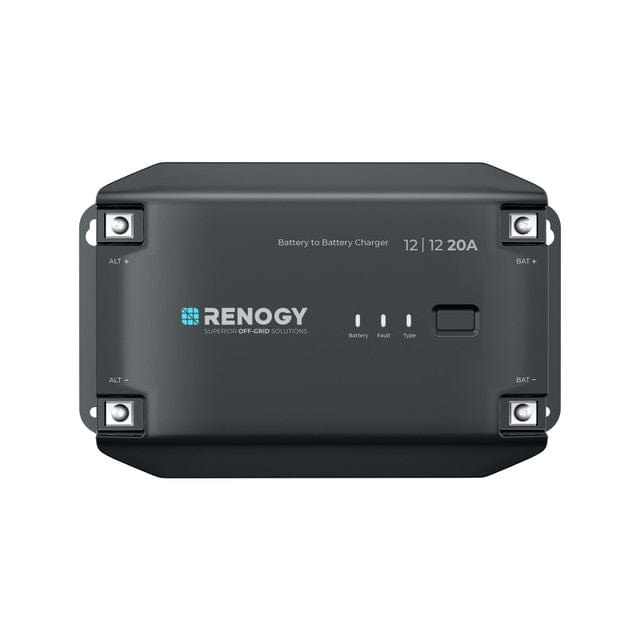

Renogy 12V 20A DC-DC Battery Charger

Name: Renogy 12V 20A DC-DC Battery Charger
Brand: Renogy
SKU: RBC20D1U-G1-US
Price: 140.99 USD
Availability: InStock

BY: Renogy

SKU: RBC20D1U-G1-US

| Availability: In stock

$201.99

$140.99

You Save: $61.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Renogy 12V 20A DC-DC Battery Charger

The Renogy 12V 20A DC-DC Battery Charger is the most effective way to charge your auxiliary or house batteries from your vehicle's alternator while on the move. Compatible with a wide range of alternator types, including smart alternators found in modern vehicles, this charger ensures your secondary battery bank receives a full, safe, and efficient charge. By utilizing multi-stage charging, it extends the life of your batteries and ensures you arrive at your destination with plenty of power for your appliances.

Renogy 12V 20A DC-DC Battery Charger Features

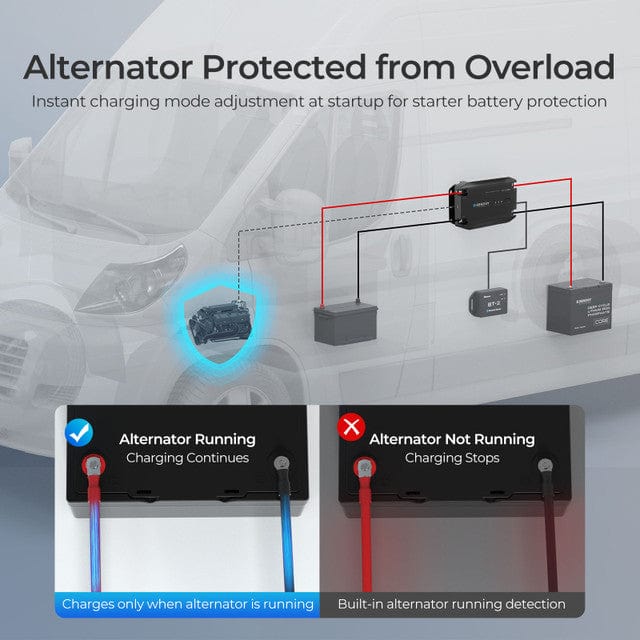

Starter Battery Safeguard - Integrated alternator running detection ensures the charger only operates when the engine is on, preventing the unit from accidentally draining your starter battery.

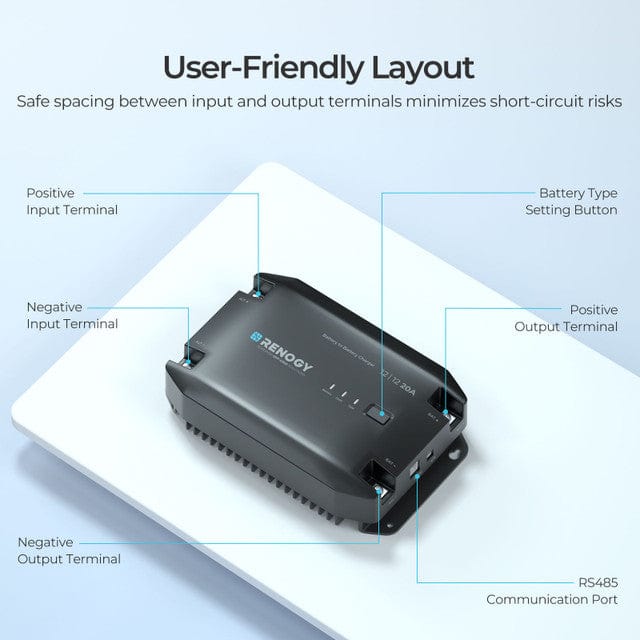

Compact Installation - Features a simple and compact layout designed for tight spaces in RVs, vans, or trucks, making for an easy installation process even for DIYers.
Smart Remote Monitoring - Compatible with BT-2 Bluetooth modules, allowing you to remotely monitor charging status in real-time and access up to 365 days of historical data via the Renogy DC Home app.

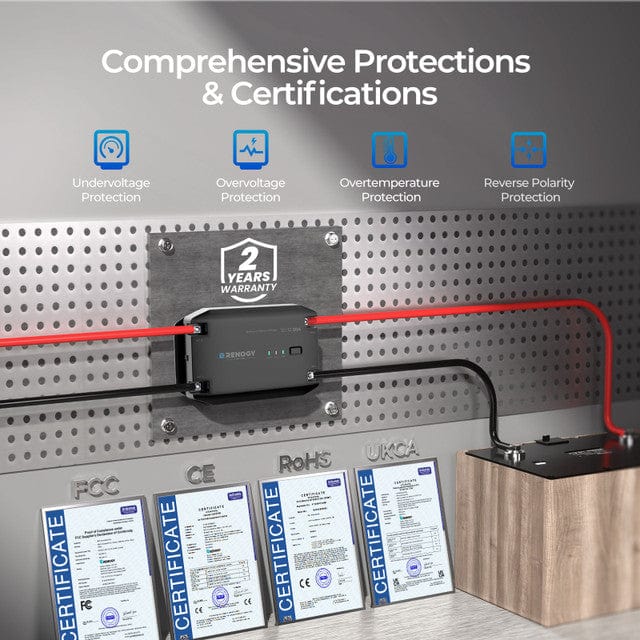

Advanced Safety Protections - Equipped with advanced protections including overvoltage, over-temperature, and reverse polarity to ensure efficient and safe charging under all conditions.

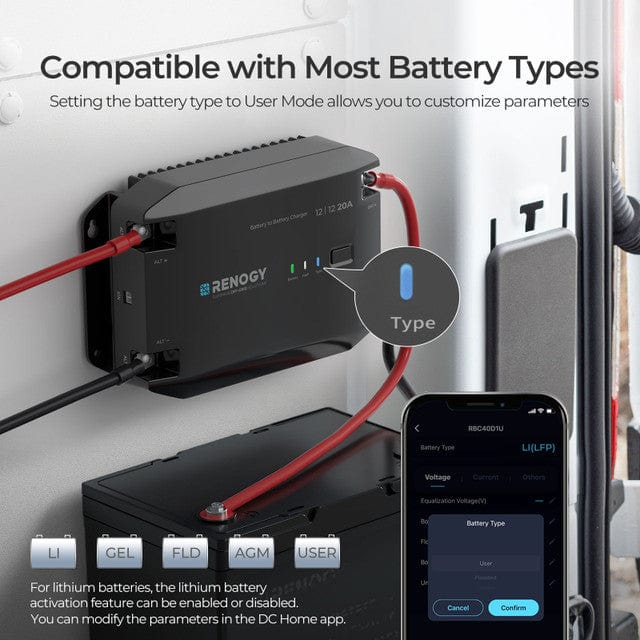

Customizable Lithium Performance - The Li Battery Activation On/Off feature offers customizable performance, allowing the charger to "wake up" lithium batteries that have entered sleep mode due to low voltage.

Renogy 12V 20A DC-DC Battery Charger Applications

Van Life - Charges secondary LiFePO4 or AGM house batteries while driving between campsites.
Overlanding - Ensures auxiliary batteries for fridges and lights remain topped off during long trail rides.
Marine - Charges house battery banks from the boat’s outboard or inboard engine alternator.
Commercial Vehicles - Maintains power for work tools and equipment batteries in service trucks.

What's Included

Everything you need is included with your product.

1 x Battery Charger
1 x Battery Temperature Sensor (2m)
1 x IGN Signal Wire (3m)

4 x Terminal Ring
User Manual

Warranty

2-year Material and workmanship warranty

Renogy 12V 20A DC-DC Battery Charger Specifications

General Data

Specification	Details
Terminal Range	10AWG - 8AWG
Grounding	Common Negative
Communication Protocol	RS485 Communication
Humidity	0%-95%, No Condensation
Operating Temperature Range	-4℉ -122℉ /-25 ℃ - 60℃
Storage Temperature Range	-4℉ -122℉ /-40 ℃ - 85℃
Maximum Operating Altitude	3000m
Enclosure Rating	0%- 95% , No condensation
Dimensions	9.31 in (236.5 mm)x5.17 in (131.5 mm)x2.36 in(60.5 mm)
Weight	3.3 lb / 1.5 kg
Certification	CE/RoHS/FCC
Protection	Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection

Electrical Data

Specification	Details

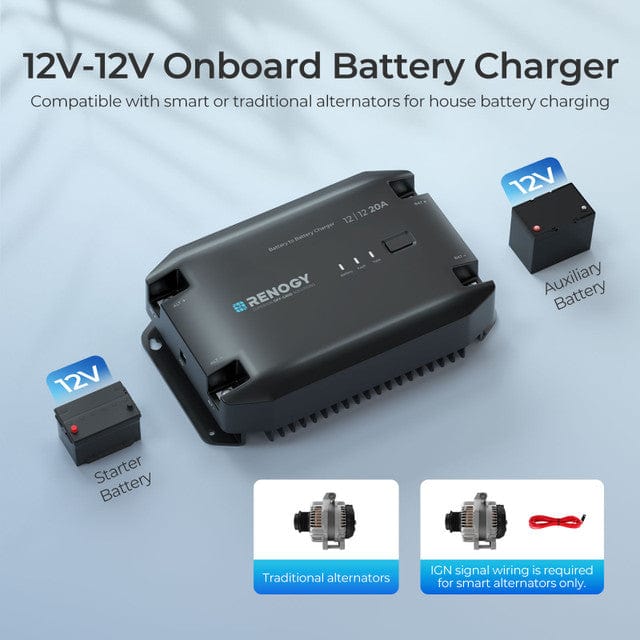

System Voltage	12V-12V
Alternator Input Voltage	Traditional Alternator: 13.2-16.0VDC \| Smart Alternator (Euro 6): 12-16.0VDC
Maximum Output Current Rating	20A
Output Power	292W
Battery Types	AGM, Gel, Flooded, Lithium-iron Phosphate，User
Input Fuse Rating	40A
Output Fuse Rating	30A
Charging Efficiency	94%
Temperature Compensation	-3mV / ℃ / 2V (Non-Lithium) \| 0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption	＜15mA

Frequently Asked Questions

Can I use this with a "Smart Alternator"?

Yes. This charger includes a D+ Ignition terminal that allows it to work perfectly with smart alternators (Euro 6) by sensing when the ignition is actually engaged.

Do I need to run a wire to the vehicle's ignition?

If you have a traditional alternator, the voltage sensing may be enough, but for modern vehicles or more reliable operation, connecting the included IGN signal wire to the ignition is highly recommended.

Does this charger work with Lithium (LiFePO4) batteries?

Absolutely. It features a dedicated Lithium charging profile and a "wake-up" function to revive lithium batteries that have been over-discharged.
