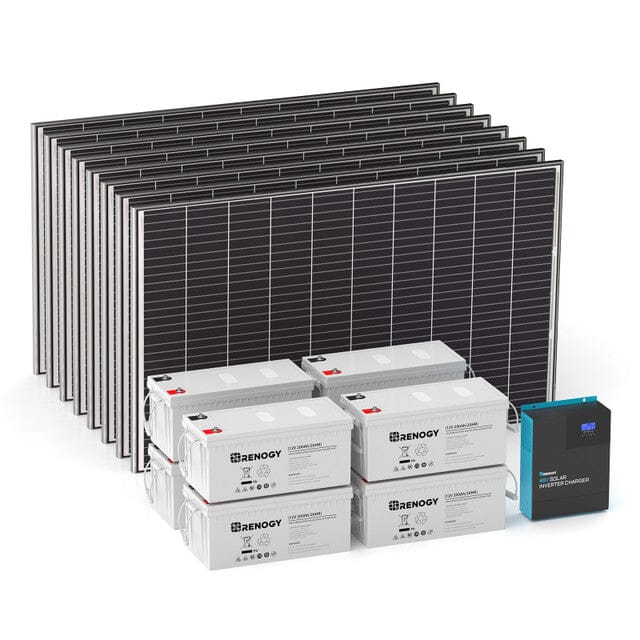

Renogy 2.5kW Essential Plus Kit
The Renogy 2.5kW Essential Plus Kit is a powerful and compact solar power solution designed for homes, cabins, or light commercial applications. With everything you need to start generating and storing clean energy, this all-in-one bundle offers a balanced combination of solar input, energy storage, and intelligent energy management. Whether you're seeking energy independence or reliable backup power, this kit is engineered to perform with long-lasting reliability and simplified installation.
Renogy 2.5kW Essential Plus Kit Features
All-in-One Design – Includes solar panels, hybrid inverter, and lithium battery system in a single, easy-to-integrate package.
High-Efficiency Solar Panels – Premium monocrystalline panels deliver up to 2.5kW of clean, renewable energy with excellent temperature coefficient and durability.
Intelligent Hybrid Inverter – Supports off-grid, grid-tied, and backup modes, with seamless switching and smart energy management.
Reliable Energy Storage – Built-in lithium iron phosphate (LiFePO4) battery bank offers safe, long-lasting energy storage.
Remote Monitoring Capable – Compatible with Renogy ONE M1 for app-based system monitoring, energy tracking, and smart automation.
Renogy 2.5kW Essential Plus Kit Applications
-
Backup Power – Delivers stored energy during blackouts for critical loads like lighting, refrigerators, or medical devices.
-
Off-Grid Living – Ideal for cabins, tiny homes, or remote installations without access to utility power.
-
Grid-Tied Efficiency – Reduces utility costs and supports net metering setups when grid power is available.
-
Energy Independence – Empowers homeowners to generate and store their own electricity.
-
Eco-Friendly Power – Enables sustainable living with zero-emissions solar energy.

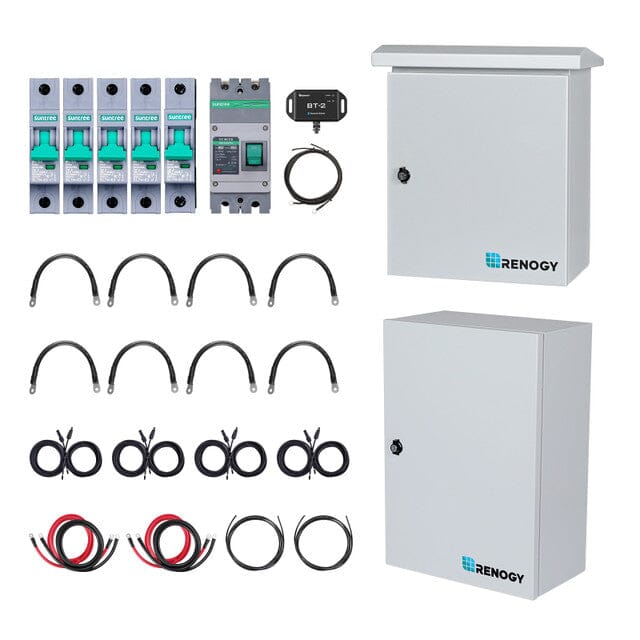

What’s Included?
-

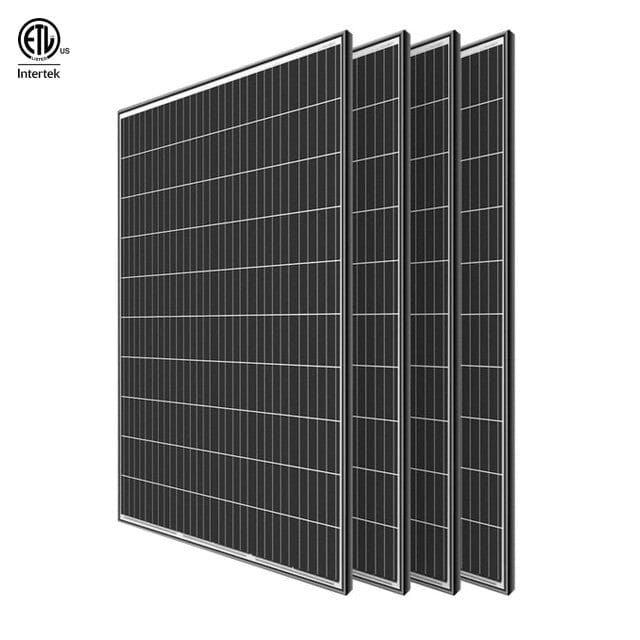

2 × 4 Pieces of 320 Watt Monocrystalline Solar Panel
-
4 × 40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)
-
1 × 5 Strings Solar Combiner Box
-

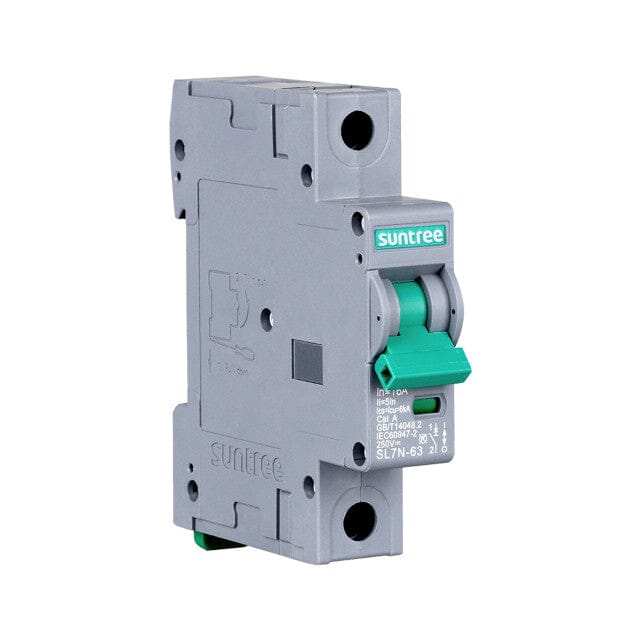

4 × 16A 1P DC Miniature Circuit Breaker
-
1 × DC Circuit Breaker Box
-
1 × 50A 1P DC Miniature Circuit Breaker
-
1 × 16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)
-
2 × 8Ft 8AWG Solar Stranded Copper PV Wire
-
1 × 160A 2P DC Molded Case Circuit Breaker
-

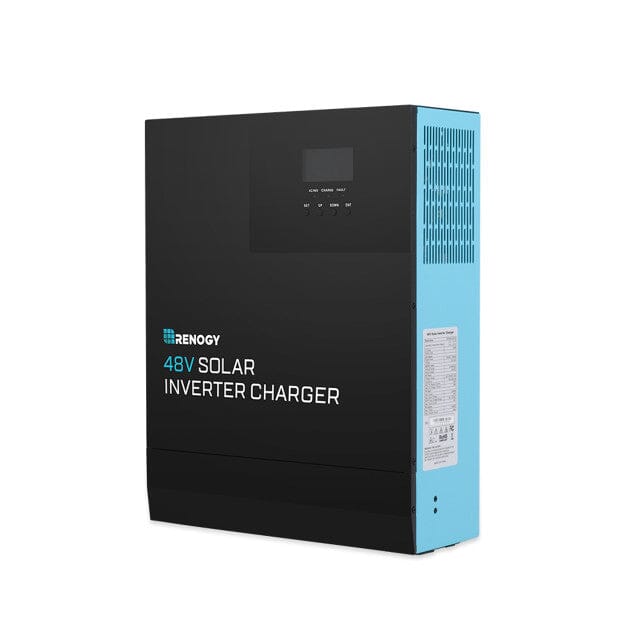

1 × 48V 3500W Solar Inverter Charger
-

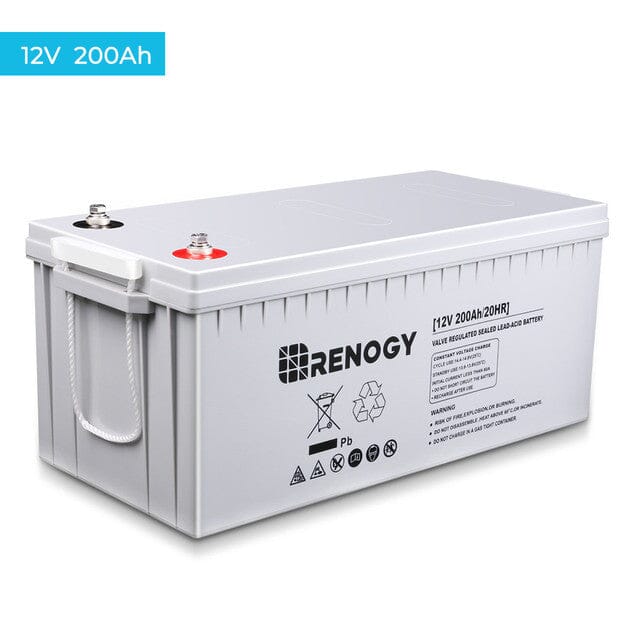

8 × 12V 200Ah AGM Battery
-
8 × 12Inch 1AWG Copper Battery Interconnect Cable for 3/8Inch Lugs
-
2 × 8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)
-

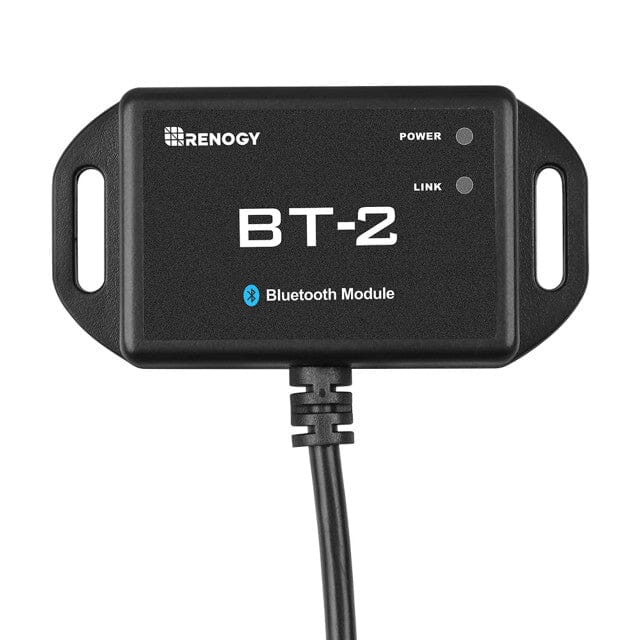

1 × BT-2 Bluetooth Module
Renogy 2.5kW Essential Plus Kit Specifications
| 320 WATT MONOCRYSTALLINE SOLAR PANEL |
| Maximum Power at STC |
320W |
| Optimum Operating Voltage (Vmp) |
32.7V |
| Open-Circuit Voltage (Voc) |
40.1V |
| Optimum Operating Current (Imp) |
9.79A |
| Short-Circuit Current (Isc) |
10.36A |
| Operating Temperature |
-40°F to 185°F |
| Cell Efficiency |
21% |
| Maximum System Voltage |
1000V DC (UL) |
| Maximum Series Fuse Rating |
15A |
| Weight |
39.71lbs |
| Dimensions |
65.6 x 39.4 x 1.4 in |
| Certifications |
CE, ISO, UL |
| RENOGY 48V 3500W SOLAR INVERTER CHARGER WITH 80A/145V MPPT |
| Output Waveform |
Pure Sine Wave |
| Continuous Output Power |
3500W |
| Peak Power Rating |
7000W |
| Output Voltage |
120VAC±5% |
| Output Frequency |
50 Hz ± 0.3% / 60 Hz ± 0.3% |
| Input Voltage / Rated Battery Voltage |
48VDC (minimum start-up voltage 44V) |
| Charge Controller Type |
MPPT |
| Maximum Input Power |
4800W |
| Maximum Input Current |
50A |
| Dimensions |
16.8*12.7*4.9 in / 426*322*124 mm |
| Weight |
23.8 lbs / 10.8kg |
| 12 VOLT 200AH DEEP CYCLE AGM BATTERY |
| Battery Type |
AGM |
| Rated Capacity |
200Ah (20 Hour Rate to 10.5V) |
| Nominal Voltage |
12V |
| Internal Resistance |
Approx. 3.5mΩ |
| Connection Method |
In Series, and In Parallel (up to 4) |
| Dimensions |
20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm |
| Weight |
127.9 lbs / 58 kg |
| Standard Operation Temperature |
77°F±9°F (25°C±5°C) |
| WARRANTY INFORMATION |
| Panels |
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty; 10-year material and workmanship warranty |
| Accessories |
1-year material and workmanship warranty |
Frequently-Asked Questions
Can I expand the system later?
Yes, the system can be expanded by adding additional solar panels or compatible batteries as needed.
Does this work without the grid?
Absolutely. It operates in off-grid mode and can function independently using just solar and batteries.
Is it compatible with generators?
Yes, the hybrid inverter can be integrated with a generator for charging during prolonged cloudy weather or outages.
