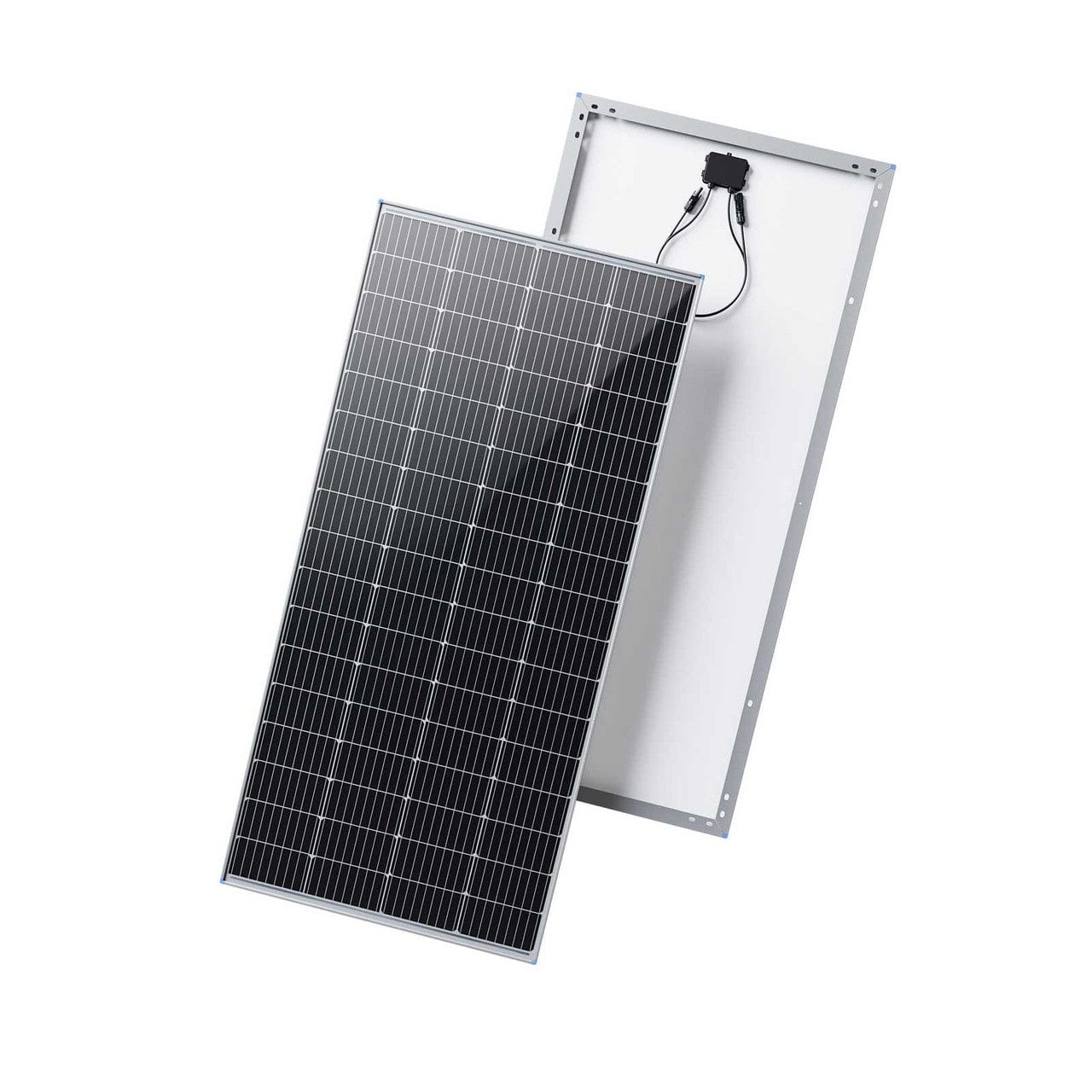

Renogy 200-Watt 12-Volt Monocrystalline Solar Panel
The Renogy 200-Watt 12-Volt Monocrystalline Solar Panel is a rigid solar panel designed for off-grid power systems. It provides 200W maximum power output, 19.2% module efficiency, and uses monocrystalline solar cells with a durable aluminum frame and tempered glass. This panel is suitable for 12V and 24V battery banks, water pumping systems, signaling systems, and other off-grid applications.
Renogy 200-Watt 12-Volt Monocrystalline Solar Panel Features
200W Maximum Power Output - Provides 200W maximum power at STC for off-grid solar power applications.
19.2% Module Efficiency - Designed with 19.2% module efficiency to deliver more power output per surface area.

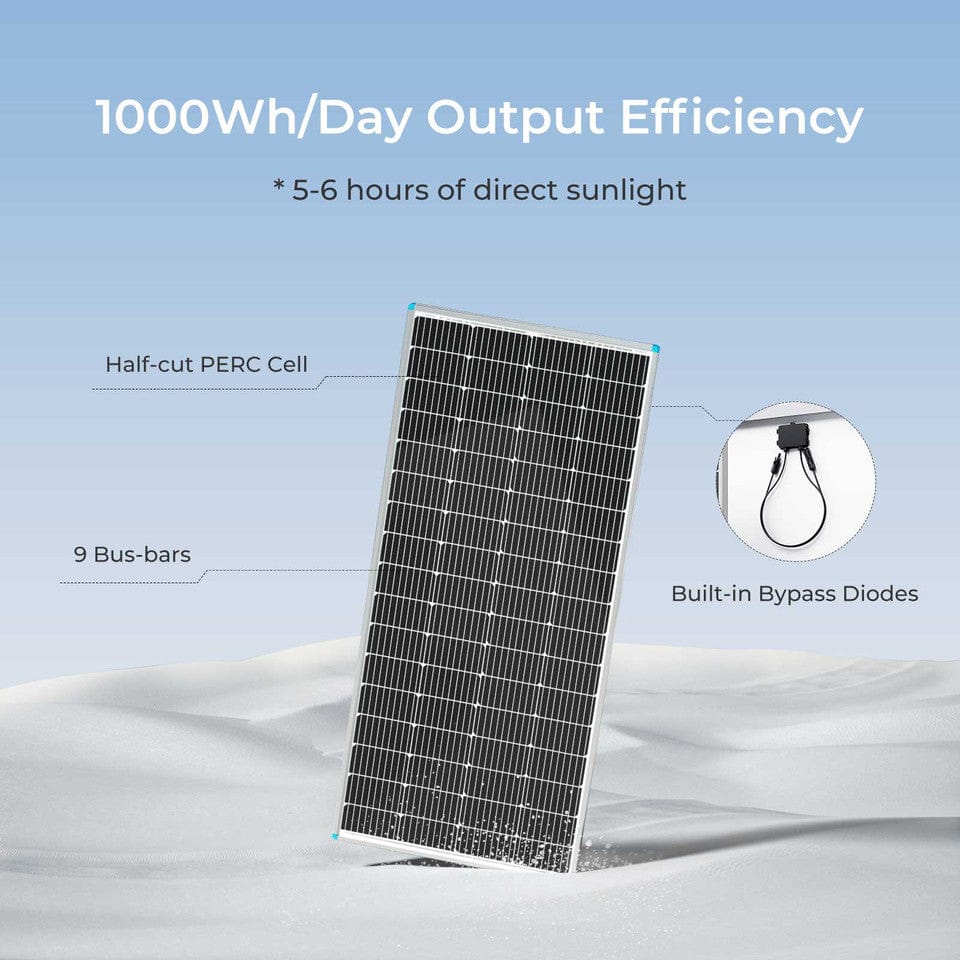

Monocrystalline Solar Cells - Uses monocrystalline solar cells with a cell size of 6.5 x 3.3 in.

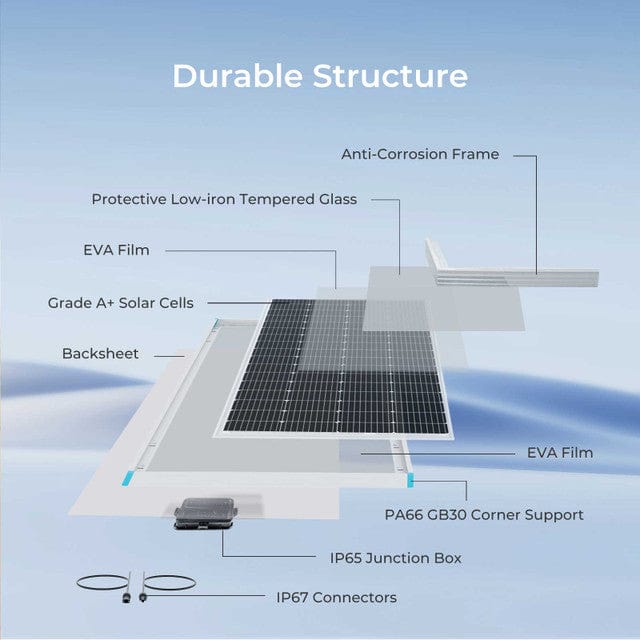

Durable Aluminum Frame - Built with an anodized aluminum alloy frame for durability.
Tempered Glass Front - Features 0.13 in / 3.2 mm tempered glass.
MC4 Connectors - Includes MC4 connectors with a rated current of 30A and maximum voltage of 1000VDC.
IP65 Junction Box - The junction box has an IP65 rating.
IP68 MC4 Connector Rating - The MC4 connectors have an IP68 rating.
Warranty Coverage - Includes a 25-year power output warranty and a 10-year material and workmanship warranty.
Renogy 200-Watt 12-Volt Monocrystalline Solar Panel Applications
-
Off-Grid Power Systems – Designed for off-grid solar power system applications.
-
12V Battery Banks – Can be used with compatible 12V battery bank systems.
-
24V Battery Banks – Can be used with compatible 24V battery bank systems.
-
Water Pumping Systems – Suitable for solar-supported water pumping applications.
-
Signaling Systems – Can be used in compatible signaling system applications.
-
Other Off-Grid Applications – Designed for additional off-grid solar power uses.
What’s Included?
- Renogy 200-Watt 12-Volt Monocrystalline Solar Panel
- User Manual
Warranty
- 25-year power output warranty
- 10-year material and workmanship warranty
Renogy 200-Watt 12-Volt Monocrystalline Solar Panel Specifications
Electrical Data
| Specification |
Details |
| Maximum Power at STC* |
200 W |
| Optimum Operating Voltage (Vmp) |
19.2 V |
| Optimum Operating Current (Imp) |
10.42 A |
| Open Circuit Voltage (Voc) |
23.0 V |
| Short Circuit Current (Isc) |
11.05 A |
| Module Efficiency |
19.2% |
| Maximum System Voltage |
600 VDC |
| Maximum Series Fuse Rating |
20 A |
Mechanical Data
| Specification |
Details |
| Solar Cell Type |
Monocrystalline (6.5 × 3.3 in) |
| Number of Cells |
68 (4 × 17) |

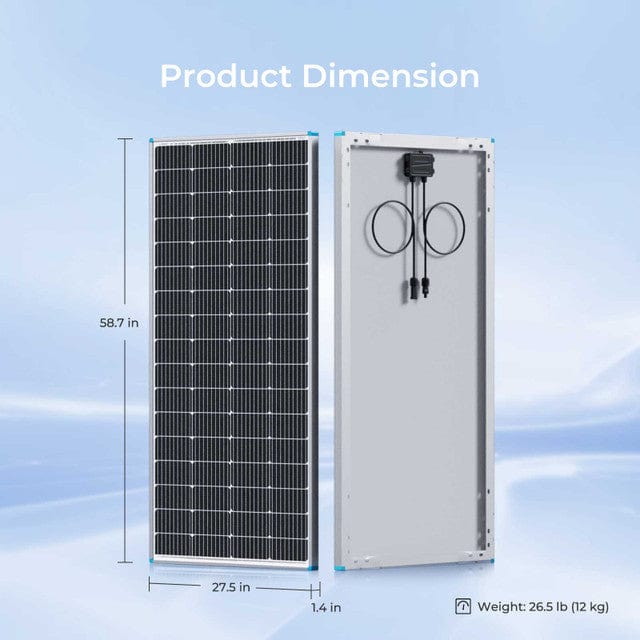

| Dimensions |
1491 × 699 × 35 mm (58.7 × 27.5 × 1.4 in) |
| Weight |
12 kg (26.5 lbs) |
| Front Glass |
Tempered Glass 0.13 in (3.2 mm) |
| Frame |
Anodized Aluminum Alloy |
| Connectors |
MC4 Connectors |
| Fire Performance |
Type 1 |
Thermal Characteristics
| Specification |
Details |

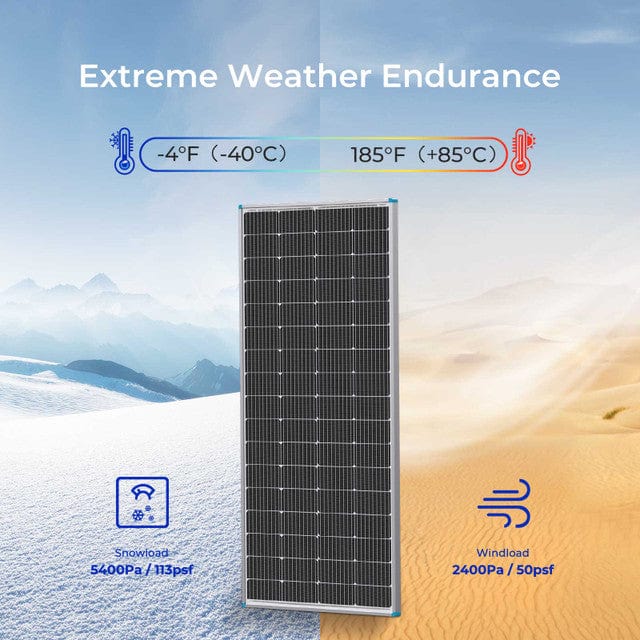

| Operating Temperature Range |
-40°C to 85°C (-40°F to 185°F) |
| Nominal Operating Cell Temperature (NOCT) |
47 ±2°C |
| Temperature Coefficient of Pmax |
-0.37% / °C |
| Temperature Coefficient of Voc |
-0.28% / °C |
| Temperature Coefficient of Isc |
0.05% / °C |
MC4 Connectors
| Specification |
Details |
| Rated Current |
30 A |
| Maximum Voltage |
1000 VDC |
| Maximum AWG Size Range |
12 AWG |
| Temperature Range |
-40°C to 90°C (-40°F to 194°F) |
| IP Rating |
IP68 |
Junction Box
| Specification |
Details |
| IP Rating |
IP65 |
| Diode Type |
20SQ045 |
| Number of Diodes |
2 Diode(s) |
| Output Cables |
14 AWG, 800 mm (31.5 in) |
Certifications
| Specification |
Details |
| Certifications |
EN IEC61730, EN IEC61215, ISO 9001 Quality Management System, ETL |
Frequently-Asked Questions
What is the maximum power output of this solar panel?
The Renogy 200-Watt 12-Volt Monocrystalline Solar Panel has a 200W maximum power output.
What is the module efficiency?
The module efficiency is 19.2%.
What type of solar cells does it use?
It uses monocrystalline solar cells.
What are the dimensions of the panel?
The panel measures 1491 x 699 x 35 mm / 58.7 x 27.5 x 1.4 in.
How much does the panel weigh?
The panel weighs 12 kg / 26.5 lb.
What connectors does it use?
The panel uses MC4 connectors.
What is the junction box IP rating?
The junction box has an IP65 rating.
What is the MC4 connector IP rating?
The MC4 connectors have an IP68 rating.
What applications is this panel used for?
It is used for off-grid power systems, including 12V and 24V battery banks, water pumping systems, signaling systems, and other off-grid applications.
What warranty does it include?
It includes a 25-year power output warranty and a 10-year material and workmanship warranty.
