Renogy 250-Watt 12-Volt Bifacial N-Type Solar Panel
Estimated Delivery Between
and .
Order within to get it by the earliest date.
Free Shipping In The USA | Call Us: 877-556-3347
Free Shipping In The USA | Call Us: 877-556-3347
Found A Better Price?
Share it with us now and we will beat it. Get the best deal online, guaranteed!
Estimated Delivery Between
and .
Order within to get it by the earliest date.
Not Sure This Is The Right System?

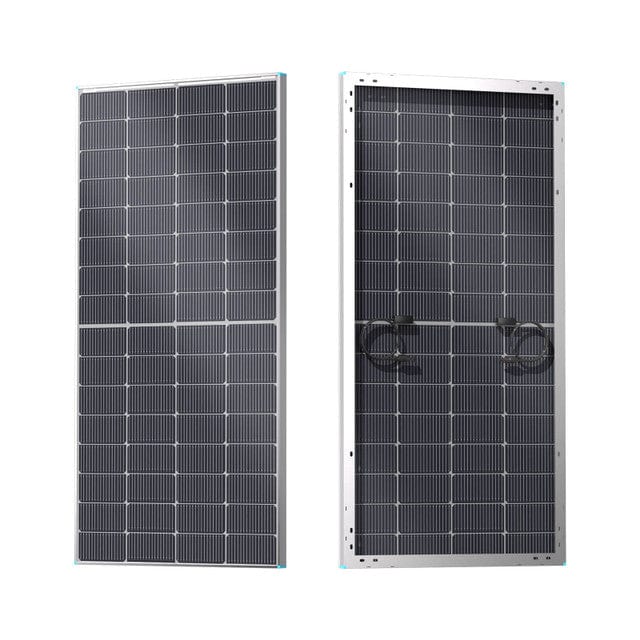

Request a Free Solar ProposalThe Renogy 250-Watt 12-Volt Bifacial N-Type Solar Panel is a high-efficiency solution designed to maximize solar energy generation in both residential and off-grid applications. Utilizing advanced N-Type cell technology and bifacial design, this panel captures sunlight from both the front and rear sides, increasing overall energy yield. Built with durability in mind, it delivers reliable performance even in harsh outdoor environments, making it ideal for long-term solar investments.
Everything you need is included with your product.


Electrical Data
| Specification | Details |
| Maximum Power at STC* | 250W |
| Optimum Operating Voltage (Vmp) | 19.52V |
| Optimum Operating Current (Imp) | 12.81A |
| Open Circuit Voltage (Voc) | 22.35V |
| Short Circuit Current (Isc) | 13.49 A |
| Module Efficiency | 21.2% |
| Maximum System Voltage | 1000 VDC |
| Maximum Series Fuse Rating | 30A |
Mechanical Data
| Specification | Details |
| Solar Cell Type | Monocrystalline (7.2 x 3.6 in) |
| Number of Cells | 64 (4 x 16) |

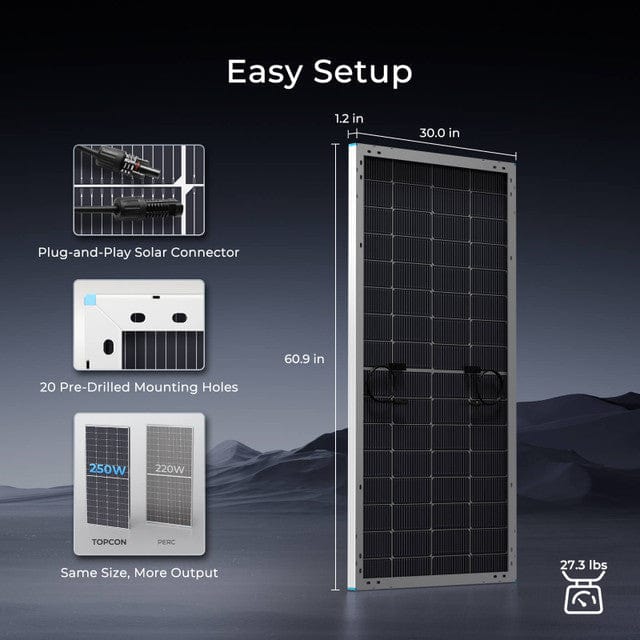

| Dimensions | 1547 x 763 x 30 mm / 60.9 x 30.0 x 1.2 in |
| Weight | 12.4 kg / 27.3 lbs |
| Frame | Anodized Aluminum Alloy |
| Connectors | MC4 Connectors |
| Fire Performance | Type 1 |
Thermal Characteristics
| Specification | Details |
| OperatingTemp. Range | -40ºC - 85ºC(-40°F - 185°F) |
| Nominal Operating Cell Temerature (NOCT) | 45±2ºC |

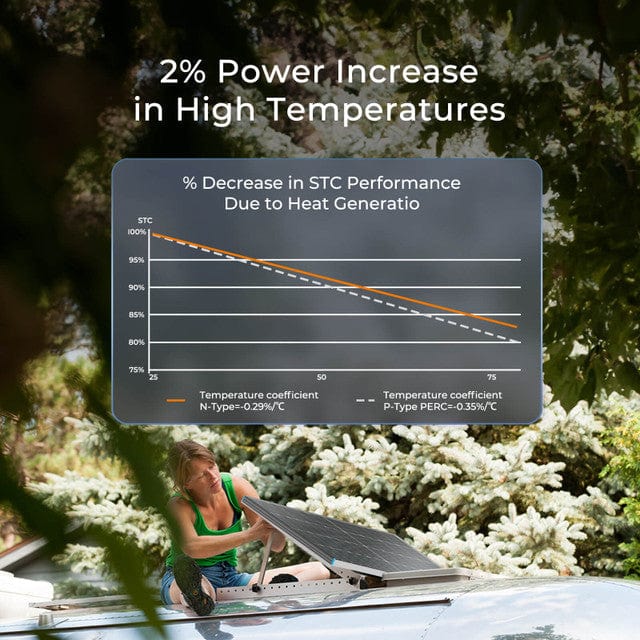

| Temperature Coefficient of Pmax | -0.32%/ºC |
| Temperature Coefficient of Voc | -0.26%/ºC |
| Temperature Coefficient of Isc | 0.046%/ºC |
Solar Connectors
| Specification | Details |
| Rated Current | 30 A |
| Maximum Voltage | 1500 VDC |
| Maximum AWG Size Range | 12 AWG |
| Temperature Range | -40ºC -85ºC(-40°F - 185°F) |

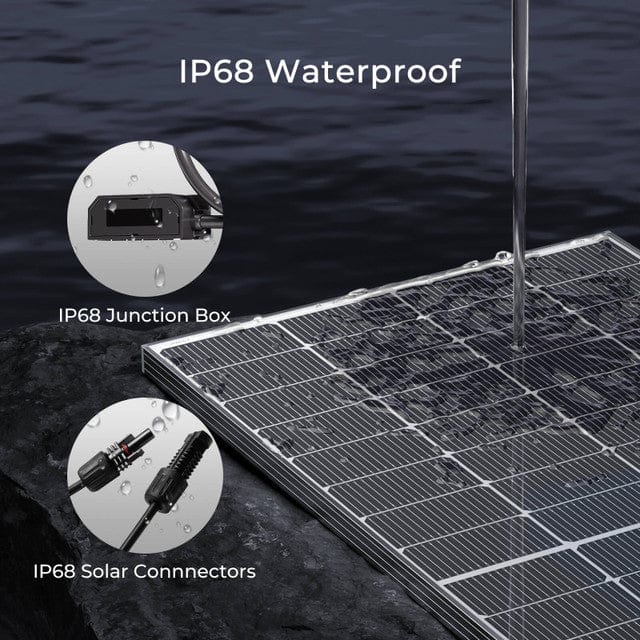

| IP Rating | IP 68 |
Junction Box
| Specification | Details |
| IP Rating | IP 68 |
| Diode Type | MD2045S/MD3045S |
| Number of Diodes | 2 Diode(s) |
| Output Cables | 12 AWG 1000mm (39.4 in) |
Certifications
| Certifications | Details |
| Certifications | CE EN IEC61730 EN IEC61215, ISO 9001: Quality Management System |

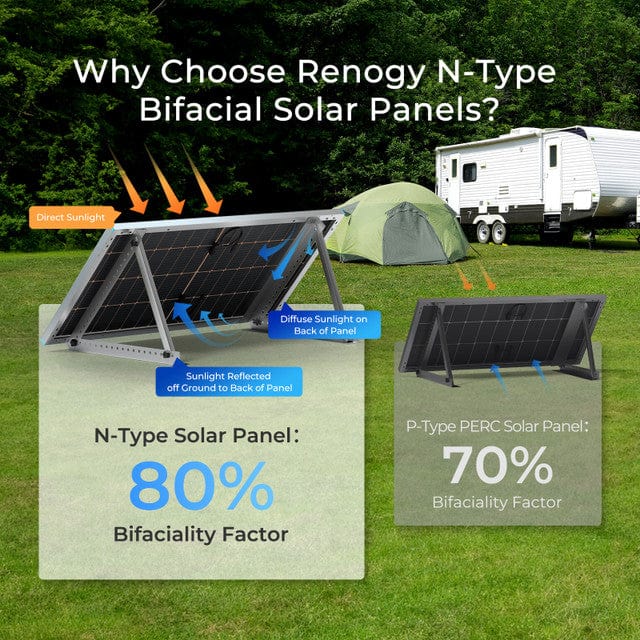

What does bifacial mean?
Bifacial panels generate power from both the front and rear sides, increasing overall energy output when light reflects off surfaces like the ground.
Is this panel suitable for off-grid systems?
Yes, it’s ideal for off-grid, RV, and residential solar setups.
Do I need special mounting for bifacial panels?
For best performance, install the panel where light can reflect onto the back side, such as elevated or ground-mounted setups.

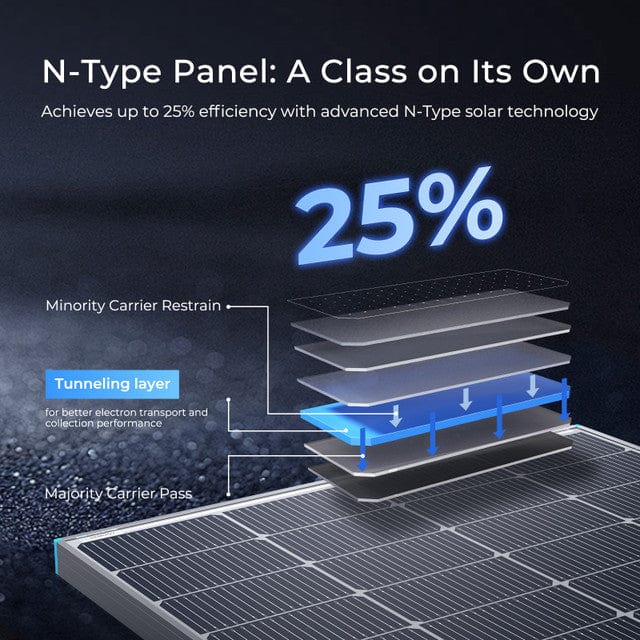

How does N-Type technology benefit me?
N-Type cells offer higher efficiency, better durability, and lower degradation over time.
