Renogy 5 Strings Solar Combiner Box

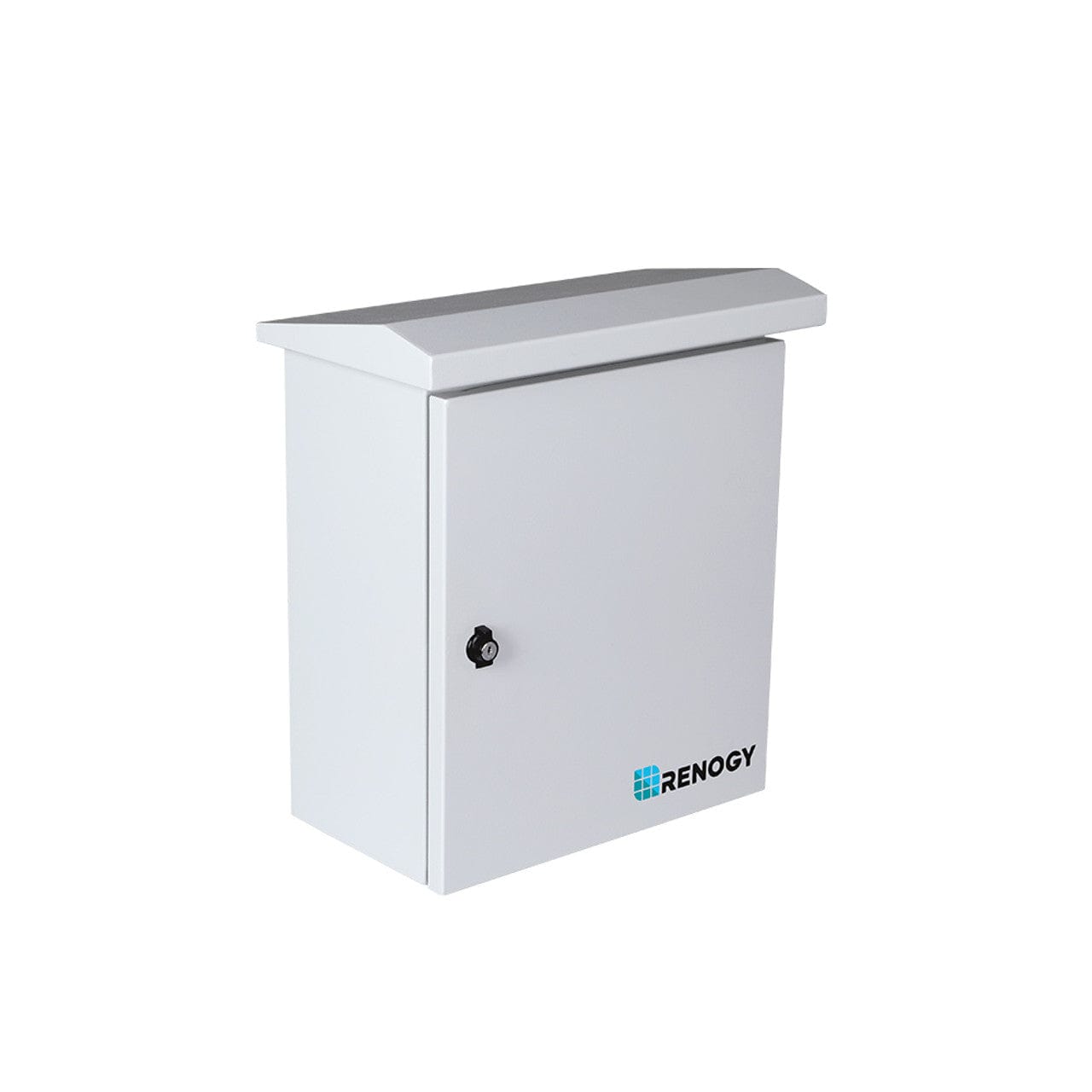

The Renogy 5 Strings Solar Combiner Box is a durable and efficient solution for simplifying the wiring of larger photovoltaic (PV) systems. Designed to combine up to five solar panel strings into a single output, it reduces installation complexity while providing a centralized location for circuit protection and maintenance. Built with a weather-resistant IP65-rated enclosure, DIN rail compatibility, and support for individual circuit breakers and surge protection devices, this combiner box is ideal for both on-grid and off-grid solar installations.

Renogy 5 Strings Solar Combiner Box Features

Supports Up to Five Solar Strings - Combines up to five individual solar panel inputs into a single output, reducing wiring complexity and improving overall system organization.
Individual Circuit Protection - Each PV input can be equipped with its own DC circuit breaker, providing reliable protection against overloads and short circuits.

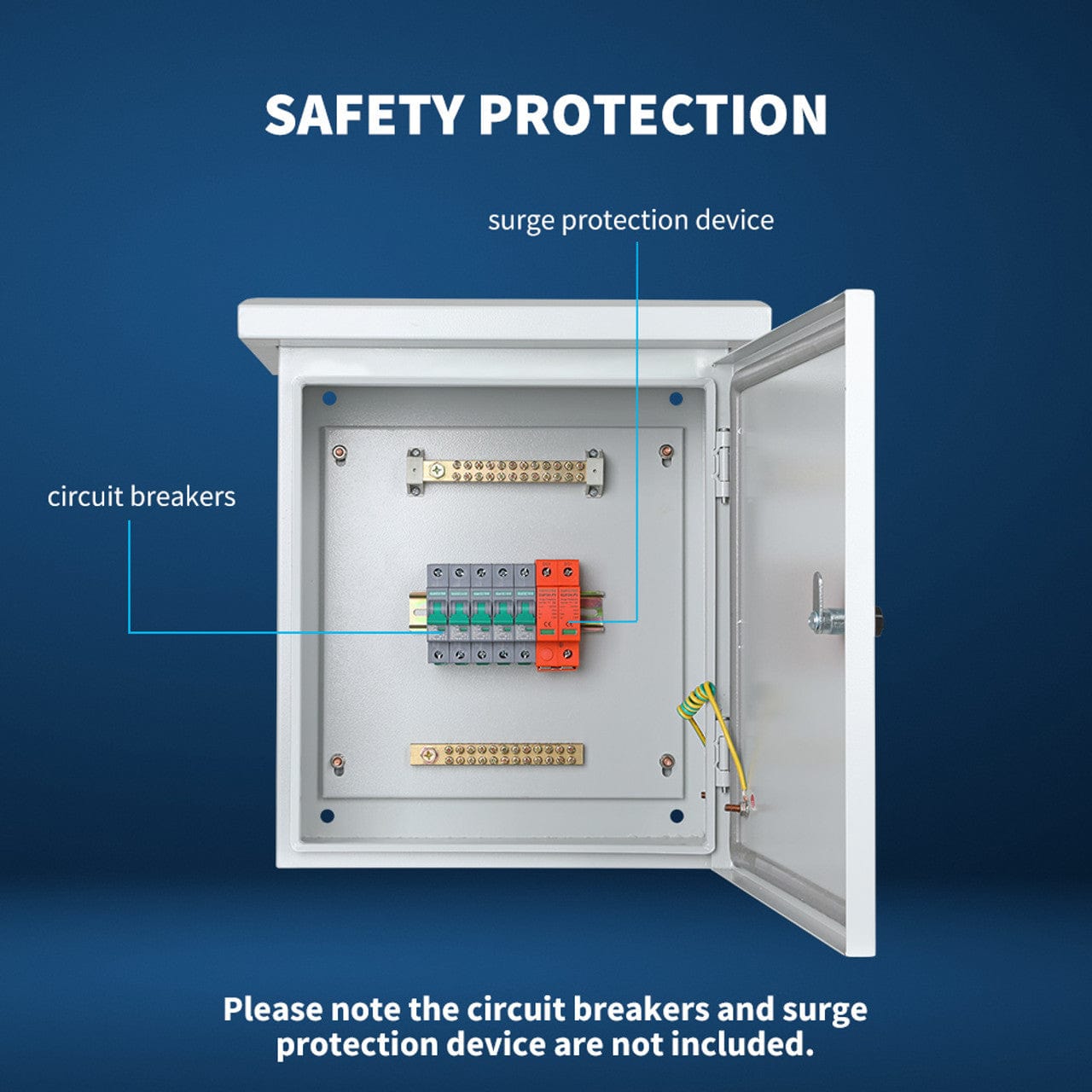

Supports Surge Protection - Designed to accommodate surge protection devices (SPD) and circuit breakers, helping safeguard solar equipment from electrical faults and lightning-related surges.
Quick DIN Rail Installation - Features a standard DIN rail mounting system, allowing for faster installation, easier upgrades, and simplified maintenance.
Outdoor IP65-Rated Enclosure - The IP65-rated waterproof enclosure features durable rubber door seals that protect internal components from dust, rain, and harsh outdoor environments.
Suitable for On-Grid & Off-Grid Systems - Designed for residential, commercial, RV, and off-grid photovoltaic systems where safe and organized DC power distribution is required.

Renogy 5 Strings Solar Combiner Box Applications

Residential rooftop solar systems – Combines multiple PV strings into a centralized connection point for easier installation and maintenance.
Off-grid solar power systems – Simplifies wiring and improves safety for remote renewable energy installations.
Commercial solar arrays – Organizes multiple panel strings while supporting circuit protection for larger systems.
RV and camper solar systems – Provides a clean and protected wiring solution for multi-panel mobile solar setups.
Tiny homes – Centralizes solar wiring for compact renewable energy systems.
Agricultural solar installations – Protects and organizes PV wiring for irrigation, pumps, and remote equipment.
Backup power systems – Serves as the central junction for multiple solar panel strings charging battery banks.
Marine solar installations – Offers weather-resistant protection for photovoltaic systems on boats and yachts.
Ground-mounted solar arrays – Improves cable management and electrical safety.
DIY solar projects – Ideal for custom solar installations requiring multiple panel strings.

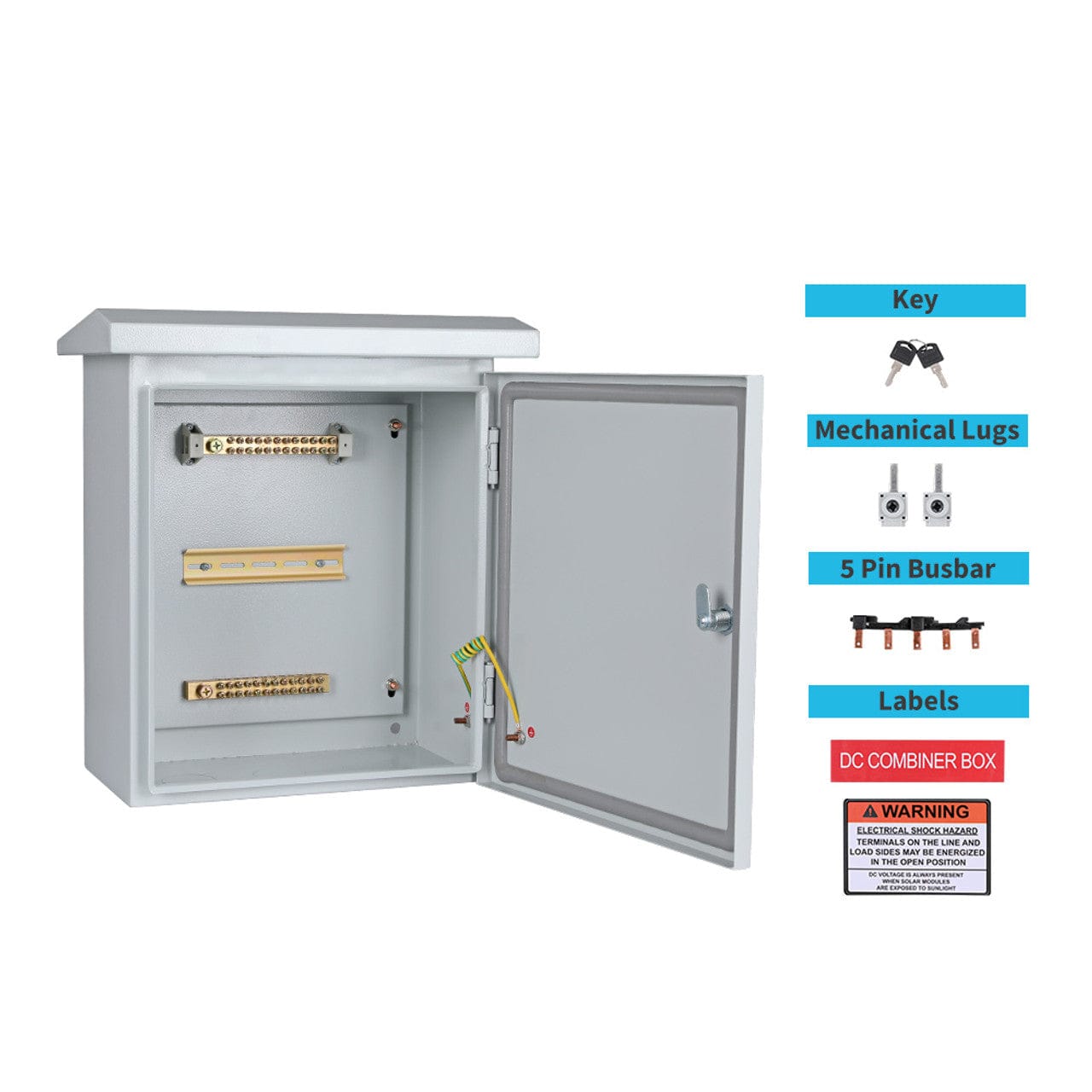

What's Included

Everything you need is included with your product.

1 x Renogy 5 Strings Solar Combiner Box
1 x Rated Current 100A (5 Pin Busbar)
2 x Mechanical Lugs

1 x Key
2 x Labels
User Manual

Warranty

1-Year Material and workmanship warranty

Renogy 5 Strings Solar Combiner Box Specifications

160A 2P DC Molded Case Circuit Breaker

Specification	Details
Maximum PV Input/Output Voltage	250VDC
Maximum Number of Input Circuits	5
Maximum Overcurrent Protection Device Rated Current	63A
Rated Short Circuit Current	6KA
Maximum Output Current	100A

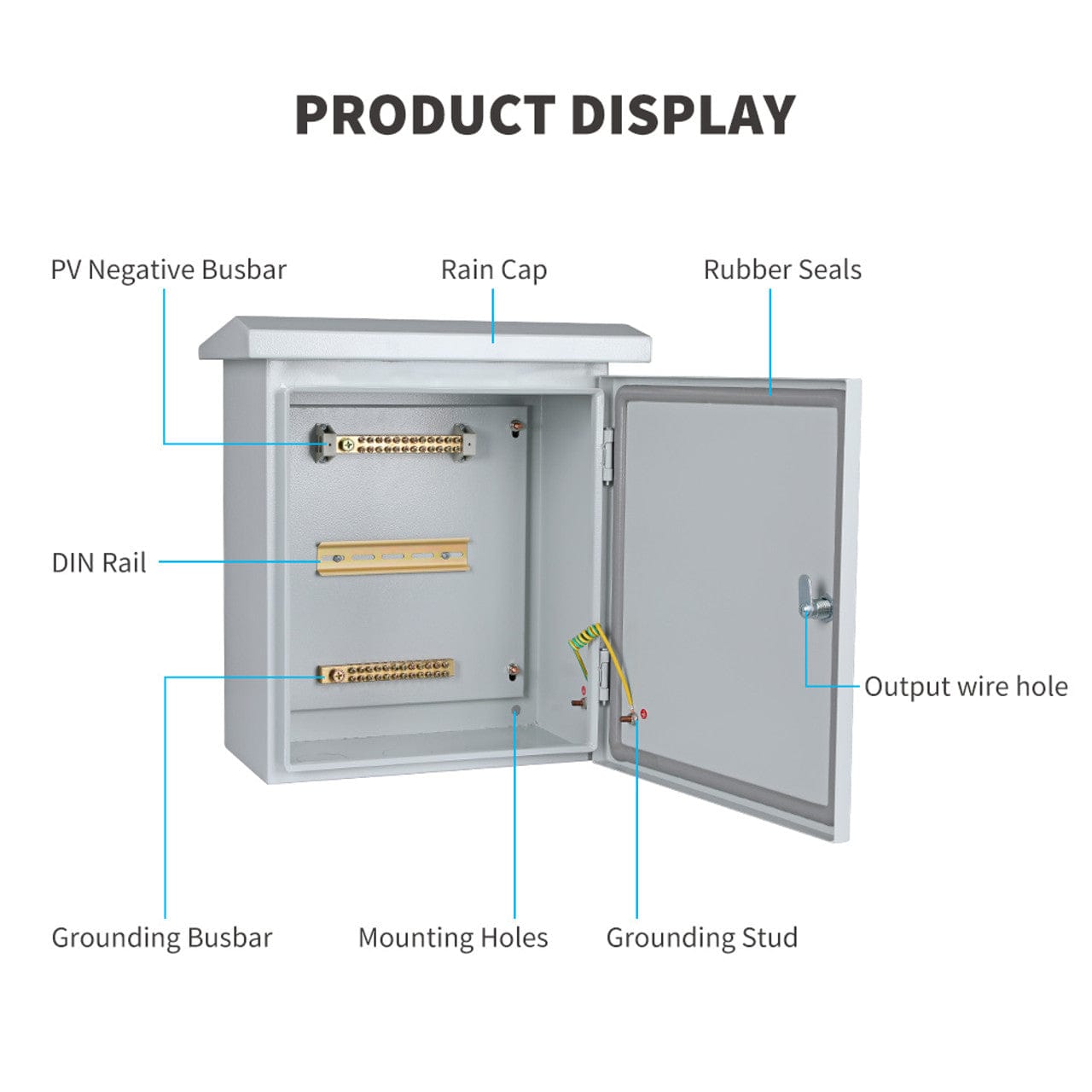

Number of Busbars	2 (PV Negative Busbar, Grounding Busbar)
Busbar Rated Current	200A
Busbar Material	Copper
Busbar Terminal	Compression Terminals (24), Lug Terminal (1)
Busbar Screw	M5 (Compression Terminal), M8 (Lug Terminal)
Recommended Busbar Terminal Torque	26 inch·lbs (2.9 N·m) (Compression Terminal), 106 inch·lbs (12 N·m) (Lug Terminal)
Busbar Conductor Size	14 AWG~6 AWG (Compression Terminal), 12 AWG~4 AWG (Lug Terminal)

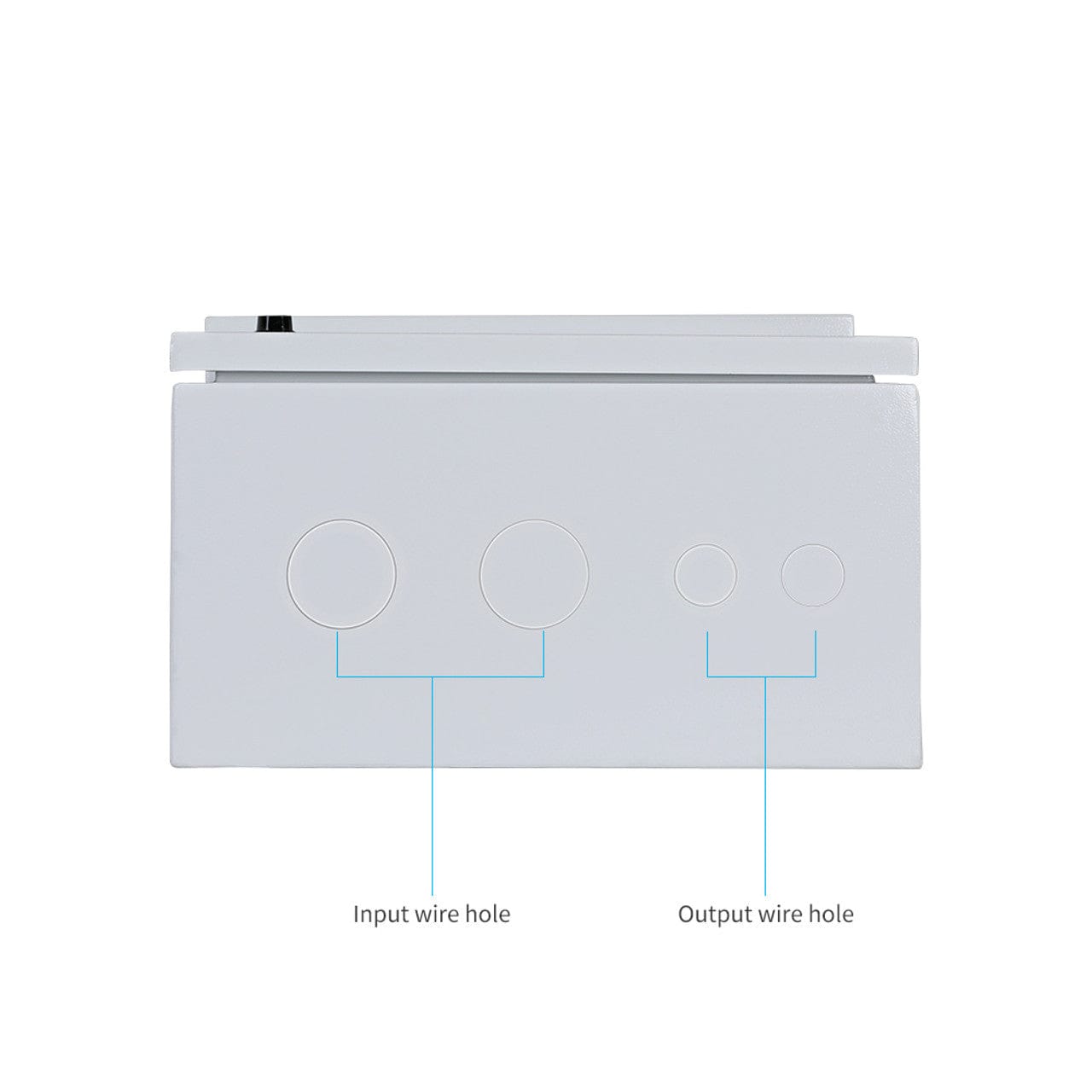

Knockout Diameter	1.99 inch (2), 1.12 inch (2)
DIN Rail Width	1.38 inch (35 mm)
Enclosure Material	Cold-Formed Steel
Enclosure Protection Rating	IP55
Enclosure Security	Keyed Cam Lock
Mounting Method	Vertical Wall Mount
Installation Environment	Outdoor/Indoor

Mechanical Specifications

Specification	Details
Dimensions	17.1 x 15.0 x 8.8 in (435 x 379.7 x 222.5 mm)
Weight	20.9 lb
Knockout Diameter	1.99 inch (4), 1.12 inch (4)

Frequently Asked Questions

What is a solar combiner box?

A solar combiner box combines multiple solar panel strings into a single output while providing centralized protection and simplified wiring for photovoltaic systems.

How many solar strings does this combiner box support?

This model supports up to five individual solar panel strings, each of which can be protected by its own circuit breaker.

Can surge protection devices be installed?

Yes. The combiner box is designed to accommodate both surge protection devices (SPD) and DC circuit breakers for enhanced system protection.

Is the enclosure suitable for outdoor use?

Yes. The IP65-rated enclosure is weather-resistant and designed to withstand dust, rain, and harsh outdoor conditions.

Is it compatible with both on-grid and off-grid solar systems?

Absolutely. The combiner box is suitable for residential, commercial, RV, and off-grid photovoltaic installations.

Why use a combiner box?

Using a combiner box improves wiring organization, simplifies maintenance, enhances electrical safety, and provides centralized protection for multiple PV strings.
