Renogy 500A Battery Monitor With Shunt

Name: Renogy 500A Battery Monitor With Shunt
Brand: Renogy
SKU: RBM500-G3-US
Price: 87.99 USD
Availability: InStock

BY: Renogy

SKU: RBM500-G3-US

| Availability: In stock

$120.99

$87.99

You Save: $33.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

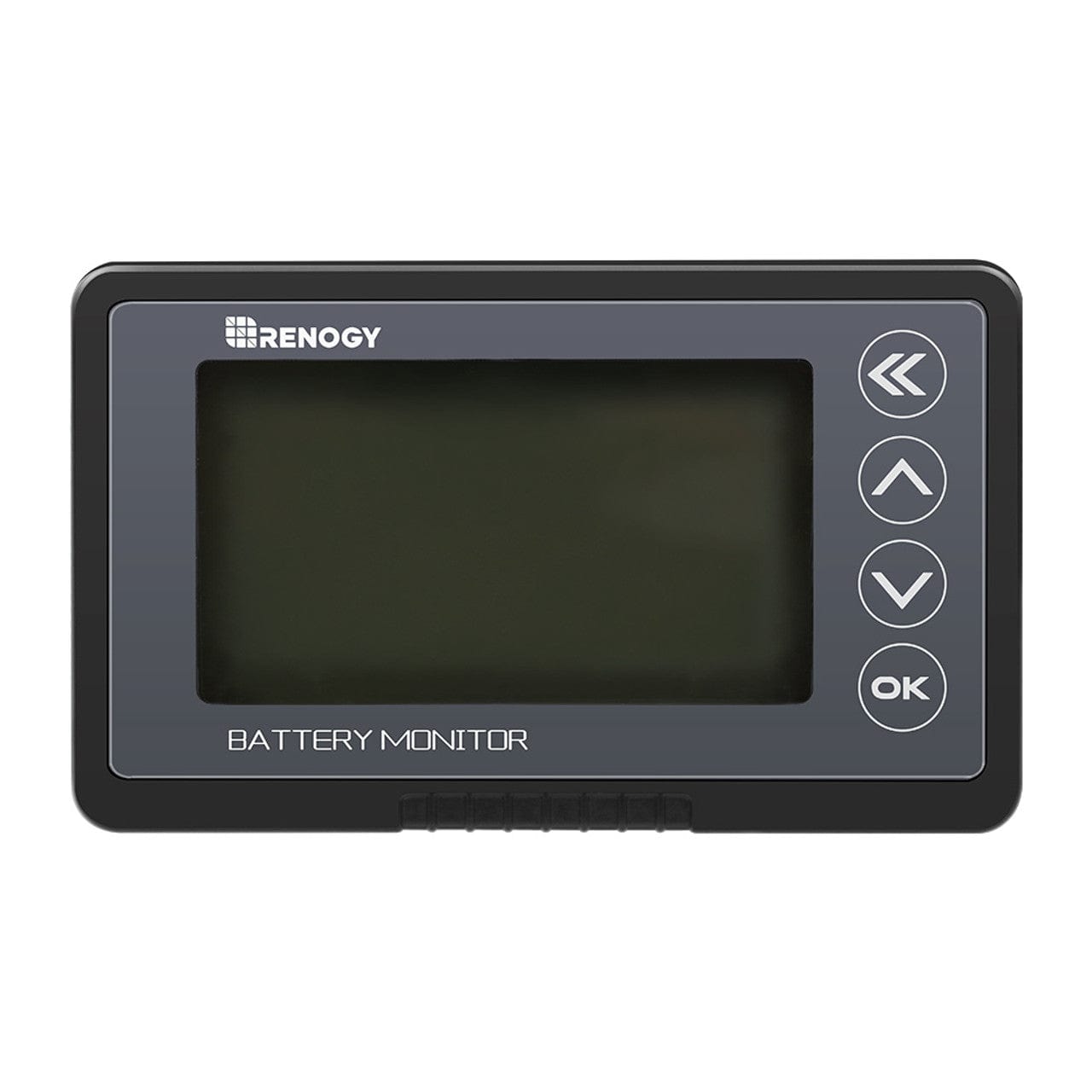

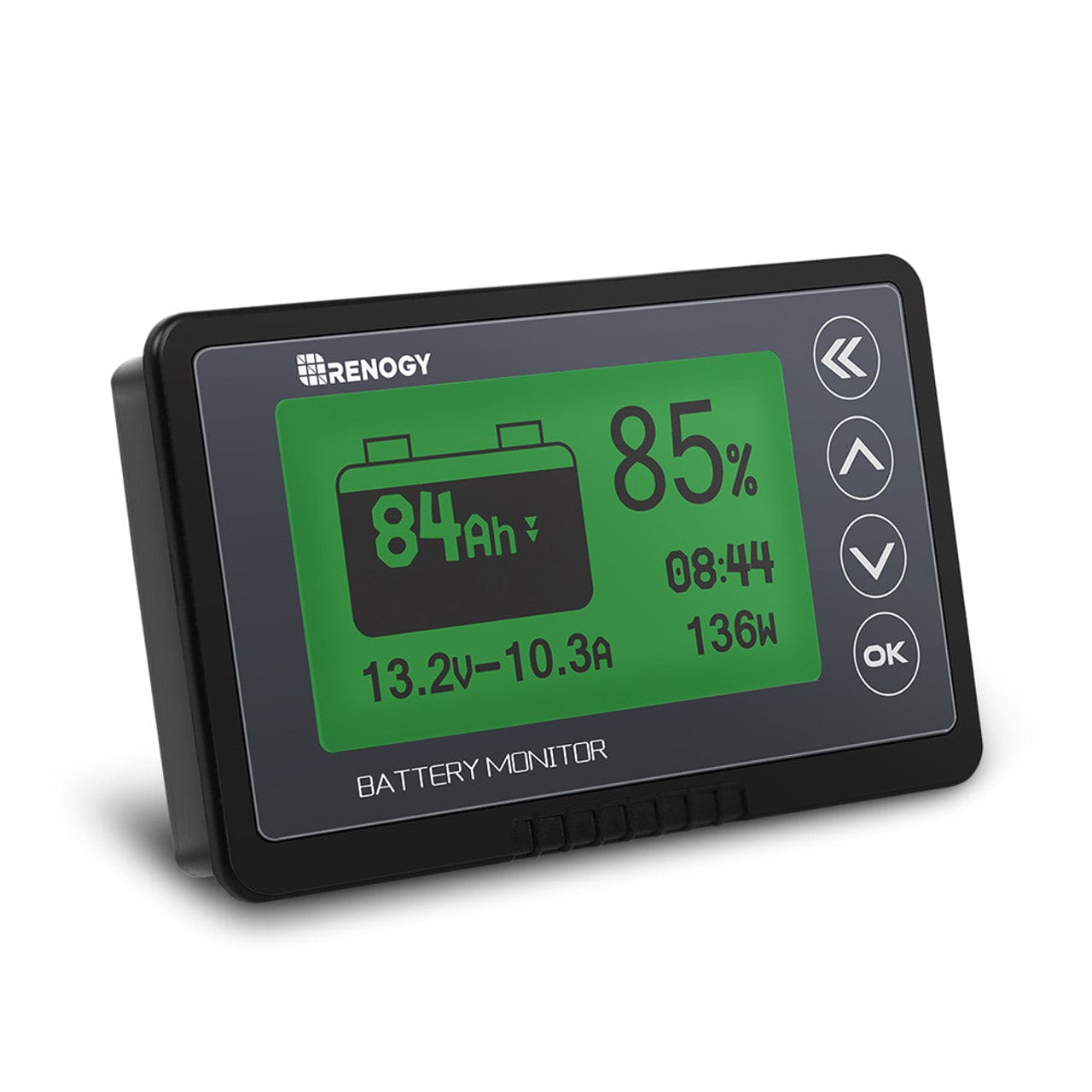

Renogy 500A Battery Monitor With Shunt

The Renogy 500A Battery Monitor with Shunt is a powerful tool designed to give you complete visibility and control over your battery system. Using a high-precision shunt, it accurately tracks voltage, current, power consumption, and battery capacity in real time. Ideal for solar, RV, marine, and off-grid systems, this monitor helps protect your batteries, extend their lifespan, and optimize overall system performance.

Renogy 500A Battery Monitor With Shunt Features

1% Accuracy Measurement – Precision monitoring. Provides highly accurate real-time voltage and current tracking using shunt technology.

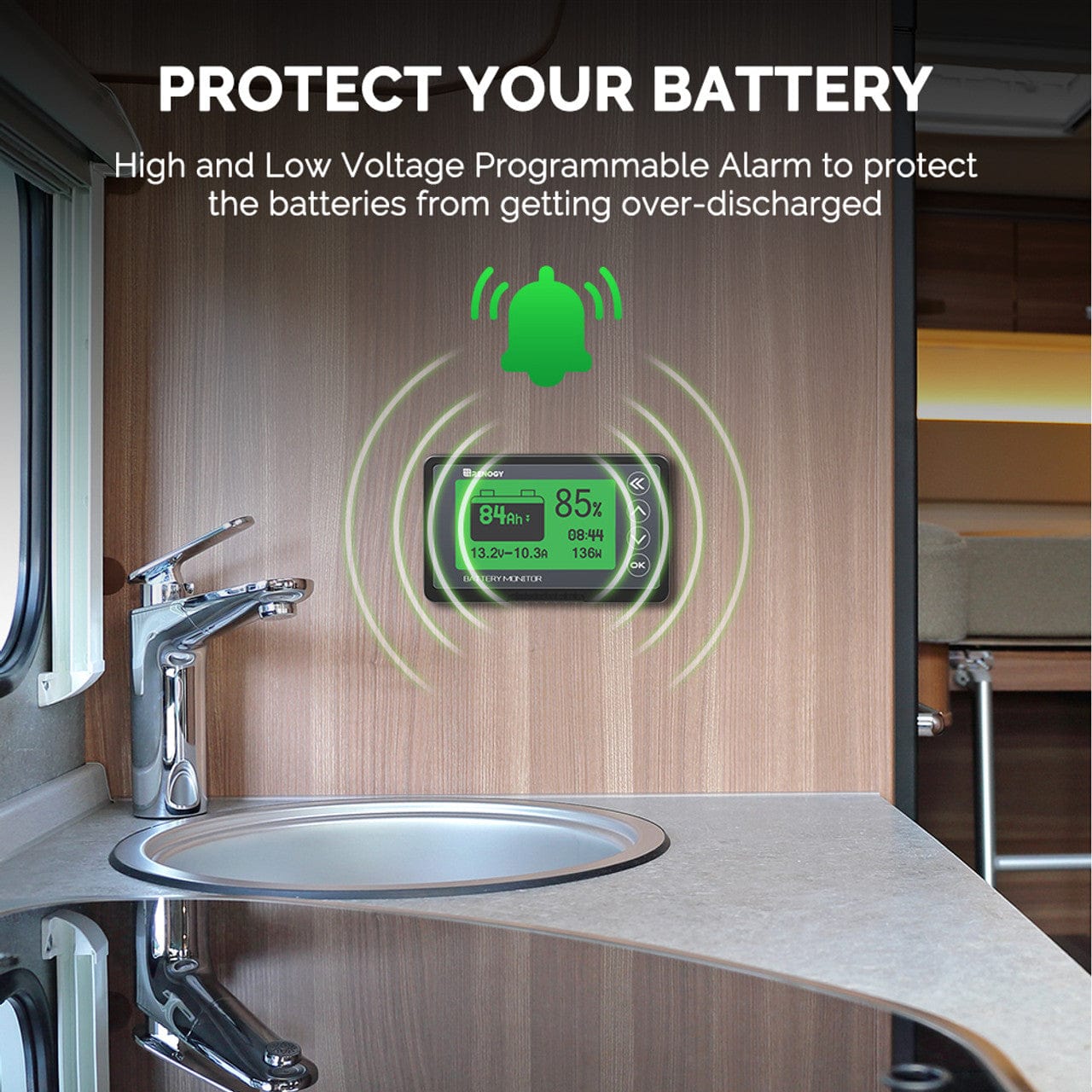

Battery Protection Alerts – Prevent damage. Includes high/low capacity alarms with visual and audible warnings.

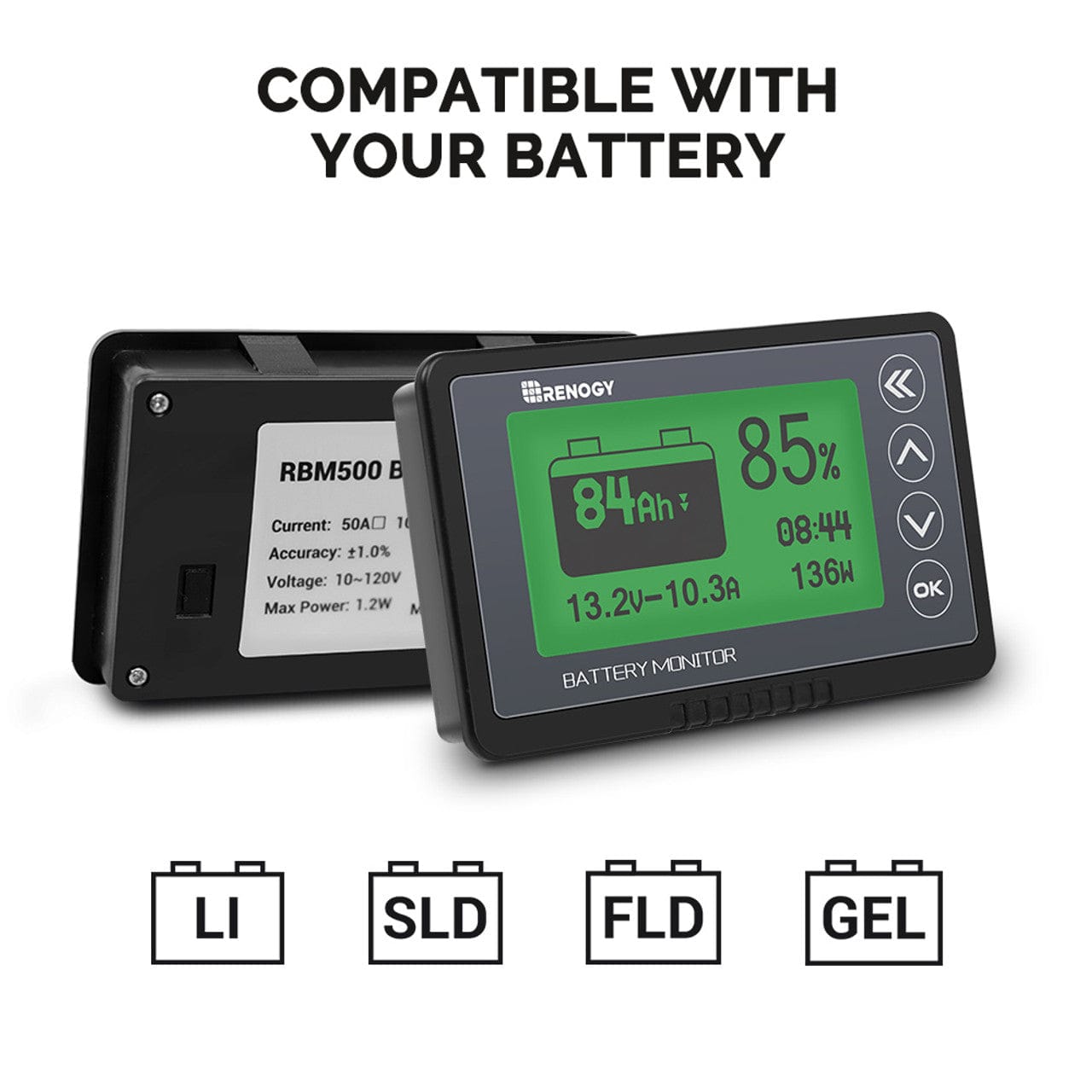

Wide Battery Compatibility – Flexible integration. Supports AGM, Gel, Lithium, Lithium-ion, and Nickel-metal batteries.

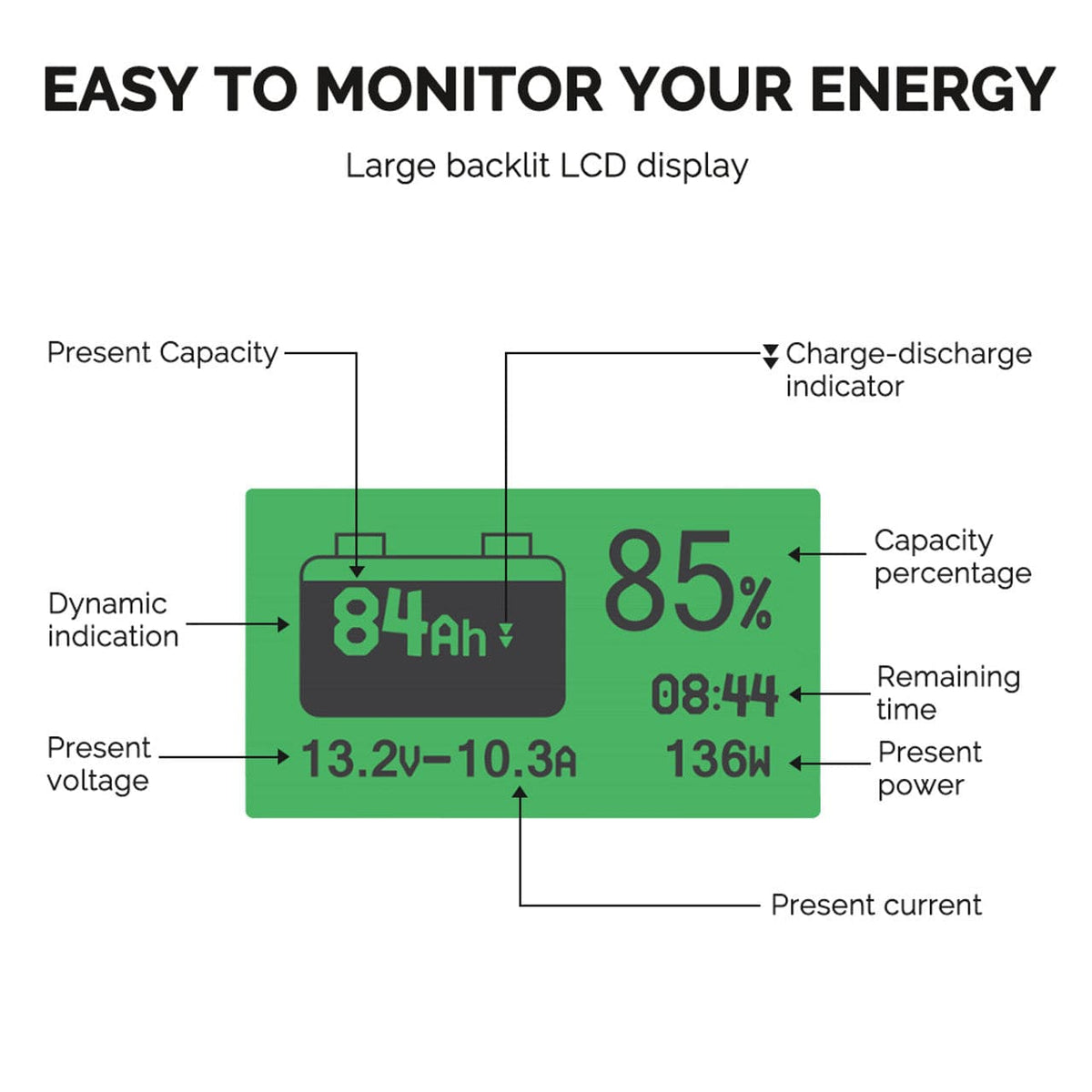

Comprehensive Data Display – Full system insight. Displays voltage, current, power usage, battery capacity, and performance metrics.
Easy Installation Setup – User-friendly design. Features transparent shunt holder and long shielded cable for flexible mounting.

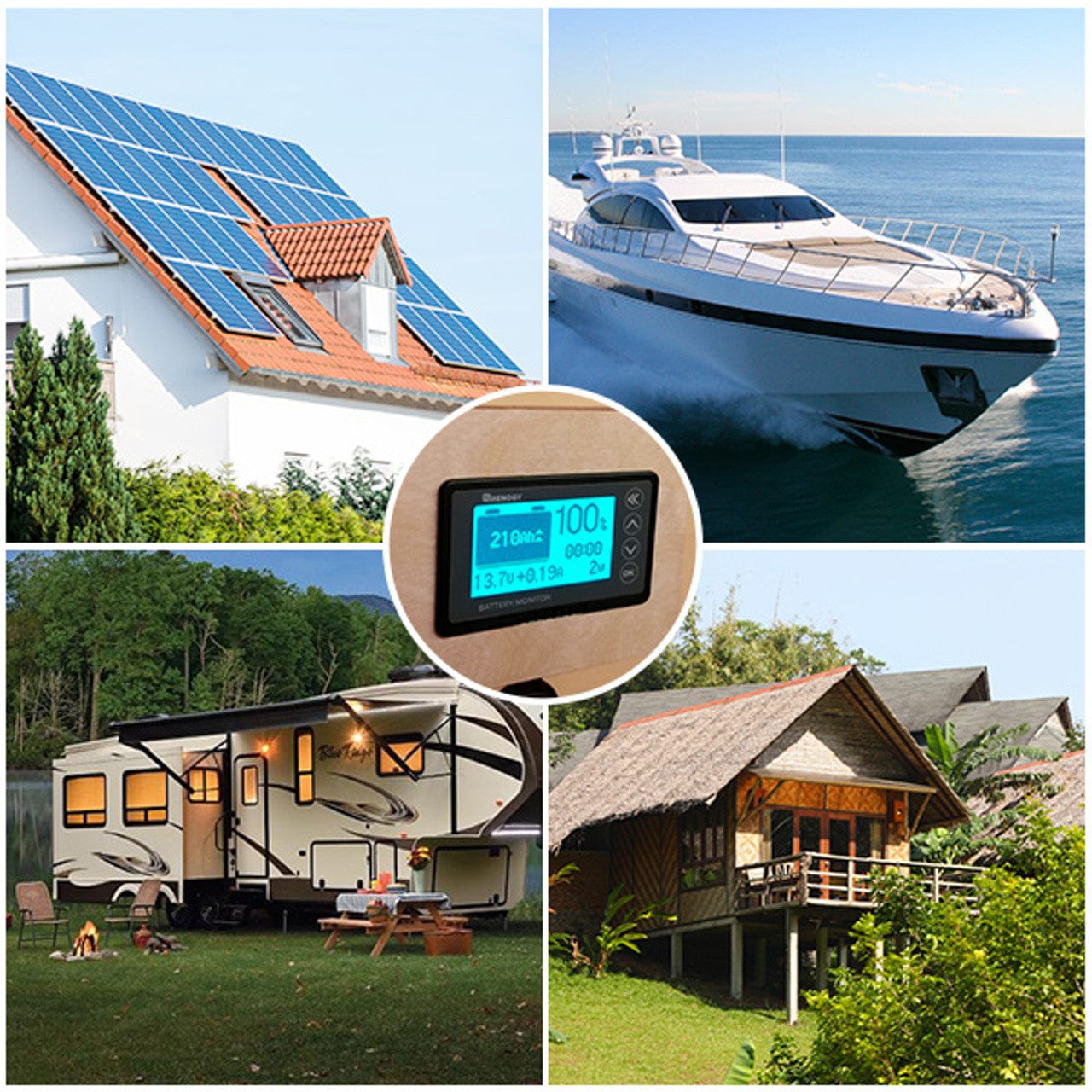

Renogy 500A Battery Monitor With Shunt Applications

RV & Camper Systems – Monitor battery usage on the road
Off-Grid Solar Systems – Track energy consumption and storage
Marine Applications – Reliable battery monitoring for boats
Backup Power Systems – Ensure battery readiness
DIY Energy Setups – Optimize custom power systems

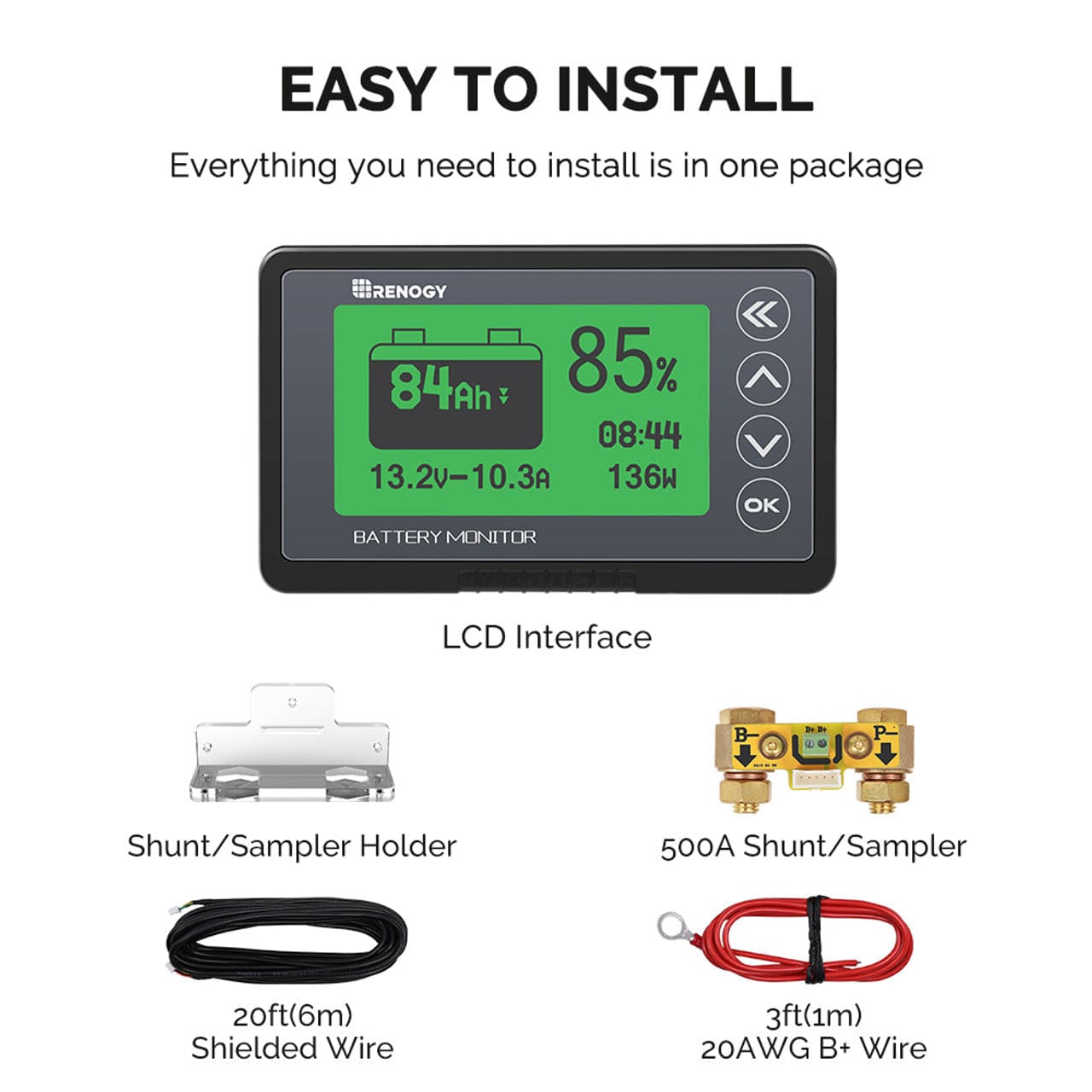

What's Included

Everything you need is included with your product.

1 x LCD Interface
1 x 500A Shunt/Sampler
1 x Shielded Wire

1 x B+ Wire
1 x Shunt Holder
User Manual

Renogy 500A Battery Monitor With Shunt Video

Renogy 500A Battery Monitor With Shunt Specifications

Operation Specifications

Specification	Details
Working Voltage	10-120V
Working Dissipation	10-15mA
Backlight on current (>50A)	100mA
Display	LCD with Green Backlight (brightness is adjustable)
Current Accuracy	±1%
Standby Dissipation	1-2mA
Preset capacity value	0.1-9999.0 AH
Compatible Battery	Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
Capacity Accuracy	±1%
Voltage Accuracy	±1%

Mechanical Specifications

Specification	Details
Shielded Wire Length	20 ft/6 m

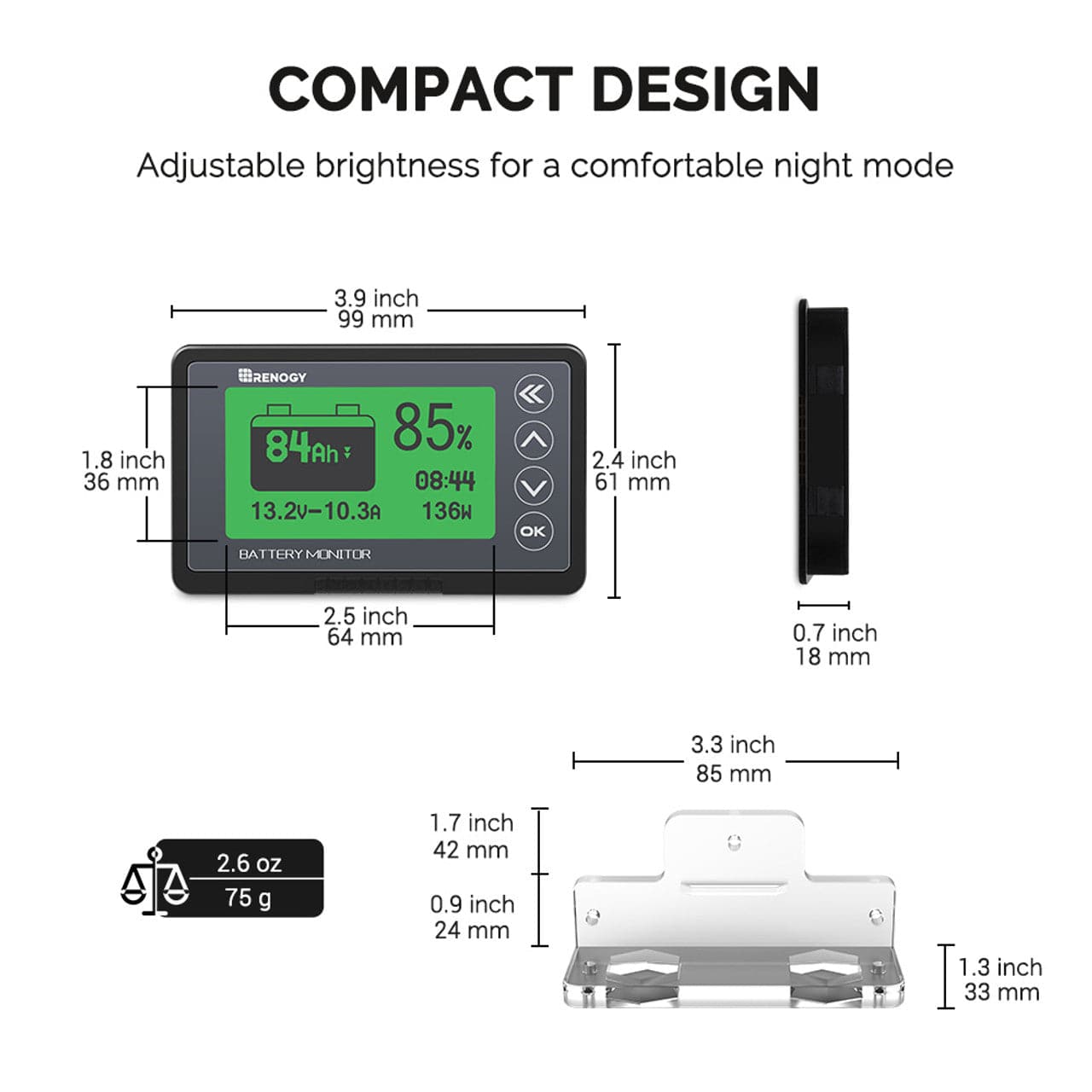

Size (LCD Interface)	3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm
Temperature range	14-140°F(-10-60°C)
Weight (LCD Interface)	2.6 oz / 75 g
B+ Wire Length	3 ft/1 m

Accessories

Specification	Details
LCD Interface	x 1
Shielded Wire	x 1
Shunt Holder	x 1
500A Shunt / Sampler	x 1
B+ Wire	x 1

Certifications

Specification	Details
ROHS	YES

Warranty

Specification	Details
Material Warranty	2-year material and workmanship warranty

Frequently Asked Questions

What does a battery monitor do?

It tracks battery performance in real time, including voltage, current, and remaining capacity.

Is this compatible with lithium batteries?

Yes, it supports LiFePO4 and other lithium battery types.

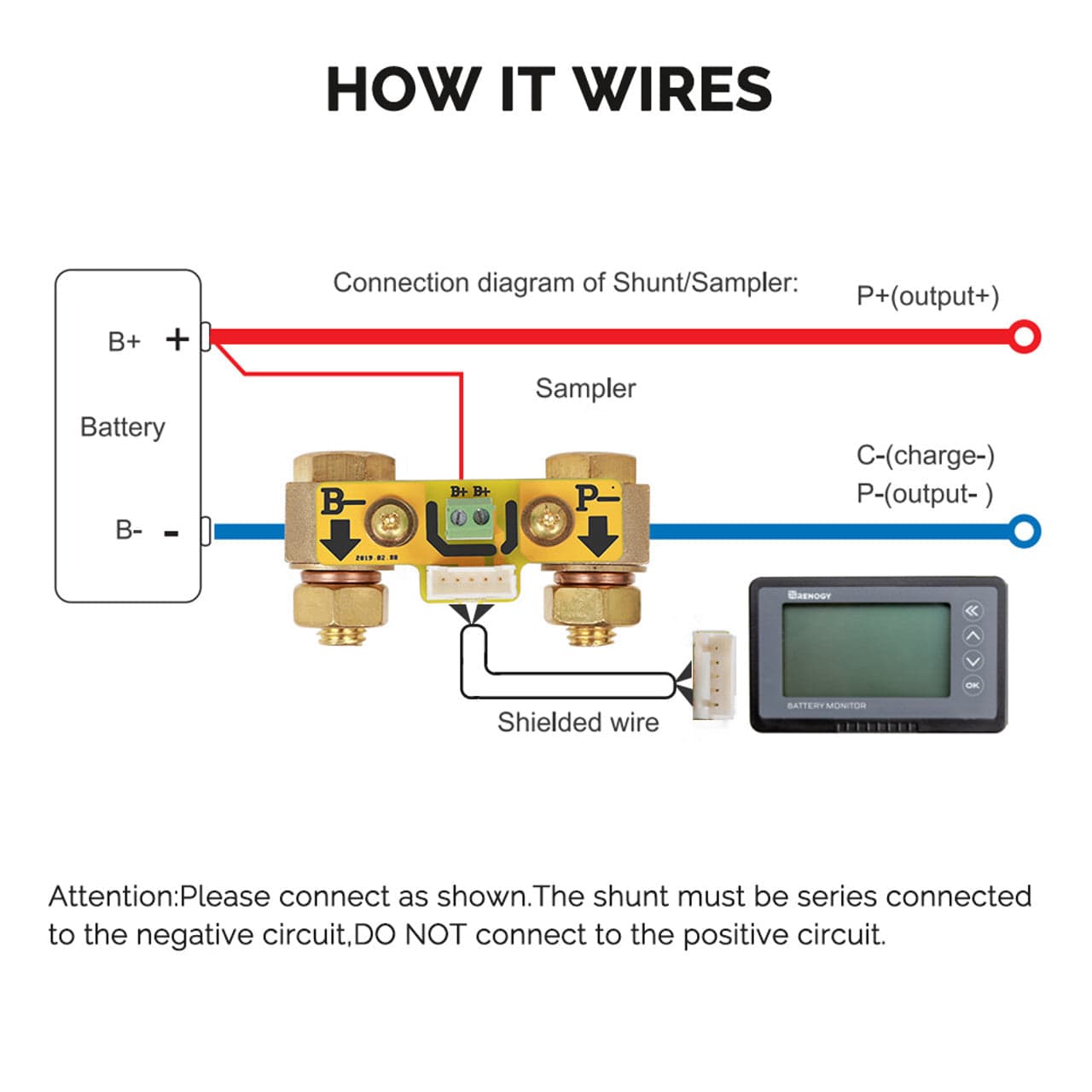

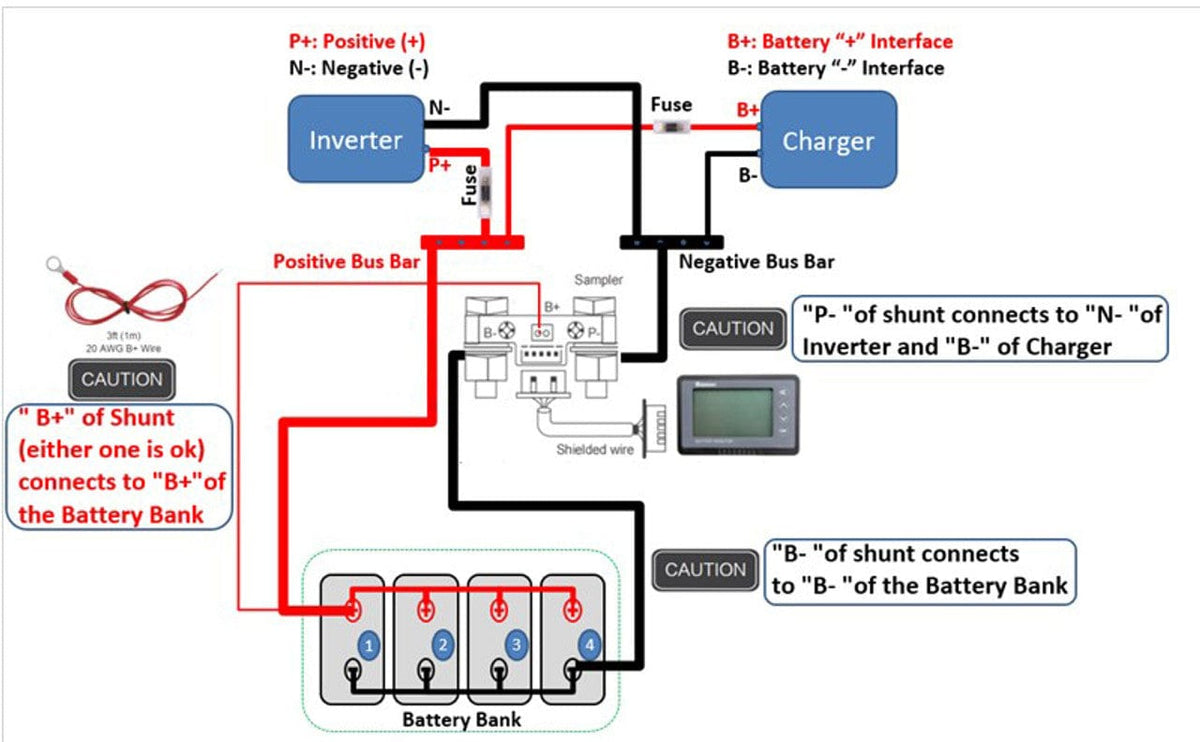

How is it installed?

It uses a shunt installed on the negative battery line to measure current flow accurately.

Can I monitor multiple batteries?

Yes, it can monitor battery banks depending on system configuration.
