Renogy 5FT 4/0AWG Anderson Adapter Cable (Anderson SB350 - 5/16 in Lugs） Battery & Inverter Cables Renogy

Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs)

Name: Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs)
Brand: Renogy
SKU: RPC0540SR-35-G1-US
Price: 149.99 USD
Availability: InStock

BY: Renogy

SKU: RPC0540SR-35-G1-US

| Availability: In stock

$188.99

$149.99

You Save: $39.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

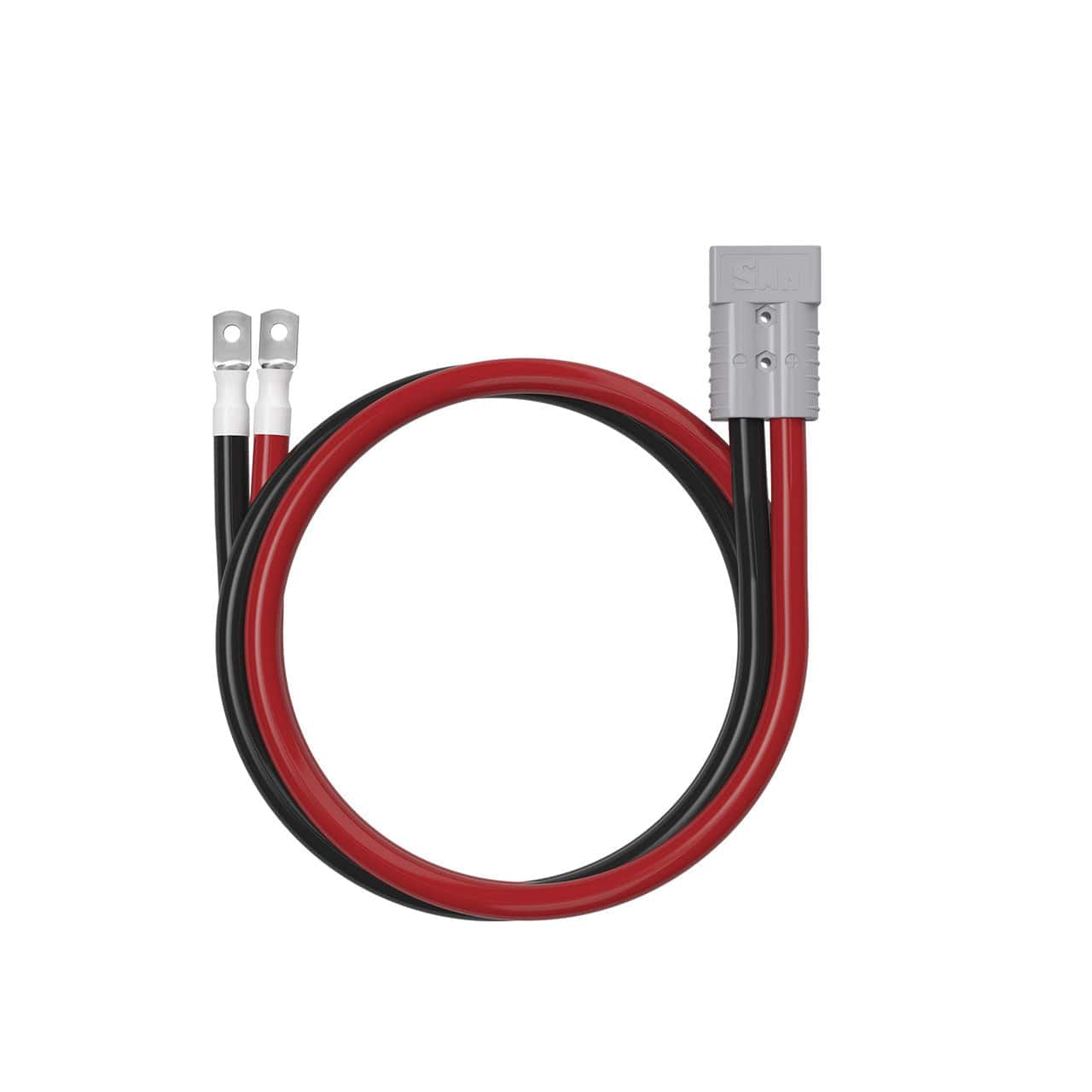

Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs)

The Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs) is a premium heavy-duty power cable designed to seamlessly integrate Renogy REGO components into high-capacity battery systems. Featuring a durable Anderson SB350 connector on one end and 5/16-inch battery ring lugs on the other, this adapter cable allows users to easily connect REGO 12V 400Ah Lithium Batteries, REGO inverter chargers, and system combiners. Built with high-purity 4/0 AWG oxygen-free tinned copper conductors and silver-plated contacts, the cable provides exceptional conductivity, long-term durability, and reliable performance for demanding off-grid, RV, marine, and backup power applications.

Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs) Features

Designed Specifically for Renogy REGO Products - Engineered for seamless integration with Renogy REGO 12V 400Ah Lithium Batteries, REGO inverter chargers, and system combiners, simplifying high-capacity system installations.
Simple Plug-and-Play Installation - Secure Anderson SB350 connectors allow for fast installation without specialized tools or complicated wiring, reducing setup time significantly.

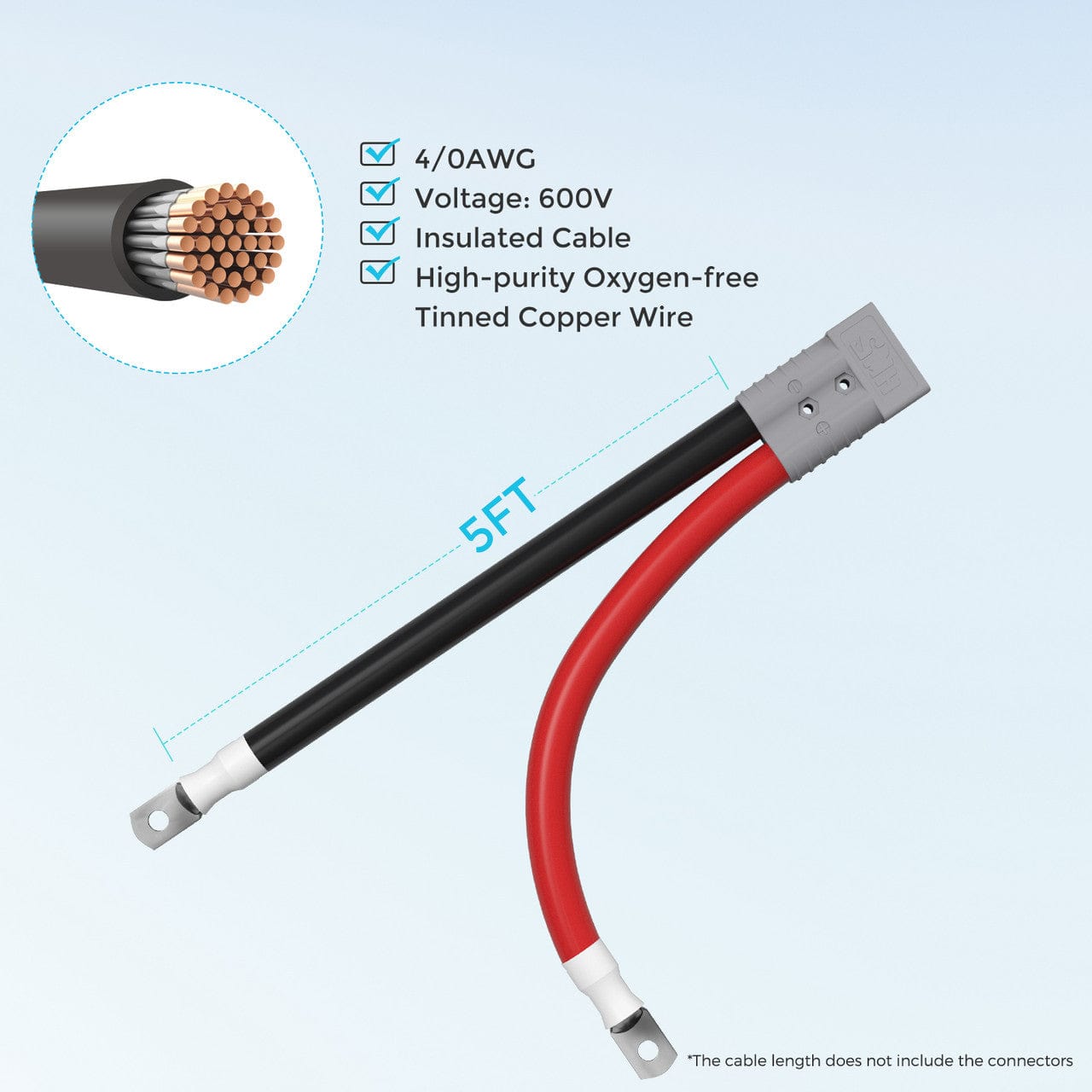

Premium 4/0 AWG Oxygen-Free Copper Conductors - Constructed using 4/0 AWG high-purity oxygen-free tinned copper wire to maximize conductivity, reduce voltage drop, and improve overall system efficiency.
Heavy-Duty Construction for Extreme Environments - Designed to perform in operating temperatures ranging from -40°C to 105°C (-40°F to 221°F), making it ideal for demanding mobile and outdoor applications.
Silver-Plated Contacts - Silver-plated connector contacts improve electrical conductivity while increasing durability in high-current, elevated-temperature environments.
UL-Certified Housing & Robust Design - Manufactured using UL-rated housing materials that meet stringent flammability and safety standards for dependable long-term operation.

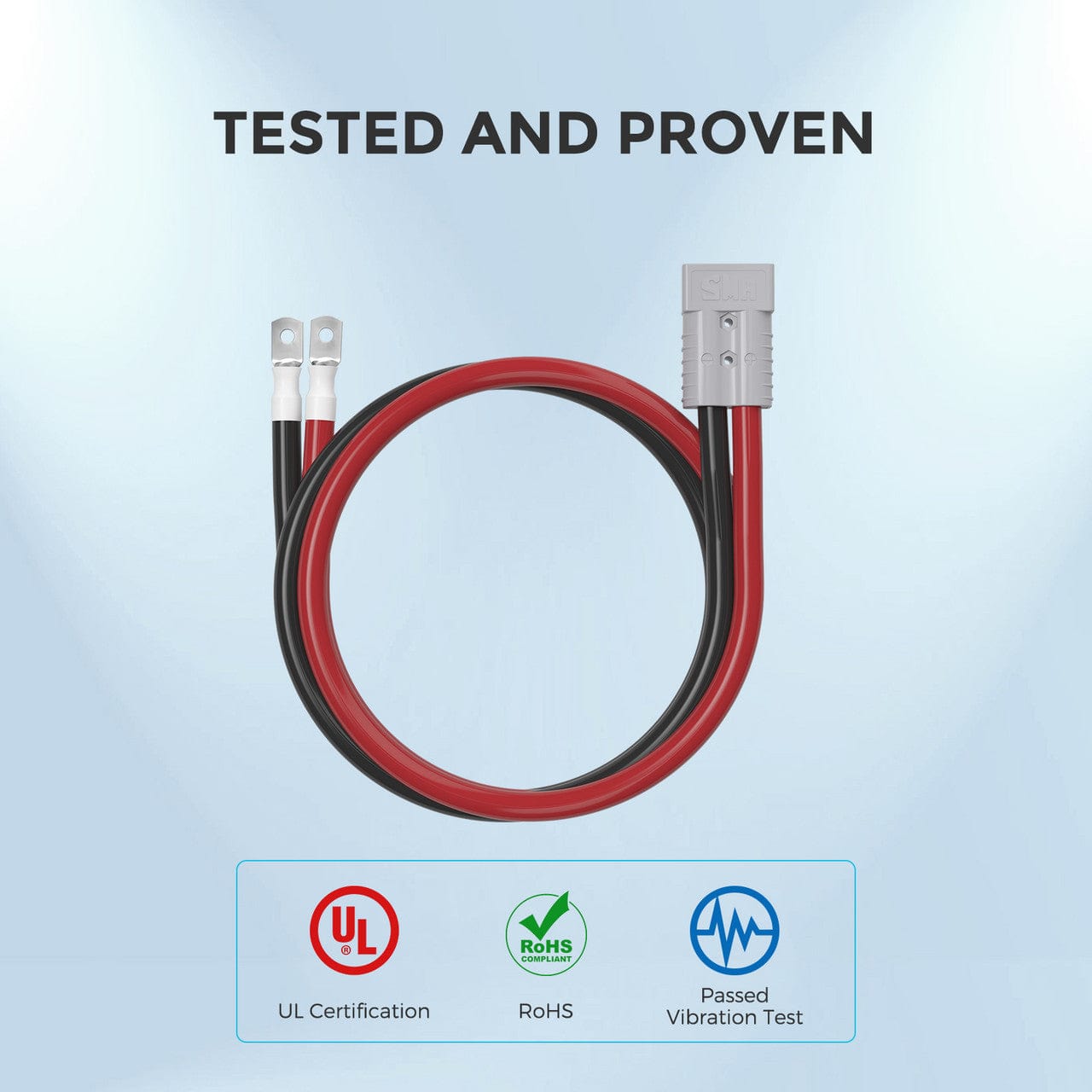

Vibration-Tested Reliability - Heavy-duty construction and vibration-tested Anderson connectors provide secure, stable connections in RVs, boats, off-road vehicles, and other mobile applications.

Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs) Applications

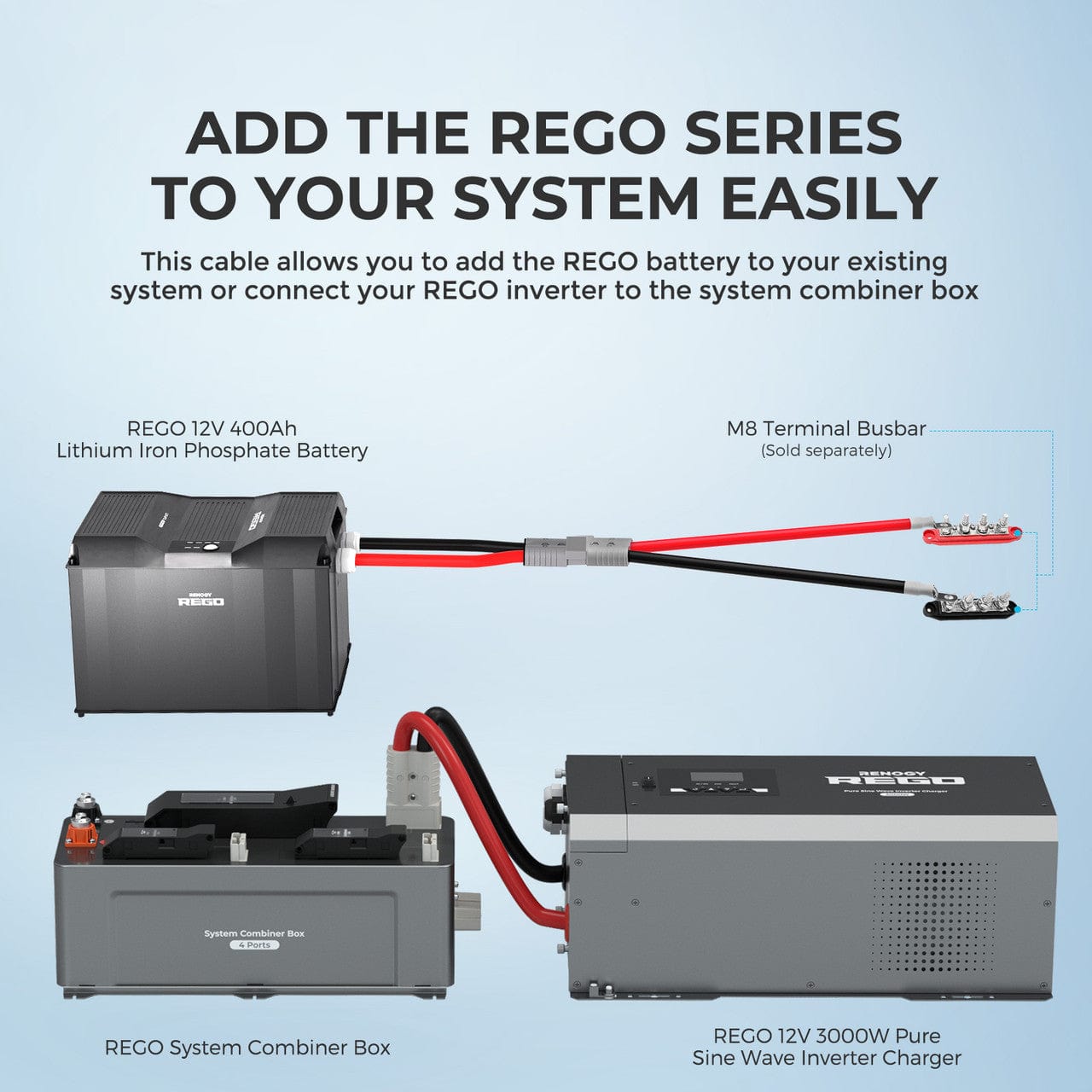

Connecting REGO 12V 400Ah lithium batteries to existing systems – Simplifies integration of high-capacity REGO batteries into new or existing power systems.
Connecting REGO inverter chargers – Provides a secure, high-current connection between REGO inverter chargers and battery banks.
REGO combiner box installations – Ideal for connecting batteries and inverter chargers within Renogy REGO combiner systems.
RV electrical systems – Supports dependable high-current power connections for recreational vehicle installations.
Marine and boating power systems – Designed for reliable battery and inverter connections in marine environments.
Off-grid solar energy storage systems – Suitable for battery banks powering remote homes and cabins.
Backup power systems – Ensures efficient power transfer in residential and commercial backup applications.
Overlanding and expedition vehicles – Built for rugged, vibration-prone mobile power systems.
Remote cabin power installations – Provides secure DC power connections in off-grid locations.
Custom high-current DC electrical projects – Excellent for demanding battery and inverter applications requiring premium cabling.

What's Included

Everything you need is included with your product.

1 x Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs)

User Manual

Warranty

1 Year Material and workmanship warranty

Renogy 5 Ft 4/0 AWG Anderson Adapter Cable (Anderson SB350 - 5/16 In Lugs) Specifications

Specification	Details
Model	RPC0540SR-35
Length	5FT
Gauge (Wire Size	4/0AWG

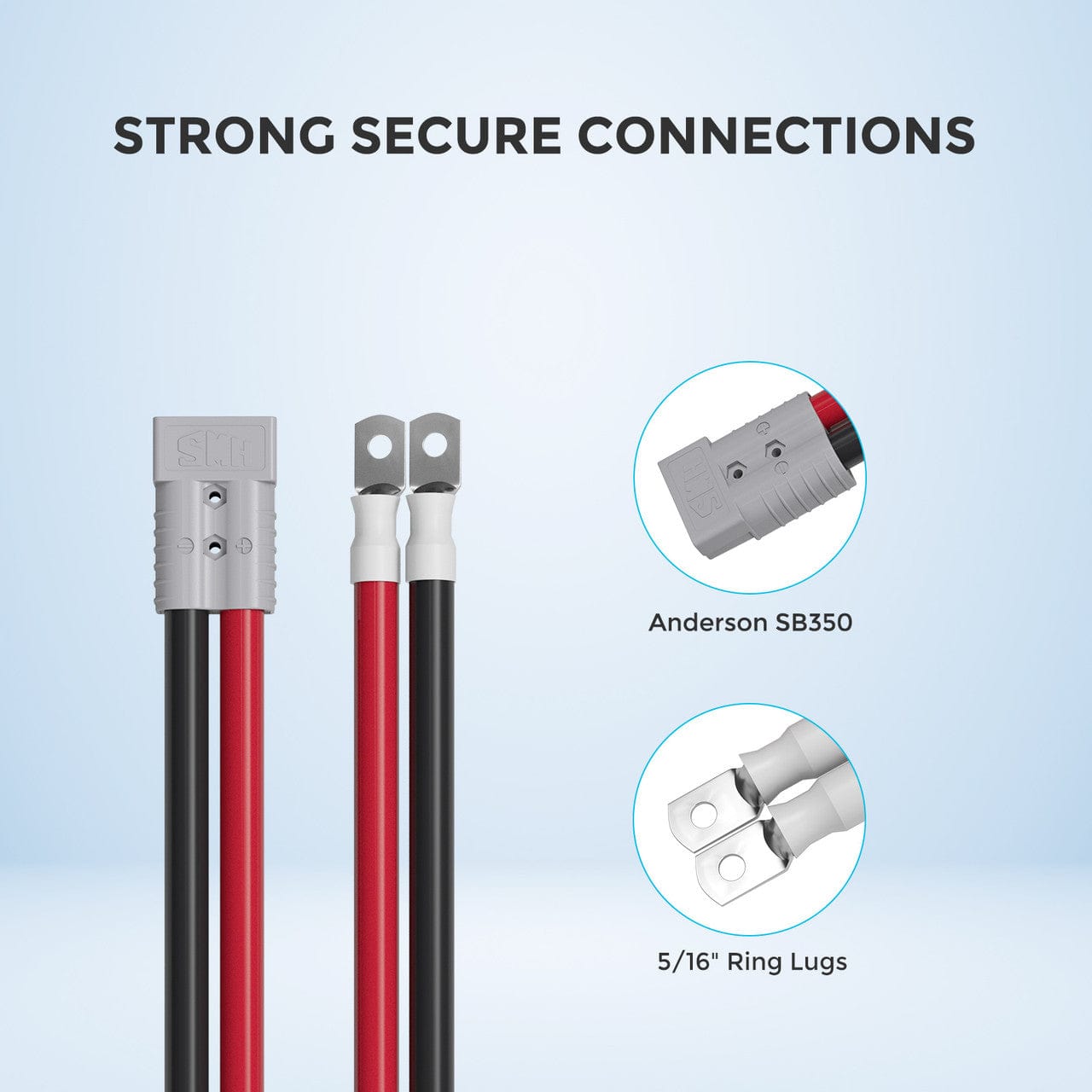

Terminal Size	Anderson SB350 - 5/16” metal lugs
Max. Current	405A
Rating Voltage	600V
Temperature	-40℃-105℃/(-40℉-221℉)

Certifications

UL and RoHS compliant	Yes
Manufactured in a Certified ISO 9001 Facility	Yes

Frequently Asked Questions

What is this cable designed for?

This cable is specifically designed to connect Renogy REGO 12V 400Ah lithium batteries, REGO inverter chargers, and system combiners using a secure Anderson SB350 connection.

Why does the cable use 4/0 AWG wire?

The heavy-duty 4/0 AWG conductors minimize voltage drop while supporting high-current power transfer between batteries and connected equipment.

Can I use this cable with non-REGO equipment?

Yes. While optimized for Renogy REGO products, the cable may also be compatible with other equipment using Anderson SB350 connectors and 5/16-inch battery terminals.

Is the cable suitable for mobile applications?

Absolutely. The vibration-tested connectors and heavy-duty construction make it ideal for RVs, marine vessels, overlanding vehicles, and other mobile power systems.

What safety features are included?

The cable features UL-certified housing, silver-plated contacts, premium heat-shrink insulation, and a robust connector design to ensure safe, reliable operation.

Are the connectors factory installed?

Yes. The Anderson SB350 connector and battery ring lugs are professionally installed, allowing for fast plug-and-play installation.
