Renogy ANL Fuses

Name: Renogy ANL Fuses
Brand: Renogy
SKU: RNG-ANL-FUSE20-G1-US
Price: 14.0 USD
Availability: InStock

BY: Renogy

SKU: RNG-ANL-FUSE20-G1-US

| Availability: In stock

$21.00

$14.00

You Save: $7.00

Product Options::

Quantity

Product Highlights

Built for off-grid power, RV travel, and marine systems
Built-in electrical protections help safeguard connected equipment
Designed to disconnect power during overload or short-circuit events

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

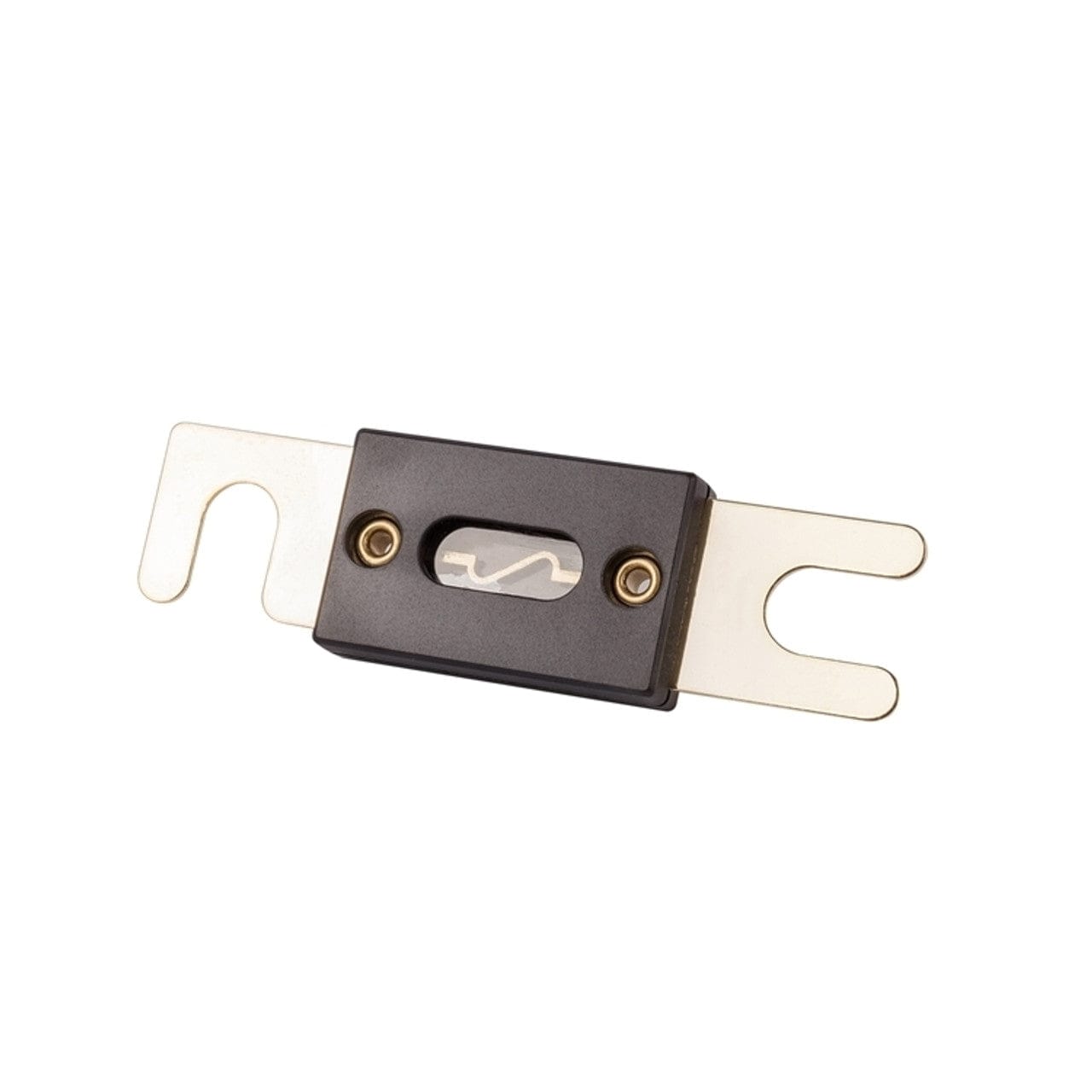

Renogy ANL Fuses

The Renogy ANL Fuses provide critical overcurrent protection for solar power systems, battery banks, inverter installations, and other high-current DC applications. Designed to safeguard valuable electrical equipment from short circuits and overload conditions, these high-quality fuses help ensure safe and reliable system operation. Available in multiple amperage ratings ranging from 20A to 100A, Renogy ANL Fuses are ideal for protecting cables, batteries, charge controllers, inverters, and other essential power components in off-grid, RV, marine, and backup power systems.

Renogy ANL Fuses Features

Reliable Overcurrent Protection - Designed to disconnect power during overload or short-circuit events, helping protect batteries, wiring, and connected equipment from damage.
Multiple Amp Ratings Available - Available in 20A, 30A, 40A, 60A, and 100A configurations to accommodate a wide range of solar and battery applications.
High-Conductivity Construction - Built with quality conductive materials that ensure efficient power transfer while maintaining dependable circuit protection.
Fast-Acting Protection - Quickly interrupts excessive current flow to help prevent component failure and reduce the risk of electrical hazards.
Compatible with ANL Fuse Holders - Designed to work seamlessly with standard ANL fuse blocks and holders commonly used in solar and DC power systems.
Simple Replacement Design - Easy-to-install design allows for quick fuse replacement during maintenance or troubleshooting.
Ideal for High-Current DC Systems - Suitable for protecting battery banks, inverters, charge controllers, DC distribution panels, and other high-current components.

Renogy ANL Fuses Applications

Solar charge controller protection – Helps prevent damage to charge controllers by interrupting excessive current flow during faults or overload conditions.
Inverter circuit protection – Safeguards inverters from high current surges that could cause internal damage or system failure.
Battery bank overcurrent protection – Protects battery banks from dangerous overcurrent situations that can lead to overheating or reduced lifespan.
RV electrical systems – Ensures safe operation of RV power systems by protecting wiring and connected devices from electrical faults.
Marine and boating power systems – Provides reliable circuit protection in marine environments where electrical safety is critical.
Off-grid solar installations – Maintains system integrity by preventing overloads in remote solar setups where maintenance access may be limited.
Backup power and energy storage systems – Protects backup systems from unexpected current spikes, ensuring dependable performance during outages.
DC distribution panels – Helps manage and protect multiple circuits within DC distribution systems from overload conditions.
Mobile power and overlanding setups – Supports safe power delivery in mobile applications where systems are exposed to varying loads and conditions.
Custom battery and inverter projects – Offers flexible protection for DIY and custom-built systems requiring reliable overcurrent safeguards.

What's Included

Everything you need is included with your product.

Renogy 20A/30A/40A/60A/100A ANL Fuse

User Manual

Warranty

Accessories: 1-year material warranty
Panels: 25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate | 5-year material and workmanship warranty

Renogy ANL Fuses Specifications

Renogy 20A ANL Fuse

Sepcification	Details
Current Rating	20A
Voltage Rating	72V
Interrupt Capacity	180A (48V)

Renogy 30A ANL Fuse

Sepcification	Details
Current Rating	30A
Voltage Rating	72V
Interrupt Capacity	200A (48V)

Renogy 40A ANL Fuse

Sepcification	Details
Current Rating	40A
Voltage Rating	72V
Interrupt Capacity	240A (48V)

Renogy 100A ANL Fuse

Sepcification	Details
Current Rating	100A
Voltage Rating	72V
Interrupt Capacity	500A (48V)

Frequently Asked Questions

What is an ANL fuse used for?

ANL fuses are designed to protect high-current DC electrical systems from overloads and short circuits. They are commonly used in solar, battery, inverter, RV, and marine applications.

How do I choose the correct fuse size?

The fuse rating should be selected based on the maximum current draw of the circuit and the manufacturer's recommendations for the equipment being protected.

Can I use an ANL fuse for inverter protection?

Yes. ANL fuses are commonly installed between battery banks and inverters to protect wiring and equipment from excessive current.

What happens when an ANL fuse blows?

When excessive current flows through the circuit, the fuse element melts and interrupts power, preventing damage to connected equipment.

Are these fuses reusable?

No. Like all conventional fuses, ANL fuses are single-use devices and must be replaced once they have opened due to an overload or fault condition.

Do I need a fuse holder?

Yes. ANL fuses are designed to be installed in a compatible ANL fuse holder or fuse block.

Manual

Renogy ANL Fuse Sets w/ Fuses Manual
