Renogy Communication Hub
The Renogy Communication Hub is an advanced communication center designed to streamline the monitoring and management of your Renogy energy system. This central device allows various components—like inverters, batteries, and charge controllers—to communicate through one platform for unified control. Ideal for smart energy setups, this hub makes it easy to track performance, troubleshoot issues, and optimize energy use from a single interface.
Renogy Communication Hub Features
Centralized Control – Connect and manage multiple Renogy devices through one hub for a seamless smart energy experience.

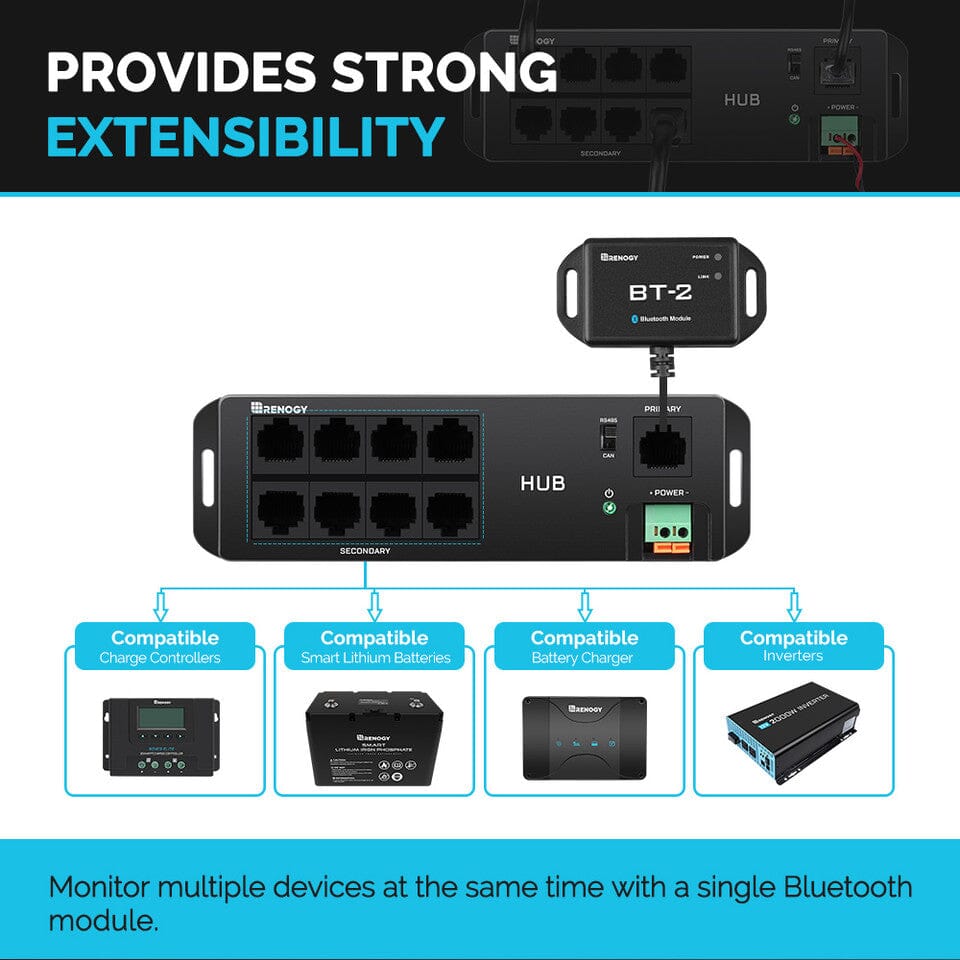

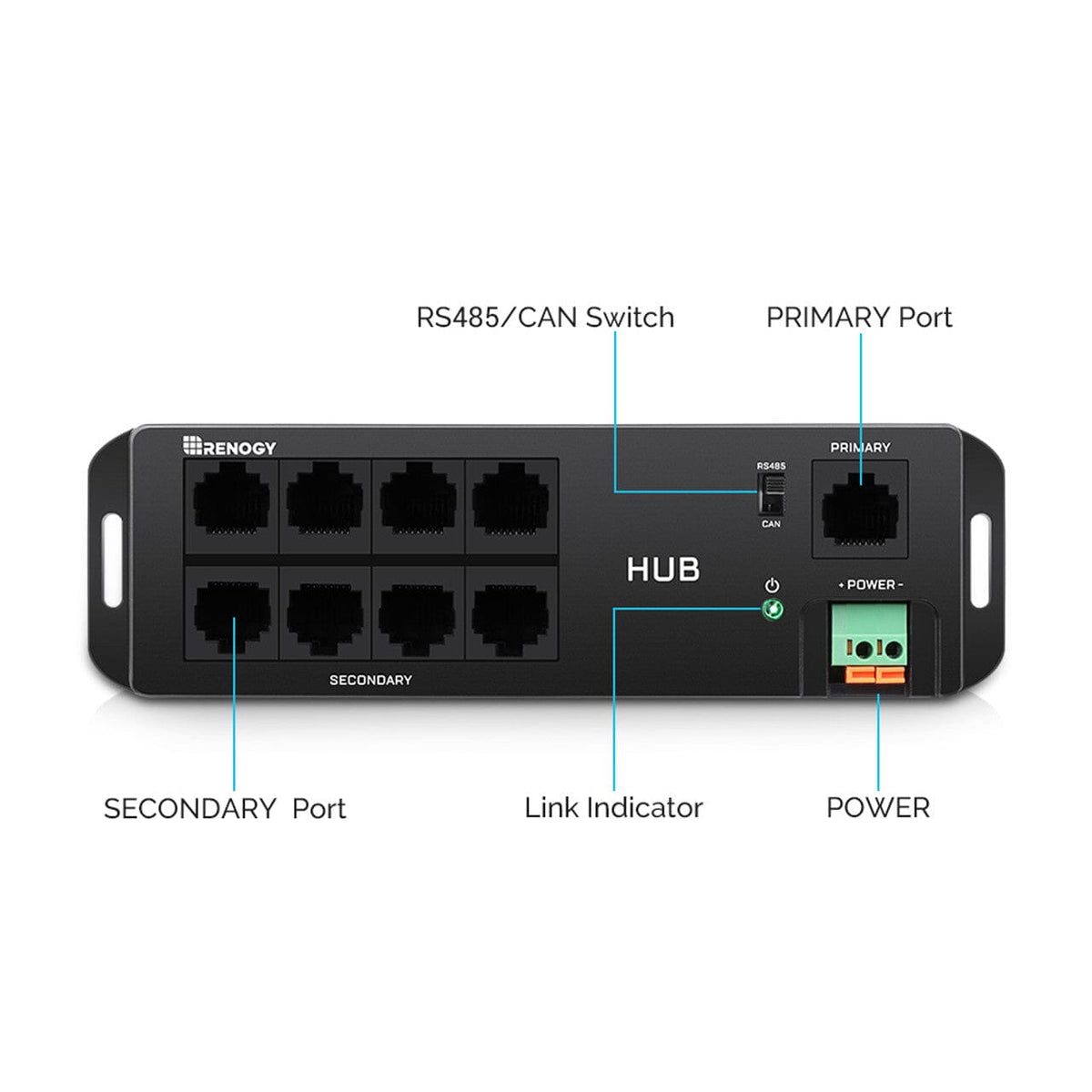

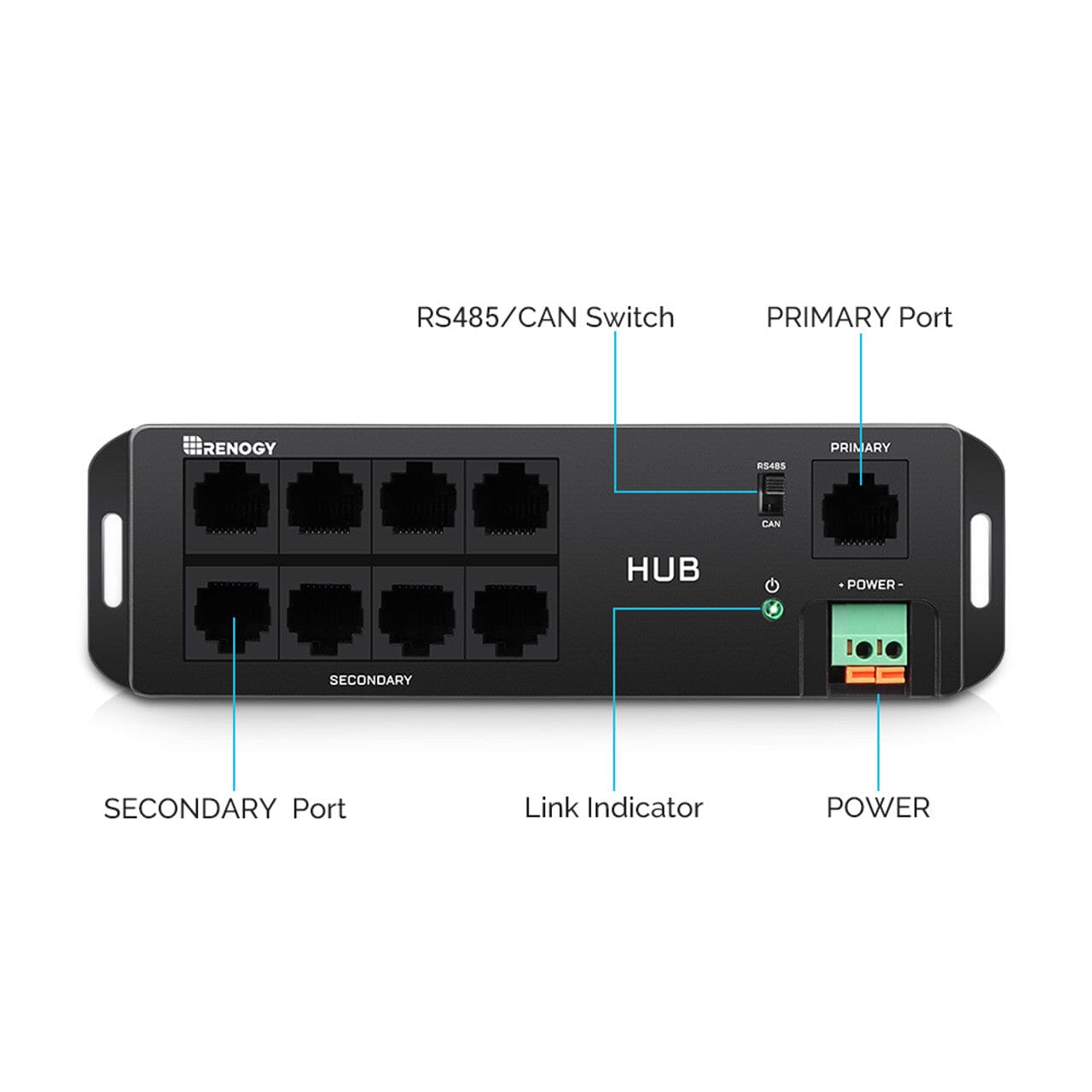

Versatile Port Compatibility – Equipped with multiple RJ45 and RS485 ports for linking inverters, batteries, and other Renogy products.
Supports RENOGY ONE – Fully compatible with the RENOGY ONE M1 for touchscreen access and home energy automation.
Easy Installation – Plug-and-play setup with labeled ports and a compact, wall-mountable design.
Improved Communication Stability – Reduces data loss and ensures reliable device interaction in complex energy systems.
Renogy Communication Hub Applications
-
Smart Home Integration – Connect the RENOGY ONE M1 for smart monitoring and home automation control.
-
Solar System Monitoring – View system performance in real-time by linking your batteries, inverter, and charger to one display.
-
RV and Off-Grid Systems – Perfect for mobile power setups that require real-time system awareness and compact equipment.
-
Energy Efficiency Management – Identify inefficiencies and optimize device performance across your solar installation.
-
Battery Bank Sync – Enables advanced syncing between multiple battery units in complex storage systems.
What’s Included?
-
1 × Renogy Bluetooth Hub
- 1 x Power Cable
Renogy Communication Hub Specifications
| Specifications |
| Input Voltage |
9V - 60V |
| Port Type |
RJ45 |
| Standby Power Consumption |
0.324W |
| Cable Length |
5.00m (16.4ft) |
| Operating Power Consumption |
<0.35W |

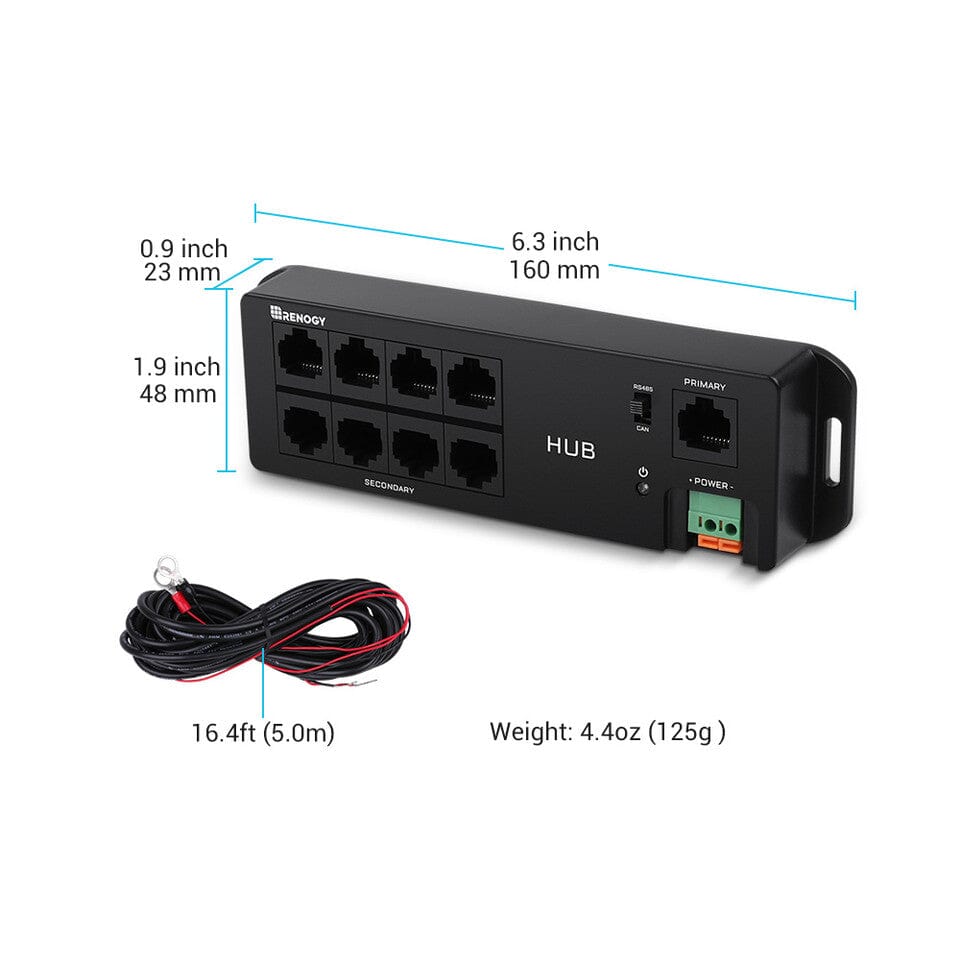

| Dimension |
6.29 x 1.89 x 0.91in (160 x 48 x 23mm) |
| Communication Range |
52ft |
| Installation Dimension |
151.4 × 3.5mm (5.96 × 0.14in) |
| Serial Baud Rate |
RS485–9600 bps CAN–500 kbps |
| Operation Temperature |
-20°C~85°C (-4°F to 185°F) |

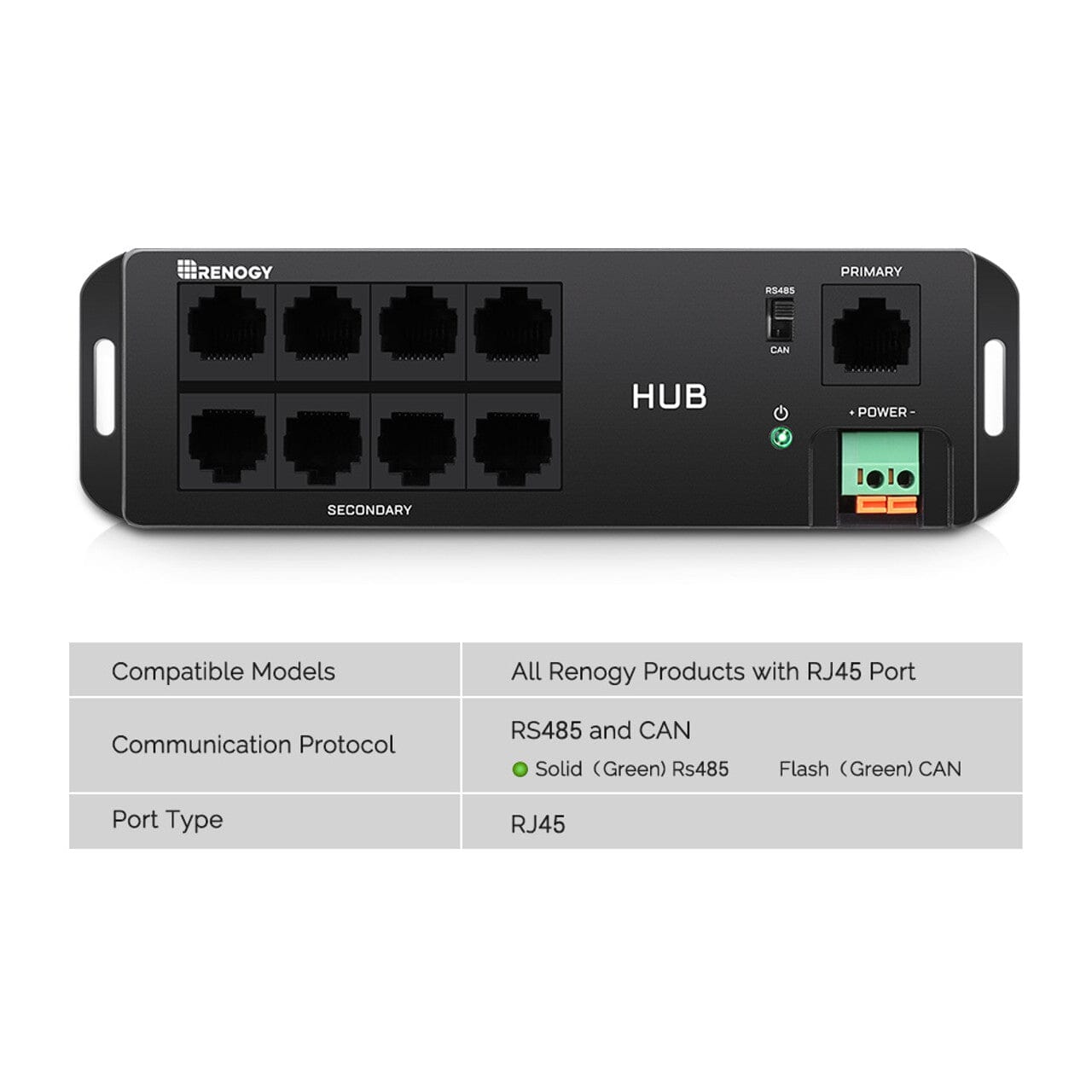

| Communication Protocol |
RS485 CAN |
| Weight |
125g (4.4oz) |
WARRANTY INFORMATION
| Accessories |
1-year material and workmanship warranty |
Frequently-Asked Questions
Can this hub be used without the RENOGY ONE M1?
Yes, it functions independently to centralize communication among supported Renogy devices, but pairing it with the RENOGY ONE M1 unlocks full smart monitoring capabilities.
How many devices can I connect?
The Communication Hub supports simultaneous connection to multiple batteries, inverters, and controllers depending on your system size and configuration.
Is it compatible with non-Renogy products?
No, it is specifically designed for Renogy-branded devices and systems.
