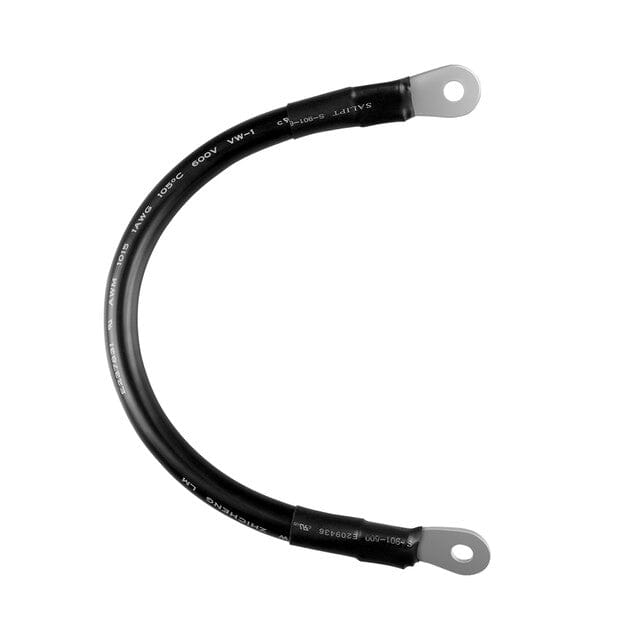

Renogy Copper Battery Interconnect Cable for 5/16 in Lugs
The Renogy Copper Battery Interconnect Cable is designed to deliver efficient and reliable power transfer between batteries in off-grid, RV, or marine systems. Built with high-conductivity copper and rugged, flexible insulation, this cable ensures low resistance and dependable current flow in demanding environments. It’s a must-have for building or expanding your battery bank with 5/16 in terminal lugs.
Renogy Copper Battery Interconnect Cable for 5/16 in Lugs Features

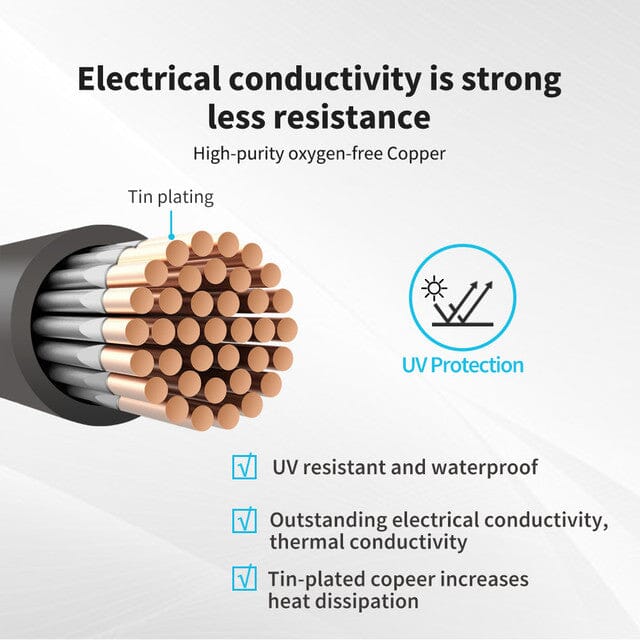

Pure Copper Conductor – Delivers excellent conductivity and minimizes voltage drop for efficient power transfer.
Durable PVC Insulation – Flame-retardant, flexible, and resistant to abrasion and harsh conditions.

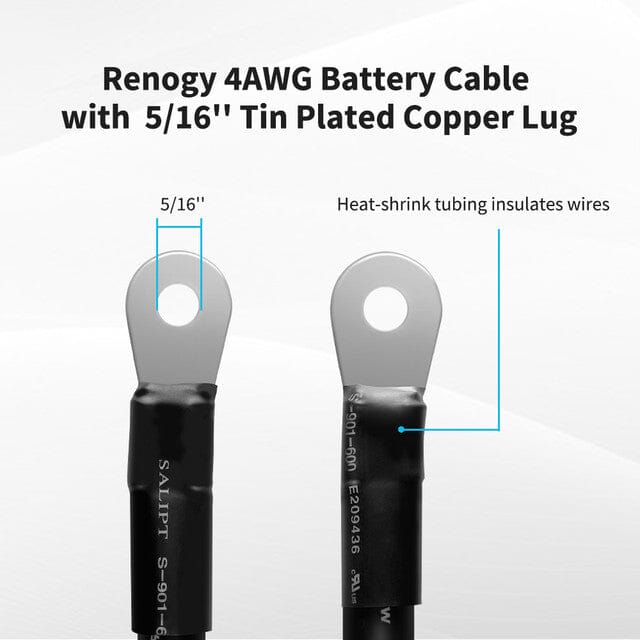

Pre-Crimped Ring Terminals – Comes with secure 5/16 inch lugs on both ends, ready for quick installation.
Flexible Design – Ideal for tight battery compartments and custom layouts in RVs, boats, or solar systems.
Multiple Length Options – Available in various lengths to suit your configuration needs.
Renogy Copper Battery Interconnect Cable for 5/16 in Lugs Applications
-

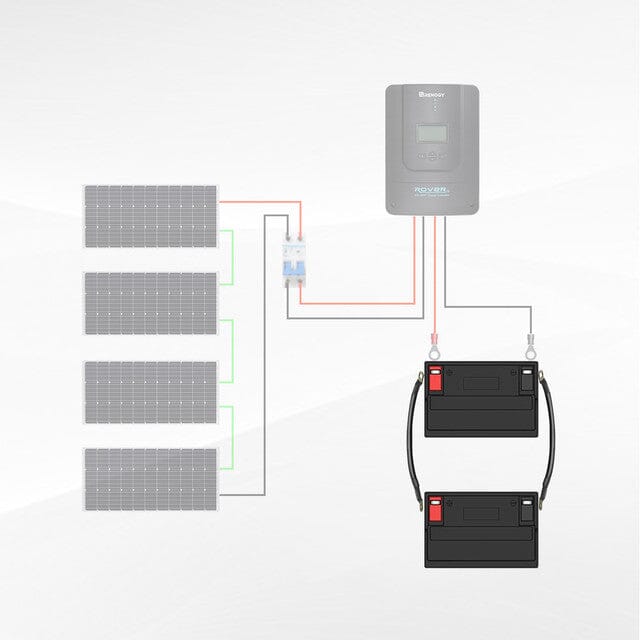

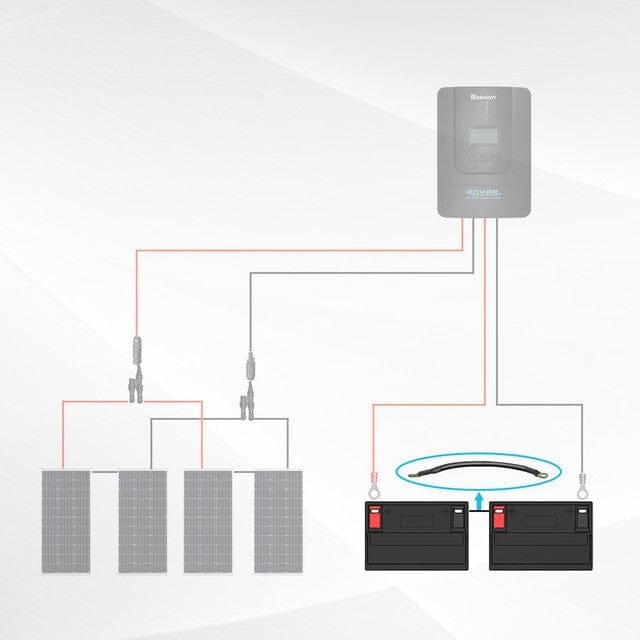

Battery Bank Connections – Safely link batteries in parallel or series configurations.
-
RV & Marine Systems – Built tough to withstand vibrations and weather exposure.
-
Off-Grid Power Systems – A reliable choice for connecting batteries in solar storage setups.
-
Custom Power Builds – Great for DIY battery boxes, backup systems, and mobile energy units.
-
Inverter Wiring – Use for short, high-current connections to inverters or fuse blocks.
What’s Included?
Renogy Copper Battery Interconnect Cable for 5/16 in Lugs Specifications
| Renogy 12in 4AWG Battery Interconnect Cables |
| Length |
12in |
| AWG |
4 |
| 100% copper cable with a tin coated |
Terminal: 5/16in battery rings at both ends |
| Stranding |
Class K 30 gauge bare copper |
| Voltage |
600/1000 V |
| Temperature |
221°F Dry, 167°F Wet |
| *This is not sold as a set |
| Renogy 14in 4AWG Battery Interconnect Cables |
| Length |
14in |
| AWG |
4 |
| 100% copper cable with a tin coated |
Terminal: 5/16in battery rings at both ends |
| Stranding |
Class K 30 gauge bare copper |
| Voltage |
600/1000 V |
| Temperature |
221°F Dry, 167°F Wet |
| *This is not sold as a set |
| Renogy 16in 4AWG Battery Interconnect Cables |
| Length |
16in |
| AWG |
4 |
| 100% copper cable with a tin coated |
Terminal: 5/16in battery rings at both ends |
| Stranding |
Class K 30 gauge bare copper |
| Voltage |
600/1000 V |
| Temperature |
221°F Dry, 167°F Wet |
| *This is not sold as a set |
Renogy 12in
Frequently-Asked Questions
Can I use this cable outdoors?
Yes, the cable's insulation is rated to handle outdoor environments, but it's best used in enclosed battery compartments for maximum longevity.
Are the ring terminals included and installed?
Yes, each cable comes with pre-crimped 5/16 inch ring terminals for fast, secure installation.
Is this cable flexible enough for tight battery spaces?
Absolutely. The copper strands and PVC jacket are designed for high flexibility, making it easy to route through compact setups.
|
