Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

Name: Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT
Brand: Renogy
SKU: RBC30D1S-US
Price: 186.99 USD
Availability: InStock

BY: Renogy

SKU: RBC30D1S-US

| Availability: In stock

$269.99

$186.99

You Save: $83.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

The Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT is a versatile charging solution that combines a 30A DC-to-DC battery charger with an integrated MPPT solar charge controller. Designed for RVs, camper vans, boats, trailers, and overlanding vehicles, it efficiently charges your house battery from both the vehicle alternator and solar panels. With support for multiple battery chemistries, Bluetooth monitoring compatibility, optimized charging logic, and enhanced thermal management, the DCC30S delivers reliable charging performance wherever your adventures take you.

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT Features

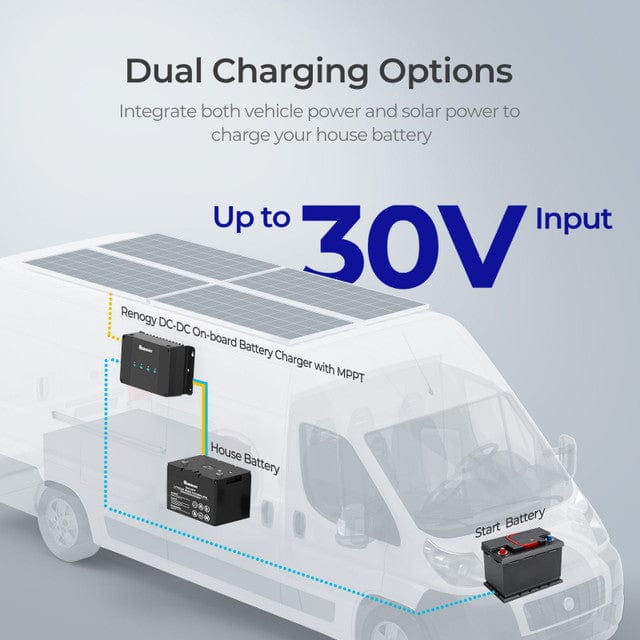

Dual Input Charging - Combines alternator charging and MPPT solar charging into one compact unit, allowing your battery to charge efficiently whether you're driving or parked.

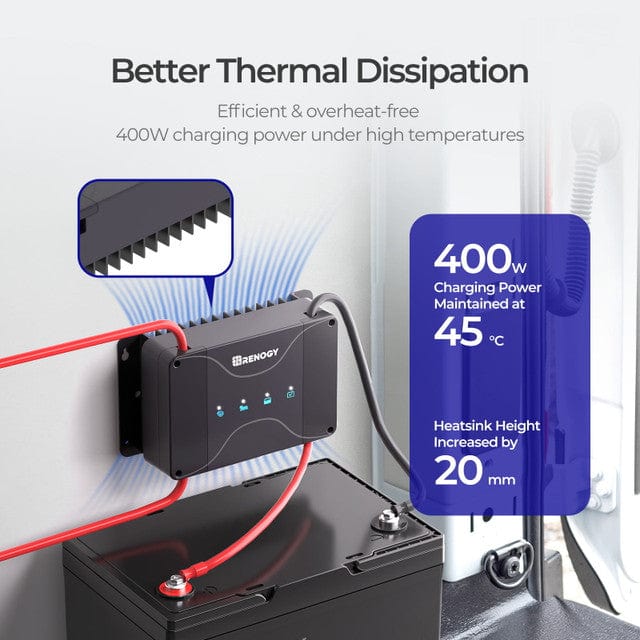

Enhanced Heat Dissipation - An improved thermal design provides better heat management, increasing charging stability and extending the lifespan of internal components.
Supports Higher Solar Input Voltage - Accepts up to 30V solar panel input, giving users greater flexibility when selecting compatible solar panels for their system.
Integrated MPPT Solar Charging - Built-in MPPT technology maximizes solar energy harvest by continuously tracking the optimal power point for improved charging efficiency.
Optimized Charging Logic - Advanced charging algorithms intelligently manage power from both charging sources, improving battery charging performance and overall efficiency.

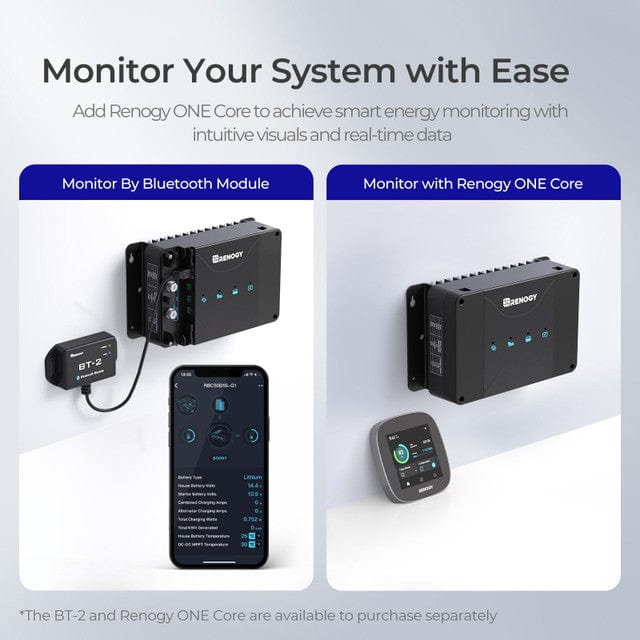

Bluetooth Monitoring Ready - Compatible with the Renogy BT-2 Bluetooth Module (sold separately), allowing users to monitor charging status and customize settings using the Renogy DC Home App.

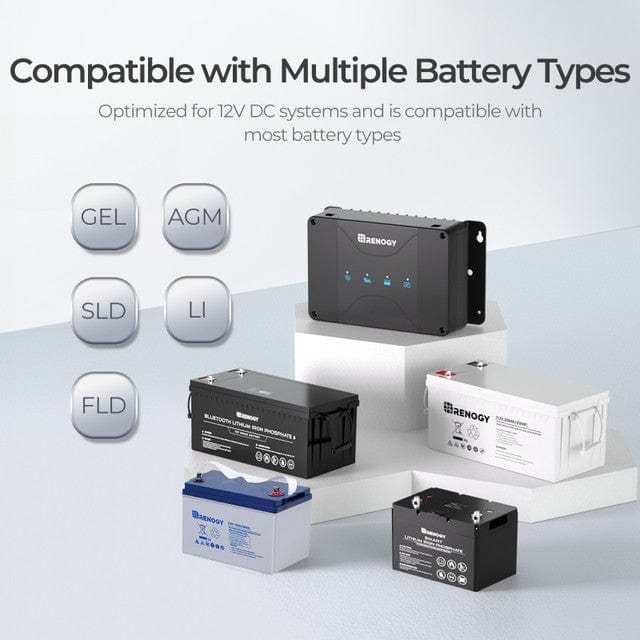

Multiple Battery Compatibility - Supports Lithium (LiFePO₄), AGM, Gel, Flooded, and Sealed Lead-Acid batteries, making it suitable for a wide range of mobile and off-grid power systems.

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT Applications

RV and motorhome dual battery systems – Charges the house battery from both the alternator and rooftop solar panels while traveling or camping.
Camper van conversions – Provides efficient battery charging for van life and off-grid adventures.
Overlanding vehicles – Maintains auxiliary battery banks for refrigeration, lighting, and electronics during remote expeditions.
Marine and boating electrical systems – Charges onboard batteries using engine power and solar energy.
Travel trailers – Keeps auxiliary batteries fully charged for appliances and camping equipment.
Off-grid cabins – Integrates with small solar systems for reliable battery charging.
Emergency backup battery systems – Maintains batteries for standby power applications.
Mobile work trucks – Powers tools, communications equipment, and auxiliary electrical systems.
Agricultural service vehicles – Supports off-grid electrical equipment in rural environments.
DIY mobile solar systems – Ideal for custom vehicle and renewable energy projects.

What's Included

Everything you need is included with your product.

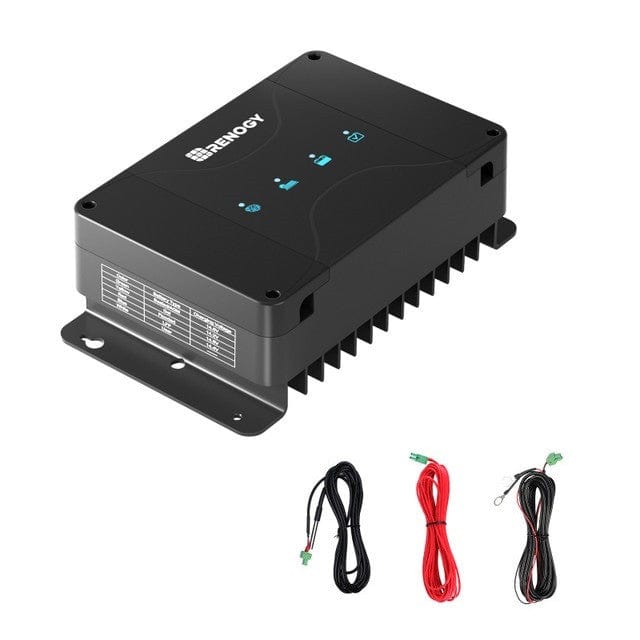

1 x Renogy 12V 30A DC-DC Dual Battery Charger
1 x Battery Temperature Sensor
1 x Battery Voltage Sensor

1 x IGN Signal Wire
User Manual

Warranty

3-Year Material and workmanship warranty

Renogy DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT Specifications

Electrical Parameters

Specification	Details
System Voltage	12VDC
Battery Voltage Range	9-16VDC
Maximum Charging Current	30A
Battery Types	AGM/SLD , GEL ,FLD ,LI ,USER
Service Battery Charging Mode	MPPT
Charging Efficiency	94%
Max. Solar Input Voltage	30V
Max. Solar Input Power	400W
Alternator Input Voltage	Traditional Alternator: 13.2-16VDC ; Smart Alternator (Euro 6): 12-16VDC
Max. Alternator Input Power	400W
Self-consumption	60mA
Temperature Compensation (Non-Lithium)	-3mV / ℃ / 2V
Temperature Compensation (Lithium)	0mV / ℃ / 2V
Idle Power Consumption	＜30mA

General Data

Specification	Details
Ground Type	Negative
Terminal Size	M8*1.25 - 10mm
Terminal Range	8AWG-4AWG
Operating Temperature Range	-31℉ to 149℉/-35℃ to 65℃
Storage Temperature Range	-40℉ to 176℉/-40℃ to 80℃
Operating / Storage Humidity	0%-95%, No Condensation
Dimensions	9.61 x 5.75 x 3.03 inch/244 x 146 x 77mm
Weight	3.13 lb / 1.4 kg
Communication Protocol	RS485

Certifications

Specification	Details
Certification	CE;ROHS;FCC Part 15 class B; ETL listed to UL 1741 & CSA C22.2

Frequently Asked Questions

What does dual input charging mean?

The DCC30S can charge your house battery from both your vehicle's alternator while driving and solar panels while parked, automatically managing both charging sources.

What battery types are supported?

The charger supports Lithium (LiFePO₄), AGM, Gel, Flooded, and Sealed Lead-Acid batteries.

What is the maximum solar input voltage?

The DCC30S supports solar panel input voltages up to 30V, providing greater flexibility when selecting solar panels.

Can I monitor the charger from my smartphone?

Yes. By adding the optional Renogy BT-2 Bluetooth Module, you can monitor charging status and adjust settings using the Renogy DC Home App.

Does the charger include an MPPT solar controller?

Yes. The DCC30S has a built-in MPPT solar charge controller that maximizes solar energy production and improves charging efficiency.

Is this charger suitable for RVs and camper vans?

Absolutely. It is specifically designed for RVs, camper vans, boats, trailers, overlanding vehicles, and other mobile battery charging applications.
