Renogy MRBF Terminal Fuses

Name: Renogy MRBF Terminal Fuses
Brand: Renogy
SKU: RPD30TF-BL-G1-US
Price: 12.99 USD
Availability: OutOfStock

BY: Renogy

SKU: RPD30TF-BL-G1-US

| Availability: OUT OF STOCK

$17.99

$12.99

Sold out

Product Options::

Quantity

Product Highlights

Built for off-grid power, RV travel, and marine systems
Built-in electrical protections help safeguard connected equipment
Designed for use in marine environments
Provides dependable protection against overloads and short circuits

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Renogy MRBF Terminal Fuses

The Renogy MRBF Terminal Fuses provide compact, high-performance overcurrent protection for battery banks, solar energy systems, inverter installations, and other high-current DC applications. Designed to mount directly to battery terminals, MRBF (Marine Rated Battery Fuse) fuses help simplify system wiring while providing dependable circuit protection in a compact footprint. Available in a wide range of amperage ratings from 30A to 400A, these fuses are ideal for protecting batteries, inverters, combiners, and DC distribution systems in RV, marine, off-grid, and backup power applications.

Renogy MRBF Terminal Fuses Features

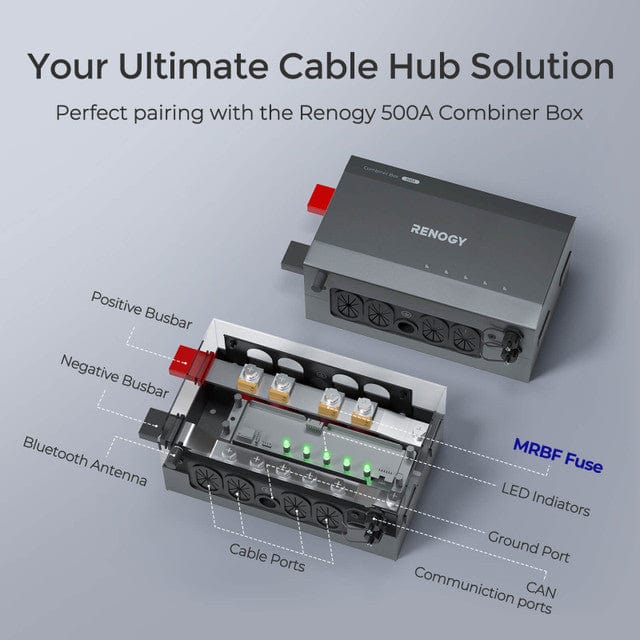

Simplifies Wiring with Renogy 500A Combiner Box - Designed for seamless integration with Renogy's 500A Combiner Box, helping reduce wiring complexity while maintaining reliable circuit protection.
Reliable Overcurrent Protection - Provides dependable protection against overloads and short circuits, helping safeguard batteries, cables, and connected equipment from damage.
Wide Range of Amperage Options - Available in ratings from 30A to 400A, allowing users to select the appropriate fuse size for a variety of solar and battery applications.

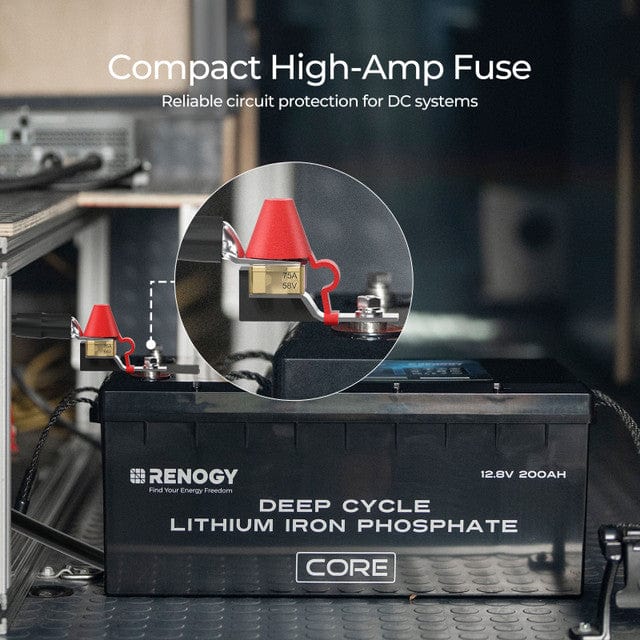

Compact Terminal-Mount Design - Installs directly on battery terminals, reducing cable runs and minimizing installation space requirements.
Ideal for High-Current DC Systems - Perfect for protecting inverters, battery banks, combiner boxes, and other high-current DC power equipment.
Certified for Safety and Reliability - Manufactured to meet RoHS, UL, and CE certifications, ensuring compliance with recognized safety and quality standards.
Flexible Installation Options - Can be used with Renogy combiner boxes or installed independently with compatible terminal fuse holders.

Renogy MRBF Terminal Fuses Applications

Battery bank overcurrent protection – Protects battery banks from excessive current flow that could cause damage, overheating, or system failure.
Renogy 500A Combiner Box installations – Integrates seamlessly with Renogy combiner boxes to provide centralized and reliable circuit protection.
Inverter circuit protection – Safeguards inverters from overloads and short circuits, helping maintain stable power conversion.
Solar energy storage systems – Ensures safe operation of energy storage setups by preventing electrical faults and current surges.
RV electrical systems – Provides dependable protection for mobile power systems used in recreational vehicles.
Marine and boating power systems – Designed for use in marine environments, protecting onboard electrical systems from overcurrent conditions.
Off-grid solar installations – Supports safe and reliable operation of independent solar systems in remote locations.
Backup power systems – Helps maintain system integrity by protecting backup power setups during unexpected surges or faults.
DC distribution panels – Protects circuits within DC distribution systems, ensuring safe power delivery to connected components.
Mobile power and overlanding applications – Ideal for portable and vehicle-based power systems, offering protection in rugged and mobile environments.

What's Included

Everything you need is included with your product.

Renogy MRBF Terminal Fuse x 1

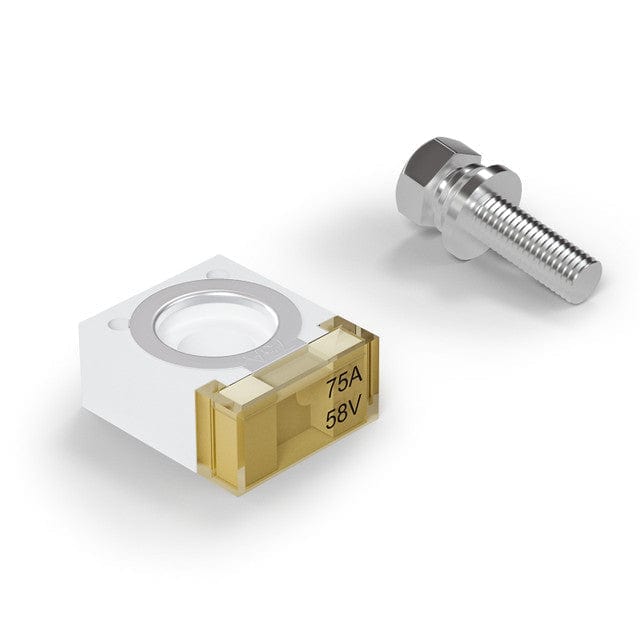

M8 Terminal Bolt x 1

User Manual

Warranty

1-year material and workmanship warranty

Renogy MRBF Terminal Fuses Specifications

Sepcification	Details
Current Rating	30A/40A/60A/75A/100A/150A/200A/250A/300A/350A/400A
Voltage Rating	58V
Interrupt Rating	10,000A @ 14VDC / 5,000A @ 32VDC / 2,000A @ 58VDC

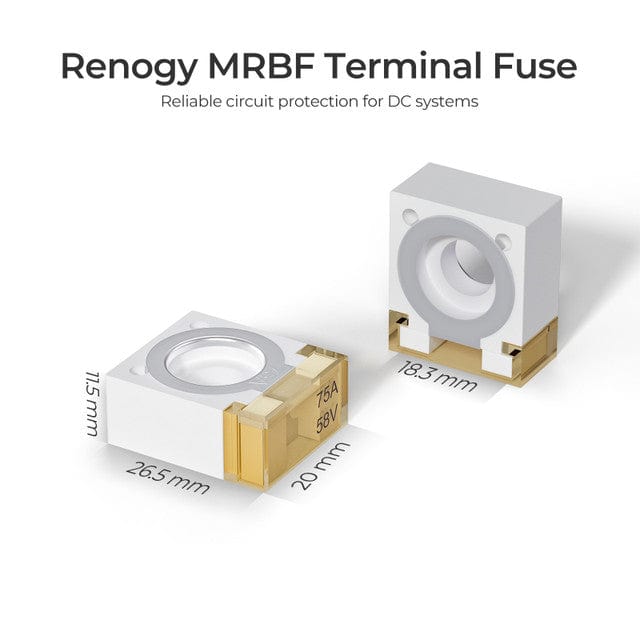

Dimension	23.52011.5 mm / 0.930.790.45 inch
Mounting Hole Size	5/16'' / M8
Insulating Body Material	Ceramic
Cover Material	PES

Certifications

RoHS; UL; CE

Frequently Asked Questions

What is an MRBF fuse?

MRBF stands for Marine Rated Battery Fuse. These fuses are designed to mount directly to battery terminals and provide overcurrent protection for high-current DC electrical systems.

What equipment can MRBF fuses protect?

MRBF fuses are commonly used to protect batteries, inverters, combiner boxes, DC distribution panels, and other high-current electrical equipment.

How do I choose the correct fuse rating?

The fuse size should be selected based on the maximum current requirements of the equipment and the manufacturer's installation recommendations.

Can these fuses be used without a Renogy 500A Combiner Box?

Yes. While they are designed to integrate seamlessly with the Renogy 500A Combiner Box, they can also be used in other compatible battery and DC power installations.

Are these fuses suitable for marine applications?

Yes. MRBF fuses are commonly used in marine electrical systems because of their compact size, terminal-mounted design, and reliable overcurrent protection.

What happens when the fuse blows?

When excessive current flows through the circuit, the fuse element opens, interrupting power and helping prevent damage to connected equipment.
