Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller Solar Charge Controllers Renogy

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller

Name: Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller
Brand: Renogy
SKU: RCC20VOYP-US
Price: 54.99 USD
Availability: InStock

BY: Renogy

SKU: RCC20VOYP-US

| Availability: In stock

$80.99

$54.99

You Save: $26.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller

The Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller is a rugged, weather-resistant charge controller engineered for marine, RV, camper, and off-grid solar systems. Featuring advanced 4-stage PWM charging, IP67 waterproof protection, and automatic 12V/24V battery detection, it delivers reliable battery charging in harsh outdoor environments. The integrated LCD display provides real-time system information, while multiple electronic protections help maximize battery performance and extend system life.

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller Features

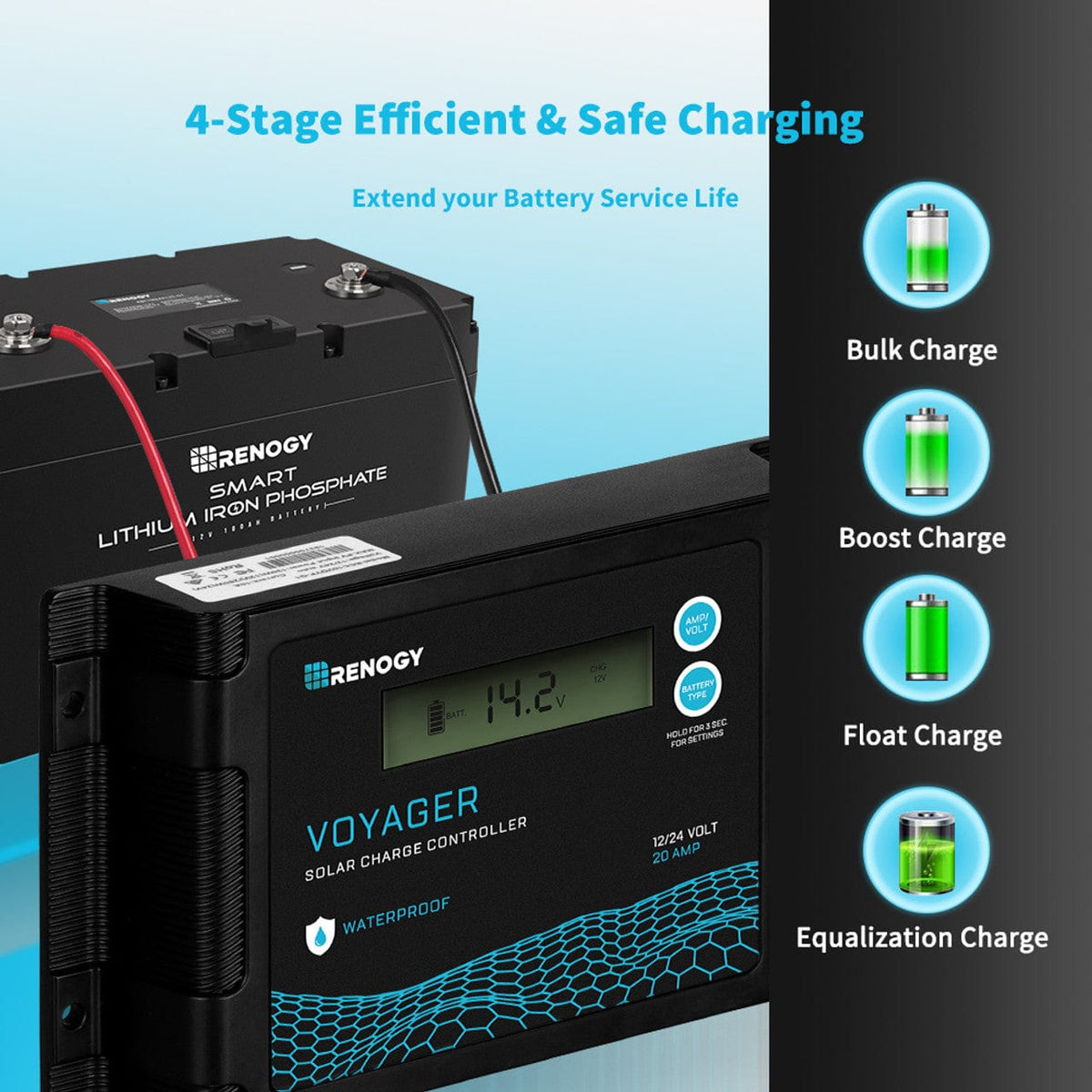

Smart 4-Stage PWM Charging - The intelligent 4-stage PWM charging algorithm optimizes battery charging, helping extend battery life while maintaining peak performance.

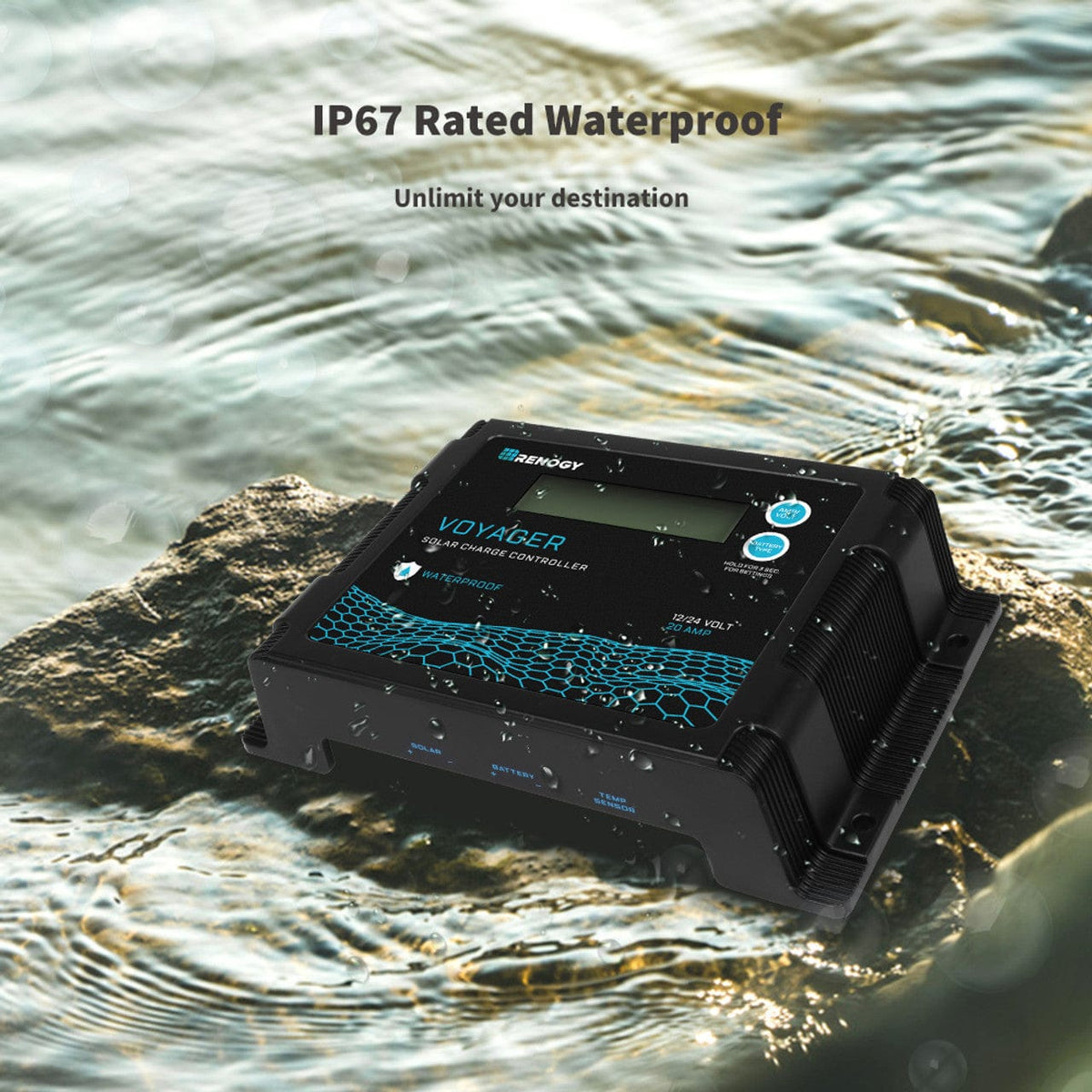

IP67 Waterproof Construction - Designed with an IP67 waterproof enclosure, the controller operates reliably in rain, water spray, and demanding outdoor environments.

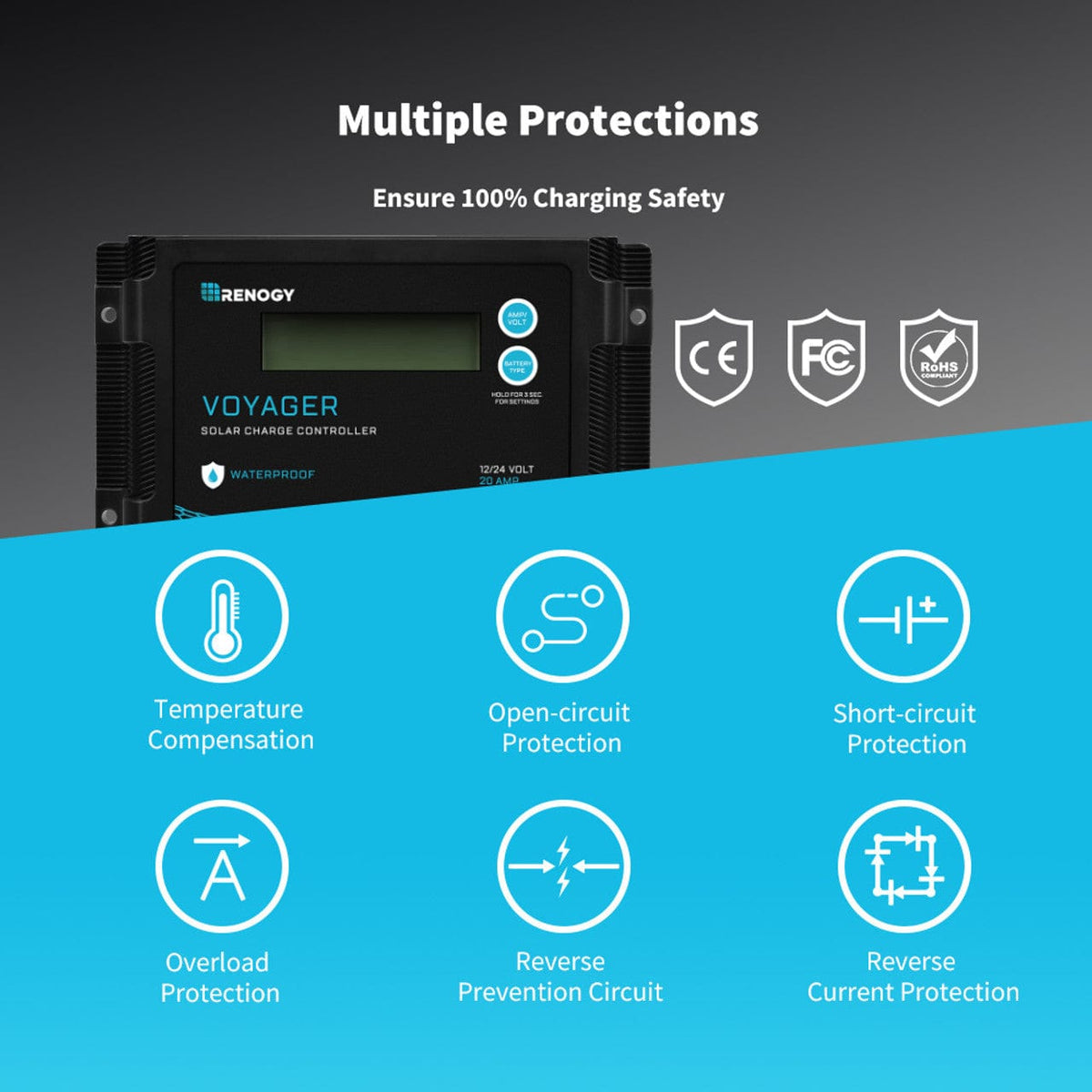

Comprehensive System Protection - Built-in protections safeguard your solar system against overcharging, over-discharging, overload, reverse polarity, short circuit, and overheating.

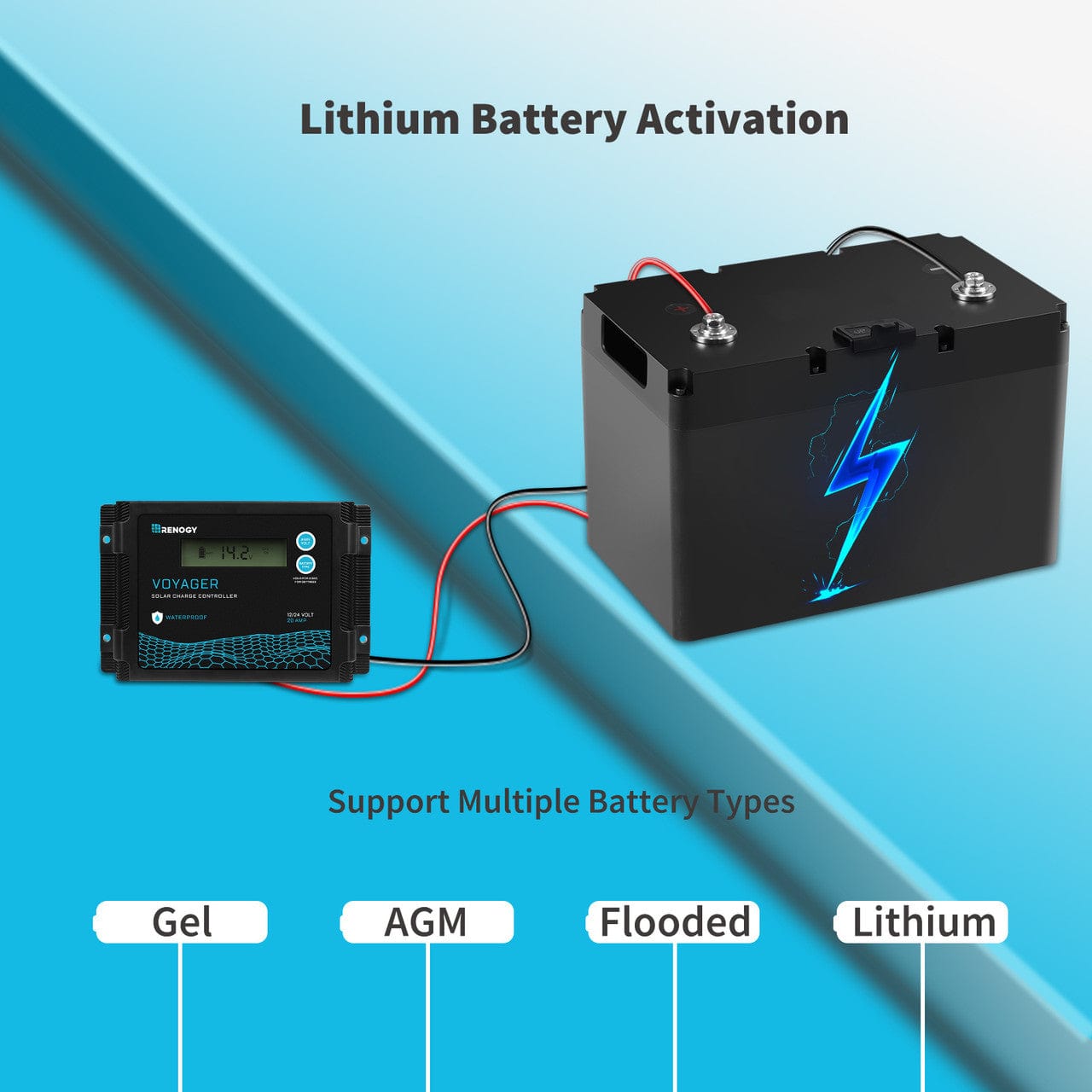

Automatic 12V/24V Battery Detection - The controller automatically detects 12V or 24V battery systems and supports Gel, AGM, Flooded, and Lithium batteries for flexible compatibility.

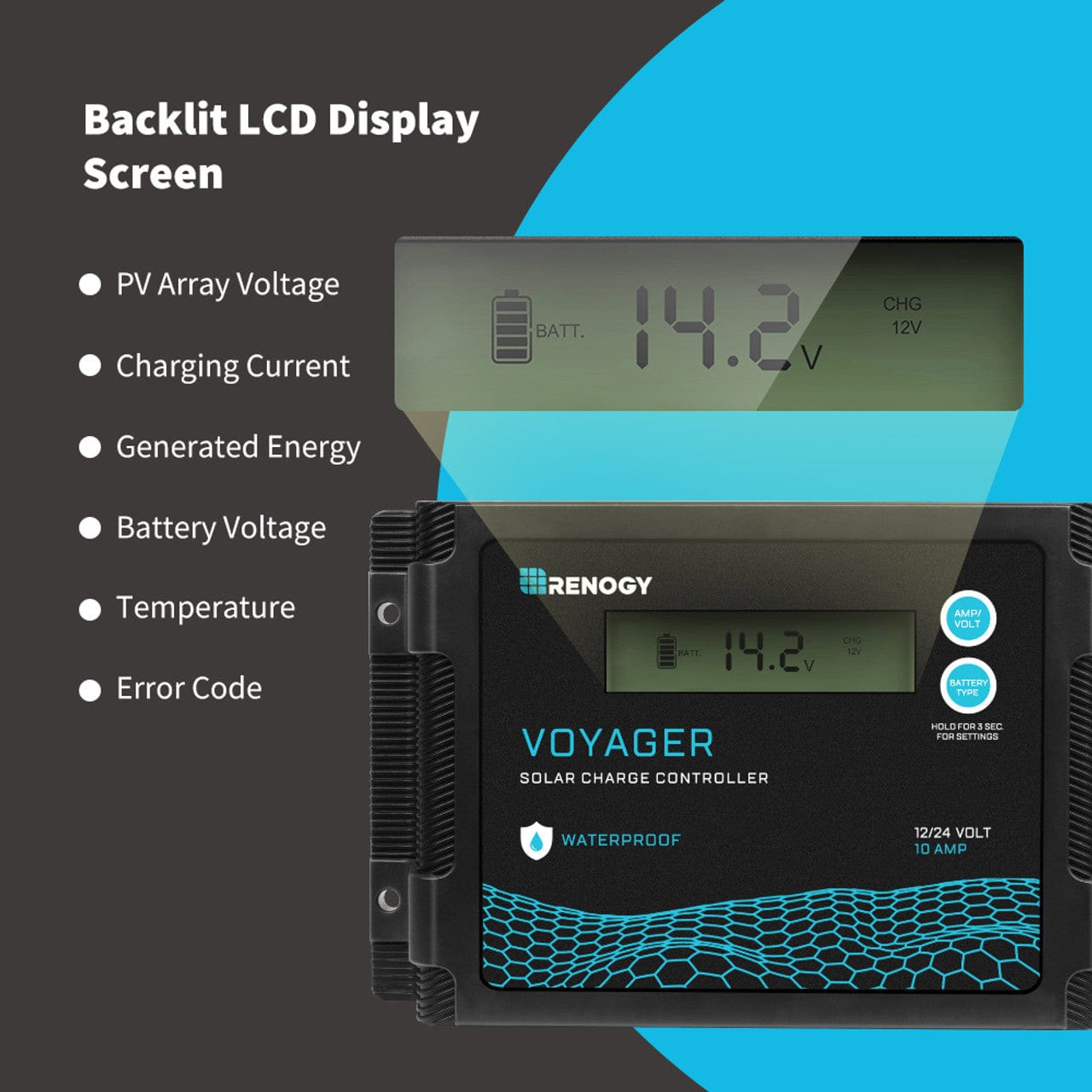

LCD Information Display - The integrated LCD screen provides real-time charging information, battery status, operating parameters, and error codes for convenient system monitoring.

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller Applications

Marine solar systems – Reliable waterproof charging for boats, yachts, and other marine applications exposed to harsh weather.
RV and camper installations – Keeps auxiliary batteries charged during travel and camping adventures.
Off-grid cabins – Provides dependable solar charging for remote cabins without access to utility power.
Tiny homes – Supports renewable energy systems for compact off-grid living.
Outdoor lighting systems – Powers lighting installations in parks, pathways, and remote locations.
Agricultural equipment – Maintains battery systems for farm equipment and remote monitoring devices.
Remote monitoring stations – Supplies continuous battery charging for communications and monitoring equipment.
Portable solar systems – Ideal for mobile solar kits requiring weather-resistant performance.
Emergency backup systems – Helps maintain battery banks for standby power applications.
Coastal environments – Corrosion-resistant design performs well in humid and marine conditions.

What's Included

Everything you need is included with your product.

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller

User Manual

Warranty

2-year material and workmanship warranty

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller Specifications

Electrical Parameters

Specification	Details
Nominal Voltage	12/24V Auto-Detection (For Non-Lithium Batteries)
Rated Charge Current	20A
PV Input Voltage Range	15V-55V
Max. Pv Open Circuit Voltage	12V@25V 24V@55V
Max. PV Input Power	12V @ 260W / 24V@520W
Warranty	2-year material and workmanship warranty
Battery Types	SLD/AGM, GEL, FLD. LI
Power Consumption	12V @ 0.24W / 24V@0.74W
Max Battery Voltage	32V
Ground Type	Positive
Electrical Protection	Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection
Communication Port	N/A

Environmental Data

Specification	Details
Protection Level	IP67
Operating Temperature Range	-31°F - 113°F
Storage Temperature Range	-31°F - 167°F
Operating / Storage Humidity	10%-90%, No Condensation
Temperature Compensation	'-3mV/C/2V excludes LI

Mechanical Specifications

Specification	Details
Dimensions	6.083.831.40 in
Weight	0.55Ibs
Max. Cable Size	6 AWG
Controller Terminals	20 - 6 AWG, 2-pin terminals

Optional Accessories

Specification	Details
Temperature Sensor RTSVOY-US	22AWG 10FT

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller Video

Frequently Asked Questions

Is this controller waterproof?

Yes. It features an IP67 waterproof enclosure, making it suitable for outdoor, RV, and marine installations.

What battery types are supported?

It supports Gel, AGM, Flooded, and Lithium batteries.

Does it automatically detect battery voltage?

Yes. The controller automatically detects 12V and 24V battery systems.

What charging technology does it use?

It utilizes an intelligent 4-stage PWM charging algorithm to maximize battery performance and lifespan.

Can I monitor system information on the controller?

Yes. The built-in LCD display provides battery status, charging information, operating parameters, and diagnostic error codes.

Manual

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller Manual
