Renogy Rover 100 Amp MPPT Solar Charge Controller Solar Charge Controllers Renogy

Renogy Rover 100 Amp MPPT Solar Charge Controller

Name: Renogy Rover 100 Amp MPPT Solar Charge Controller
Brand: Renogy
SKU: RNG-CTRL-RVR100-US
Price: 701.99 USD
Availability: InStock

BY: Renogy

SKU: RNG-CTRL-RVR100-US

| Availability: In stock

$863.99

$701.99

You Save: $162.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renogy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

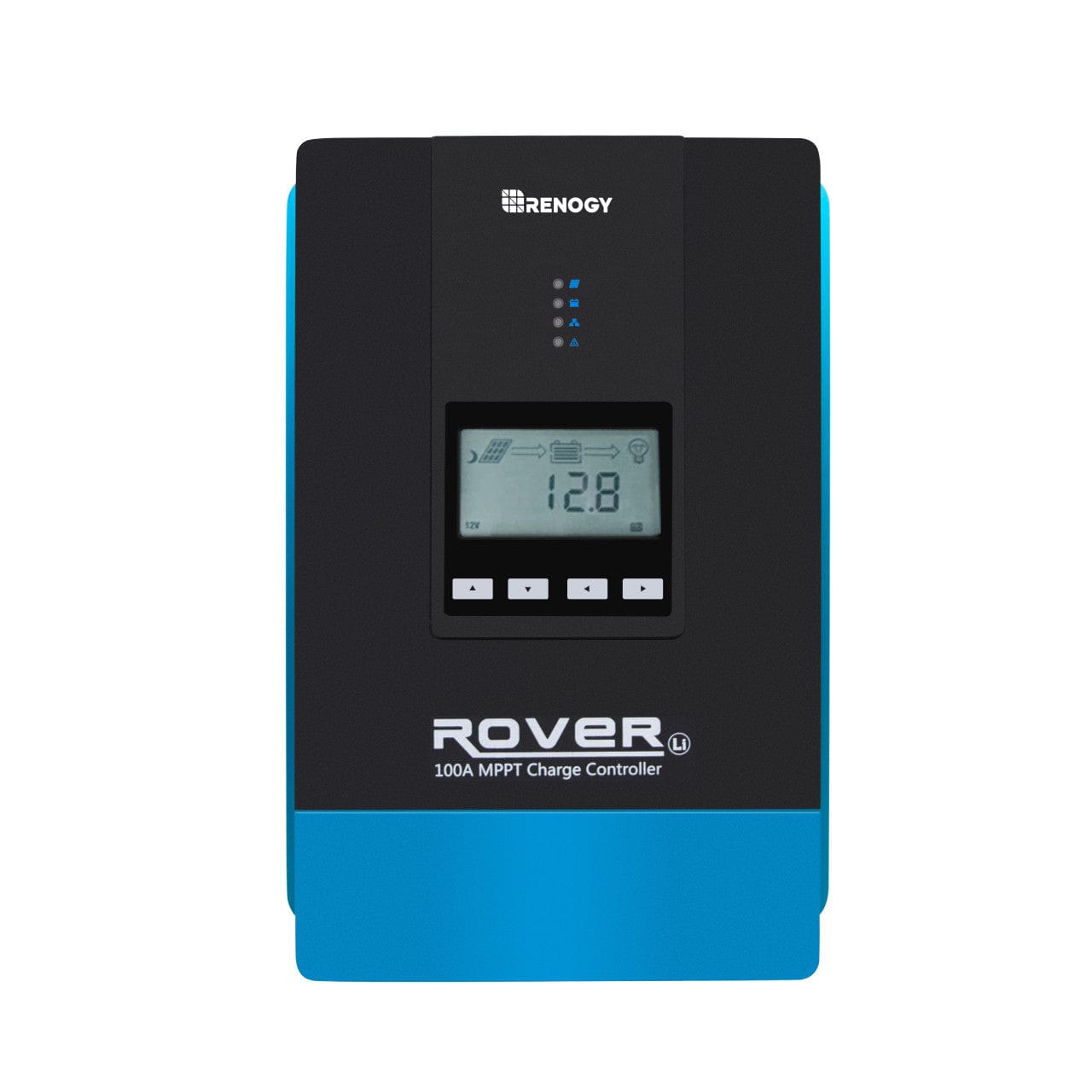

Renogy Rover 100 Amp MPPT Solar Charge Controller

The Renogy Rover 100 Amp MPPT Solar Charge Controller is a high-capacity MPPT charge controller engineered for large residential, commercial, and off-grid solar energy systems. Utilizing advanced Maximum Power Point Tracking (MPPT) technology with up to 99% tracking efficiency, the Rover 100A maximizes solar energy harvest while providing intelligent multi-stage battery charging. Supporting 12V, 24V, 36V, and 48V battery systems, remote monitoring, advanced load control, and comprehensive electronic protections, this controller is an excellent solution for demanding solar installations.

Renogy Rover 100 Amp MPPT Solar Charge Controller Features

99% MPPT Tracking Efficiency - Advanced MPPT technology continuously tracks the solar array's maximum power point, delivering up to 99% tracking efficiency for maximum solar energy production.
Wide Solar Input Voltage Range - Supports a maximum solar input voltage of 140–150V, allowing larger solar arrays and longer panel strings while reducing wiring complexity.
Automatic Multi-Voltage Detection - Automatically detects 12V, 24V, 36V, and 48V battery systems, simplifying installation across a wide range of solar power applications.
Eight Built-In Electronic Protections - Provides comprehensive protection against reverse polarity, overload, short circuits, over-temperature, overcharging, over-voltage, battery over-discharge, and other electrical faults.
Advanced Load Control - Integrated programmable load control allows users to manage connected DC loads efficiently while protecting battery health and optimizing system operation.

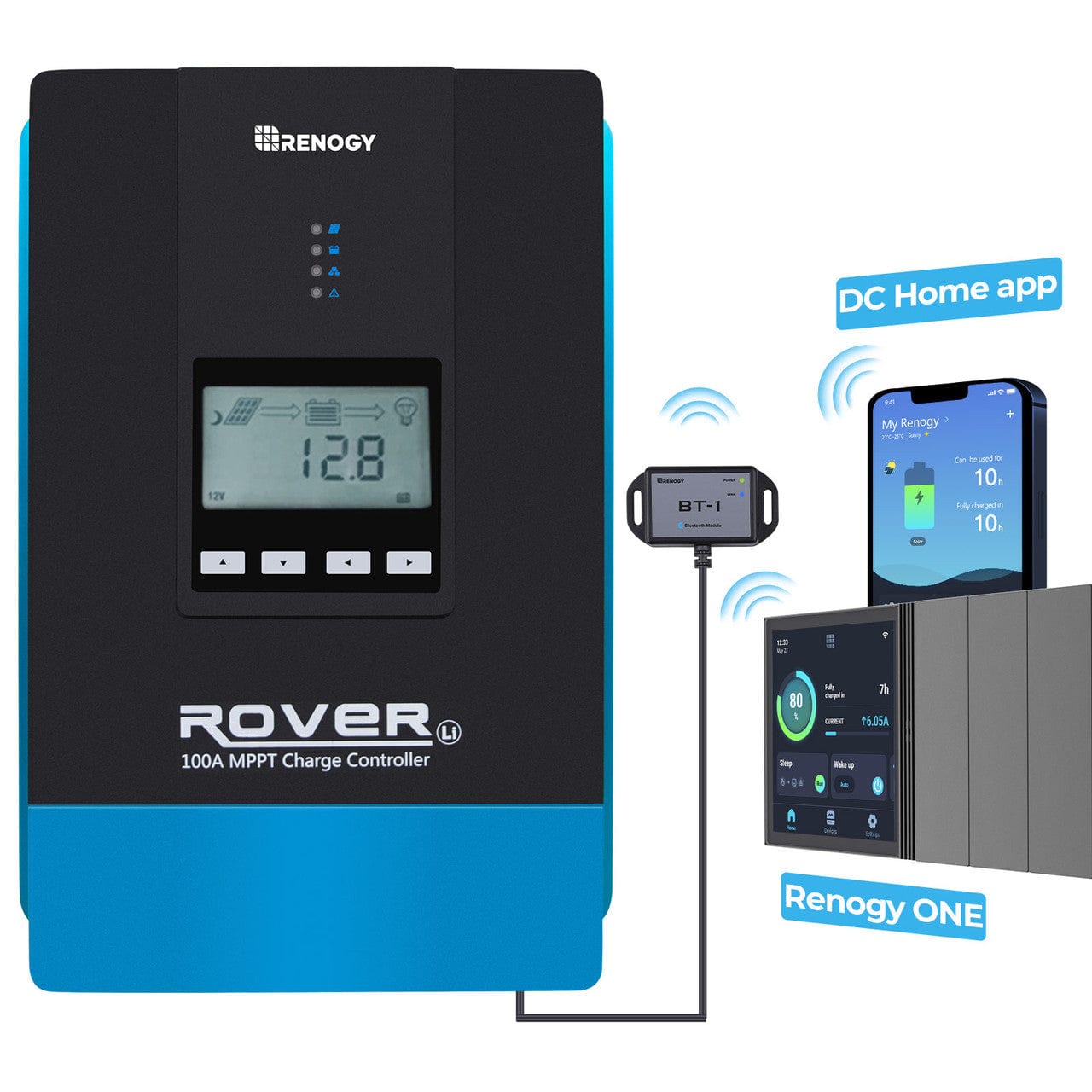

Remote Monitoring Capability - Supports remote monitoring and system management using compatible Renogy communication accessories, allowing users to track system performance in real time.
Designed for Large Solar Systems - The high 100A charging capacity makes this controller ideal for large off-grid homes, commercial installations, agricultural systems, and extensive battery banks.

Renogy Rover 100 Amp MPPT Solar Charge Controller Applications

Residential off-grid solar systems – Efficiently manages large solar arrays and battery banks for full-time off-grid living.
Commercial solar installations – Supports high-capacity renewable energy systems for businesses and industrial facilities.
Agricultural solar systems – Powers irrigation, monitoring equipment, and remote farm operations.
Telecommunications power systems – Provides reliable charging for communication equipment in remote locations.
Backup battery storage systems – Maintains large battery banks for emergency and standby power.
Remote cabins and lodges – Supplies dependable charging for off-grid energy systems.
Marine and industrial DC systems – Supports large battery installations requiring high charging capacity.
Utility-scale battery charging – Manages high-output solar charging for energy storage applications.
Remote monitoring stations – Powers scientific, environmental, and communication equipment.
DIY large-scale renewable energy projects – Ideal for expanding high-capacity solar systems.

What's Included

Everything you need is included with your product.

1 x Renogy Rover 100 Amp MPPT Solar Charge Controller

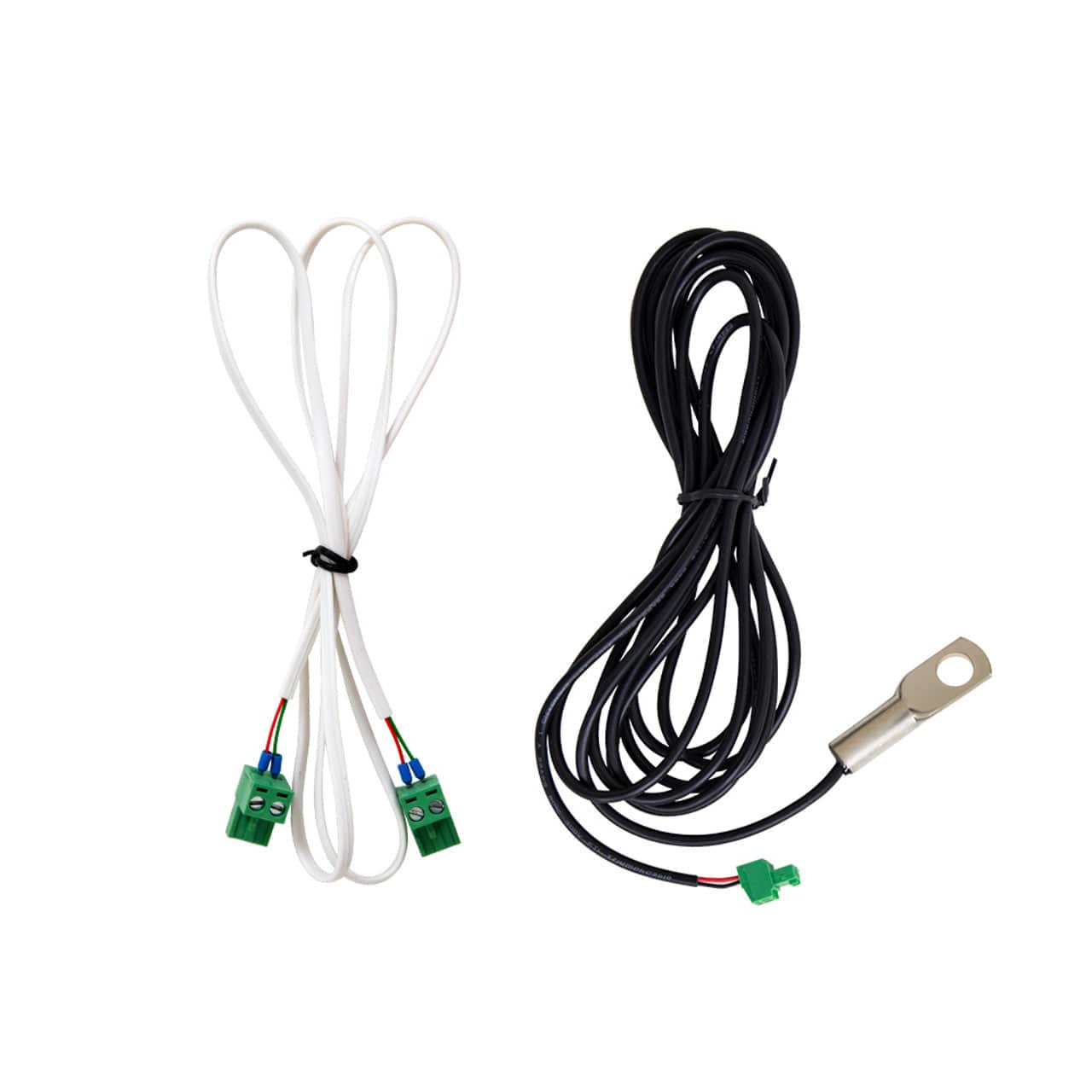

Remote Temperature Sensor

1 x Controller Paralleling Cable
User Manual

Warranty

3-year material and workmanship warranty

Renogy Rover 100 Amp MPPT Solar Charge Controller Specifications

Electrical Parameters

Specification	Details
Nominal Voltage	12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current	100A
Max. PV Input Power	1300W/12V; 2600W/24V; 3900W/36V; 5200W/48V
Max. PV Input Voltage	150VDC (25°C), 140VDC(-25°C)
Self-Consumption	2.7W - 2.9W
Operating Temperature	-35°C to +45°C
Temperature Compensation	-3mV/°C/2V (default)
Dimensions	12.00 x 17.44 x 4.35 in
Weight	22 lbs (9.9kg)
Enclosure	IP32
Terminals	25mm2, 4AWG
Certification	CE

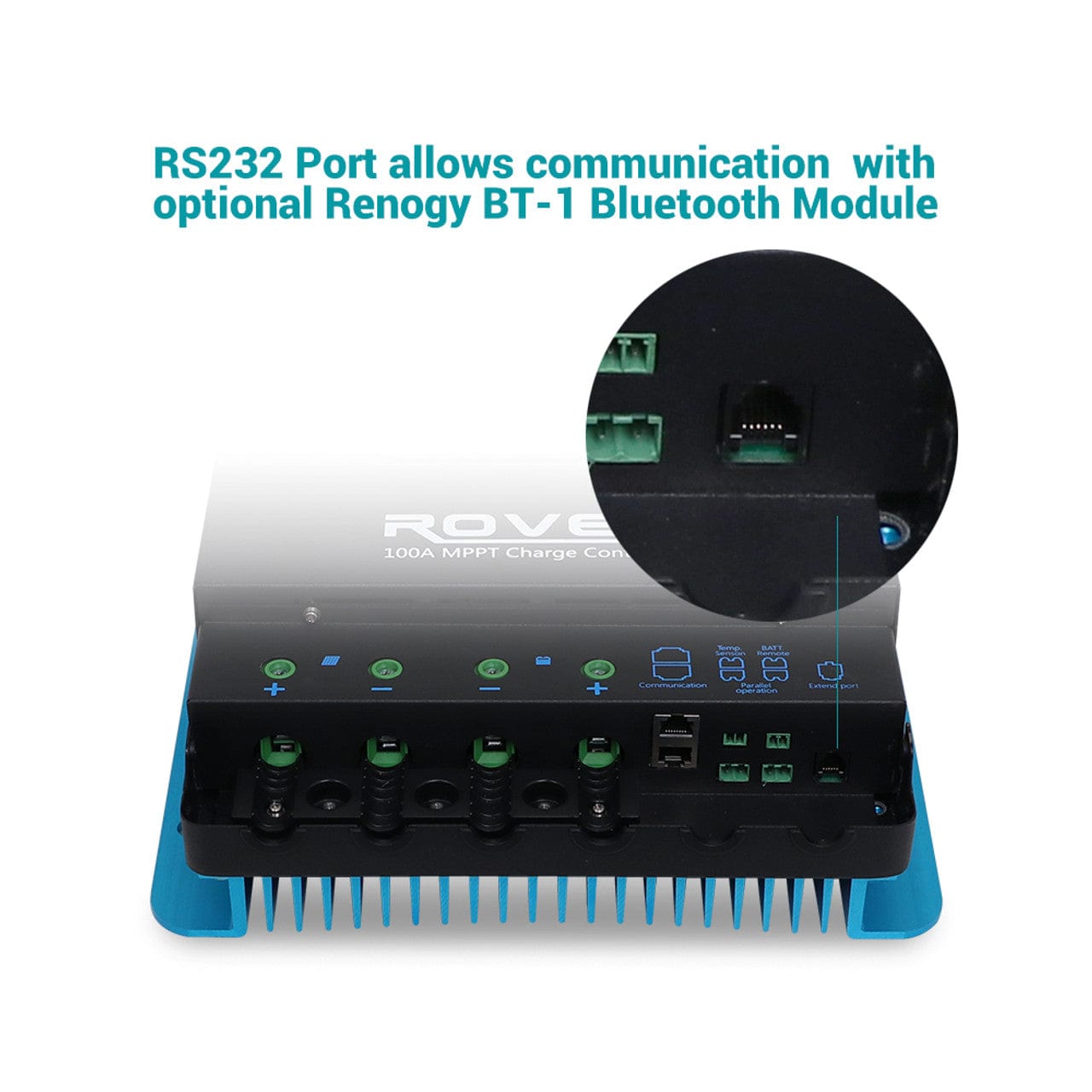

Compatible bluetooth	Renogy BT-1 Bluetooth module or Renogy BT-2 Bluetooth module

Frequently Asked Questions

What battery voltages does the Rover 100A support?

The controller automatically detects and supports 12V, 24V, 36V, and 48V battery systems.

What is MPPT technology?

MPPT (Maximum Power Point Tracking) technology continuously adjusts operating conditions to maximize the energy harvested from solar panels, improving charging efficiency compared to PWM controllers.

How much solar input voltage can the controller accept?

The Rover 100A supports a maximum solar input voltage of up to 140–150V, allowing greater flexibility when designing larger solar arrays.

Does the controller include safety protections?

Yes. It features eight built-in electronic protections, including reverse polarity, overload, short circuit, over-temperature, and overcharge protection.

Can I monitor the controller remotely?

Yes. The Rover 100A supports compatible Renogy remote monitoring accessories for real-time system monitoring and configuration.

What applications is this controller best suited for?

It is ideal for large residential off-grid systems, commercial solar installations, agricultural power systems, backup battery banks, and other high-capacity renewable energy applications.

Manual

Renogy Rover 100 Amp MPPT Solar Charge Controller Manual
