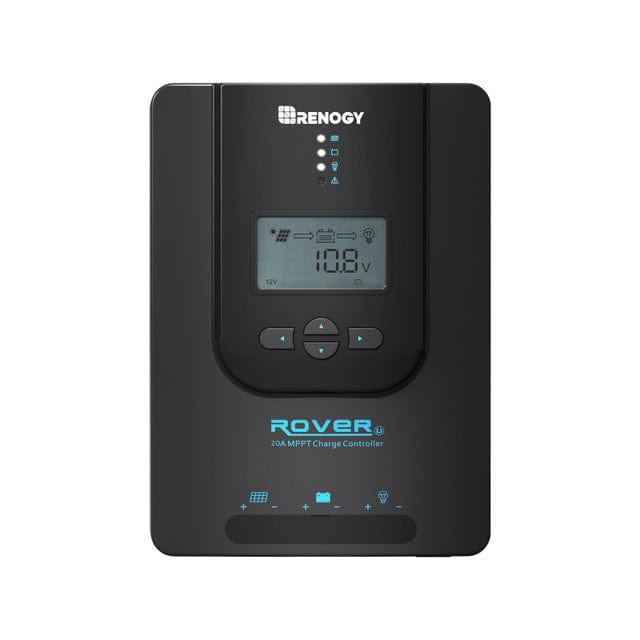

Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) NEW

The Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) NEW is a smart, high-efficiency solar charge controller designed to maximize solar energy production while protecting and extending battery life. Featuring advanced MPPT (Maximum Power Point Tracking) technology, built-in Bluetooth monitoring capability, automatic 12V/24V system detection, and support for lithium batteries, the Rover Li 20A delivers reliable performance for RVs, campers, boats, cabins, and off-grid solar systems. Through the included BT-2 Bluetooth Module and Renogy DC Home App, users can conveniently monitor system performance and adjust settings directly from their smartphone.

Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) NEW Features

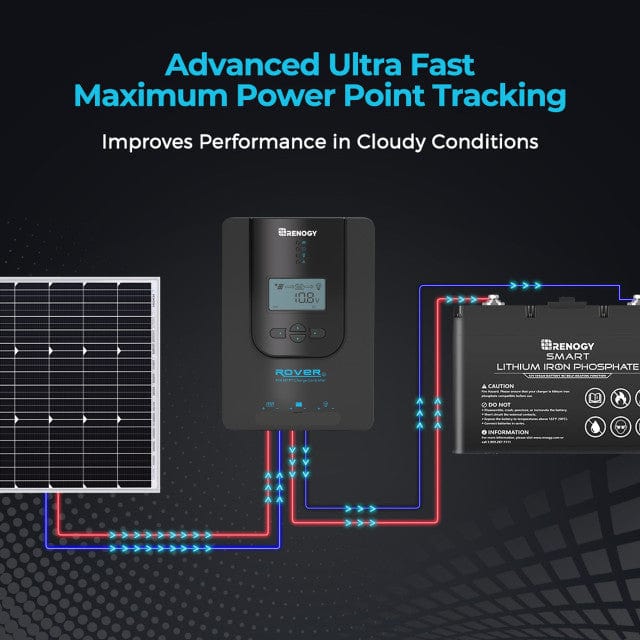

Advanced MPPT Charging Technology - Utilizes Maximum Power Point Tracking technology to maximize solar panel output and improve charging efficiency compared to traditional PWM controllers.
Included BT-2 Bluetooth Monitoring - Monitor charging performance, battery status, and system data wirelessly through the Renogy DC Home App using the included BT-2 Bluetooth Module.

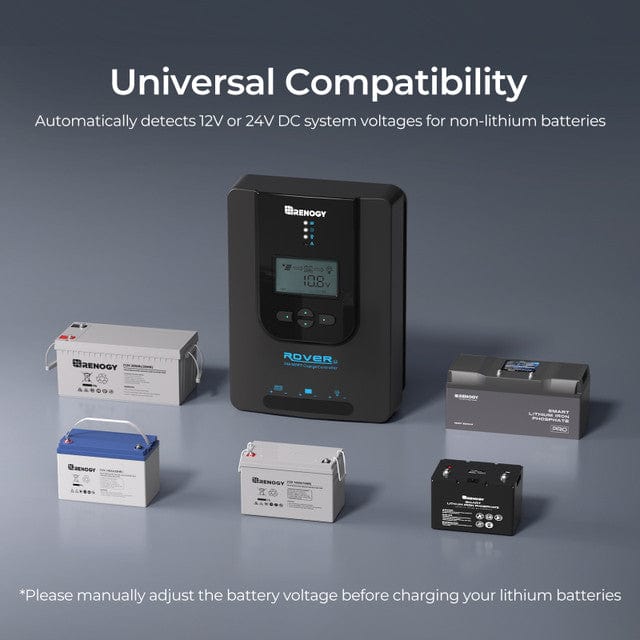

Automatic 12V/24V System Detection - Automatically detects system voltage during installation, simplifying setup and reducing configuration time.
20A Charging Capacity - Provides up to 20 amps of charging current, making it ideal for small to medium-sized solar power systems.
Lithium Battery Compatibility - Optimized for lithium batteries while also supporting AGM, Gel, Flooded, and Sealed Lead-Acid battery chemistries.

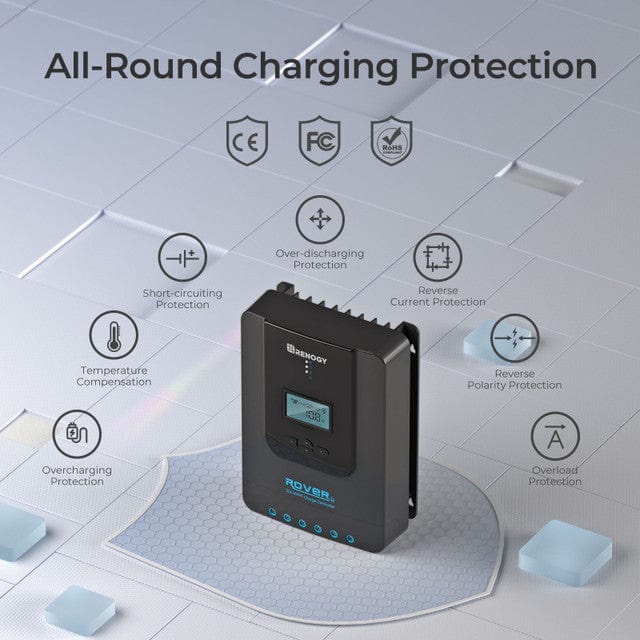

Comprehensive Electronic Protection - Protects connected equipment from overcharging, over-discharging, overloads, reverse polarity, short circuits, and other common electrical faults.
Remote Temperature Compensation - Includes a temperature sensor that automatically adjusts charging parameters based on battery temperature to improve charging accuracy and battery longevity.

Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) NEW Applications

RV solar power systems – Efficiently manages solar charging for recreational vehicles, ensuring reliable power for appliances and electronics on the road.
Camper and van conversion battery charging – Provides stable and optimized charging for custom van builds and camper setups.
Off-grid cabins and tiny homes – Supports independent living by maintaining battery banks in remote or off-grid residential systems.
Marine and boat solar systems – Delivers dependable charging for onboard batteries in marine environments.
Backup power battery banks – Keeps backup batteries charged and ready for emergency power situations.
Portable solar energy systems – Ideal for compact and mobile solar setups used in outdoor or temporary applications.
Overlanding and mobile power setups – Powers essential gear and electronics during extended off-road adventures.
Remote monitoring solar installations – Enables wireless system tracking and performance monitoring via Bluetooth connectivity.
Telecommunications battery systems – Maintains consistent power for communication equipment in remote or critical infrastructure setups.
DIY solar energy projects – Perfect for custom solar builds requiring efficient and intelligent battery charging control.

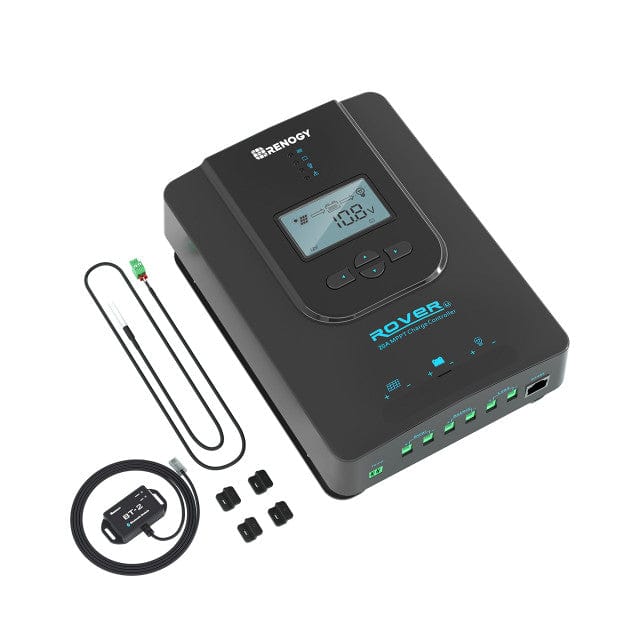

What's Included

Everything you need is included with your product.

1 x Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) NEW
1 x Remote Temperature Sensor
4 x Mounting Brackets

1 x BT-2 Bluetooth Module
User Manual

Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) NEW Video

Renogy Rover Li 20 Amp MPPT Solar Charge Controller (With BT) NEW Specification

Electrical Parameters

Specification	Details
Nominal System Voltage	12/24V (Auto-Detect for Non-Lithium Batteries)
Rated Charge Current	20A
Max. PV Input Voltage	95 VDC
Max. PV Input Power	12V/260W, 24V/520W
Power Consumption	＜100mA/12V; ＜58mA/24V
Max Battery Voltage	32V
Ground Type	Negative
Electrical Protection	Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.

Environmental Data

Specification	Details
Protection Level	IP32
Operating Temperature Range	-35°C to 45°C; -31°F to 113°F
Storage Temperature Range	-35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity	≤ 90%, No Condensation
Temperature Compensation	-3mV/°C/2V

Mechanical Specifications

Specification	Details
Dimensions	210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in
Weight	3.1 lbs / 1.4 kg
Max. Terminals Size	8 AWG 10mm2

Certifications

Specification	Details
CE	YES
FCC Class B Part 15 Compliant	YES

Warranty

Specification	Details
Material and workmanship warranty-RNG-CTRL-RVR20	3 Year
Material and workmanship warranty-RNG-CTRL-RVR20-BT	2-year

Frequently Asked Questions

What does MPPT technology do?

MPPT technology continuously tracks the optimal power point of the solar array, allowing the controller to harvest more energy and improve charging efficiency.

Is the BT-2 Bluetooth module included?

Yes. The package includes the BT-2 Bluetooth Module for wireless monitoring and configuration through the Renogy DC Home App.

What battery types are supported?

The Rover Li supports Lithium, AGM, Gel, Flooded, and Sealed Lead-Acid battery types.

How much solar power can this controller handle?

The controller supports up to 260W of solar input on 12V systems and 520W on 24V systems.

Can I monitor the controller from my phone?

Yes. Using the included BT-2 module and Renogy DC Home App, you can view system data and adjust settings directly from a smartphone.

Does the controller include battery protection features?

Yes. The controller includes protection against overcharging, over-discharging, overloads, reverse polarity, and short circuits.
