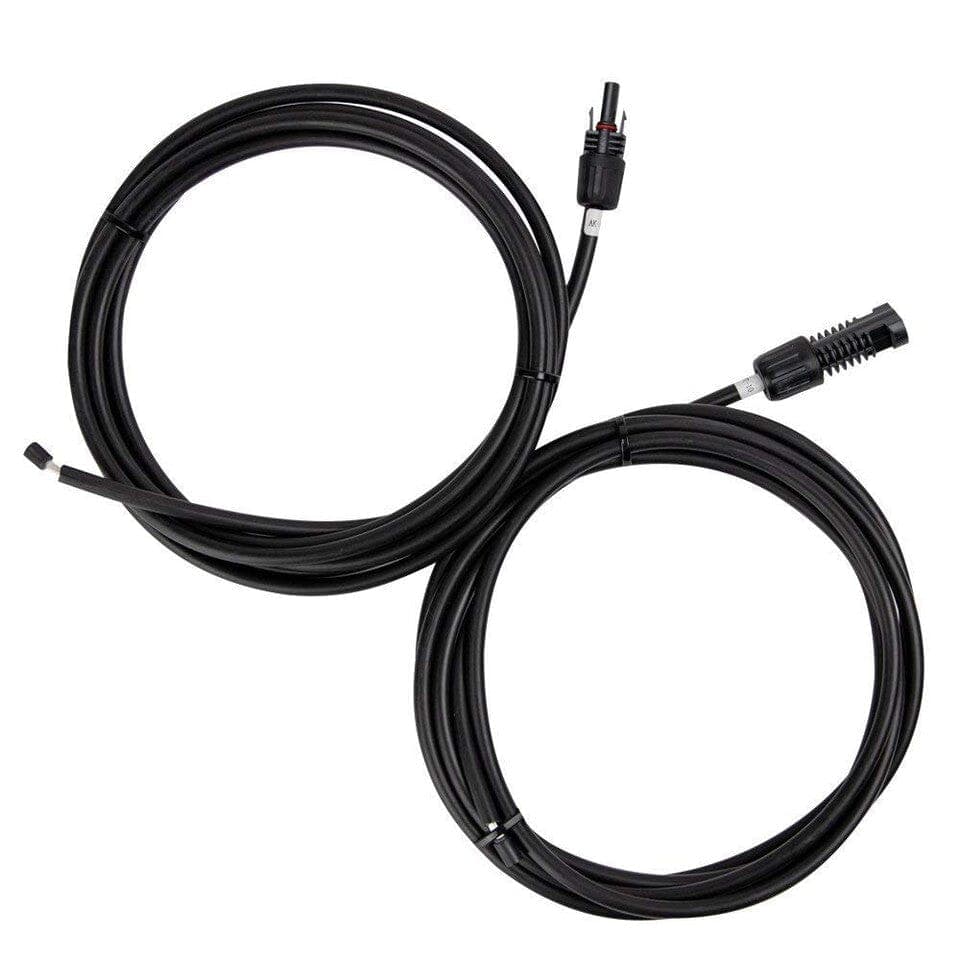

Renogy Solar Panel to Charge Controller Adaptor Kit
The Renogy Solar Panel to Charge Controller Adaptor Kit is an essential component for creating a secure and efficient connection between your solar panels and charge controller. Designed for fast, reliable installation, this kit ensures proper current flow while minimizing power loss and improving the performance of your off-grid or mobile solar power system.
Renogy Solar Panel to Charge Controller Adaptor Kit Features
Plug-and-Play Compatibility – Designed for quick, effortless connections between Renogy solar panels and charge controllers.

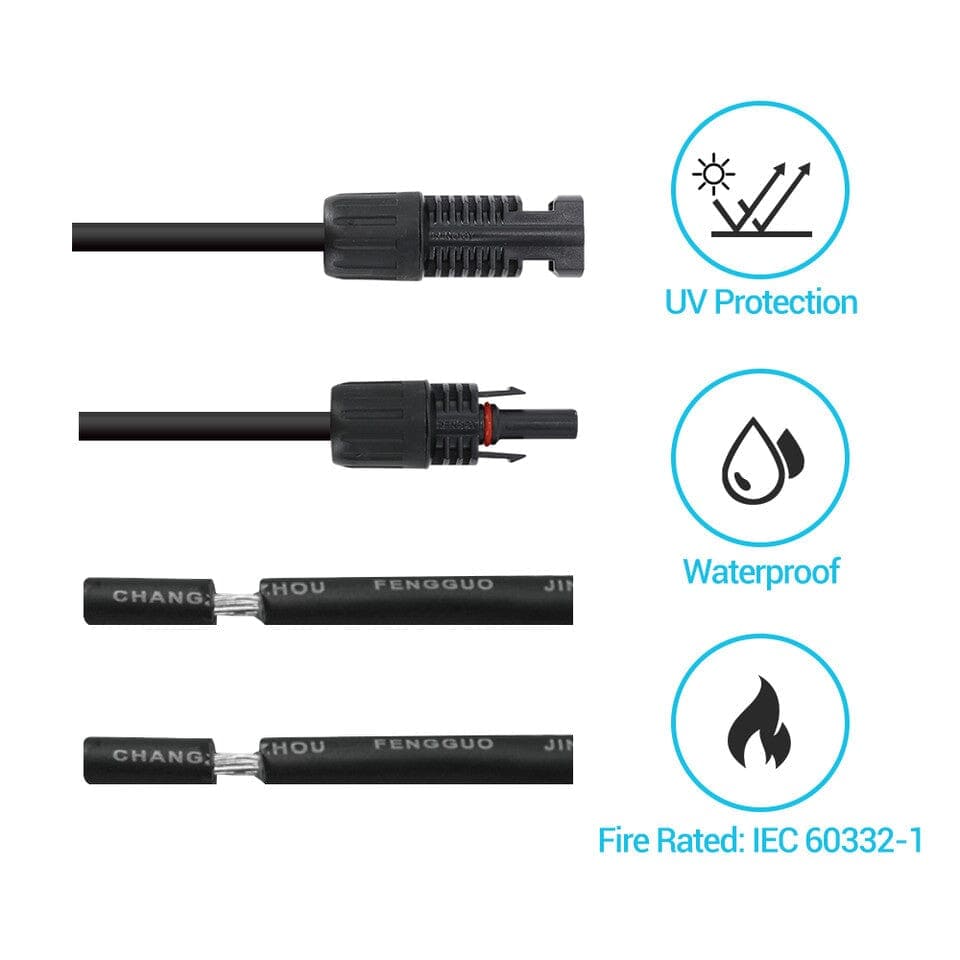

Tinned Copper Wire – Ensures superior conductivity and resistance to corrosion, even in humid or marine environments.
Durable Insulation Jacket – UV-resistant and weatherproof for long-term outdoor exposure and rugged conditions.

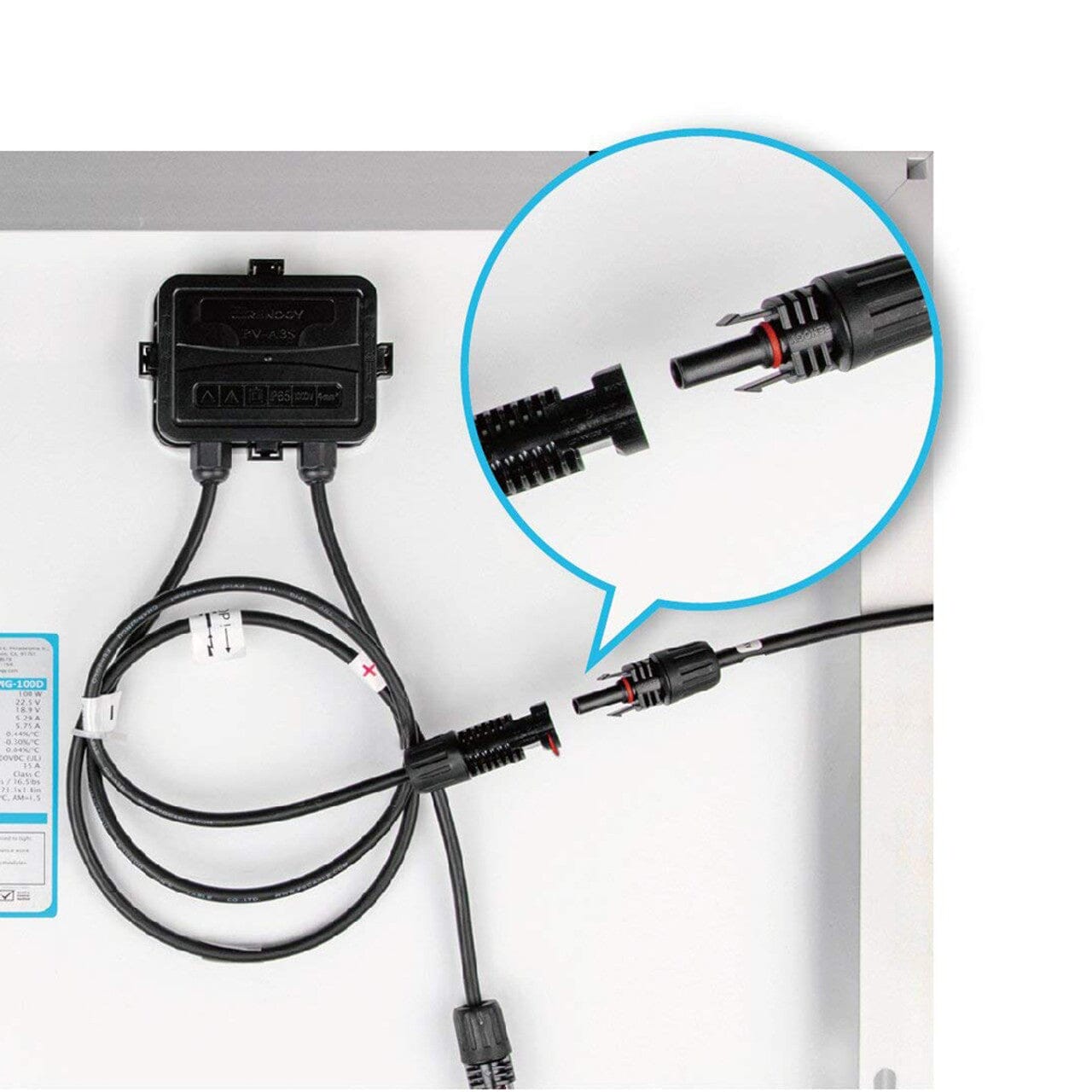

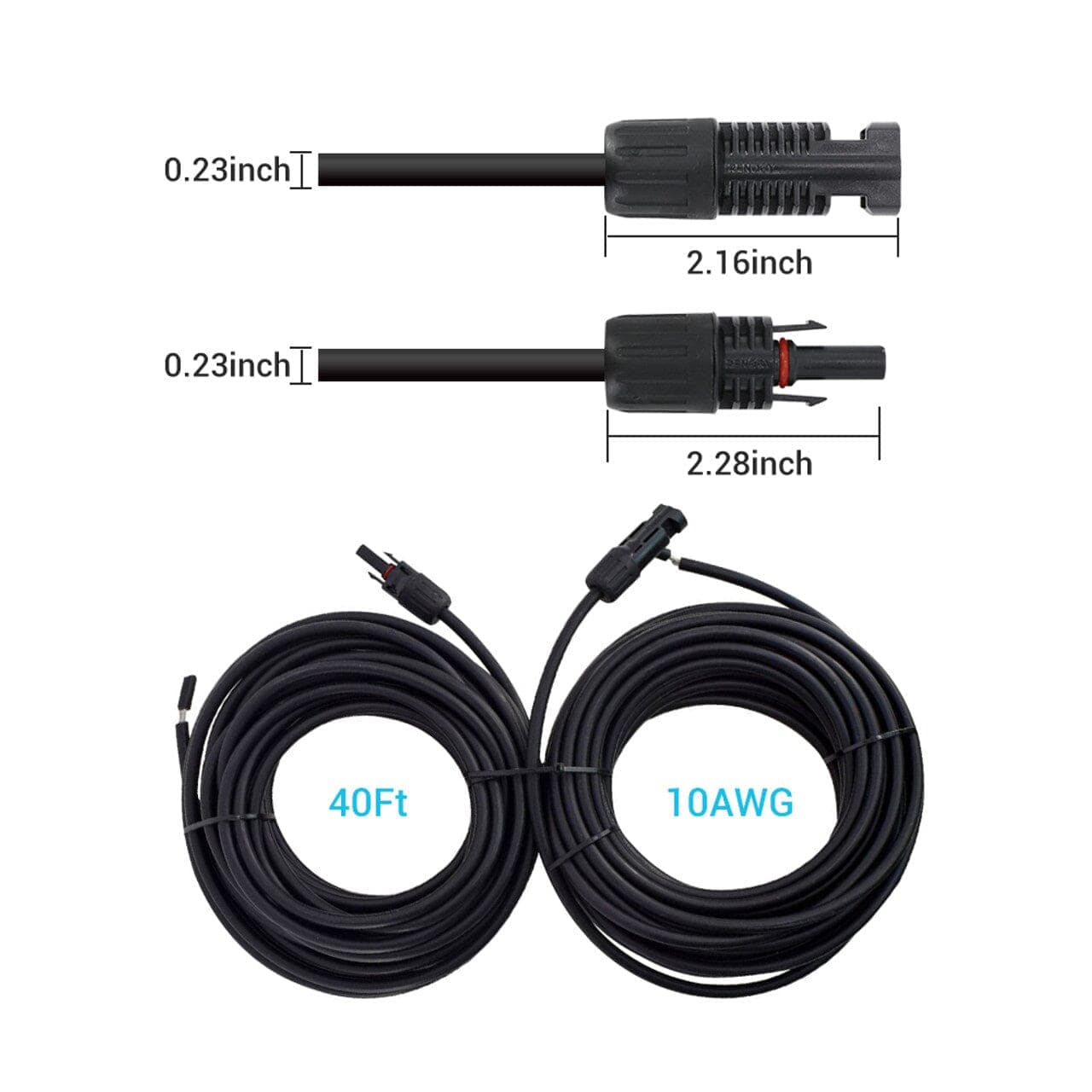

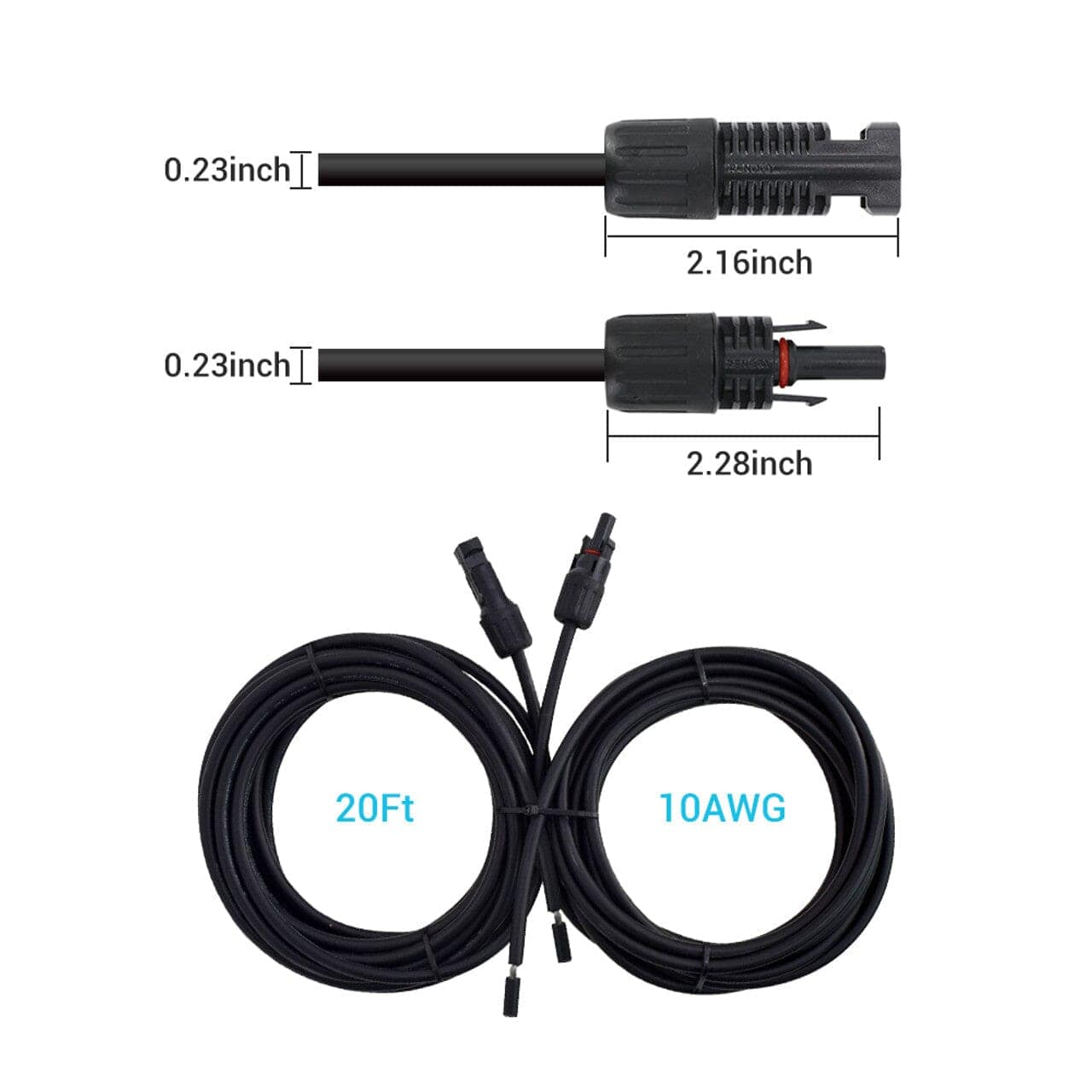

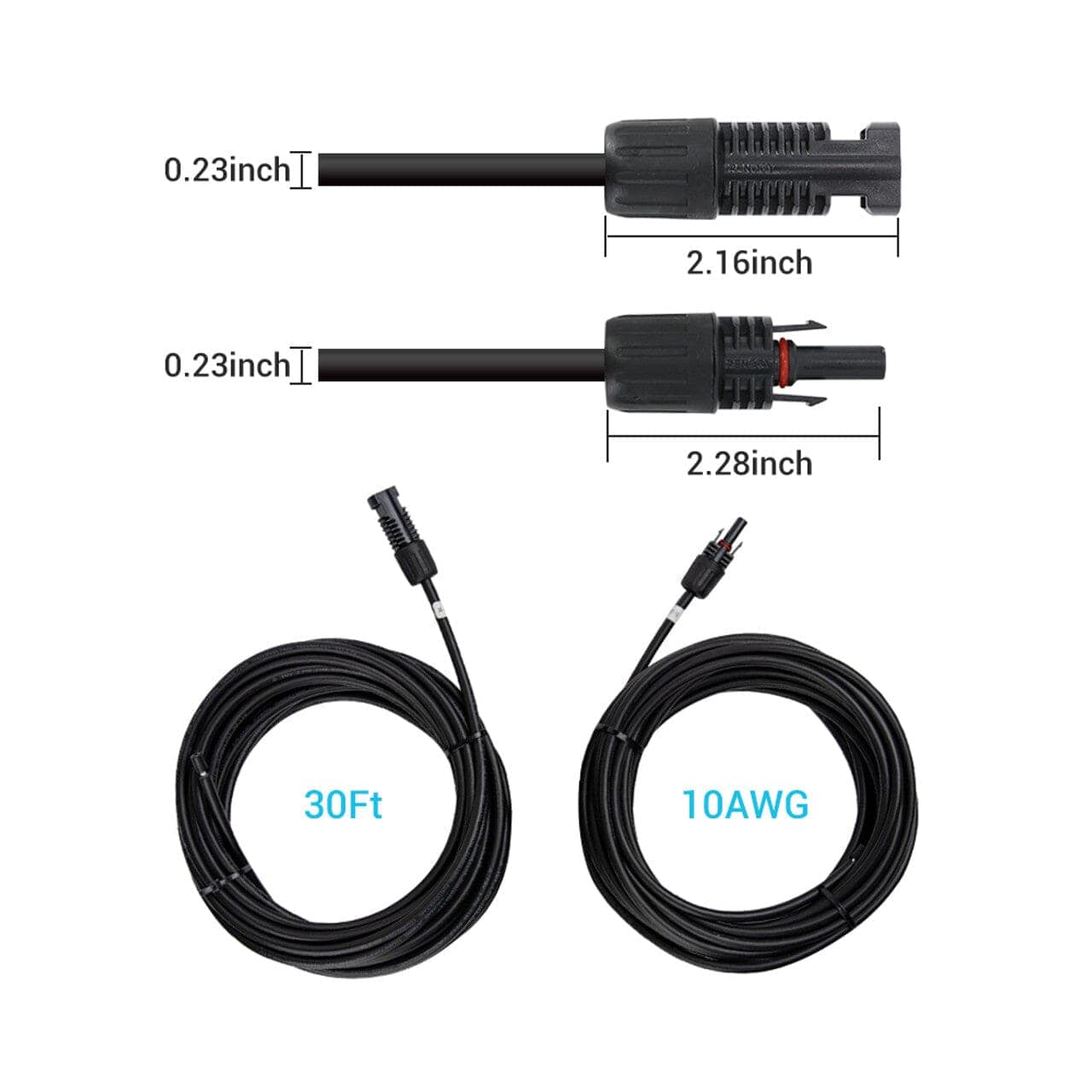

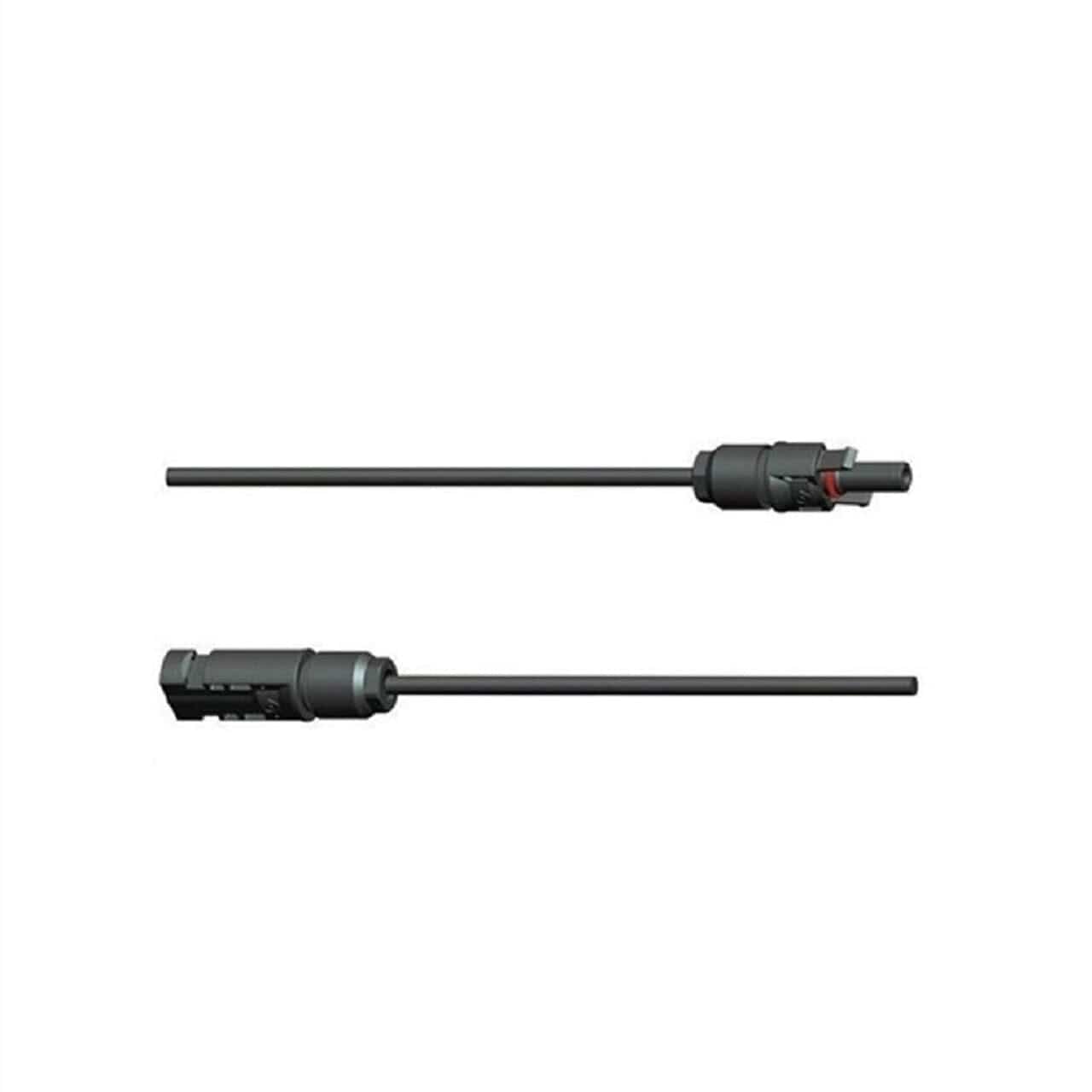

Pre-terminated MC4 Connectors – Ready-to-use connections eliminate the need for custom wiring or crimping tools.
Flexible and Safe – Rated for up to 600V with thick insulation and easy routing in mobile, RV, and home setups.
Insert product features picture
Renogy Solar Panel to Charge Controller Adaptor Kit Applications
-
Off-Grid Solar Systems – Connects panels to controllers in remote cabins, tiny homes, and mobile setups.
-

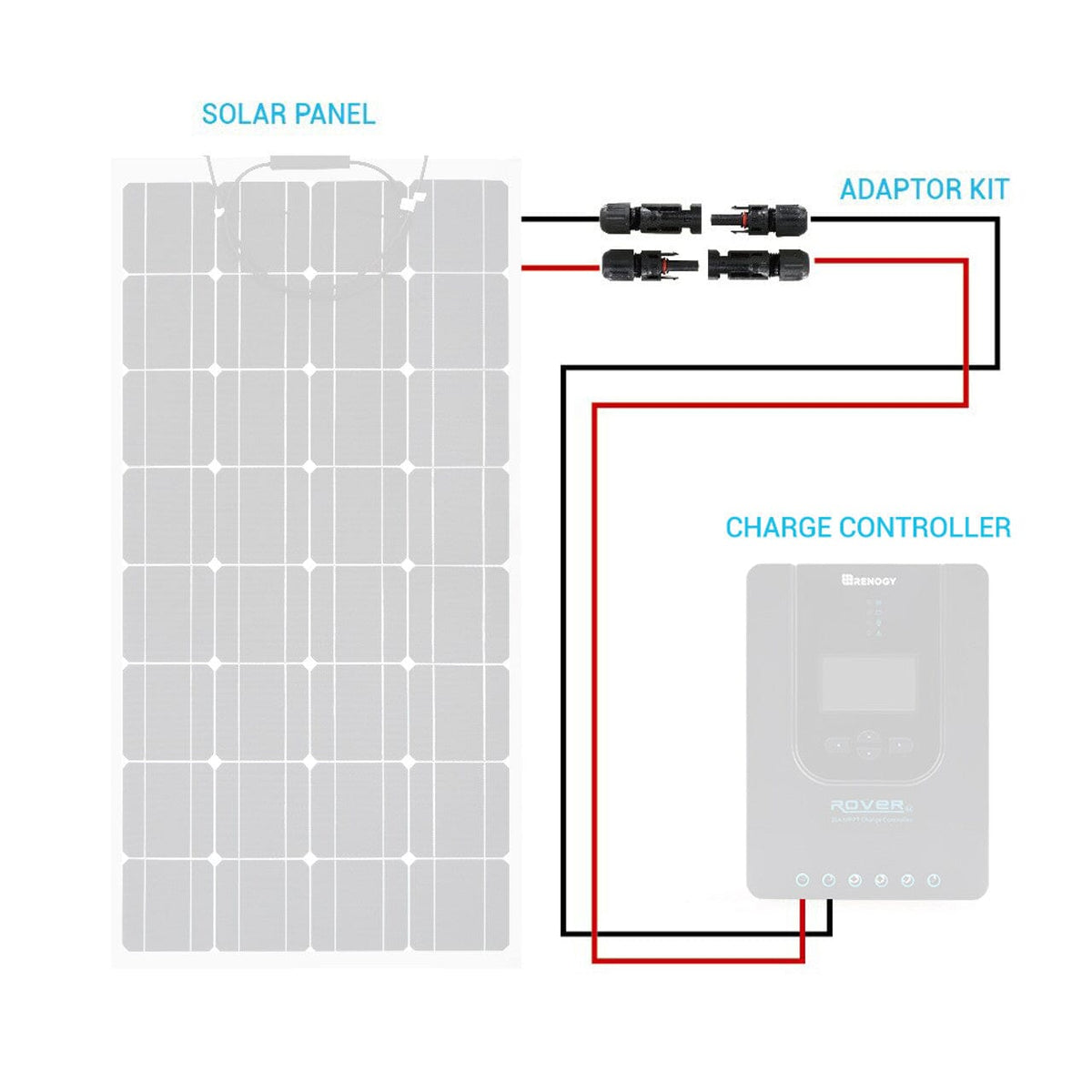

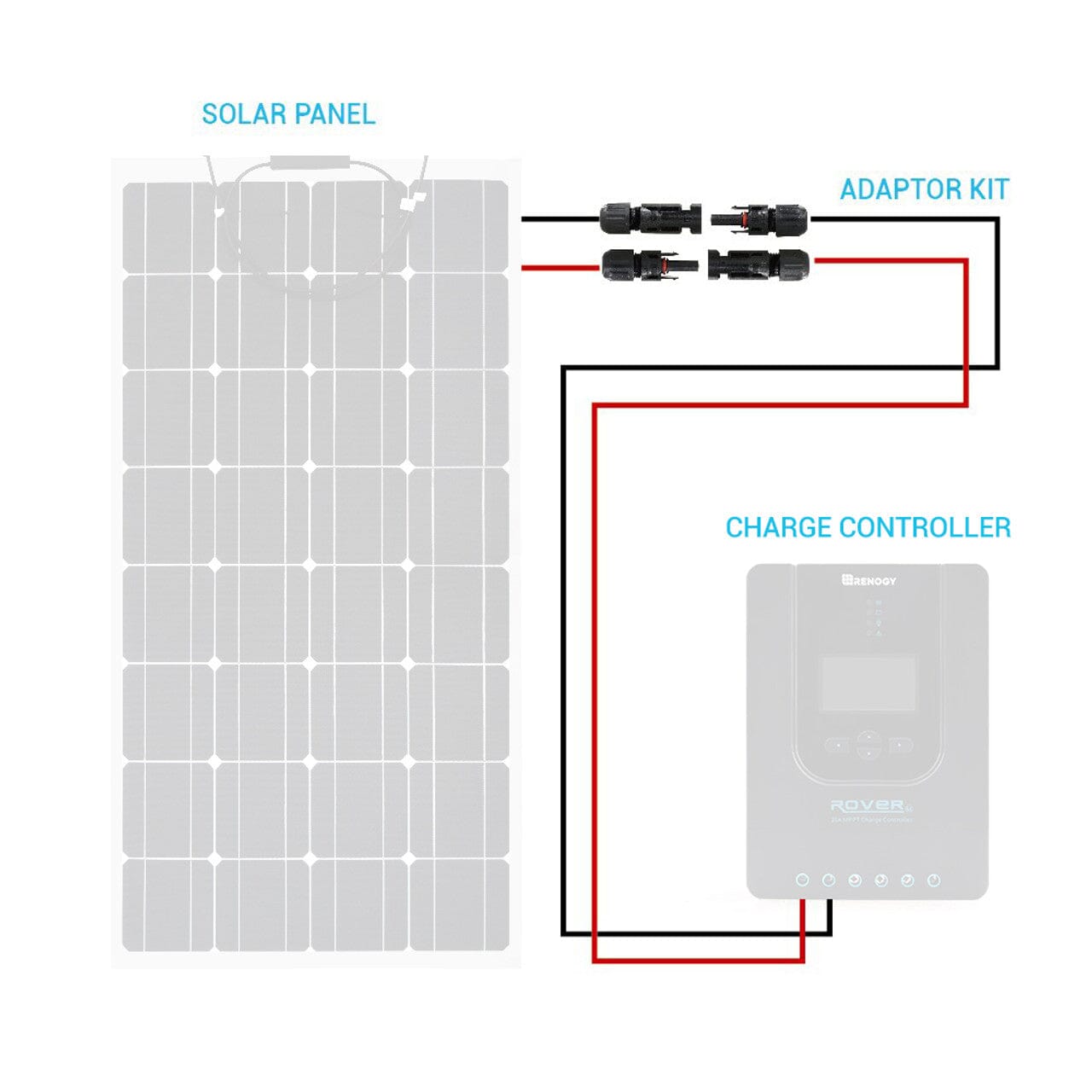

RV Solar Installations – Simplifies wiring from rooftop panels to an interior solar controller.
-
Marine Applications – Corrosion-resistant design supports safe use in boats and coastal environments.
-
Emergency Backup Power – Easy-to-use cabling for portable or backup solar systems.
-
DIY Solar Projects – Perfect for beginners setting up home-built renewable energy kits.
What’s Included?
Renogy Solar Panel to Charge Controller Adaptor Kit Specifications

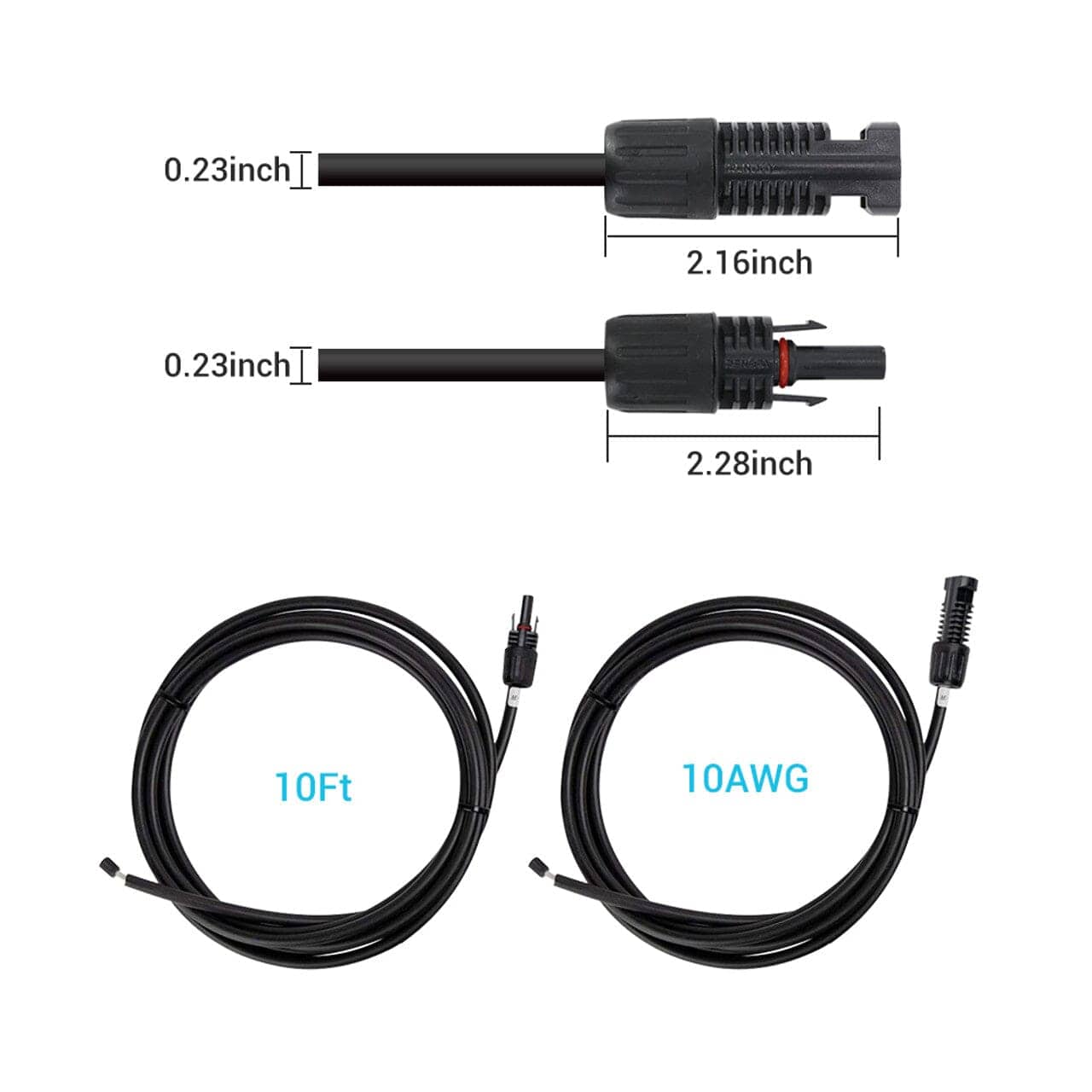

| Renogy 10ft 10AWG |
| Length |
10ft |
| AWG |
10 |
| Rating Voltage |
600/1000V |
| Temperature |
-40°F to +185°F |
| Normal Cross Sectional Area |
6.0 mm² |
| Diameter of Wires |
3.02±0.08 mm |
| Min. Wall Thickness of Insulation |
0.85 mm |
| Min. Wall Thickness of Sheath |
1.08 mm |
| Number of Wires |
84 |
| IP Rating |
IP 65 Protection |
| Conductor |
Tinned copper wire |

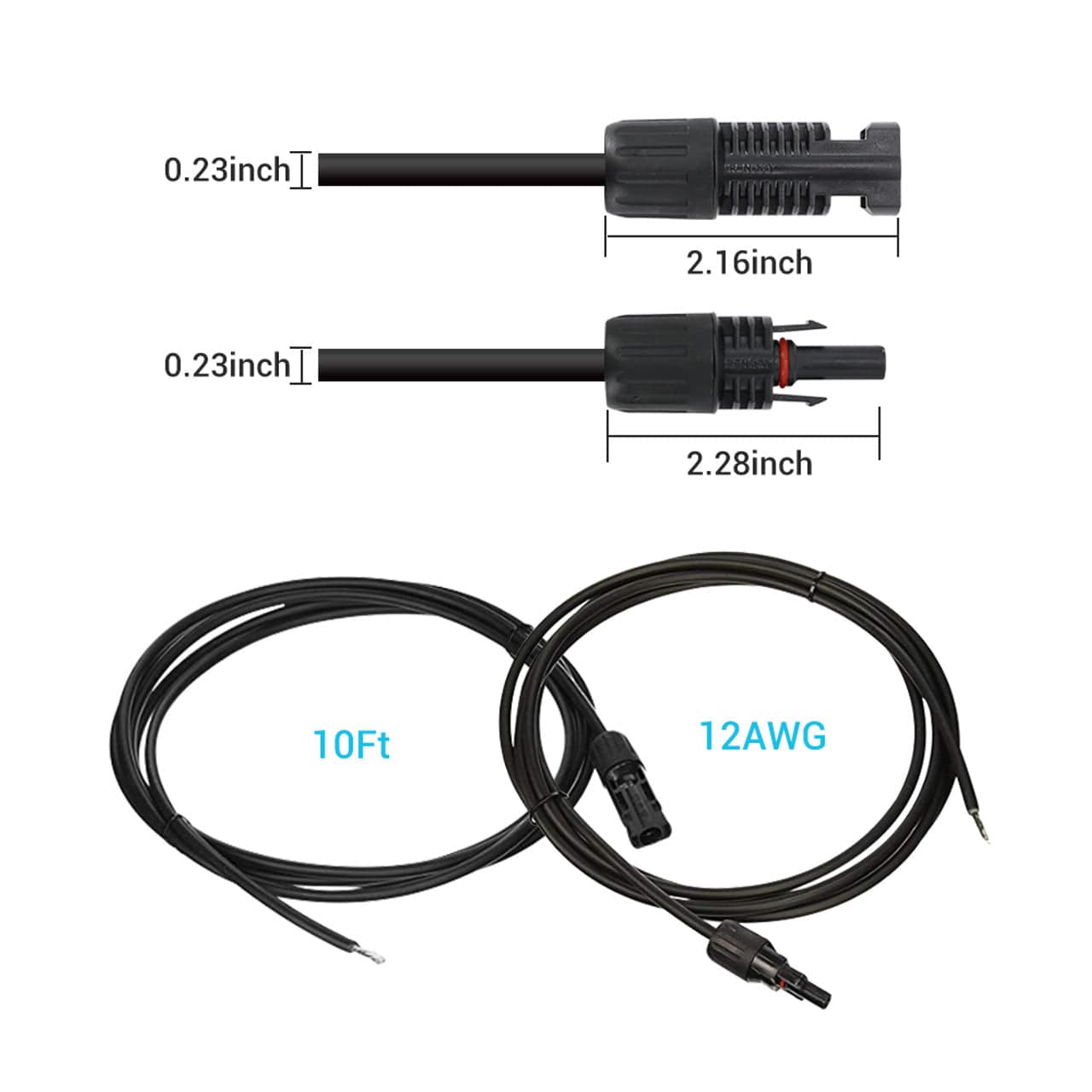

| Renogy 10ft 12AWG |
| Length |
10ft |
| AWG |
12 |
| Rating Voltage |
600/1000V |
| Temperature |
-40°F to +185°F |
| Normal Cross Sectional Area |
4.0 mm² |
| Diameter of Wires |
3.02±0.08 mm |
| Min. Wall Thickness of Insulation |
0.78 mm |
| Min. Wall Thickness of Sheath |
0.97 mm |
| Number of Wires |
56 |
| IP Rating |
IP 65 Protection |
| Conductor |
Tinned copper wire |
| Accessories |
1-year material warranty |
Frequently-Asked Questions
Can I cut and shorten the wire?
Yes, but doing so will require re-terminating the connectors or using alternative wire lugs.
Is this compatible with non-Renogy panels or controllers?

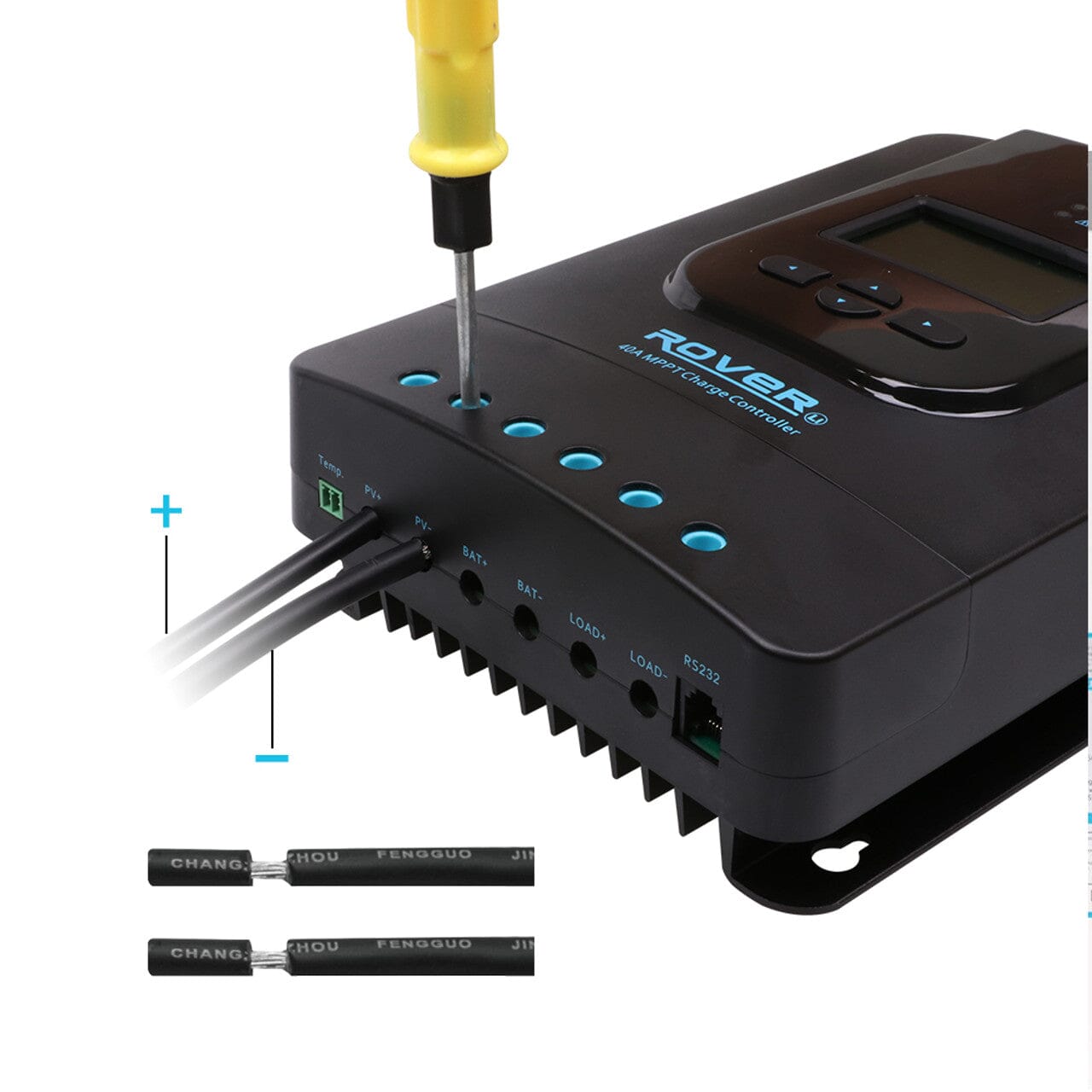

Yes, as long as the panel uses MC4 connectors and your controller accepts ring terminals, this kit is universally compatible.
Is it safe for outdoor use?
Absolutely. The insulation is weather-resistant and rated for long-term outdoor installations.
