Renon Power 16kWh, 48 Volt Wall Mount Lithium Battery

Renon Power 16kWh, 48 Volt Wall Mount Lithium Battery

Name: Renon Power 16kWh, 48 Volt Wall Mount Lithium Battery
Brand: Renon Power
SKU: XCELLENTPLUS16K
Price: 4249.08 USD
Availability: InStock

BY: Renon Power

SKU: XCELLENTPLUS16K

| Availability: In stock

$4,249.08

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Renon Power Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Renon Power 16kWh Wall Mount Lithium Battery

The Renon Power 16kWh 48V Wall Mount Lithium Battery (Model: R-XCO1616L-US) is a high-capacity LiFePO₄ energy storage solution designed for residential and light commercial applications. With 16kWh nominal energy, 200A maximum operation current, and scalable parallel capability up to 31 systems, this battery delivers reliable long-cycle performance for on-grid, hybrid, and off-grid installations.

Engineered for indoor or outdoor installation with an IP65-rated enclosure and 10-year warranty.

Renon Power 16kWh Wall Mount Lithium Battery Features

16kWh Nominal Energy – high-capacity residential storage

LiFePO₄ Chemistry – enhanced safety and long lifecycle

200A Max Operation Current – supports high-load inverter systems

IP65 Rated Enclosure – suitable for indoor or outdoor installation

Parallel Scalability – up to 31 systems in parallel

8000 Cycle Life – long-term durability and performance

Natural Cooling Design – maintenance-free thermal management

Wall or Floor Mounting – flexible installation options

Renon Power 16kWh Wall Mount Lithium Battery Applications

Residential Energy Storage – whole-home backup capability
Hybrid Solar Systems – integrates with 48V inverter platforms
Off-Grid Installations – reliable standalone storage
Commercial Backup Systems – scalable parallel battery deployment

What's Included

Everything you need is included with your product.

1 × Renon Power 16kWh, 48 Volt Wall Mount Lithium Battery

Warranty

10-Year Manufacturer Warranty

Renon Power 16kWh Wall Mount Lithium Battery Specifications

Battery Energy Storage

Specification	Value
Battery Chemistry	LiFePO4
Cell Capacity (Ah)	314
Nominal Energy (kWh)	16
Output Power (kW)	10.2
Default Voltage (V)	51.2
Voltage Range (V)	43.2 ~ 59.2
Max. Operation Current (A)	200
Primary Overcurrent Protection (A)	210@5S
Secondary Overcurrent Protection (A)	240@3S
Max. Charging Voltage (V)	58.4
Discharge Cut-off (V)	43.2
Recommended Charging Voltage (V)	56.8

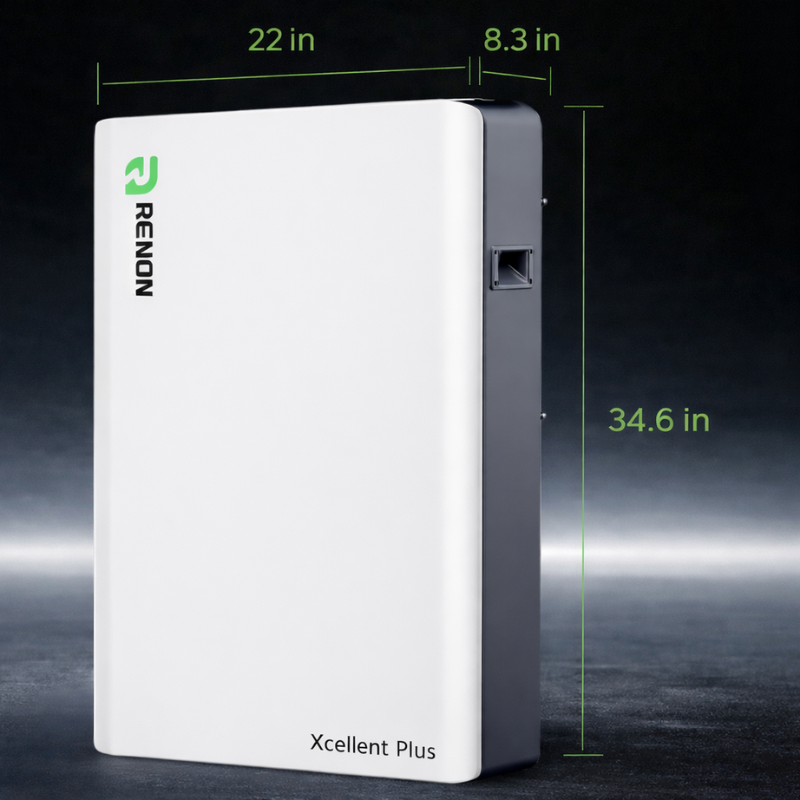

Dimension - WDH (mm/in)	560210880 / 228.334.6
Net Weight (kg/lb)	~159 / ~351

General Parameters

Specification	Value
Scalability	Max. 31 systems in parallel
Storage Conditions	-4°F ~ 131°F (32°F ~ 95°F Recommended) Up to 90% RH, non-condensing \| Initial SoC: 50%
Operating Temperature	Charge: 32°F ~ 122°F \| Discharge: -4°F ~ 122°F
Cooling	Natural Cooling
Max. Altitude	4000m / 13123ft
Cycle Life	8000 Cycles
Communication	RS485, CAN, RS232

System Characteristic

Specification	Value
Battery Model	R-XC0161-USD
Battery Compliances	UN38.3, UL9540, UL9540A, UL1973
Installation Method	Wall-Mounting or Floor Mounting
Installation Scene	Indoor or Outdoor
IP Rating	IP65
Warranty [1]	10 Years

Frequently-Asked Questions

How many units can be connected in parallel?

Up to 31 systems can be connected in parallel.

Is this suitable for outdoor installation?

Yes. The enclosure is IP65 rated for indoor or outdoor use.

What is the maximum operation current?

The maximum operation current is 200A.

What is the cycle life?

The battery is rated for approximately 8000 cycles under specified conditions.

Manual

Renon Power 16kWh, 48 Volt Wall Mount Lithium Battery Data Sheet
