RICH SOLAR 12V 200W Complete Solar Kit

Name: RICH SOLAR 12V 200W Complete Solar Kit
Brand: RICH SOLAR
SKU: RS-CK200
Price: 1199.99 USD
Availability: InStock

BY: RICH SOLAR

SKU: RS-CK200

| Availability: In stock

$1,199.99

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized RICH SOLAR Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

RICH SOLAR 12V 200W Complete Solar Kit

The RICH SOLAR 12V 200W Complete Solar Kit is a reliable and compact power solution designed for RVs, vans, small cabins, and off-grid applications. With everything included for a full 12V system—solar panel, charge controller, wiring, and mounting hardware—this kit is perfect for beginners and experienced DIYers looking to power essential devices while off-grid. Built with high-efficiency monocrystalline technology and premium components, this kit delivers consistent energy with easy installation.

RICH SOLAR 12V 200W Complete Solar Kit Features

High-Efficiency Monocrystalline Panel

Delivers reliable performance—200 watts of power with superior efficiency even in low-light conditions.

20A MPPT Charge Controller

Advanced charging—ensures faster, more efficient power regulation for 12V battery systems.

Complete Wiring & Mounting Kit

Everything included—features solar connectors, battery cables, brackets, and fuses.

Expandable Design

Add more panels later—kit supports system upgrades without full replacement.

Plug-and-Play Installation

Straightforward setup—perfect for RV owners, weekend warriors, and off-grid beginners.

RICH SOLAR 12V 200W Complete Solar Kit Applications

RV and Travel Trailer Power – Run lights, fans, and small appliances off-grid.
Off-Grid Cabins or Tiny Homes – Maintain battery health and power daily-use electronics.
Boats and Marine Power – Keep onboard batteries charged and ready.
Vanlife or Overlanding – Power your fridge, lights, and mobile devices with clean solar energy.
Emergency Preparedness – Be ready for outages with a reliable solar power source.

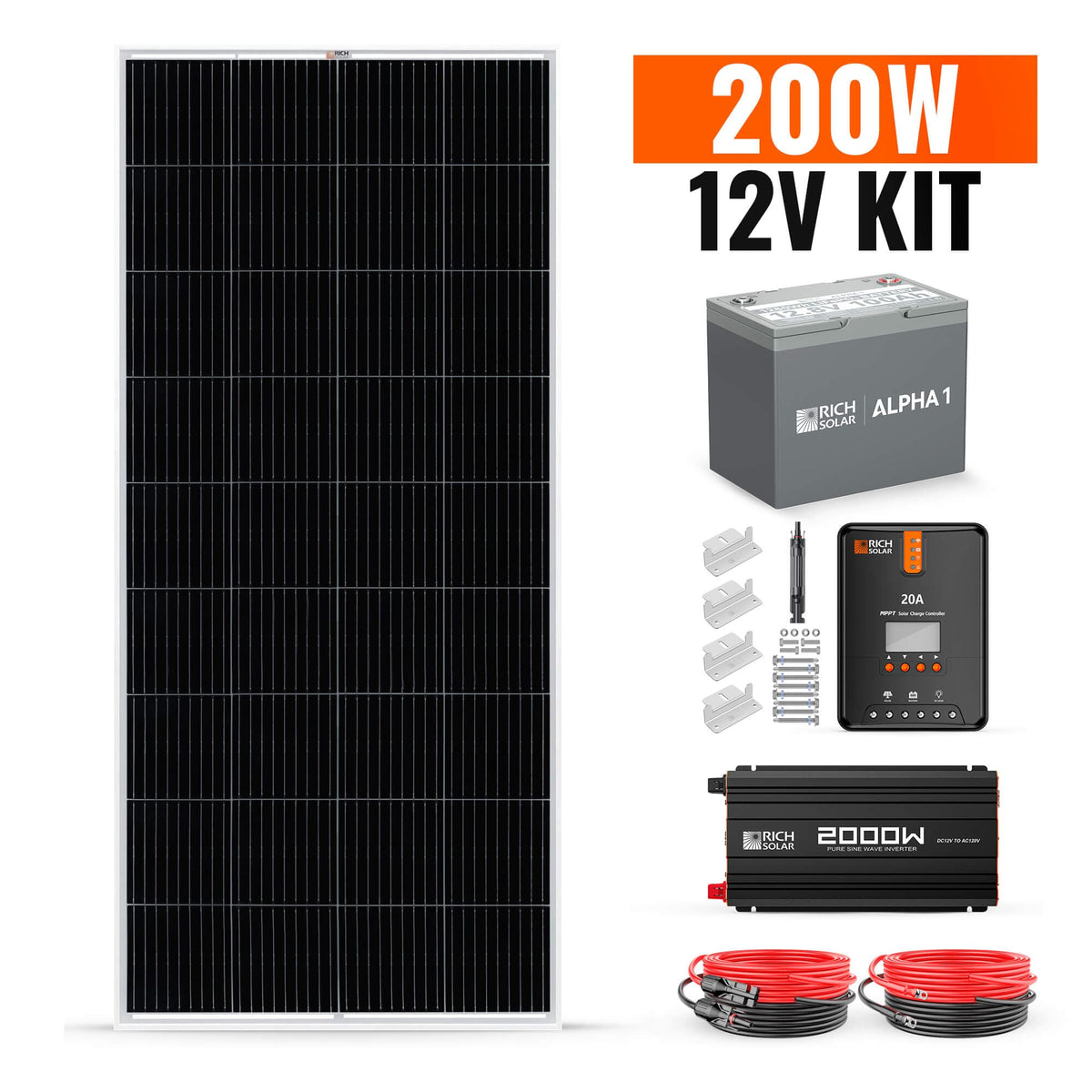

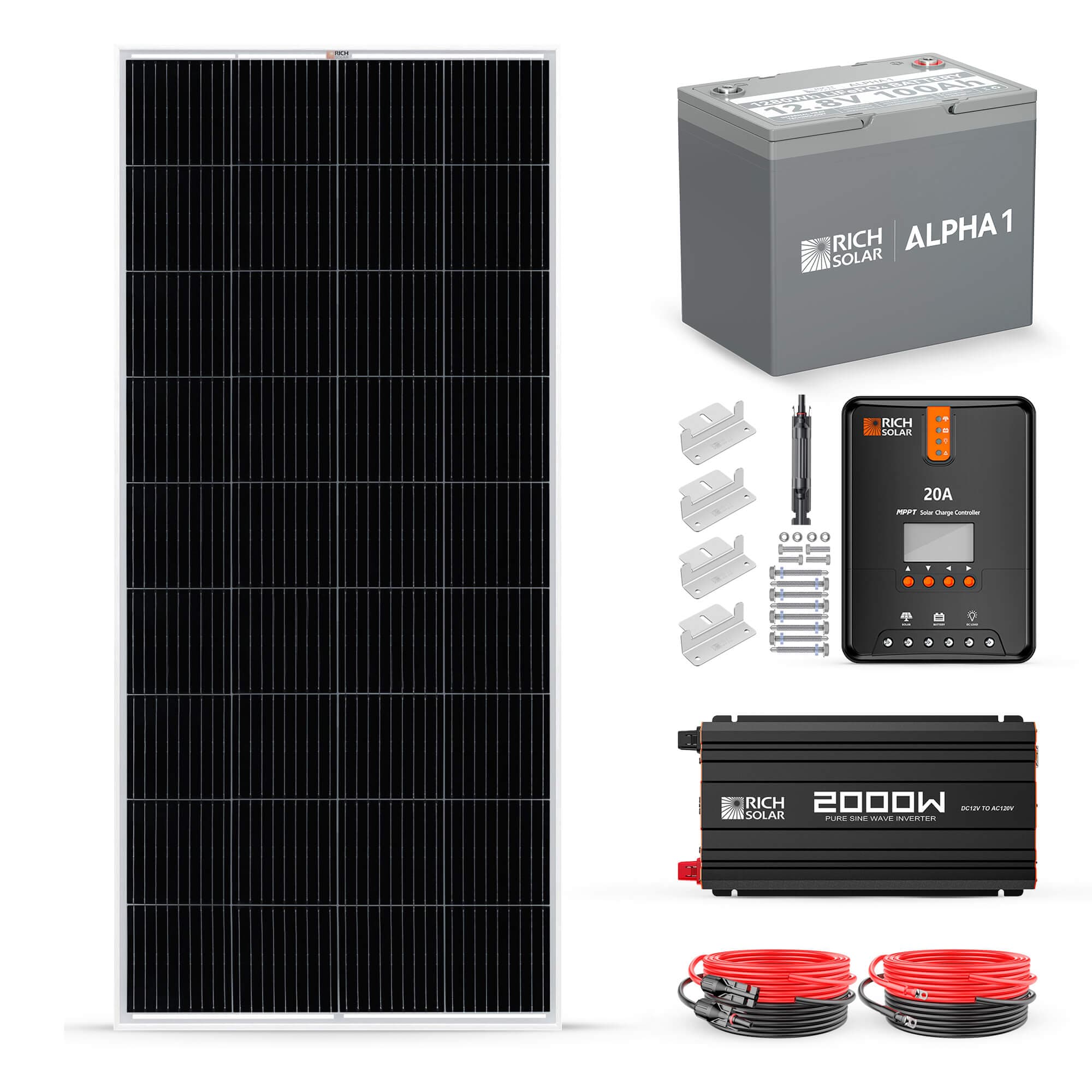

What's Included

Everything you need is included with your product.

1 x MEGA 200W 12V Panel (RS-M200)
1 x ALPHA 1 Lithium Battery (RS-B121S)
1 x NOVA 2000W 12V Inverter (RS-V2P12)
1 x 20A MPPT Charge Controller (RS-MPPT20)
1 x Z Bracket Set (RS-ZB4C)

1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)

RICH SOLAR 12V 200W Complete Solar Kit Specifications

MEGA 200 Watt Solar Panel

Category	Specifications
Maximum Power(Pmax)	200W
Maximum Power Voltage(Vmp)	18.4V
Maximum Power Current(Imp)	10.9A
Open Circuit Voltage(Voc)	21.8V
Short Circuit Current(Isc)	11.6A
Nominal Operating Cell Temp (NOCT)	113 +/-35° F
Temperature Range	-40 ~ +185°F
Weight	23.6 lbs
Dimensions	58.7 x 26.8 x 1.2 in

ALPHA 1 12V 100Ah LiFePO4 Battery

Category	Specifications
Cell Type	LiFePO4 Battery
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Nominal Energy	1280Wh
Cycle Life	5000 cycles
BMS	100A
Maximum Charging Current	100A
Maximum Continuous Discharge Current	100A
Maximum Discharge Current 10 Seconds	110A
Charge Method	CC/CV
Charge Voltage	14.4V ± 0.2V
Recommend Charge Current	50A (0.2C)
Charge Temperature	32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature	-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature	14℉ to 113℉ (-10℃ to 45℃)
External Power Draw	100W
Internal Heating Starts	< 41℉ (5℃)
Internal Heating Stops	> 50℉ (10℃)
Net Battery Weight	24.0lb
*Size(LWH)*	10.2x6.6x8.3in (Group 24 size)
Housing Material	ABS (Flame Retardant Plastic)
Protection Class	IP65
Warranty	5 Years

NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

Category	Specifications
Model	RS-V2P12
Rated Voltage	12V DC
Continuous Power	2000W
Peak Surge	4000W
Waveform	Pure Sine Wave
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Output Efficiency	88%
AC Output Sockets	3
USB Power Port	5V / 2.1A
Power Output Control	AC On/Off Switch
Operating Temperature	14°F to 122°F
Dimensions	16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
Weight	10.1 (lb) / 4.6 (kg)

20 Amp MPPT Solar Charge Controller

Category	Specifications
Nominal System Voltage	12V/24V Auto Recognition
Rated Battery Current	20A
Rated Load Current	20A
Max. PV Input Short Current	25A
Max. Battery Voltage	32V
Max Solar Input Voltage	100 VDC
Mounting Oval	0.30 x 0.18 in
Net Weight	3.08 lb
Discharge Circuit Voltage Drop	= 0.15V
Overall Dimensions	8.27 x 5.94 x 2.34 in

Frequently-Asked Questions

Can I add more panels later?

Yes. The included charge controller supports additional panels—check voltage/current limits before expanding.

Will this kit power a refrigerator?

This kit can support a 12V fridge or cooler, but for full-size AC fridges, larger systems are recommended.

Is it easy to install on an RV or van?

Yes. It’s designed for quick and simple DIY installation, especially on flat or slightly curved surfaces.

Do I need to buy batteries separately?

Yes. A 12V deep cycle battery or LiFePO4 battery is required and not included in this kit.

Can I use this during cloudy weather?

Yes. Monocrystalline panels perform well in low light, but output will be reduced compared to full sun.
