RICH SOLAR 12V 400W Complete Solar Kit Solar Kits RICH SOLAR

RICH SOLAR 12V 400W Complete Solar Kit

BY: RICH SOLAR | SKU: RS-CK400 Availability: In Stock
$1,599.99
$1,279.99
You Save: $320.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized RICH SOLAR Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

RICH SOLAR 12V 400W Complete Solar Kit

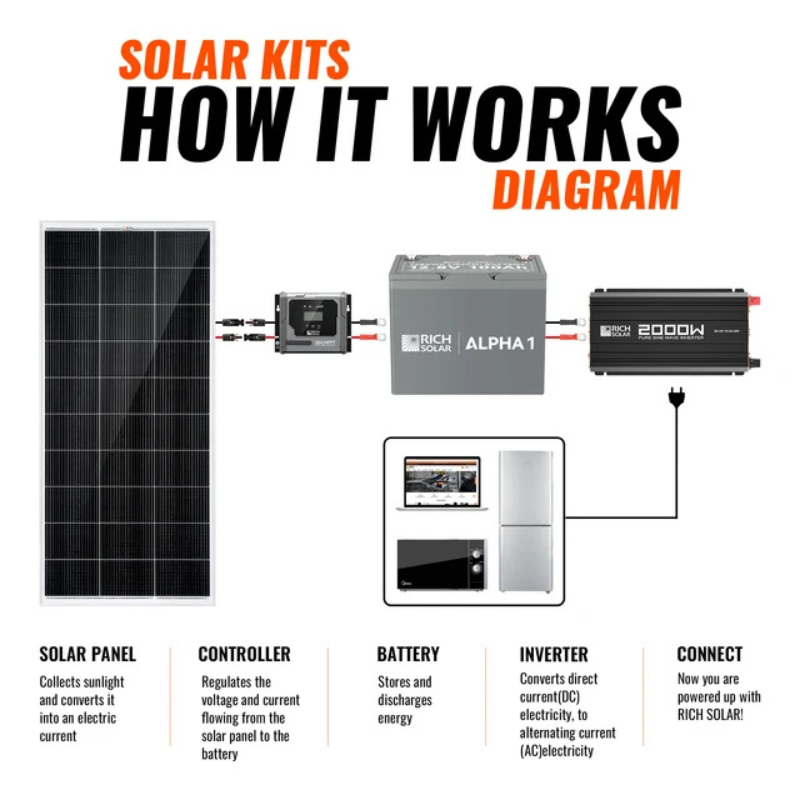

The RICH SOLAR 12V 400W Complete Solar Kit is a high-performance off-grid solution for RVs, cabins, vans, or backup systems. With two 200W monocrystalline solar panels, a powerful MPPT charge controller, and all necessary mounting and wiring accessories, this kit provides reliable and efficient solar charging for 12V battery systems. Built for durability and long-term performance, it’s perfect for powering lights, appliances, and essential electronics wherever you go.

RICH SOLAR 12V 400W Complete Solar Kit Features

400W High-Efficiency Solar Output

Includes two premium monocrystalline panels—offers stable, efficient power even in low light.

Advanced 40A MPPT Charge Controller

Maximizes charging efficiency—harvests more energy from your panels with built-in protection.

Full Mounting & Wiring Kit

All-in-one package—includes Z brackets, solar cables, battery cables, and in-line fuses.

Expandable & Scalable

Add more power later—system supports future upgrades as your energy needs grow.

Easy Installation

DIY-ready—no complicated wiring required, ideal for RV and off-grid applications.

Placeholder Image

RICH SOLAR 12V 400W Complete Solar Kit Applications

  • RV & Travel Trailer Power – Run lights, fans, refrigerators, and charge devices with ease.
  • Off-Grid Cabins & Tiny Homes – Power your essential appliances in remote locations.
  • Marine & Boating Power – Keeps batteries charged and systems running while off-dock.
  • Overlanding & Vanlife – Stay powered on long trips with sustainable solar charging.
  • Emergency Backup – Reliable energy source during blackouts or power disruptions.
Placeholder Image
Placeholder Image
Placeholder Image

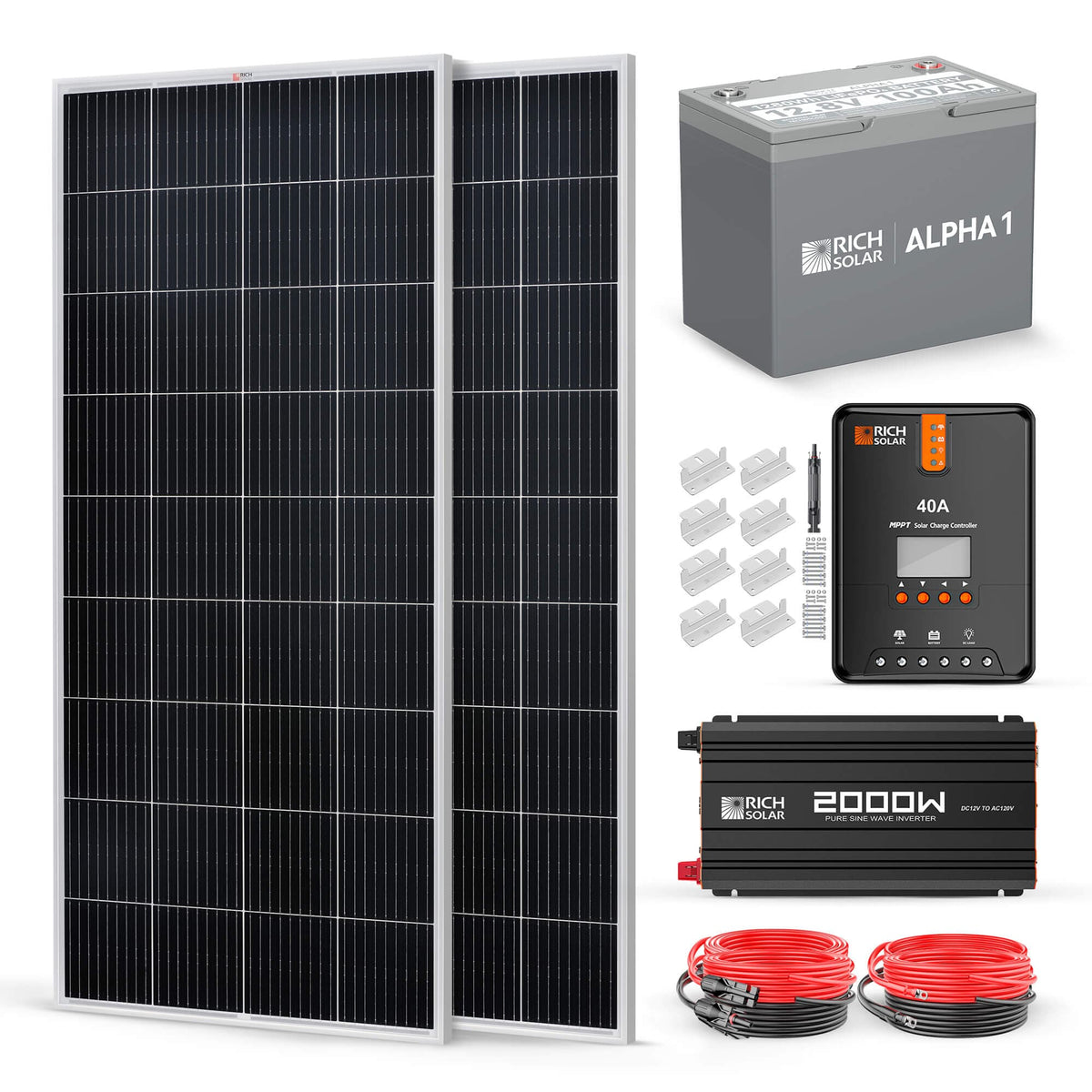

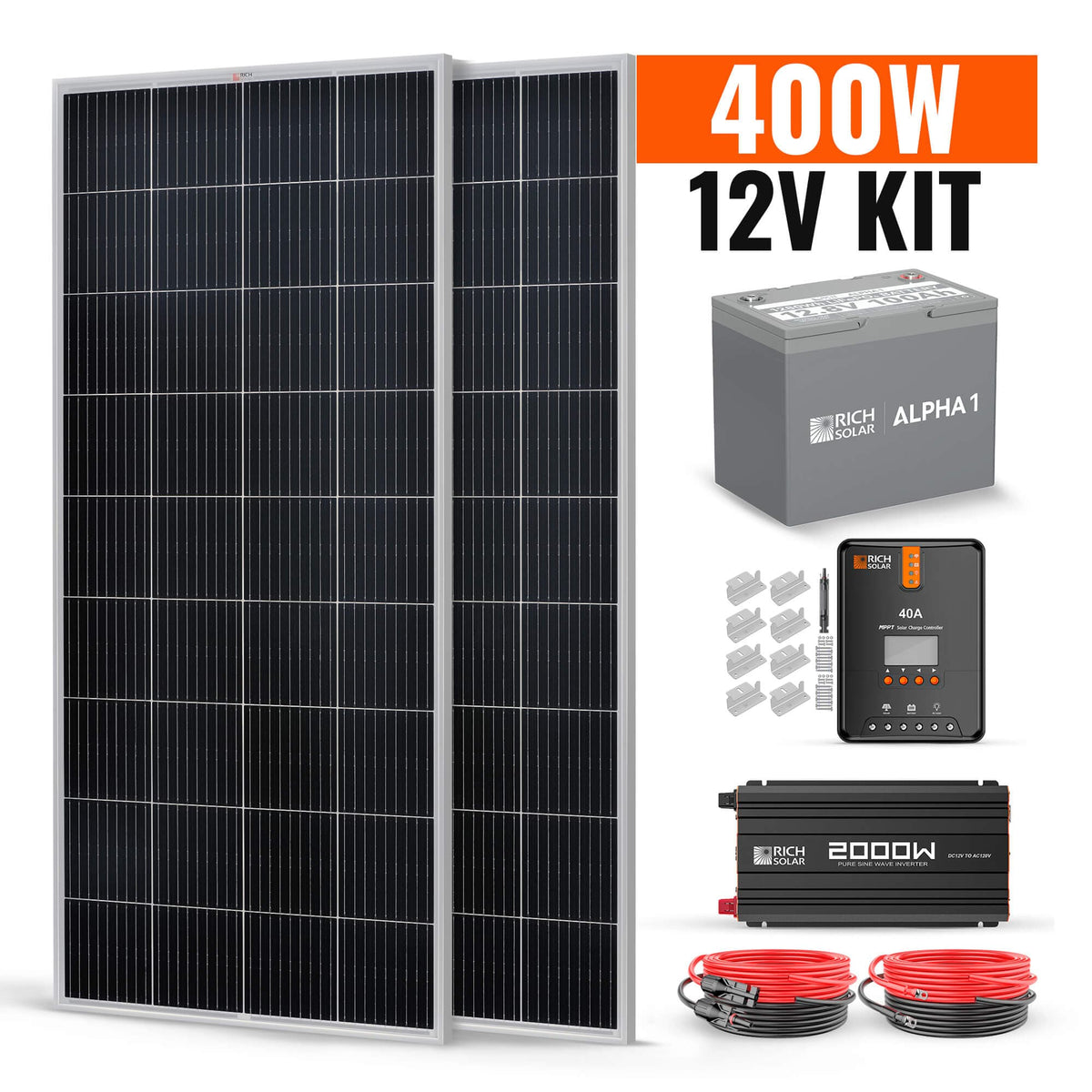

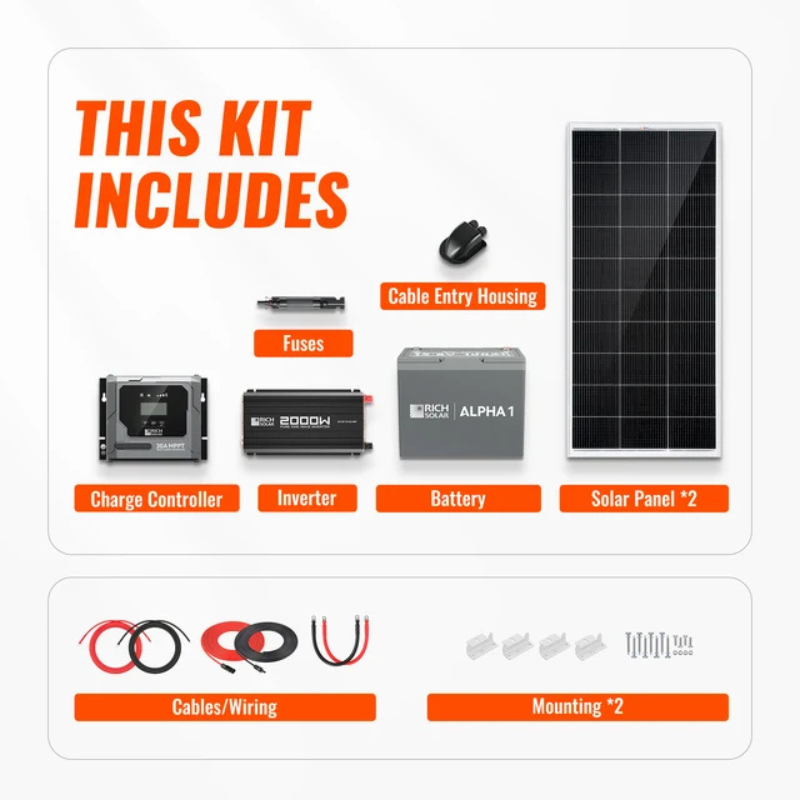

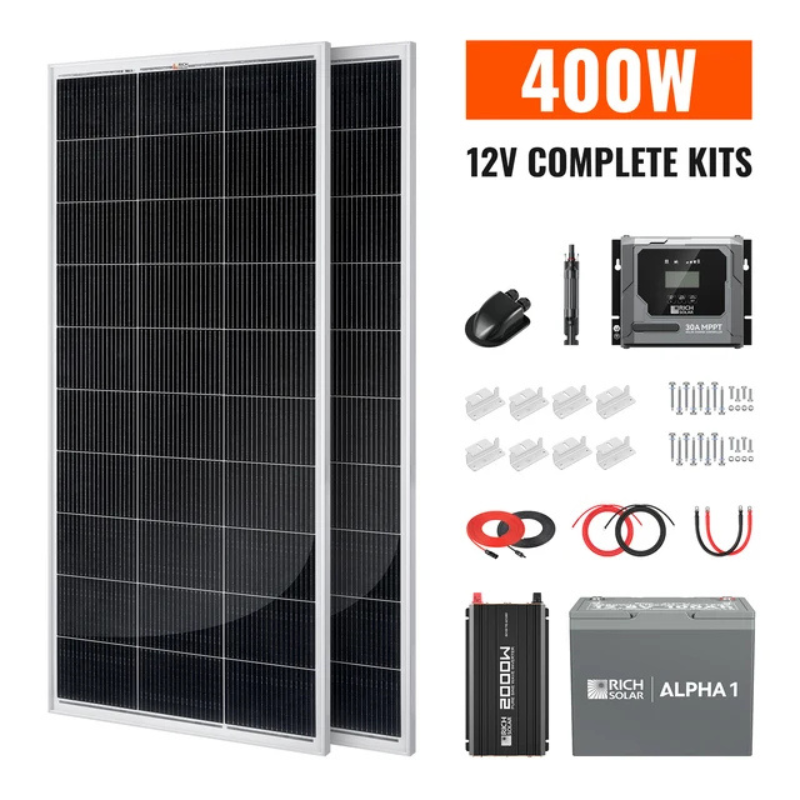

What's Included

Everything you need is included with your product.

  • 2 x MEGA 200W 12V Panel (RS-M200)
  • 1 x ALPHA 1 Lithium Battery (RS-B121S)
  • 1 x NOVA 2000W 12V Inverter (RS-V2P12)
  • 1 x 40A MPPT Charge Controller (RS-MPPT40P)
  • 2 x Z Bracket Set (RS-ZB4C)
  • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
  • 1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 8 AWG Battery Cable Set (Controller to Battery) (RS-810)

RICH SOLAR 12V 400W Complete Solar Kit Specifications

MEGA 200 Watt Solar Panel

Category Specifications
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 18.4V
Maximum Power Current(Imp) 10.9A
Open Circuit Voltage(Voc) 21.8V
Short Circuit Current(Isc) 11.6A
Nominal Operating Cell Temp (NOCT) 113 +/-35° F
Temperature Range -40 ~ +185°F
Weight 23.6 lbs
Dimensions 58.7 x 26.8 x 1.2 in

ALPHA 1 12V 100Ah LiFePO4 Battery

Category Specifications
Cell Type LiFePO4 Battery
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Nominal Energy 1280Wh
Cycle Life 5000 cycles
BMS 100A
Maximum Charging Current 100A
Maximum Continuous Discharge Current 100A
Maximum Discharge Current 10 Seconds 110A
Charge Method CC/CV
Charge Voltage 14.4V ± 0.2V
Recommend Charge Current 50A (0.2C)
Charge Temperature 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature 14℉ to 113℉ (-10℃ to 45℃)
External Power Draw 100W
Internal Heating Starts < 41℉ (5℃)
Internal Heating Stops > 50℉ (10℃)
Net Battery Weight 24.0lb
Size(L*W*H) 10.2x6.6x8.3in (Group 24 size)
Housing Material ABS (Flame Retardant Plastic)
Protection Class IP65
Warranty 5 Years

NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

Category Specifications
Model RS-V2P12
Rated Voltage 12V DC
Continuous Power 2000W
Peak Surge 4000W
Waveform Pure Sine Wave
Input Voltage 12V DC
Output Voltage 120V AC
Output Frequency 60 Hz
Output Efficiency 88%
AC Output Sockets 3
USB Power Port 5V / 2.1A
Power Output Control AC On/Off Switch
Operating Temperature 14°F to 122°F
Dimensions 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
Weight 10.1 (lb) / 4.6 (kg)

40 Amp MPPT Solar Charge Controller

Category Specifications
Rated Battery Current 40A
Rated Load Current 20A
Max. PV Input Short Current 50A
Max. Battery Voltage 32V
Max Solar Input Voltage 100VDC
Charge Circuit Voltage Drop 0.26V
Discharge Circuit Voltage Drop 0.15V
Working Temperature -31°F to +113°F
Max Terminal Size 8AWG
Rated Load Current 10% to 90% NC
Overall Dimensions 9.37 x 6.81 x 2.85 in
Net Weight 4.41 lb

Frequently-Asked Questions

How much power can this kit produce daily?

On average, this kit can produce 1.6–2.4kWh per day depending on sunlight and geographic location.

What type of batteries should I use with this kit?

It’s compatible with 12V AGM, Gel, Flooded, and LiFePO4 batteries.

Can I install this myself?

Yes. The kit is designed for DIY installation and comes with all necessary components.

Is the system safe to leave connected long-term?

Yes. The charge controller includes overcharge, short circuit, reverse polarity, and overload protection.

Can this run my AC or microwave?

This kit alone does not power AC appliances directly. Pair it with an inverter and battery bank to run AC devices.
