RICH SOLAR 12V 800W Complete Solar Kit

The RICH SOLAR 12V 800W Complete Solar Kit is a powerful off-grid energy solution built for high-demand applications. Designed to run larger systems and charge your battery bank faster, this kit includes four 200W high-efficiency monocrystalline panels, a 60A MPPT controller, and all necessary mounting and wiring hardware. Whether you're powering an RV, off-grid cabin, mobile workshop, or backup system, this kit delivers strong and consistent solar output you can rely on.

RICH SOLAR 12V 800W Complete Solar Kit Features

800W Total Solar Output

Four 200W monocrystalline panels—maximum charging power and efficiency in full sunlight.

60A MPPT Solar Charge Controller

Smart power regulation—extracts maximum performance from solar input with multiple battery type support.

All-in-One Kit for Quick Setup

Everything included—wiring, brackets, fuses, and connectors for an efficient installation.

Heavy-Duty Components

Built for durability—UV-resistant cables, corrosion-proof brackets, and weather-resistant panels.

System Expandability

Scalable power—add more components or increase battery storage as your power needs grow.

RICH SOLAR 12V 800W Complete Solar Kit Applications

Large RV and 5th Wheel Systems – Power appliances, lighting, refrigeration, and electronics.
Off-Grid Cabins and Homes – Sustainable power for remote living or emergency backup.
Mobile Workstations or Trailers – Keep tools and gear powered in mobile setups.
Marine and Boat Systems – Charge onboard batteries and support daily energy loads.
Preparedness and Emergency Power – High-output solar backup for blackouts and outages.

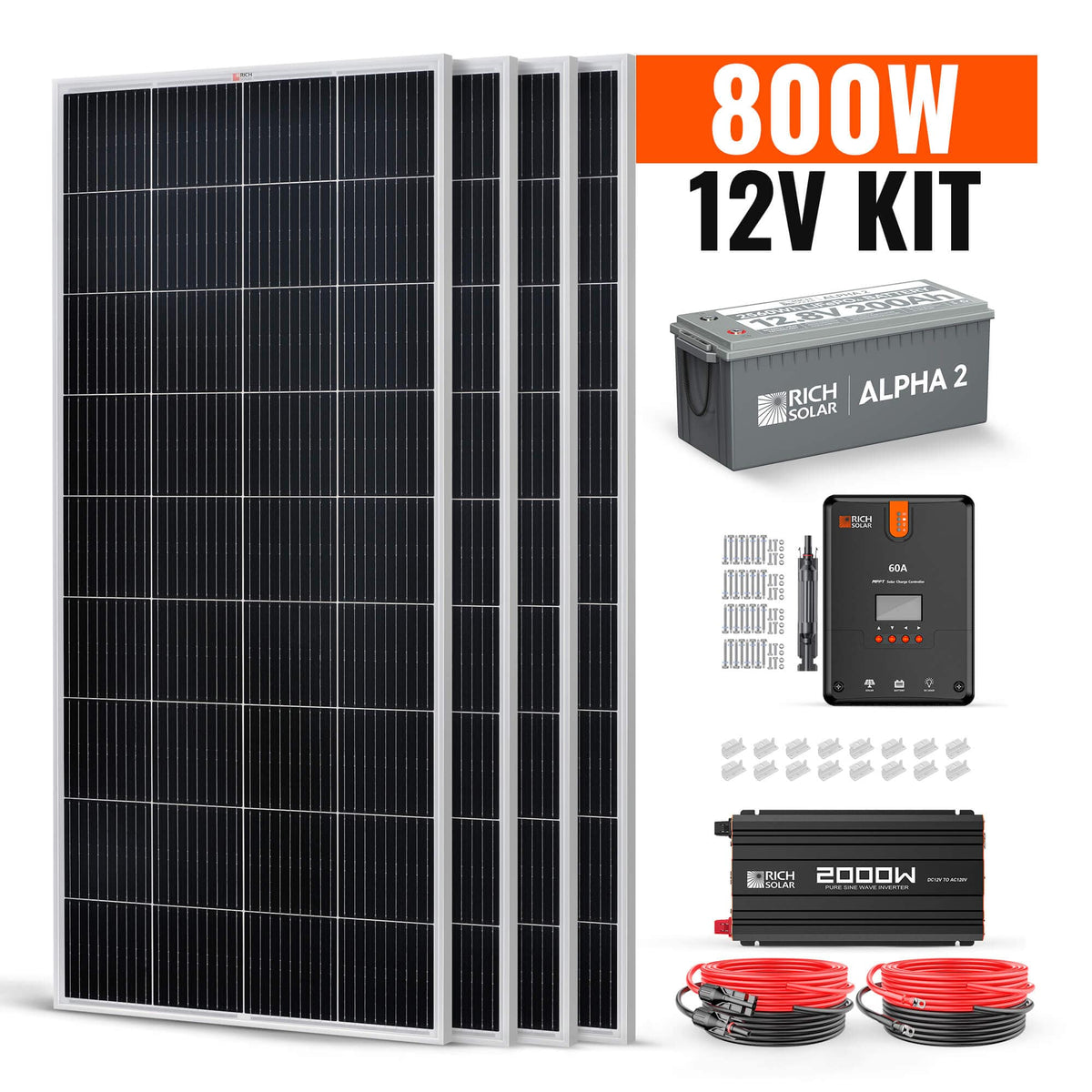

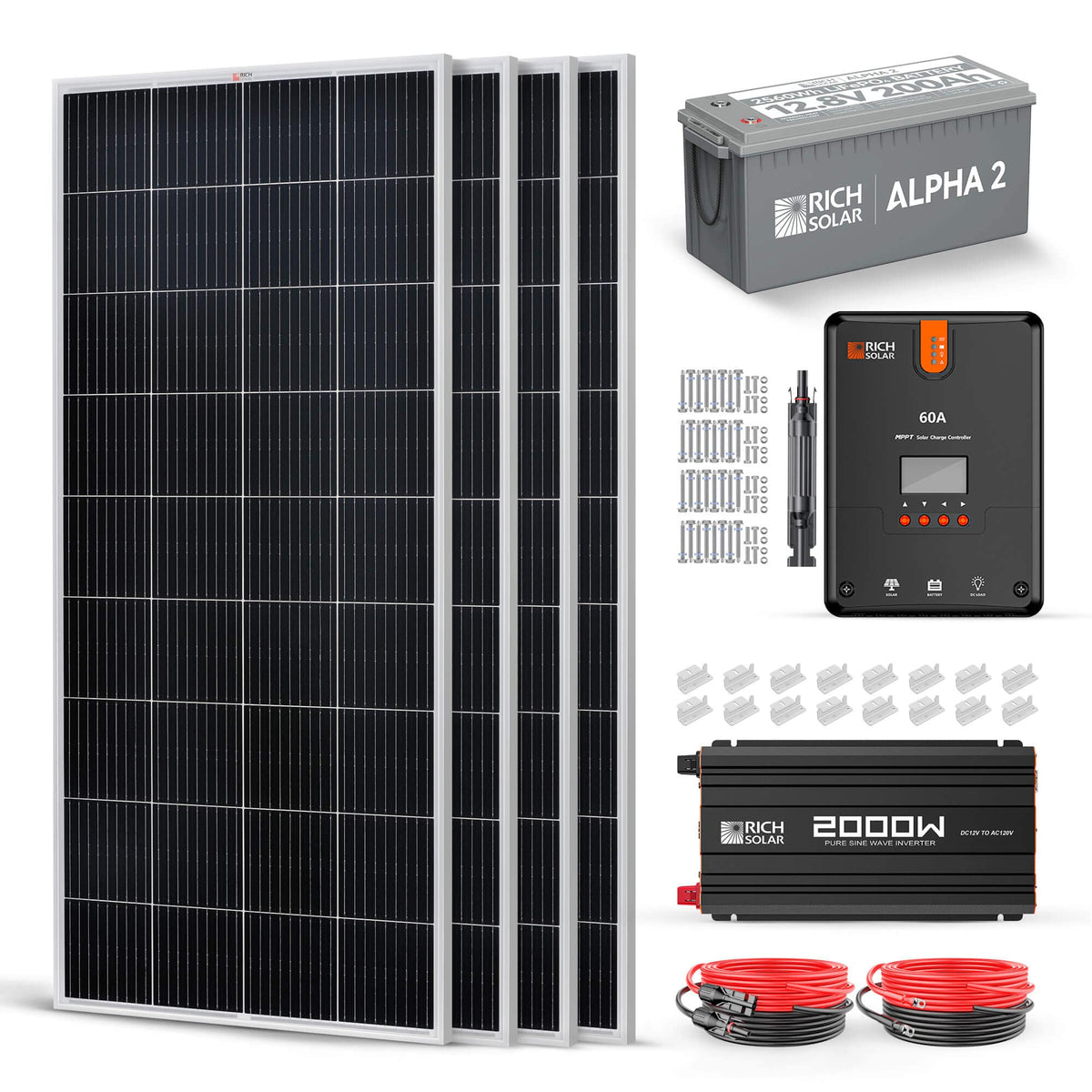

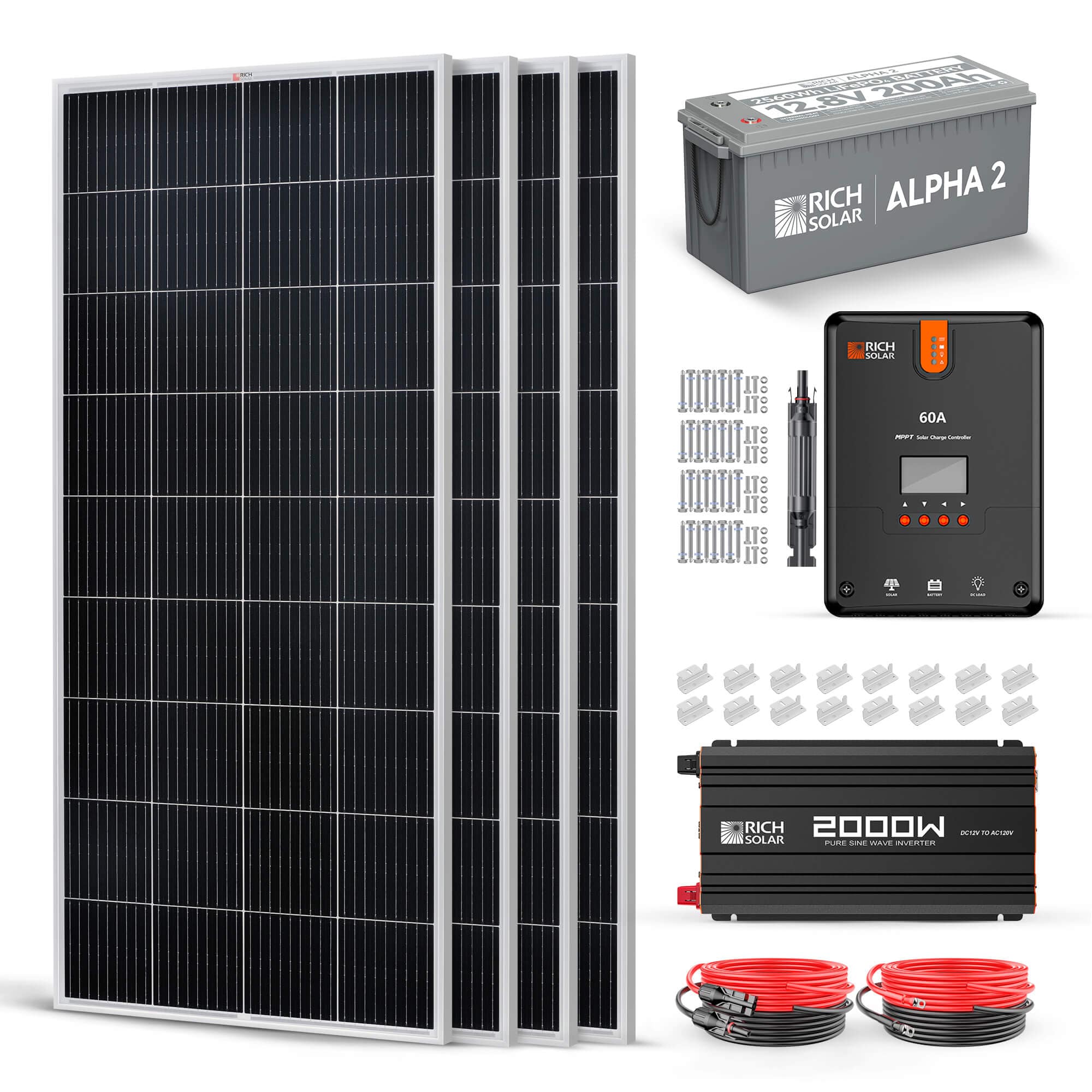

What's Included

Everything you need is included with your product.

4 x MEGA 200W 12V Panel (RS-M200)
1 x ALPHA 2 Lithium Battery (RS-B122S)
1 x NOVA 2000W 12V Inverter (RS-V2P12)
1 x 60A MPPT Charge Controller (RS-MPPT60)
4 x Z Bracket Set (RS-ZB4C)

1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
1 x 30' 10AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)

RICH SOLAR 12V 800W Complete Solar Kit Specifications

MEGA 200 Watt Solar Panel

Category	Specifications
Maximum Power(Pmax)	200W
Maximum Power Voltage(Vmp)	18.4V
Maximum Power Current(Imp)	10.9A
Open Circuit Voltage(Voc)	21.8V
Short Circuit Current(Isc)	11.6A
Nominal Operating Cell Temp (NOCT)	113 +/-35° F
Temperature Range	-40 ~ +185°F
Weight	23.6 lbs
Dimensions	58.7 x 26.8 x 1.2 in

Alpha 2 12V 200Ah LiFePO4 Battery

Category	Specifications
Cell Type	LiFePO4 Battery
Nominal Voltage	12.8V
Nominal Capacity	200ah
Nominal Energy	2560wh
Cycle Life	5000 cycles
Maximum Expansion (Parallel & Series)	4p4s
Bms	100A
Maximum Charging Current	100A
Maximum Continuous Discharge Current	110A
Charge Method	CC/CV
Charge Voltage	14.4V ± 0.2V
Recommend Charge Current	50A (0.2C)
Charge Temperature	32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature	-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature	14℉ to 113℉ (-10℃ to 45℃)
External Power Draw	100W
Internal Heating Starts	< 41℉ (5℃)
Internal Heating Stops	> 50℉ (10℃)
Net Battery Weight	48.5lb
*Size(Lwh)*	20.9x8.1x8.5in (Group 31 Size)
Housing Material	ABS (Flame Retardant Plastic)
Protection Class	IP65

NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

Category	Specifications
Model	RS-V2P12
Rated Voltage	12V DC
Continuous Power	2000W
Peak Surge	4000W
Waveform	Pure Sine Wave
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Output Efficiency	88%
AC Output Sockets	3
USB Power Port	5V / 2.1A
Power Output Control	AC On/Off Switch
Operating Temperature	14°F to 122°F
Dimensions	16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
Weight	10.1 (lb) / 4.6 (kg)

60 Amp MPPT Solar Charge Controller

Category	Specifications
Rated Battery Current	60A
Rated Load Current	20A
Max Solar Input Voltage	150V
Max Solar Input Power	800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop	= 0.26V
Discharge Circuit Voltage Drop	= 0.15V
Operating Temperature	-31 °F to 113 °F
Max Terminal Size	4AWG
Overall Dimensions	11.2 x 8.1 x 4.0 in
Net Weight	7.9 lb

Frequently-Asked Questions

Can this system run a refrigerator and microwave?

Yes. With a properly sized battery bank and inverter, this kit can support small AC appliances.

How long will it take to charge my batteries?

In peak sun, this kit can generate up to 3.2kWh per day—charging speeds vary by battery size and weather.

Can I install it on a curved roof?

Yes. Z brackets can mount on slightly curved RV roofs or be adapted with tilt mounts for cabins.

What batteries work best with this kit?

This kit supports AGM, Gel, Flooded, and LiFePO4 batteries. LiFePO4 is recommended for efficiency and lifespan.

Can I use this system indoors?

The panels must be installed outdoors, but the charge controller and batteries can be housed inside.
