RICH SOLAR 1200 Watt 24V Complete Solar Kit

The RICH SOLAR 1200 Watt 24V Complete Solar Kit is a powerful and expandable off-grid energy system, ideal for medium to large RVs, cabins, tiny homes, or workshop setups. With six 200W monocrystalline panels, a 60A MPPT charge controller, and all required accessories, this kit is built to handle larger power needs while offering long-term durability and performance. Designed for serious off-grid applications, it gives you the freedom to run more appliances, tools, and electronics with clean, renewable energy.

RICH SOLAR 1200 Watt 24V Complete Solar Kit Features

1200W Solar Output from High-Efficiency Panels

Six monocrystalline solar panels—maximize power capture and energy conversion, even in low light.

60A MPPT Solar Charge Controller

Smart charging—boosts efficiency while protecting your battery system with advanced regulation.

Complete Mounting and Wiring Kit

Ready out of the box—includes all cables, fuses, mounting brackets, and connectors.

Built for Larger Loads

Ideal for full-time off-grid use—capable of running refrigerators, water pumps, lights, and more.

Expandable and Upgrade-Ready

Designed for future scaling—supports additional panels, batteries, or higher-capacity inverters.

Placeholder Image

RICH SOLAR 1200 Watt 24V Complete Solar Kit Applications

  • Off-Grid Cabins or Small Homes – Power essentials like lighting, refrigeration, fans, and tools.
  • RV and Travel Trailer Setups – Provides dependable energy for long-term living or travel.
  • Emergency Backup Systems – Keep batteries charged and appliances running during outages.
  • Workshops and Sheds – Power equipment, lighting, and outlets for remote or mobile projects.
  • Marine and Boating Power – Sustain critical systems on larger boats or houseboats.
Placeholder Image
Placeholder Image
Placeholder Image

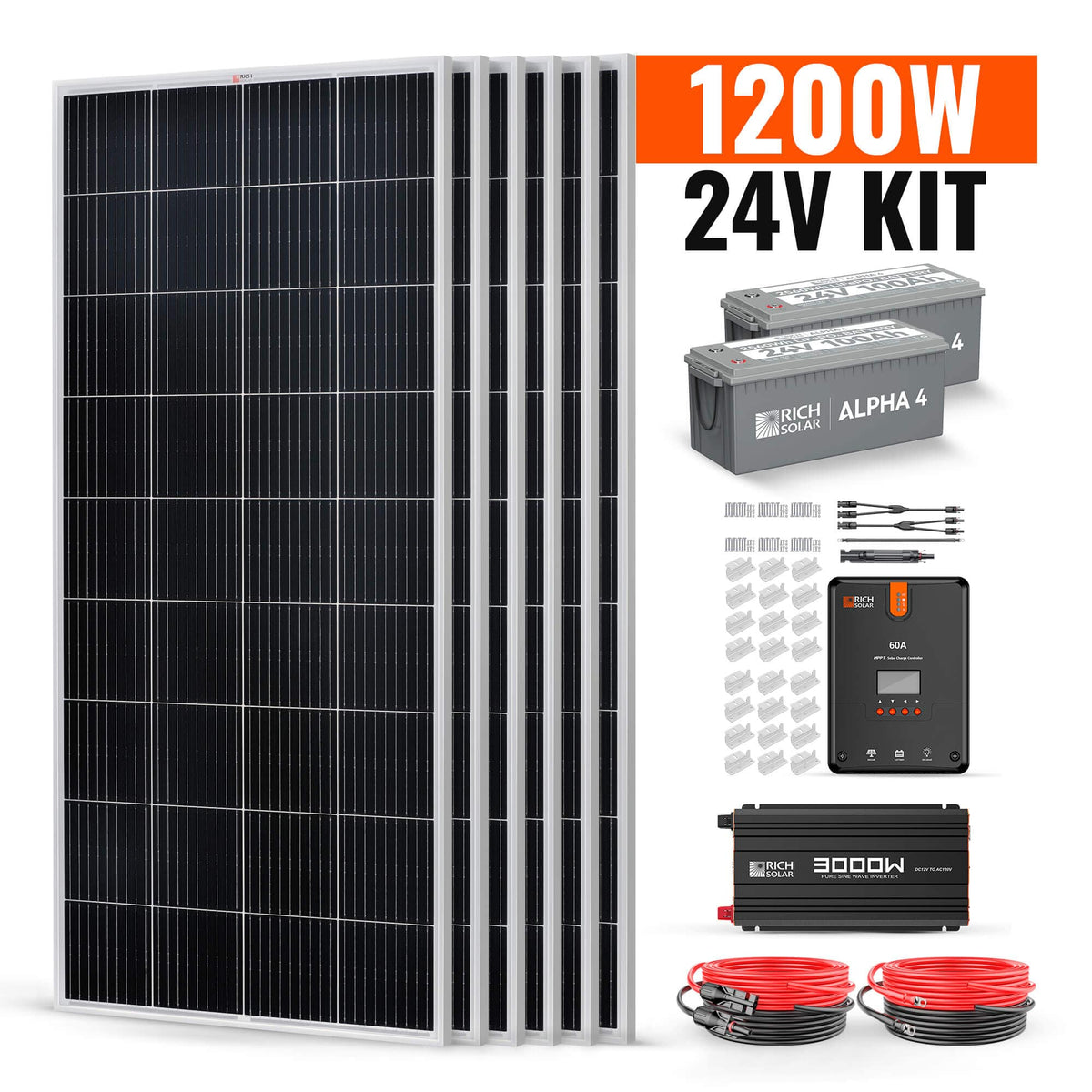

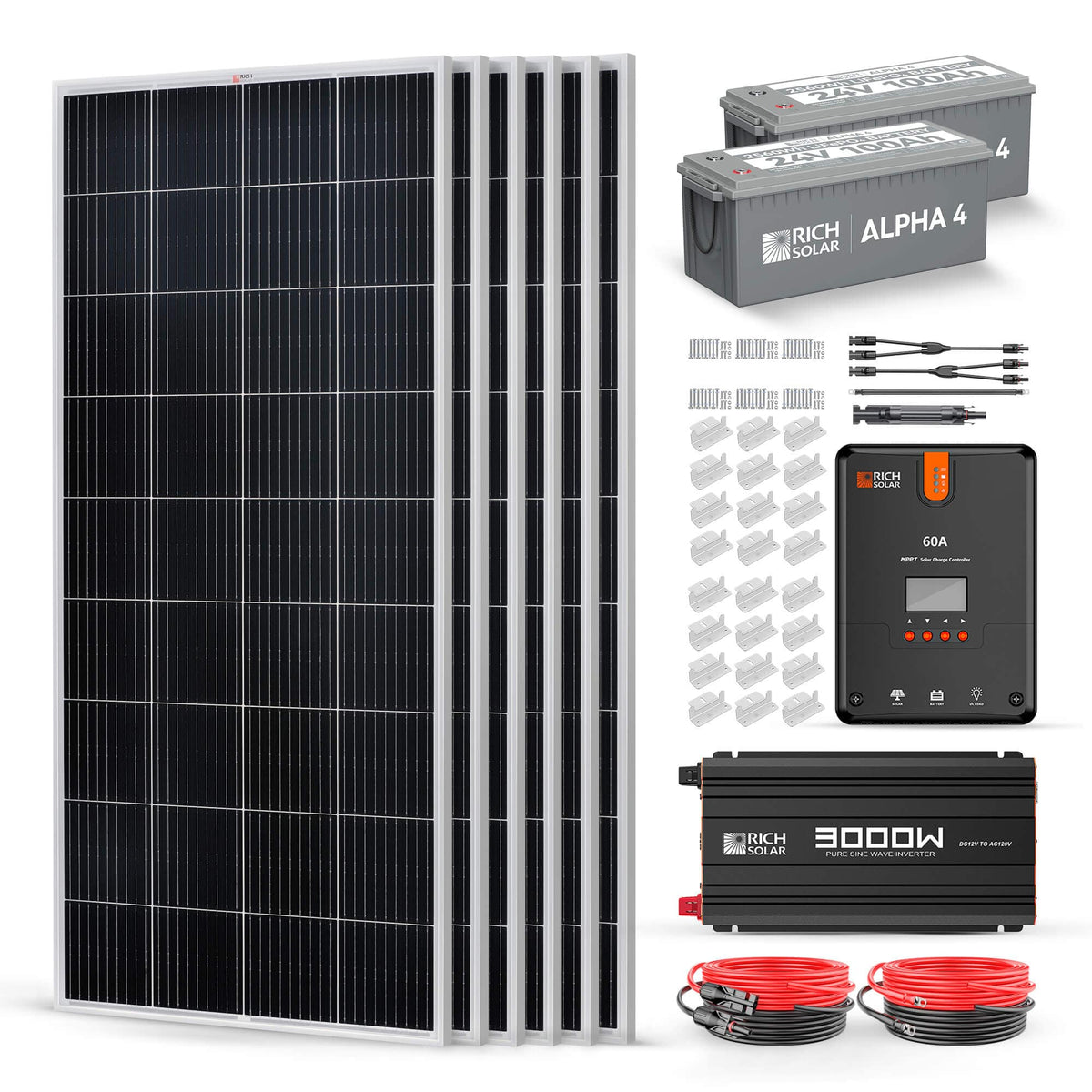

What's Included

Everything you need is included with your product.

  • 6 x MEGA 200W 12V Panel (RS-M200)
  • 2 x ALPHA 4 Lithium Battery (RS-B241S)
  • 1 x NOVA 3000W 24V Inverter (RS-V3P24)
  • 1 x 60A MPPT Charge Controller (RS-MPPT60)
  • 6 x Z Bracket Set (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder (RS-SC30F)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
  • 1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
  • 1 x 4 AWG 8 FT Battery Cable Set (RS-C48B & RS-C248R)

RICH SOLAR 1200 Watt 24V Complete Solar Kit Specifications

MEGA 200 Watt Solar Panel

Category Specifications
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 18.4V
Maximum Power Current(Imp) 10.9A
Open Circuit Voltage(Voc) 21.8V
Short Circuit Current(Isc) 11.6A
Nominal Operating Cell Temp (NOCT) 113 +/-35° F
Temperature Range -40 ~ +185°F
Weight 23.6 lbs
Dimensions 58.7 x 26.8 x 1.2 in

Alpha 4 24V 100Ah LiFePO4 Battery

Category Specifications
Cell Type LiFePO4 Battery
Nominal Voltage 25.6v
Nominal Capacity 100ah
Nominal Energy 2560wh
Cycle Life 5000 cycles
Maximum Expansion (Parallel & Series) 4p4s
Bms 100A
Maximum Charging Current 100A
Maximum Continuous Discharge Current 110A
Charge Method CC/CV
Charge Voltage 14.4V ± 0.2V
Recommend Charge Current 50A (0.2C)
Charge Temperature 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature 14℉ to 113℉ (-10℃ to 45℃)
External Power Draw 100W
Internal Heating Starts < 41℉ (5℃)
Internal Heating Stops > 50℉ (10℃)
Net Battery Weight 48.5lb
Size(L*w*h) 20.9x8.1x8.5in (Group 31 Size)
Housing Material ABS (Flame Retardant Plastic)
Protection Class IP65
Warranty 5 Years
Certifications Ul1973, Fcc, Un38.3, Etl

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

Category Specifications
Model RS-V3P24
Rated Voltage 24V DC
Continuous Power 3000W
Peak Surge 6000W
Waveform Pure Sine Wave
Input Voltage 24V DC
Output Voltage 120V AC
Output Frequency 60 Hz
Output Efficiency 88%
AC Output Sockets 3
USB Power Port 5V / 2.1A
Power Output Control AC On/Off Switch
Operating Temperature 14°F to 122°F
Dimensions 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
Weight 12.1 (lb) / 5.5 (kg)

60 Amp MPPT Solar Charge Controller

Category Specifications
Rated Battery Current 60A
Rated Load Current 20A
Max Solar Input Voltage 150V
Max Solar Input Power 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop = 0.26V
Discharge Circuit Voltage Drop = 0.15V
Operating Temperature -31 °F to 113 °F
Max Terminal Size 4AWG
Overall Dimensions 11.2 x 8.1 x 4.0 in
Net Weight 7.9 lb

Frequently-Asked Questions

Is this kit good for a full-time off-grid home?

Yes. It’s ideal for small to mid-size off-grid homes or cabins running 24V battery systems.

Can this charge a 12V battery system?

This kit is designed for 24V systems. For 12V systems, a different configuration or step-down equipment would be needed.

Can I add more panels in the future?

Yes. The 60A MPPT controller supports additional input, and the system is built for expandability.

What batteries are compatible?

Works with AGM, Gel, Flooded, and LiFePO4 batteries—24V configuration recommended.

Do I need an inverter with this kit?

Yes, if you plan to run AC appliances. This kit powers your DC battery system; an inverter is required to convert DC to AC.
