RICH SOLAR 24V 1600W Complete Solar Kit Solar Kits Rich Solar

RICH SOLAR 24V 1600W Complete Solar Kit

BY: Rich Solar | SKU: RS-CK1600 Availability: In Stock
$4,999.99
$3,999.99
You Save: $1,000.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Rich Solar Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

RICH SOLAR 24V 1600W Complete Solar Kit

The RICH SOLAR 24V 1600W Complete Solar Kit is a heavy-duty off-grid power system designed to support high-demand applications. With eight 200W monocrystalline solar panels and a robust 60A MPPT charge controller, this kit is ideal for larger off-grid homes, full-time RV setups, cabins, and backup systems. It provides strong, consistent power for running household appliances, power tools, and daily essentials. Built for expandability and long-term reliability, this system is a smart solution for those serious about solar.

RICH SOLAR 24V 1600W Complete Solar Kit Features

1600W Solar Array with Monocrystalline Panels

Eight high-efficiency panels—delivers maximum power output with excellent performance in varying light conditions.

60A MPPT Solar Charge Controller

Advanced power management—charges batteries faster and more efficiently while protecting against overcharge and reverse polarity.

All-Inclusive Kit Design

No guesswork—includes panels, controller, mounting brackets, cables, and fuses—everything you need for a full install.

Optimized for Larger Off-Grid Loads

Power more—designed to run lights, refrigerators, pumps, tools, and small AC systems (with inverter).

Scalable and Durable

Built for the future—expandable with additional components and made with weather-resistant materials.

Placeholder Image

RICH SOLAR 24V 1600W Complete Solar Kit Applications

  • Large Off-Grid Cabins or Homes – Supports multiple rooms and appliances for daily use.
  • Full-Time RV Living – Runs major electronics and energy needs while on the road.
  • Backup Emergency Power – Keeps essential systems running during outages.
  • Remote Workshops or Sheds – Power for tools, equipment, and lighting in off-grid locations.
  • Boat or Marine Power – Perfect for houseboats or docked marine systems needing 24V input.
Placeholder Image
Placeholder Image
Placeholder Image

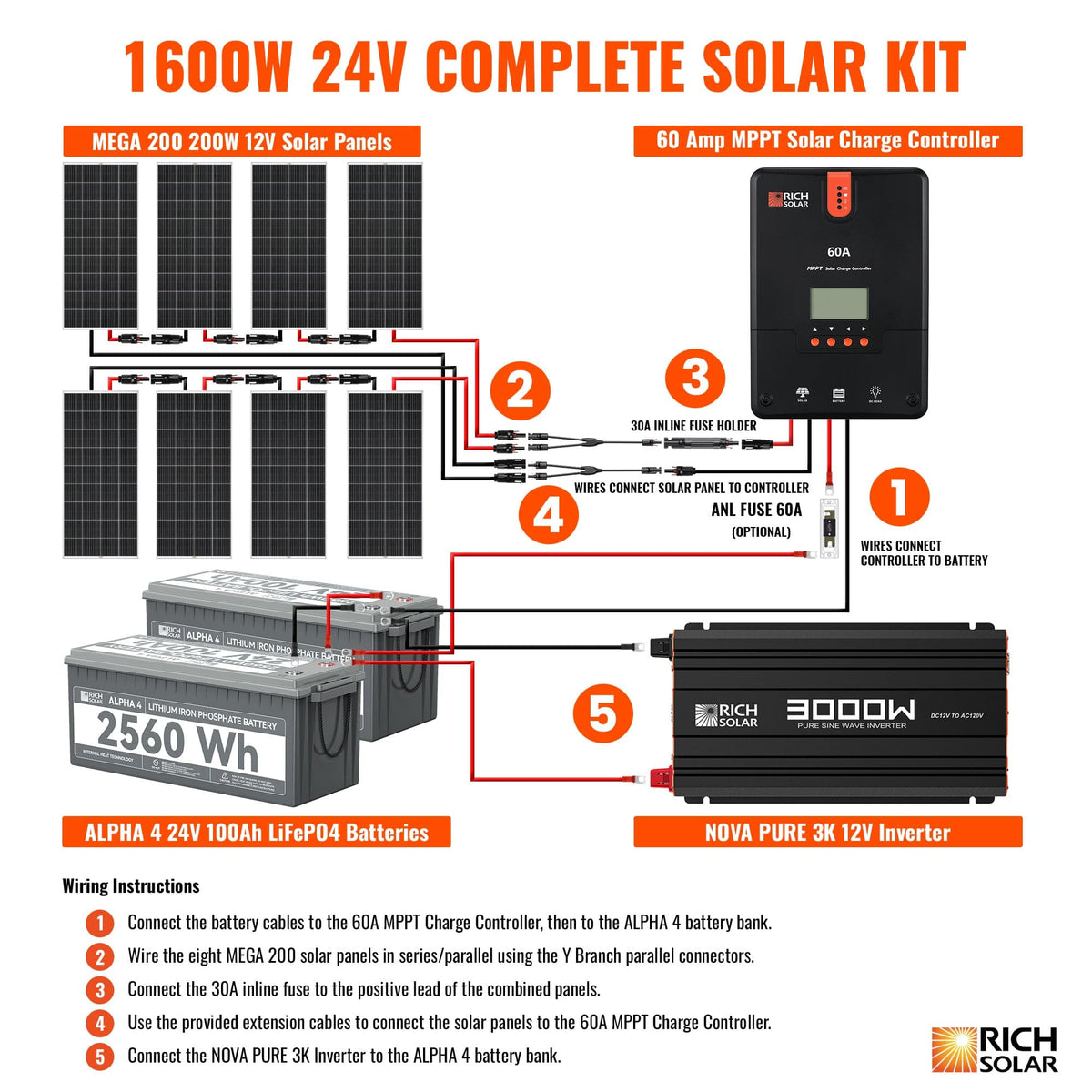

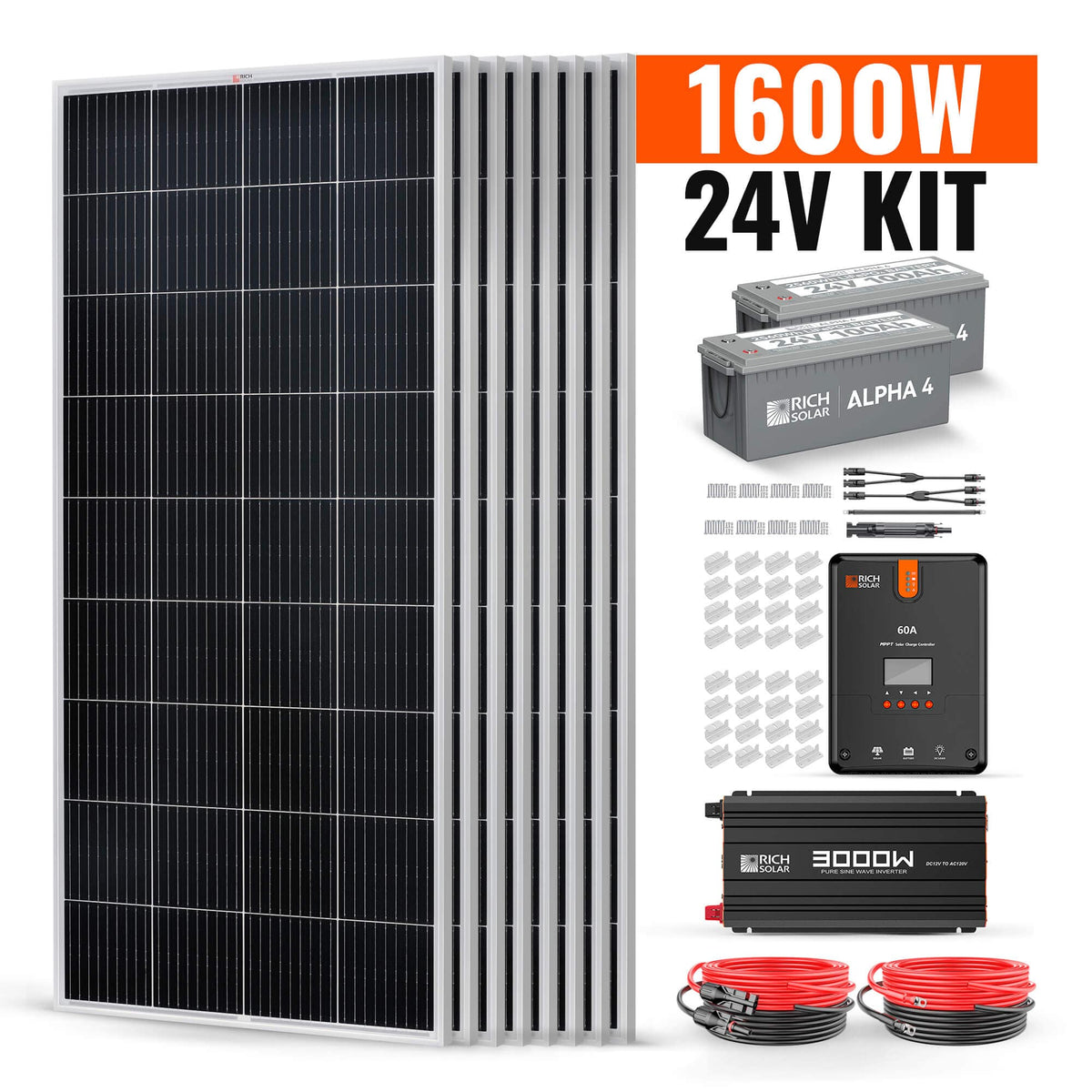

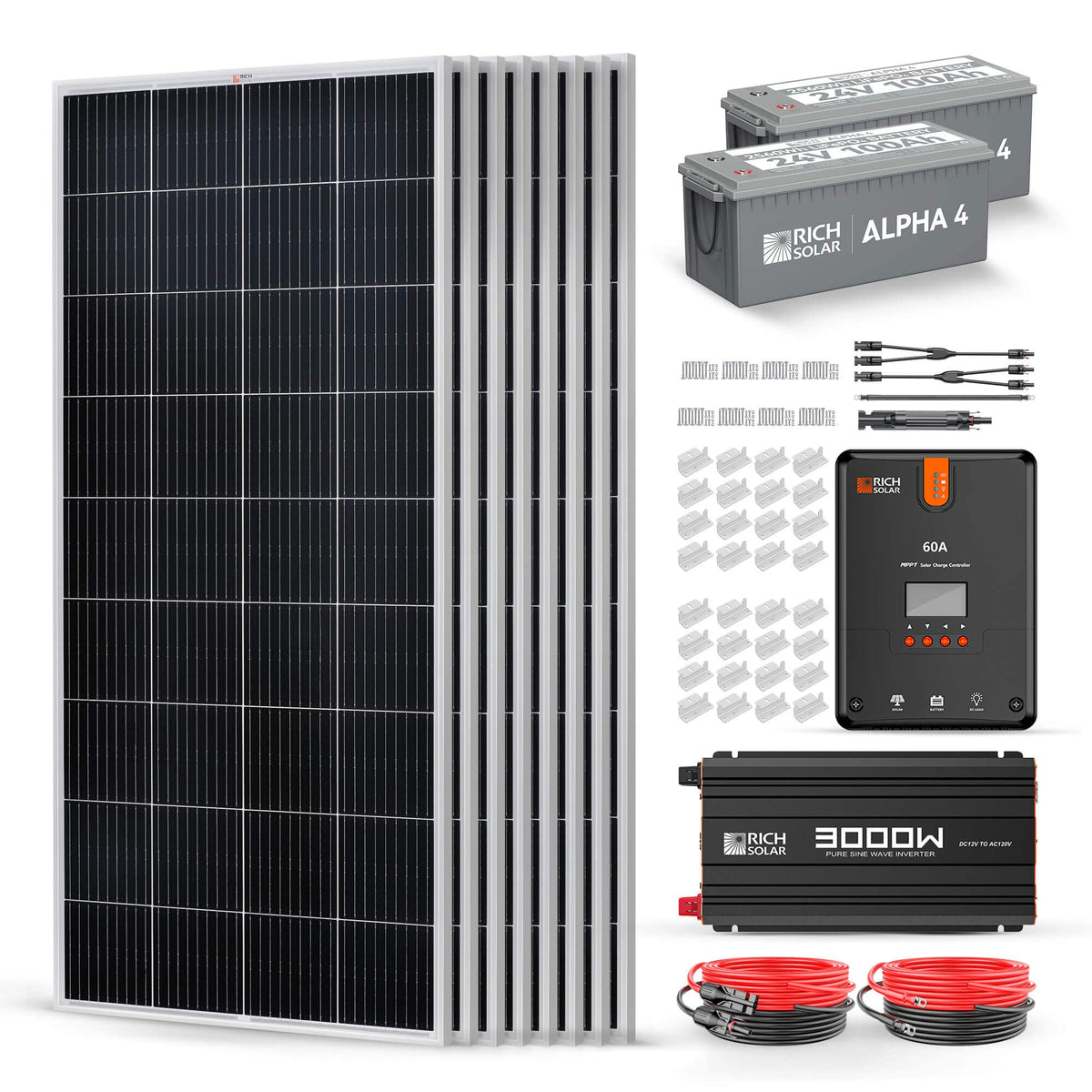

What's Included

Everything you need is included with your product.

  • 8 x MEGA 200W 12V Panel (RS-M200)
  • 2 x ALPHA 4 Lithium Battery (RS-B241S)
  • 1 x NOVA 3000W 24V Inverter (RS-V3P24)
  • 1 x 60A MPPT Charge Controller (RS-MPPT60)
  • 8 x Z Bracket Set (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder (RS-SC15F)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
  • 1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
  • 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
  • 1 x 8 4 AWG Battery Cable Set (RS-C48R & RS-C48B)

RICH SOLAR 24V 1600W Complete Solar Kit Specifications

MEGA 200 Watt Solar Panel

Category Specifications
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 18.4V
Maximum Power Current(Imp) 10.9A
Open Circuit Voltage(Voc) 21.8V
Short Circuit Current(Isc) 11.6A
Nominal Operating Cell Temp (NOCT) 113 +/-35° F
Temperature Range -40 ~ +185°F
Weight 23.6 lbs
Dimensions 58.7 x 26.8 x 1.2 in

Alpha 4 24V 100Ah LiFePO4 Battery

Category Specifications
Cell Type LiFePO4 Battery
Nominal Voltage 25.6v
Nominal Capacity 100ah
Nominal Energy 2560wh
Cycle Life 5000 cycles
Maximum Expansion (Parallel & Series) 4p4s
Bms 100A
Maximum Charging Current 100A
Maximum Continuous Discharge Current 110A
Charge Method CC/CV
Charge Voltage 14.4V ± 0.2V
Recommend Charge Current 50A (0.2C)
Charge Temperature 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature 14℉ to 113℉ (-10℃ to 45℃)
External Power Draw 100W
Internal Heating Starts < 41℉ (5℃)
Internal Heating Stops > 50℉ (10℃)
Net Battery Weight 48.5lb
Size(L*w*h) 20.9x8.1x8.5in (Group 31 Size)
Housing Material ABS (Flame Retardant Plastic)
Protection Class IP65
Warranty 5 Years
Certifications Ul1973, Fcc, Un38.3, Etl

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

Category Specifications
Model RS-V3P24
Rated Voltage 24V DC
Continuous Power 3000W
Peak Surge 6000W
Waveform Pure Sine Wave
Input Voltage 24V DC
Output Voltage 120V AC
Output Frequency 60 Hz
Output Efficiency 88%
AC Output Sockets 3
USB Power Port 5V / 2.1A
Power Output Control AC On/Off Switch
Operating Temperature 14°F to 122°F
Dimensions 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
Weight 12.1 (lb) / 5.5 (kg)

60 Amp MPPT Solar Charge Controller

Category Specifications
Rated Battery Current 60A
Rated Load Current 20A
Max Solar Input Voltage 150V
Max Solar Input Power 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop = 0.26V
Discharge Circuit Voltage Drop = 0.15V
Operating Temperature -31 °F to 113 °F
Max Terminal Size 4AWG
Overall Dimensions 11.2 x 8.1 x 4.0 in
Net Weight 7.9 lb

Frequently-Asked Questions

Can this power a full-sized refrigerator and a washing machine?

Yes, with the appropriate battery bank and inverter, this kit can support most household appliances.

What battery type should I use?

This kit works with 24V systems—LiFePO4, AGM, Gel, or Flooded Deep Cycle batteries are recommended.

Is it compatible with grid-tied systems?

No. This is an off-grid system meant for standalone use.

Does it come with an inverter?

No. You will need to purchase a separate inverter if you want to run AC appliances.

How difficult is it to install?

Most users find it straightforward with basic tools. All parts are plug-and-play with clear polarity markings.
