RICH SOLAR 1600 Watt Solar Kit Solar Kits Rich Solar Standard Kit

RICH SOLAR 1600 Watt Solar Kit

BY: Rich Solar | SKU: RS-K1660 Availability: In Stock
$2,399.99
$1,919.99
You Save: $480.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Rich Solar Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

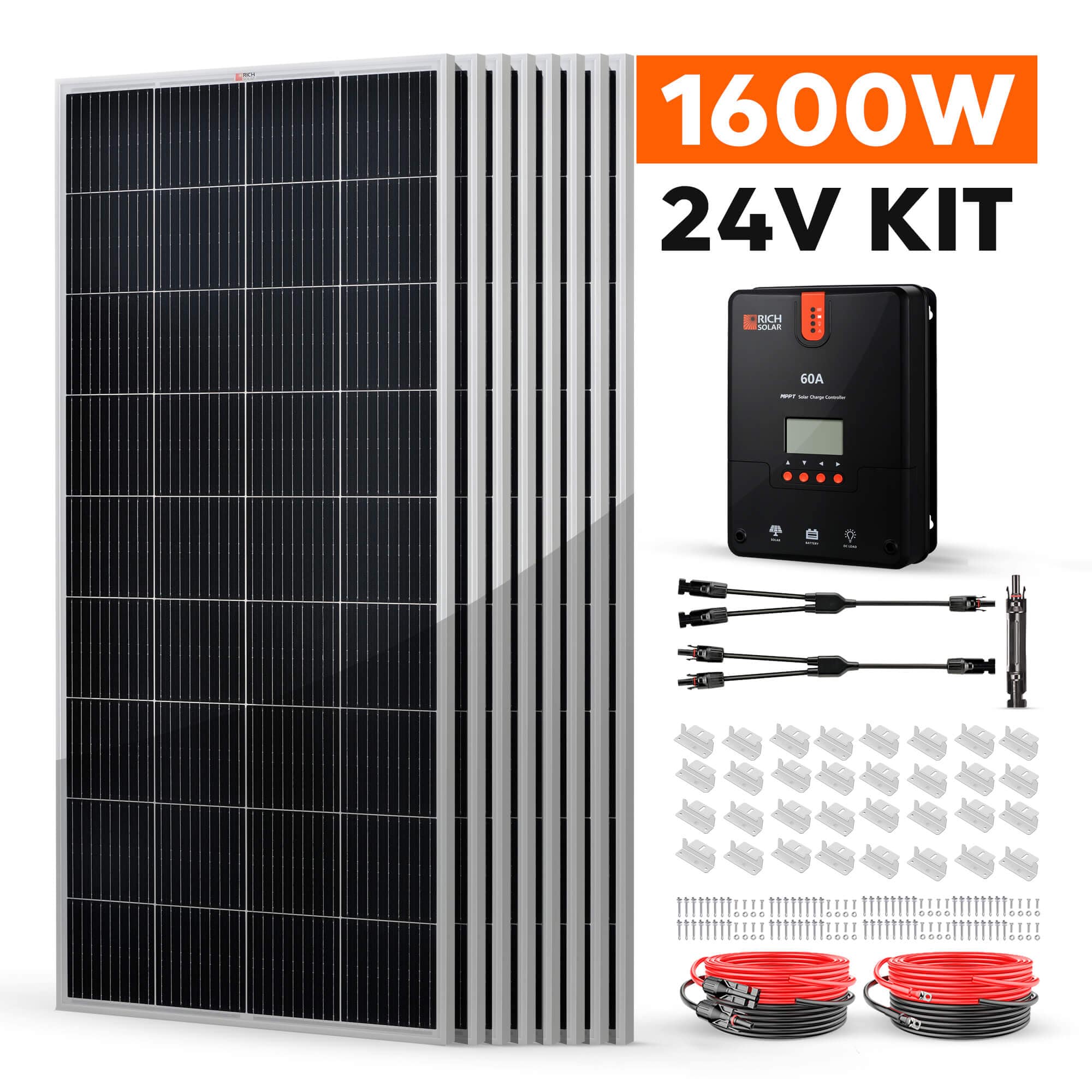

RICH SOLAR 1600 Watt Solar Kit

The RICH SOLAR 1600 Watt Solar Kit is a robust and efficient off-grid solution designed to meet the energy needs of RVs, cabins, boats, and remote installations. This 24V system includes eight high-efficiency 200W monocrystalline panels, a 60A MPPT charge controller, and all necessary mounting hardware and cables, providing reliable and sustainable power for various applications.

RICH SOLAR 1600 Watt Solar Kit Features

High-Efficiency Monocrystalline Panels – Eight 200W panels with 9 busbars each deliver optimal power output and performance.

Durable Construction – Tempered glass and anodized aluminum frames ensure long-lasting durability and resistance to harsh weather conditions.

Advanced 60A MPPT Charge Controller – Optimizes charging efficiency and supports various battery types, including lithium, AGM, and lead-acid.

Expandable System – Designed to allow for future expansion by adding more panels or batteries as energy needs grow.

Easy Installation – Pre-drilled holes and included mounting hardware allow for quick and secure setup.

Placeholder Image

RICH SOLAR 1600 Watt Solar Kit Applications

  • RVs and Campers – Provides off-grid power for appliances, lighting, and electronics during travel.
  • Cabins and Tiny Homes – Ideal for remote locations lacking access to the power grid.
  • Boats and Marine Use – Keeps batteries charged and powers onboard systems while at sea.
  • Emergency Backup – Serves as a reliable power source during outages and natural disasters.
  • Remote Worksites – Supplies energy for tools and equipment in off-grid job locations.
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image

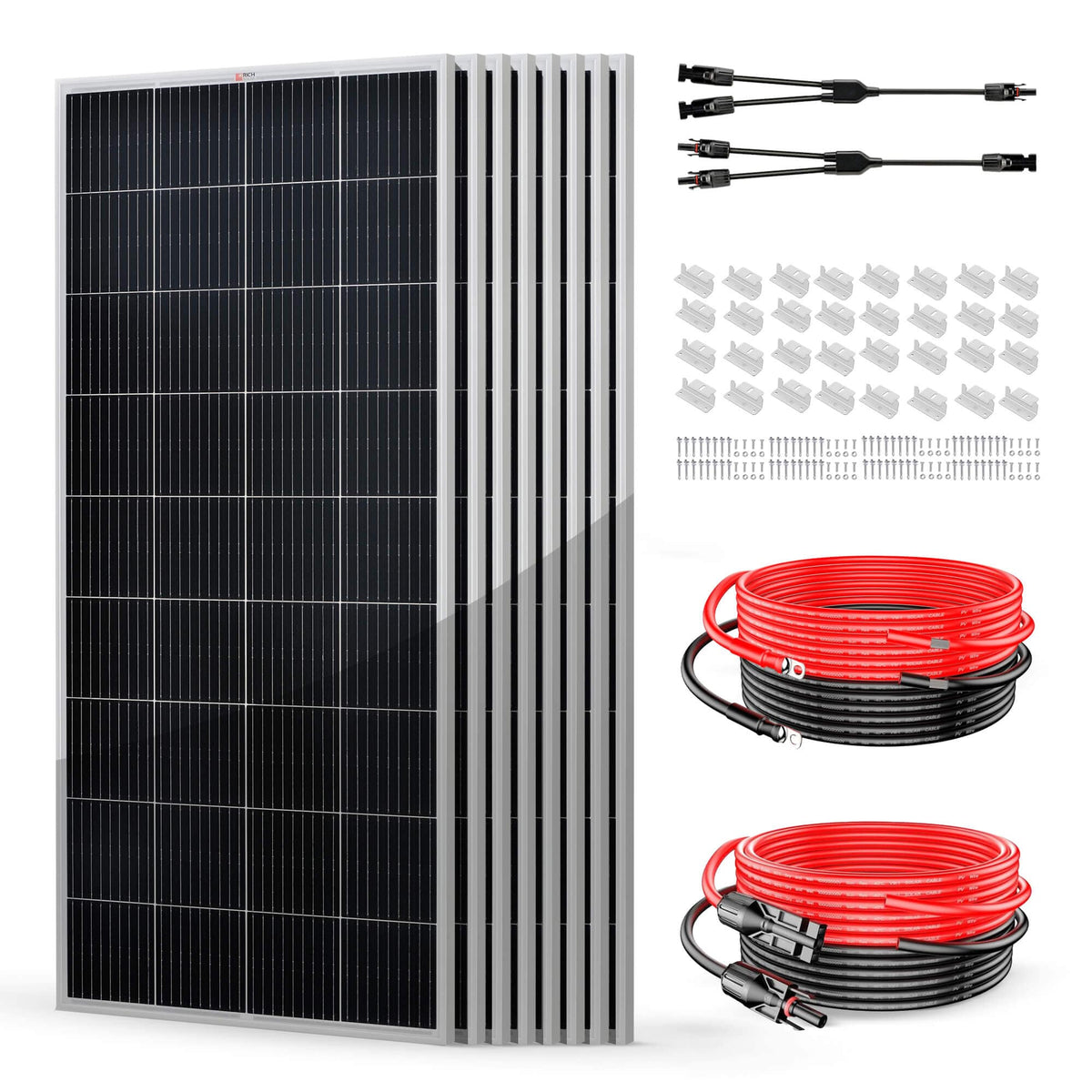

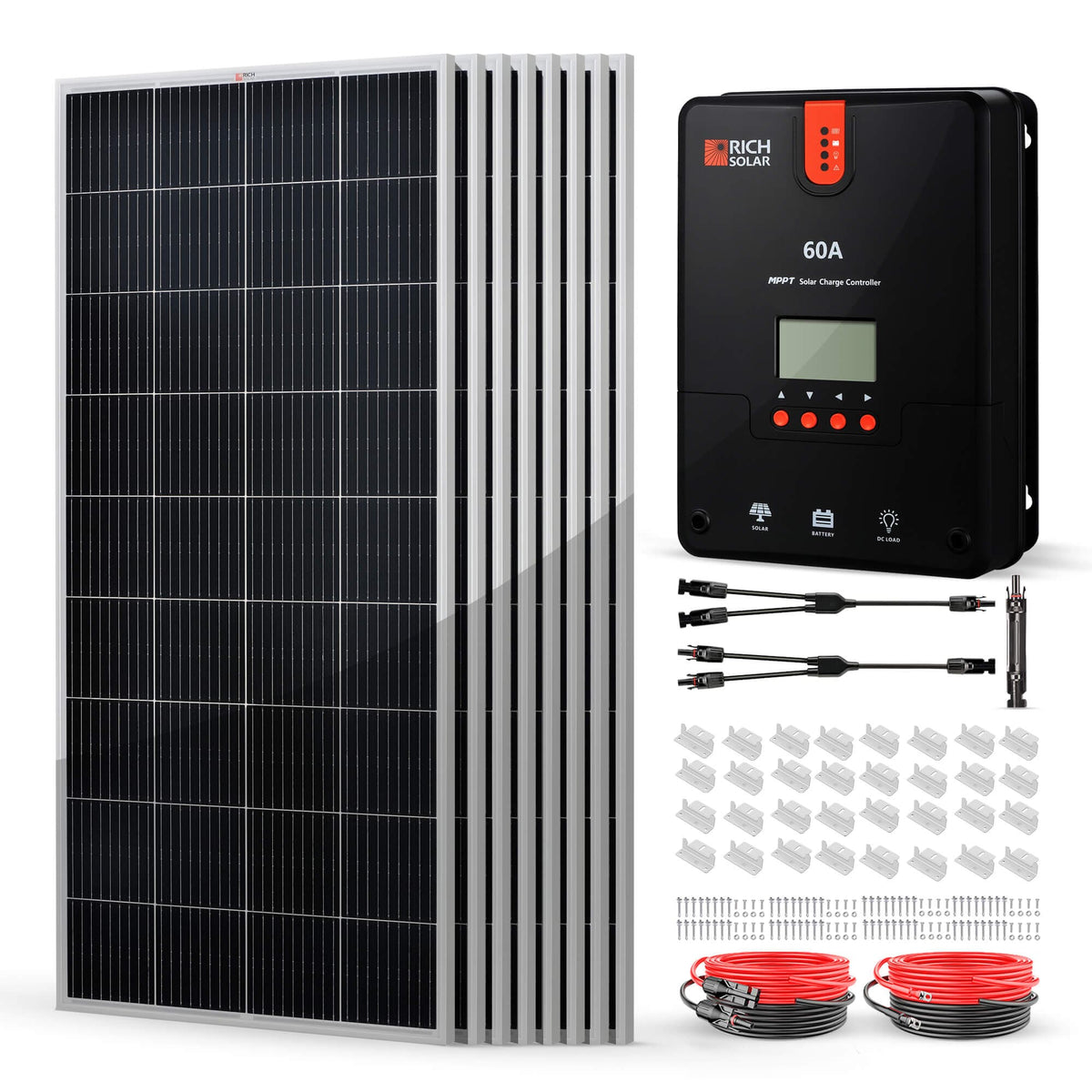

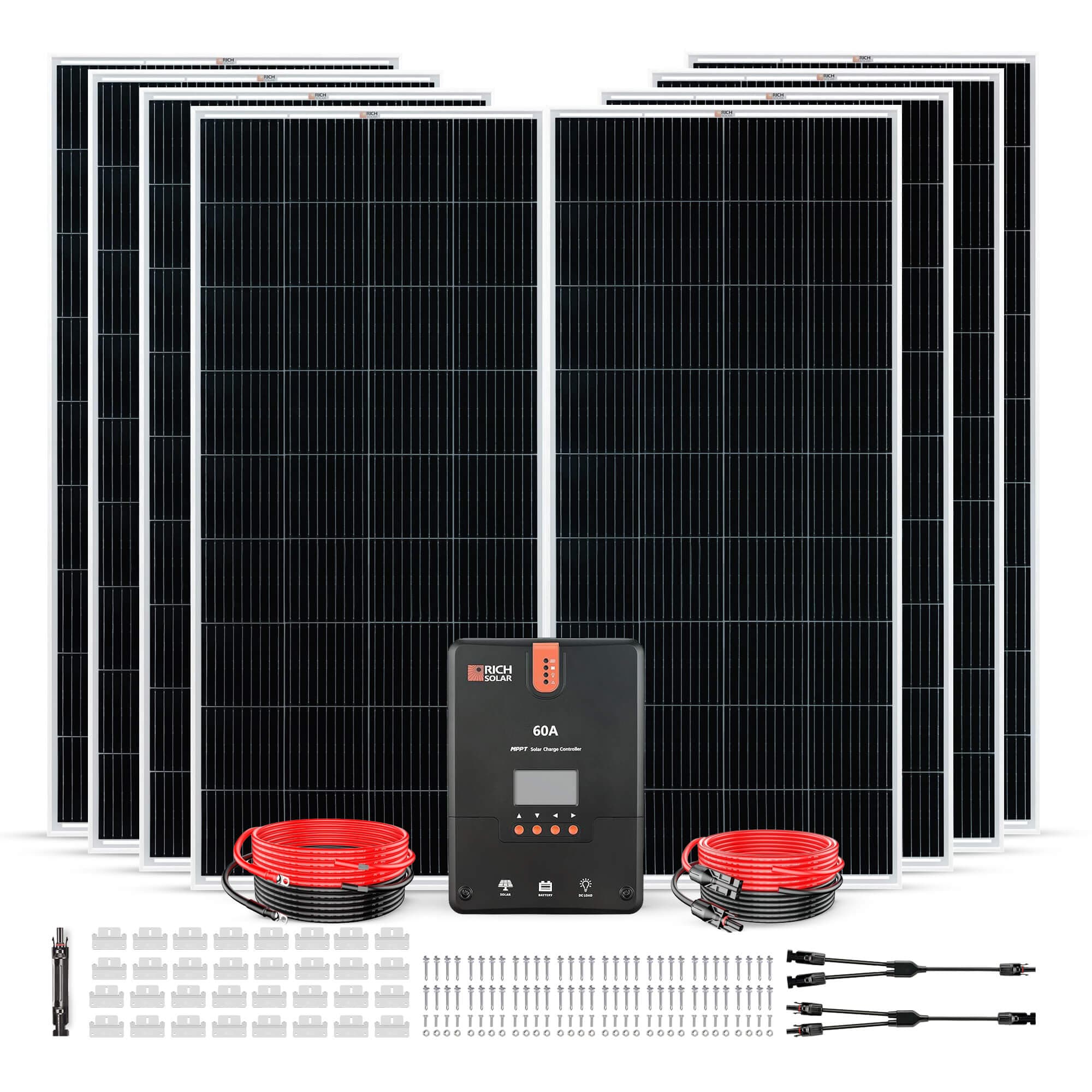

What's Included

Everything you need is included with your product.

  • 8 x 200 Watt Monocrystalline Solar Panel(RS-M200)
  • 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
  • 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
  • 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
  • 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
  • 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
  • 8 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder with Fuse(RS-SC30F)
  • 1 x Y Branch Parallel Adapters(RS-T2)

RICH SOLAR 1600 Watt Solar Kit Specifications

MEGA 200 Watt Solar Panel

Category Specifications
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 18.4V
Maximum Power Current(Imp) 10.9A
Open Circuit Voltage(Voc) 21.8V
Short Circuit Current(Isc) 11.6A
Nominal Operating Cell Temp (NOCT) 113 +/-35° F
Temperature Range -40 ~ +185°F
Weight 23.6 lbs
Dimensions 58.7 x 26.8 x 1.2 in

60 Amp MPPT Solar Charge Controller

Category Specifications
Rated Battery Current 60A
Rated Load Current 20A
Max Solar Input Voltage 150V
Max Solar Input Power 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop = 0.26V
Discharge Circuit Voltage Drop = 0.15V
Operating Temperature -31 °F to 113 °F
Max Terminal Size 4AWG
Overall Dimensions 11.2 x 8.1 x 4.0 in
Net Weight 7.9 lb

Frequently-Asked Questions

Can I expand this system in the future?

Yes, the system is designed to be expandable. You can add more panels and batteries as your energy needs increase.

Is the charge controller compatible with lithium batteries?

Yes, the included MPPT charge controller supports various battery types, including lithium, AGM, and lead-acid.

What tools are required for installation?

Basic tools like a drill and screwdriver are sufficient. All necessary mounting hardware and cables are included.
